VESSEL NAME

PUR043

TYPE

PURSE SEINER

CONVERSION(S)

2011 LENGTHENED LENTHENED FROM 27.5M TO33.76 M 3 x FURTHER RSW TANKS BUILT IN 1 x STAB TANK FITTED VESSEL SANDBLASTED AND PAINTED NEW PIPES IN ALL RSW TANKS 2002 REBUILT TO PURSE SEINER RSW TANKS FITTED - 3 OFF AND RSW SYSTEM, PURSE SEINE EQUIPMENT

HULL MATERIAL

-

FLAG

-

PORT OF REGISTRY

-

BUILT YEAR

1999

BUILT PLACE

ULVAN BAT AS, NORWAY

CLASSIFICATION

NORWEGIAN MARITIME DIRECTORATE

CLASS NOTATION

-

SS

-

DD

-

LOA (M)

33.76

LOA BETWEEN MASTS (M)

-

LBP (M)

-

BEAM (M)

9.00

DEPTH (M)

4.50

SUMMER DRAFT (M)

5.29

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

497.00

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

149.00

PANAMA NT (MT)

-

SUEZ NT (MT)

-

SUMMER DWT (MT)

-

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

DISPLACEMENT (MT)

-

LDT (MT)

-

GEAR(S)

-

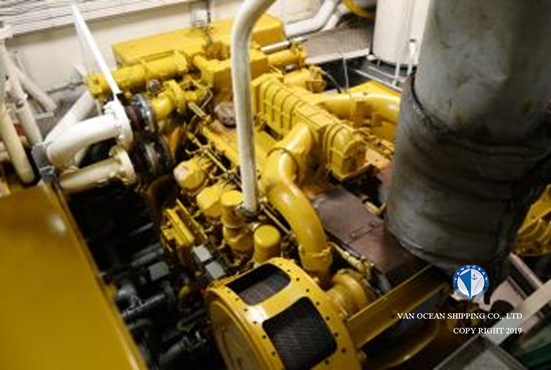

M/E(S)

CATERPILLAR, 3508 TAB 1019 BHP

M/E POWER (KW)

756

A/E(S)

AUXILIARY ENGINE 1: CATERPILLAR 3406TA, 250 KW, 335 HP. TOTAL RUNNING HOURS: 28,500 AS PER 06.2018. AT 22,000HRS. AUXILIARY ENGINE 2: CATERPILLAR 3406TA, 250 KW, 335 HP. TOTAL RUNNING HOURS: 30,000 AS PER 06.2018. AT 22,000HRS. AUXILIARY ENGINE 3: CUMMINS KTA15DM, 550 KW, 738 HP, 525 KVA. TOTAL RUNNING HOURS: 3,148 AS PER 07.2018.

GENERATOR(S)

1 x 360KVA 1 x 306KVA 1 x HARBOUR GENSET

SHAFT GENERATOR(S)

1

PROPELLER(S)

HJELSETH, DIAM: 2.15M

SPEED /CONSUMPTIONS

-

FUEL TYPE

-

BUNKER CAPACITY (CBM)

-

TANKS CAPACITY (CBM)

FW: 45CBM

COMPARTMENT(S)

-

NUMBER OF CARGO HOLDS

-

CARGO CAPACITY (CBFT)

-

CARGO CAPACITY (CBM)

-

NUMBER OF FREEZING HOLDS

-

FREEZING HOLD CAPACITY (CBFT)

17650

FREEZING HOLD CAPACITY (CBM)

500

COOLING SYSTEM

1 x RSW SYSTEM 350,000 KCAL/HR FREON BASED 2 x HOWDEN COMPRESSORS ALL PIPES NEW 2011

TEMPERATURE (℃)

-

DECK(S)

-

WATERTIGHT BULKHEAD(S)

-

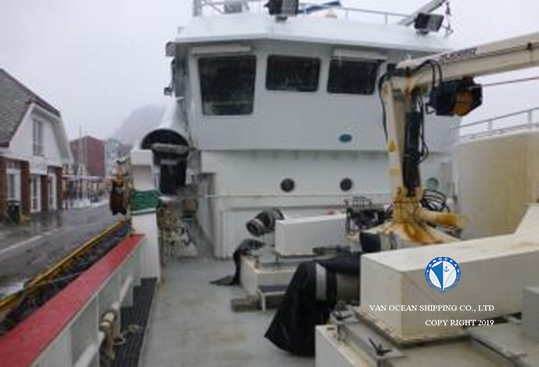

DECK EQUIPMENTS

2 x PURSE SEINE WINCHES 1 x NET HAULER 1 x NET STACKER, 2011 2 x 17.8 TS RAPP SPLIT WINCHES 2 x 5 TS, RAPP HYDEMA AUX WINCHES 1 x SM TRIPLEX KN10 DECK CRANE 1 x TRIPLEx ROLLER (LEGGERULL) 1 x 7 TS/M, GUERRA DECK CRANE 1 x RAPP HYDEMA 14' FISH PUMP 1 x VACUUM TANK FOR DISCHARGE WTH 2 x PUMP UNITS

FACTORY

-

WATER MAKER

-

SEPARATORS

-

BOILER(S)

-

SAFTY EQUIPMENTS

-

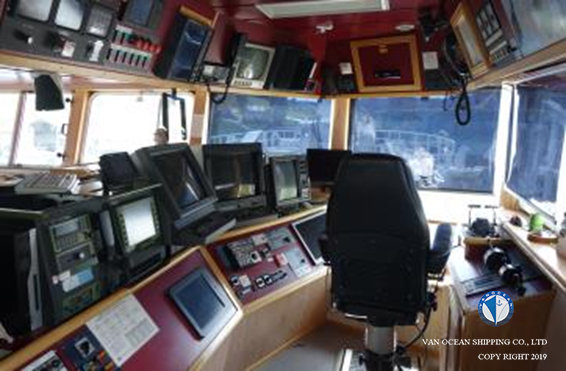

ELECTRONICS

SONARS: 1 x FURUNO LOW FREQ SONAR, 24 KHZ 1 x KAIJO DENKI HIGH FREQ SONAR, 2011 1 x FURUNO FSV 24 HIGH FREQ SONAR ECHO SOUNDERS: 1 x SIMRAD ES 222 ECHO SUNDER 1 x SIMRAD ES 60 ECHO SOUNDER OTHER: 1 x FURUNO FR-2125 RADAR 1 x FURUNO FR-7062 RADAR 1 x SIMRAD ROBERTSON AP9 MK III AUTOPILOT 1 x SIMRAD ROBERTSON AP45 1 x FURUNO GP-80 DGPS 1 x JRC DGPS 2000 DGPS 1 x SIMRAD DEPTH SENSOR 1 x SIMRAD ROBERTSONRCC-50 GYRO COMPASS 1 x FURUNO CI-60G LOG 2 x FURUNO Nx-500 NAVTEx 1 x MAxSEA PRO CHART PLOTTER 1 x SAILOR RT 2047 VHF 1 x SAILOR RT 4822 VHF 1 x CURRENT INDICATO

INSURANCE

-

CREW

-

ACCOMMODATION

12 PERSONS 8 x CABINS

INSPECTION

-

DELIVERY

-

PRICE

USD 4.085 MILLION

REMARK(S)

STEERING GEAR: ULSTEIN TENFJORD SIDE THRUSTER: 1 x 400 BHP AFT + 1 x 250 BHP FORE PURSE NET BIN: 80 CBM
