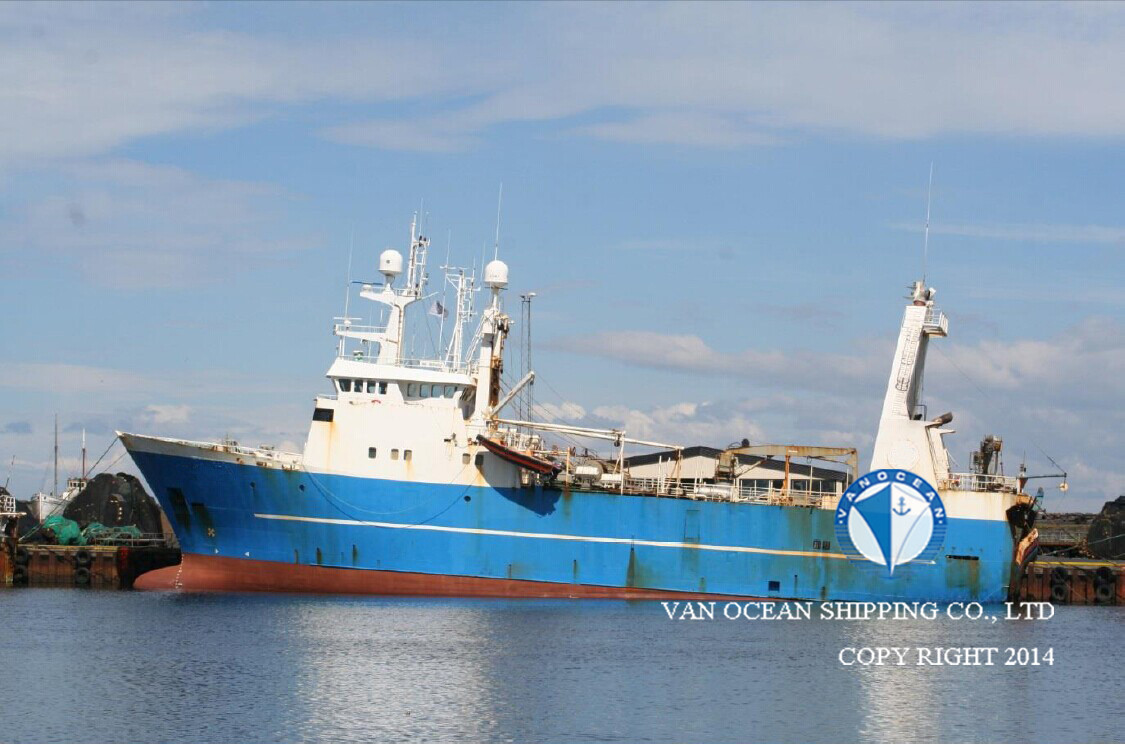

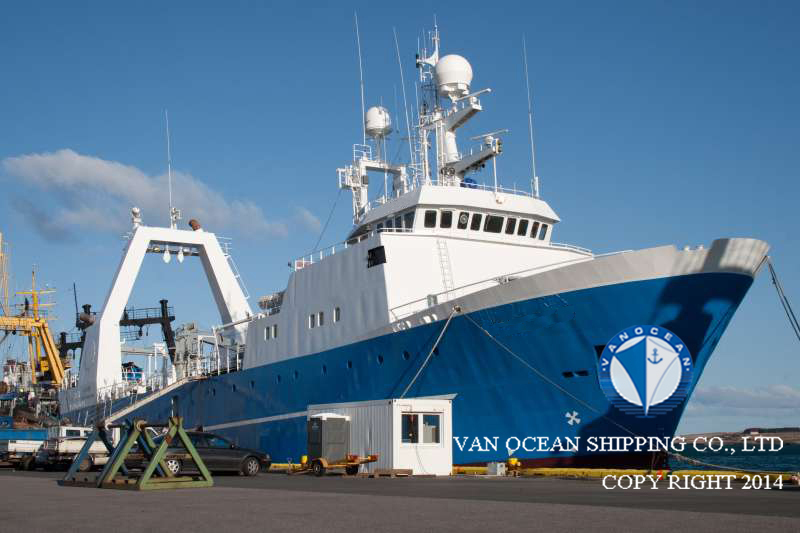

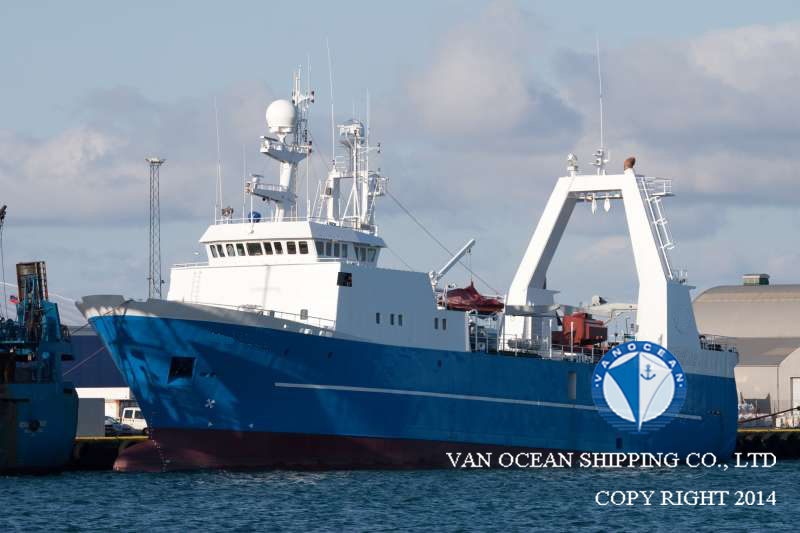

VESSEL NAME

TRA175

TYPE

TRAWLER

CONVERSION(S)

2006, 2010, 2011

HULL MATERIAL

-

FLAG

-

PORT OF REGISTRY

-

BUILT YEAR

1986

BUILT PLACE

STERKODER, NORWAY

CLASSIFICATION

DNV

CLASS NOTATION

+1A1, ICE C, STERN TRAWLER

SS

-

DD

-

LOA (M)

57.00

LOA BETWEEN MASTS (M)

-

LBP (M)

50.70

BEAM (M)

13.01

DEPTH (M)

-

SUMMER DRAFT (M)

-

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

1591.00

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

638.00

PANAMA NT (MT)

-

SUEZ NT (MT)

-

SUMMER DWT (MT)

800.00

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

DISPLACEMENT (MT)

-

LDT (MT)

-

GEAR(S)

CRANE, 1 x SBG EHSC 3.08+4 SWL 3MT (NEW STRONGER WINCH 2011) CRANE, 1 x SBG EHSC 3.06+3 SWL 3MT

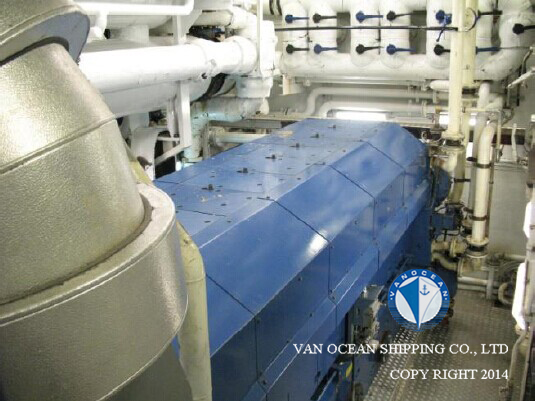

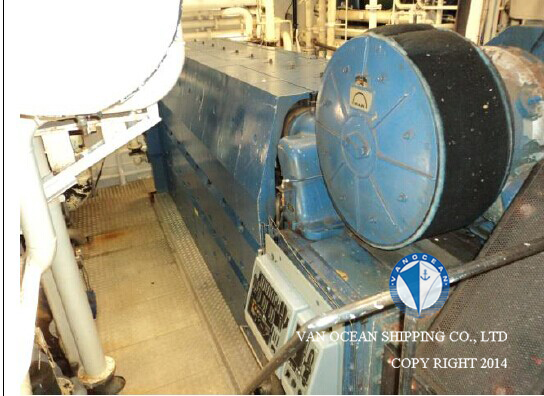

M/E(S)

MAN B&W ALPHA, 27/32, 4100BHP (NEW 2011)

M/E POWER (KW)

3060

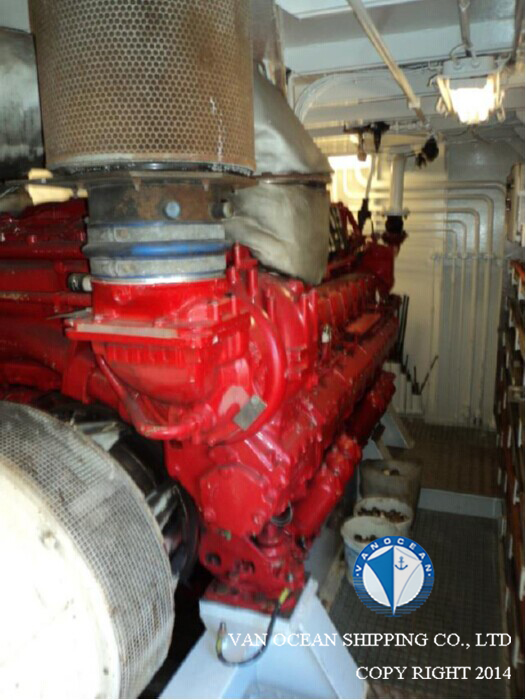

A/E(S)

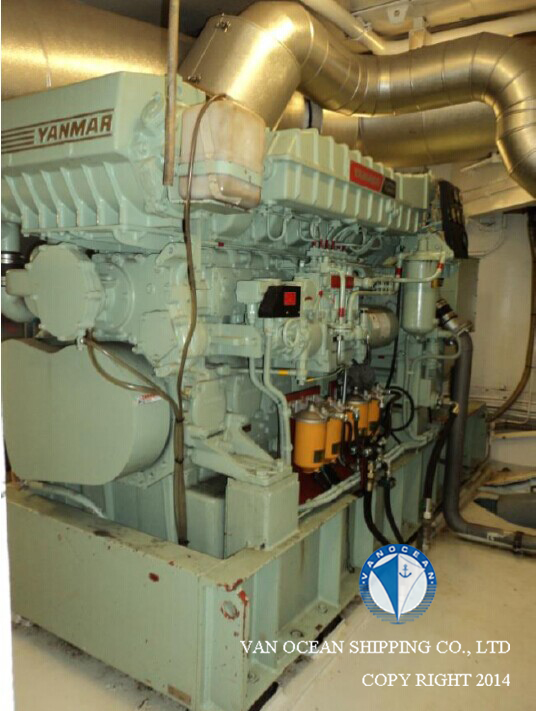

1 x MTU-16V396TE 1785KW/R 1600KW (2006) 1 x YANMAR 6 AYL-BT, R 460KW (2011)

GENERATOR(S)

-

SHAFT GENERATOR(S)

STAMFORD DSG74L2-4 2000KVA (2011)

PROPELLER(S)

LIAAEN ACG 85/750 D-3800MM IN NOZZLE (1986-2010)

SPEED /CONSUMPTIONS

MAX 13KTS, ECO 11KTS

FUEL TYPE

IFO

BUNKER CAPACITY (CBM)

425

TANKS CAPACITY (CBM)

FW: 62

COMPARTMENT(S)

-

NUMBER OF CARGO HOLDS

-

CARGO CAPACITY (CBFT)

-

CARGO CAPACITY (CBM)

-

NUMBER OF FREEZING HOLDS

-

FREEZING HOLD CAPACITY (CBFT)

-

FREEZING HOLD CAPACITY (CBM)

-

COOLING SYSTEM

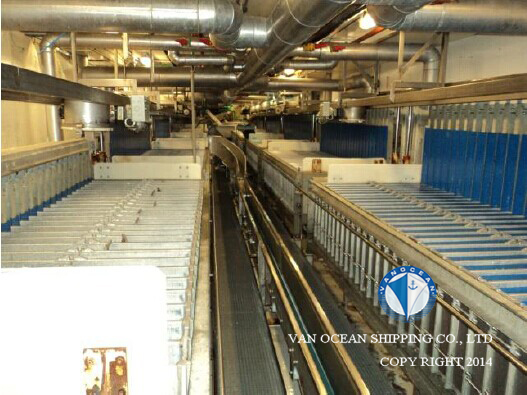

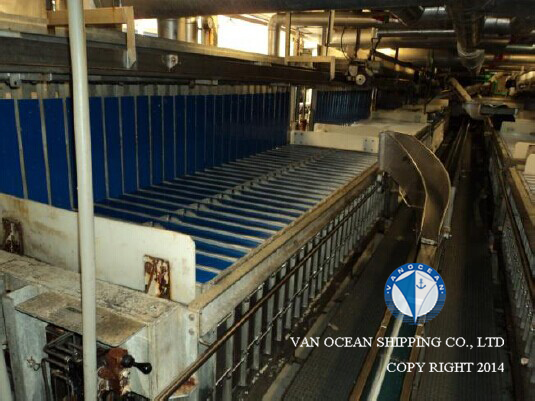

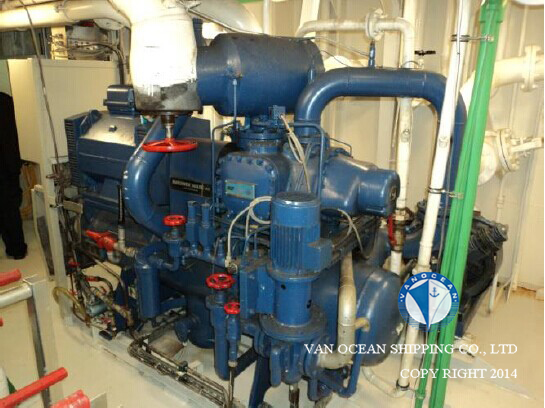

11 x JACKSTONE VERTICAL PLATE FREEZERS (8 x 26 STATION+3 x 24 STATION) NEW IN 2006, FREEZING CAPACITY UP TO 100MT PER 24/HRS. AIR COMPRESSORS: 1 x ATLAS COPCO GA-15, 15KW(2011) 2 x SPERRE HL 2/77

TEMPERATURE (℃)

-

DECK(S)

-

WATERTIGHT BULKHEAD(S)

-

DECK EQUIPMENTS

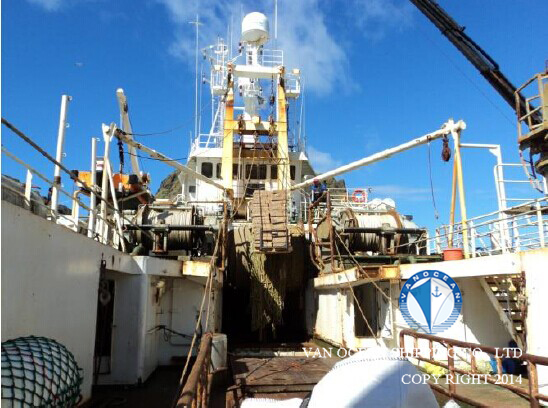

1 x TENFJORD 18M300/2GM 620 RUDDER: ULSTEIN 2 x BRATTVAAG DM-6300 TRAWL WINCHES (OVERHAULED IN 2006) BRATTVAAG DATASYNCRO 1000 WINCH CONTROL SYSTEM (2006) 3 x BRATTVAAG DMM-6300 GILSON WINCHES 2 x BRATTVAAG 4185 SWEEPLINE WINCHES 2 x BRATTVAAG 4185 NET DRUM/ SWEEPLINE WINCHES 1 x BRATTVAAG DMM-4185 BOBBING WINCH 1 x BRATTVAAG DMM-4185 COD-END WINCH 1 x BRATTVAAG DMM-A3M OUT-HAULING WINCH 2 x ODIM HYDRAULIC BACKSTROPE WINCHES 1 x STAHL 510-165 ELECTRIC PULLER SWL 2 MT 2 x BRATTVAAG B8MG4185 ANCHOR WINDLASS 1 x BRATTVAAG NETM-4185U NET DRUM 1 x RAPP SOW-500 CABLE WINCH (2011)

FACTORY

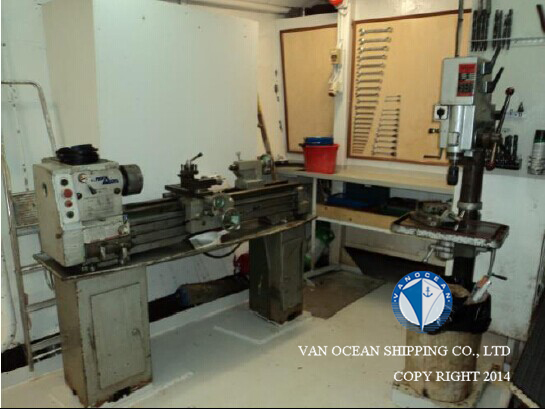

1 x IRAS VACUUM SYSTEM FOR FACTORY DECK (2006-2010) 3 x RSW TANKS TO STORE CATCH BEFORE PROCESSING, 150 CBM TOTAL 1 x OPTIMAR-ICE BPT-130 SLURRY ICE MACHINE TO COOL DOWN THE CATCH DURING PROCESSING STAGES (2006-2010) 1 x KEW 44C KSA 2 – WASHING SYSTEM (2010) 1 x FRANK HW-1010 DSF / KREBS 412T – WASHING SYSTEM (2006) 1 x DIS-41 BYTTROL – DISINFECTANT SYSTEM WORKSHOP TOOLS: 1 x TOPAIDS TA-1236G LEITH 1 x STANDARDS S-68 PILLAR BORE MACHINE 1 x 200T 8” BELT GRINDER MACHINE 1 x KEMPI MINARC 150 WELDER

WATER MAKER

1 x ALFA LAVAL JWP-26-C80, 10CBM/24HR

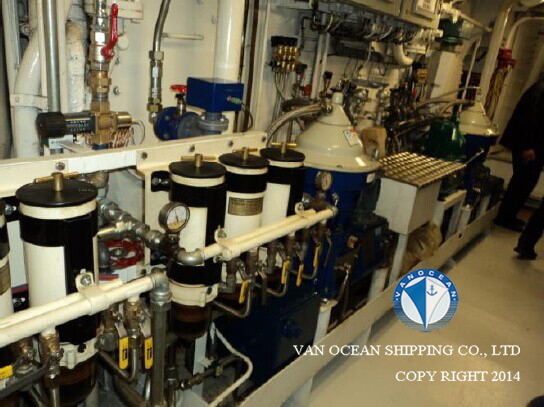

SEPARATORS

2 x ALFA LAVAL SA-615 (2011) 1 x WESTFALIA OTC 2-02-137 (2010) 1 x WWS HELI-SEP US1000-SHB BILGE WATER SEPARATOR (2010)

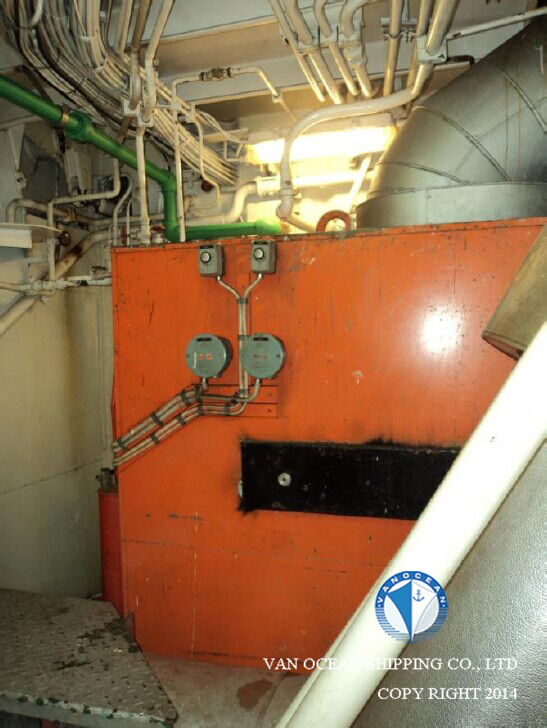

BOILER(S)

1 x PYRP BOILER (2011)

SAFTY EQUIPMENTS

1 x HARDING SAFTY R3MA SWL-1.9MT MOB BOAT CRANE 1 x HARDING SAFTY 21’M-21 MOB BOAT 1 x MARINER 75 BHP, OPTIMAX OUTBOARD MOTOR (2012)

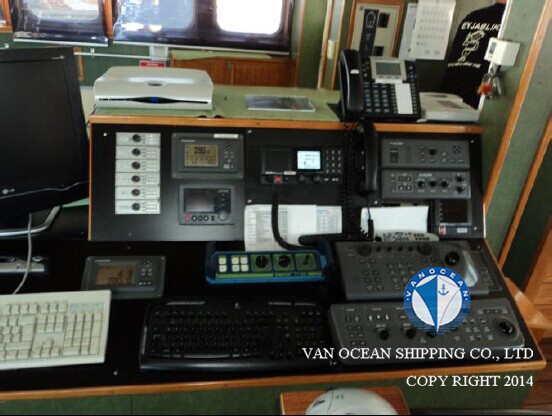

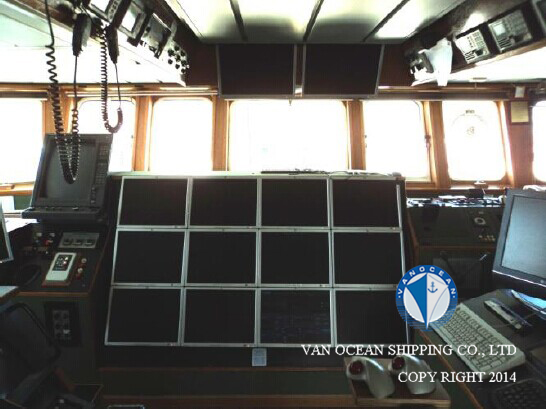

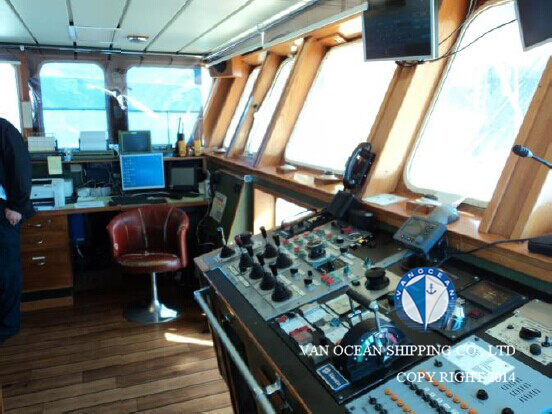

ELECTRONICS

1 x SKIPPER – TAYO ADDF TD-L 1520 DIRECTION FINDER 1 x SCANTI HF-SSB RADIO SYSTEM TRP800 – COMMUNICATION SYSTEM 1 x FURUNO FA-150 AIS 1 x SAILOR 6310 MF/HF 150W CLASS-A DSC RADIO-TELEX 1 x SAILOR 6110 STANDARD C, GMDSS APPROVED RADIO-TELEX (2012) 1 x SAILOR 6101 ALARM PANEL FOR STANDARD C (2012) 1 x FURUNO FAR-“X17 RADAR 1 x FURUNO FR-2110 X-BAND ARPA RADAR 2 x TRON SART 9GHZ RADAR TRANSPONDER 1 x JOTRUN TRON 25 VHF EMERGENCY RADIO FOR LIFEBOAT 1 x JOTRUN IK VHF EMERGENCY RADIO FOR LIFEBOAT 1 x JRC JLR-10 GPS COMPASS 1 x FURUNO SC-110 GPS COMPASS 1 x GPS FURUNO GP-36 GPS RECEIVER 1 x FURUNO SC-60 SAT ARPA GPS RECEIVER 1 x MAXSEA PRO 2D/3D PC PLOTTER (2010) 1 x OLEX – HP PC – LCD SCREEN PLOTTER (2006) 1 x FURUNO FS-1550 MW/SW RADIO 1 x SKANTI TRP-1 RADIO FOR LIFEBOAT 3 x ICOM IC-GM1600E GMDSS VHF HANDHELD 3 x SAILOR RT-2047 VHF RADIO 2 x SAILOR RT-4822 DSC VHF RADIO 2 x SKANTI VHF 9110 VHF RADIO 2 x ICOM IC-2725E FM/AM RECEIVER 1 x JOTRON 40S COSPAS SARSAT 406HMz EPRIB 1 x SAILOR COMPACT RECEIVER R-2022 RECEIVER 1 x SKANTI MF/HF DSC 9000 RECEIVER 1 x TRANE & TRANE TT-3110A TELEX STANDARD-C 1 x SRH (SAIT RADIO HOLLAND) NAV-5 NAVTEX 1 x SIEMENS 8 GIGASET AS 140 MOBILE PHONE (2010) 1 x SIMRAD GC80 GYRO-COMPASS (2010) 1 x COM- NAV AUTOPILOT (2006) 1 x NAVITRON NT951G AUTOPILOT (2006) 1 x ATLAS FISH FINDER 782 1 x FURUNO FCV-1200 WITH TRANSDUCER (2006) 1 x SIMRAD ES-500 ECHO SOUNDER 1 x FURUNO CN-24 HEADLINE SOUNDER (2006) 1 x MARPORT CATCH SENSORS (2010) 1 x SCANMAR SRU-05 HEADLINE EQUIPMENT 1 x WESMAR TRAWL CATCH SONAR HEADLINE SENSOR 1 x SIMRAD ITI CORDLESS TRAWL SYSTEM 1 x FURUNO FSV30 COLOR SCANNER SONAR 1 x FURUNO CI-68 SEA CURRENT READER 1 x SCAN TRAWL – AUTO TRAWL SYSTEM 1 x VIDEO CAMERA SYSTEM FOR TRAWL DECK 1 x PHONICO PAX 5000 INTERCOM SYSTEM 1 x SIEMENS/SIMINN TELEPHONE SYSTEM (2010) 1 x VSAT SEA TEL 4006 SATELITE RECEIVER SYSTEM (2010) 1 x IBAK X-260 FE 1000W SPOT LIGHT 1 x SEEMATZ 525 XBO 1000W SPOT LIGHT 1 x INERGEN 18 x 80 LITRE FIRE EXTINGUISH SYSTEM (2010) 1 x ELTEK ANX-95 FIRE ALARM SYSTEM 1 x SKIPPER BX-500/502 CAPTAINS CHAIR 21 x HP LP2065 FLAT MONITOR SCREENS (2006) 4 x WYNN 2-SPEED WINDOW WIPERS FOR BRIDGE 1 x KOCUM MKT-75/350E FOG HORN

INSURANCE

-

CREW

-

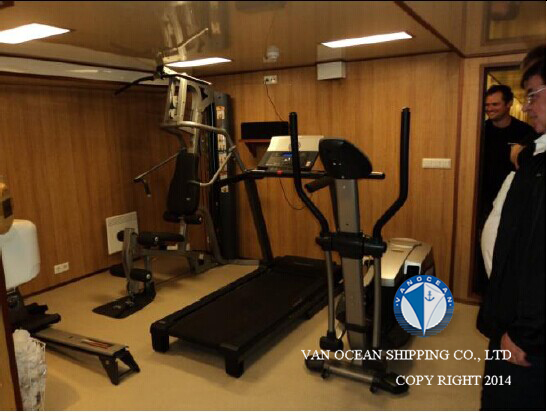

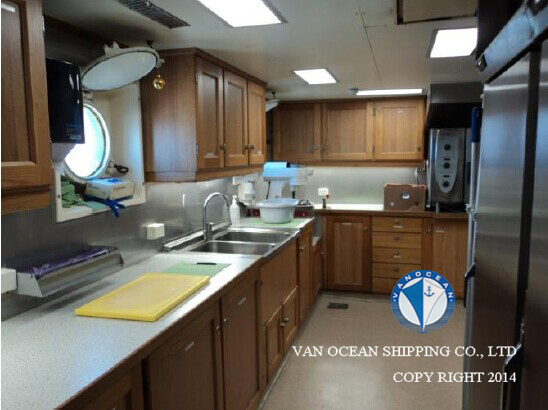

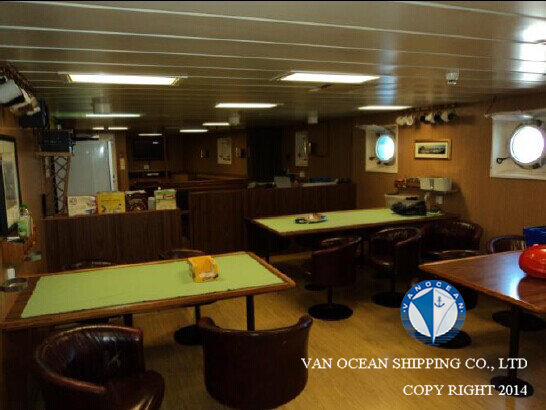

ACCOMMODATION

26 MEN (10 x 2 MEN + 6 x 1 MEN)

INSPECTION

-

DELIVERY

-

PRICE

BUYERS OFFER

REMARK(S)

SIDE THRUSTER: 1 x BRUNWOLL FU-45LTC-1225 500MT FROZEN FISH IN CARTONS
