VESSEL NAME
TRA216
TYPE
TRAWLER
CONVERSION(S)
NEW MAIN ENGINE
HULL MATERIAL
-
FLAG
-
PORT OF REGISTRY
-
BUILT YEAR
1983
BUILT PLACE
DENMARK
CLASSIFICATION
ORIGINALLY DNV DISCLASSED FROM DNV IN 1994
CLASS NOTATION
ICE CLASS
SS
-
DD
-
LOA (M)
39.30
LOA BETWEEN MASTS (M)
-
LBP (M)
-
BEAM (M)
7.50
DEPTH (M)
-
SUMMER DRAFT (M)
-
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
374.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
155.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
-
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
-
M/E(S)
ABC 6L-NEW FROM 2014 ENGINE POTENTIAL: 1800BHP
GEARBOX MAX. CAPACITY: 1700BHP REG. AT 700KW
M/E POWER (KW)
1343
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
CONTROLLED PITCH PROPELLER IN NOZZLE
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
-
CARGO CAPACITY (CBFT)
18709
CARGO CAPACITY (CBM)
530=290 IN 3 RSW TANKS AND 240 IN 2 HOLDS
NUMBER OF FREEZING HOLDS
-
FREEZING HOLD CAPACITY (CBFT)
-
FREEZING HOLD CAPACITY (CBM)
-
COOLING SYSTEM
235,000KCAL/HR AMMONIA BASED, NEW 2001
TEMPERATURE (℃)
-
DECK(S)
-
WATERTIGHT BULKHEAD(S)
-

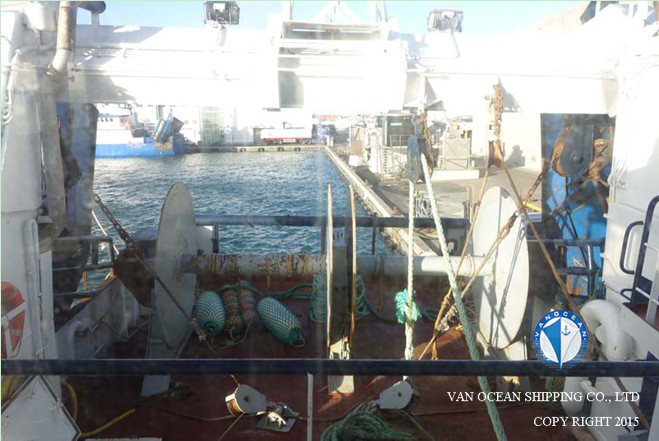

DECK EQUIPMENTS
2 x 30MT TRAWL WINCHES
1 x 35MT NET DRUM
1 x 25MT NET DRUM
1 x 12” KARMØY FISH PUMP
FACTORY
-
WATER MAKER
-
SEPARATORS
-
BOILER(S)
-
SAFTY EQUIPMENTS
-
ELECTRONICS
1 x SIMRAD SX90 LOW FREQ. SONAR, NEW FROM 2013
INSURANCE
-
CREW
-

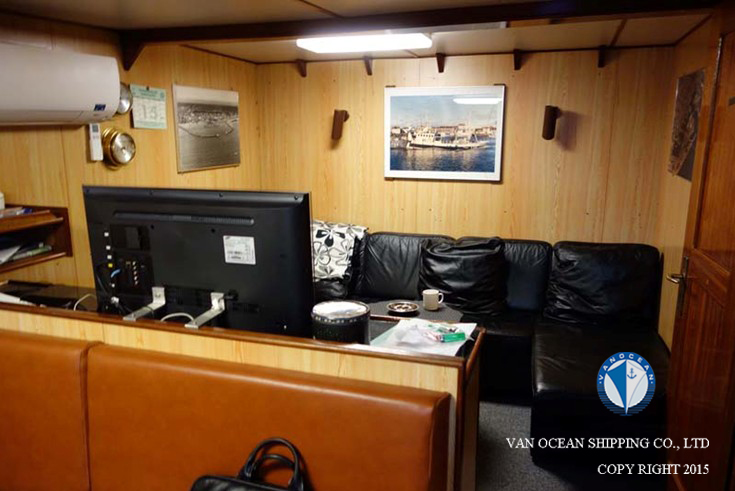

ACCOMMODATION
FOR 6 PERSONS IN 2 x 1 AND 2 x 2 PERSON CABINS, NEW FROM 2015
INSPECTION
-
DELIVERY
-
PRICE
DKK 6 MILLION
REMARK(S)
BOW THRUSTER 130BHP
