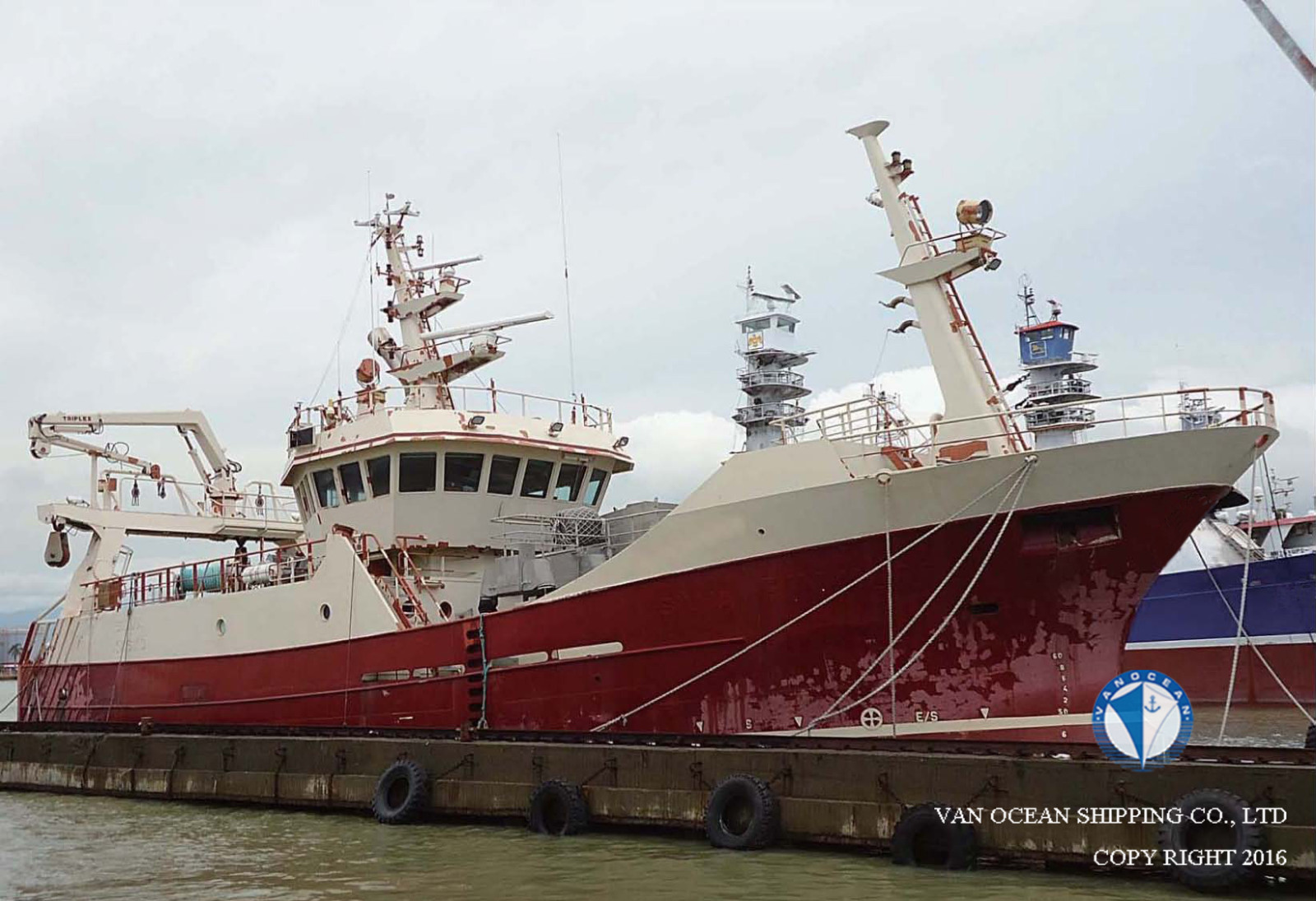

VESSEL NAME

TRA246

TYPE

TRAWLER

CONVERSION(S)

-

HULL MATERIAL

-

FLAG

-

PORT OF REGISTRY

-

BUILT YEAR

2006

BUILT PLACE

KARSTENSENS SHIPYARD, DENMARK

CLASSIFICATION

DNV

CLASS NOTATION

ICE 1B

SS

-

DD

-

LOA (M)

35.00

LOA BETWEEN MASTS (M)

-

LBP (M)

-

BEAM (M)

9.50

DEPTH (M)

-

SUMMER DRAFT (M)

-

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

399.00

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

-

PANAMA NT (MT)

-

SUEZ NT (MT)

-

SUMMER DWT (MT)

-

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

DISPLACEMENT (MT)

-

LDT (MT)

-

GEAR(S)

-

M/E(S)

WARTSILA W9L20-PAAE023121, 2446HP 1000RPM 35000 RUNNING HOURS

M/E POWER (KW)

1800

A/E(S)

2 x VOLVO D10, 230KW

GENERATOR(S)

2 x STANDFOR GENERATORS, 60HZ

SHAFT GENERATOR(S)

1000 KVA

PROPELLER(S)

WARTSILA, DIAM. 3000MM IN NOZZLE, 160RPM

SPEED /CONSUMPTIONS

-

FUEL TYPE

IFO

BUNKER CAPACITY (CBM)

52

TANKS CAPACITY (CBM)

FW: 11

COMPARTMENT(S)

-

NUMBER OF CARGO HOLDS

-

CARGO CAPACITY (CBFT)

-

CARGO CAPACITY (CBM)

-

NUMBER OF FREEZING HOLDS

-

FREEZING HOLD CAPACITY (CBFT)

-

FREEZING HOLD CAPACITY (CBM)

320

COOLING SYSTEM

6 RSW TANKS, TOTAL 320CBM, YORK COMPRESSOR, AMMONIA, 280000 KCAL

TEMPERATURE (℃)

-

DECK(S)

-

WATERTIGHT BULKHEAD(S)

-

DECK EQUIPMENTS

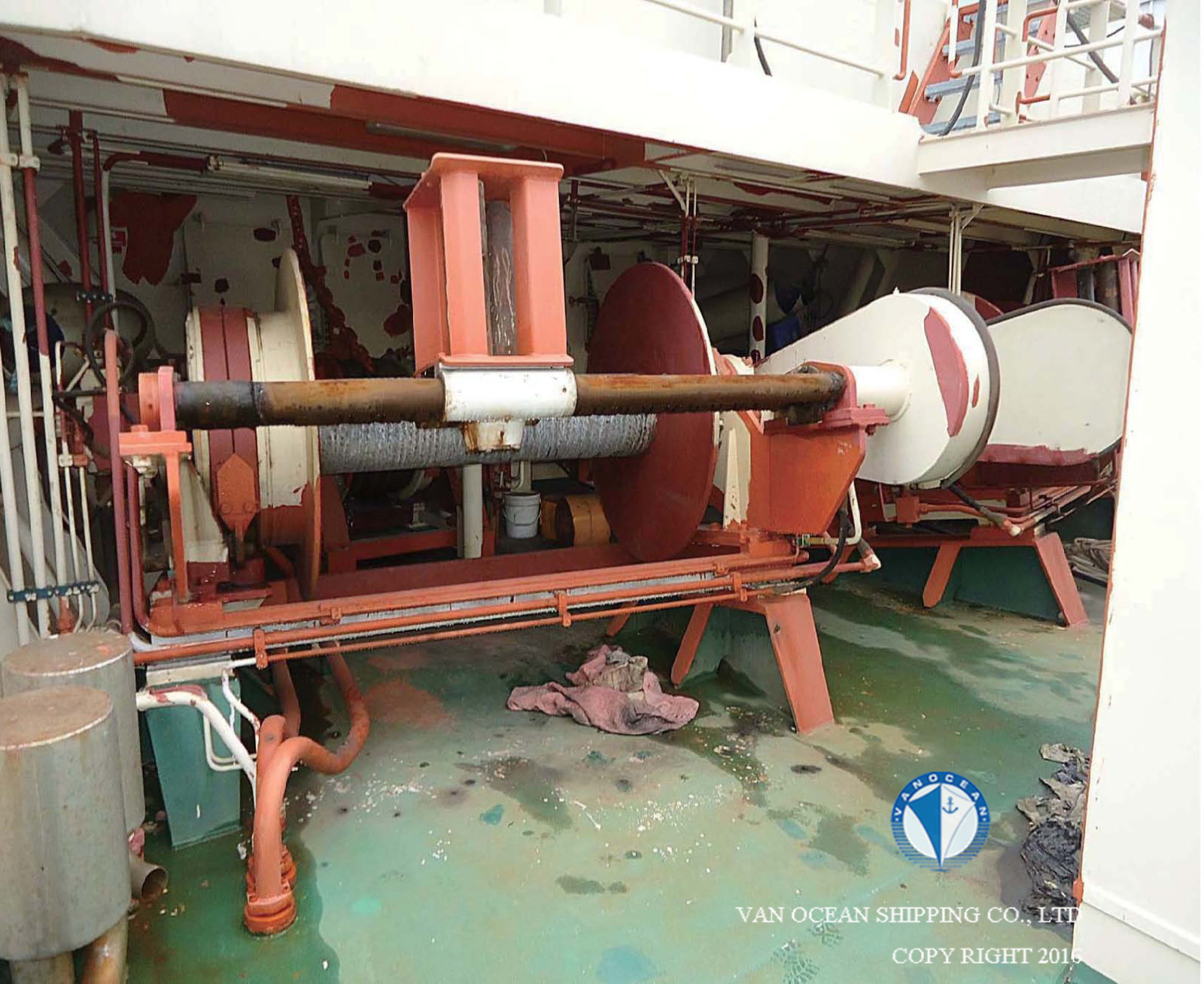

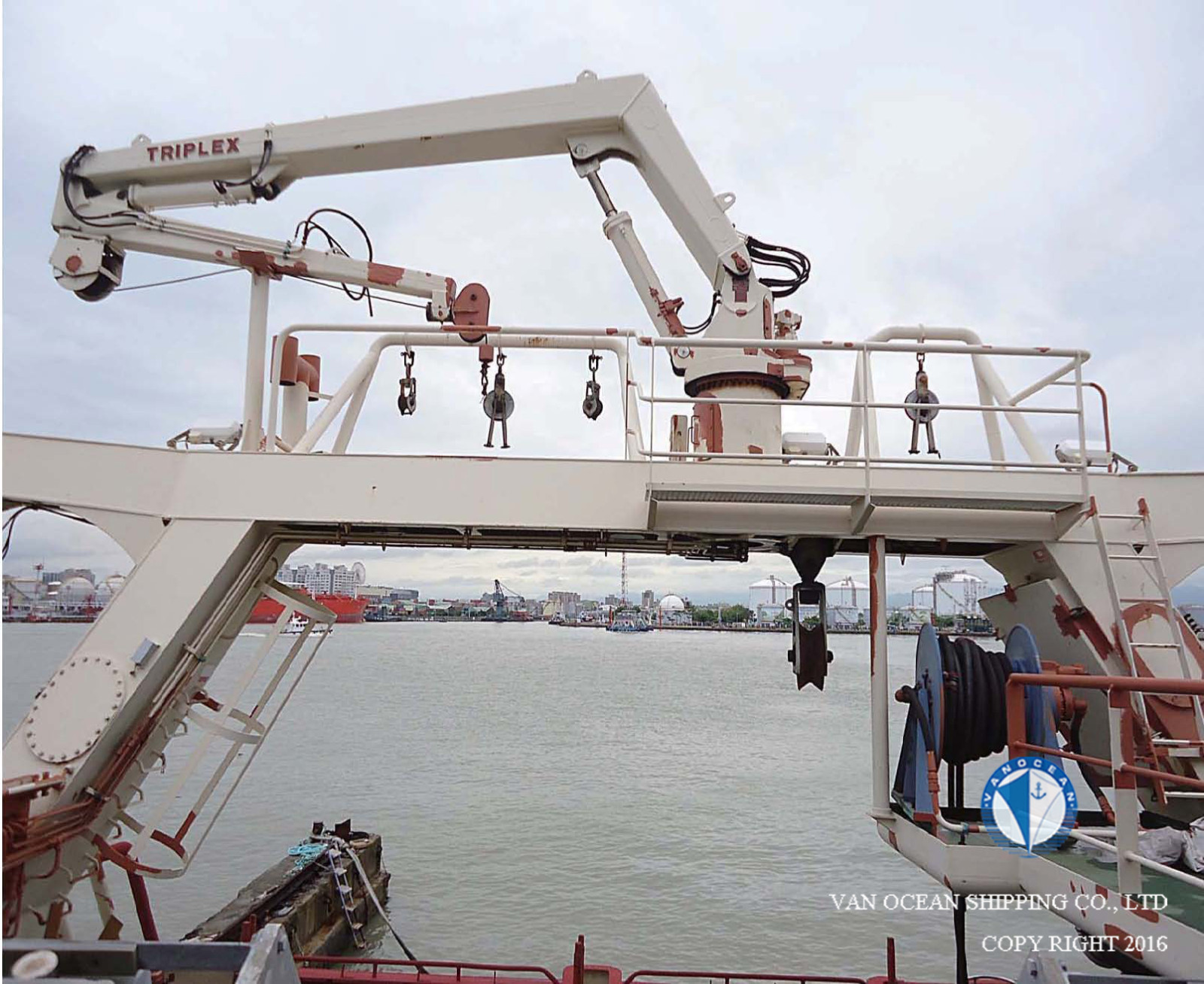

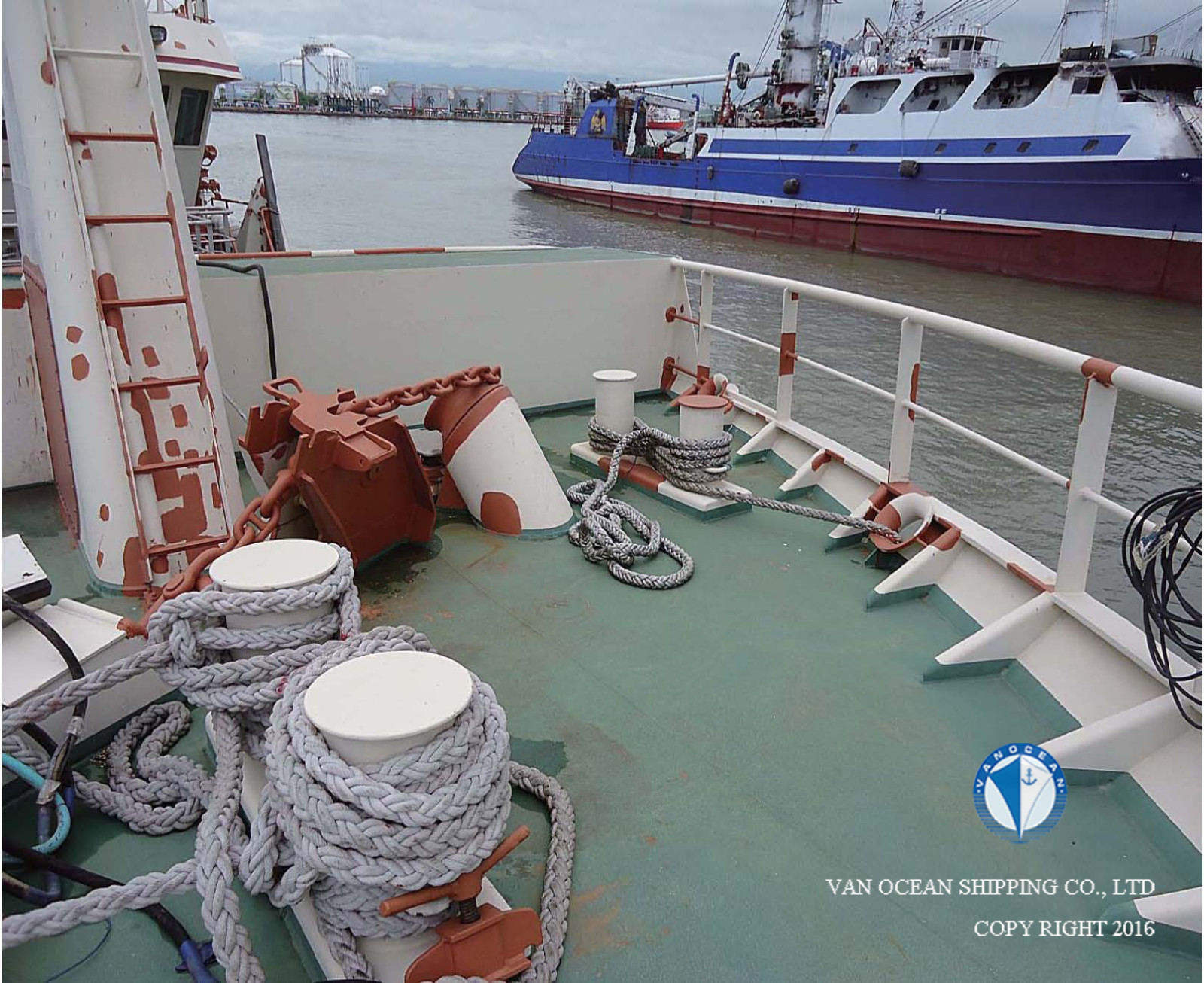

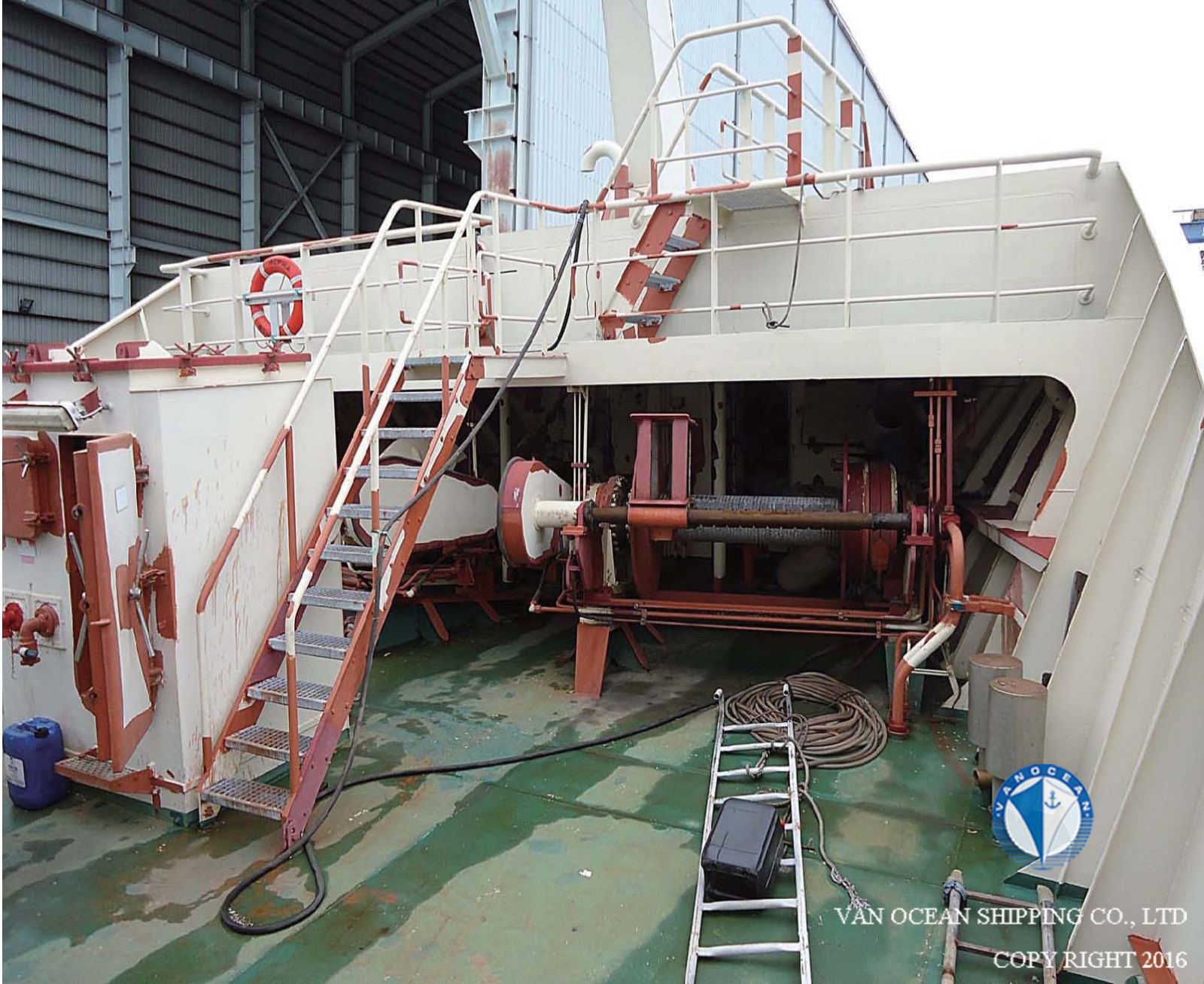

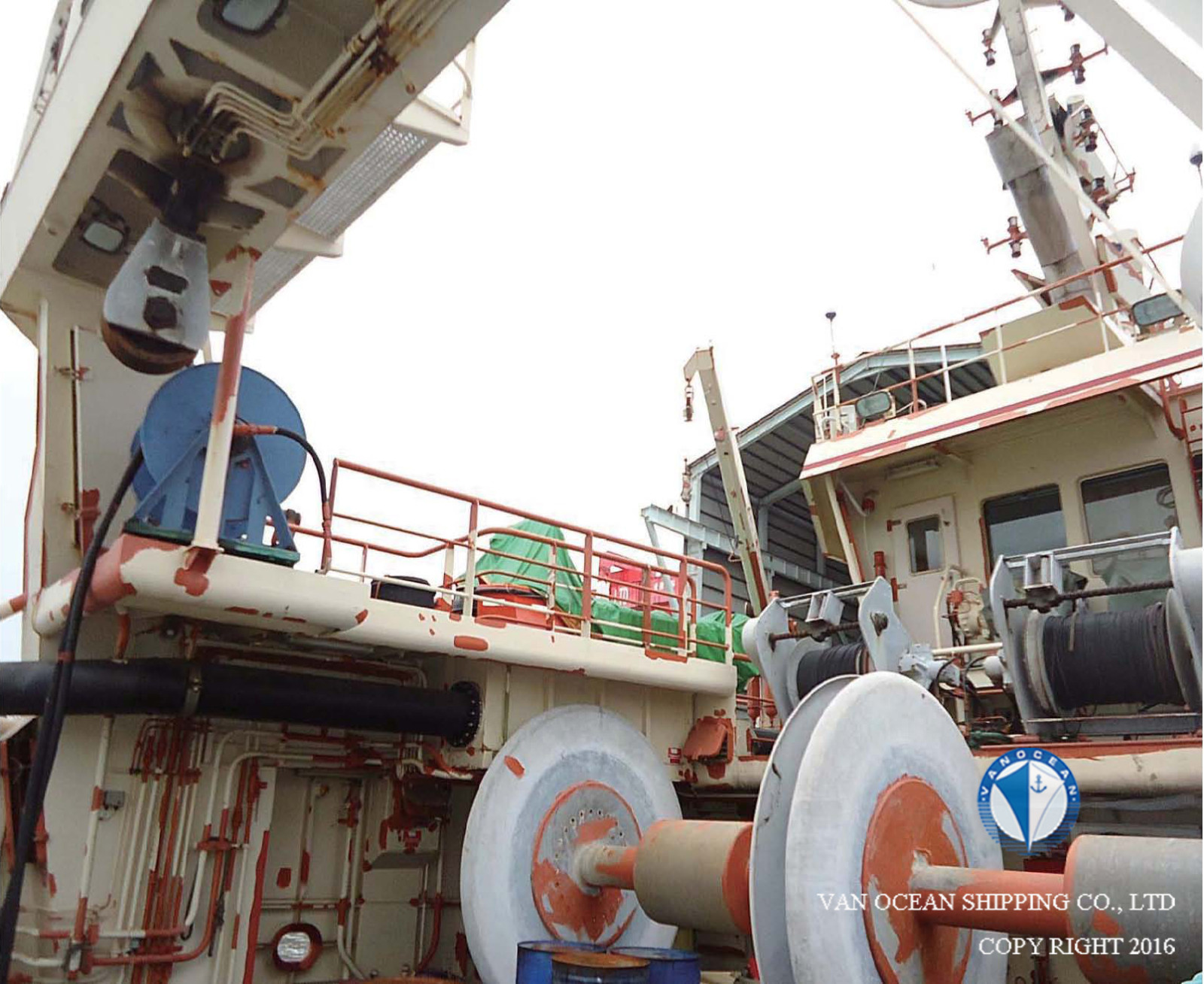

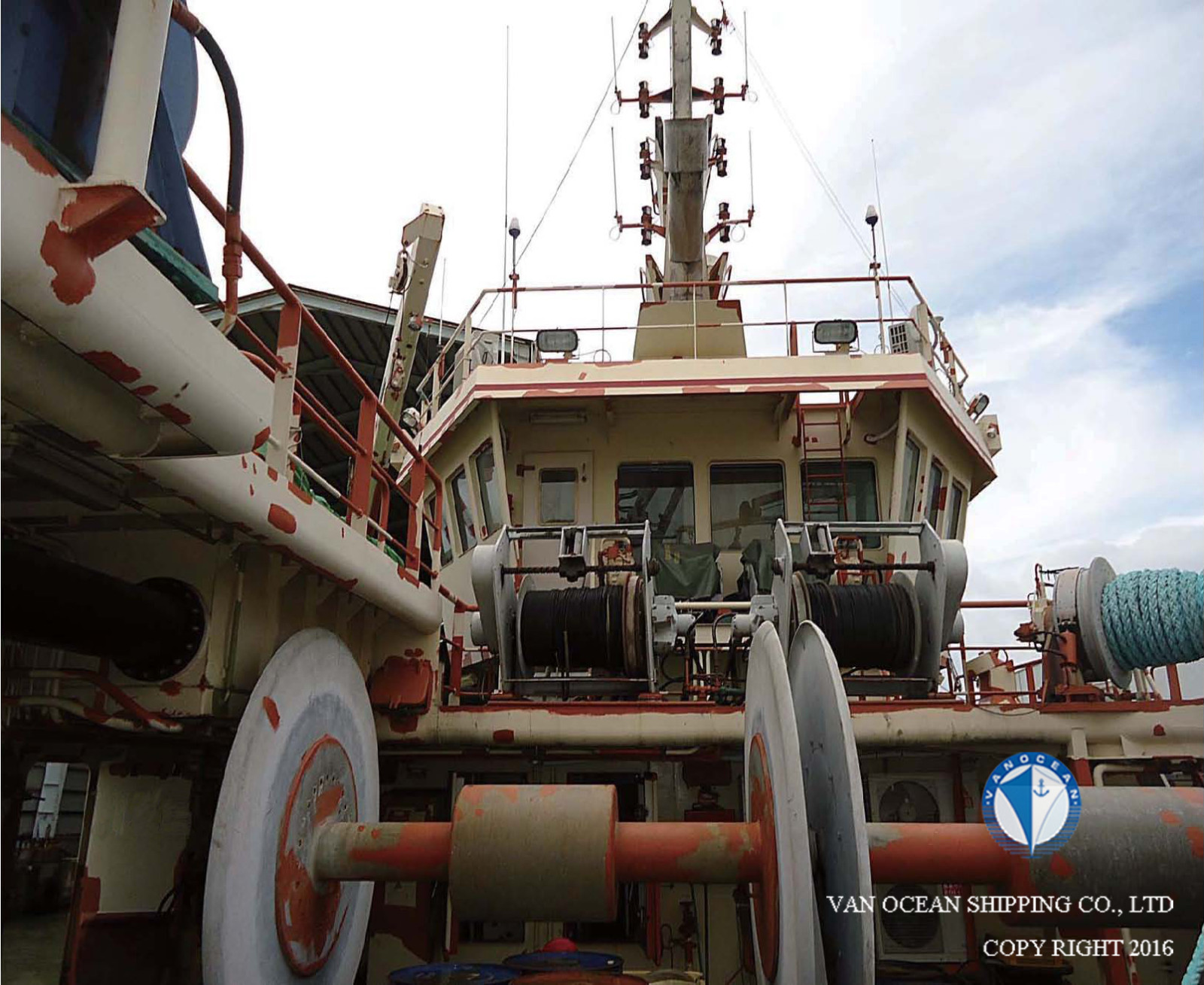

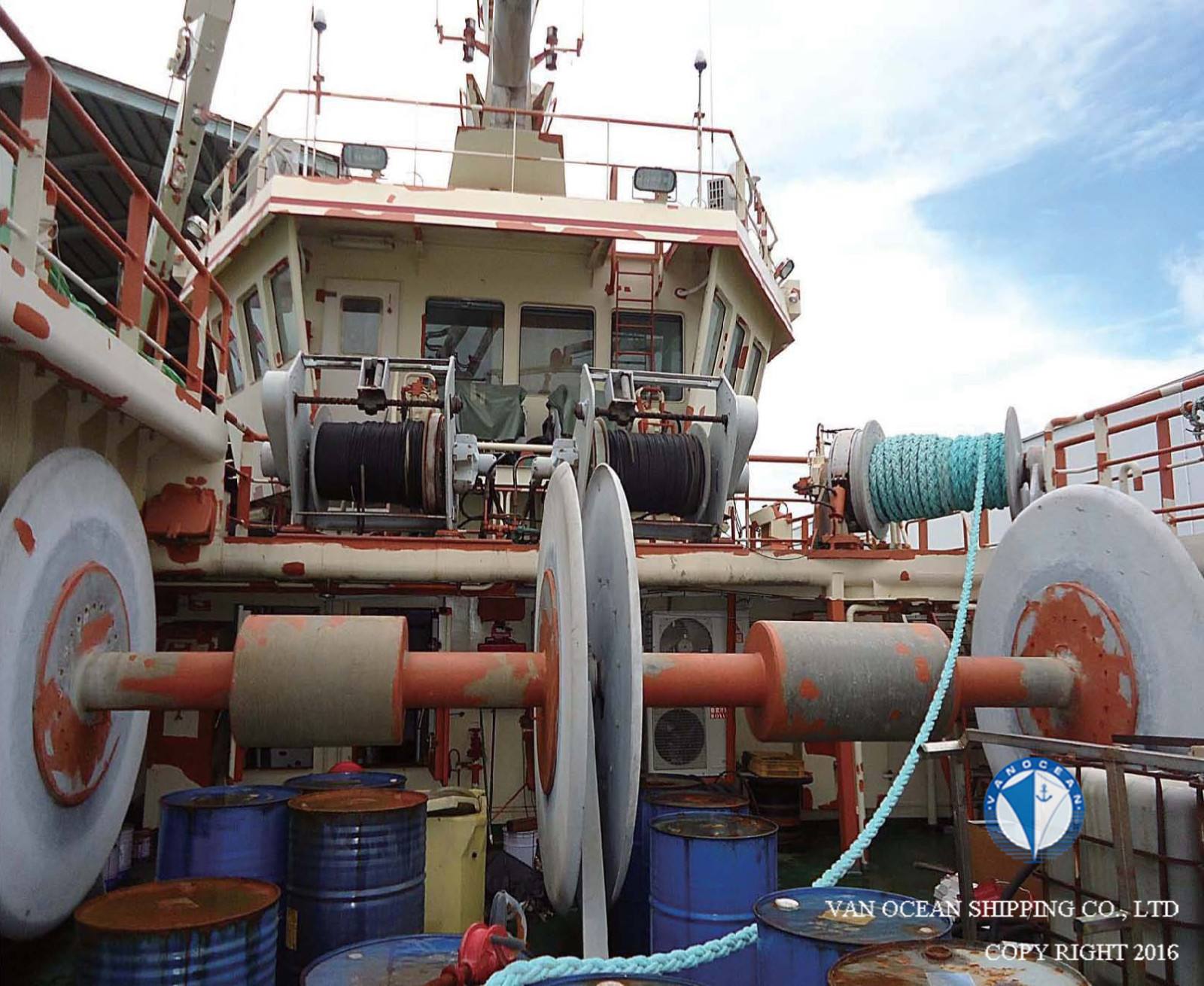

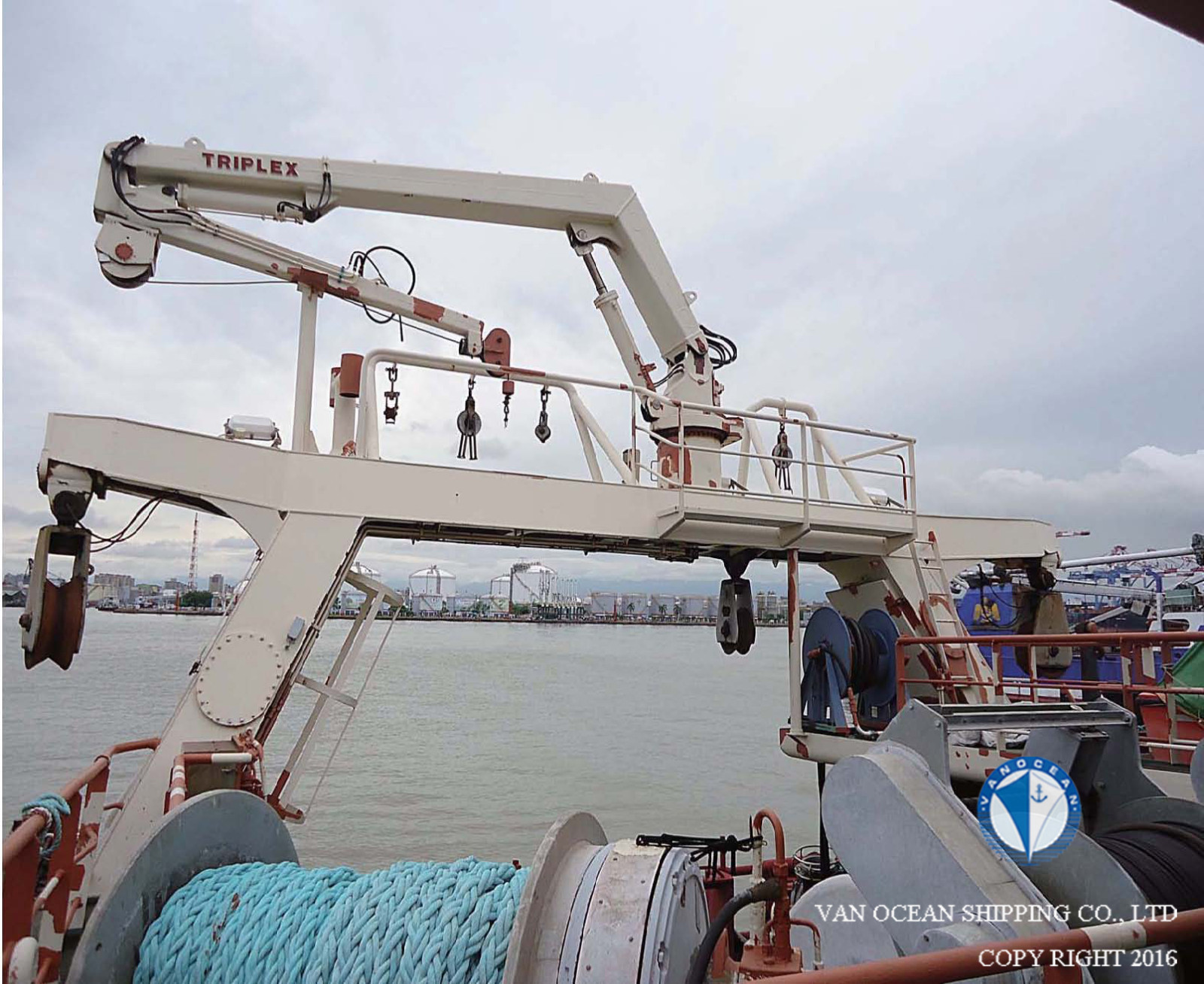

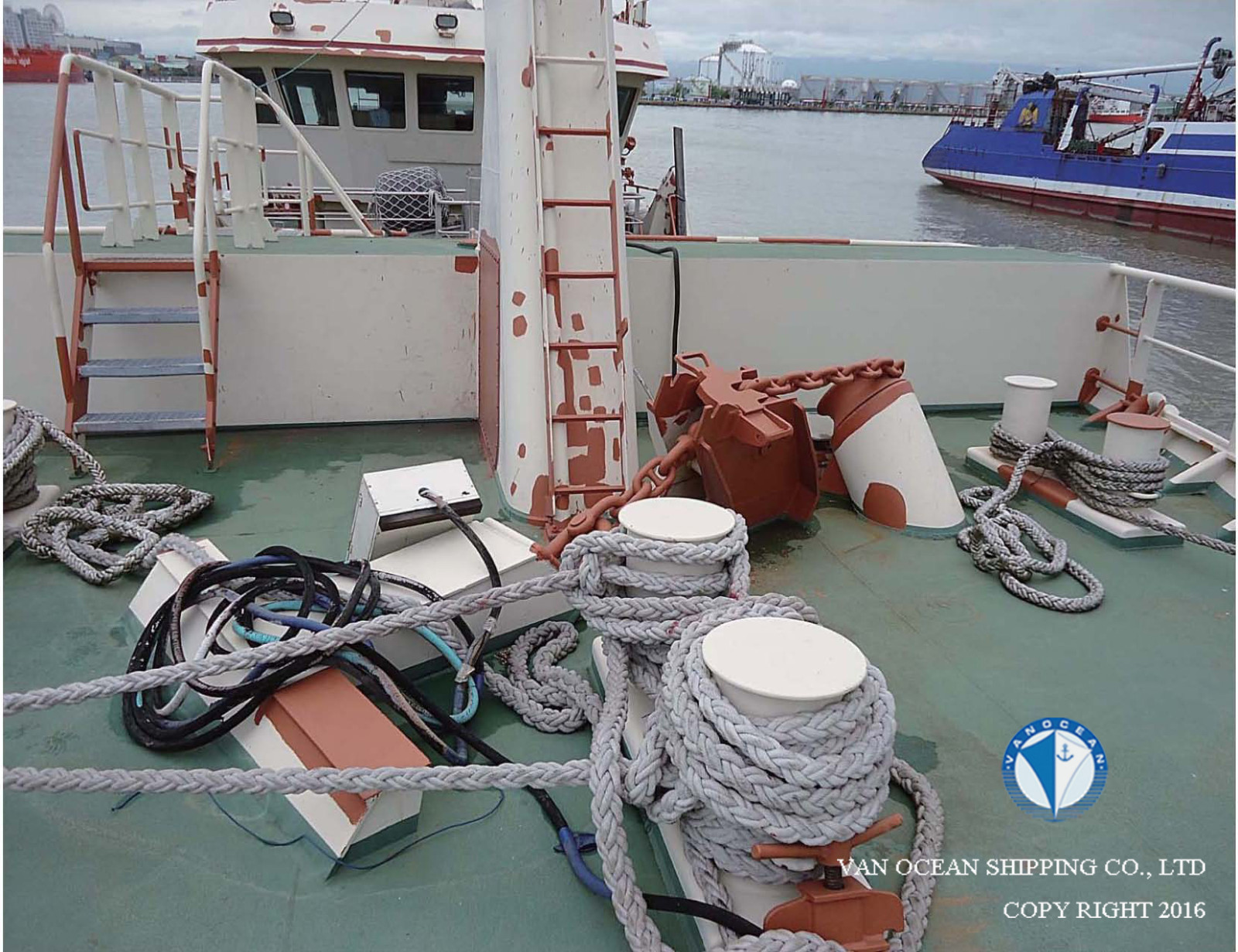

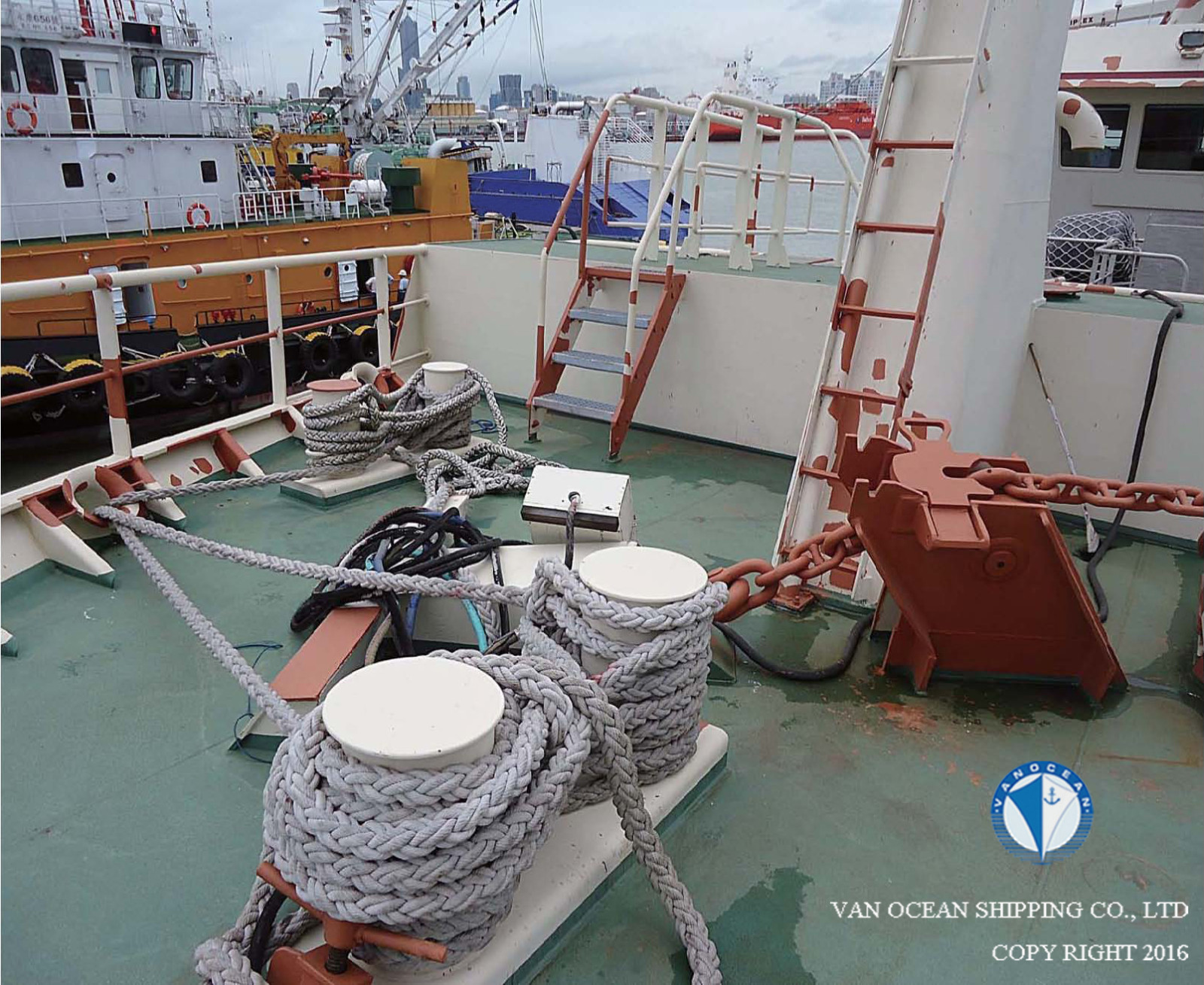

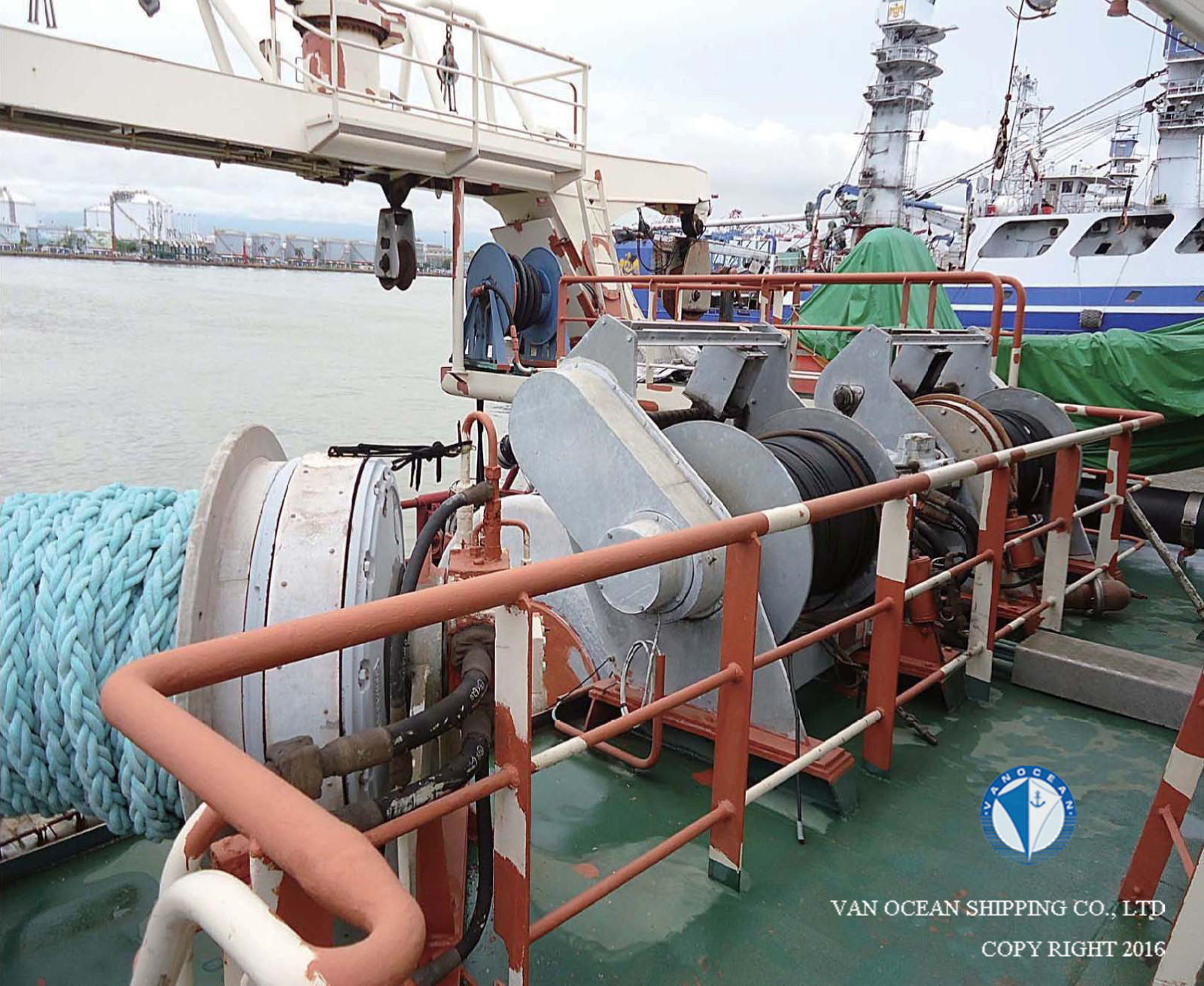

2 x TRAWL WINCH, LIDAN/HAGGLUNDS, 35MT, 1700M x 26MM WIRE 2 x NET DRUMS, LIDAN/HAGGLUNDS, 28MT TAIL END WINCH, LIDAN/HAGGLUNDS, 22MT ANCHOR WINCH, LIDAN/HAGGLUNDS, 7.4MT WINCH, LIDAN/HAGGLUNDS, 5MT TRIPLEX CRANE AFT. MOB-BOAT

FACTORY

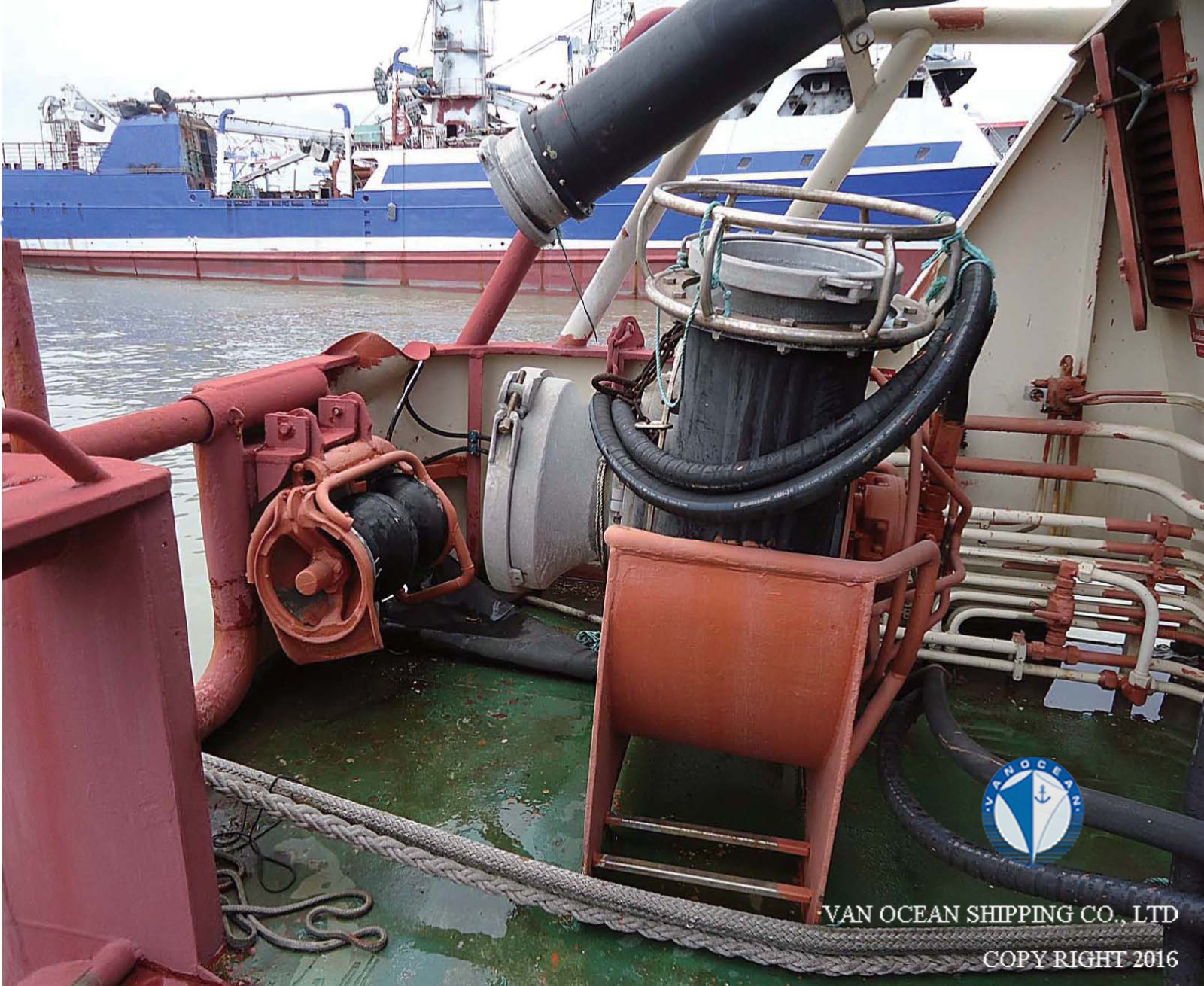

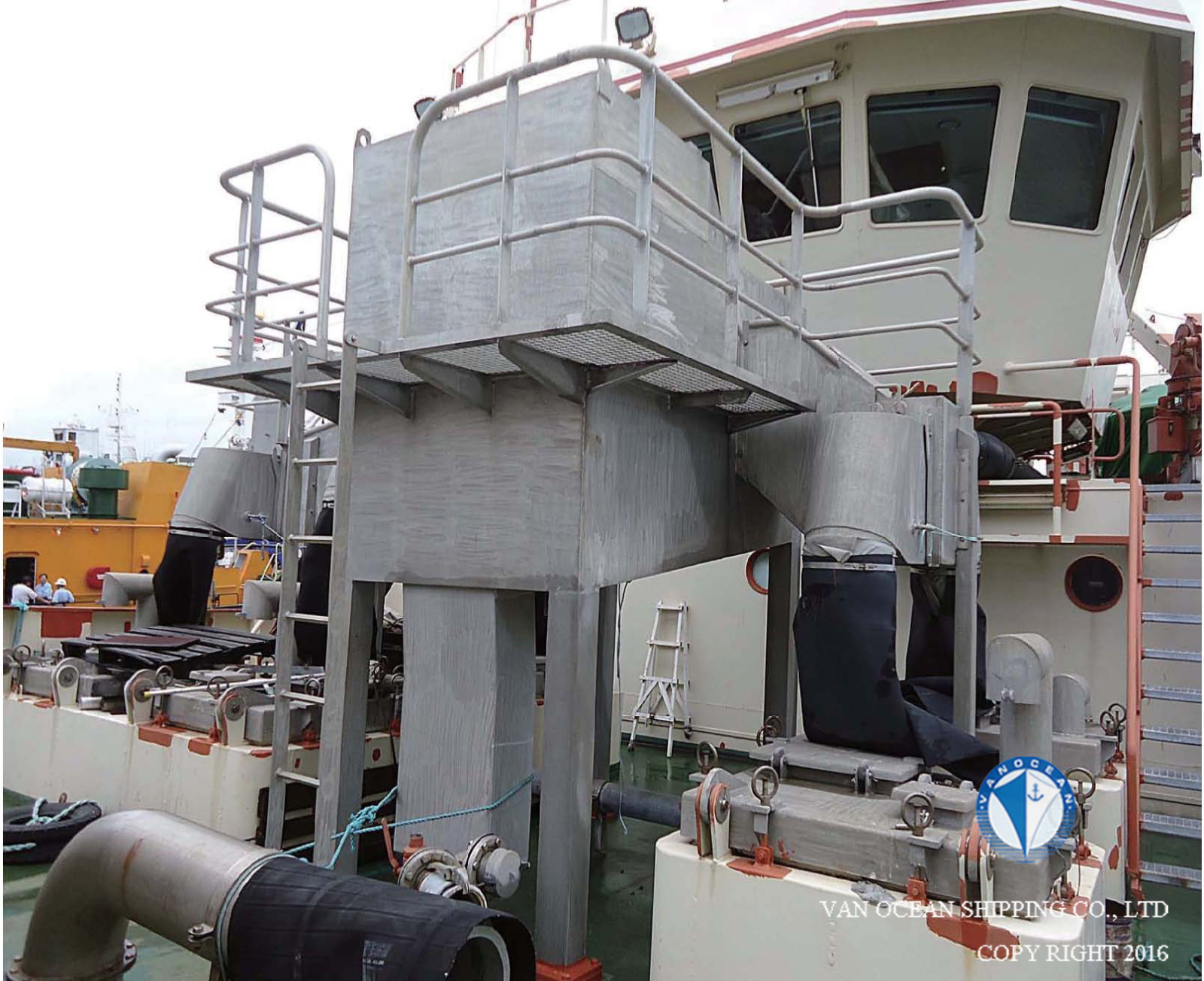

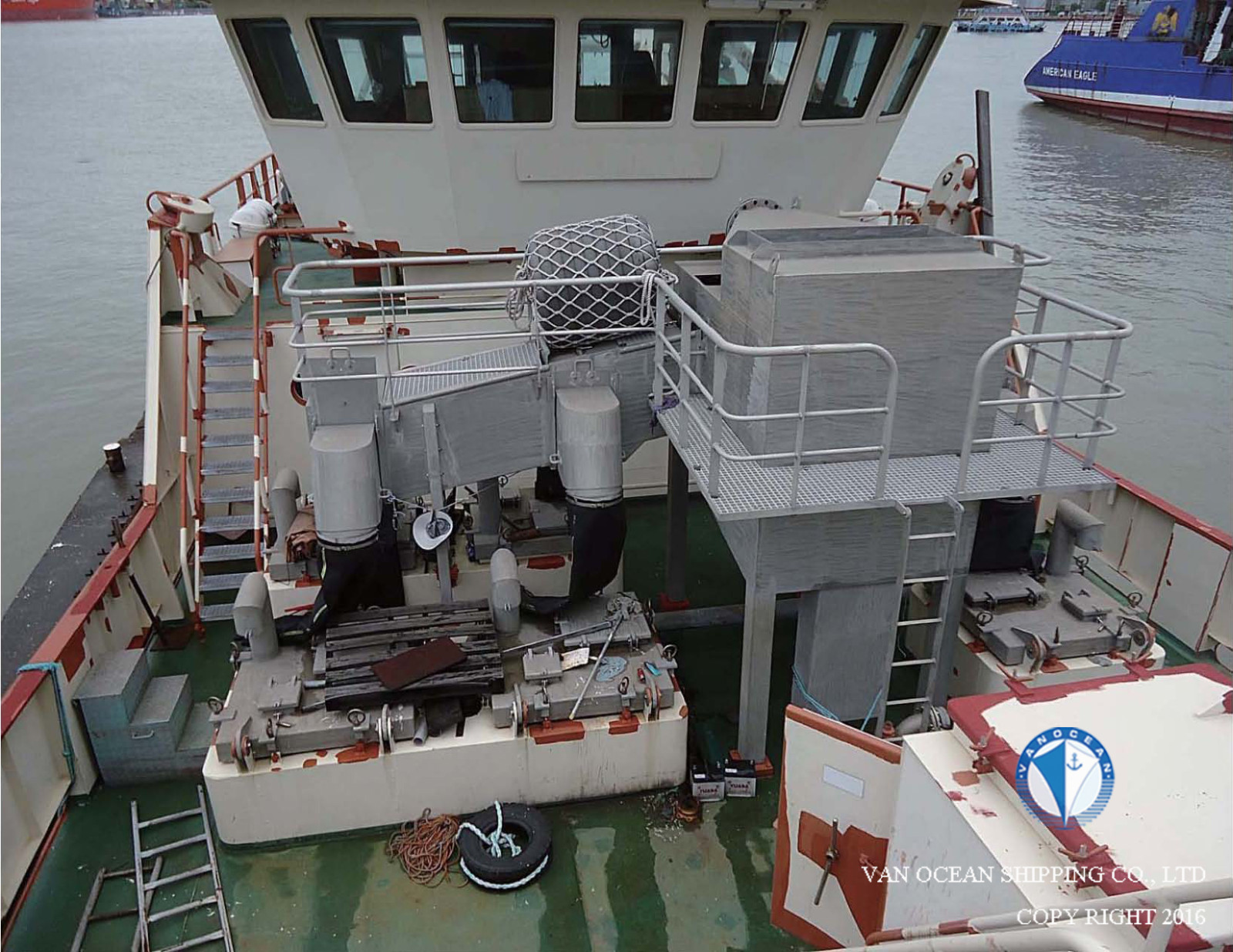

IRAS VACUUM PUMP, 3000LTR. 2 x COMPRESSORS SEAQUEST FISHPUMP

WATER MAKER

-

SEPARATORS

-

BOILER(S)

-

SAFTY EQUIPMENTS

-

ELECTRONICS

-

INSURANCE

-

CREW

-

ACCOMMODATION

1 x SINGLE, 3 x DOUBLE

INSPECTION

-

DELIVERY

-

PRICE

USD 3.2 MIILION

REMARK(S)

BOW THRUSTER: HUNDESTEDT, 230KW BOLLARD PULL: 32MT
