VESSEL NAME

TRA244， TRA255， TRA256

TYPE

TRAWLER

CONVERSION(S)

-

HULL MATERIAL

-

FLAG

TAIWAN

PORT OF REGISTRY

-

BUILT YEAR

2016

BUILT PLACE

JONG SHYN SHIPBUILDING CO., LTD, TAIWAN

CLASSIFICATION

-

CLASS NOTATION

-

SS

-

DD

-

LOA (M)

34.45

LOA BETWEEN MASTS (M)

-

LBP (M)

-

BEAM (M)

9.50

DEPTH (M)

6.60

SUMMER DRAFT (M)

-

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

456.00

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

136.00

PANAMA NT (MT)

-

SUEZ NT (MT)

-

SUMMER DWT (MT)

-

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

DISPLACEMENT (MT)

-

LDT (MT)

-

GEAR(S)

TRIPLEX CRANE (NET WINCH, NET STACKER CRANE, DECK CRANE, FISH PUMP CRANE, CORK LINE STACKER, RING NEEDLE, TELESCOPIC CRANE)

M/E(S)

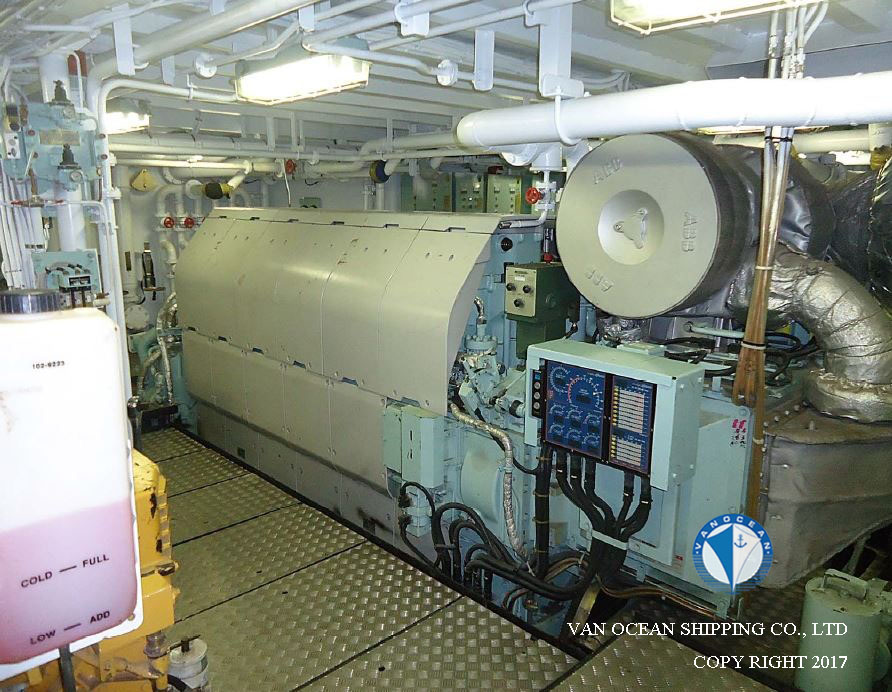

NIIGATA 6MG28AHX, 2950HP, 800RPM, 6-CYL

M/E POWER (KW)

2200

A/E(S)

2 x CATERPILLAR C9 DIYA, 250KW, 440V, 60HZ

GENERATOR(S)

-

SHAFT GENERATOR(S)

1 x SCANA 1500KW 440V 60HZ

PROPELLER(S)

4 BLADES, DIAM. 2500MM, CPP IN NOZZLE, 232 RPM MAKE NIIGATA

SPEED /CONSUMPTIONS

-

FUEL TYPE

IFO

BUNKER CAPACITY (CBM)

75.12

TANKS CAPACITY (CBM)

FW: 20.8

COMPARTMENT(S)

-

NUMBER OF CARGO HOLDS

-

CARGO CAPACITY (CBFT)

-

CARGO CAPACITY (CBM)

-

NUMBER OF FREEZING HOLDS

6

FREEZING HOLD CAPACITY (CBFT)

14685

FREEZING HOLD CAPACITY (CBM)

416

COOLING SYSTEM

AMMONIA HASEGAWA COMPRESSOR, 2 x 645000KCAL/HR(750KW)

TEMPERATURE (℃)

-

DECK(S)

-

WATERTIGHT BULKHEAD(S)

-

DECK EQUIPMENTS

2 x COMBINATION WINCH, 30MT, 2000M x 28MM DIA., WIRE 1 x RAPP HYDEMA NET DURM 26MT 1 x RAPP HYDEMAEND WIRE WINCH 7.8MT 1 x RAPP HYDEMANET SOUNDER WINCH: 1MT 1 x RAPP HYDEMA FISH PUMP 16" FOR PUMPING ON STERN 1 x TRIPLEX MAIN CRANE 25 TM 1 x TRIPLEX PUMP CRANE 25 TM 1 x TRIPLEX TELESCOPE CRANE AFT FOR HANDING FISH PUMP - WITH 3 TS WINCH 1 x NET STACKER CRANE TYPE NK-3000 1 x TRIPLEX CORK STACKER TRIPLEX GROUND ROPE STACKER TRIPLEX NET HAULER TYPR 740/425 2 x ANCHOR WINCH 2.5MT

FACTORY

-

WATER MAKER

1 x 5 TS/DAY

SEPARATORS

-

BOILER(S)

-

SAFTY EQUIPMENTS

2 x LIFE RAFTS FOR 15 PERS CO2 FIFI SYSTEM

ELECTRONICS

1 x FURUNO FCV-1200L, COLOR FISH FINDER 1 x NISSIN MT-3000A WATER THERMOMETER 1 x FURUNO CL-68 SONAR CURRENT INDICATOR 1 x FURUNO FAR-2157 X BAND RADAR 1 x FURUNO FAR-2157 S BAND RADAR 1 x FURUNO SC-50 SATELLITE COMPASS 2 x FURUNO GP-150 6 INCH LCD MARINE DGPS NAVIGATOR 1 x FURUNO FAX-408 WEATHER FACSIMILE RECEIVER 1 x SEIWA EXPLOXER3 GPS PILOT 1 x ICOM IC - M700PRO MF/HF RADIO TELEPHONE 2 x ICOM IC-M412 VHF RADIO 2 x ICOM IC-M24 PORTABLE VHF RADIO 2 x ICOM IC-2720H UHF/VHF RADIO 2 x FURUNO FM-8900S VHF/DSC RADIO 2 x FURUNO ACR RADAR TRANSPONDER 1 x FURUNO NX-700A NAVTEX RECEIVER 1 x FURUNO ACR2874 RLB-38 2 x FURUNO HT-649 ENTEL TWO-WAY MARINE HANDHELD VHF 1 x FURUNO FA-150 AIS 1 x WIND INDICATOR 1 x AUTO PILOT 1 x IMMARSAT MINI-C VMS 1 x IBUKI KOGYO ES300 ELETRIC HORN

INSURANCE

-

CREW

-

ACCOMMODATION

FOR 12 PERS.2 x 1 MEN, 1 x 10 MEN

INSPECTION

AS WHERE SHE IS

DELIVERY

-

PRICE

ASKING PRICE: USD 3.75 MILLION EACH / BUYERS OFFER

REMARK(S)

BOW THRUSTER: BRUNVOLL AS, 220KW STERN THRUSTER: BRUNVOLL AS, 300KW GEARBOX: SCANA VOLDA-ACG600K/PF525C (WITH CLUTCH) REDUCTION RATION: 3.47：1 DESIGNED BY: SKIPSKOMPETANSE AS, MAALOY, NORWAY 1 x SEWAGE PLANT MAKE TAIKO 1 x AIR CON SYSTEM
