VESSEL NAME

TRA241

TYPE

TRAWLER

CONVERSION(S)

2014 LENGTHENED BY 9.9 M 1. STRUCTURE, LENGTHENING AND NEW STEEL IN DECK & AFT. SECTION, NEWSIDELOADING FOR CARGO, NEW RAILINGS, ASDIK SYSTEM (FURUNO), NEW CRANE 2. ENGINE ETC, FULL OVERHAUL AND NEW HEAVY FUEL SYSTEM WITH NEW HEATING IN TANKS 3. FACTORY, PELAGIC & GROUNDFISH, GRADER FOR PELAGIC, 13 NEW VERTICAL & 3 HORIZONTAL PLATE FREEZERS FOR PELAGIC, REDFISH & GROUNDFISH, NEW AUTOMOTED AFAK PACKING SYSTEM, 2 NEW STRAPEX MACHINES, 1x BAADER 424, NEW STORAGE BINS FOR 50 TONNES, ETC. CAPACITY 100-140 TONNES PELAGIC 24 HRS 4. FACTORY SHRIMP, BY CATCH MACHINE, 2 GRADERS, 2 COOKERS, IQFS, 3 CARTON MAKERS ETC. CAPACITY 42 MT/24HRS 5. FREEZING SYSTEM, NEW AMMONIA FREEZING SYSTEM AND ALL NEW PIPING, 2 NEW COMPRESSORS, LIQUID ICE MAKING FOR 70 MT 6. DECK, 3RD WINCH INSTALLED FOR DOUBLE TRAWLING, CENTER WINCH FOR PELAGIC TRAWLING, OVERHAULING ALL WINCH SYSTEMS 7. HOLD, CAPACITY FOR +1450CBM, 900 MT FROZEN FISH OR 600 MT FROZEN SHRIMP 8. FUEL, TANKS FOR 640000 LITERS OF FUEL 9. OTHER, NEW WALLS & CEILINGS WITH INSULATION AND FRAMES IN FACTORY, NEW FLOORING ALL LEVEL, NEW WINDOWS IN BRIDGE AND PARTLY IN LIVINGROOMS

HULL MATERIAL

-

FLAG

-

PORT OF REGISTRY

-

BUILT YEAR

1988

BUILT PLACE

LANGSTEN SLIP, NORWAY

CLASSIFICATION

DNV GL

CLASS NOTATION

+1A1 STERN TRAWLER EO-ICE 1A*

SS

-

DD

-

LOA (M)

75.90

LOA BETWEEN MASTS (M)

-

LBP (M)

66.90

BEAM (M)

13.00

DEPTH (M)

5.62

SUMMER DRAFT (M)

-

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

2549.00

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

765.00

PANAMA NT (MT)

-

SUEZ NT (MT)

-

SUMMER DWT (MT)

-

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

DISPLACEMENT (MT)

-

LDT (MT)

-

GEAR(S)

-

M/E(S)

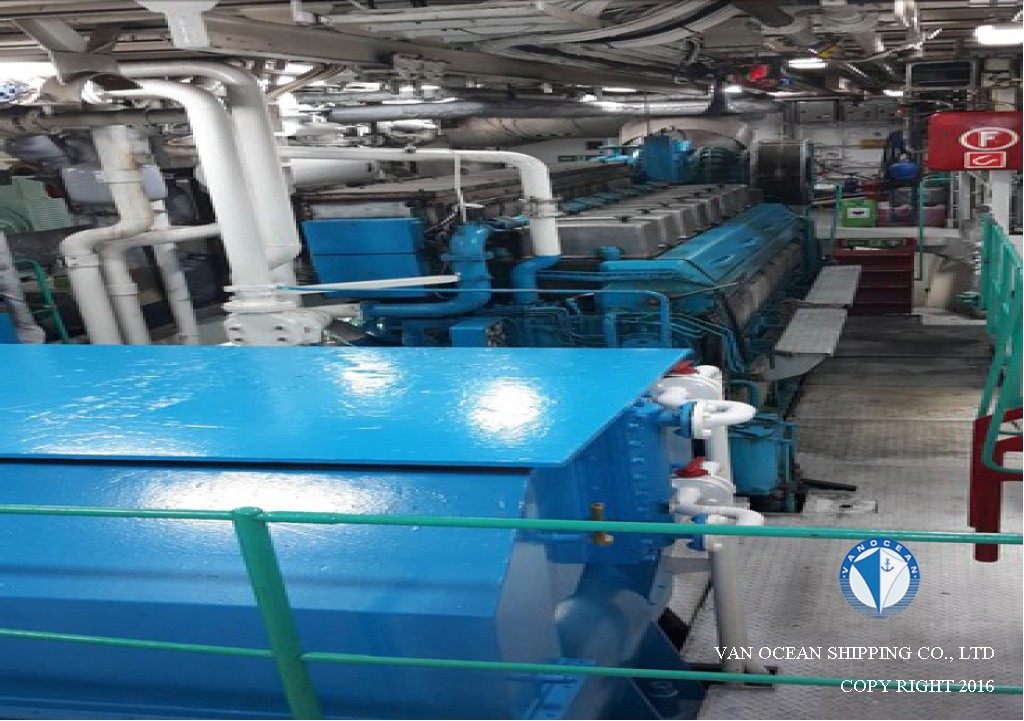

WARTSILA VASA, 8R 32D, NO. 4220, 4080 BHP 750 RPM (NOMINEL 720 RPM) TOTAL RUNNING HOURS AS PER FEB. 2016, 176420 HRS RUNNING HOURS AFTER OVERHAUL: 12500 HRS AS OF FEB. 2016

M/E POWER (KW)

3045

A/E(S)

2 x DEUTZ BA 12 M 816 CW, 770 KW, 1800 RPM AUX. 1: TOTAL RUNNING HOURS AS PER FEB. 2016, 23000 HRS, RUNNING HOURS AFTER OVERHAUL, 0 HOURS AS OF FEB. 2016. DATE OF OVERHAUL 12TH FEB. 2016 AUX. 2: TOTAL RUNNING HOURS AS PER FEB. 2016, 33500 HRS, RUNNING HOURS AFTER OVERHAUL, 1200 HRS AS OF FEB .2016. DATE OF OVERHAUL 2014

GENERATOR(S)

2 x AVK DKBN 100 M 880-4, 440 V 1076 AMP, 60 HZ, 820 KVA, 1800 RPM

SHAFT GENERATOR(S)

FRONT SHAFT GENERATOR: AVK DIDBN

PROPELLER(S)

WICHMANN CP PROPELLER TYPE PR 100/4, IN NOZZLE, 3800MM, 136 RPM AT 720 ENGINE RPM. OVERHAULED 2014

SPEED /CONSUMPTIONS

13 KTS

FUEL TYPE

IFO

BUNKER CAPACITY (CBM)

640

TANKS CAPACITY (CBM)

FW: 44

COMPARTMENT(S)

-

NUMBER OF CARGO HOLDS

-

CARGO CAPACITY (CBFT)

-

CARGO CAPACITY (CBM)

-

NUMBER OF FREEZING HOLDS

-

FREEZING HOLD CAPACITY (CBFT)

51185

FREEZING HOLD CAPACITY (CBM)

1450 (900MT FROZEN FISH OR 600MT SHRIMPS)

COOLING SYSTEM

AMMONIA BASED PLANT NEW 2014 13 x VERTICAL PLATE FREEZERS 3 x HORIZONTAL PLATE FREEZERS 140MT/DAY 2 x IQF FREEZER TUNNELS ALL PIPING FOR FREEZING NEW AND NEW FREEZER ROOM BUILT IN FRONT OF THE ENGINE ROOM SUPPLIER: FROST

TEMPERATURE (℃)

-30

DECK(S)

-

WATERTIGHT BULKHEAD(S)

-

DECK EQUIPMENTS

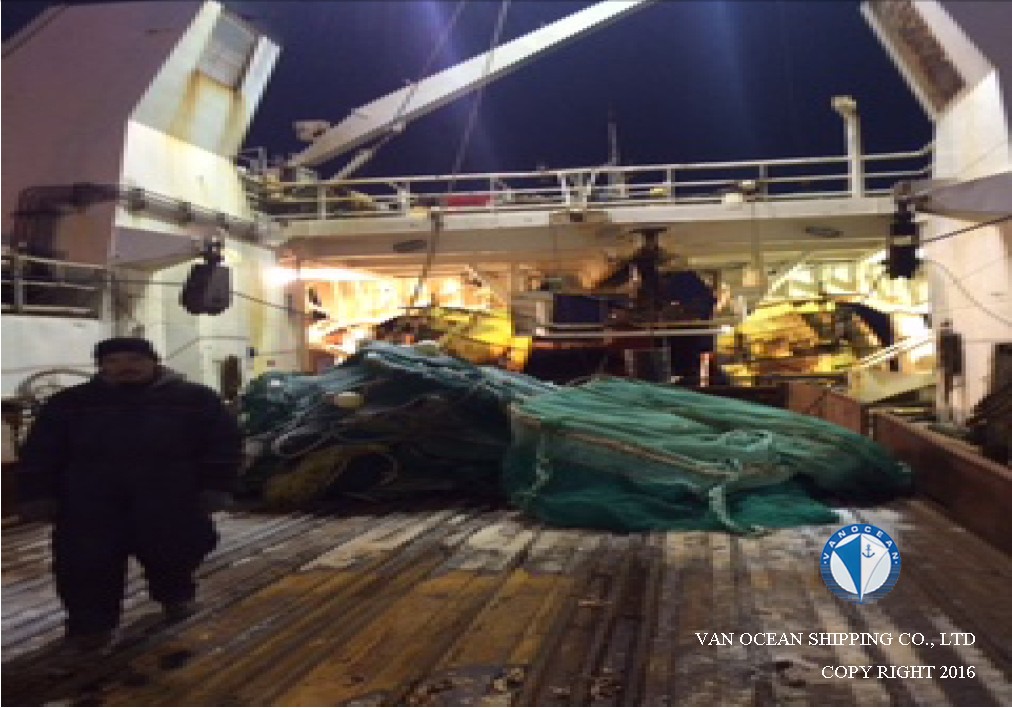

2 x 28MT TRAWL WINCHES 1 x 41MT TRAWL WINCH FOR DOUBLE TRAWLING INSTALLED 2014 LP HYDRAULIC BRATTVAAG (CENTER WINCH FOR PELAGIC TRAWLING) 1 x NET DRUM FOR PELAGIC NET FITTED 2014 1 x 6MT OUTHAUL WINCH 2 x 15MTGILSON WINCHES 4 x 10MT M4185 SWEEP LINE WINCHES 1 x 10MT M4185 COD END WINCH 1 x 8MT M4185 ANCHOR WINCH 1 x CM 2202 CAPSTAN 4 x 1MT HP HYDRAULIC NORLAY/TRIO AUX. WINCHES DECK CRANES: FRONT ABAS KDE 32-8000 SWL 2MT MIDDLE ABAS KDE 60-8500/5200 AFTER ABAS KDE 32 1 x CRANE FITTED NEW 2014

FACTORY

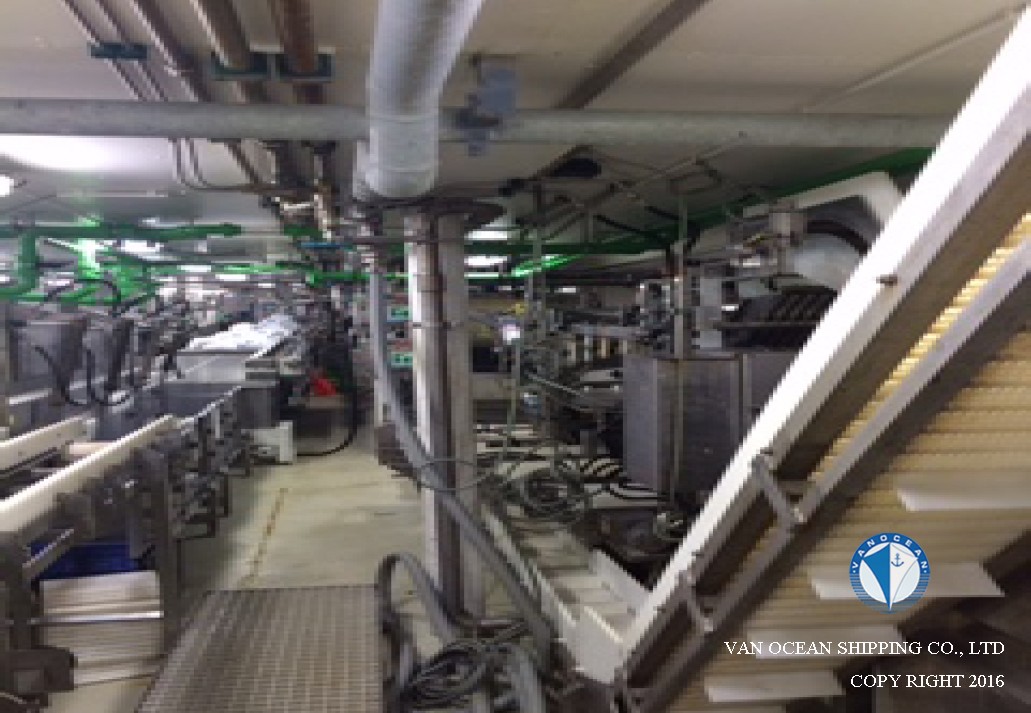

FOR PELAGIC/GROUND FISH/SHRIMP 1 x GRADER FOR PELAGIC 1 x HEADING MACHINES 1 x LIQUID ICE MACHINE 1 x AFAK PACKING SYSTEM SHRIMP FACTORY 2 x GRADERS 2 x COOKERS 2 x IQF FREEZERS 3 x CARTON RAISERS 2 x STRAPEX SUPPLIER: FACTORY, CARSOE, DANMARK

WATER MAKER

-

SEPARATORS

-

BOILER(S)

-

SAFTY EQUIPMENTS

-

ELECTRONICS

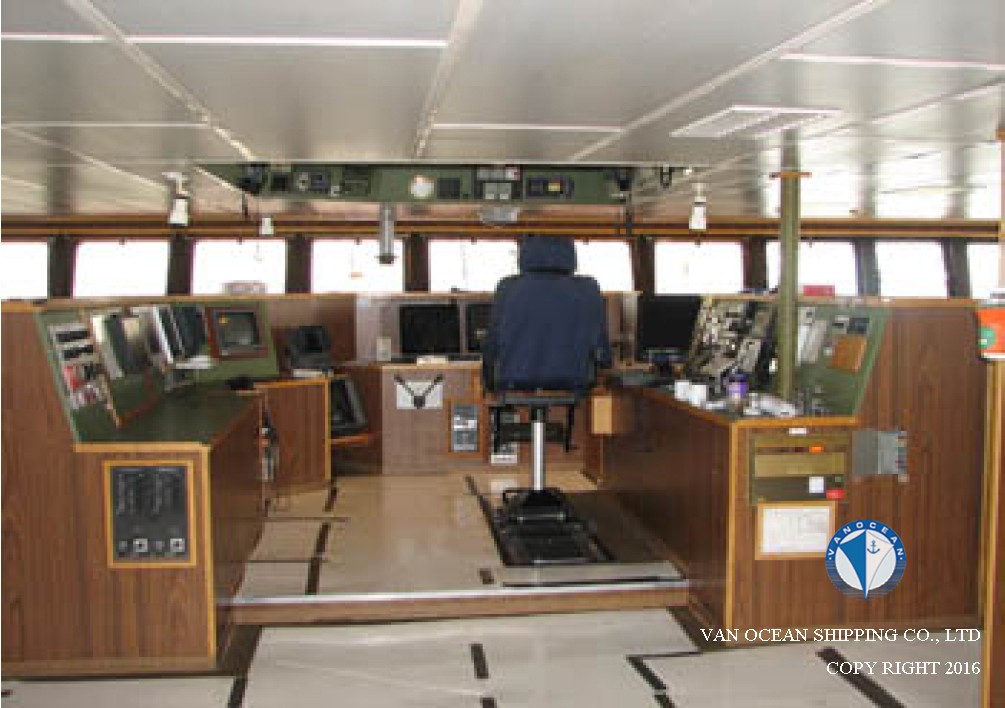

1 x SONAR FURUNO FSV-85 FITTED 2014 1 x RADAR FURUNO 2117, X BAND 1 x RADAR FURUNO 2137 S BAND 2 x ECHO SOUNDER FURUNO FCV 1200

INSURANCE

-

CREW

-

ACCOMMODATION

FOR 40 PERS. IN 8 x 1 PERSON CABINS AND 16 x 2 PERSON CABINS + HOSPITAL, GALLEY AND PROVISION ROOM, MESS, DAYROOM, SAUNA

INSPECTION

-

DELIVERY

-

PRICE

USD 15.5 MILLION

REMARK(S)

SHRIMP TRAWLER/FREEZER TRAWLER (FACTORY) ARCTIC TYPE, (FOR PELAGIC/GROUND FISH/SHRIMP) SIDE THRUSTER: BRUNVOLL FU 45 LTC 1375, 400/495 HP FISH BUNKERS NEW 2014 - FOR 50MT NEW WATER MAKER GEFICO TYPE AQ-12/16 REDUCTION GEAR PTO: VOLDA ACG 850 STEERING GEAR TENFJORD 18M 280 RUDDER: 2014 FITTED LARGER BECKER RUDDER SEPARATORS: D.O. ALFA LAVAL MMPX 304 SGP 11 60-2000 L/H L.O. ALFA LAVAL MAB 204 S 24-60-900 L/H FIRE FIGHTING ENGINE ROOM CO2, NEW 2000 2014: SIDE PORT FITTED FOR UNLOADING ALL FACTORY AREA WITH NEW LINING
