VESSEL NAME

TRA242

TYPE

TRAWLER

CONVERSION(S)

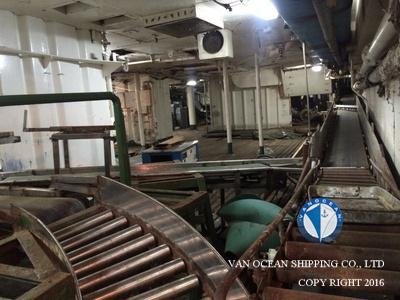

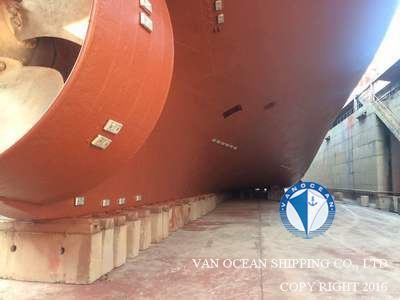

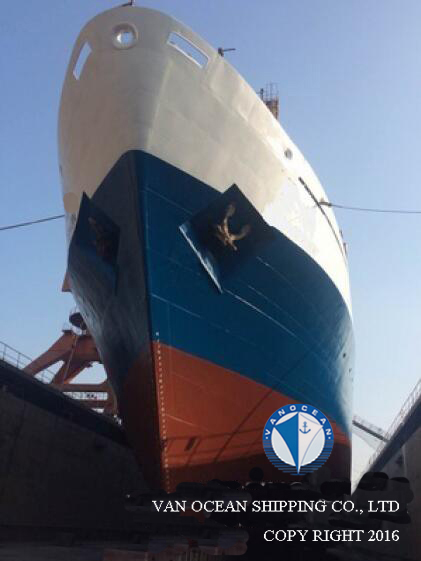

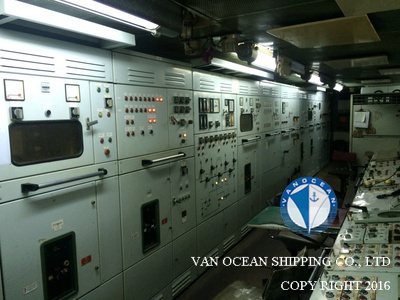

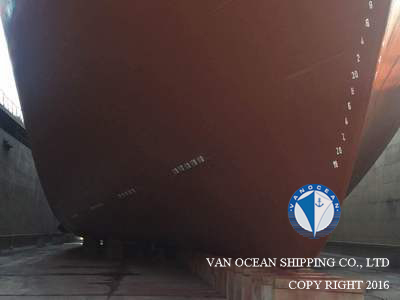

2016: VESSEL WAS DRYDOCKED & PAINTED 2005: VESSEL WAS REBUILT, SPENDING ABT. EURO 3 MIL, AND ADDITIONALLY TO THE REPAIRS THE FOLLOWING ITEMS WERE INSTALLED: 3 NEW CHINES BUILT AE OF 480KW EACH, NEW OIL & BILGE SEPARATOR, FRESH WATER GENERATOR ETC., 2 NEW FREEZING COMPRESSORS OF 250KW EACH, 8 NEW HOTIZONTAL PLATE FREEZERS OF 2MT/TIME, FREEZING CAPACITY 190MT/DAY. THE FREEZING/PROCESSING DECK WAS REBUILT WITH NEW INSULATION & LINING, HYDRAULIC SYSTEM, PUMPS, TRANSPORTING BELTS, FLOOR, PIPING, ELECTRICAL SYSTEM, ELECTRICAL SWITCHBOARD, ECHOSOUNDER OF 5KW, 1 NET SOUNDER, 1 COMMUNICATION SET ACOS. 2009: 2 x NEW AE OF 1000KW EACH WERE INSTALLED. 2013: A NEW AUTOMATIC TRAWLNET SYSTEM WAS INSTALLED.

HULL MATERIAL

-

FLAG

CHINA

PORT OF REGISTRY

-

BUILT YEAR

1989

BUILT PLACE

VOLKSWERFT STRALSUND, GERMANY

CLASSIFICATION

CY (CHINA FISHERIES CLASSIFICATION SOCIETY)

CLASS NOTATION

REGISTER KN + LⅡ A2 (FISHING)

SS

-

DD

-

LOA (M)

120.70

LOA BETWEEN MASTS (M)

-

LBP (M)

107.00

BEAM (M)

19.00

DEPTH (M)

-

SUMMER DRAFT (M)

12.22

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

7847.00

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

2354.00

PANAMA NT (MT)

-

SUEZ NT (MT)

-

SUMMER DWT (MT)

3372.00

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

DISPLACEMENT (MT)

-

LDT (MT)

-

GEAR(S)

-

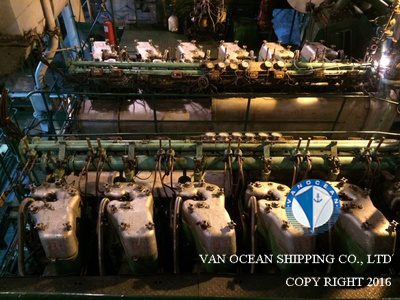

M/E(S)

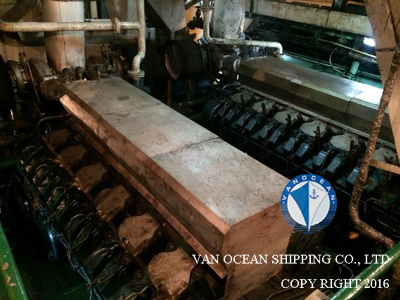

2 x SKL DIESEL 6VDS48/42AL-2 2648BHP, 6-CYL EACH, TOTAL 5296BHP

M/E POWER (KW)

3952

A/E(S)

2 x NEW AE WEIHAI CW12V200ZD, 1230KW EACH (NEW 2009) 3 x AE 480KW EACH (NEW 2005) 1 x PORT AE, 132KW

GENERATOR(S)

-

SHAFT GENERATOR(S)

2 x 1600KW EACH

PROPELLER(S)

1 x CPP, 4 BLADES, 153RPM

SPEED /CONSUMPTIONS

15KTS ON 21MT/DAY IFO30, ENDURANCE 90 DAYS

FUEL TYPE

IFO30

BUNKER CAPACITY (CBM)

1317.2

TANKS CAPACITY (CBM)

FW: 166.1

COMPARTMENT(S)

-

NUMBER OF CARGO HOLDS

-

CARGO CAPACITY (CBFT)

-

CARGO CAPACITY (CBM)

-

NUMBER OF FREEZING HOLDS

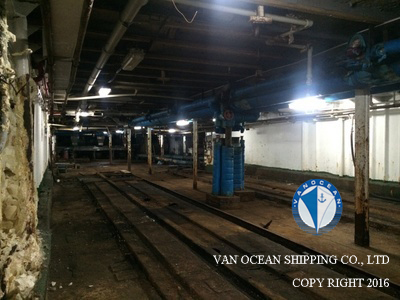

4 ( HOLD 1: 1000MT FRONZEN FISH; HOLD 2: 450MT FROZEN FISH; HOLD 3: 750MT FROZEN FISH; HOLD 4: FISHMEAL ABT. 200MT)

FREEZING HOLD CAPACITY (CBFT)

153590

FREEZING HOLD CAPACITY (CBM)

4351

COOLING SYSTEM

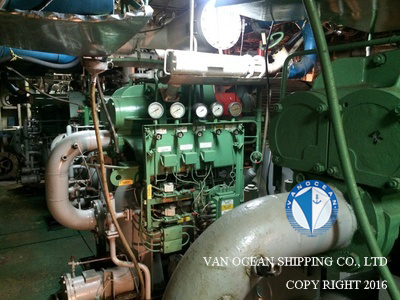

4 x FREEZING COMPRESSORS S900, 200KW/EACH 2 x FREEZING COMPRESSORS SI800, 200KW/EACH BUILT IN CHINA (LIAONING) 2 x FREEZING COMPRESSORS LG20CF2B, 190KW/EACH 2 x FREEZING COMPRESSORS MYCOM, 190KW/EACH 2 x ORIGINAL LBH OF 31.5MT/DAY IN BLAST FROZEN TUNNELS 20 x HORIZONTAL PLATES FREEZER PRESENTLY REMOVED FROM THE VESSEL FOR REPAIRING SOME PLATES OF PROCESSING DECK FREEZING CAPACITY: 180MT/DAY

TEMPERATURE (℃)

-

DECK(S)

-

WATERTIGHT BULKHEAD(S)

-

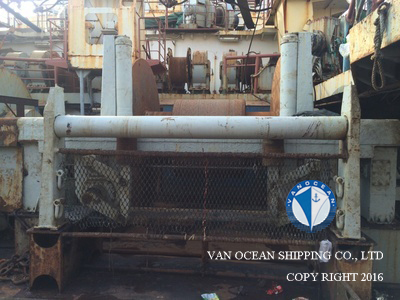

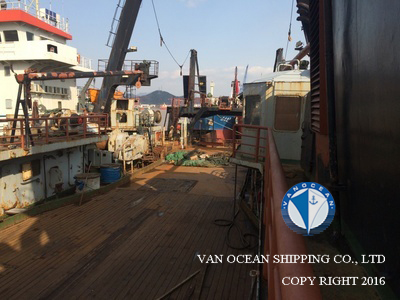

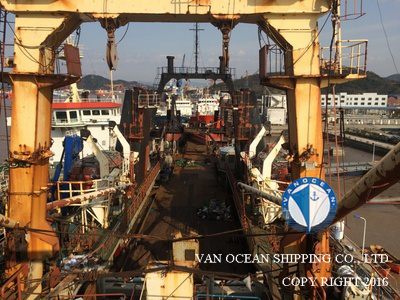

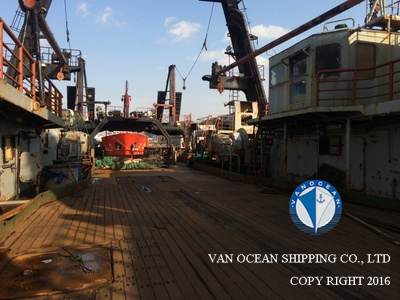

DECK EQUIPMENTS

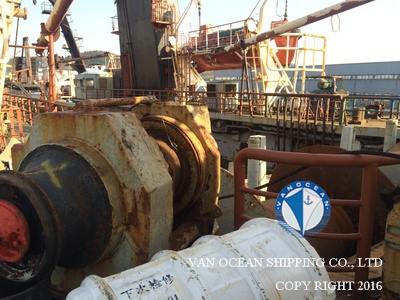

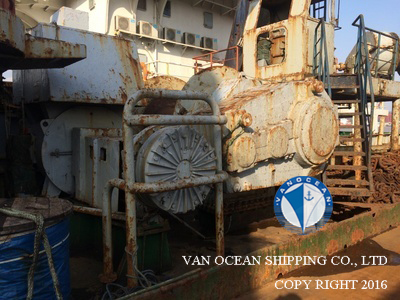

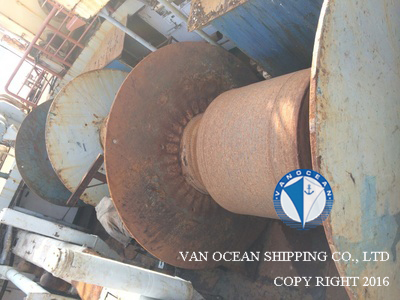

2 x 20MT MAIN ELECTRICAL TRAWLING WINCHES JTRW480, WIRE CAP. 4000M/37MM 2 x 10MT CABLE WINCHES JNW14, WIRE CAP. 1200M/22MM 2 x 16MT GILSON WINCHES JWH160 2 x NET DRUM WINCHES HW100 2 x HAULING WINCHES 5HW100 1 x AUX. WINCH JKSW37 8 x ELECTRICAL CARGO WINCHES, 3/5MT 2 x ELECTRICAL ANCHOR CAPSTAN 1 x NAUST MARINE AUTO TRAWL SYSTEM

FACTORY

-

WATER MAKER

1 x FW GENERATOR, 40MT/DAY 1 x FW GENERATOR, 25MT/DAY

SEPARATORS

1 x OIL SEPARATOR

BOILER(S)

-

SAFTY EQUIPMENTS

-

ELECTRONICS

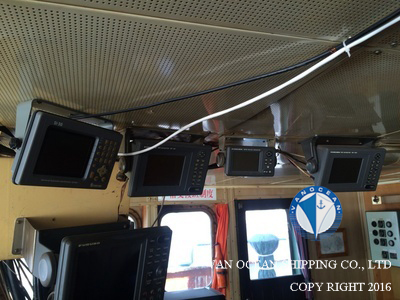

1 RADAR FR-2127 1 GPS GP80 1 GPS GP150 1 GPS32 1 GPS3500 1 AIS SI-30 1 VHF RH-4822 1 VHF IC-GM651 1 VHF IC-M45 1 SSB (SSB) HT-4520 1 SSB (SSB) IC78 1 SSB HC-4520 1 GYROCOMPASS STD-22 1 SONAR FSV-24 HORIZONTAL 1 SONAR FCV-1150 VERTICAL 1 SONAR FCV-1200L VERTICAL 1 NET SOUNDER FS-70 1 SATCOM FBB500 SATELITE COMMUNICATION GENCY INDICATOR RADAR TRANSPONDER NAVTEX LOS NAV5 NAVIGATION WARNING RECEIVER

INSURANCE

-

CREW

-

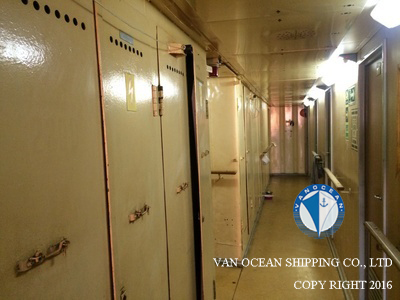

ACCOMMODATION

120 PERSONS

INSPECTION

-

DELIVERY

-

PRICE

USD 15 MILLION

REMARK(S)

-
