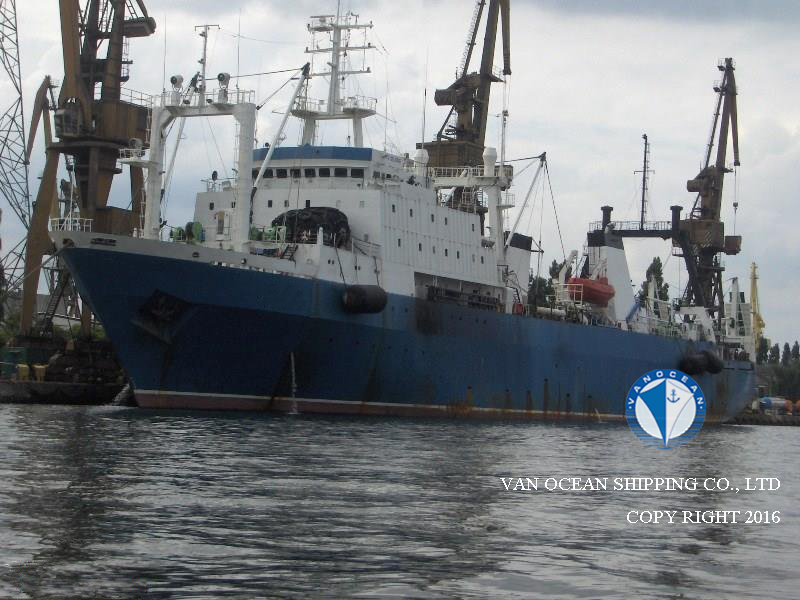

VESSEL NAME

TRA220

TYPE

TRAWLER

CONVERSION(S)

-

HULL MATERIAL

-

FLAG

KOREA

PORT OF REGISTRY

-

BUILT YEAR

1990

BUILT PLACE

VOLKSWERFT STRALSUND, GERMANY

CLASSIFICATION

KR

CLASS NOTATION

-

SS

-

DD

-

LOA (M)

120.40

LOA BETWEEN MASTS (M)

-

LBP (M)

110.22

BEAM (M)

19.00

DEPTH (M)

12.22

SUMMER DRAFT (M)

-

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

7765.00

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

-

PANAMA NT (MT)

-

SUEZ NT (MT)

-

SUMMER DWT (MT)

3372.00

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

DISPLACEMENT (MT)

-

LDT (MT)

-

GEAR(S)

3 x MAST 5 x DERRICKS (NO. 1~4 DERRICK CAPACITY 3.75MT, NO. 5 DERRICK 2.5MT)

M/E(S)

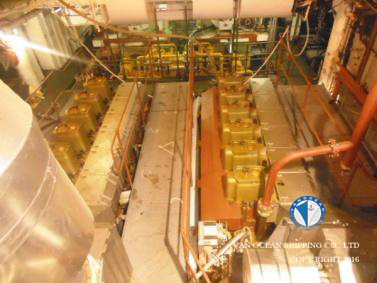

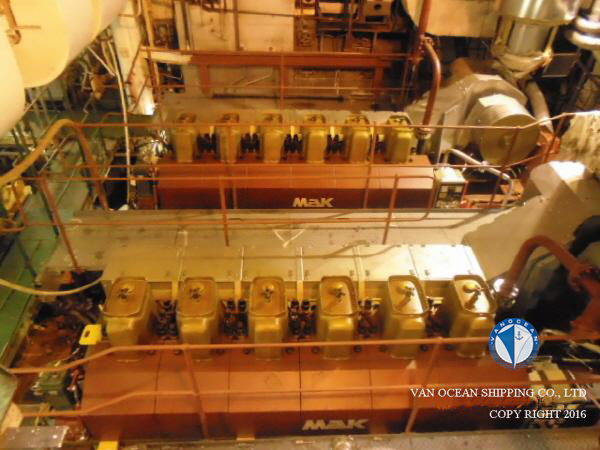

ZEPPLIN POWER SYSTEM (NEW INSTALLATION ON 2013-03) 2 x MAK 6M32C / 600RPM REDUCTION GEAR: REINTJES (NEW ON 2013-03) DLG5570 2K41A, 3.884:1

M/E POWER (KW)

3000

A/E(S)

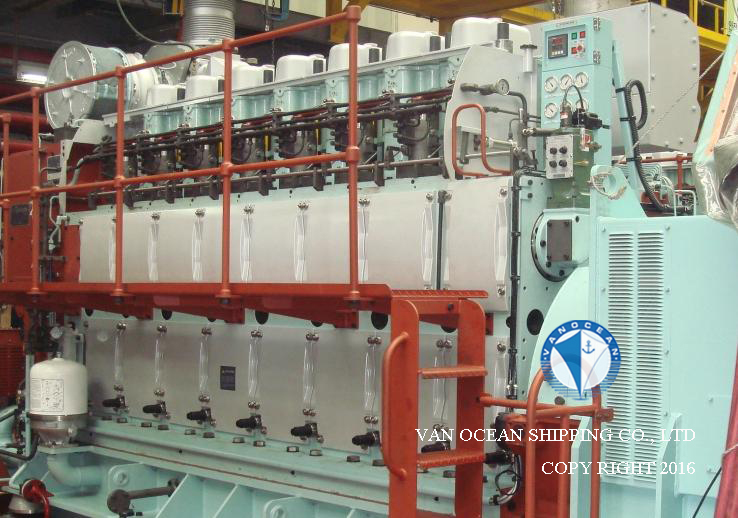

NO. 1 AE: 2 x HYUNDAI (NEW ON 2010-07), 7H25 33M, 7 CYLINDER*4CYCLE*1000RPM*2100KW NO. 2 AE: 2 x GERMANY VEB SCHWERMASCHINENBAU 8VDS26/20AL-2, 8 CYLINDER*4 CYCLE*1000RPM*1140HP

GENERATOR(S)

NO. 1 GENERATOR: 2 x HYUNDAI (NEW ON 2010-07) HFC7 714-06，380V*1995KW*2493.75KVA*50HZ NO.2 GENERATOR: 2 x VEBELEKTRO MOTOREN WERK, 380V*1305KW*950KVA*50HZ

SHAFT GENERATOR(S)

DGF S8 1421-6 / 380V*1875KW*1000RPM*50HZ

PROPELLER(S)

STRALSUND CPP 154RPM

SPEED /CONSUMPTIONS

-

FUEL TYPE

IFO

BUNKER CAPACITY (CBM)

2016.364

TANKS CAPACITY (CBM)

DIESEL OIL 116.459; LUB OIL 100.259

COMPARTMENT(S)

-

NUMBER OF CARGO HOLDS

-

CARGO CAPACITY (CBFT)

-

CARGO CAPACITY (CBM)

-

NUMBER OF FREEZING HOLDS

4

FREEZING HOLD CAPACITY (CBFT)

125950

FREEZING HOLD CAPACITY (CBM)

3568

COOLING SYSTEM

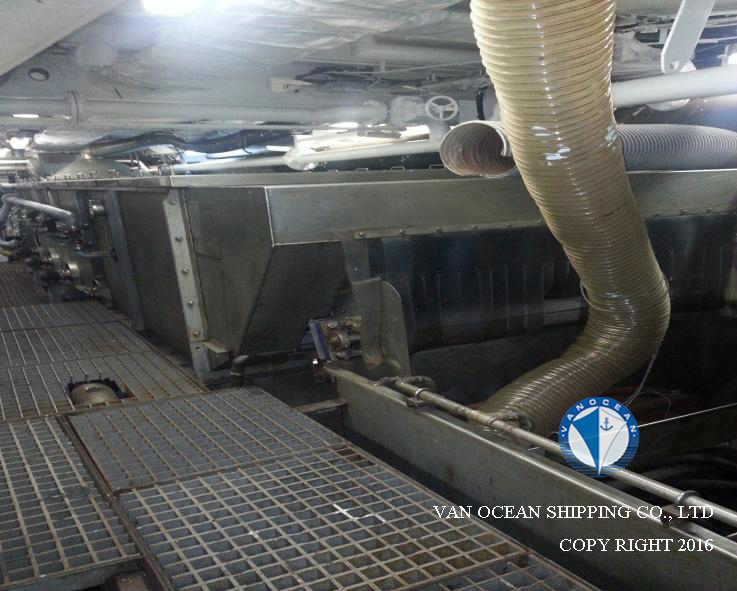

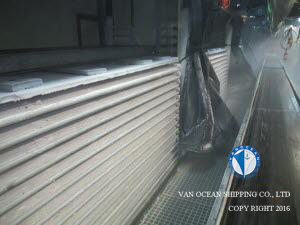

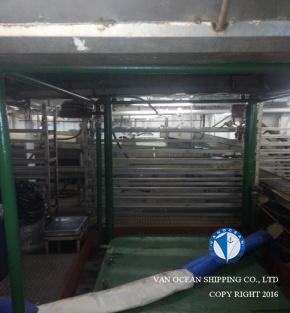

REFRIGERATION COMPRESSOR: 4 x MYCOM F-250VSD-ME/W51，120RT/250KW (NEW ON 2010-07) 2 x GRASSO S3 900, 47.4RT/180KW REFRIGERANT: R-22 QUICK FREEZING SYSTEM: KUMHO ENGINEERING CO., LTD./HORIZONTAL CONTACT FREEZER 20 ROOM x 6 ROUND/DAY (NEW ON 2010-07), 250MT/DAY RSW TANK: 300CBM RSW TANK CHILLER: NPRT CO., LTD./HEAT EXCHANGING SURFACE 550CBM RSW PUMP: 2 x DENMARK DESMI PUMP, NSL 200-300, 400CBM/HR (NEW ON 2010-07)

TEMPERATURE (℃)

-

DECK(S)

-

WATERTIGHT BULKHEAD(S)

-

DECK EQUIPMENTS

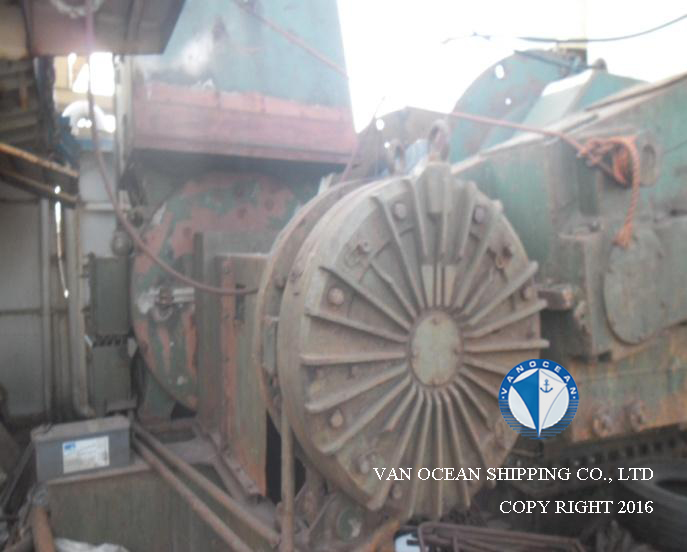

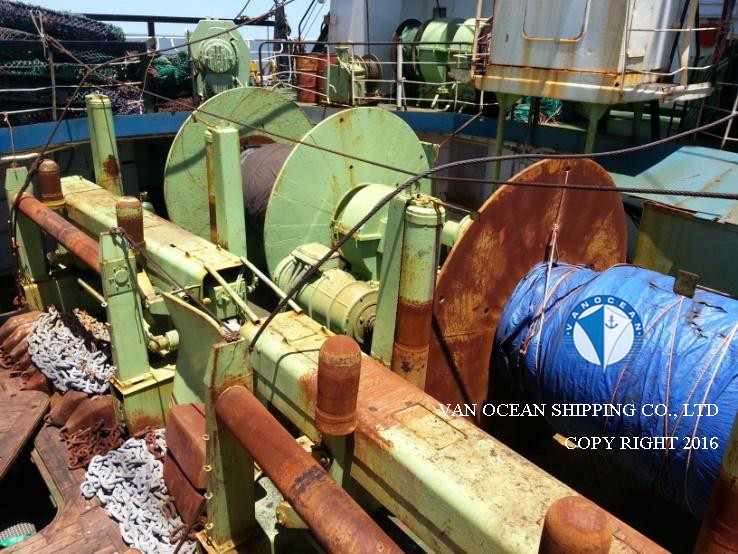

TRAWL WINCH: KLEMENT-GOTTWALD-WERK SCHWERIN 2NL，WORKS NR. 57,58 1 TKW 480，2 x 480KW(EACH), 20MTx M/MIN NET WINCH: KLEMENT-GOTTWALD-WERK SCHWERIN 2NL，WORKS NR. 57,58 2 JNW 14，2 x 102KW (EACH) CABLE WINCH: NAUST MARINE (NEW ON 2010-07) MCS-E/50/4000-11,4, 16KW

FACTORY

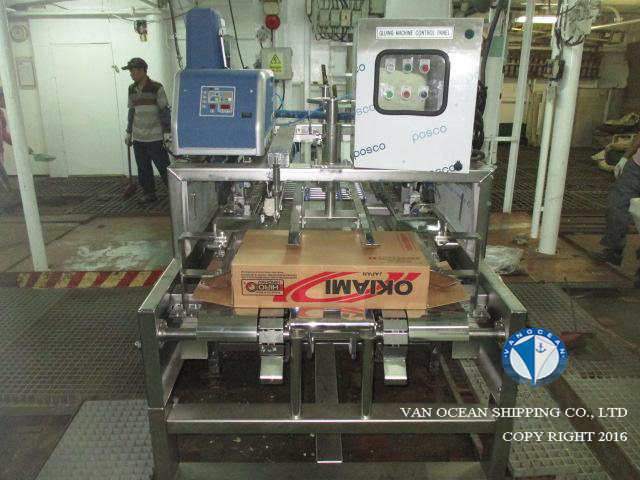

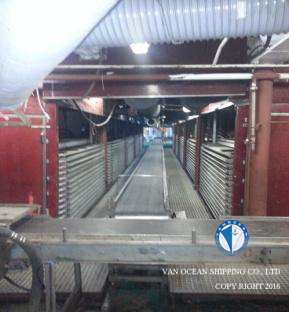

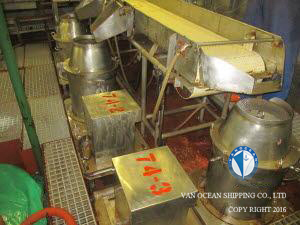

ALL RENEWED FOR KRILL & HORSE MACKEREL ON 2010-07 BOILED MACHINE: 75,600KG/DAY PEELING MACHINE: 3 x 1MT/DAY MEAL PLANT: 3MT/DAY (WITH 30MT RAW FISH) OTHER CONVEYOR SYSTEM

WATER MAKER

MAIN F/W GENERATOR: VEB CHEMIEANLAGENBAU, 40MT/DAY AUX. F/W GENERATOR: VEB CHEMIEANLAGENBAU，SVA 25T，25MT/DAY

SEPARATORS

-

BOILER(S)

MAIN BOILER: VEB KOMBINAT, ESH 6.3, 8KG/CM2 AUX. BOILER: VEB KOMBINAT, AKSR 1.4-6/16+16

SAFTY EQUIPMENTS

-

ELECTRONICS

3 x COLOR FISH FINDER: FURUNO FCV-1200L 50/200；SIMRAD ES-60，120KHZ；SIMRAD ES-70，38KHZ/200KHZ 2 x COLOR SONAR: SIMRAD SX-93 (NEW ON 2011-01); SIMRAD SP-270 2 x NET RECORDER: MARPORT, 33 TO 60KHZ (NEW ON 2015-01); SAMYONG 200CR, 50KHZ (NEW ON 2012-03) 2 x INMARSAT FB 250: JRC, THRANE&THRANE MF/HF: SAMYUNG SRG-1150D, 1626 MF/HF DSC: SAMYUNG SRG-1150D, 1626 MF/HF WATACH RECEIVER: SAMYUNG SRG-1150D, 1626 2 x VHF: SAMYUNG STR-580D, 1585/1584 2 x VHF DSC: SAMYUNG STR-580D, 1585/1584 RADAR TRANSPONDER: SAMYUNG SAR-9, 0302758 RADAR TRANSPONDER: SAMYUNG SAR-9, 2207421 TWO WAY VHF: GMD-150, 13570/13569/13568 EPIRB: SAMYUNG SEP-500, 3300254 NAVTEX SNX-2000871：SAMYUNG INMARSAT-C: THRANE&THRANE TT-30201C, 206182/206513

INSURANCE

-

CREW

-

ACCOMMODATION

FOR 120 PERSONS (TOTAL CABIN: 48 AND 1 HOSPITAL) CABIN FOR 1 PERSON: 21 CABIN FOR 2 PERSON: 25 CABIN FOR 4 PERSON: 2

INSPECTION

-

DELIVERY

-

PRICE

BUYERS OFFER

REMARK(S)

STERN TRAWLER FOR KRILL & HORSE MACKEREL NO. 1 FISH HOLD: 1047CBM NO. 2 FISH HOLD: 749CBM NO. 3 FISH HOLD:1658CBM FISH MEAL HOLD: 114CBM
