VESSEL NAME

TRA066

TYPE

TRAWLER

CONVERSION(S)

REBUILT IN 2009 NEW 4 VERTICAL PLATE FREEZERS DSI, DENMARK OF 38MT/DAY NEW FISH RECEIVING TANKS WITH A VOLUME OF ABOUT 150CBM WITH STAINLESS STEEL LINING./COATING NEW AUTONOMOUS RSW SYSTEM OF COOLING SEA WATER FOR THE FISH STORAGE IN RECEIVING BANKS RSW GRASSO, GERMANY NEW LINE OF AUTOMATIC SORTING: 2 SORTING MACHINES HS-IHR WITH THE POSSIBILITY OF SORTING INTO 4 FRACTIONS AND THE DISTRIBUTION OF FLOWUP TO 6 OPTIONS OF DIRECTIONS NEW UNIVERSAL AUTOMATIC FISH CLEANING MACHINE OF VMK SWEDEN, COMPOSED OF VMK 52 +31 +20 +751 WITH THE VACUUM REMOVAL NEW FISH CLEANING MACHINE IRA 108 STAINLESS STEEL 2 FILLING SYSTEM OF INTERMEDIATE STORAGE HOPPERS AND VMK BUNKER AND FREEZERS OF RSW GRASSO, GERMANY ADDITIONAL PACKAGING LINE WITH A SEMI AUTOMATIC BINDER ROSOMA, GERMANY FISH MEAL PLANT A1. IZJR MAJOR REPAIRS WITH REPLACEMENT OF SOME UNITS WITH NEW ONES CARRIED OUT NEW LINE OF PRODUCTION OF FISH OIL FROM THE WASTE NEW LINE FOR PROCESSING OF LARGE ORDINARY FISH NEW VENTILATION SYSTEM IN FISH SHOP. SYNTHETIC RUNNING LATTICE INSTALLED IN THE ENTIRE DEC IN FISH SHOP. CEILING OF FISH SHOP FULLY CEILID BY CORROSION RESISTANT SHEETS PIPING OF PRECESS WATER MADE OF PLASTIC MADE REPLACEMENT OF ENTIRE LIGHTING IN FISH SHOP THE WHOLE COMPLEX OF TECHNOLOGICAL EQUIPMENT: AUGERS, CONVEYORS, BUNKERS, WATER, SEPARATORS, TABLES, TRAY AND OTHER EQUIPMENT, MADE OF STAINLESS STEEL AND IS MOUNTED UNDER THE PROJECT ROSOMA, GERMANY 2 NEW MAIN ENGINES MAK OF 7000 KW OF FUEL SUPPLY AND WITH FUEL BOOSTER UNIT RE-EQUIPMENT OF GEAR 2 VALMET AS 155S MODERNIZED WITH THE PURCHASE OF NEW ELASTIC COUPING, BIG WHEEL, SHAFT GEARS LUBRICATION SYSTEM 2 SINGLE STAGE VACUUM WATER DISTILLERS OF ALFA LAVAL TYPE JWP-26-C100(8282) CAPACITY 25CBM EACH 2 HEATING UNITS OF ALFA LAVAL TYHPE HWL 20-35 SELF CLEANING SEPARATION SYSTEM, PA60-5 FOR CLEANING DIESEL OIL, 2SYSTEM AND SELF- CLEANING SEPARATION SYSTEM PA 615 FOR CLEANING HEAVY FUEL OIL IFO 180 BILGE WATER SEPARATION SYSTEM, INCLUDING DILGE WATER SEPARATOR MODEL RWO SKIT S DEB AUXILIARY BOILER INSTALLATION S-MAN TYPE ING/V4000 WATER HEATER FOR THE MAIN EIGINES MANUFACTUERE CATERPILLAR MOTOREN GMBH&KG

HULL MATERIAL

-

FLAG

RUSSIA

PORT OF REGISTRY

ST.PETERSBURG

BUILT YEAR

1994

BUILT PLACE

CHERNOMORSKIY SHIPYARD, KIKOLAEV, UKRAINE

CLASSIFICATION

RMRS

CLASS NOTATION

KM*2 1 A2 (FISHING)

SS

-

DD

-

LOA (M)

104.50

LOA BETWEEN MASTS (M)

-

LBP (M)

96.40

BEAM (M)

16.00

DEPTH (M)

10.20

SUMMER DRAFT (M)

6.60

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

4407.00

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

1322.00

PANAMA NT (MT)

-

SUEZ NT (MT)

-

SUMMER DWT (MT)

1904.00

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

DISPLACEMENT (MT)

5720.00

LDT (MT)

-

GEAR(S)

-

M/E(S)

2 x MAK 6M32S, 4079BHP EACH (TOTAL 8160BHP), 600 RPM (NEW 2007) REDUCTION GEAR: 2 x GEAR VALMET AS 155S MODERNIZED WITH THE PURCHASE OF NEW ELASTIC COUPING, BIG WHEEL

M/E POWER (KW)

2 x 3044KW (TOTAL 6088KW)

A/E(S)

2 x DIESEL CAT 3412 DITA 1 x DIESEL CAT C9 DITA HEAT EXCHANGER FOR AE: 2 x 3N-8893 (NEW)

GENERATOR(S)

2 x GENERATOR TYPE (NEW) 1 x JWAC GENERATOR TYPE (NEW-EMERGENCY)

SHAFT GENERATOR(S)

-

PROPELLER(S)

CPP AT 145 PRM

SPEED /CONSUMPTIONS

16 KTS AT 23MT/DAY

FUEL TYPE

IFO180

BUNKER CAPACITY (CBM)

1477

TANKS CAPACITY (CBM)

MDO: 98 LO: 68 BW: 106

COMPARTMENT(S)

-

NUMBER OF CARGO HOLDS

-

CARGO CAPACITY (CBFT)

-

CARGO CAPACITY (CBM)

-

NUMBER OF FREEZING HOLDS

-

FREEZING HOLD CAPACITY (CBFT)

70600

FREEZING HOLD CAPACITY (CBM)

2000

COOLING SYSTEM

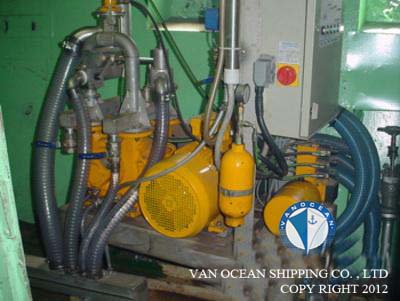

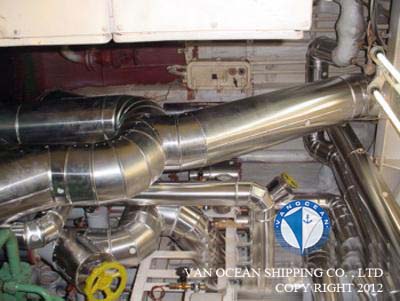

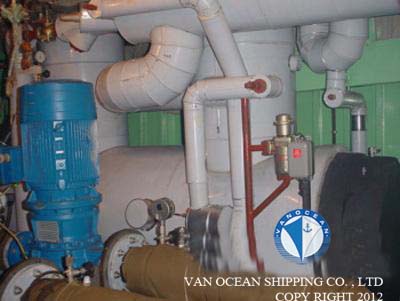

6 x COMPRESSORS GRASSO S3 -2500 FREEZING CAPACITY: QUICK FREEZERS (110MT/DAY) FREEZING DETAILS: 4 x VERTICAL PLATE FREEZER DSI (UPGRADED IN 2008), DENMARK, OF 38MT/DAY 2 x QUICK FREEZERS LBH – 031, 5 MAJOR REPAIRS CARRIED OUT WITH COMPLETE REPLACEMENT OF THE LEADING EDGE: ALL MADE OF STAINLESS STEEL EKO PROD, POLAND REPLACE AND REINSTALLED OF NEW HEAT EXCHANGERS, PUMPS, EQUIPMENT, AND PIPING FOR REFRIGERATION PART

TEMPERATURE (℃)

-28/-45

DECK(S)

-

WATERTIGHT BULKHEAD(S)

-

DECK EQUIPMENTS

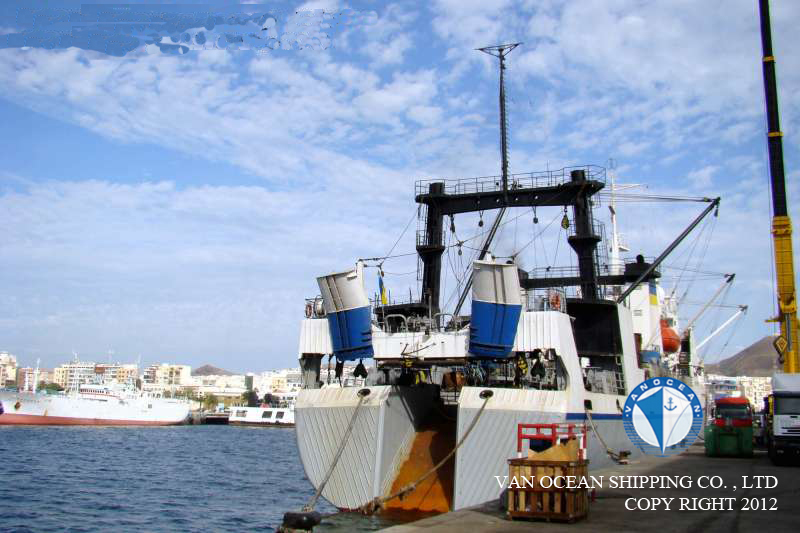

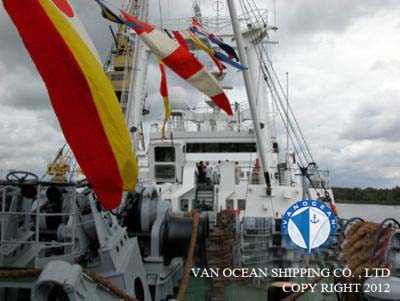

2 x AUTO TRAWL MARELEK, ICELAND (NEW 2009) VACUUM FISH TRANSFER SYSTEM IRAS PV900, DENMARK (NEW 2009) 2 x GILSON WINCHES 2 x NET ROLLERS 2 x CRANES + DERRICKS 2 x TRAWL WINCHES, MAI-E/600/3200-32/IS 3 x ANCHOR HOLLA, 2500 KG 2 x ANCHOR CHAIN, 46 MM 2 x LIFE BOATS, CAPACITY 55

FACTORY

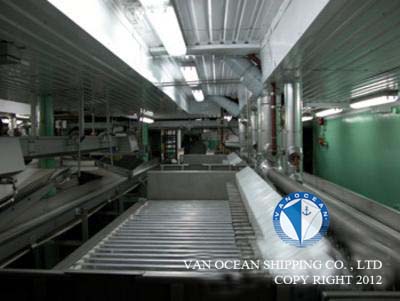

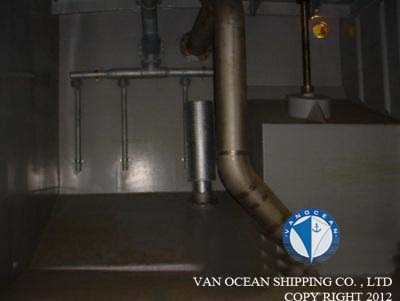

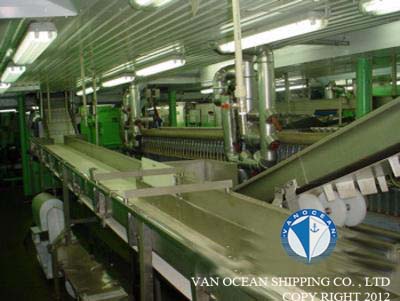

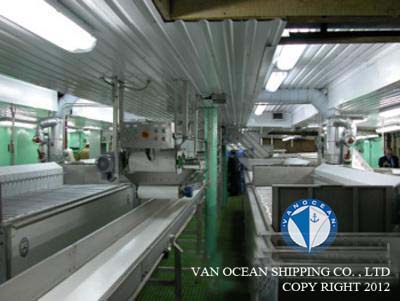

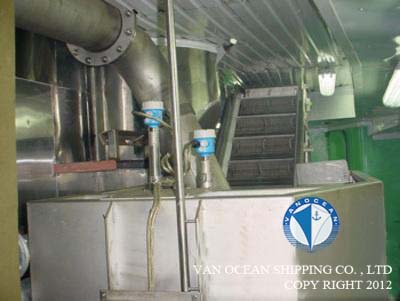

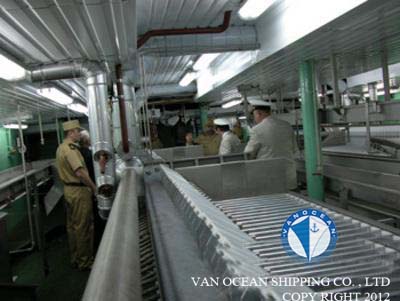

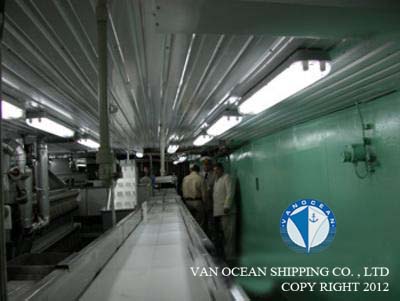

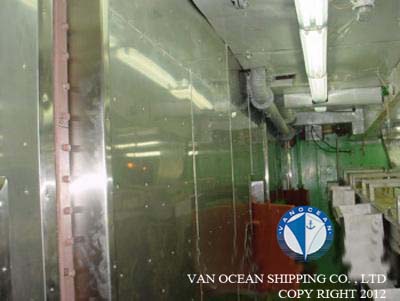

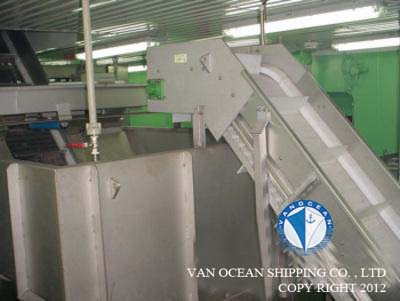

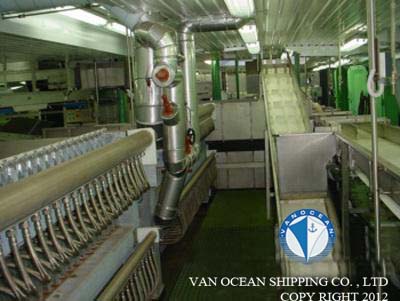

NEW FISH RECEIVING TANKS WITH A VOLUME OF ABOUT 150CBM WITH STAINLESS STEEL LINING/COATING NEW AUTONOMOUS RSW SYSTEM OF COOOLING SEA WATER FOR FISH STORAGE IN RECEIVING BANKS RSW GRASSO NEW LINE OF AUTOMATIC SORTING: 2 SORTING MACHINES HS-IHR WITH THE POSSIBILIT OF SORTING INTO 4 FRACTIONS AND THE DISTRIBUION OF FLOWSUP TO 6 OPTIONS OF DIRECTIONS NEW UNIVERSAL AUTOMATHIC FISH CLEANING MACHINE VMK52 + 31 +20 +751 WITH VACUUM REMOVAL 4 NEW SCALES FOR FISH, OF STAINLESS STEEL EKO PROD, PLAND 2 FILLING SYSTEM OF INTERMEDIATE STORAGE HOPPERS AND VMK BUNKERS AND FREEZERS RSW GRASSO ADDITIONAL PACKAGING LINE WITH A SEMI AUTOMATIC BINDER ROSOMA, GERMANY FISH MEAL PLANT A1, IZJR NEW LINE OF PRODUCTION OF FISH OIL FROM THE WASTE NEW PROCESSING LINE OF LARGE ORDINARY FISH NEW VENTILATION IN FISH SHOP. SYNTHETIC RUNNING LATTICE INSTALLED IN THE ENTIRE DECK IN FISH SHOP NEW LIGHT IN FISH SHOPS OUTPUT OF FISHMEAL: 7T/DAY RSW SYSTEM FOR HOPPERS, GRADING OF PELAGIC FISH, LINE FOR BIG FISH + SMALL FISH, FISH MEAL

WATER MAKER

-

SEPARATORS

-

BOILER(S)

-

SAFTY EQUIPMENTS

-

ELECTRONICS

2 MF /HF DSC RADIO INSTALLATION SAILOR HT 4520 (NEW 2000) 1 VHF RADIO INSTALLATION FURUNO FS 5070 2 VHF RAIO INSTALLATION RT 4822 3 TWO.WAYS RADIOTELEPHONE 3 SETS VHF GMDSS PORTABLE SAILOR SP3110 2 x RADAR TRANSPONDER IESM RESCUER 1 x SATTLEITE RADIO BOUY COSPAS SARSAT KANNAD 406 WH 1 x INMARSAT SHIP STATION FLEET 77 1 x INMARSAT SHIP STATION INMARSAT-C H-2095C 1 x RECEIVER NAVTEX FURUNO NX 500 1 x AIS SYSTEM SAMYUNG 30R 1 x COMMAND BROADASTING EQUIPMENT RYBINA 1 x GYROCOMPASS KURS 4M 1 x RADAR STATION FURUNO FR 2125 1 x RADAR STATION FURUNO FR 2127 1 x NAVIGATION STATION NAVI MASTER 1 x NAVIGATION STATION MAX SEA 1 x SATELLITE NAVIGATION RECEIVER GPS FURUNO GP 32 1 x SATELLITE NAVIGATION RECEIVER GPS FURUNO GP 98 SATELLITE STATION SEVSAT 1 NAVIGATION ECHO SOUDER NEL M3B VIDEO SURVEYANCE SYSTEM DISCOVERY 1 x ECHOSOUNDER SIMARD ES60 1 x ECHOSOUNDER SARGAN EM 1 x ECHOSOUNDER FURUNO FSV 382 1 x SONAR FURUNO CSH-22-5 1 x SONAR FURUNO FCV-30S 1 x TRAWLING COMPEX WESMAR TCS 770 1 x TRAWLING PROBES IGEK SUPER 2 x TRAWLING PROBES WESMAR TCS-780 6 x TRAWL FILLING SENSOR WESMAR CS-20 COMMAND BROADCASTING EQUIPMENT RYABINA SATELLITE NAVIGATION RECEIVER GPS KODEN KGP-98 SYSTEM OF DRAGROPES STRETCH AND LENGTH CONTROL MARELEK FISHING CARTOGRAPHIC SYSTEM OLEX, TRANSAS NF 2500

INSURANCE

-

CREW

-

ACCOMMODATION

93

INSPECTION

-

DELIVERY

-

PRICE

USD 18 MILLION

REMARK(S)

FISHING AREA: CENTRAL EAST ATLANTIC
