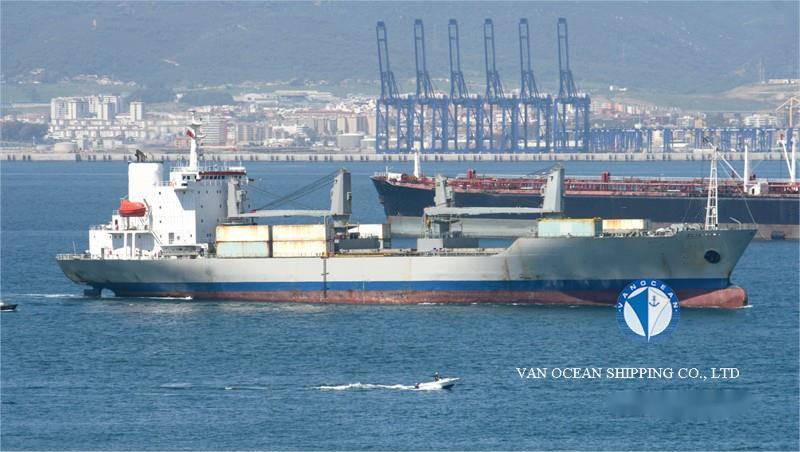

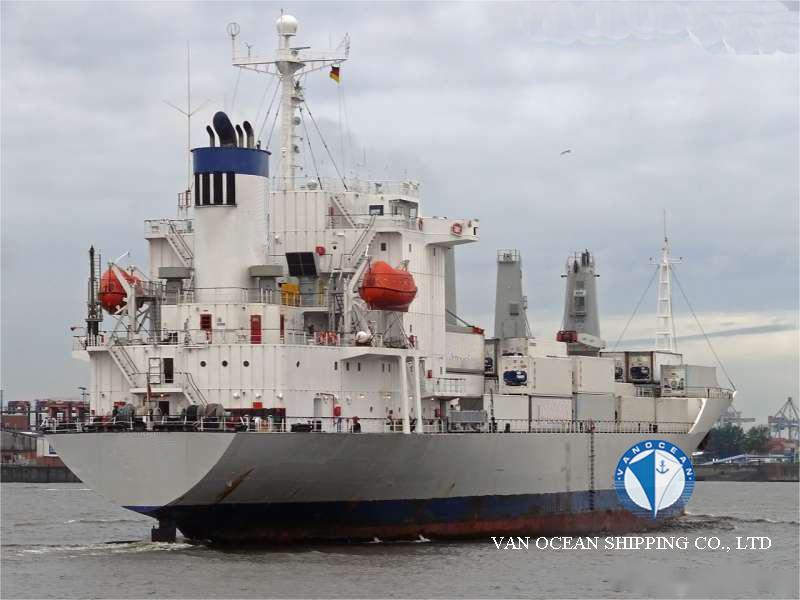

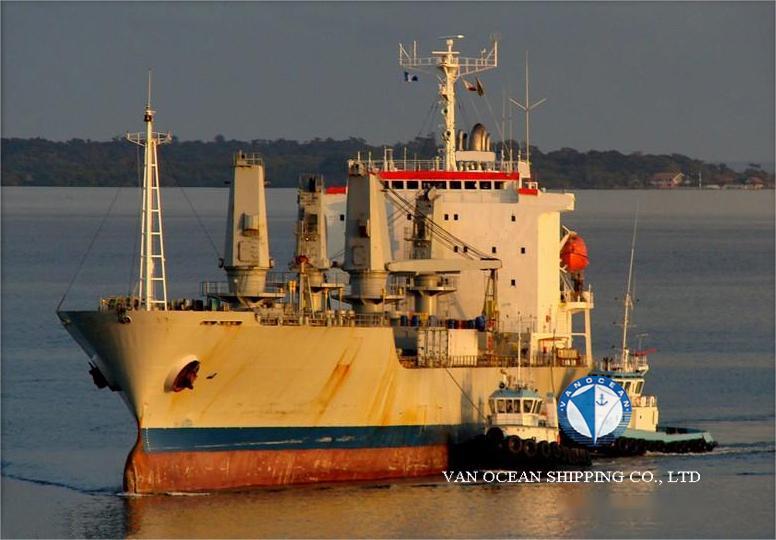

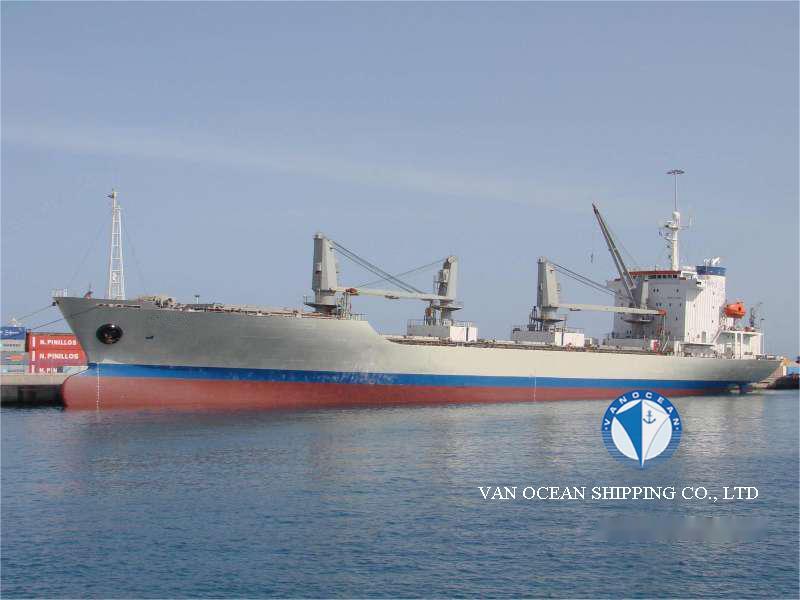

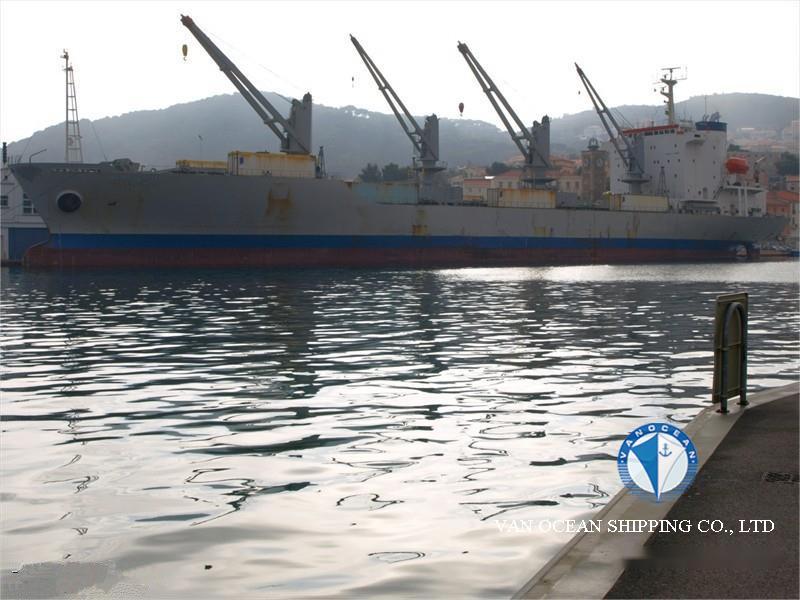

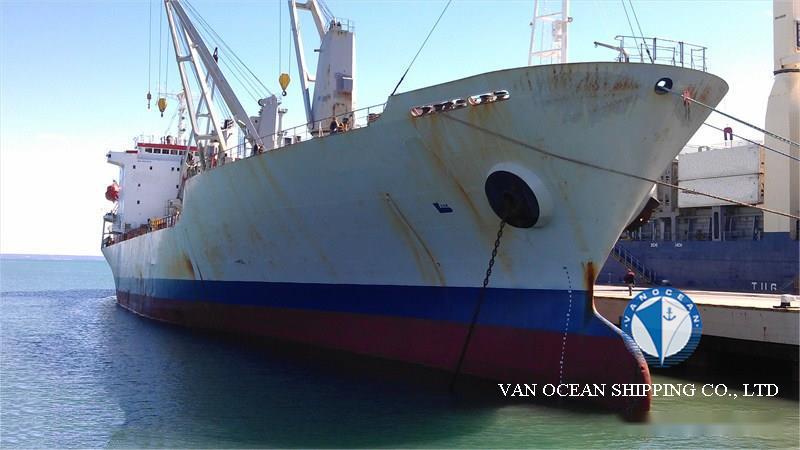

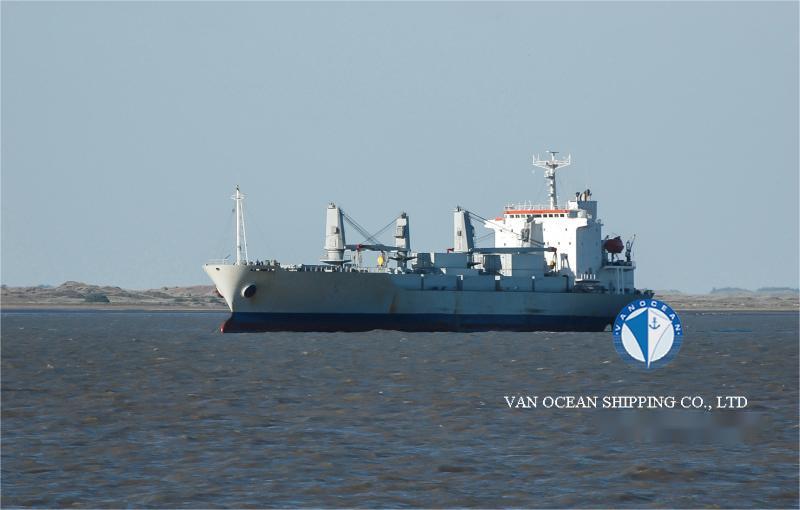

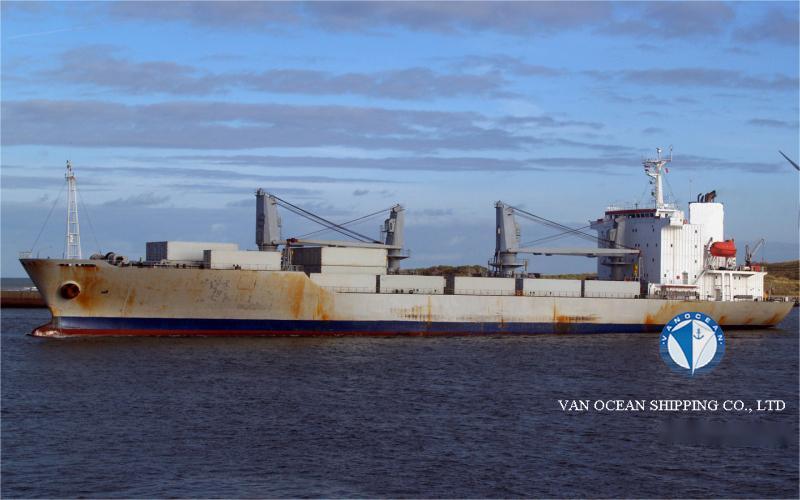

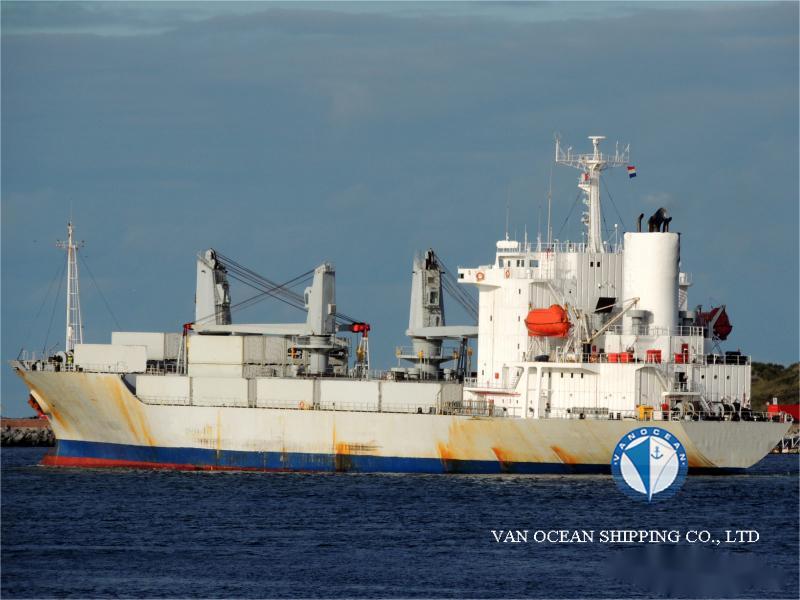

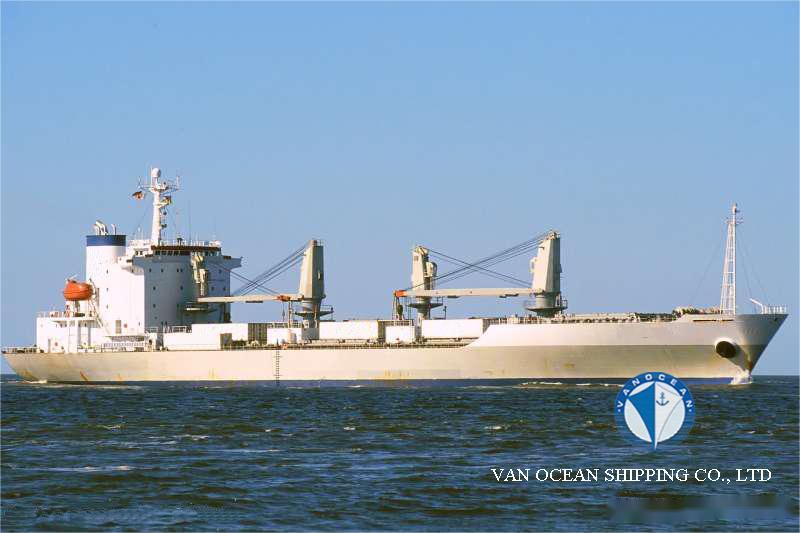

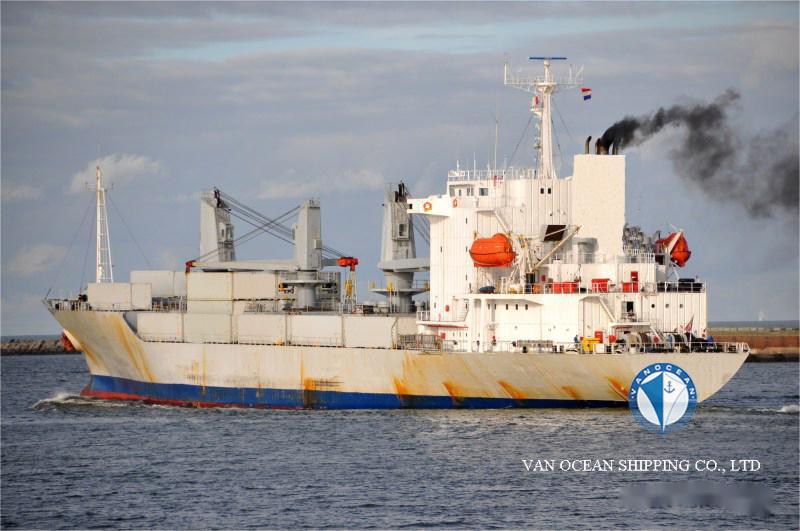

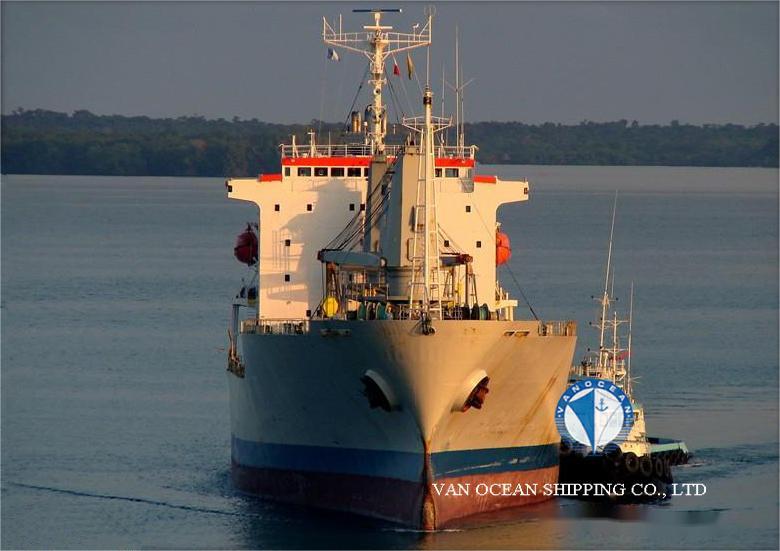

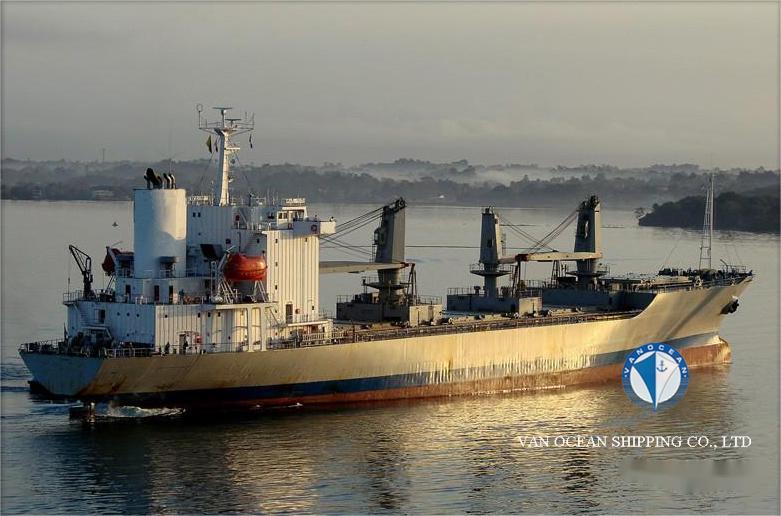

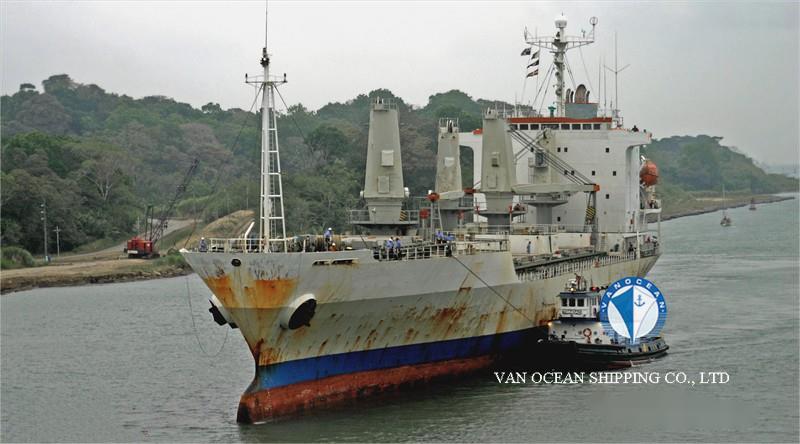

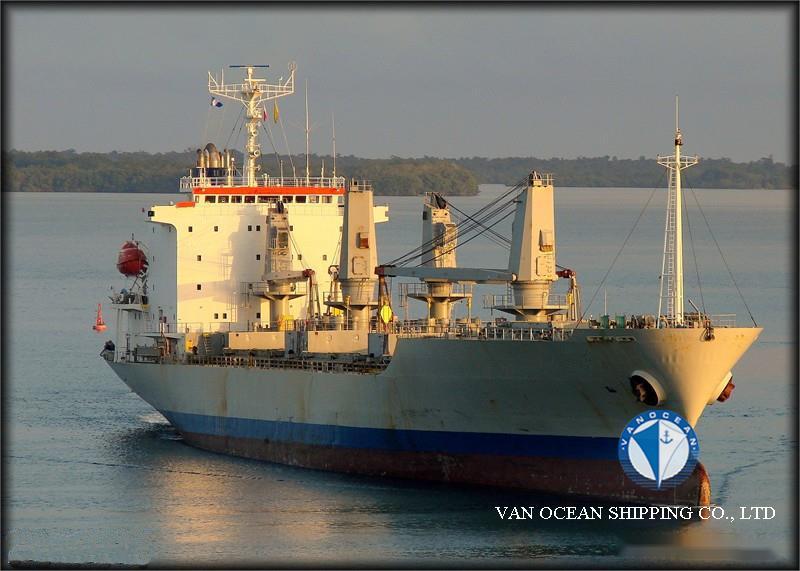

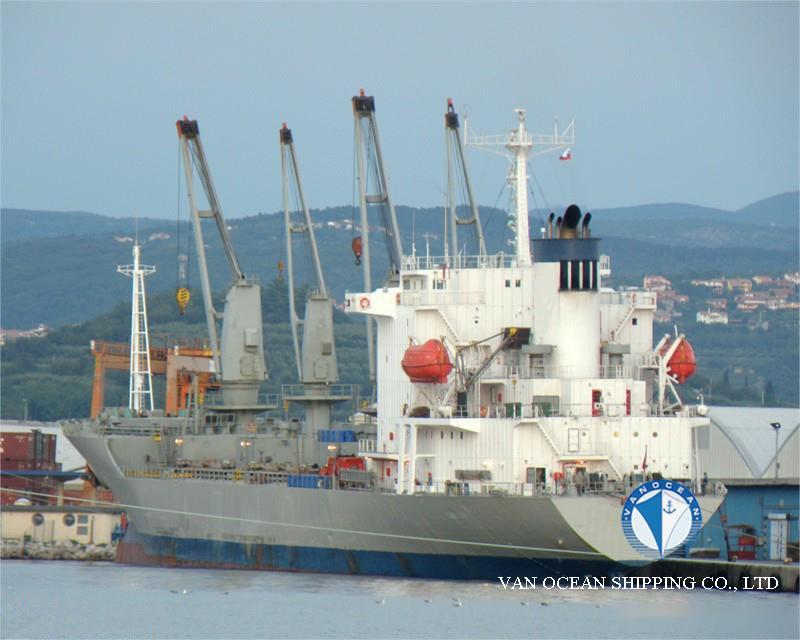

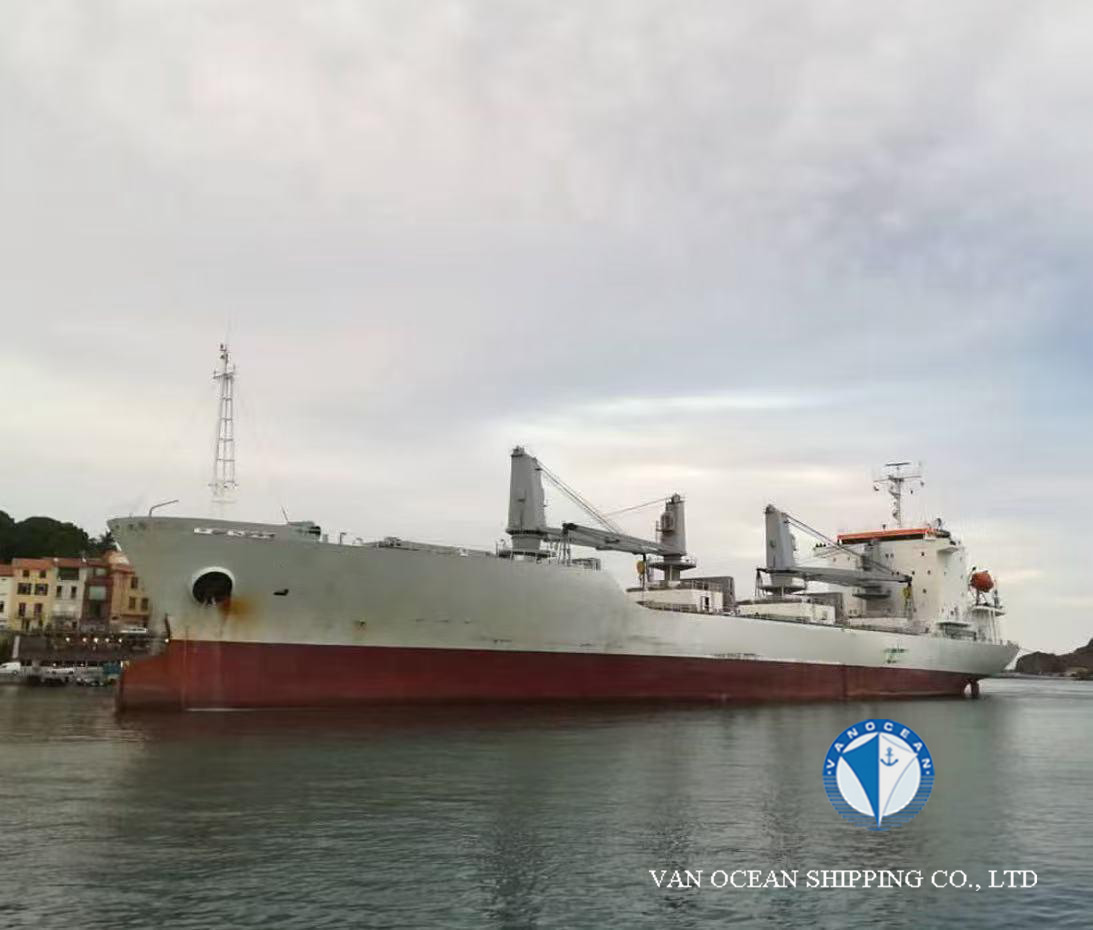

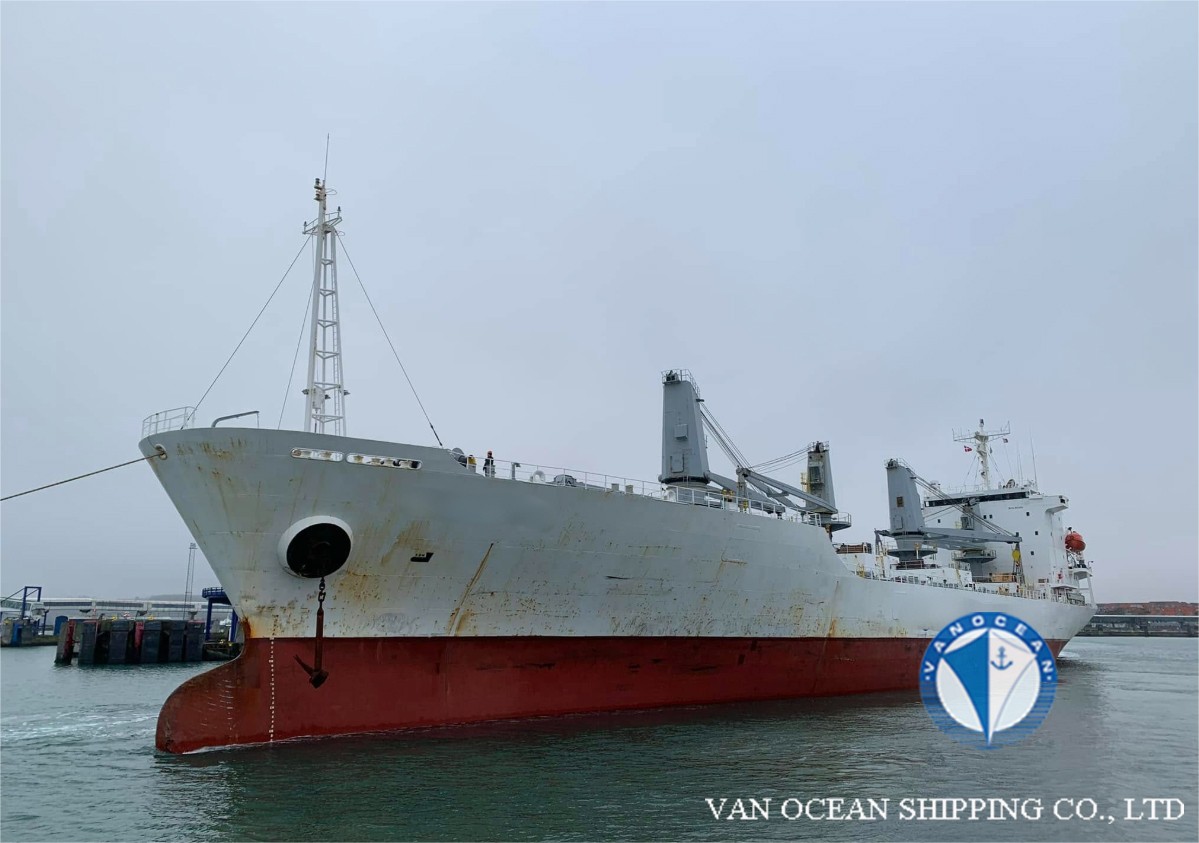

VESSEL NAME
REF697
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
PANAMA
PORT OF REGISTRY
NASSAU
BUILT YEAR
1993
BUILT PLACE
SHIKOKU JAPAN
CLASSIFICATION
DNV
CLASS NOTATION
1A1 (-25C/+32C SEA) PET
SS
-
DD
-
LOA (M)
150
LBP (M)
-
BEAM (M)
22.5
DEPTH (M)
13.2
SUMMER DRAFT (M)
9.05
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
10375
PANAMA GT (MT)
11323
SUEZ GT (MT)
11010.23
NT (MT)
5253
PANAMA NT (MT)
8653
SUEZ NT (MT)
8908.23
SUMMER DWT (MT)
10520
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
CRANE, 2 x 8MT AND 2 x 35MT
M/E(S)
B&W 2 S.A., 6-CYL. 15289 HP
M/E POWER (KW)
11253
A/E(S)
-
GENERATOR(S)
3 - 750 kVA - 600 kW,1 - 750 kVA - 600 kW - 900 HP
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
MAX SPEED: 20KTS
BANANA LADEN: 19KTS / 36.5MT IFO 380CST + 5MT IFO 380CST (+ 3MT MDO / MONTH)
FUEL TYPE
IFO 380 CST, MDO
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
HATCH NO.1: 13.2 x 8.5
HATCH NO. 2/3/4: 13.2 x 10.50
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
4
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
526250
CARGO CAPACITY (CBM)
14901.7
FLOOR SPACE CAPACITY (SQM)
5851
GRATING/DECK STRENGTH
6 MT AIR TYRES
TEMPERATURE ZONE(S)
8，1A/BCD, 2AB/CD, 3AB/CD, 4AB/CD
TEMPERATURE (℃)
-30/+15 C
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
3
PALLET(S)
4600
CONTAINER CAPACITY
-
REEFER PLUG(S)
46
SIDE DOOR(S)
4 /P ON DECK A , SIZE: 2.1 x 1.9
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
2001-01-07
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
