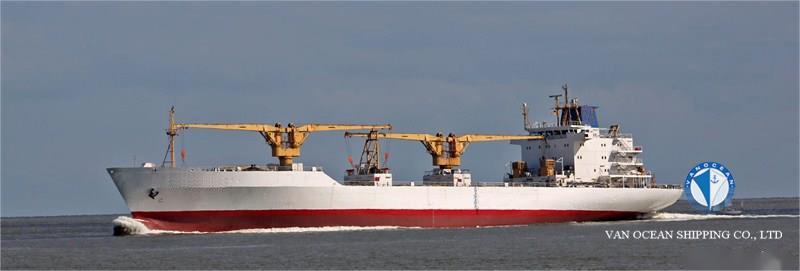

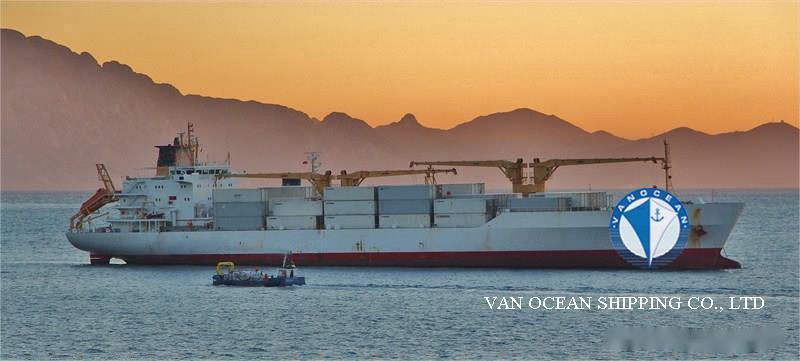

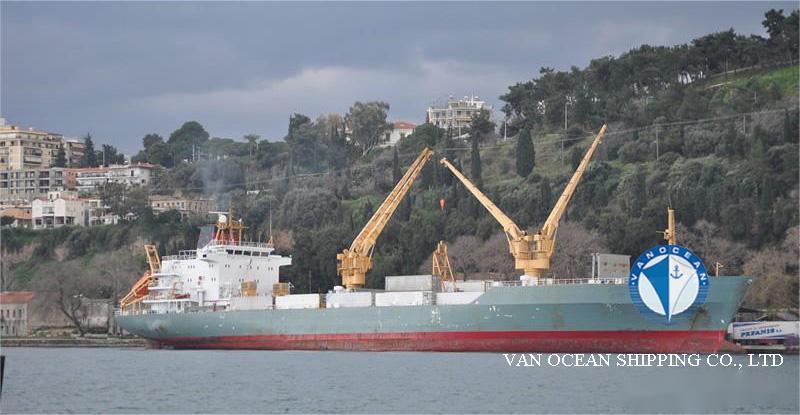

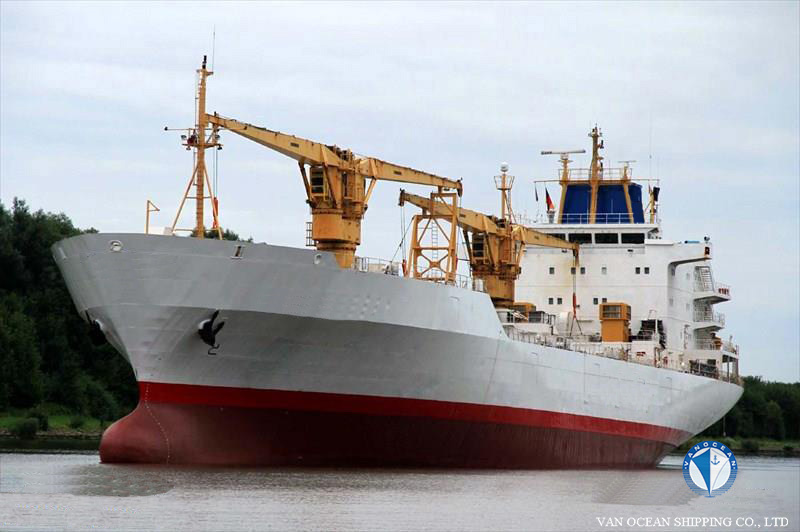

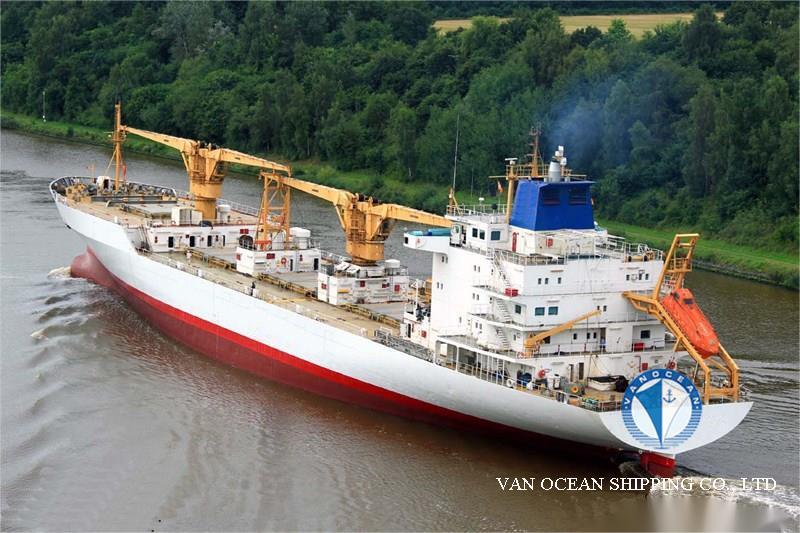

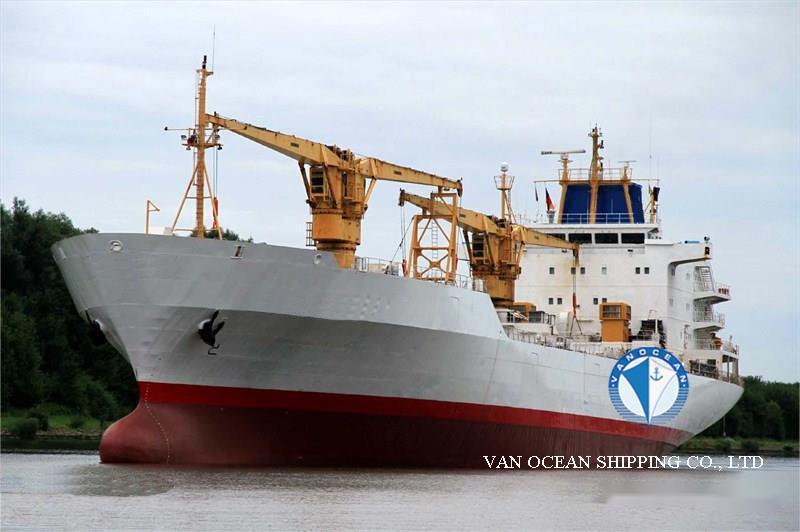

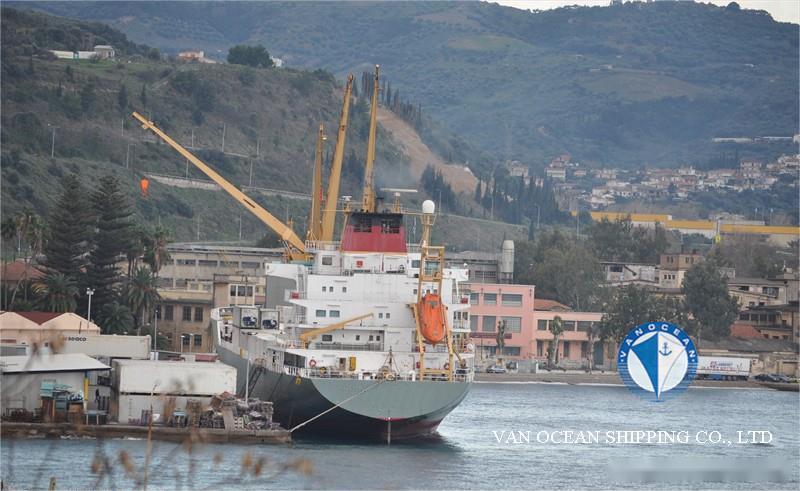

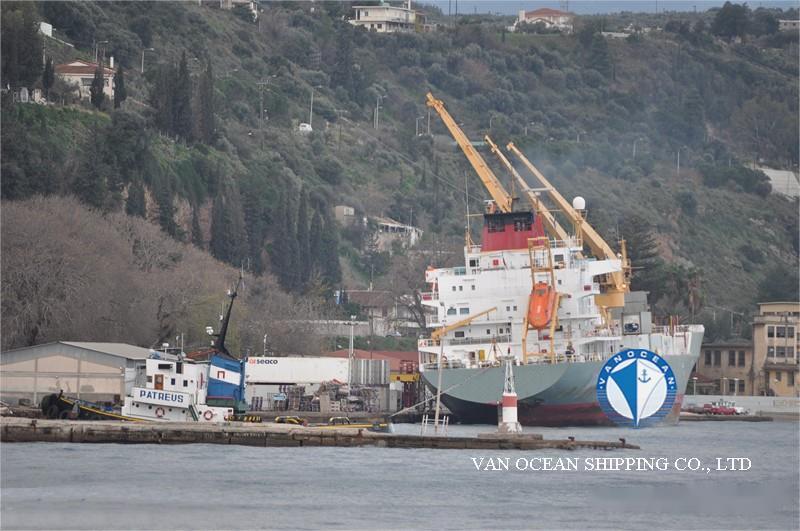

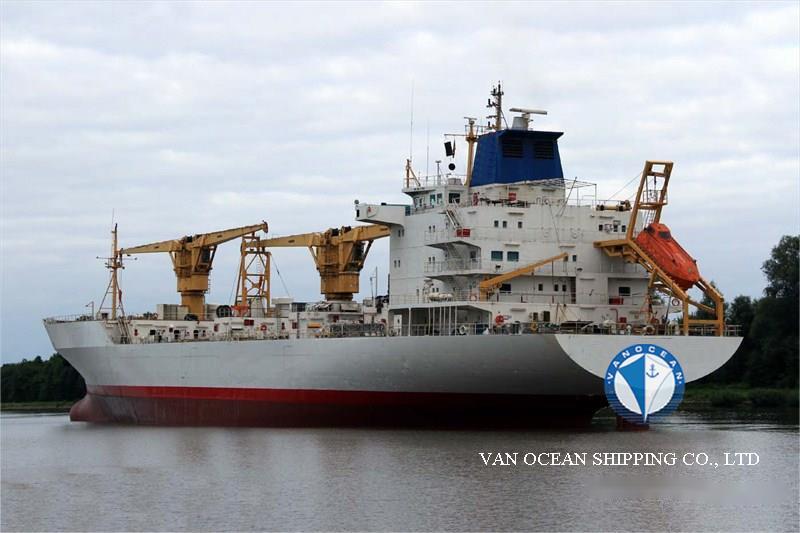

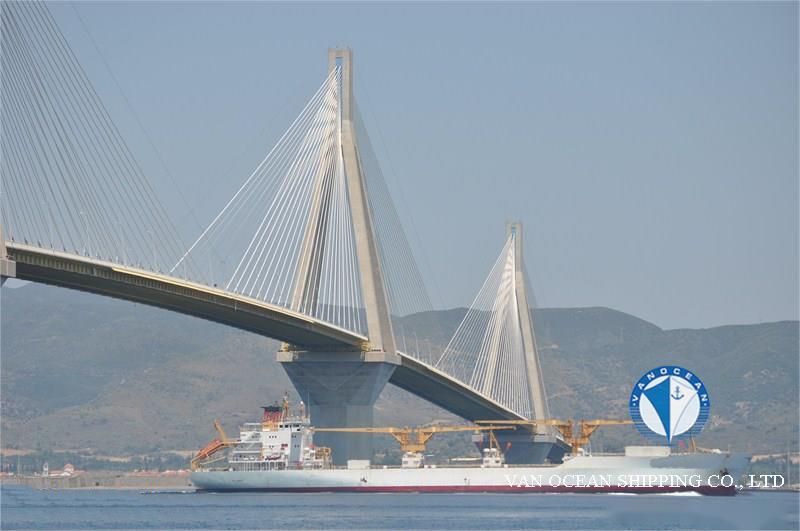

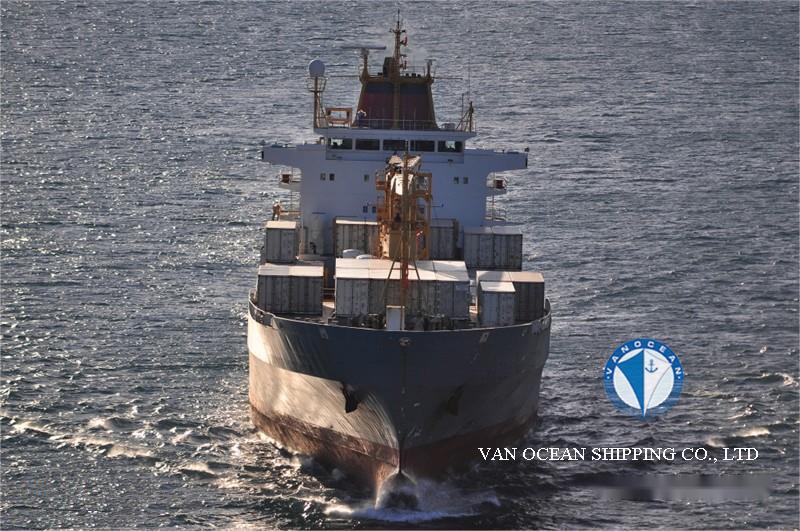

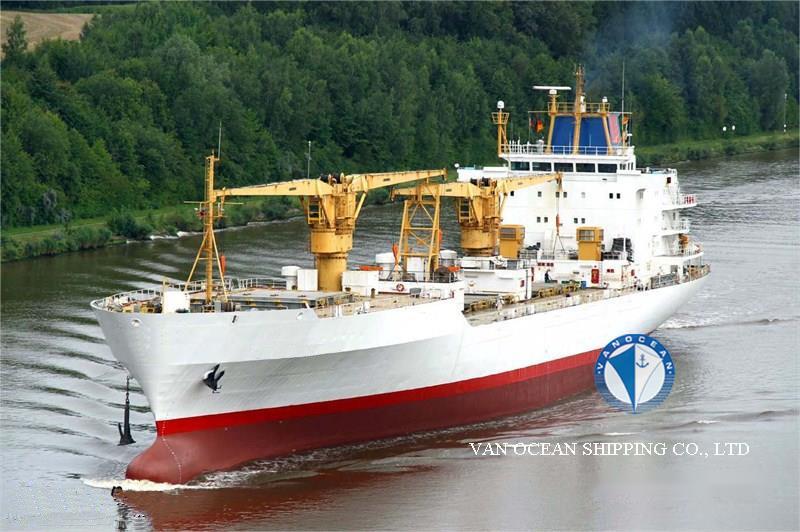

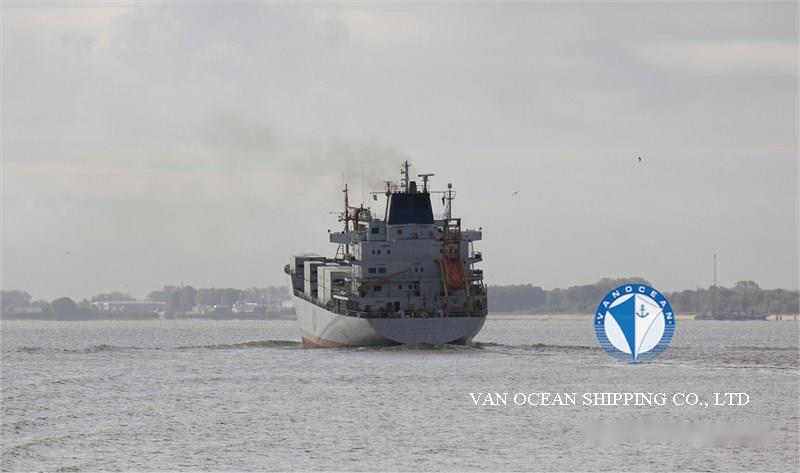

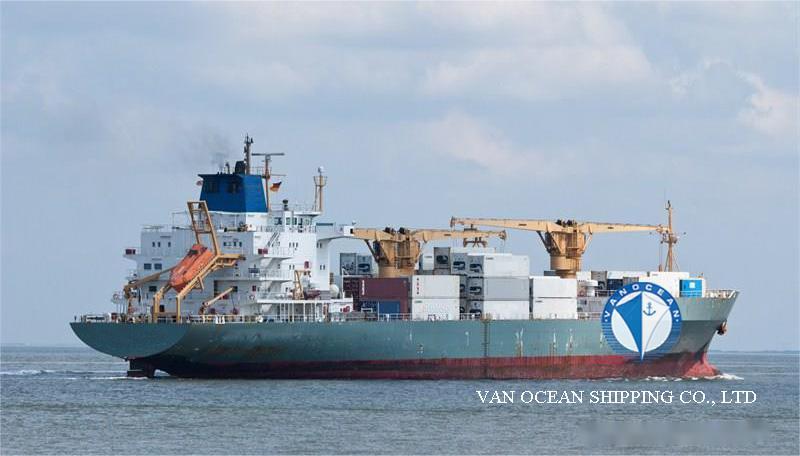

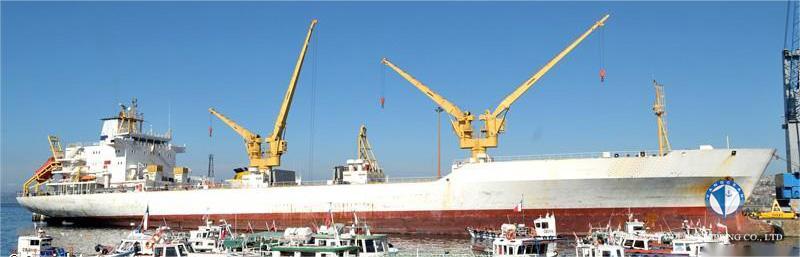

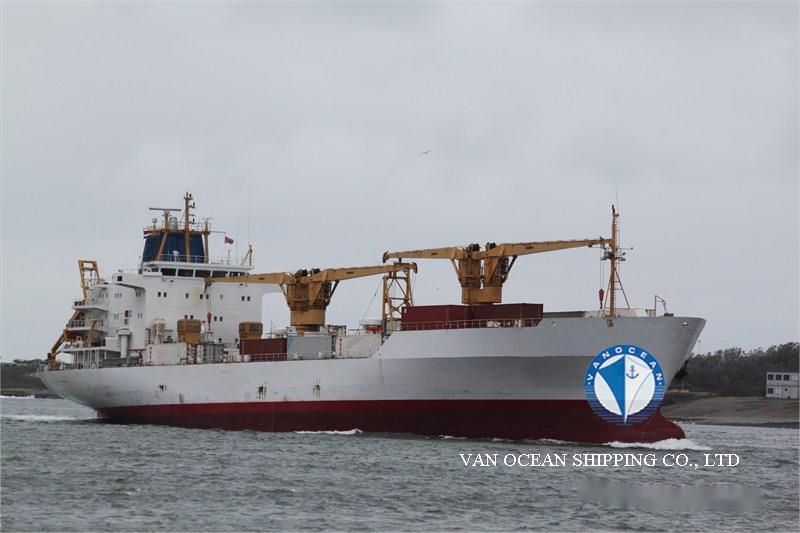

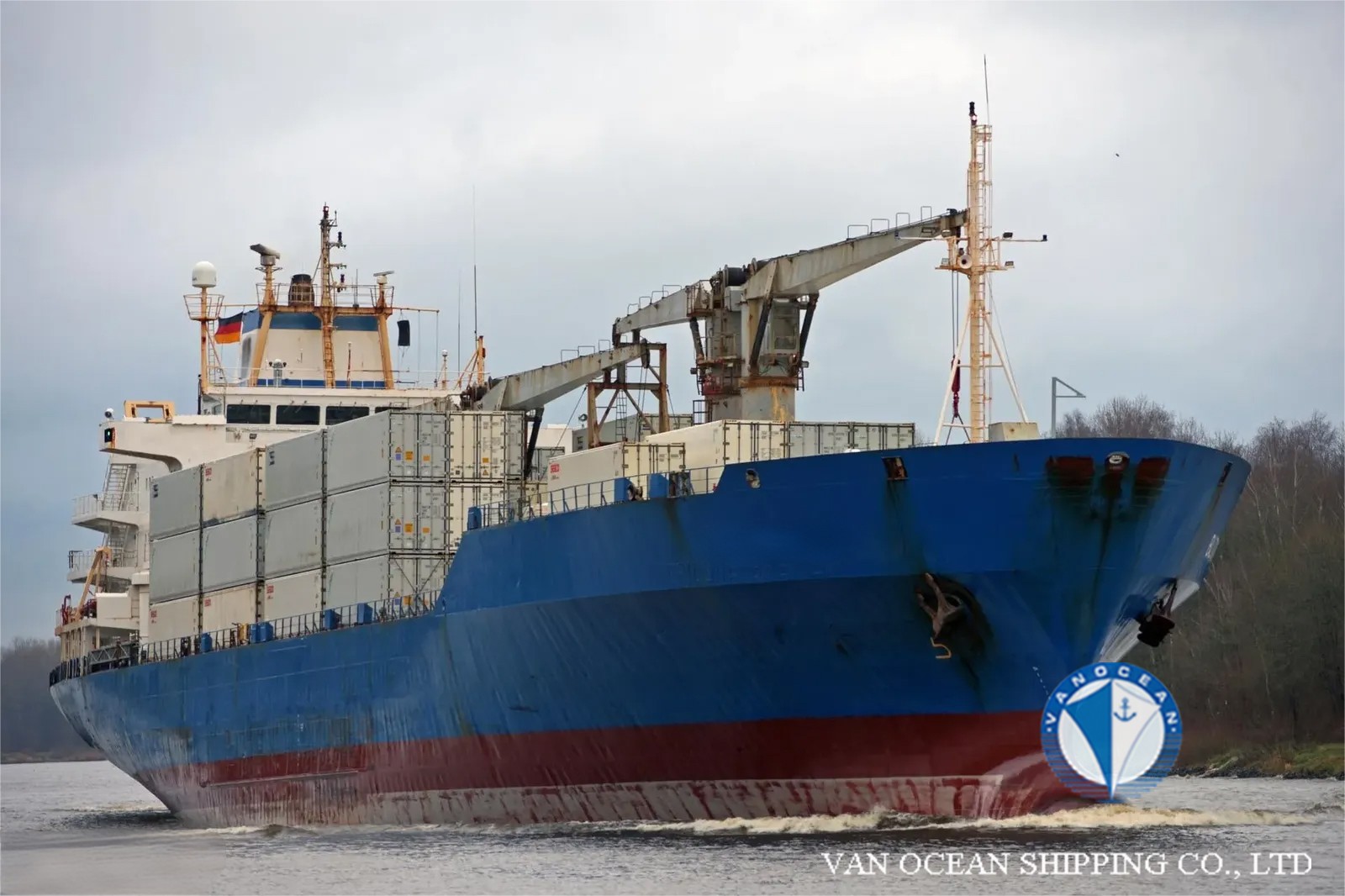

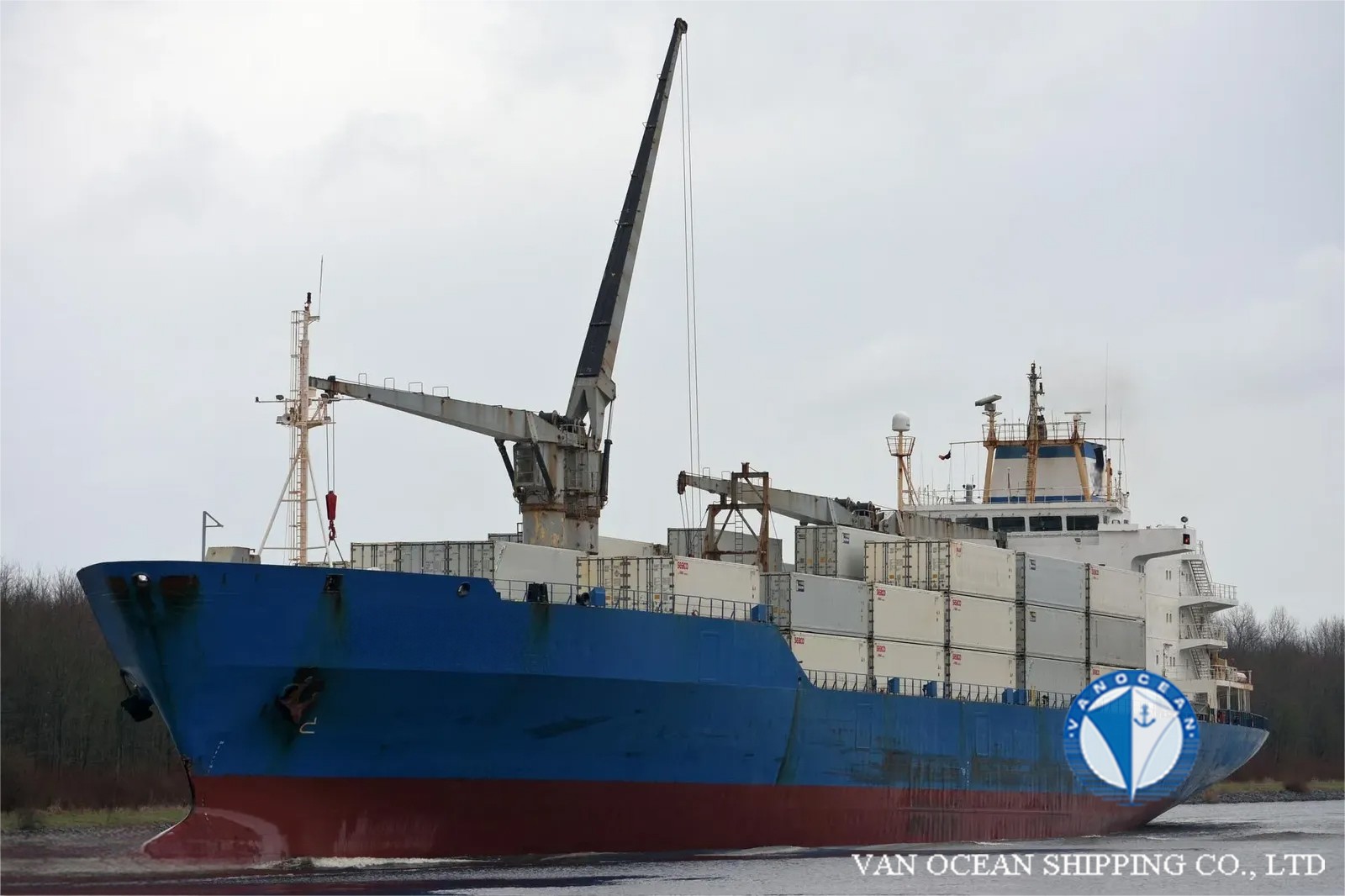

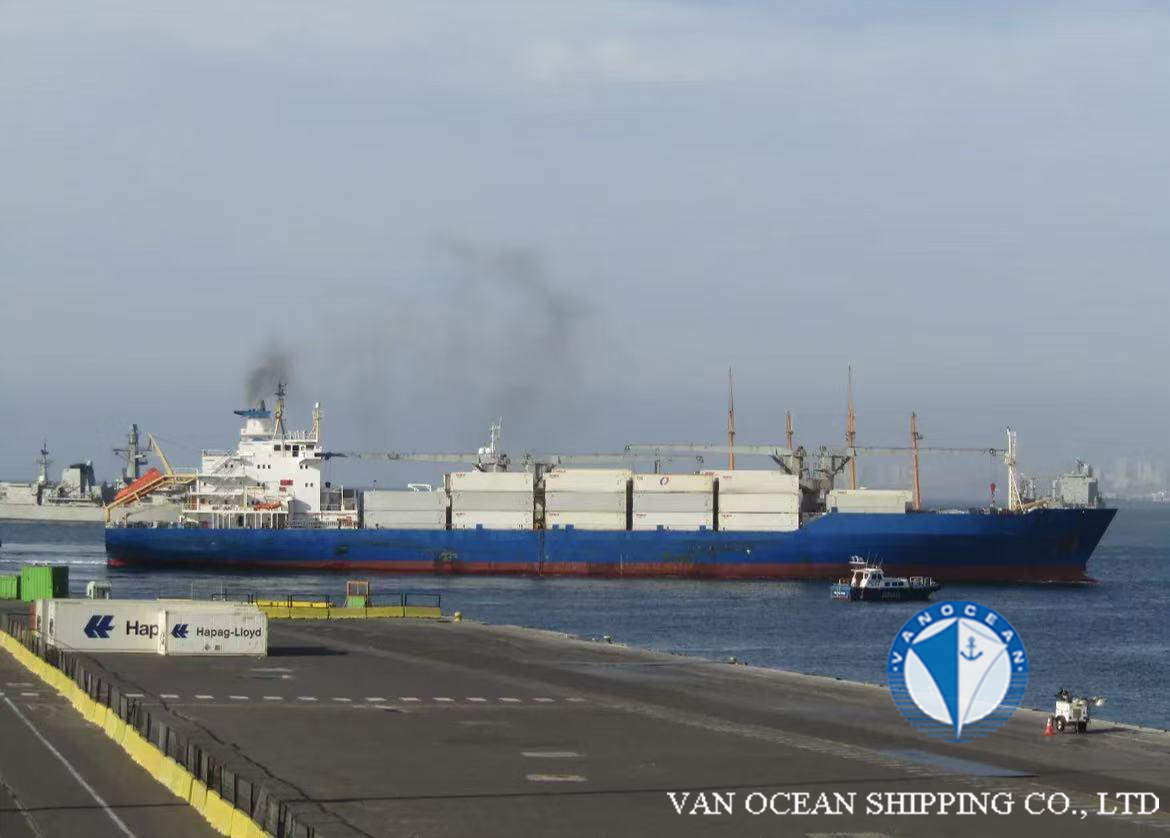

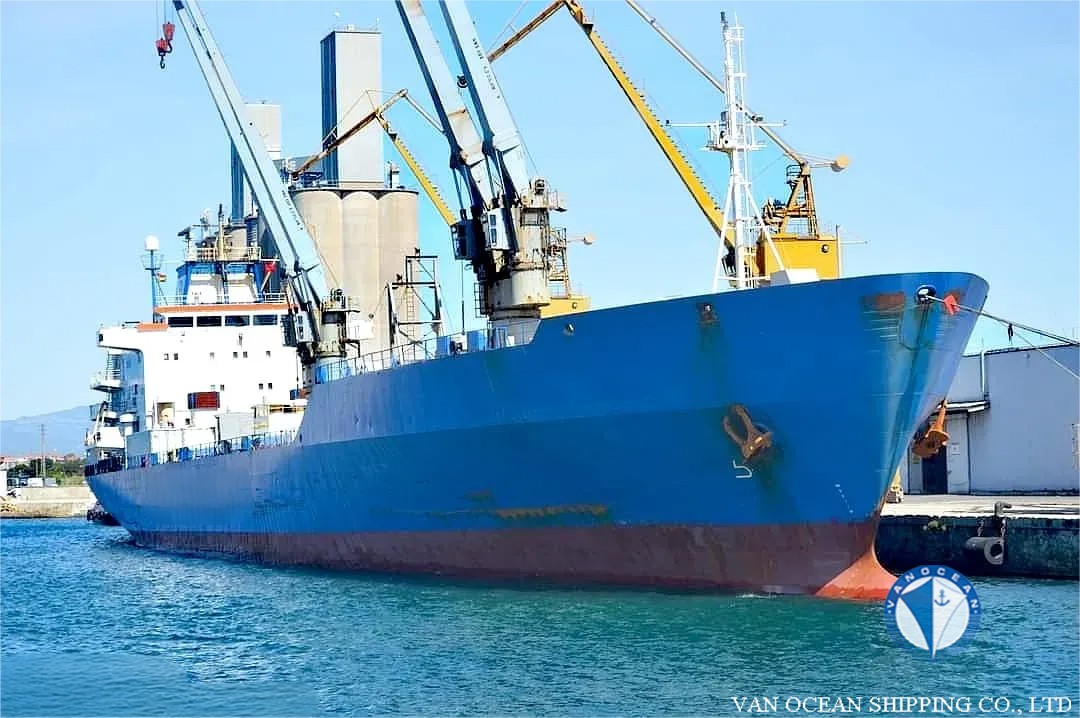

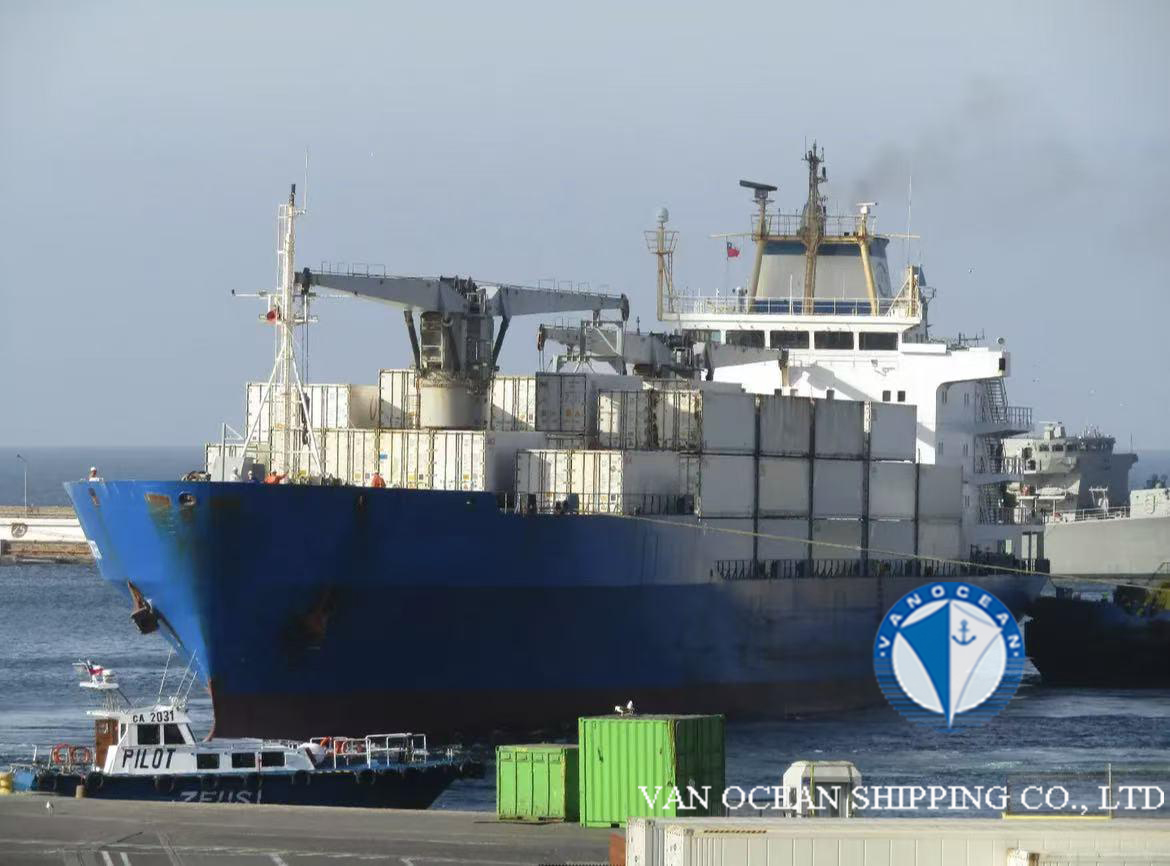

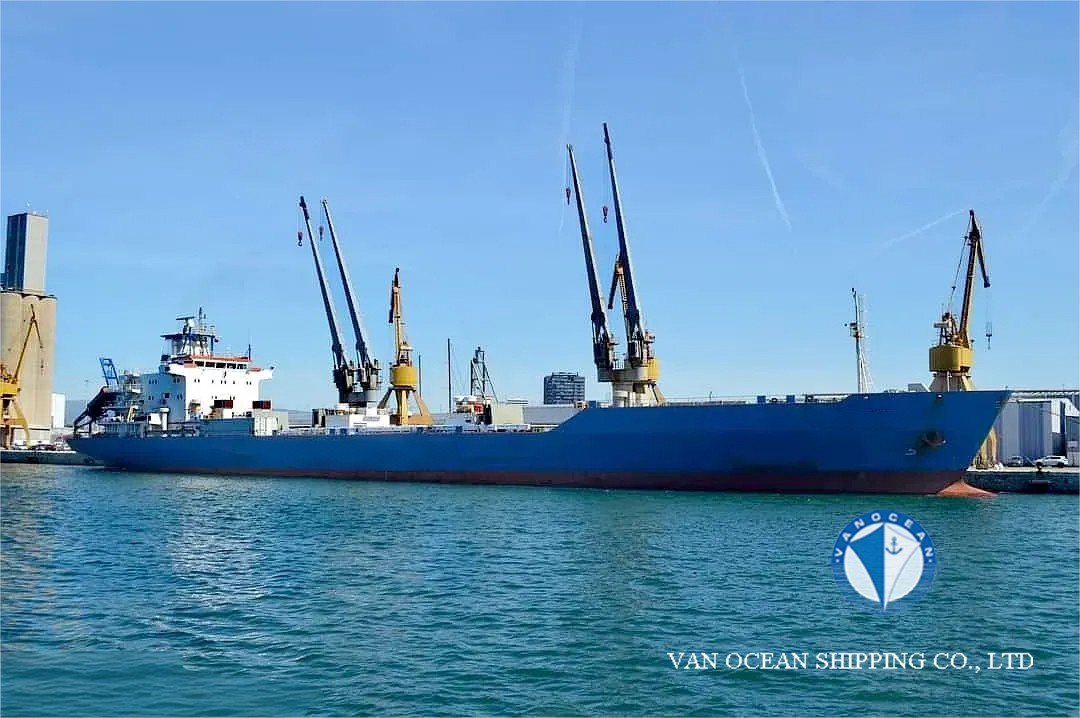

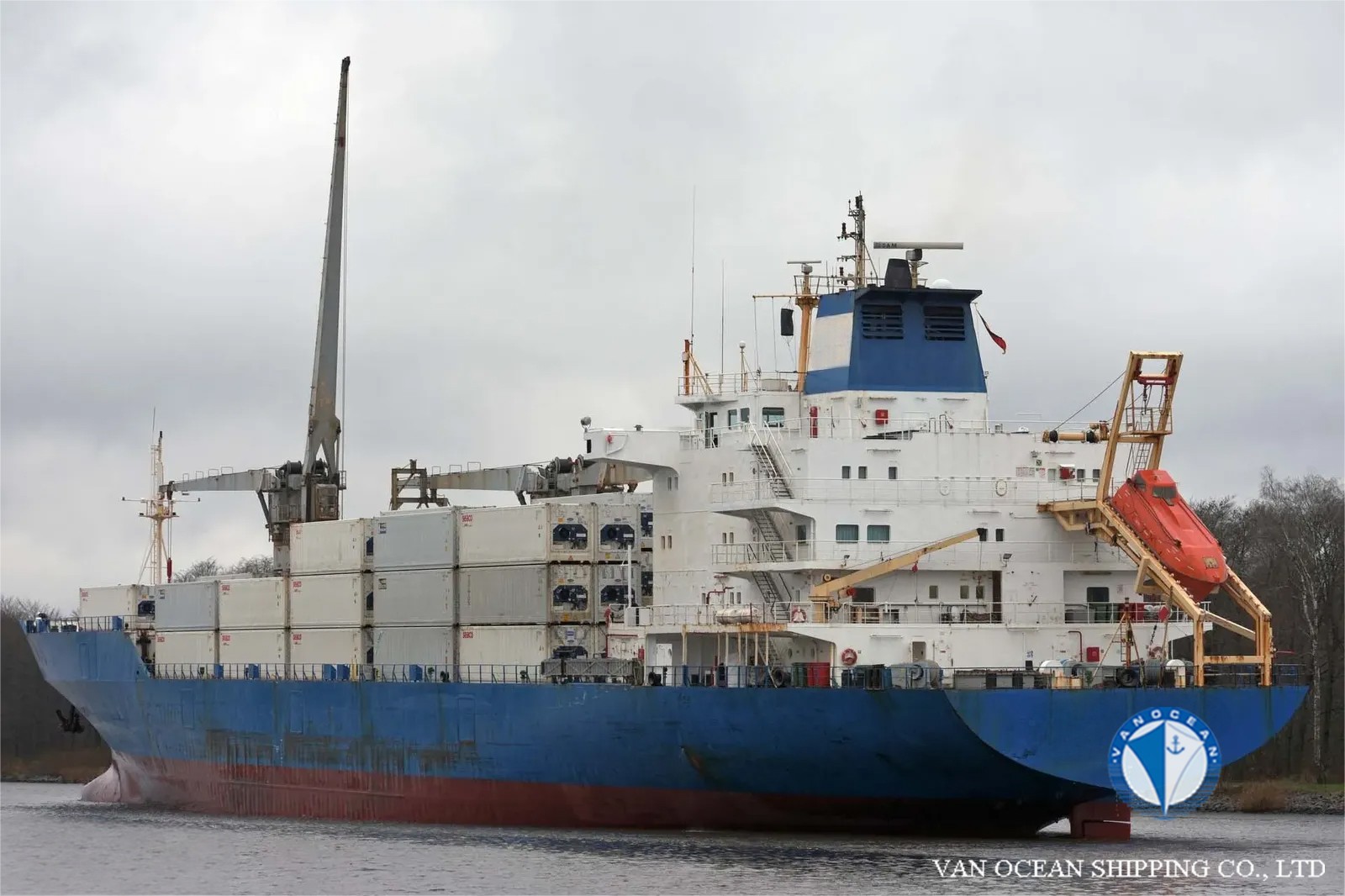

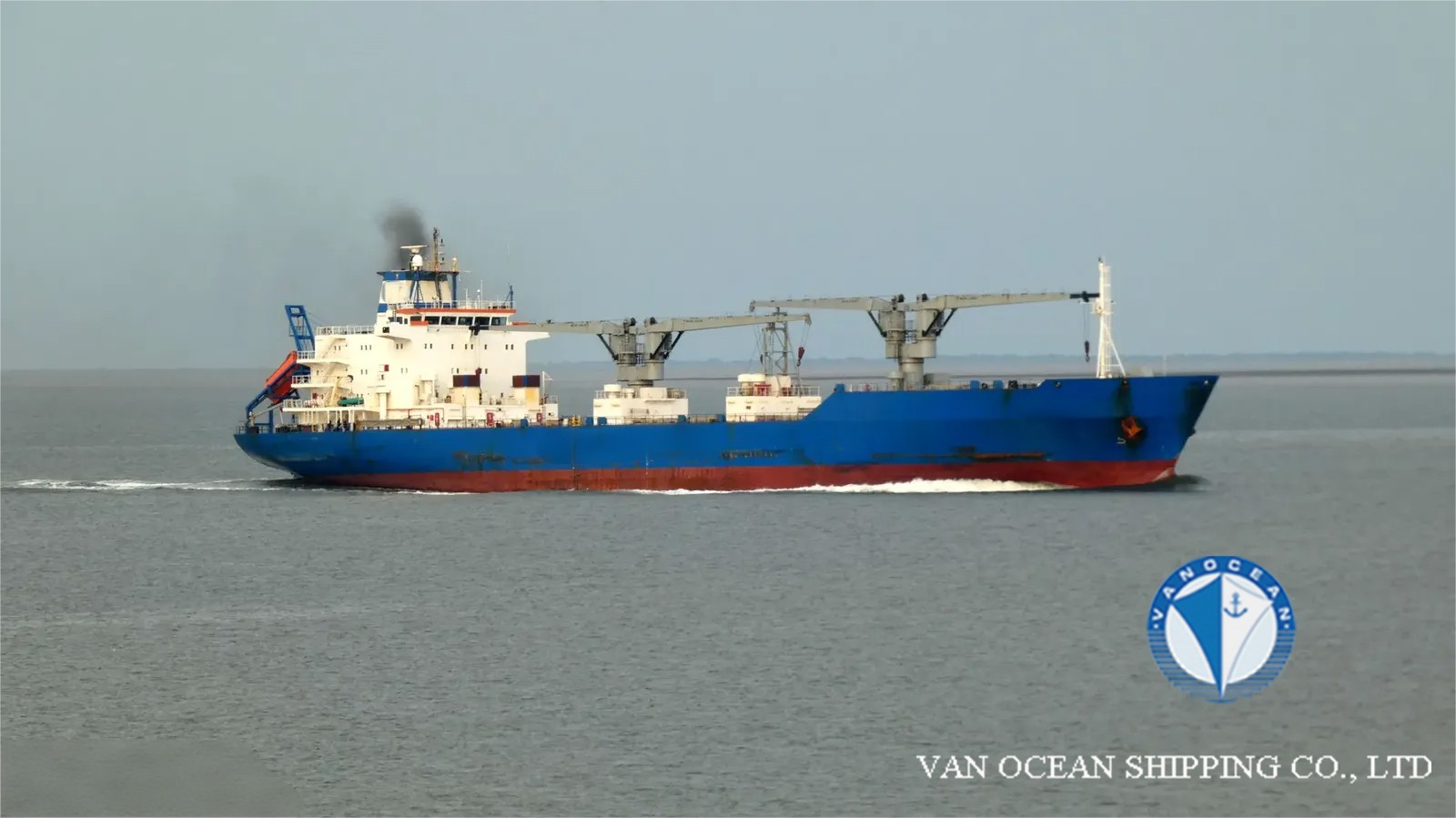

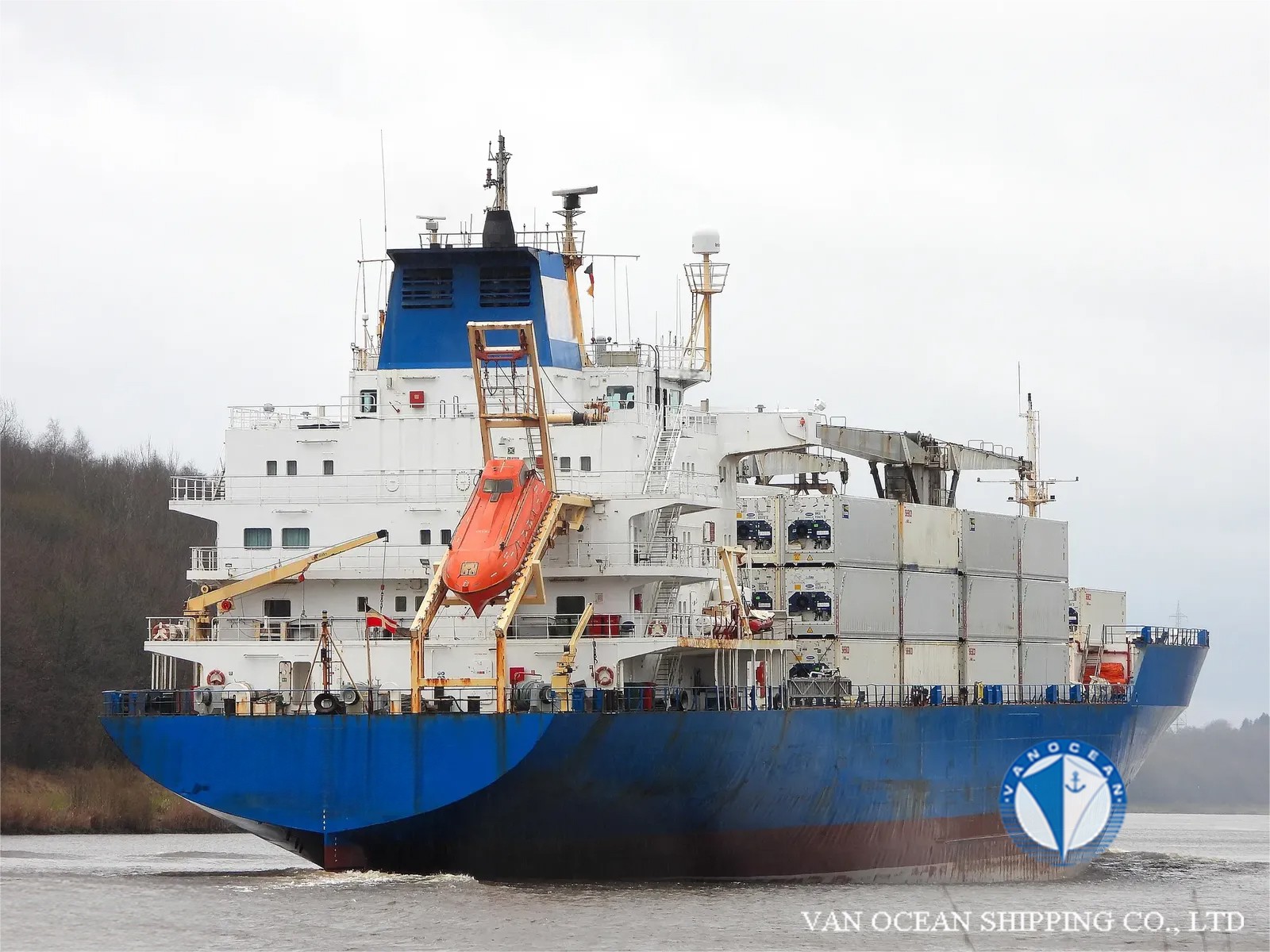

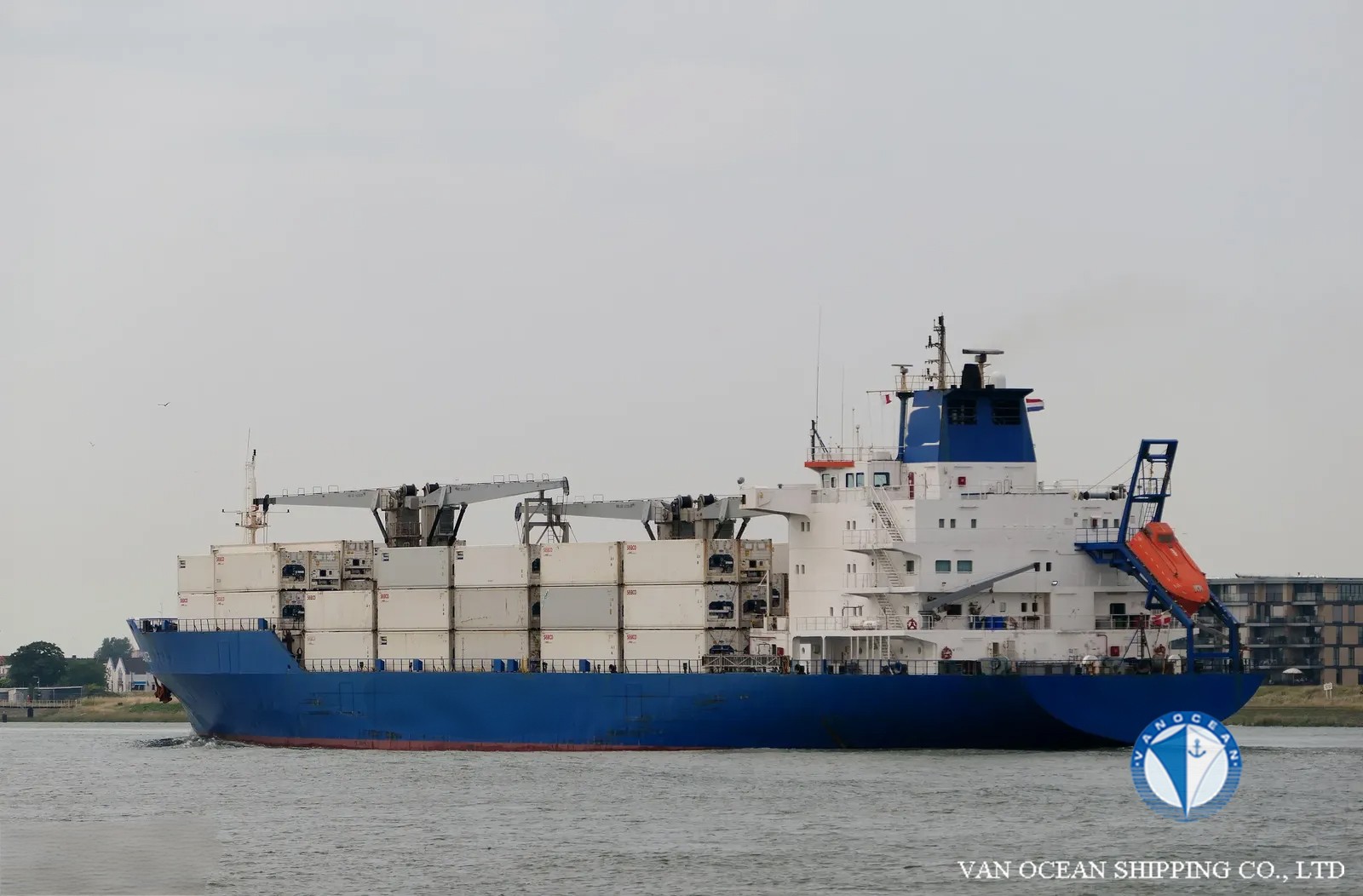

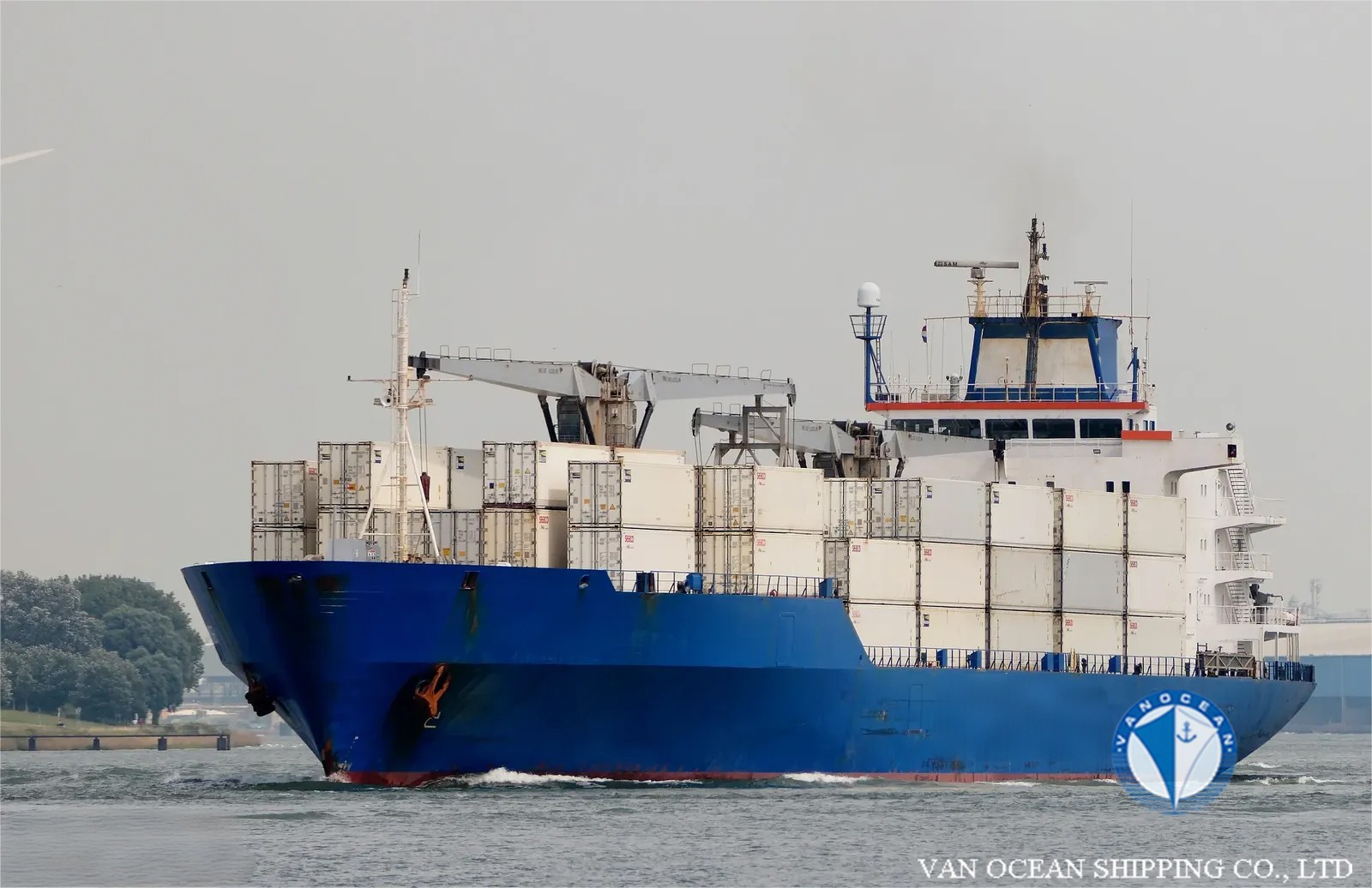

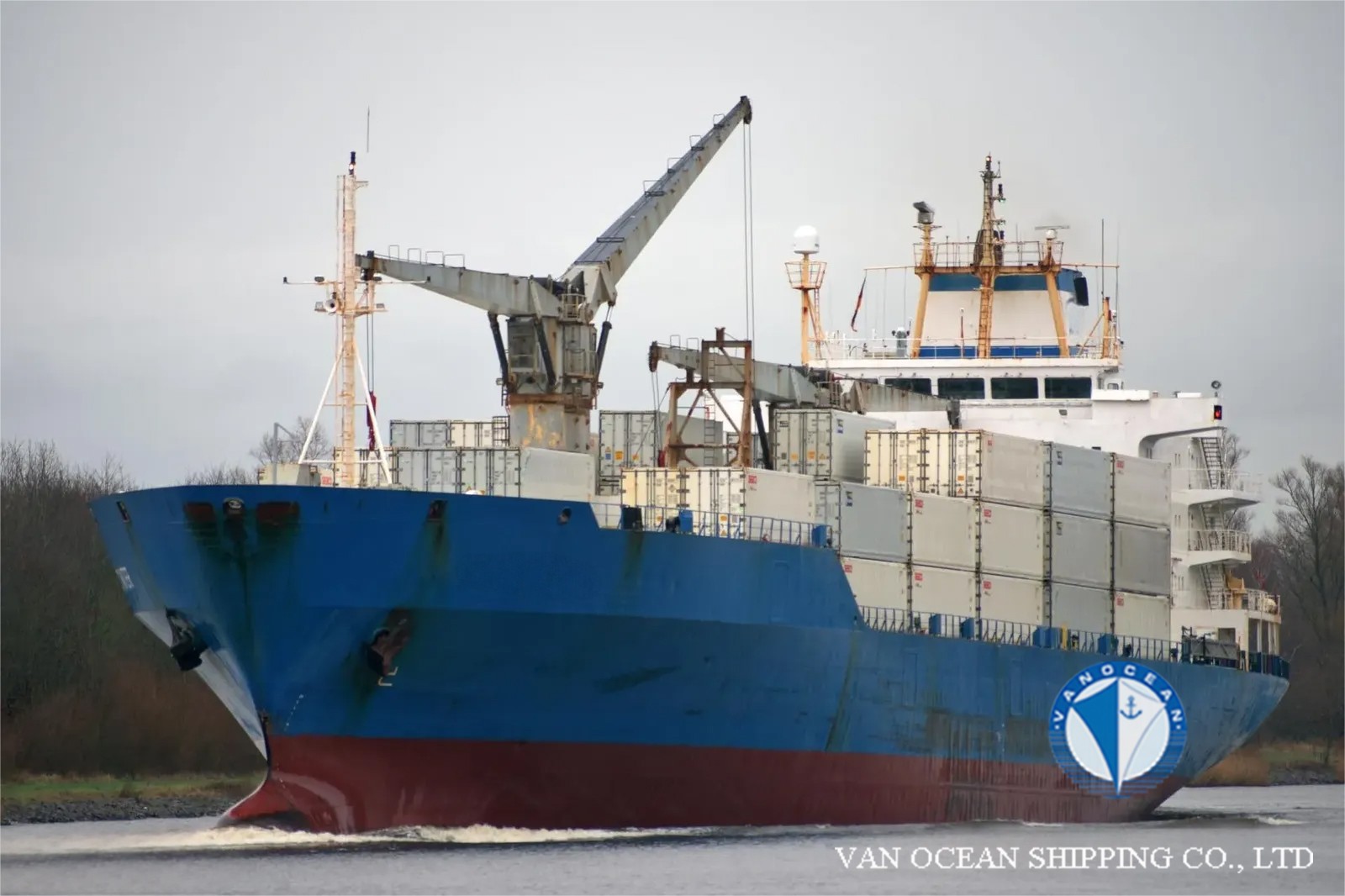

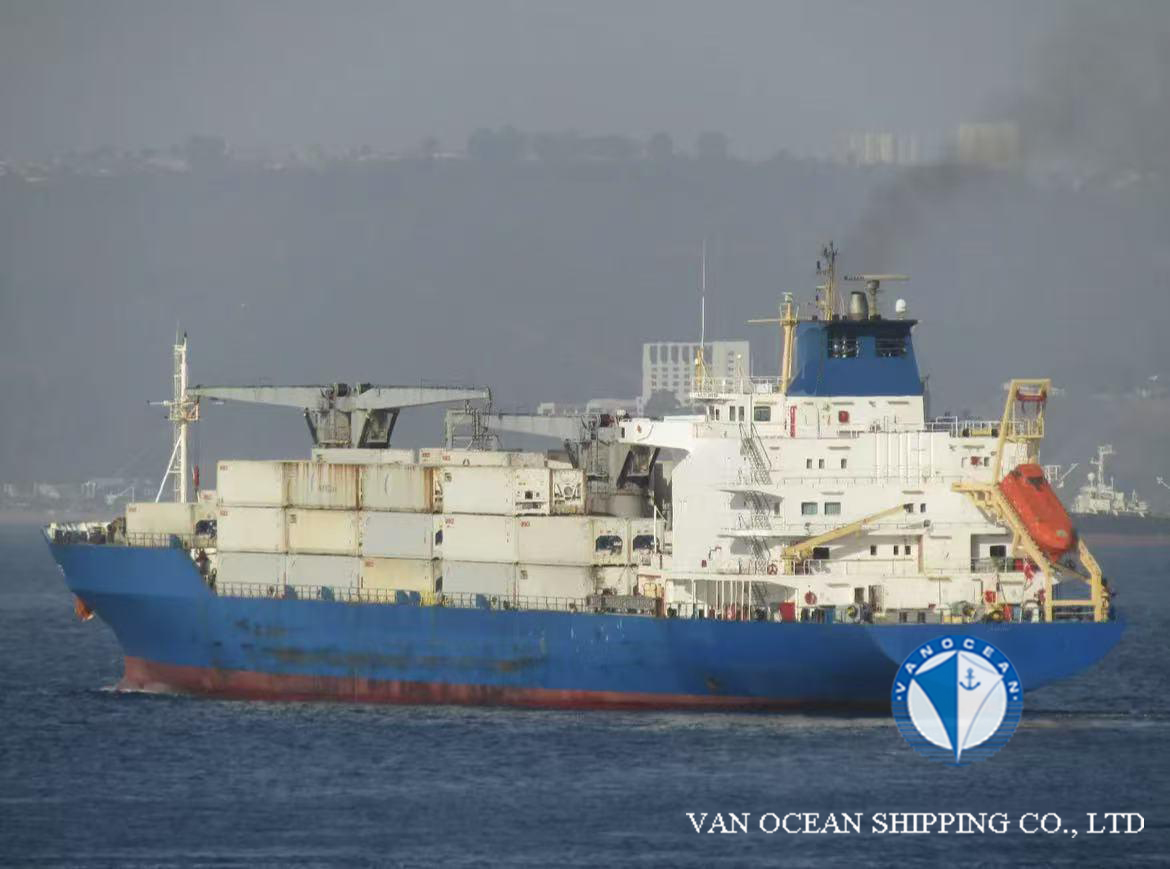

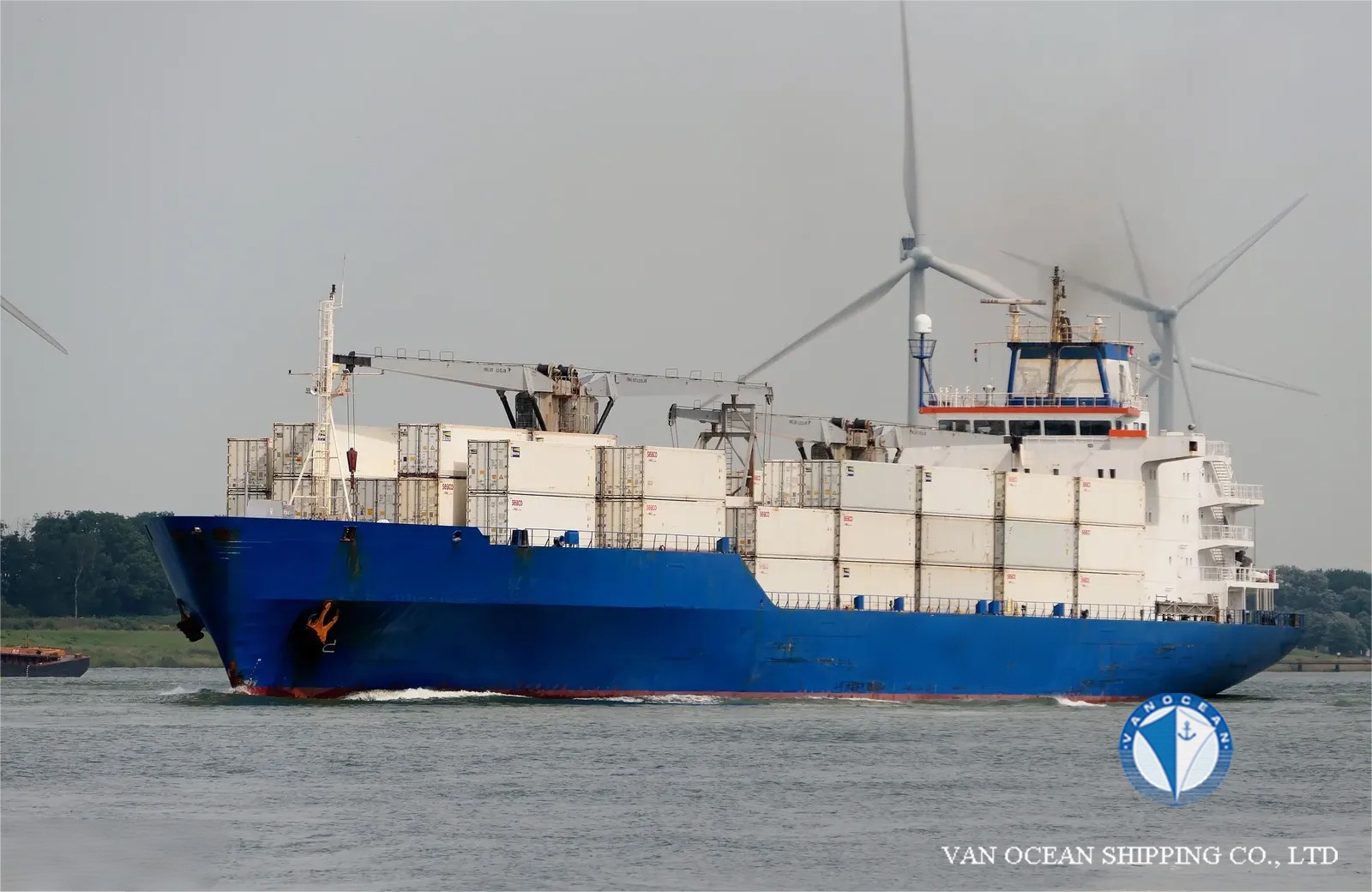

VESSEL NAME
REF805
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
BAHAMAS
PORT OF REGISTRY
NASSAU
BUILT YEAR
1992
BUILT PLACE
SSW-BREMERHAVEN GERMANY
CLASSIFICATION
RINA
CLASS NOTATION
NS, MNS, RMC M0
SS
11/2027
DD
-
LOA (M)
156.634
LBP (M)
146.7
BEAM (M)
23
DEPTH (M)
13.2
SUMMER DRAFT (M)
9.529
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
10842
PANAMA GT (MT)
11973.93
SUEZ GT (MT)
11599.41
NT (MT)
6381
PANAMA NT (MT)
8973.92
SUEZ NT (MT)
9426.28
SUMMER DWT (MT)
12890
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
CRANE, 4 x 18MT, 25M
M/E(S)
MAN B&W 7L 60MC
M/E POWER (KW)
-
A/E(S)
3 x MAN B&W HOLEBY 7L28/32 H
1 x CATERPILLAR 3406 DI-TAU
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
COOLING SYSTEM (COMPRESSOR)
3 x SABROE SCREW COMPRESSOR 300KW，COOLING CAPACITY: 705KW
R22 PRIMARY, BRINE SECONDARY
32 AIR COOLERS
SPEED/CONSUMPTIONS
18 KTS:
BALLAST: 32 MT M/E + 3.5MT A/E
BANANA LADEN: 34MT M/E + 8.5MT A/E
17KTS:
BALLAST: 26 MT M/E + 3.5MT A/E
BANANA LADEN: 28MT M/E + 8.5MT A/E
IN PORT 2MT IFO380 PER DAY
ADDITIONAL 5MT MDO PER MONTH
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
1563.4
TANKS CAPACITY (CBM)
MDO: 224.5, FW:173.9, LW: 334
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
INSULATED AND FOLDING
HATCH SIZE (M)
NO.1 : 9.3 x 7.6
NO 2/3/4: 12.5 x 7.6
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
8
DECK(S)
4
DECK HEIGHT (M)
≥2.20
CARGO CAPACITY (CBFT)
592295
CARGO CAPACITY (CBM)
16778.89
FLOOR SPACE CAPACITY (SQM)
6813
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
8
TEMPERATURE (℃)
-
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
-
CONTAINER CAPACITY
102 x REEFER CPNTAINER SOCKET 32A 440V ON DECK
146 FEU INTAKE
REEFER PLUG(S)
102
SIDE DOOR(S)
PORT: 4 BANANA DOORS , 2000 x 2500MM
STBD: 4 ELEVATOR HATCHES: 2400 x 2400MM
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
FITTED
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
AS SHE IS
PRICE
BUYERS OFFER
REMARK(S)
CAPABLE FOR CARE CARRIAGE
