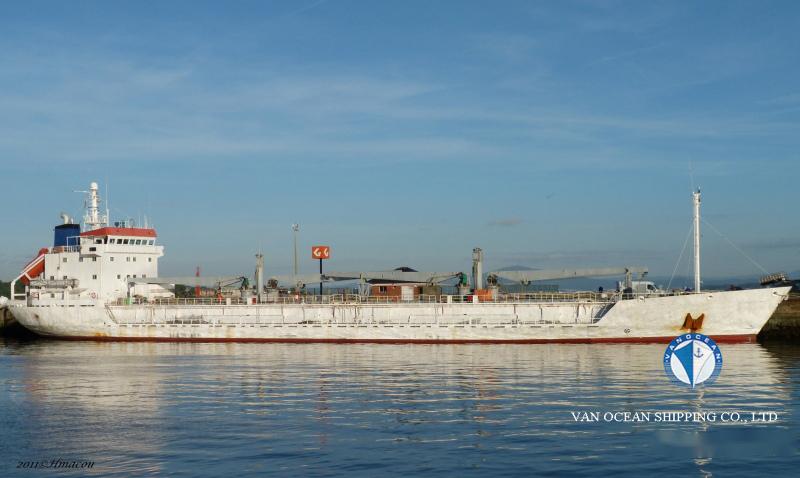

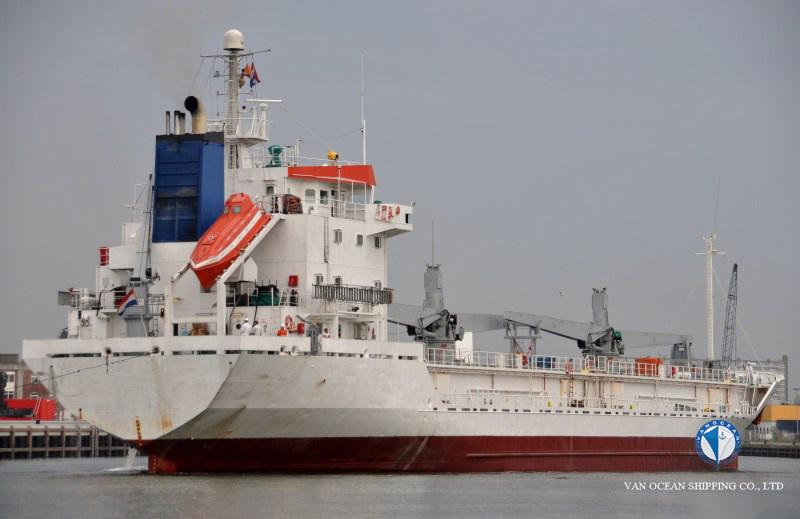

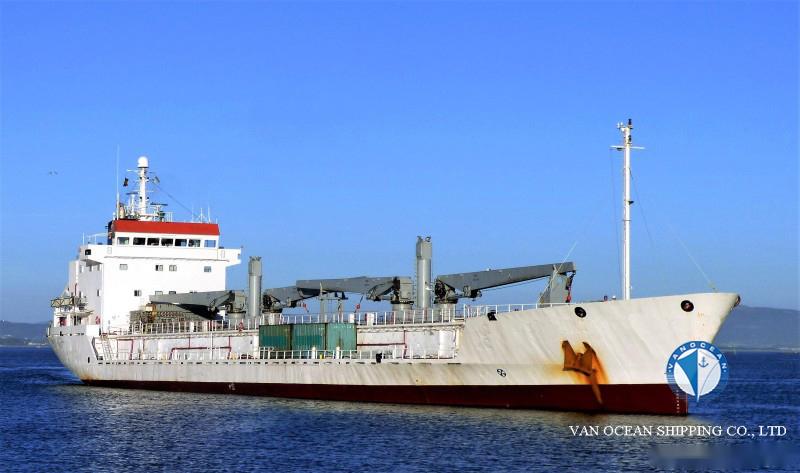

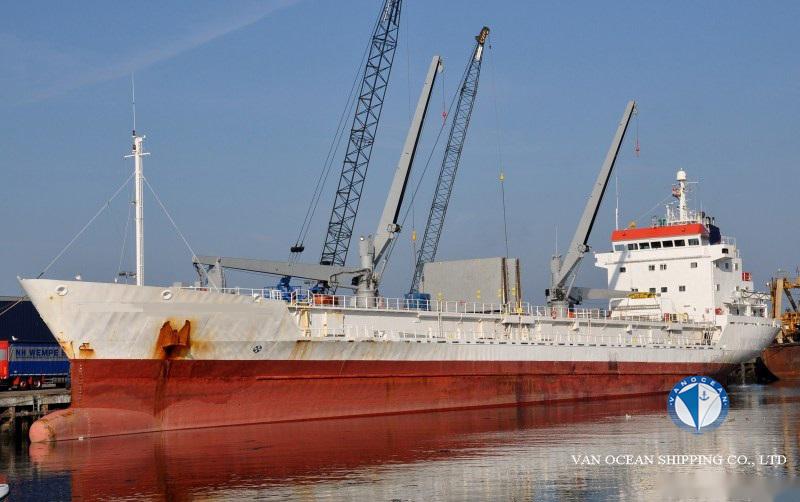

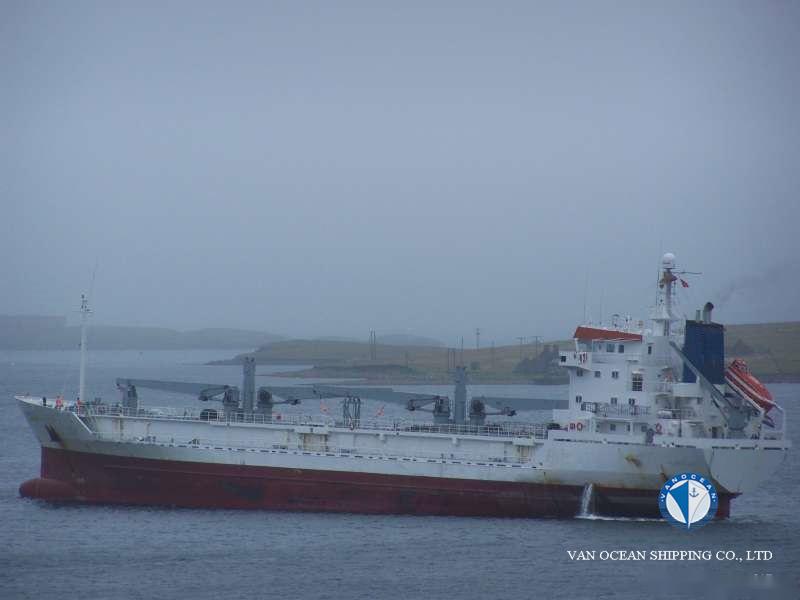

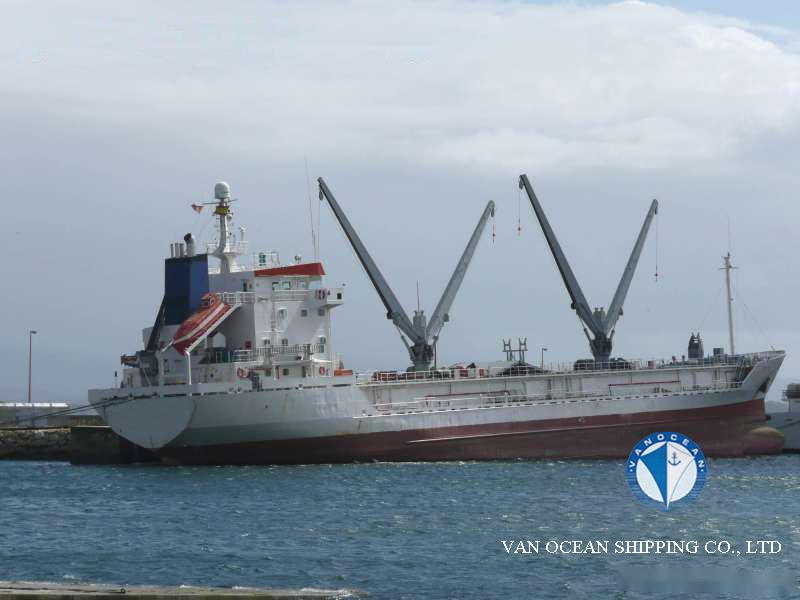

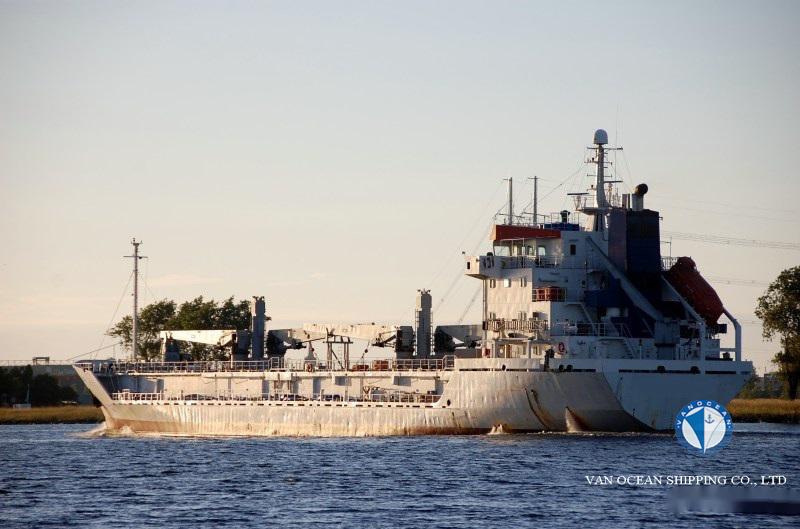

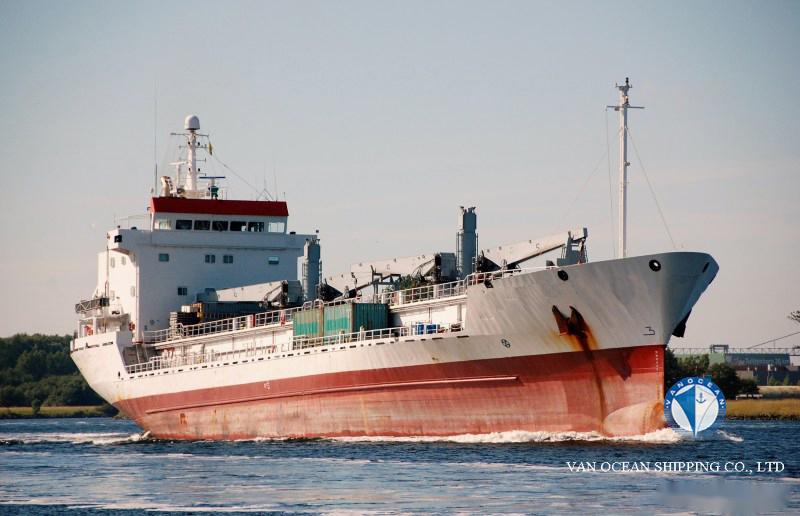

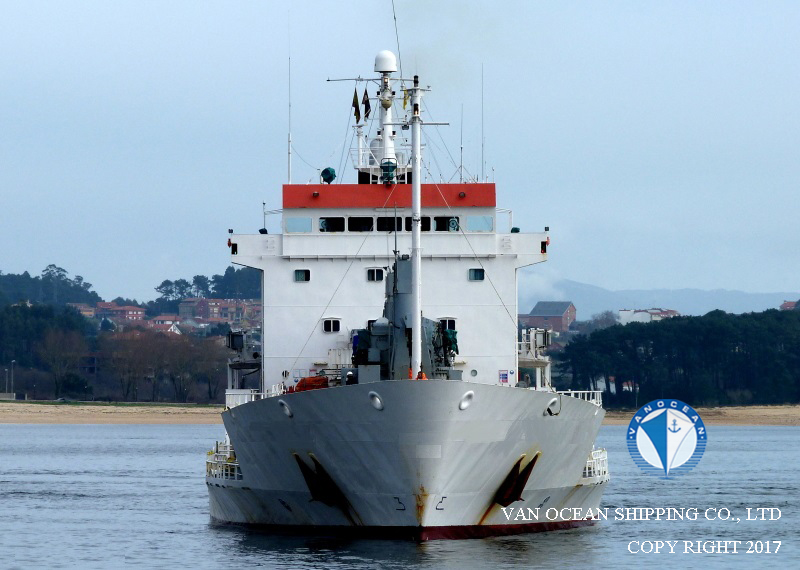

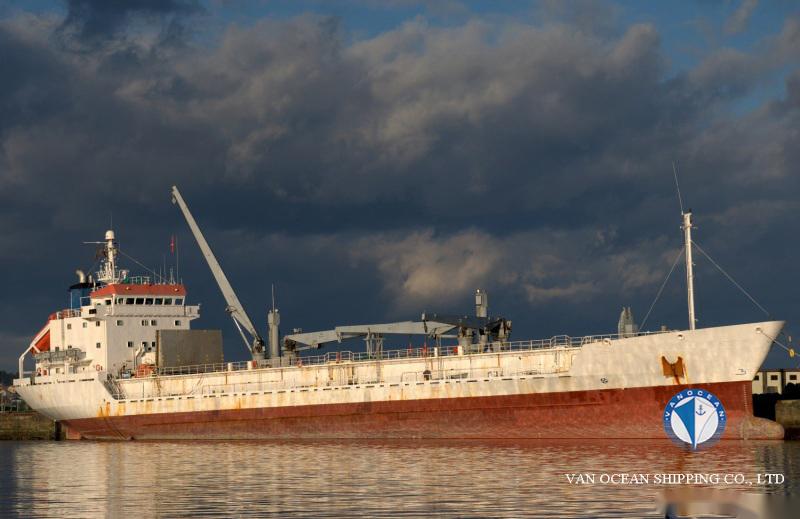

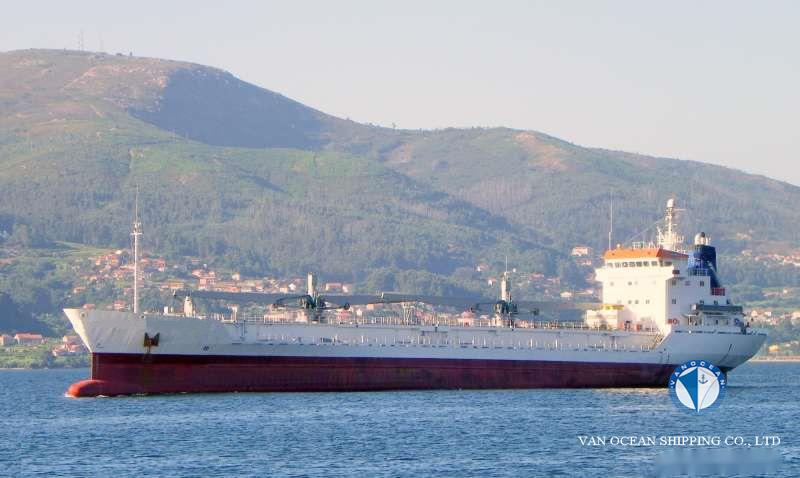

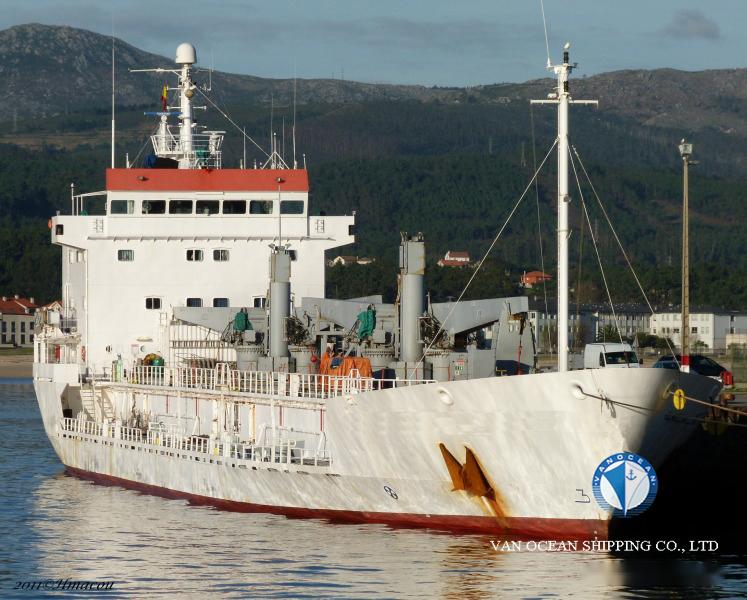

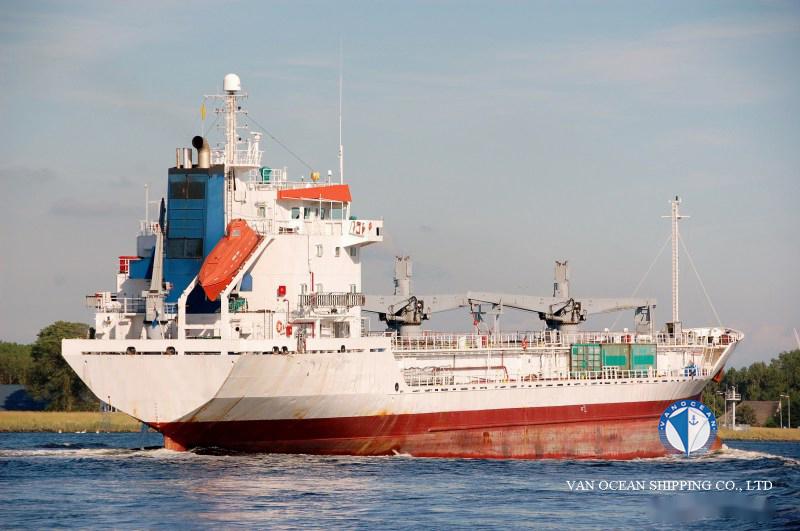

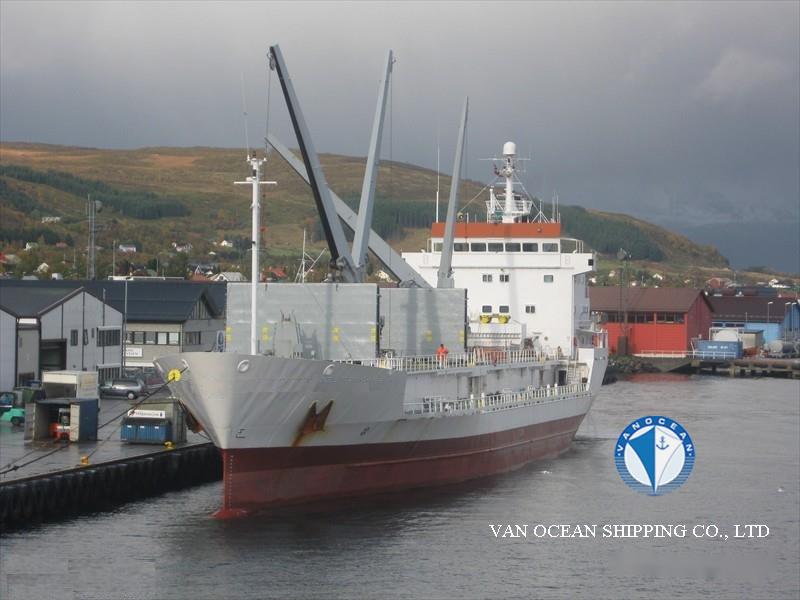

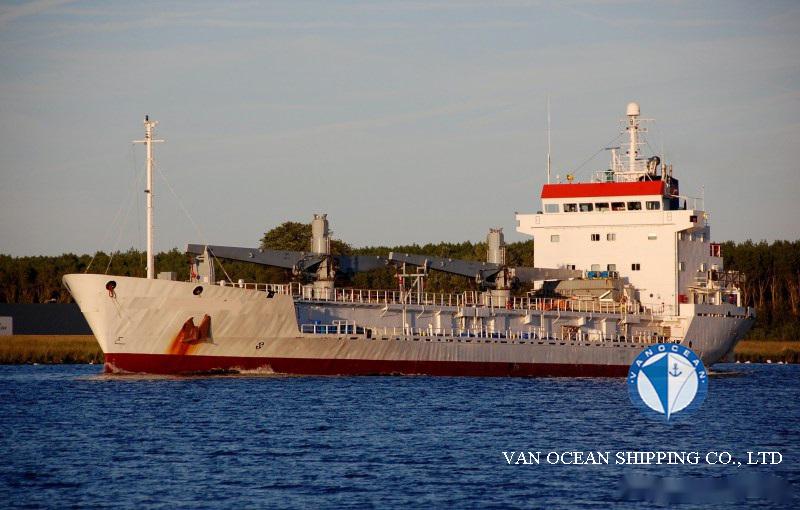

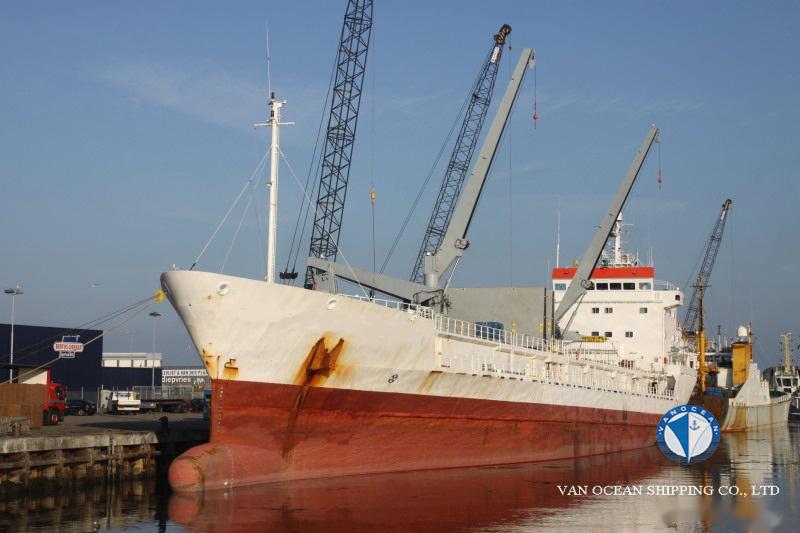

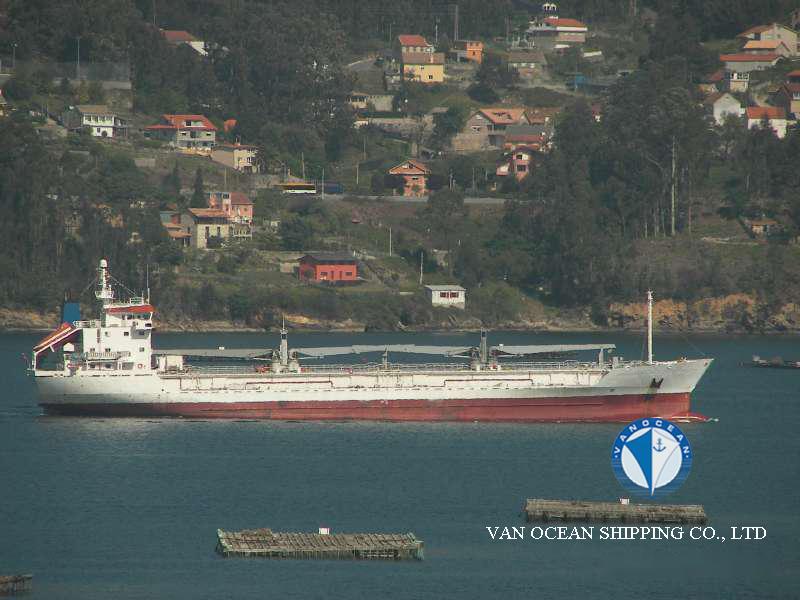

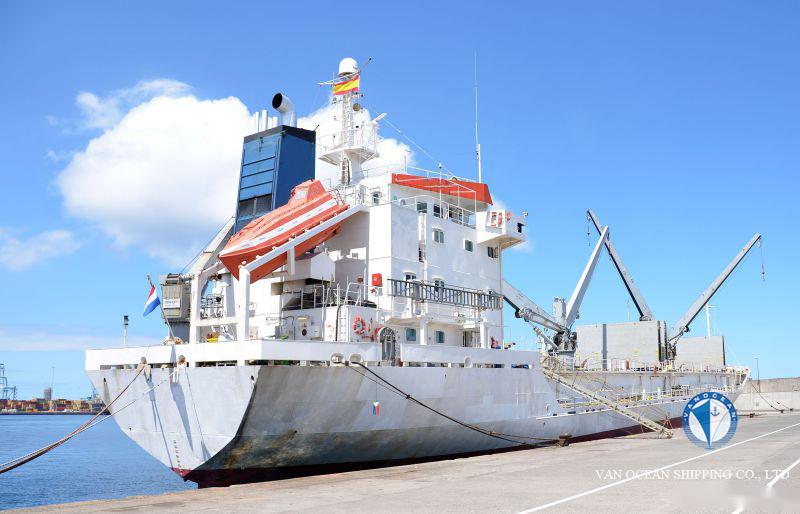

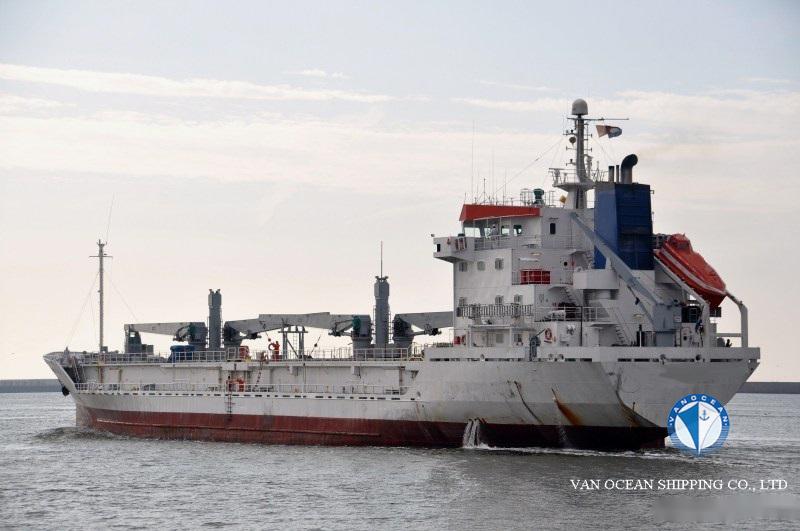

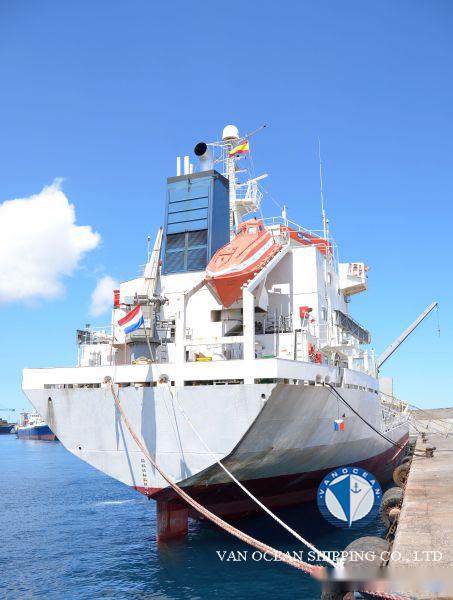

VESSEL NAME
REF801
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
LEBANON
PORT OF REGISTRY
-
BUILT YEAR
1989
BUILT PLACE
YVC YSSELWERF, NETHERLAND
CLASSIFICATION
-
CLASS NOTATION
I, +REFRIGERATED CARGO SHIP, +AUT-UMS, +REF-CARGO, +MACH, UNRESTRICTED NAVIGATION
SS
-
DD
-
LOA (M)
107.65
LBP (M)
-
BEAM (M)
16.2
DEPTH (M)
9.3
SUMMER DRAFT (M)
7.56
WINTER DRAFT (M)
7.4
TROPICAL DRAFT (M)
7.72
GT (MT)
3999
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
2619
PANAMA NT (MT)
3388
SUEZ NT (MT)
3399
SUMMER DWT (MT)
5415
WINTER DWT (MT)
5207
TROPICAL DWT (MT)
5625
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
CRANES, 4 x 5MT
M/E(S)
MAK 4S.A. 8 CYL., 5706HP
M/E POWER (KW)
4258
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
BALLAST: 15.5KTS ON 14MT/DAY
BANANA LADEN: 15KTS ON 16MT/DAY
FROZEN CARGO LADEN: 14.5KTS ON 16MT/DAY
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
573
TANKS CAPACITY (CBM)
MGO: 88
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
8.79 x 8.50
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
16
DECK(S)
-
DECK HEIGHT (M)
≥2.20
CARGO CAPACITY (CBFT)
261262
CARGO CAPACITY (CBM)
7400
FLOOR SPACE CAPACITY (SQM)
2961
GRATING/DECK STRENGTH
MAX 5MT
TEMPERATURE ZONE(S)
8
1AB/CD, 2AB/CD, 3AB/CD，4AB/4CD
TEMPERATURE (℃)
-25/+12
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
3
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
6
SIDE DOOR(S)
8
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
YES, EXPIRED
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
BOWTHRUSTER FITTED
