REEFER S&P

HOME - REEFER S&P - REF783

PARTICULAR

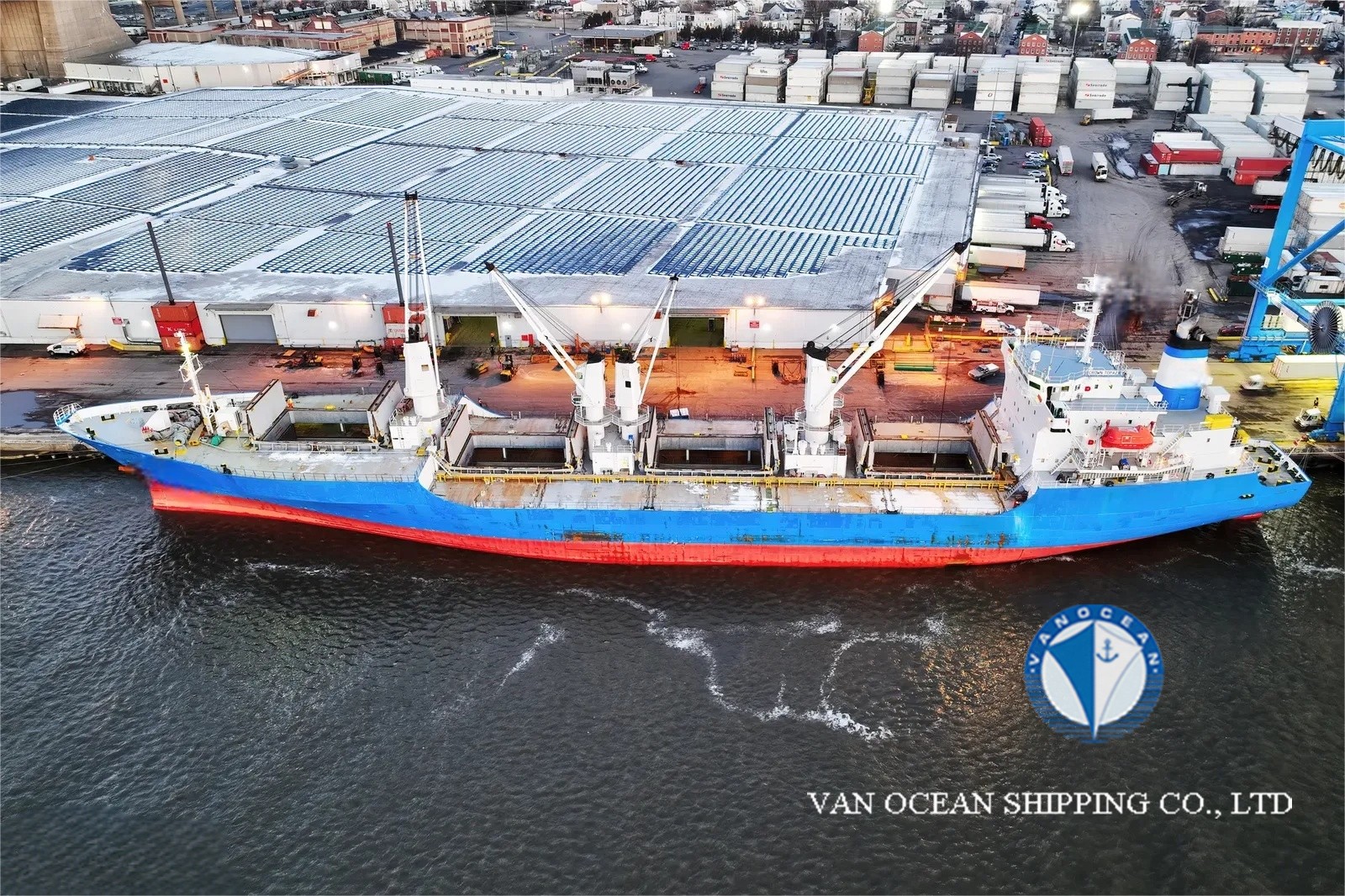

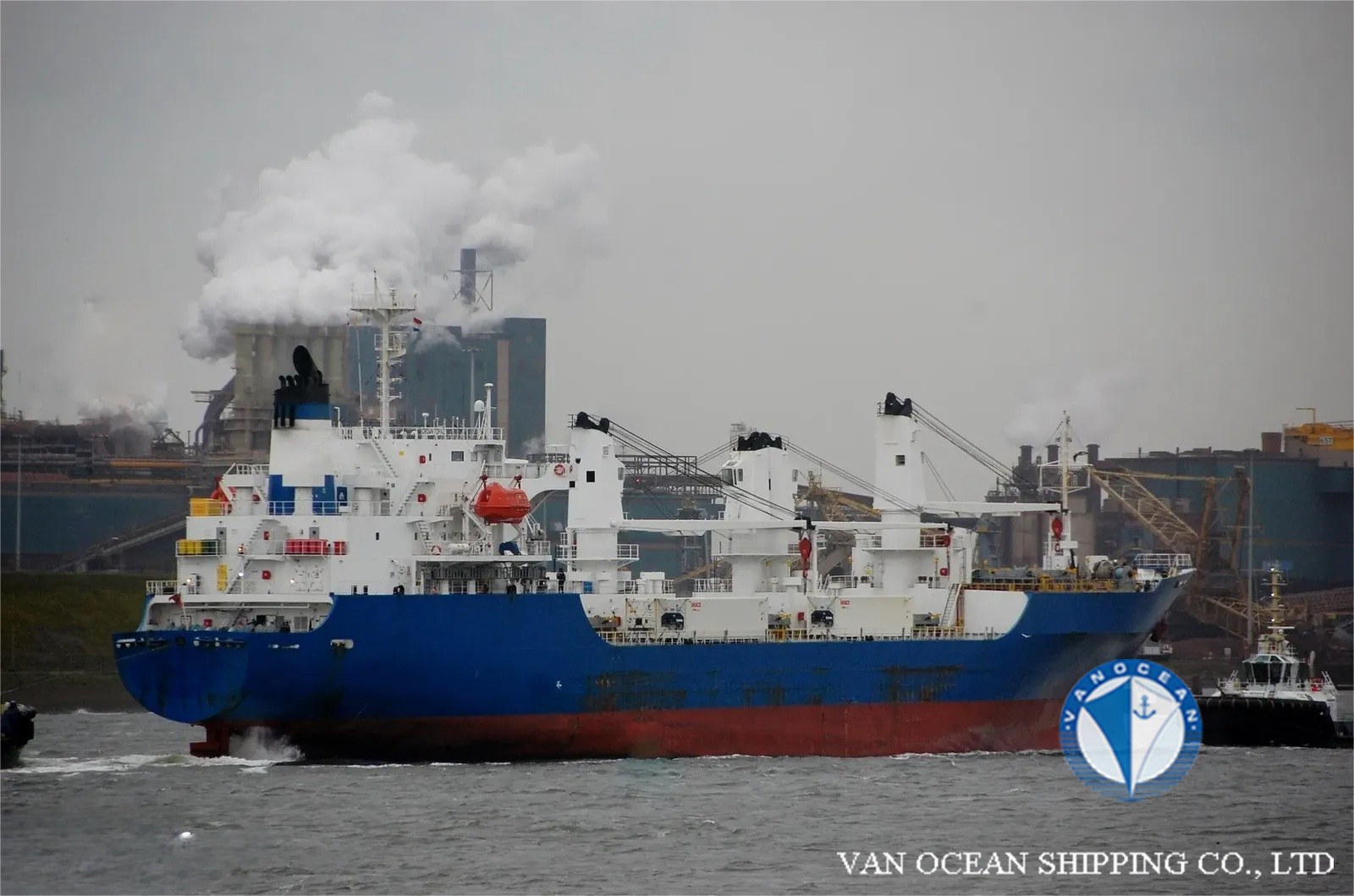

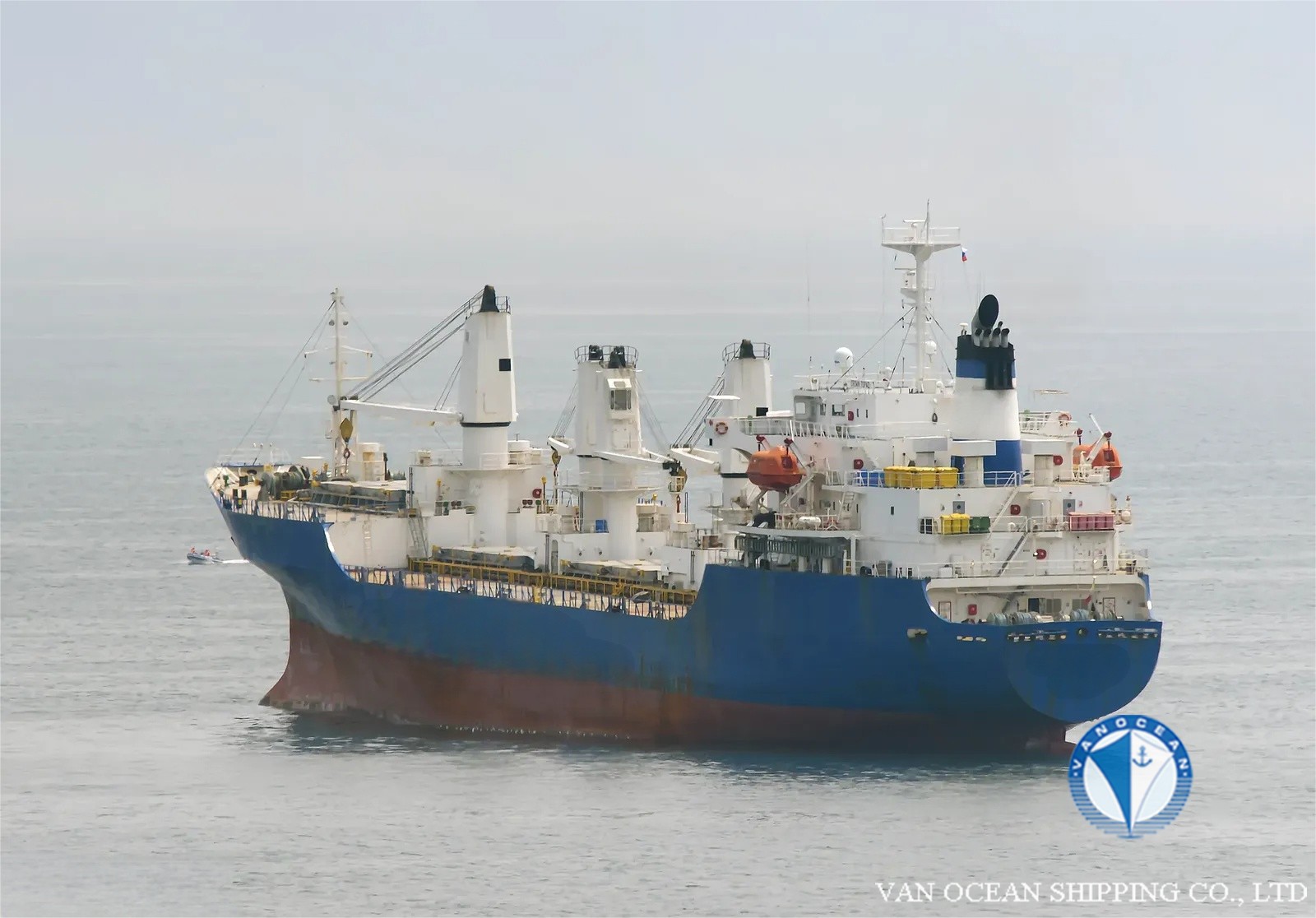

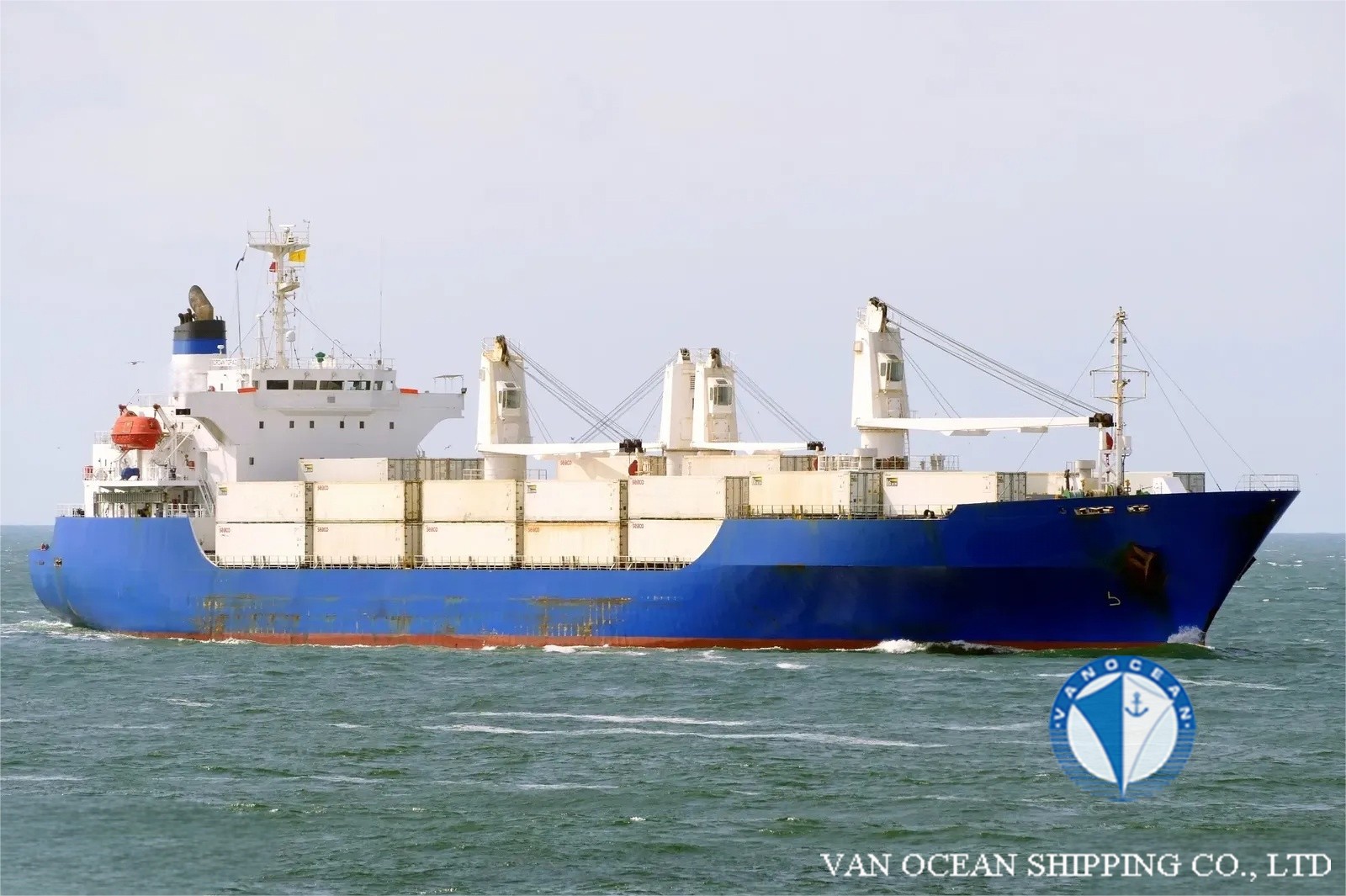

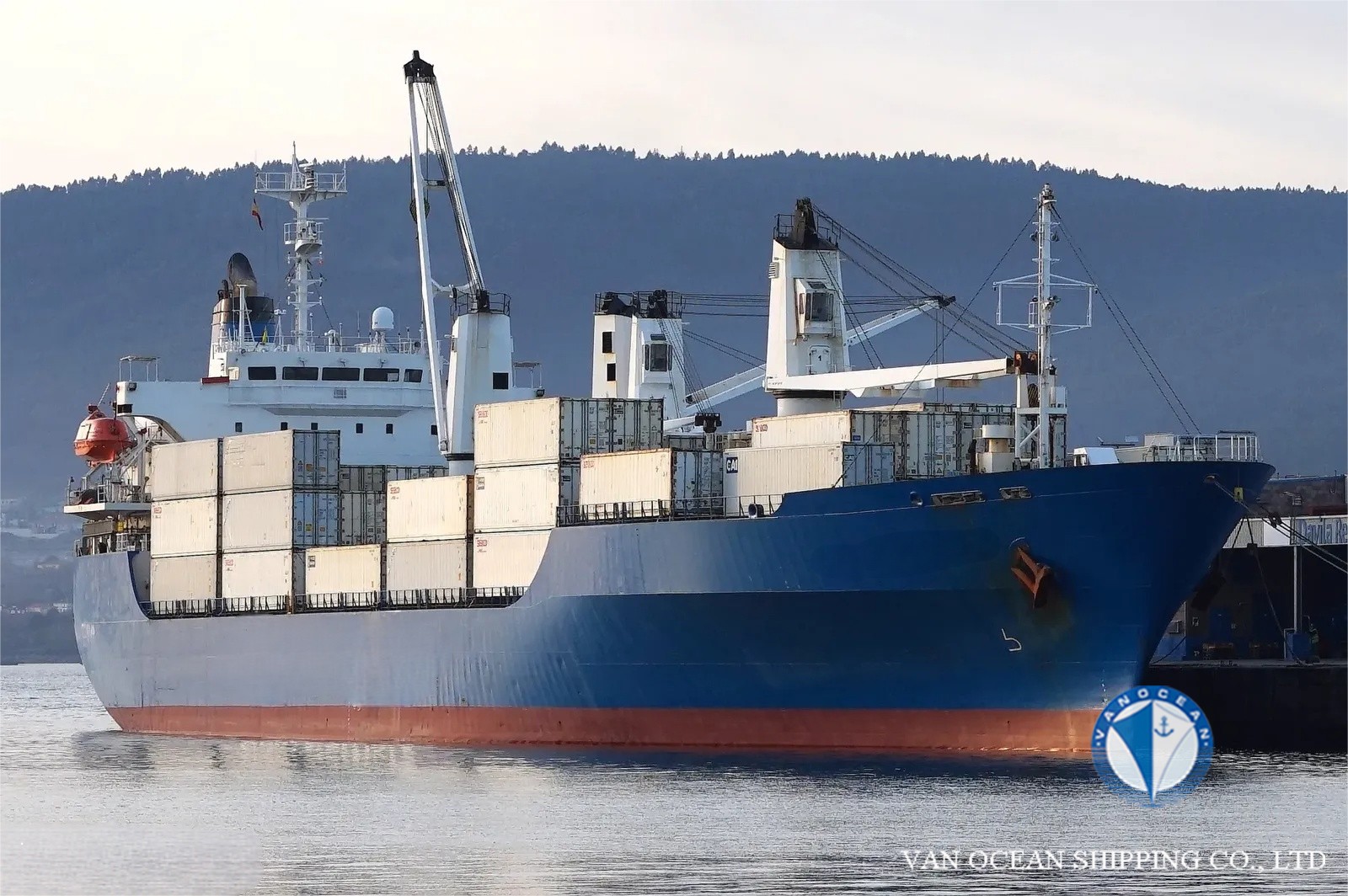

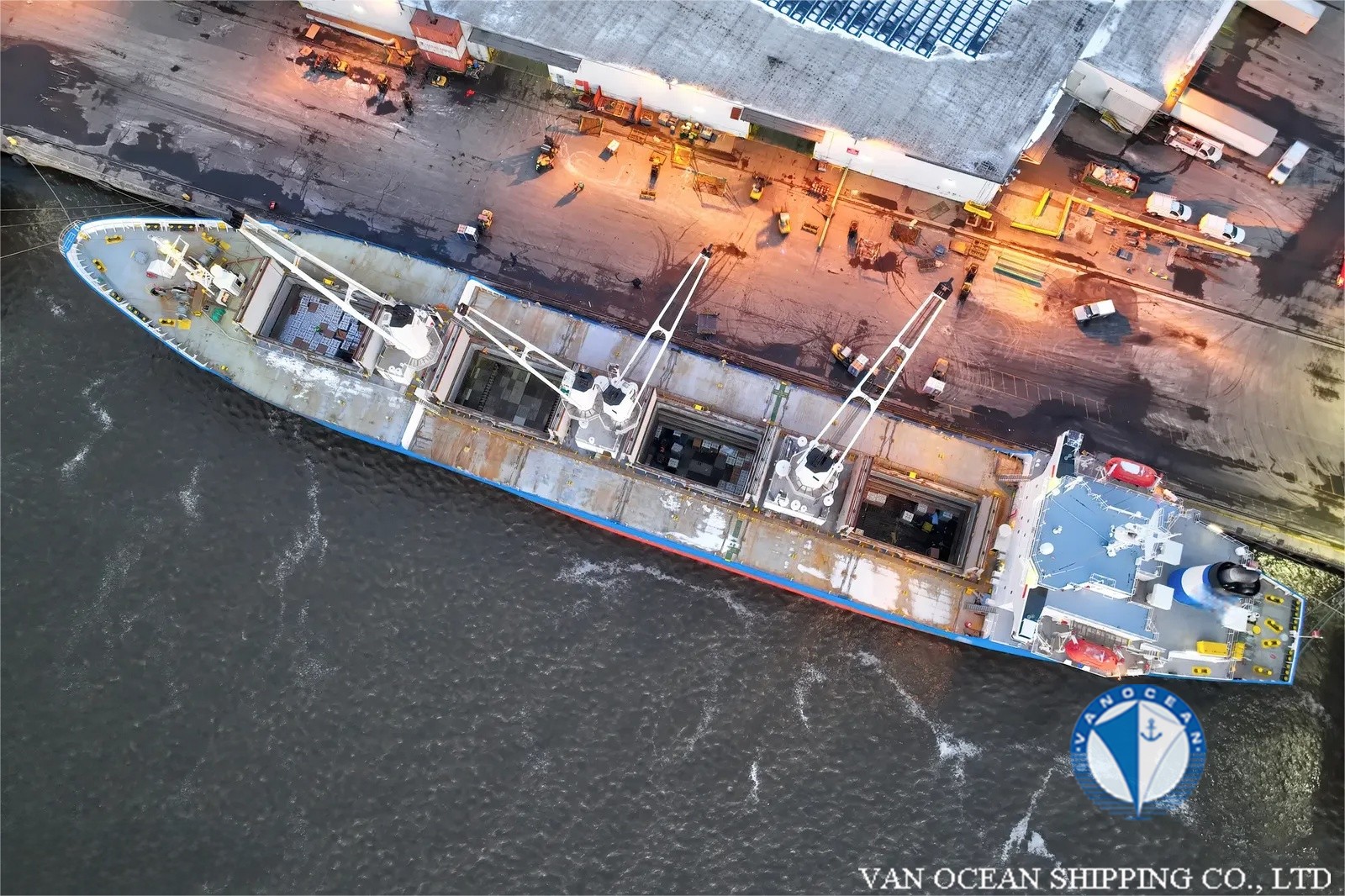

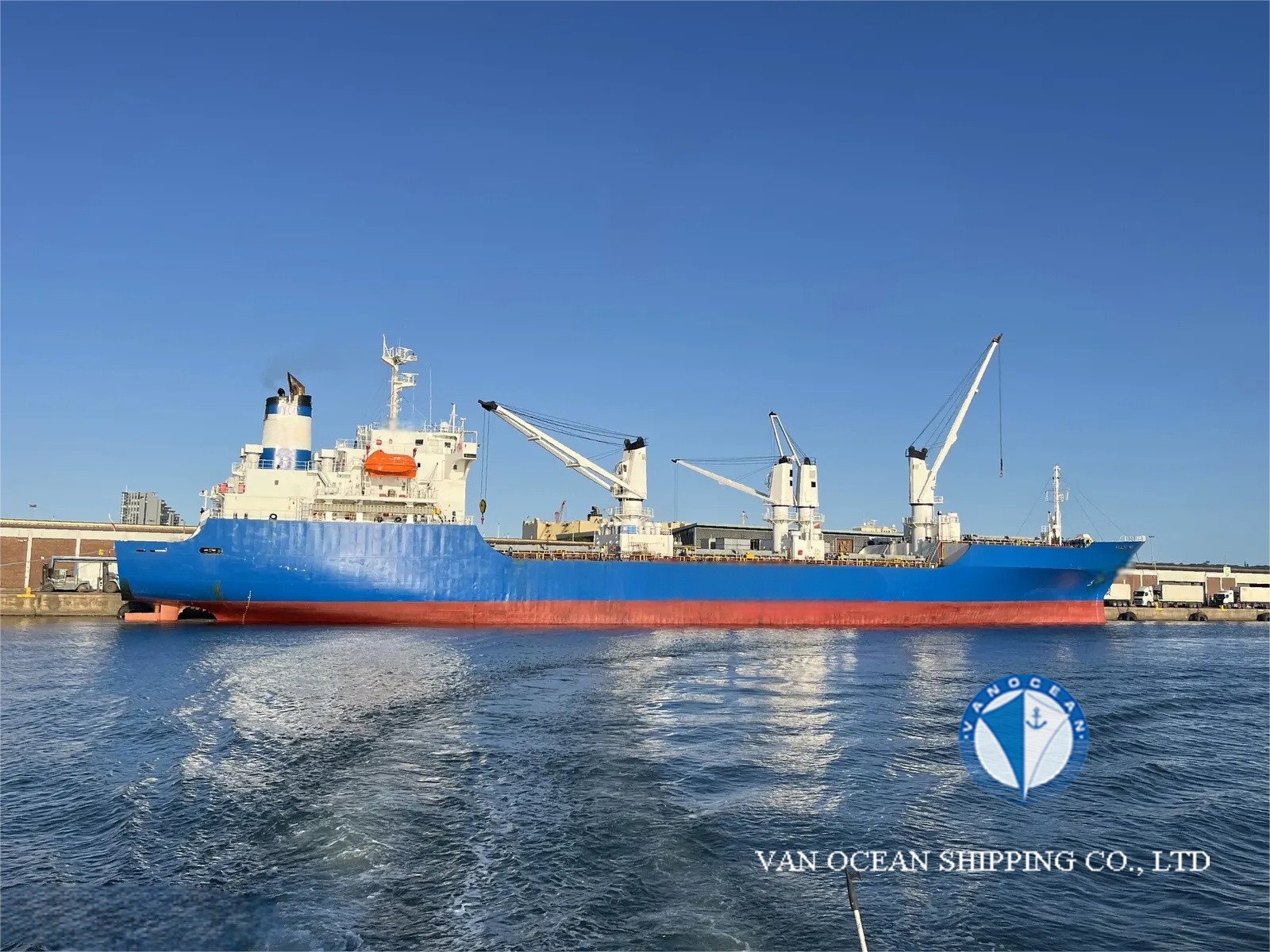

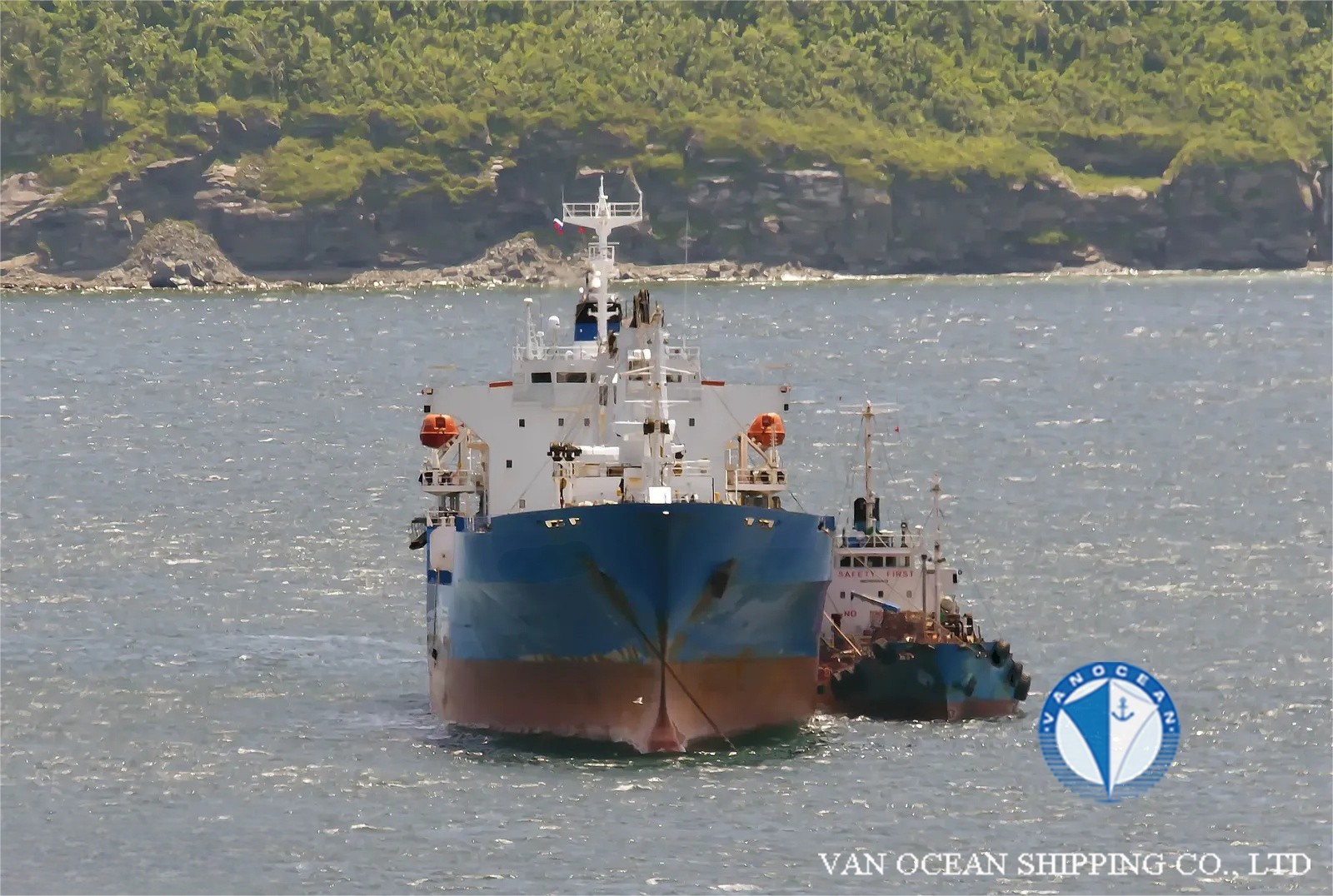

  • VESSEL NAME

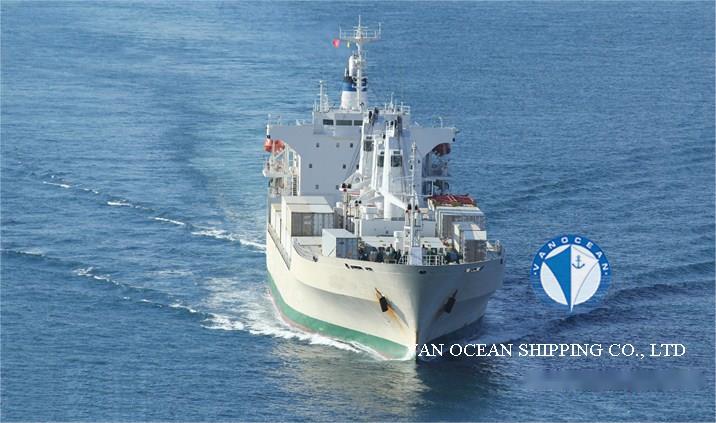

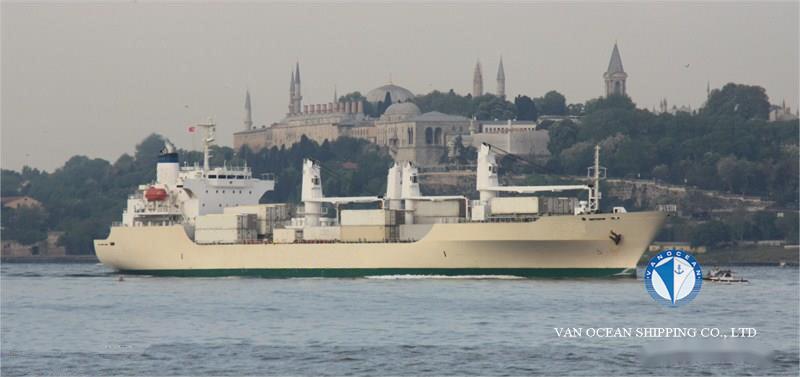

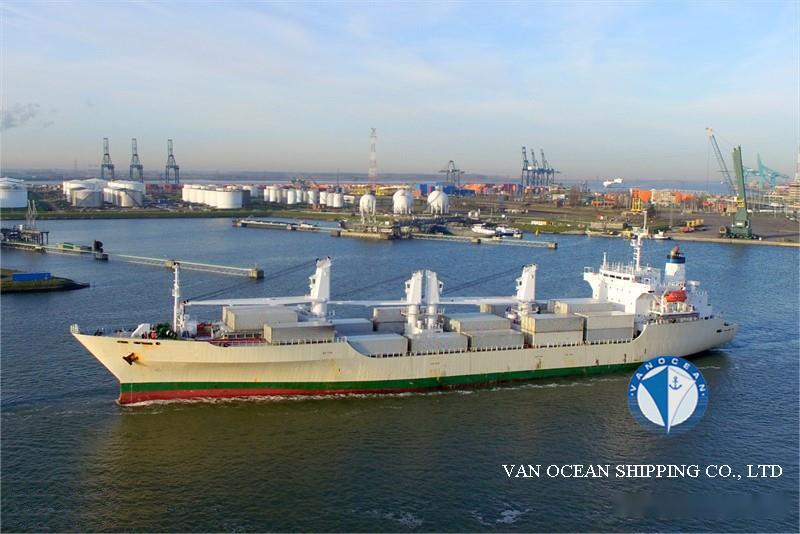

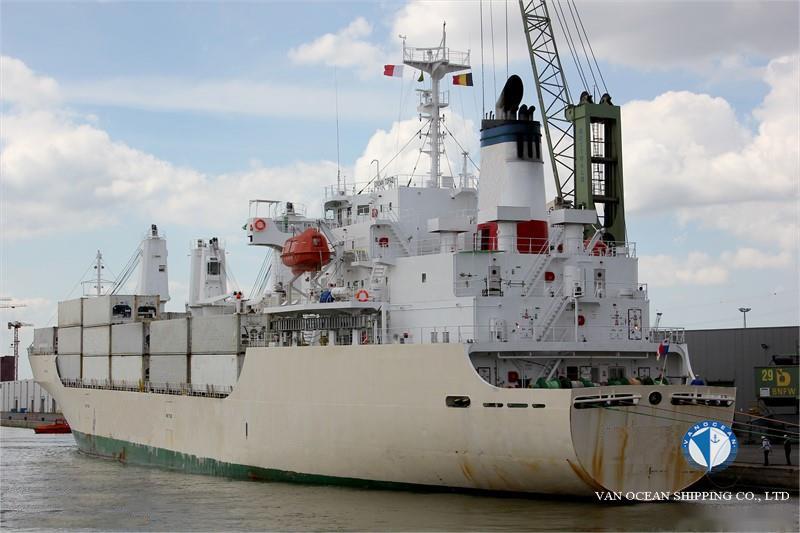

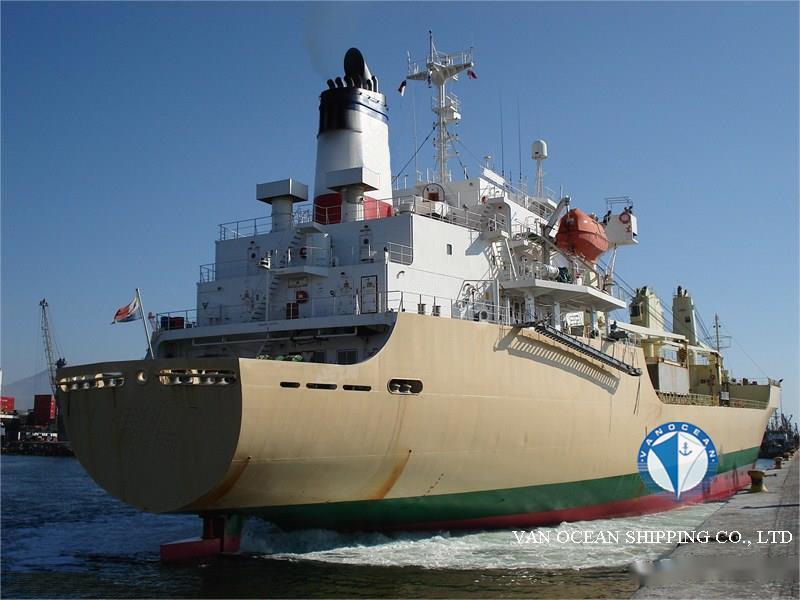

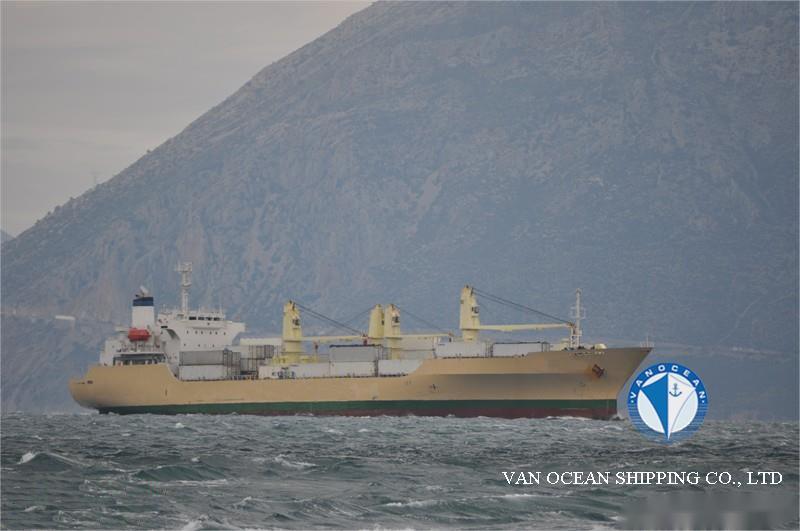

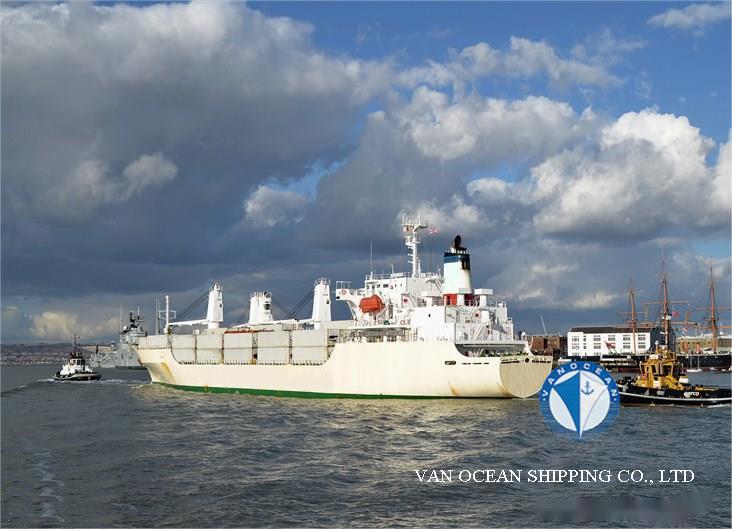

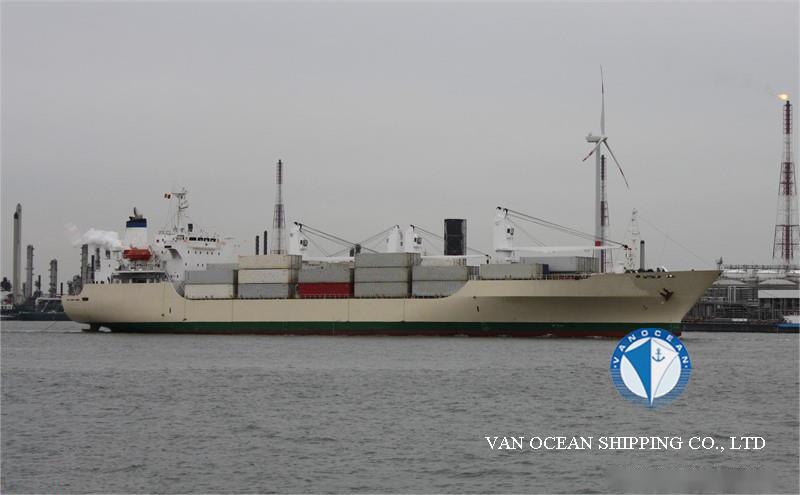

  • REF783
  • TYPE
  • REEFER CARRIER
  • DEEP FREEZING OR NOT
  • NO
  • FLAG
  • BAHAMAS
  • PORT OF REGISTRY
  • PANAMA
  • BUILT YEAR
  • 1999
  • BUILT PLACE
  • IWAGI ZOSEN, JAPAN
  • CLASSIFICATION
  • RINA
  • CLASS NOTATION
  • -
  • SS
  • -
  • DD
  • -
  • LOA (M)
  • 141.15
  • LBP (M)
  • 139.4
  • BEAM (M)
  • 23
  • DEPTH (M)
  • 13
  • SUMMER DRAFT (M)
  • 8.7
  • WINTER DRAFT (M)
  • -
  • TROPICAL DRAFT (M)
  • -
  • GT (MT)
  • 10527
  • PANAMA GT (MT)
  • -
  • SUEZ GT (MT)
  • 11427
  • NT (MT)
  • 5406
  • PANAMA NT (MT)
  • 9066
  • SUEZ NT (MT)
  • 9326
  • SUMMER DWT (MT)
  • 10318
  • WINTER DWT (MT)
  • -
  • TROPICAL DWT (MT)
  • -
  • LDT (MT)
  • -
  • DISPLACEMENT (MT)
  • -
  • GEAR(S)
  • CRANES NO.1, 35MT x 24M NO.2, 8MT x 18M NO.3, 8MT x 18M NO.4, 35MT x 22M
  • M/E(S)
  • MITSUBISHI 6UEC60LSII, 16000PS 105RPM
  • M/E POWER (KW)
  • 11915
  • A/E(S)
  • -
  • GENERATOR(S)
  • 2 x 1000KW; 2 x 500KW
  • SHAFT GENERATOR(S)
  • -
  • PROPELLER(S)
  • -
  • COOLING SYSTEM (COMPRESSOR)
  • R22 BRINE SYSTEM
  • SPEED/CONSUMPTIONS
  • BANANA LADEN: 21KTS ON 42MT/DAY+7.6MT BALLAST: 21KTS ON 40MT/DAY+2.0MT
  • FUEL TYPE
  • IFO380
  • BUNKER CAPACITY (CBM)
  • 1948
  • TANKS CAPACITY (CBM)
  • MDO: 93
  • NUMBER OF CARGO HOLDS
  • 4
  • HATCH NUMBER
  • 4
  • HATCH TYPE
  • -
  • HATCH SIZE (M)
  • 13.0 x 7.85
  • HEIGHT OF HATCH COAMING (M)
  • -
  • COMPARTMENT(S)
  • 16
  • DECK(S)
  • 4
  • DECK HEIGHT (M)
  • ≥2.20
  • CARGO CAPACITY (CBFT)
  • 547693
  • CARGO CAPACITY (CBM)
  • 15515
  • FLOOR SPACE CAPACITY (SQM)
  • 6226
  • GRATING/DECK STRENGTH
  • 6MT
  • TEMPERATURE ZONE(S)
  • 8 1A/BCD, 2AB/CD, 3AB/CD, 4AB/CD
  • TEMPERATURE (℃)
  • -30/+15
  • TYPE OF VENT SYSTEM
  • VERTICAL
  • VENT (TIMES/HOUR)
  • 90
  • AIR CHANGE (TIMES/HOUR)
  • 4
  • PALLET(S)
  • -
  • CONTAINER CAPACITY
  • -
  • REEFER PLUG(S)
  • 70
  • SIDE DOOR(S)
  • -
  • FENDER(S)
  • -
  • ANCHOR CHAIN(S)
  • -
  • USDA CERTIFICATE
  • FITTED
  • INSURANCE
  • -
  • CREW
  • -
  • ACCOMMODATION
  • -
  • INSPECTION
  • -
  • DELIVERY
  • -
  • PRICE
  • BUYERS OFFER
  • REMARK(S)
  • -
