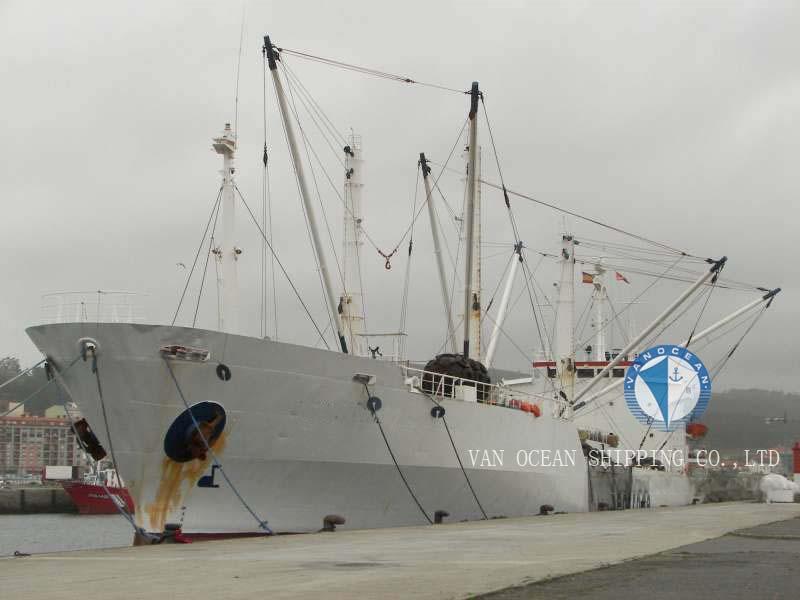

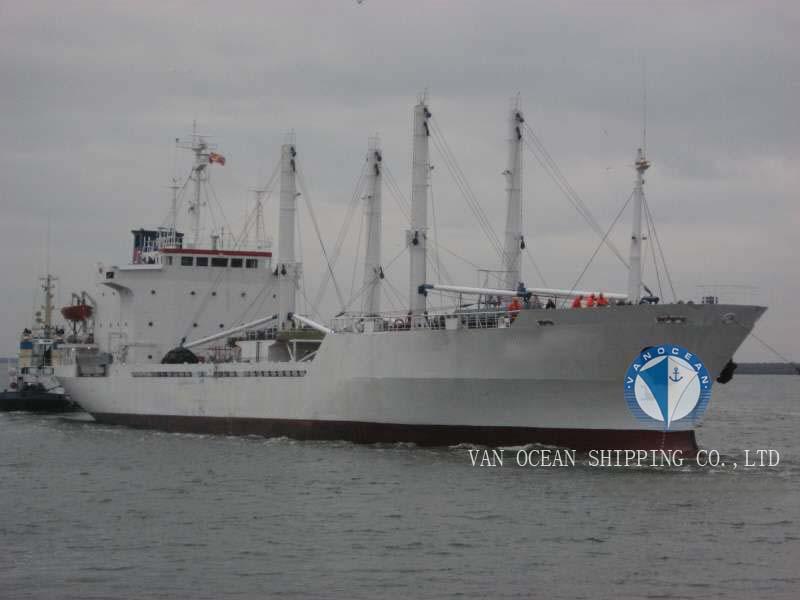

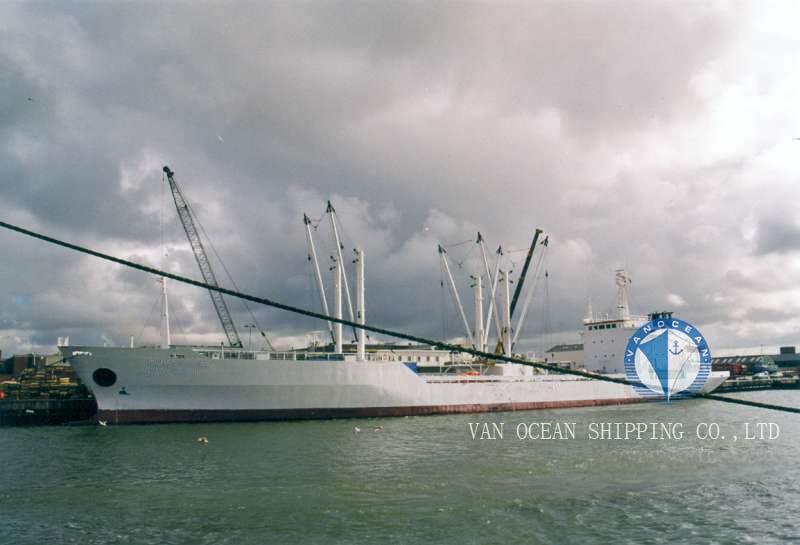

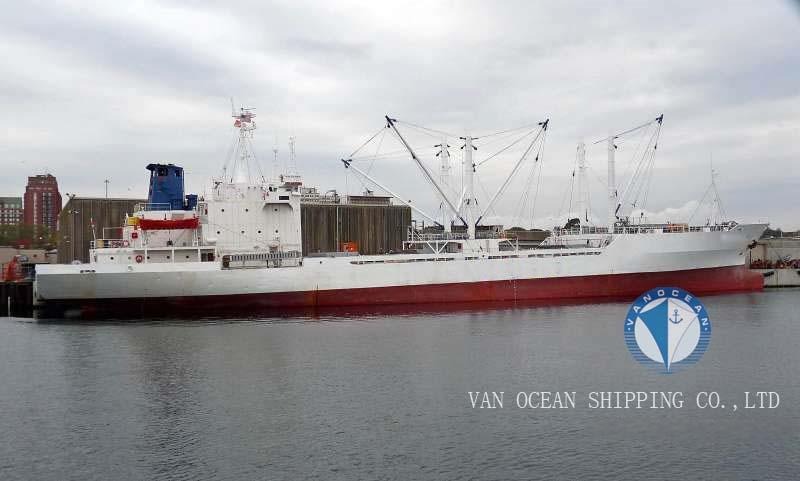

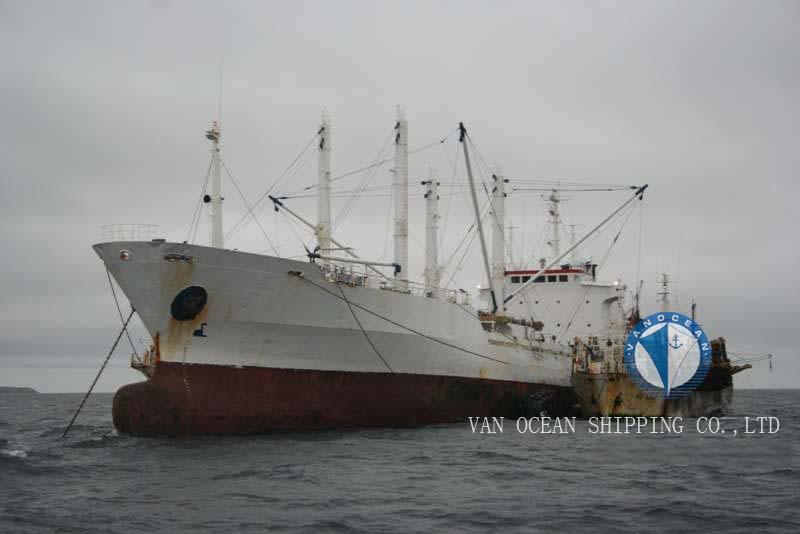

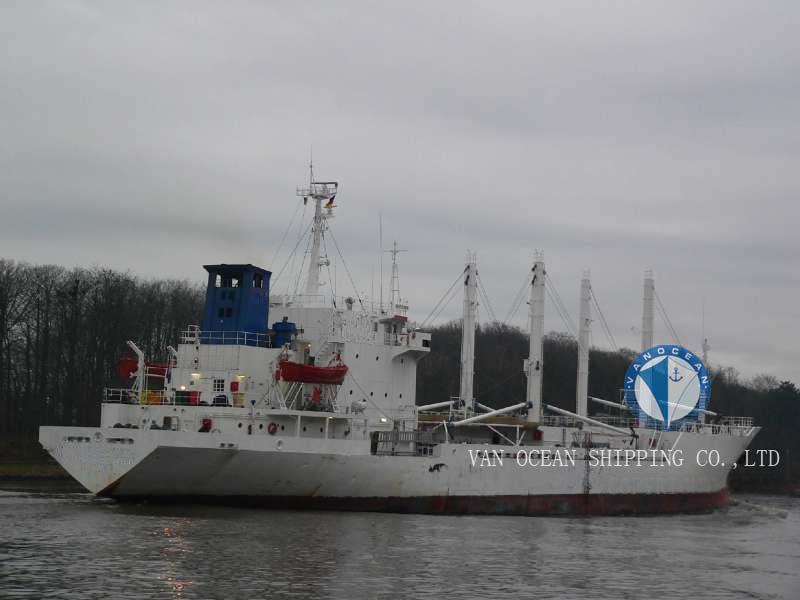

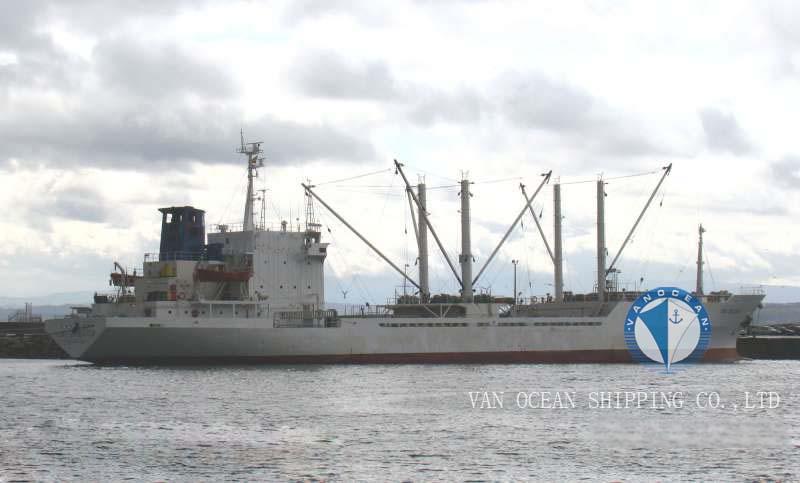

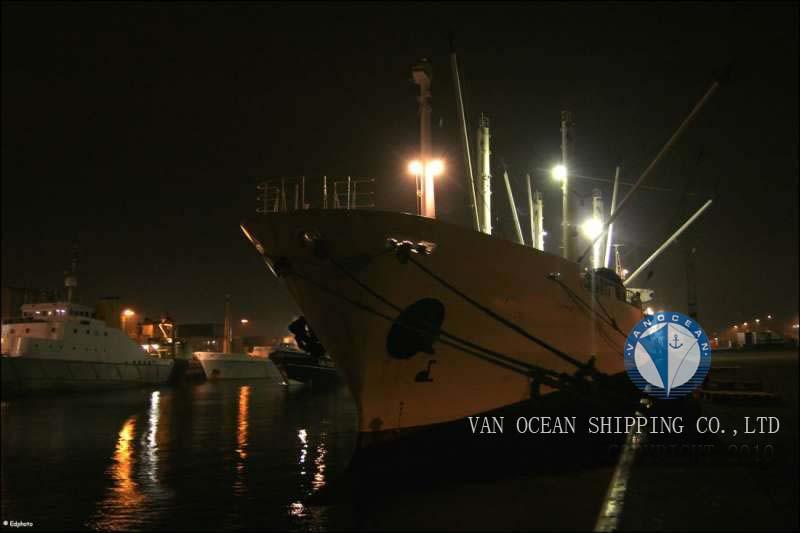

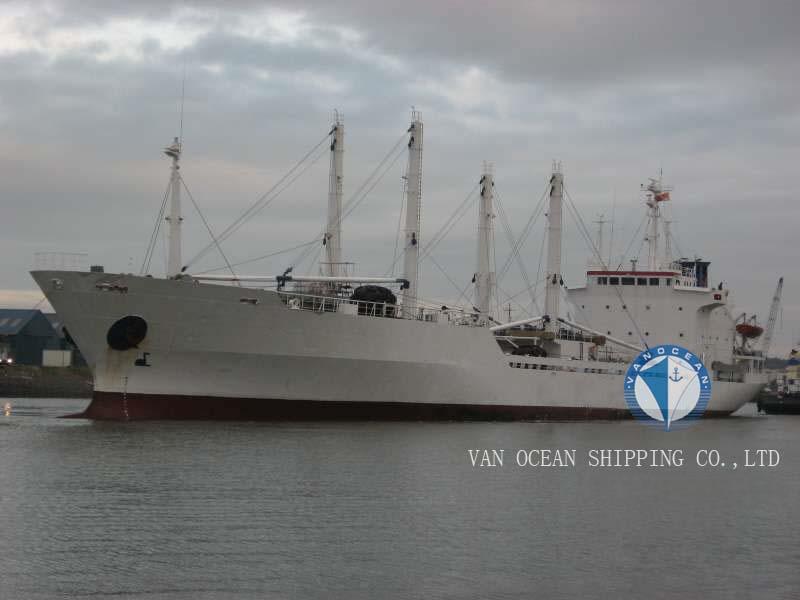

VESSEL NAME

REF381

TYPE

REEFER CARRIER

DEEP FREEZING OR NOT

NOT

FLAG

BAHAMAS

PORT OF REGISTRY

NASSAU

BUILT YEAR

1986

BUILT PLACE

KITANIHON ZOSEN, JAPAN

CLASSIFICATION

BV

CLASS NOTATION

I ✠Hull ✠Mach，✠REF-CARGO

SS

2025-06

DD

2025-06

LOA (M)

115

LBP (M)

106.38

BEAM (M)

16.8

DEPTH (M)

9.8

SUMMER DRAFT (M)

7.31

WINTER DRAFT (M)

7.16

TROPICAL DRAFT (M)

7.6

GT (MT)

4440

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

2655

PANAMA NT (MT)

3837.08

SUEZ NT (MT)

3911.64

SUMMER DWT (MT)

5509

WINTER DWT (MT)

5284

TROPICAL DWT (MT)

5735

LDT (MT)

-

DISPLACEMENT (MT)

-

GEAR(S)

DERRICKS，6 x 4MT OR 3 x 4MT IN UNION PURCHASE

M/E(S)

MITSUBISHI 5UEC45LA 5440 BHP 145RPM

M/E POWER (KW)

4003

A/E(S)

-

GENERATOR(S)

3 x 500KVA(400KW), 445V, 60HZ

SHAFT GENERATOR(S)

-

PROPELLER(S)

FPP

COOLING SYSTEM (COMPRESSOR)

-

SPEED/CONSUMPTIONS

BALLAST： FULL SPEED：16.5KTS，14.5MT IFO380 + 0.5MT MDO MINIMUM SPEED：14.5KTS，12.5MT IFO380 + 0.5MT MDO BANANA LADEN： FULL SPEED：16KTS, 16.5MT IFO380 + 0.5MT MDO MINIMUM SPEED：14KTS, 14.5MT IFO380 + 0.5MT MDO SUMMER LADEN（FROZEN COMMIDITES）： FULL SPEED：15.5KTS，16MT IFO380 + 0.5MT MDO MINIMUM SPEED：13.5KTS，14MT IFO380 + 0.5MT MDO

FUEL TYPE

IFO380

BUNKER CAPACITY (CBM)

1014

TANKS CAPACITY (CBM)

MDO: 79 MGO: 74

NUMBER OF CARGO HOLDS

3

HATCH NUMBER

3

HATCH TYPE

-

HATCH SIZE (M)

8 x 6M

HEIGHT OF HATCH COAMING (M)

-

COMPARTMENT(S)

9

DECK(S)

3

DECK HEIGHT (M)

MINIMUM 2.2 M

CARGO CAPACITY (CBFT)

238985

CARGO CAPACITY (CBM)

6768.2

FLOOR SPACE CAPACITY (SQM)

2684

GRATING/DECK STRENGTH

MAXIMUM 5MT（FORKLIFT TO BE EQUIPED WITH MINIMUM 4 AIRTYRES）

TEMPERATURE ZONE(S)

6, 1A/1BC/2A/2BC/3A/3BC

TEMPERATURE (℃)

-25/+15

TYPE OF VENT SYSTEM

VERTICAL

VENT (TIMES/HOUR)

90

AIR CHANGE (TIMES/HOUR)

4

PALLET(S)

2000

CONTAINER CAPACITY

4FEUS OR 4TEUS+2 FEUS （ON WEATHER DECK AND HATCHES）

REEFER PLUG(S)

6

SIDE DOOR(S)

-

FENDER(S)

-

ANCHOR CHAIN(S)

-

USDA CERTIFICATE

-

INSURANCE

-

CREW

-

ACCOMMODATION

-

INSPECTION

-

DELIVERY

-

PRICE

BUYERS OFFER

REMARK(S)

-
