VESSEL NAME

REF766

TYPE

REEFER CARRIER

DEEP FREEZING OR NOT

NO

FLAG

SPAIN

PORT OF REGISTRY

LAS PALMAS

BUILT YEAR

1990

BUILT PLACE

MURUETA, SPAIN

CLASSIFICATION

BV

CLASS NOTATION

I *HULL *MACH REFRIGERATED CARGO SHIP, ICE III,UNRESTRICTED NAVIGATION, +AUT MS, +REF CARGO

SS

2020-03-26

DD

2018-03

LOA (M)

105

LBP (M)

-

BEAM (M)

16.3

DEPTH (M)

7.1

SUMMER DRAFT (M)

6.6

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

4263

PANAMA GT (MT)

-

SUEZ GT (MT)

-

NT (MT)

1418

PANAMA NT (MT)

-

SUEZ NT (MT)

SUMMER DWT (MT)

4200

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

LDT (MT)

-

DISPLACEMENT (MT)

-

GEAR(S)

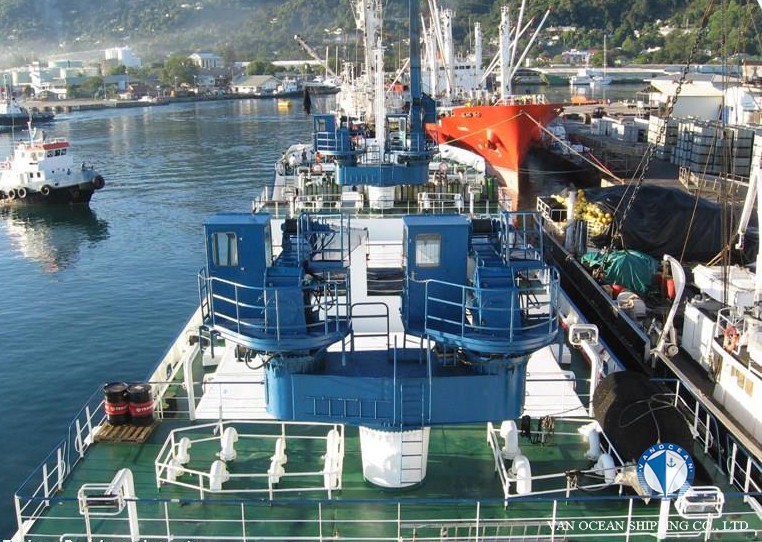

CRANES, 4 x 5 MT, HYDRALIFT NORWAY

M/E(S)

WARTSILA 9R32E 9CLY. 320 x 350, 4950BHP 720RPM TURBO CHARGE: BBC VTR 354-11

M/E POWER (KW)

3694

A/E(S)

2 x WARTRILA 4R22HF-D 884BHP, 650KW, 1000RPM

GENERATOR(S)

2 x INDAR LCB-450-M76, 740KVA, 380V, 1124A, 50HZ, 1000RPM

SHAFT GENERATOR(S)

1 x INDAR LCB-450-S74, 850KVA, 380V, 1291A, 1500RPM, 50HZ

PROPELLER(S)

WARTSILA CPP, 4 BLADES, 142RPM

COOLING SYSTEM (COMPRESSOR)

3 x MYCOM COMPRESSORS, TYPE 160 MUD-ME, 132KW 1 x MYCOM COMPRESSORS, TYPE 125 LUD-ME, 85KW

SPEED/CONSUMPTIONS

BALLAST: 14KTS ON 11.5MT; 11KTS ON 10MT LADEN: 12.5KTS ON 14MT

FUEL TYPE

-

BUNKER CAPACITY (CBM)

1071

TANKS CAPACITY (CBM)

MGO: 875

NUMBER OF CARGO HOLDS

4

HATCH NUMBER

4

HATCH TYPE

-

HATCH SIZE (M)

-

HEIGHT OF HATCH COAMING (M)

-

COMPARTMENT(S)

12

DECK(S)

3

DECK HEIGHT (M)

≥2.20

CARGO CAPACITY (CBFT)

219036.5

CARGO CAPACITY (CBM)

6205

FLOOR SPACE CAPACITY (SQM)

-

GRATING/DECK STRENGTH

-

TEMPERATURE ZONE(S)

8, 1AB/C, 2AB/C, 3AB/C, 4AB/C

TEMPERATURE (℃)

-25/+13

TYPE OF VENT SYSTEM

-

VENT (TIMES/HOUR)

-

AIR CHANGE (TIMES/HOUR)

-

PALLET(S)

-

CONTAINER CAPACITY

-

REEFER PLUG(S)

-

SIDE DOOR(S)

-

FENDER(S)

-

ANCHOR CHAIN(S)

-

USDA CERTIFICATE

-

INSURANCE

-

CREW

-

ACCOMMODATION

-

INSPECTION

-

DELIVERY

WEST AFRICA

PRICE

BUYERS OFFER

REMARK(S)

1 x FW GENERATOR FACET J-50, 8MT/DAY 1 x WATER TREATMENT PLANT FACET F40-05, 500L/HR FITTED BOWTHRUSTER: INDAR AR-355-M74, 294KW, 380V, 550A, 1450RPM , 50HZ REDUCTION GEAR: REINTJES VA-4.850, RED. 5.05: 1 5100CBFT IN REEFER LOCKERS PRESENTLY IN SEYCHELLES WITH ETD END SEPT.
