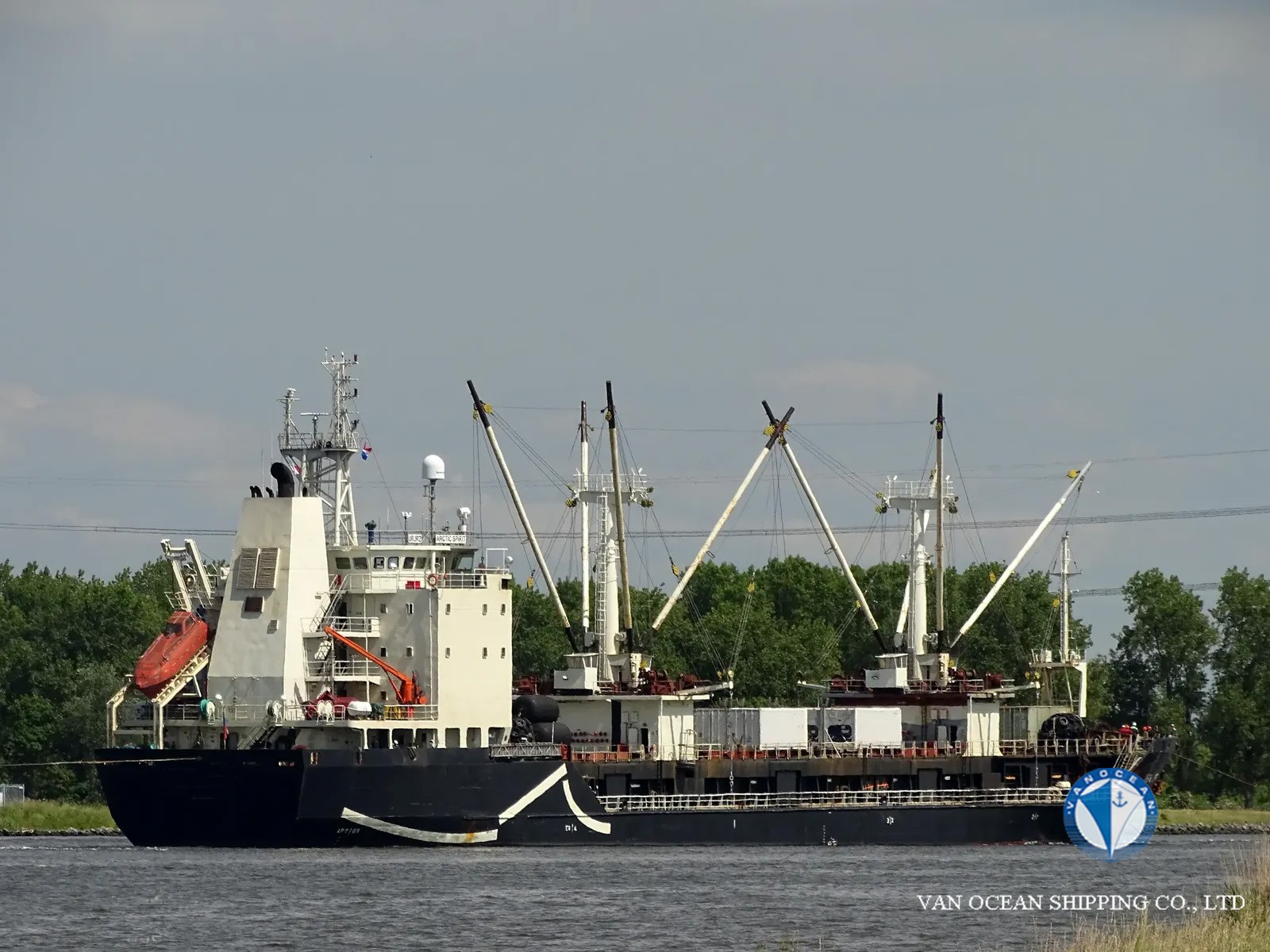

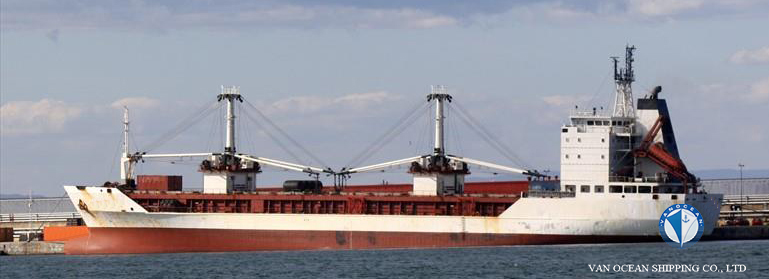

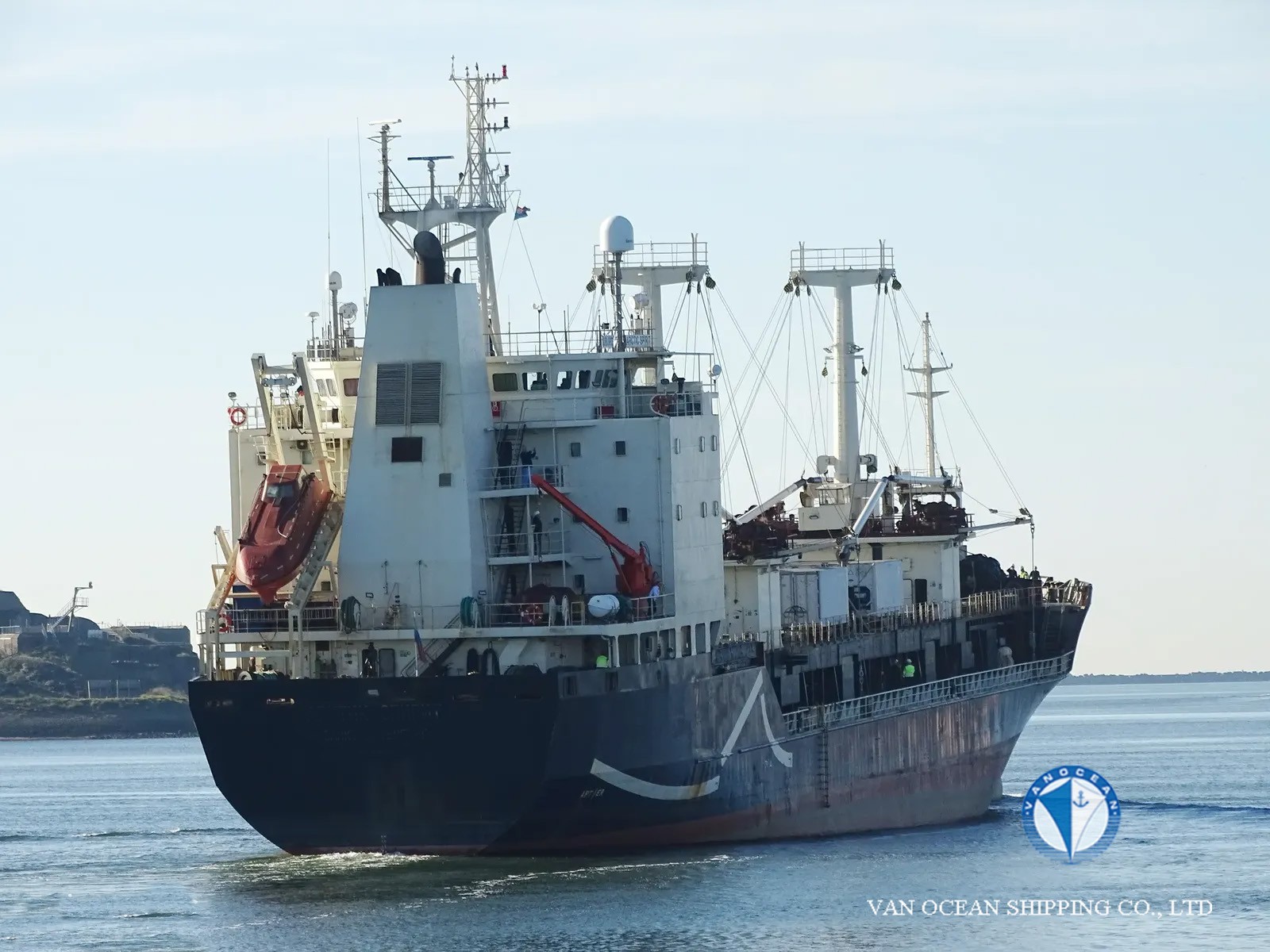

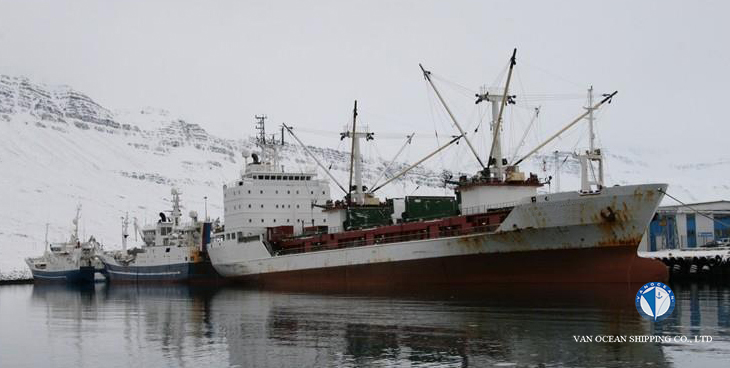

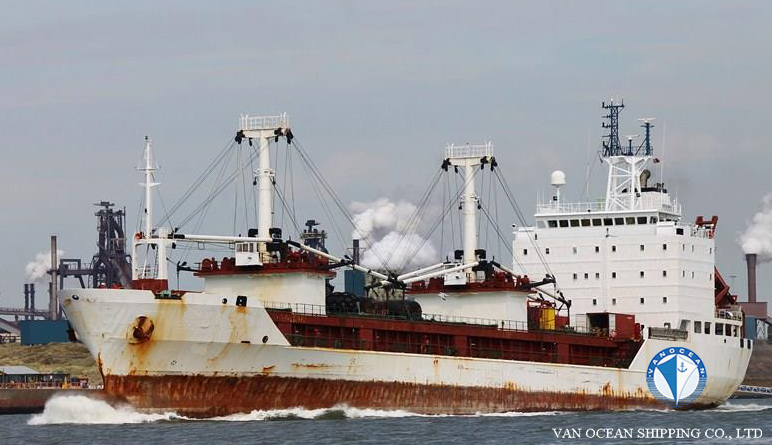

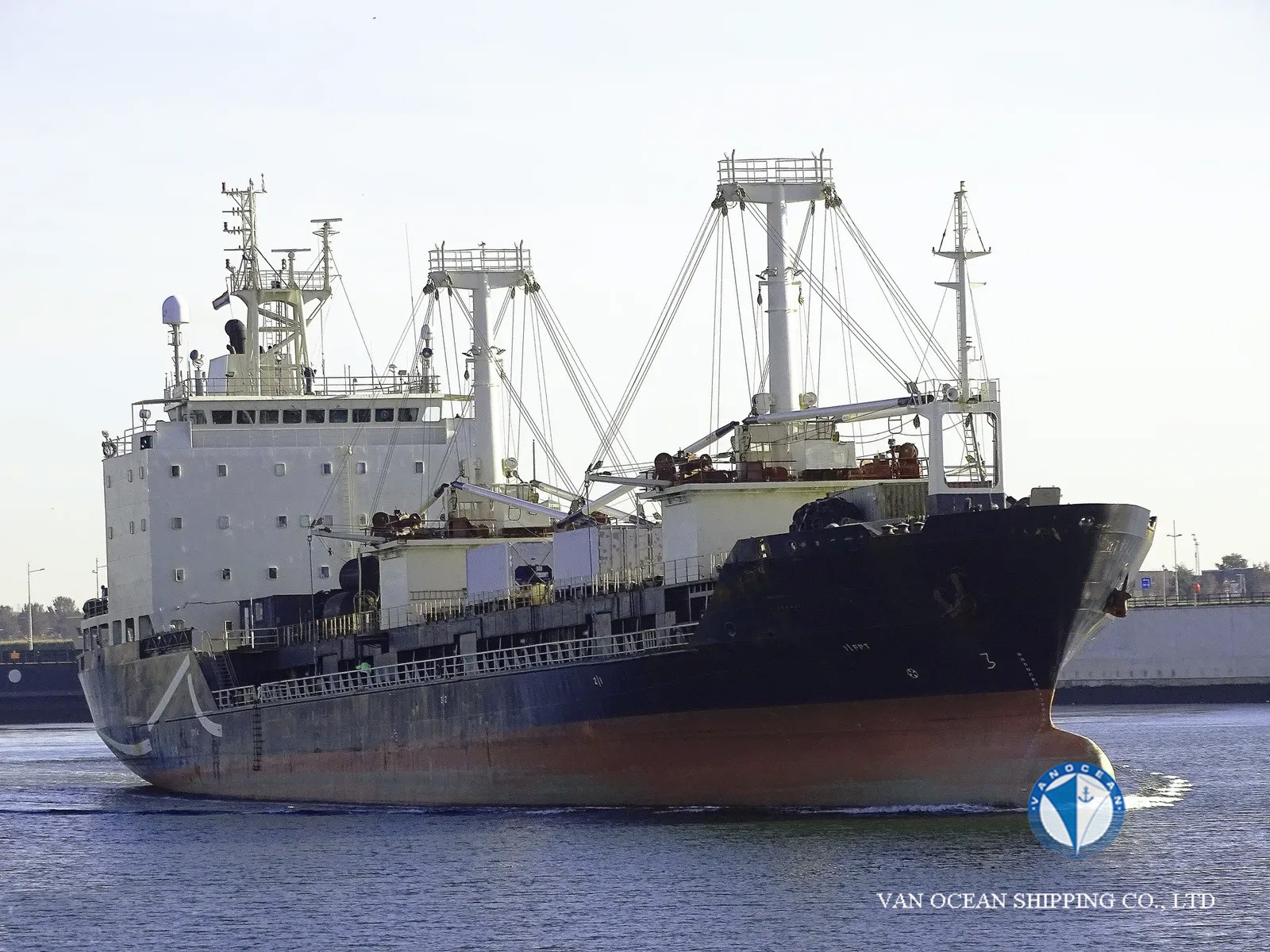

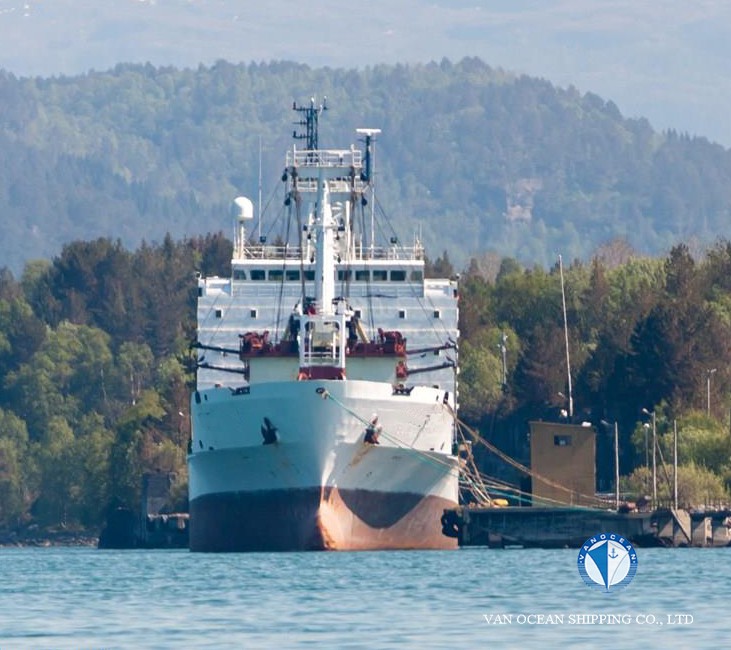

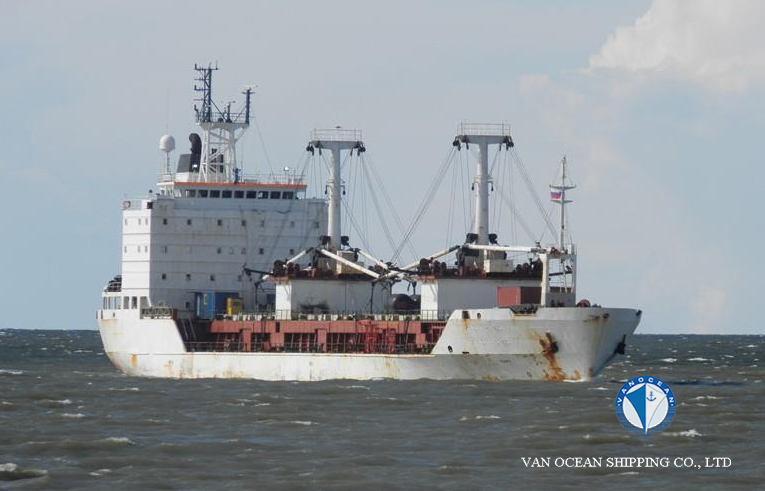

VESSEL NAME
REF765
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
RUSSIA
PORT OF REGISTRY
BOLSHOY PORT OF ST.PETERSBURG
BUILT YEAR
1990
BUILT PLACE
CHINA
CLASSIFICATION
RS
CLASS NOTATION
KM* Ice1 (hull, machinery) REF BWM(T) CONT (deck cargo holds No. 1, 2, 3, 4) DG(pack)
SS
-
DD
-
LOA (M)
120.5
LBP (M)
111.6
BEAM (M)
18.55
DEPTH (M)
10.15
SUMMER DRAFT (M)
7.91
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
6419
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
3587
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
6807
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS, 8 x 10MT OR 4 x 5MT UP
M/E(S)
SULZER 2S.A. 5CYL. 8951HP
M/E POWER (KW)
6680
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
R404A
SPEED/CONSUMPTIONS
BANANA LADEN: 17.0 KTS/ ABT.24MT+2.5-3.5MT
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
680
TANKS CAPACITY (CBM)
MGO:50
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
12.3 x 8.0
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
1
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
300124
CARGO CAPACITY (CBM)
8502
FLOOR SPACE CAPACITY (SQM)
3441
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
8,1AB/1C,2AB/2CD,3AB/3CD,4AB/4CD
TEMPERATURE (℃)
-25/+13
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
2600
CONTAINER CAPACITY
DECK：80 TEU OR 30FEU+16TEU
HOLDS：84TEU OR 41FEU
REEFER PLUG(S)
24
SIDE DOOR(S)
8
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
BOW THRUSTER
