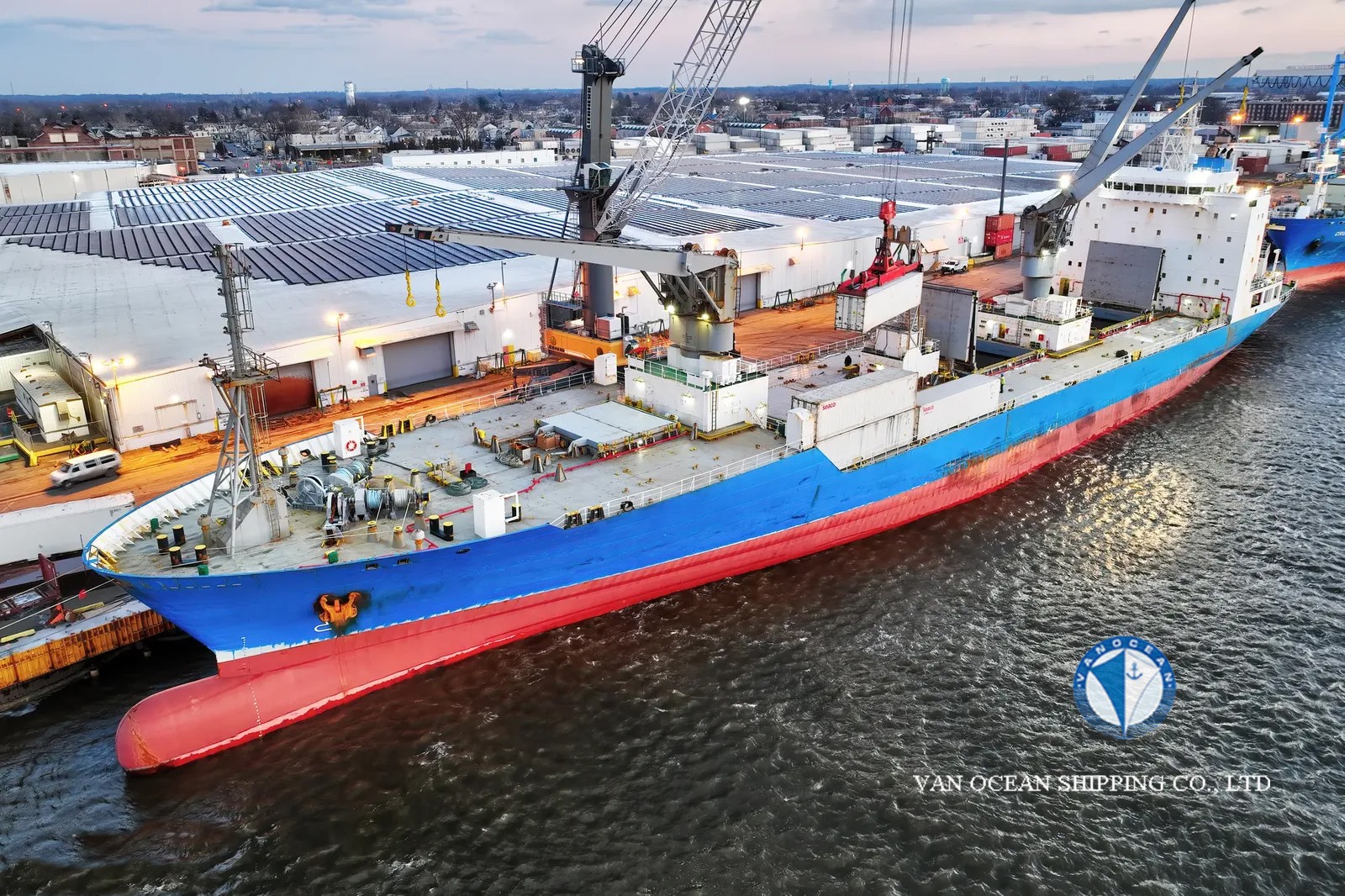

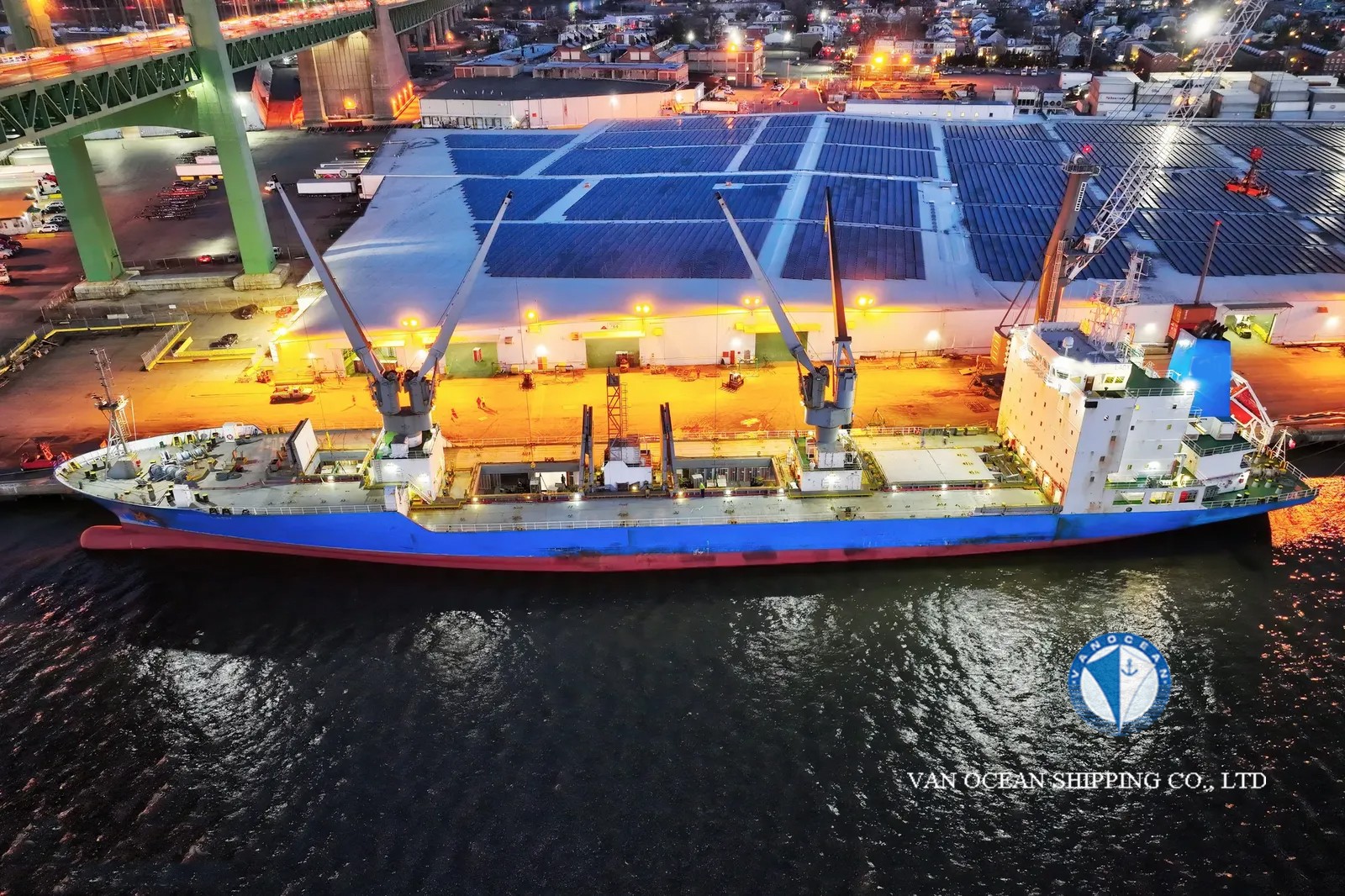

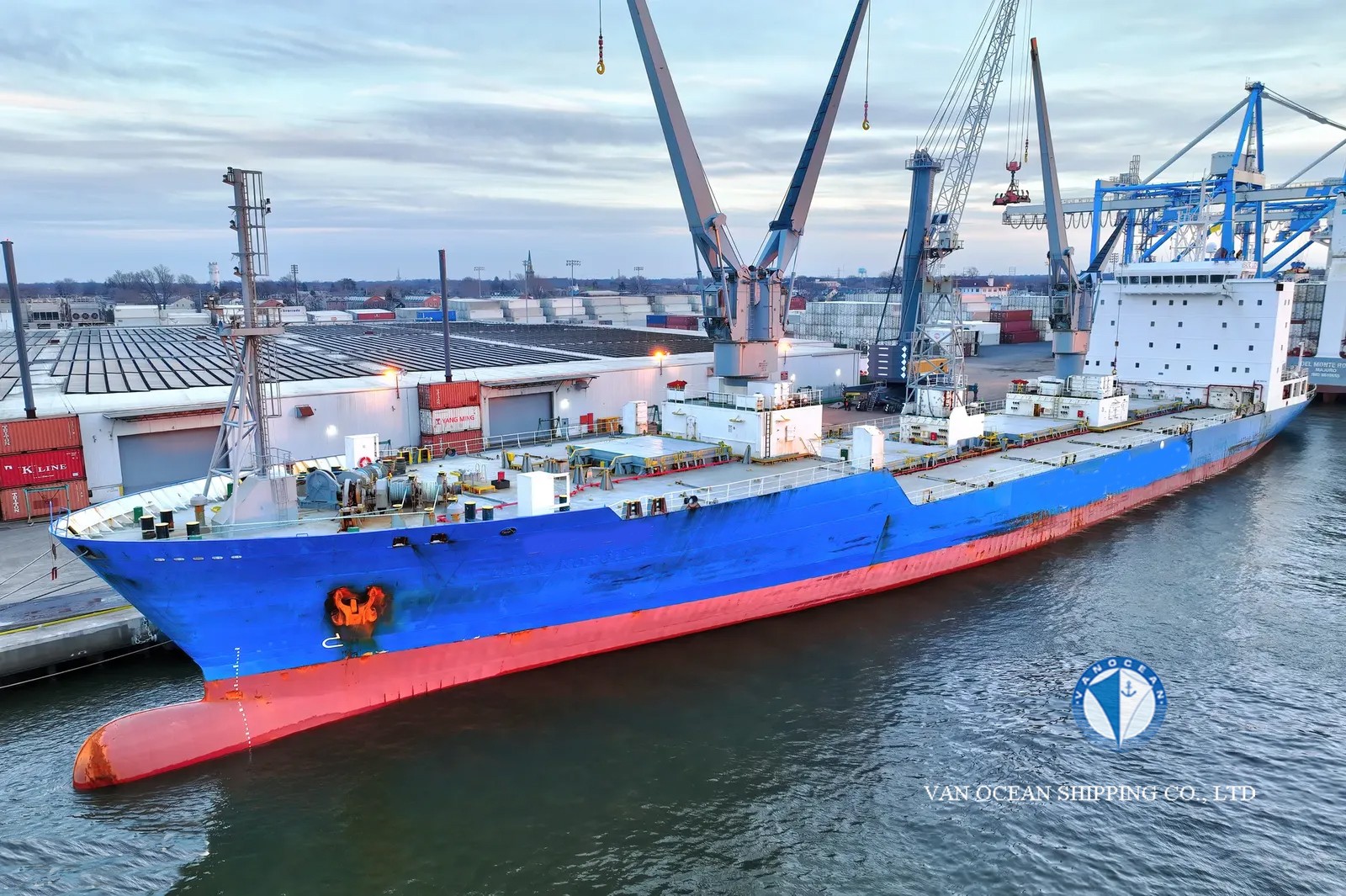

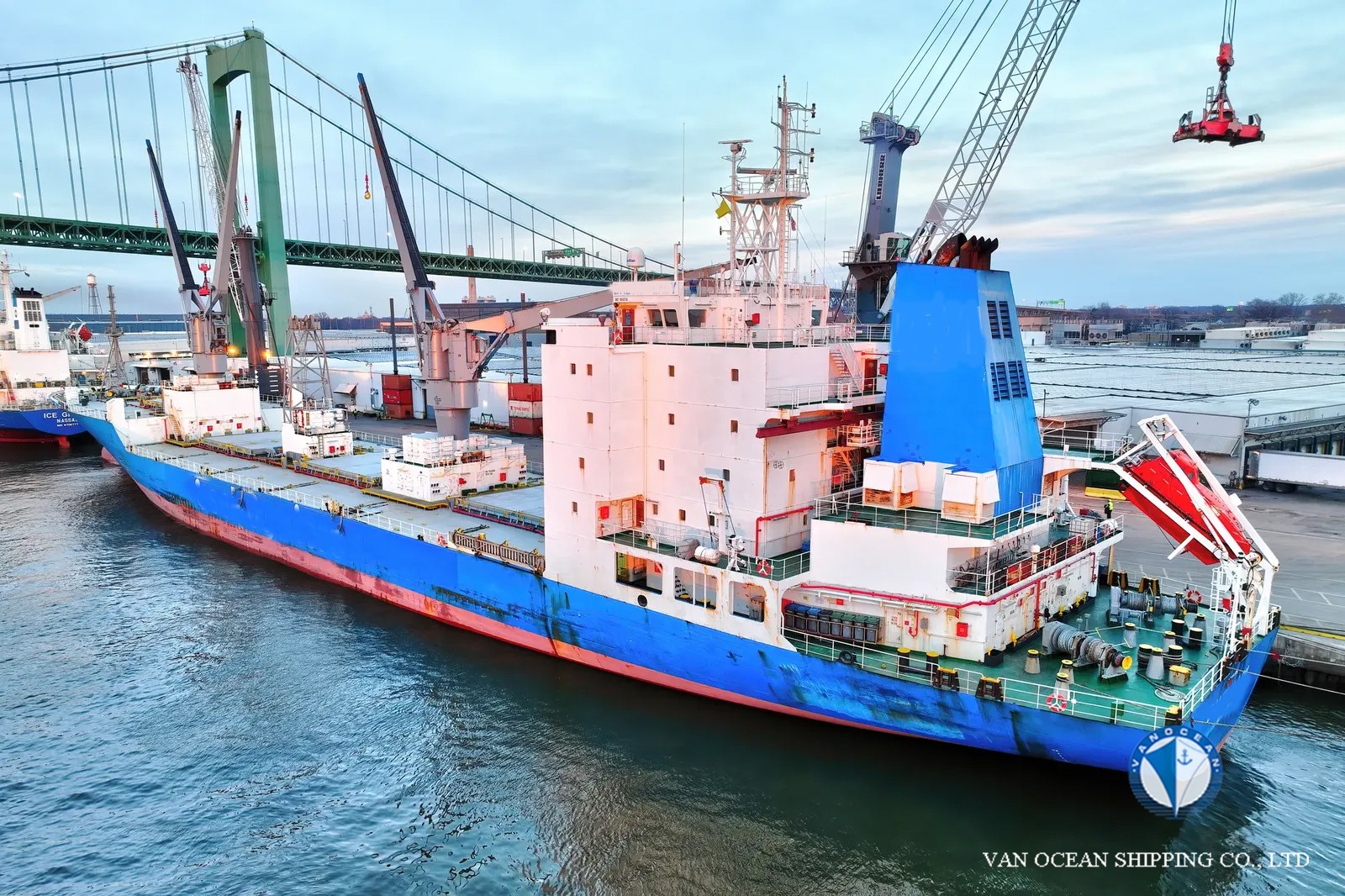

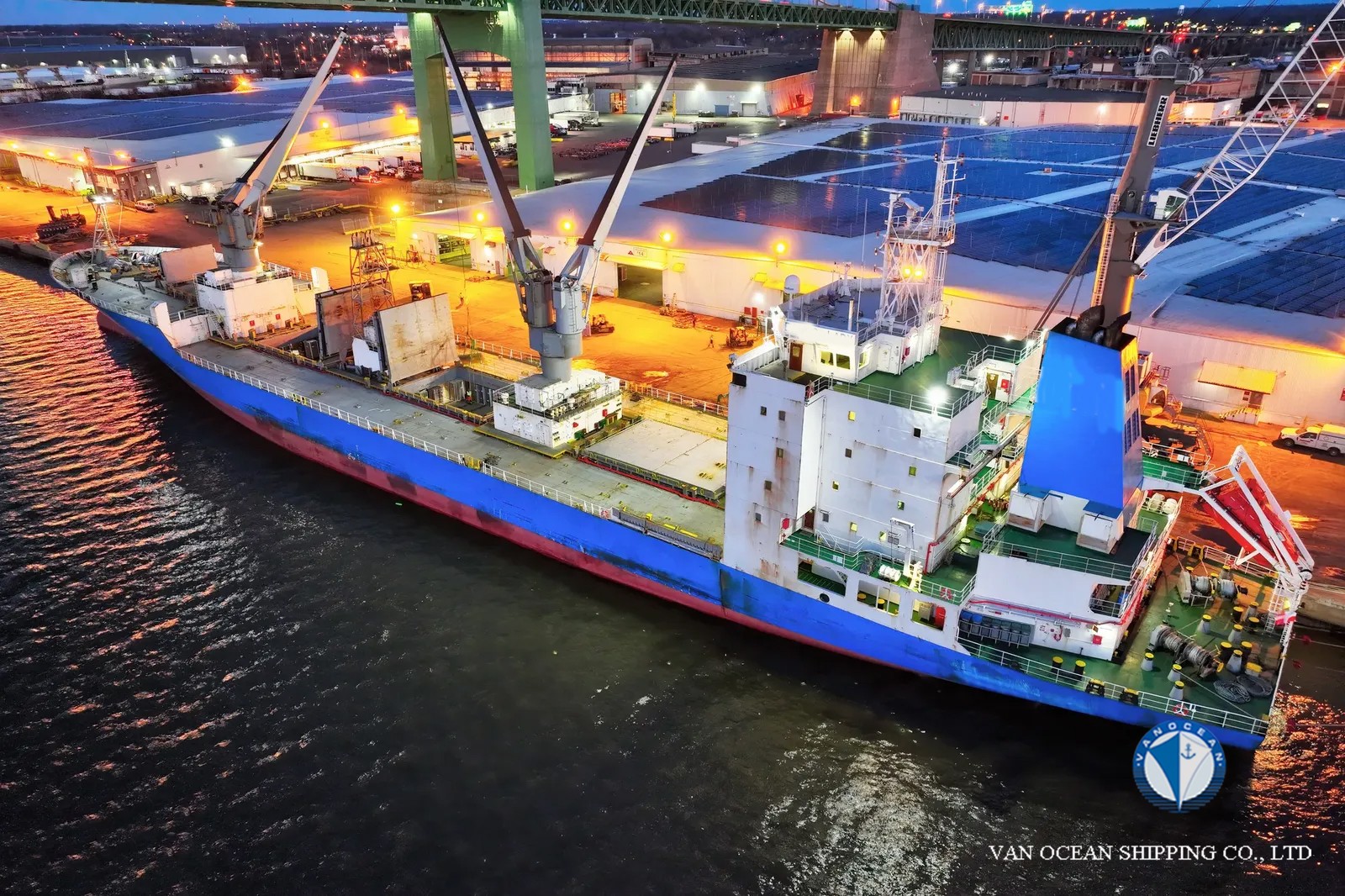

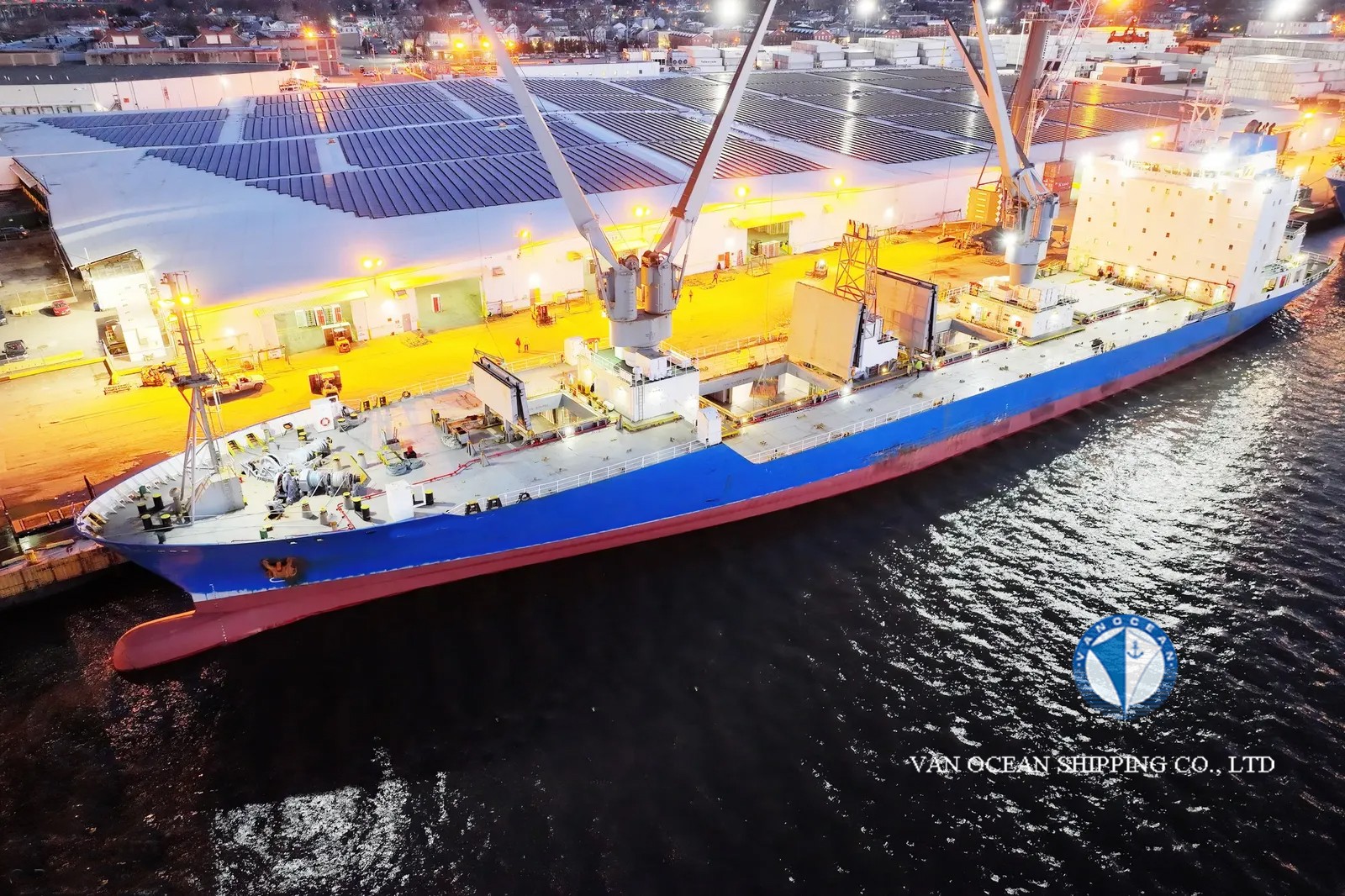

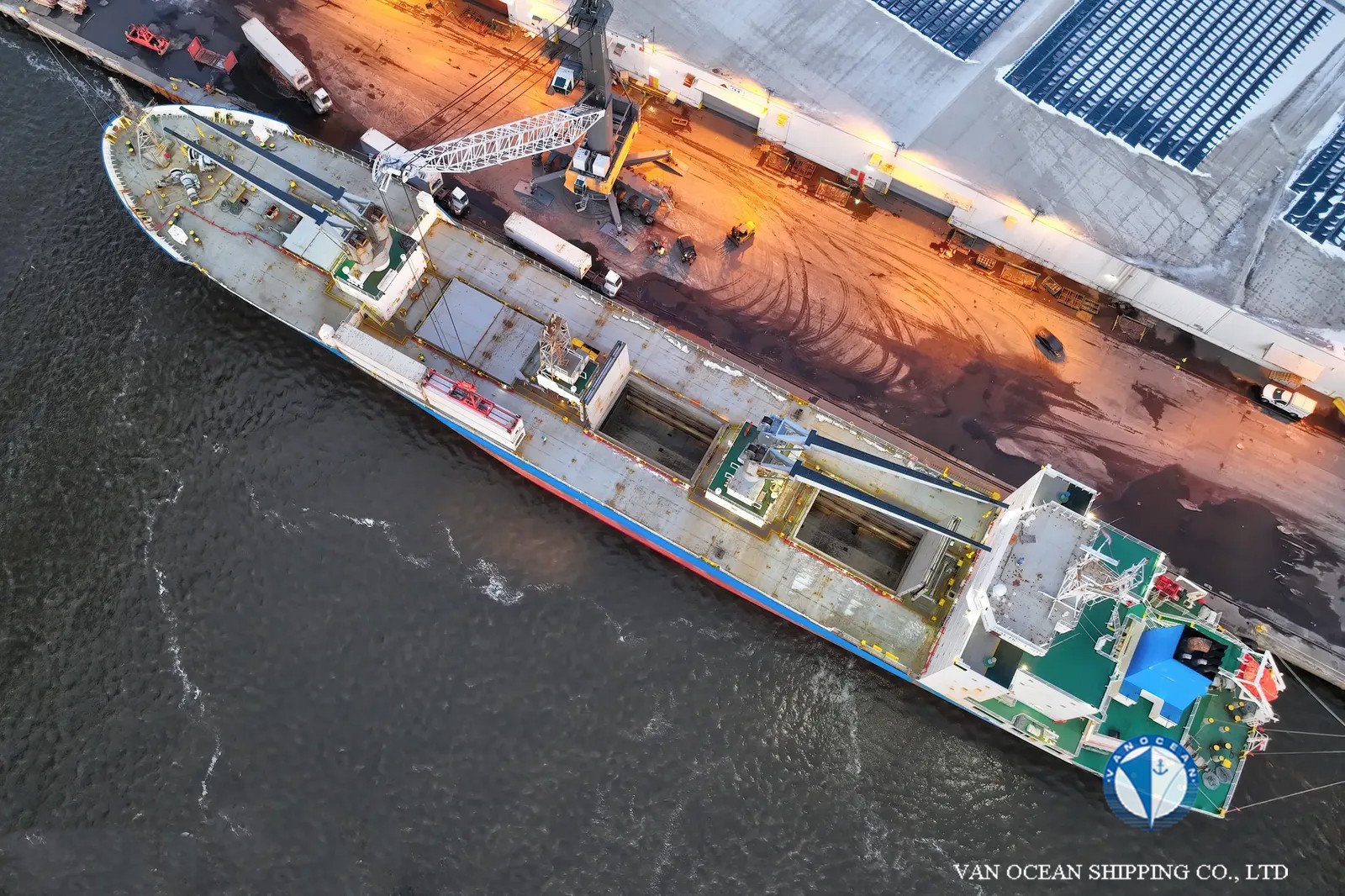

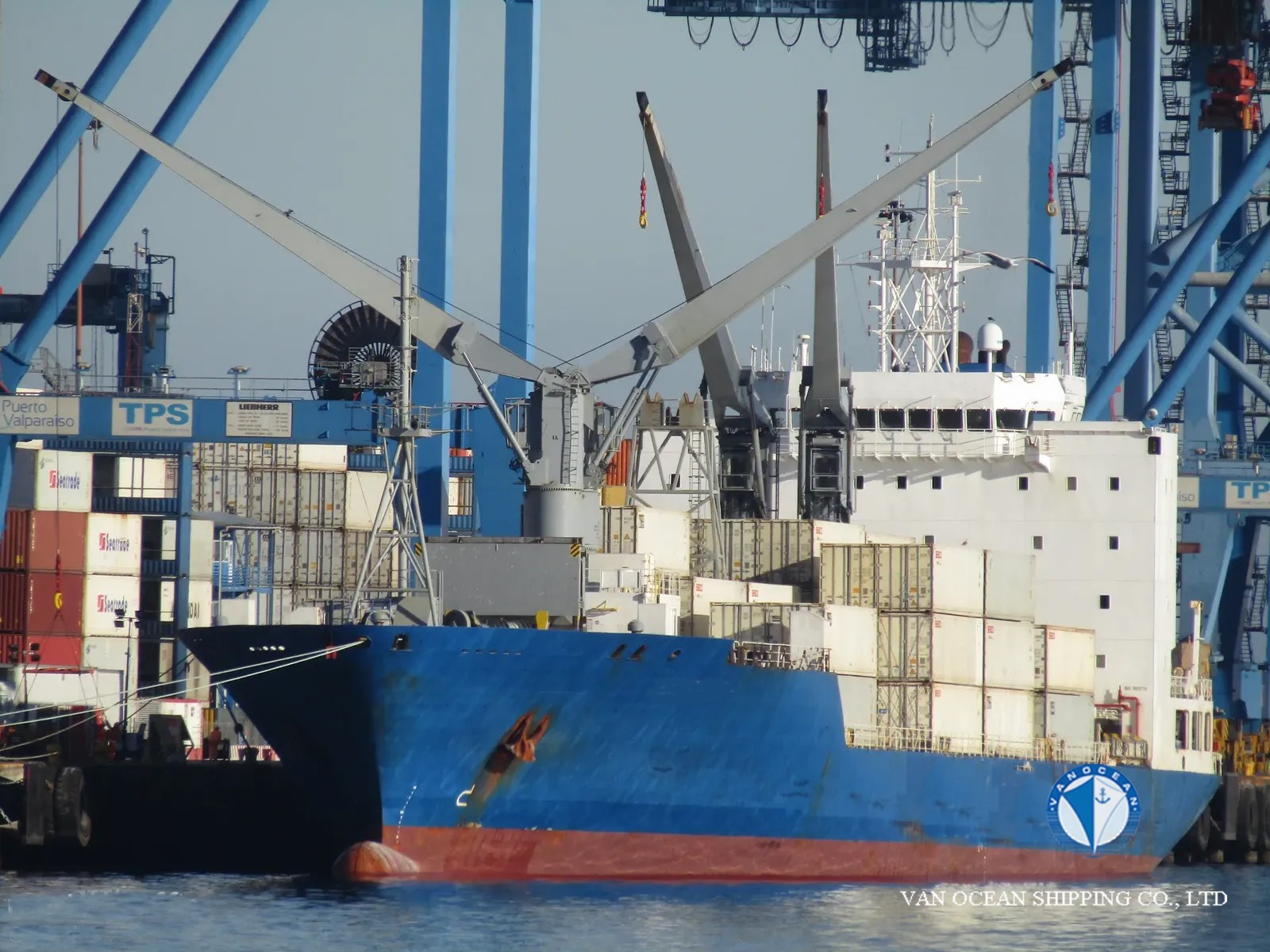

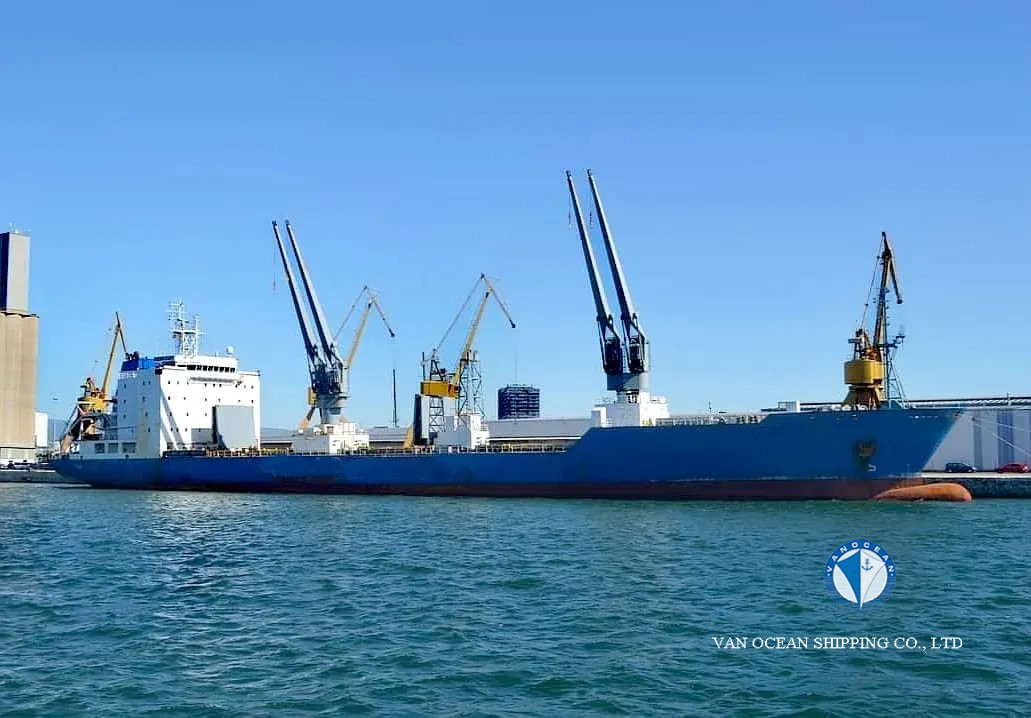

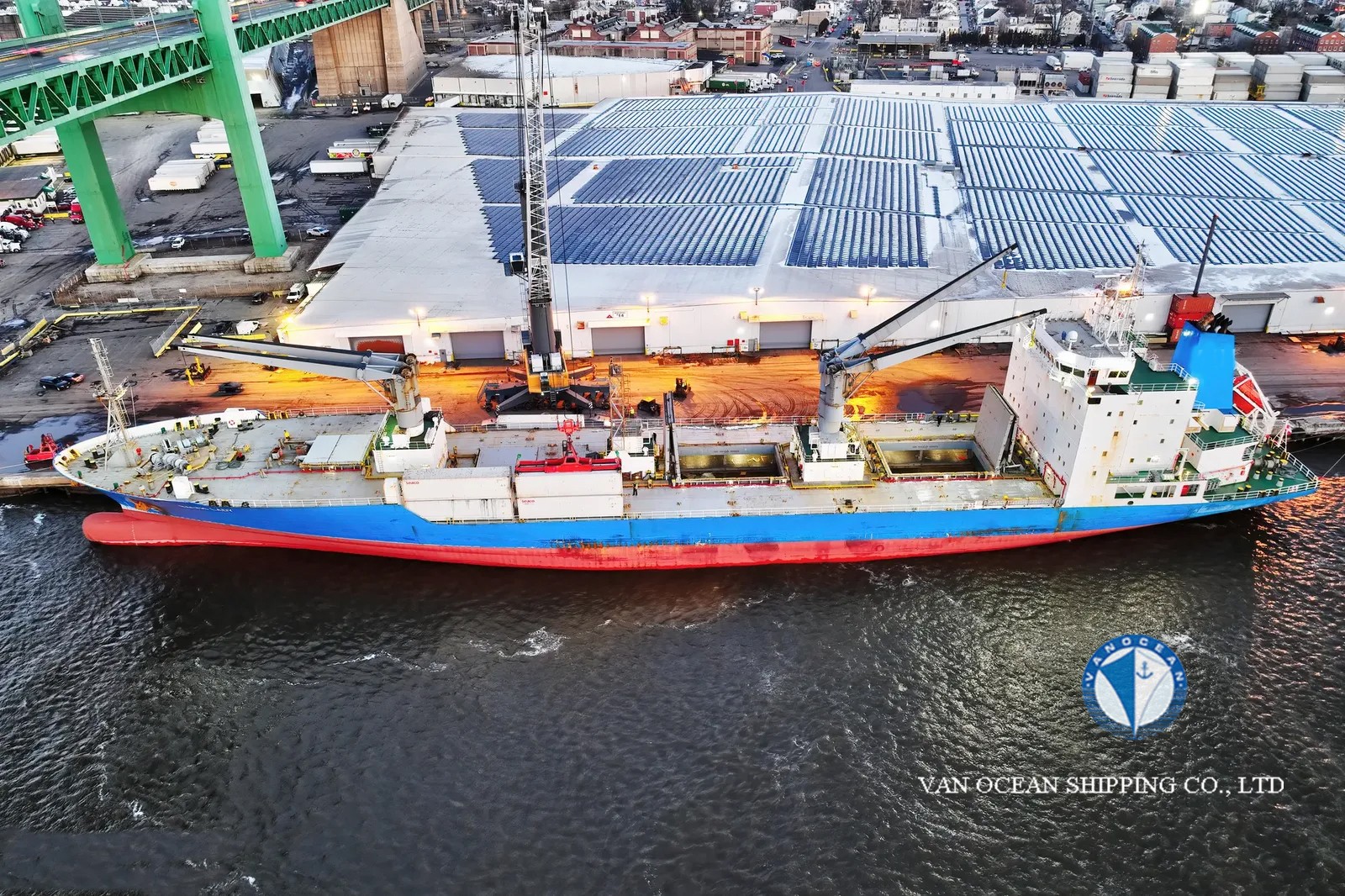

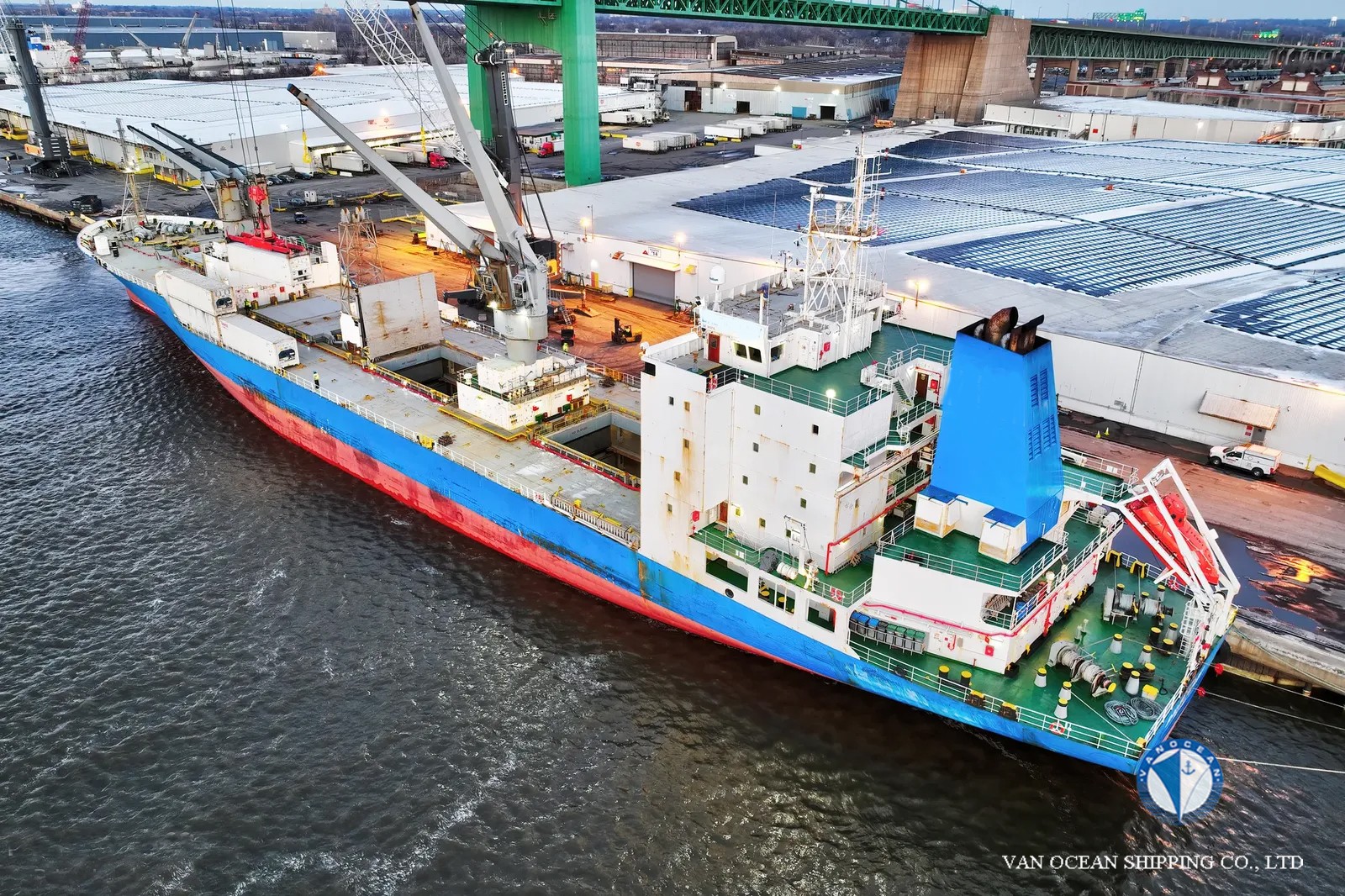

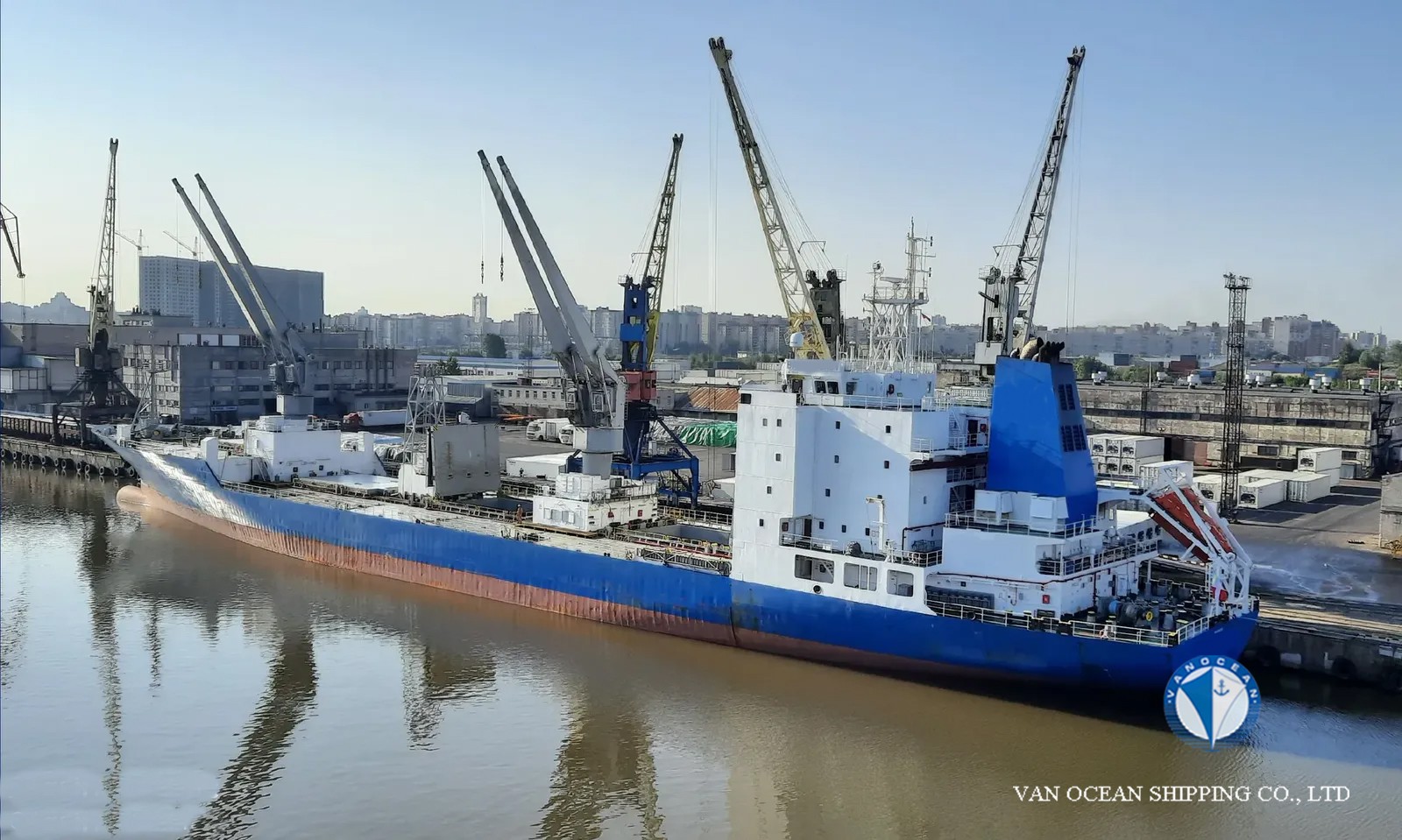

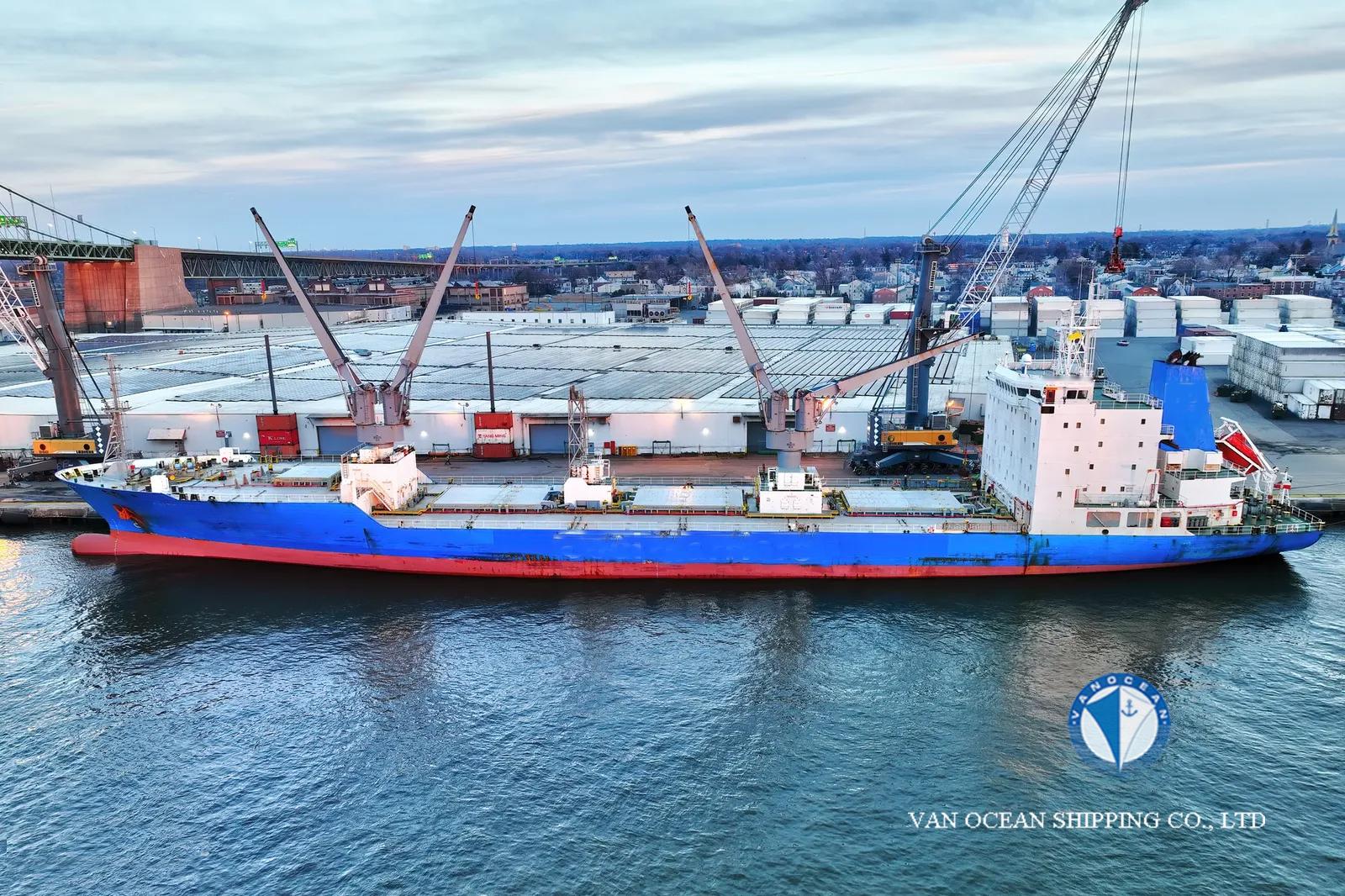

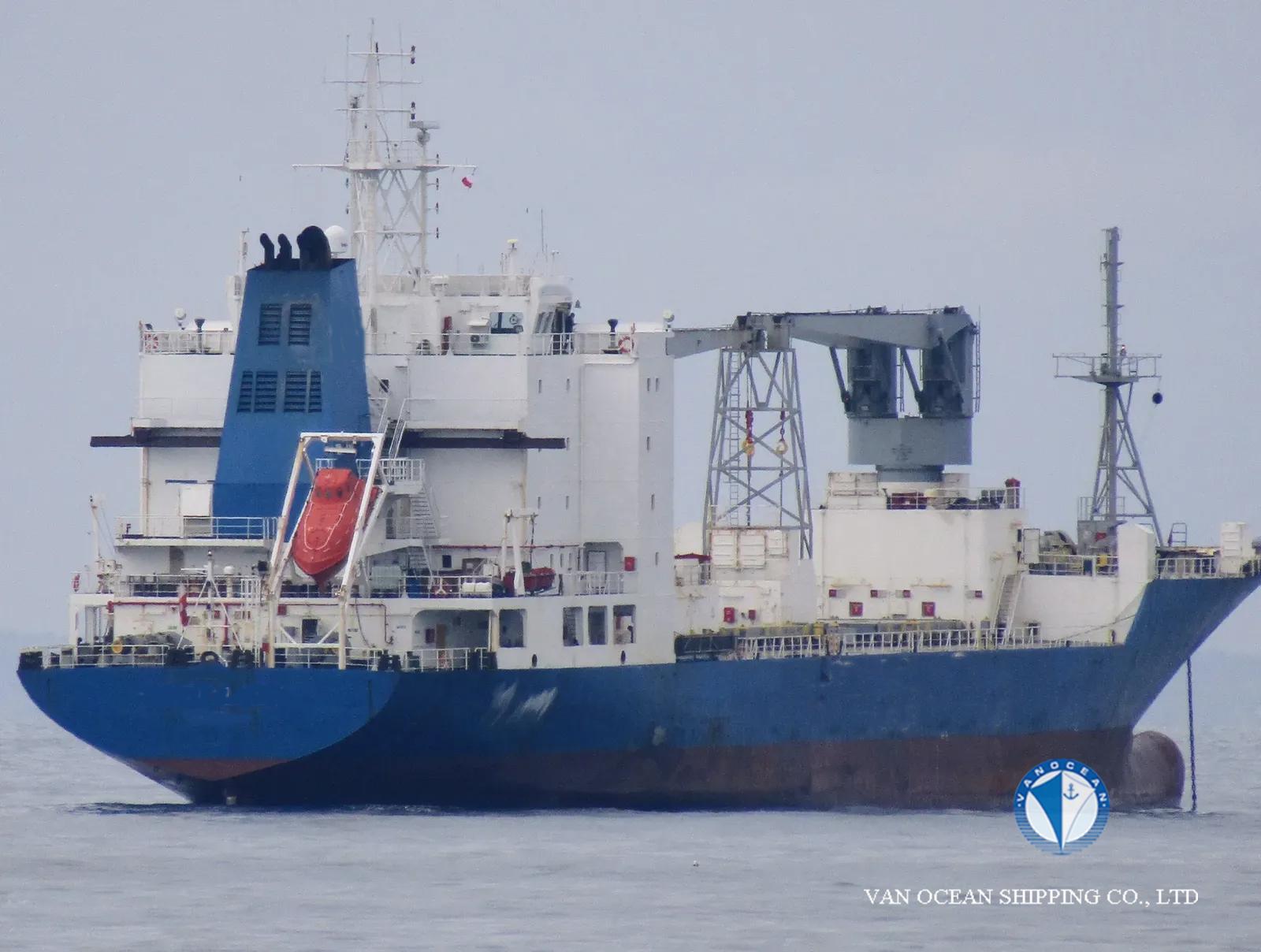

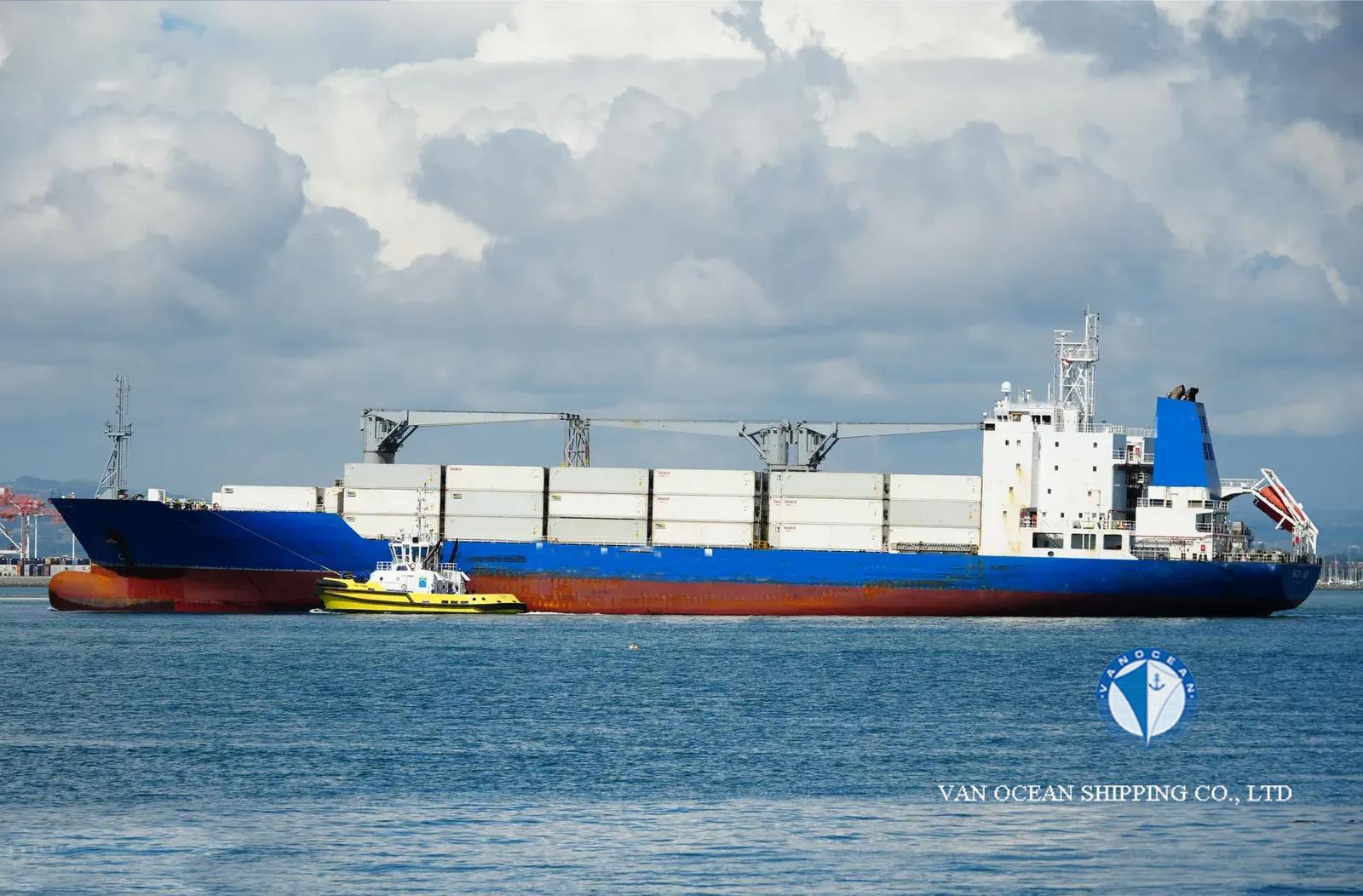

VESSEL NAME

REF763

TYPE

REEFER CARRIER

DEEP FREEZING OR NOT

NO

FLAG

BAHAMAS

PORT OF REGISTRY

NASSAU

BUILT YEAR

2000

BUILT PLACE

SHIPYARD "SPLIT"-CROATIA

CLASSIFICATION

RINA

CLASS NOTATION

I, HULL,MACH,CONTAINER SHIP-REFRIGERATED CARGO SHIP, AUT-UMS(SS),SYS-NEQ-1(SS),REF-CARGO(CS), UNRESTRICTED NAVIGATION

SS

2025-11

DD

2025-11

LOA (M)

155.27

LBP (M)

146

BEAM (M)

23.39

DEPTH (M)

13.2

SUMMER DRAFT (M)

9.5

WINTER DRAFT (M)

-

TROPICAL DRAFT (M)

-

GT (MT)

11443

PANAMA GT (MT)

-

SUEZ GT (MT)

12304.25

NT (MT)

6336

PANAMA NT (MT)

9880

SUEZ NT (MT)

9166.25

SUMMER DWT (MT)

12913

WINTER DWT (MT)

-

TROPICAL DWT (MT)

-

LDT (MT)

6920

DISPLACEMENT (MT)

19832.5

GEAR(S)

TWO KRUPP GHL 23 GEMINI TWIN DECK CRANES,ELECTRO-HYDRAULIC TYPE ONE LOCATED BTW HATCH 3 AND 4,OTHER BTW 1 AND 2. SWL-TWIN MODE 40MT,SINGLE MODE 20.3MT. OUTREACH 3-23M. CRANES ARE SUITABLE FOR HANDLING CONTAINERS WITH SPREADER

M/E(S)

1 M A N-B&W 7L 60MC 2T, 7CYL, 123RPM

M/E POWER (KW)

13440

A/E(S)

FOUR SETS TYPE "BRODOSPLIT-MAN B&W" FOUR STROKE, WATER COOLED DIESEL ENGINE TYPE 8L 23/30 HEIGHT CYLINDERS MCR 1280KW AT 900 RPM. SPECIFICATION OF HFO380 CST AT 50 C-AS PER ISO STANDARD 8217:2010 OR ANY SUBSEQUENT AMENDMENTS THEREOF.

GENERATOR(S)

4 DIESEL GENERATORS, 1500KVA(1200KW),440V,60HZ, 1 EMERGENCY GENERATOR 135 KVA(108KW), 440 V, 60HZ

SHAFT GENERATOR(S)

-

PROPELLER(S)

1 SOLID SCREW PROPELLER LB10, 123RPM

COOLING SYSTEM (COMPRESSOR)

THREE FACTORY ASSEMBLED BRINE CHILLER UNITS TYPE SABROE VSB 81E USING R22(CONVERTIBLE TO HFC 407C/404A) AS PRIMARY AND BRINE AS SECONDARY COOLING MEDIA. GUARANTEED COOLING DOWN PERIODS FOR BANANAS MAX.26 HOURS, FRUIT MAX.52HOURS, FROZEN COMMODITIES MAX.72 HOURS.

SPEED/CONSUMPTIONS

20.0 KTS, HFO 52.5MT/DAY

FUEL TYPE

HFO

BUNKER CAPACITY (CBM)

1957

TANKS CAPACITY (CBM)

MDO:108,LO:132,FW:146, WATER BALLAST:2396

NUMBER OF CARGO HOLDS

4

HATCH NUMBER

4

HATCH TYPE

WEATHER DECK-WATER&TIGHT, HYDRAULICALLY OPERATED FOLDING TYPE

HATCH SIZE (M)

6.16 x 6.00, 12.82 x 8.00

HEIGHT OF HATCH COAMING (M)

-

COMPARTMENT(S)

16

DECK(S)

4

DECK HEIGHT (M)

-

CARGO CAPACITY (CBFT)

590227

CARGO CAPACITY (CBM)

16720

FLOOR SPACE CAPACITY (SQM)

6906.5

GRATING/DECK STRENGTH

ALUMNIUM(HYDRO ALUMNIUM-NORMAY) GRATINGS 120MM HEIGHT DESIGNED FOR FORKLIFT (PNEUMATIC TYRES) LOAD OF 7000 KG PER SHAFT

TEMPERATURE ZONE(S)

8

TEMPERATURE (℃)

-25/-15

TYPE OF VENT SYSTEM

DUCTLESS AIR CIRCULATION

VENT (TIMES/HOUR)

90

AIR CHANGE (TIMES/HOUR)

2

PALLET(S)

-

CONTAINER CAPACITY

ON DECK 120 FEU+20TEU OR 168 TEU+46FEU IN HOLDS 36 FEU OR 72 TEU TOTAL CONTAINER CAPACITY:156FEU+20TEU OR 240TEU+46FEU PERMISSIBLE STACK WEIGHT IN HOLDS:120MT-FEU,96MT-TEU, ONDECK 90MT-FEU, 72MT TEU

REEFER PLUG(S)

120

SIDE DOOR(S)

-

FENDER(S)

-

ANCHOR CHAIN(S)

-

USDA CERTIFICATE

YES

INSURANCE

-

CREW

-

ACCOMMODATION

-

INSPECTION

-

DELIVERY

-

PRICE

BUYERS OFFER

REMARK(S)

-
