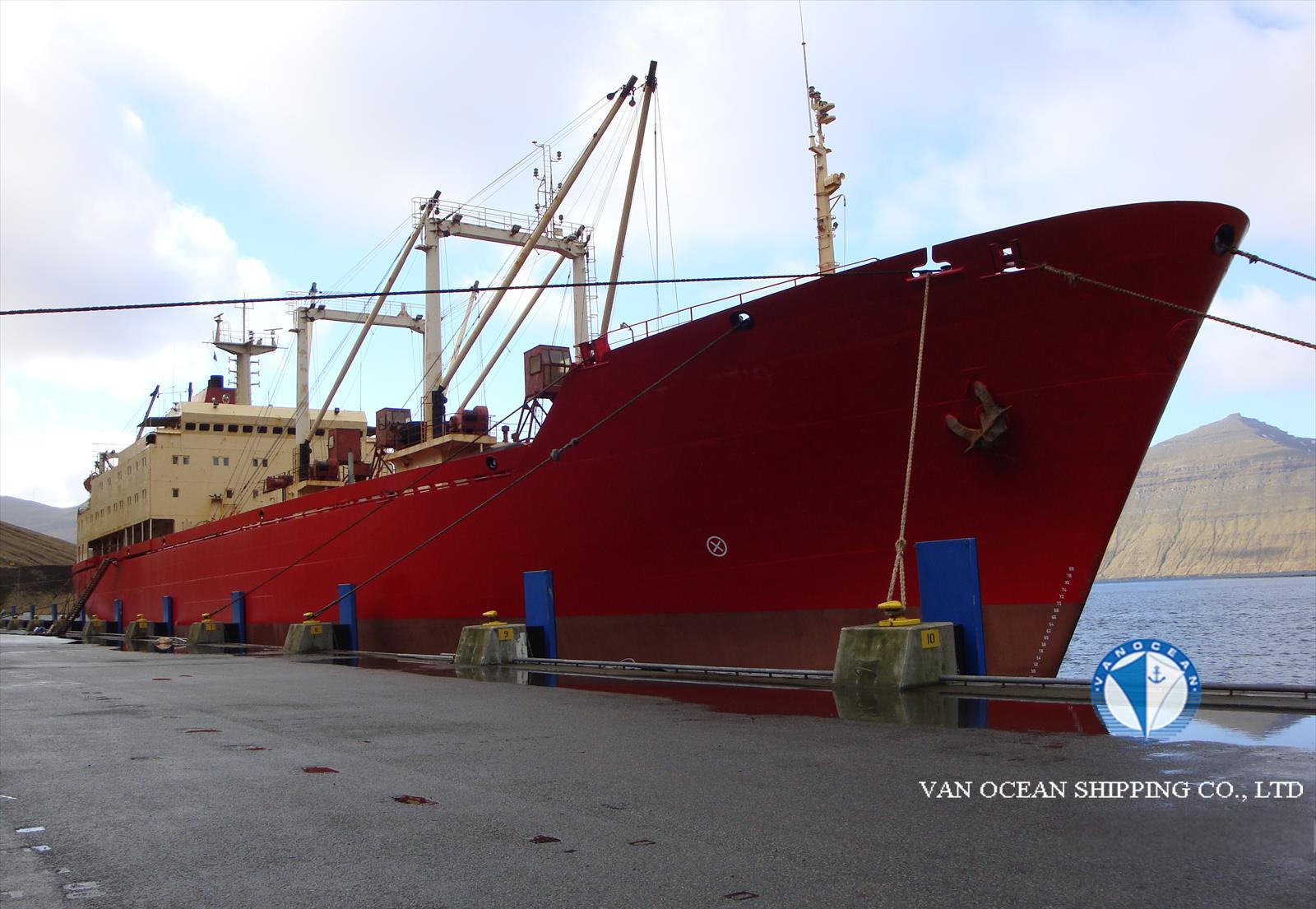

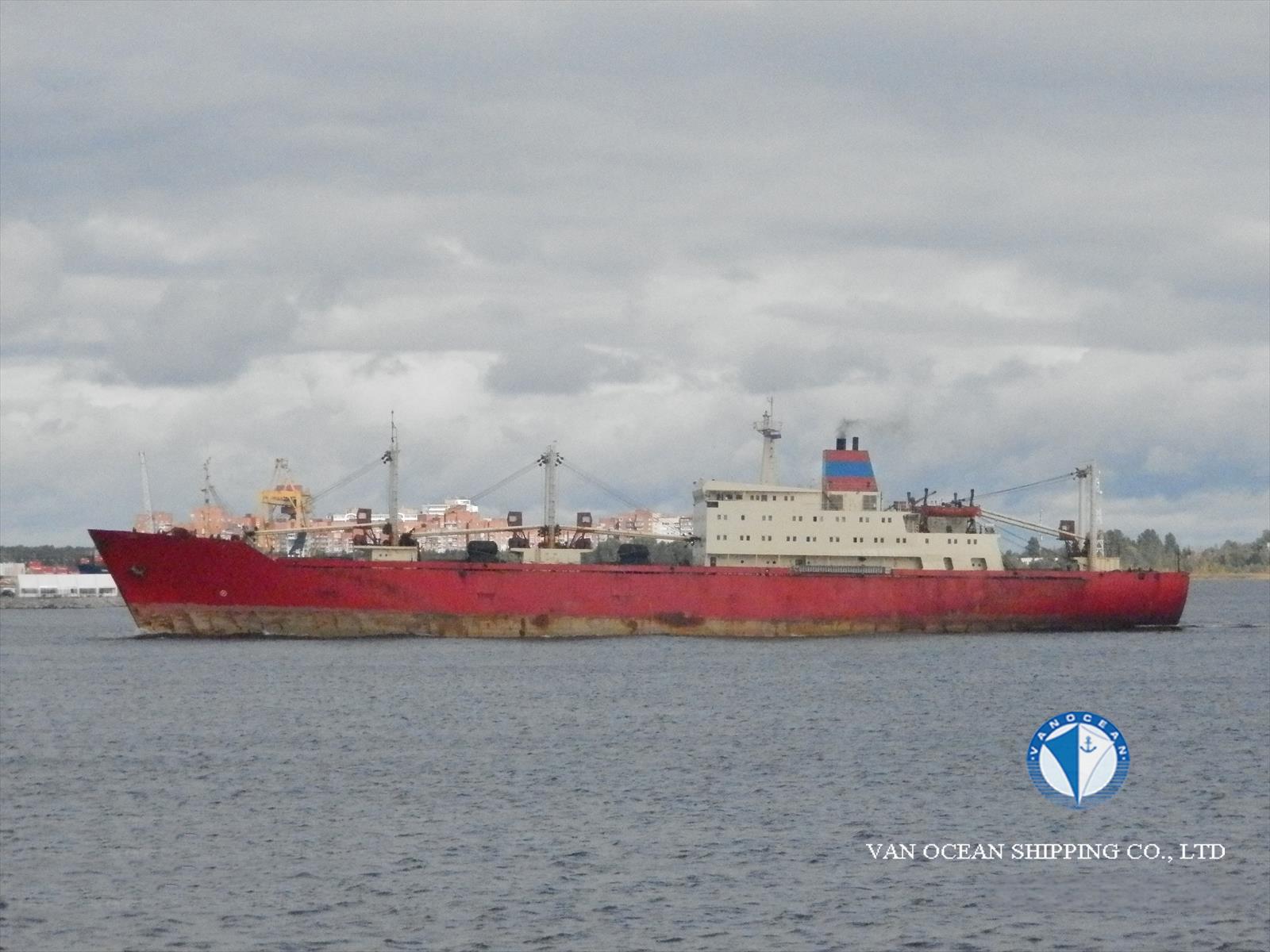

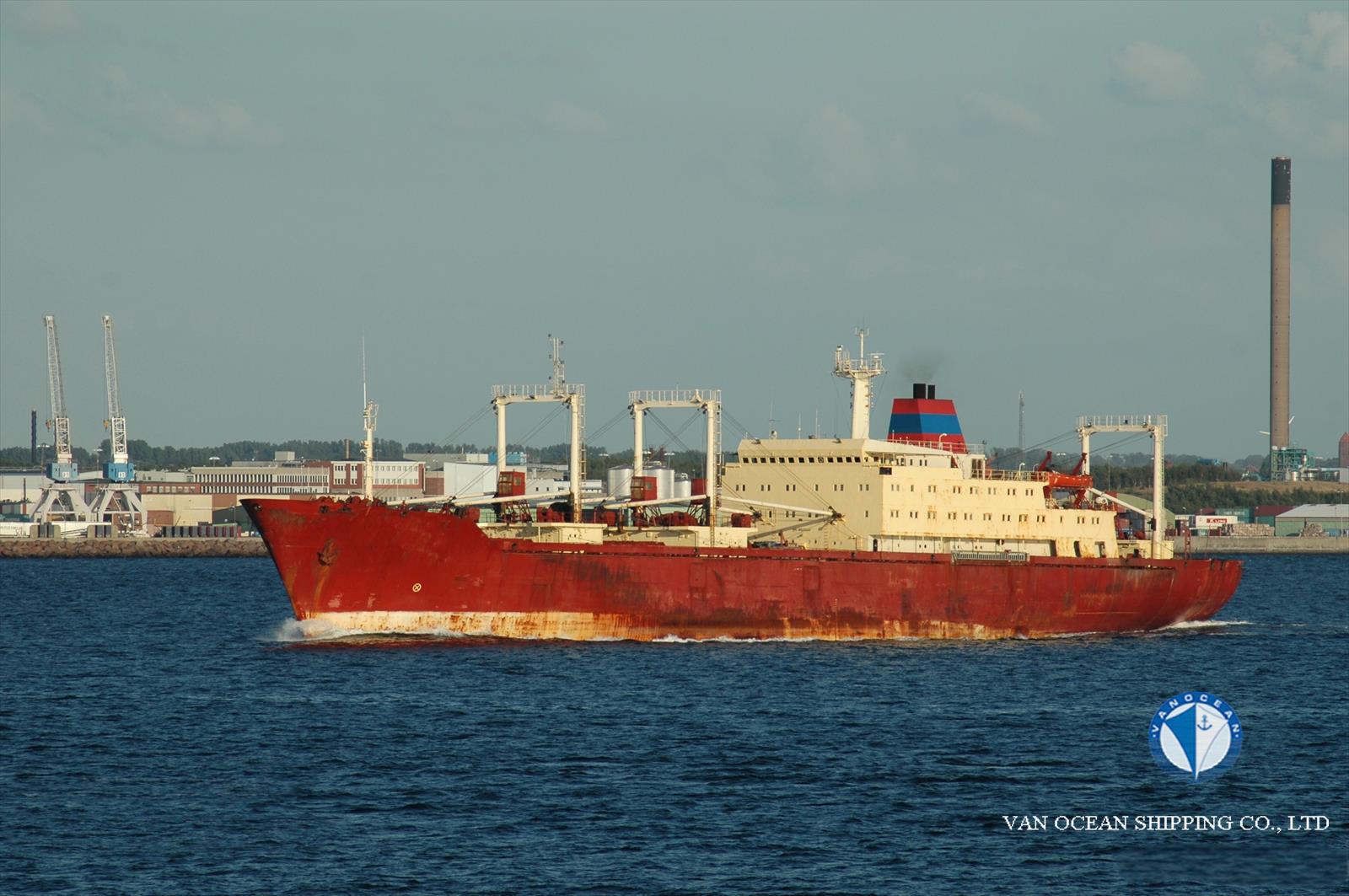

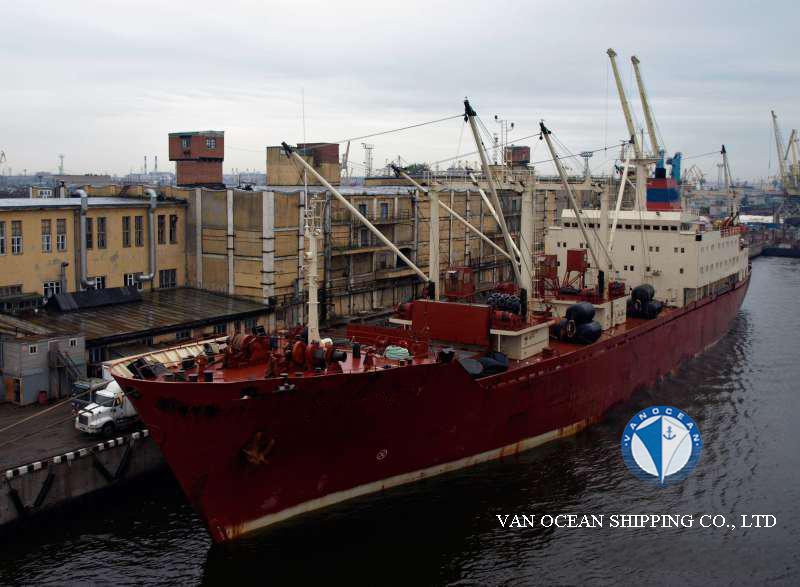

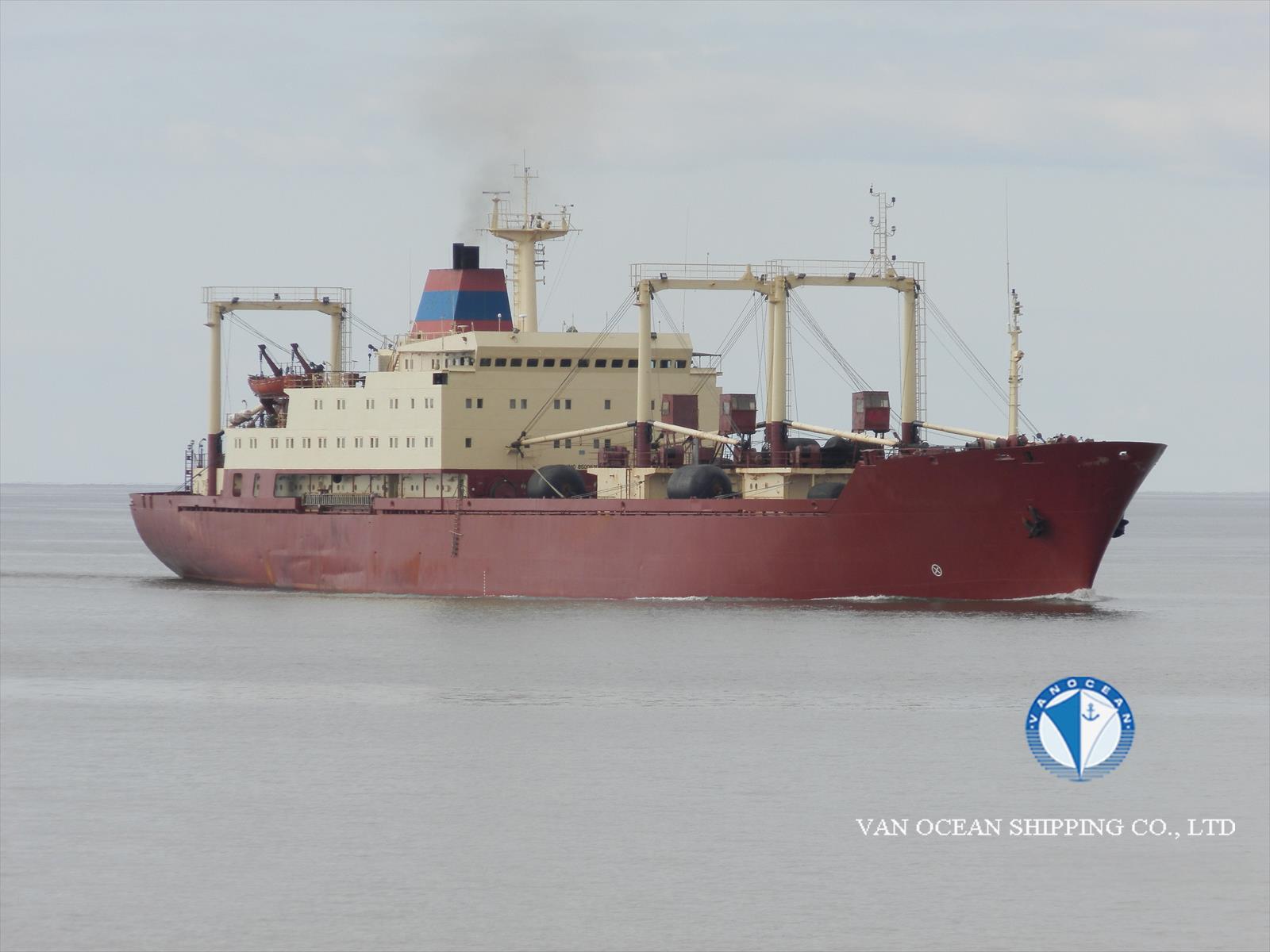

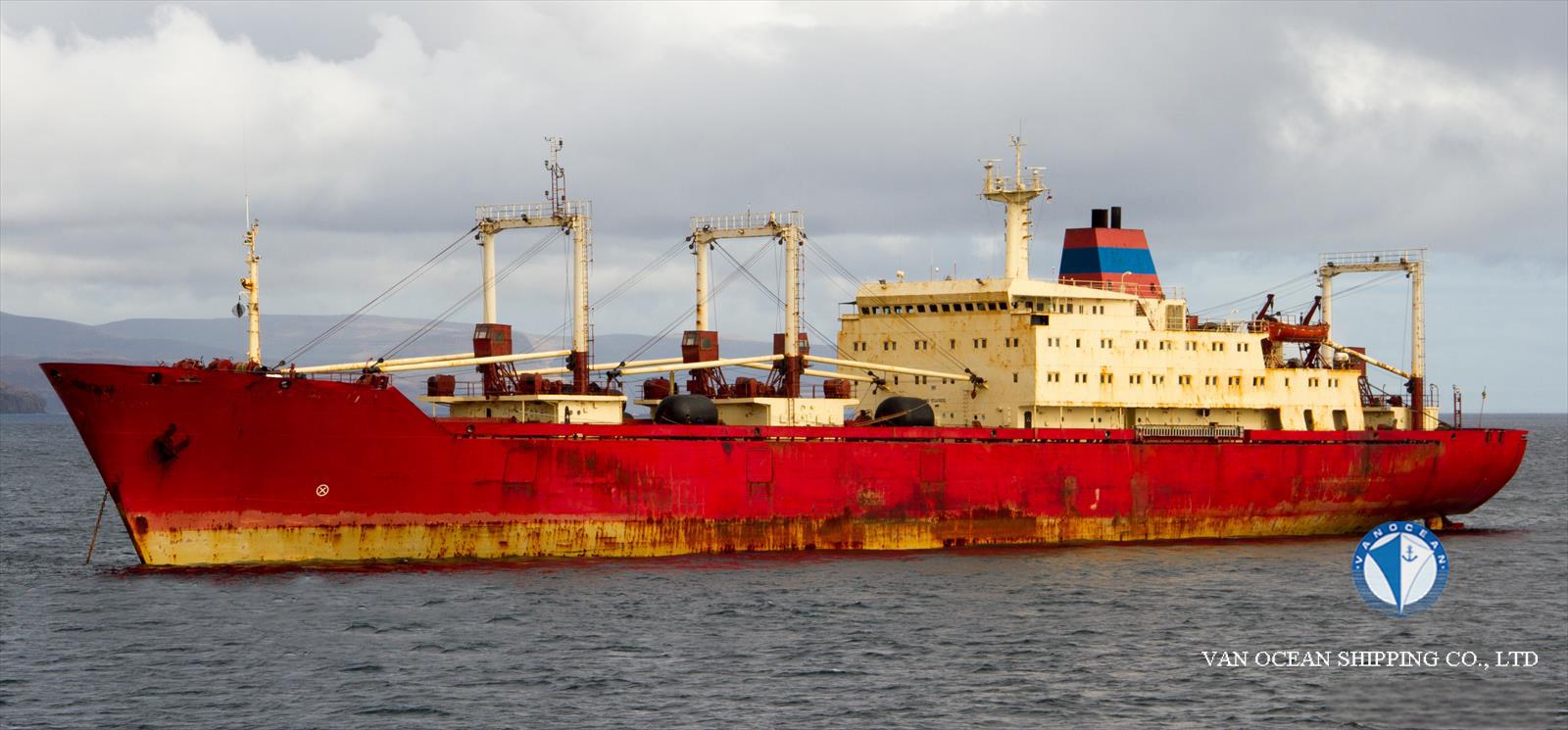

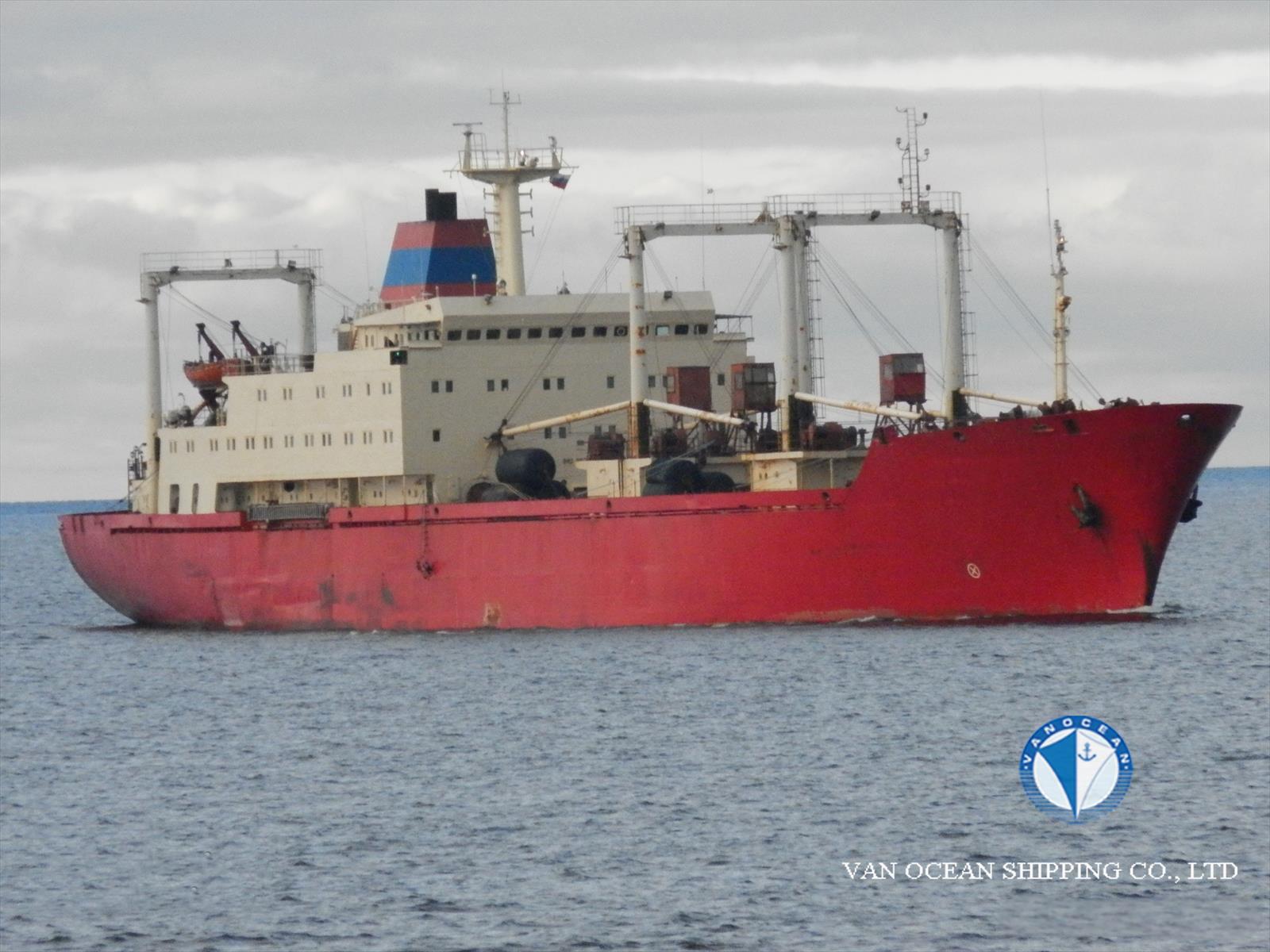

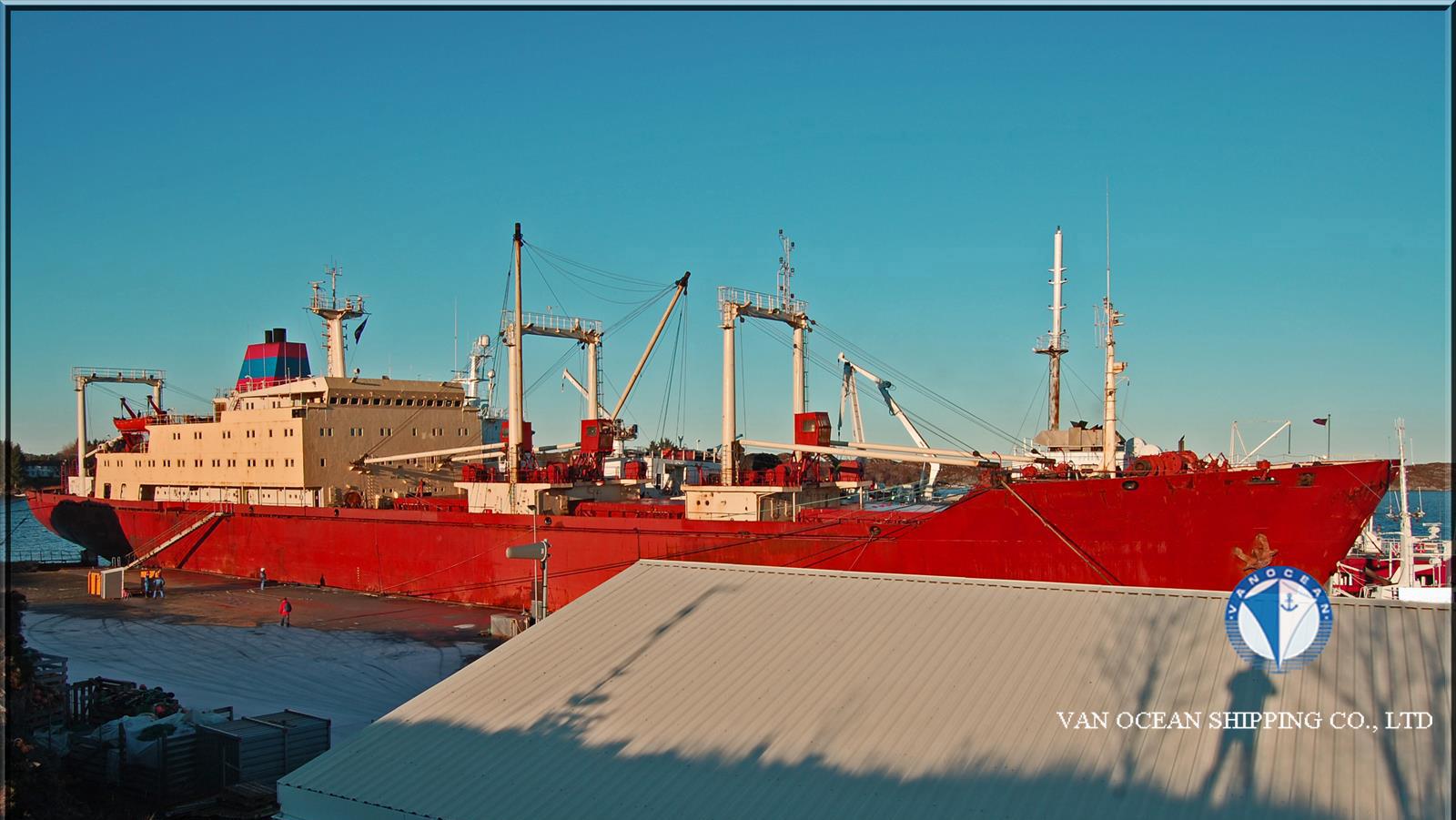

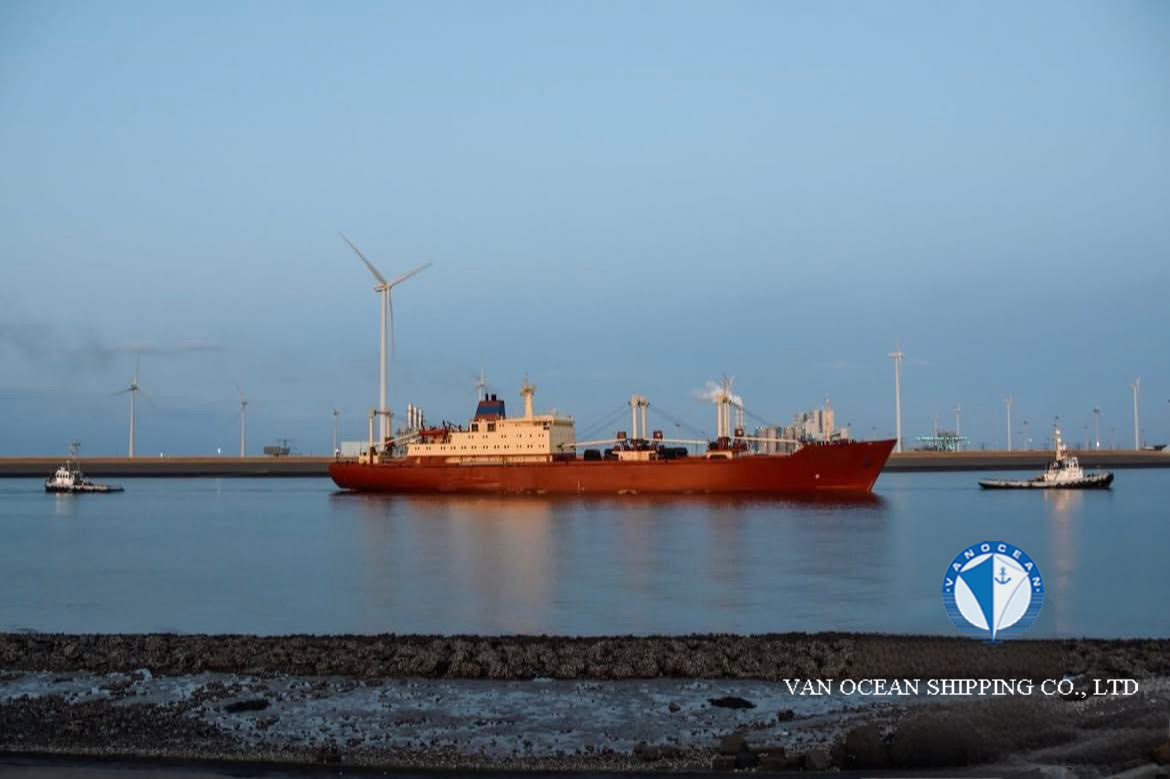

VESSEL NAME
REF056
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
RUSSIA
PORT OF REGISTRY
BOLSHOY PORT OF ST.PETERSBURG
BUILT YEAR
1986
BUILT PLACE
STOCZNIA GDANSKA LEN, POLAND
CLASSIFICATION
RS
CLASS NOTATION
KM﹡L1 REF
SS
2026-05
DD
2026-05
LOA (M)
139.8
LBP (M)
130
BEAM (M)
19.99
DEPTH (M)
12.6
SUMMER DRAFT (M)
7
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
8864
PANAMA GT (MT)
9656
SUEZ GT (MT)
-
NT (MT)
2659
PANAMA NT (MT)
6102
SUEZ NT (MT)
-
SUMMER DWT (MT)
6333
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
5827
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS 8x5MT, UP 3MT
M/E(S)
B&W 10L45GFCA 9860BHP 175RPM
M/E POWER (KW)
7250
A/E(S)
4xHCP-SULZER POZNAN 6AL25/30 810KW 750RPM
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
COOLING SYSTEM (COMPRESSOR)
R22
SPEED/CONSUMPTIONS
LADEN FROZEN 15KTS ON 22MT (180)+6.5MDO/MGO
BAL 15KTS ON20+2.5MT
PORT IDLE 1.5MT (180)AUXBOILER+2 PORT DISCH1.5+4.5
FUEL TYPE
IFO180, MDO
BUNKER CAPACITY (CBM)
1807
TANKS CAPACITY (CBM)
FW: 300; MDO: 867
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
HOLD NO. 1,2,3: 6.68×8.40;
HOLD NO.4: 5.58×7.00
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
13
DECK(S)
4
DECK HEIGHT (M)
≥1.90
CARGO CAPACITY (CBFT)
305733
CARGO CAPACITY (CBM)
8661
FLOOR SPACE CAPACITY (SQM)
3564
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
7
TEMPERATURE (℃)
-27/+15
TYPE OF VENT SYSTEM
VERT
VENT (TIMES/HOUR)
80
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
-
SIDE DOOR(S)
3
FENDER(S)
3 x YOKOHAMA 2.5×1.5
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
P&I
CREW
22, ALL RUSSIANS
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
BOW THRUSTER: 800BHP
