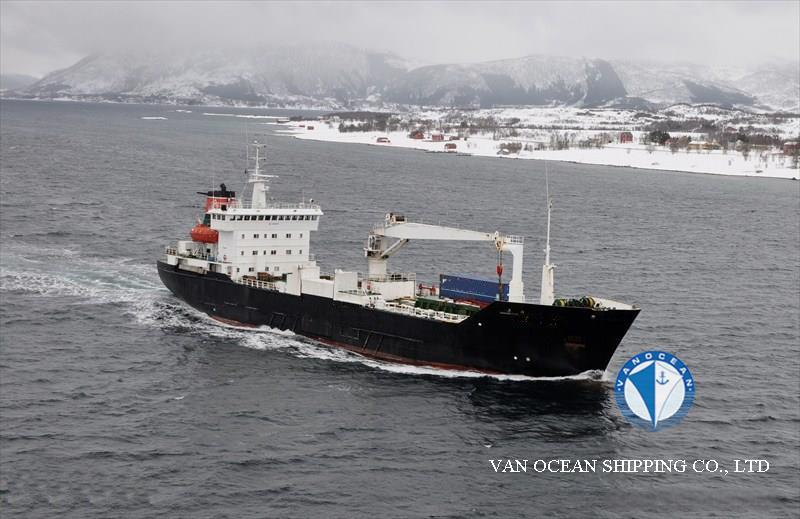

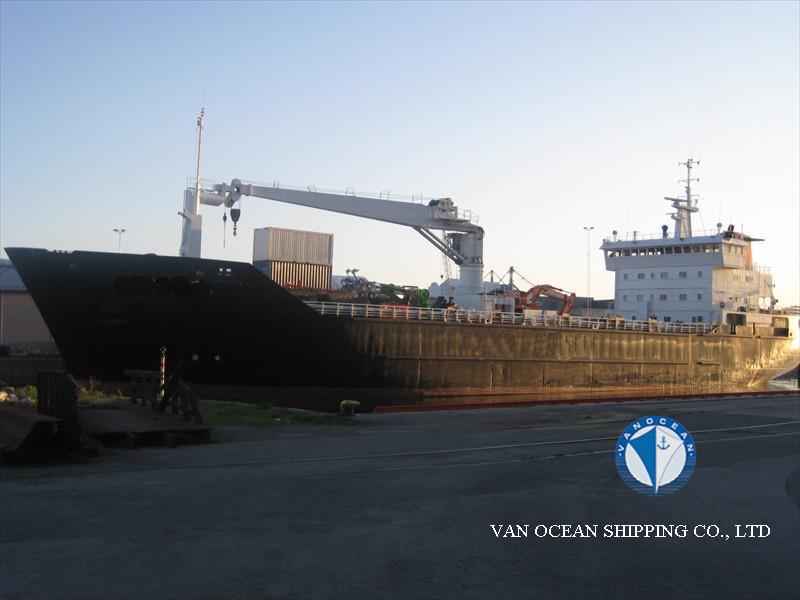

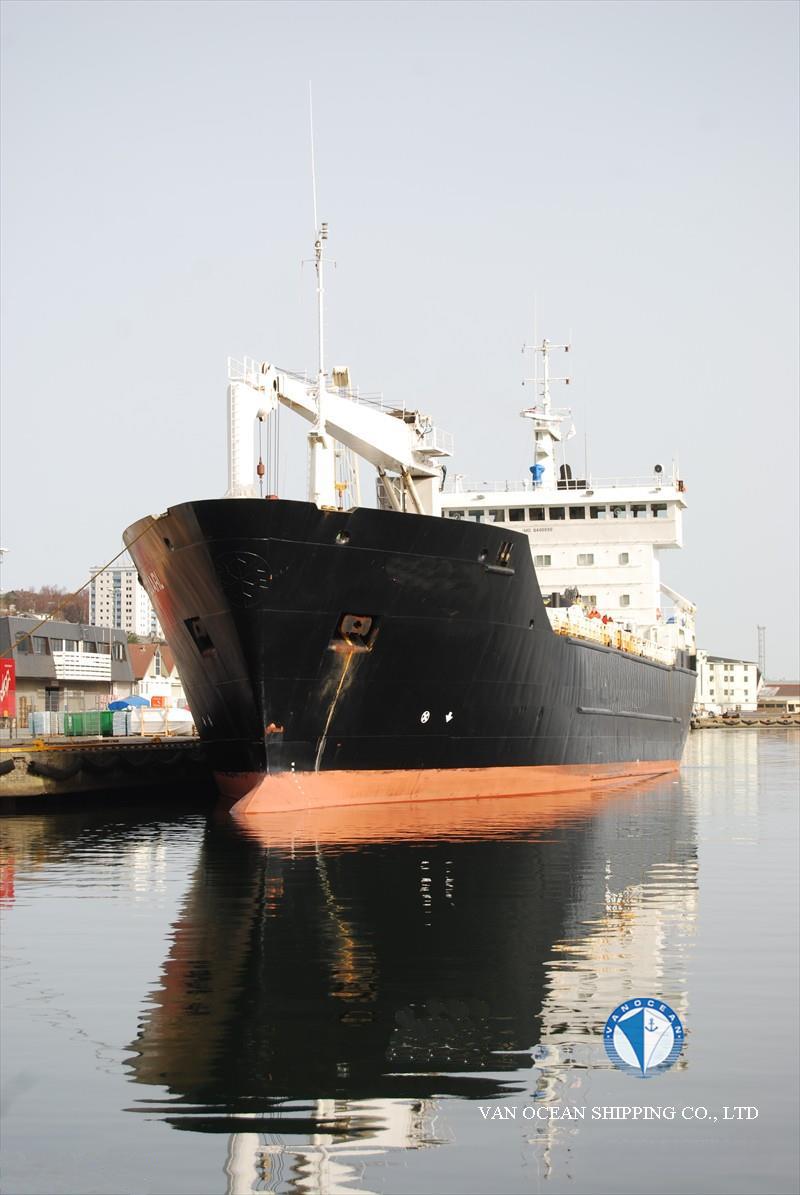

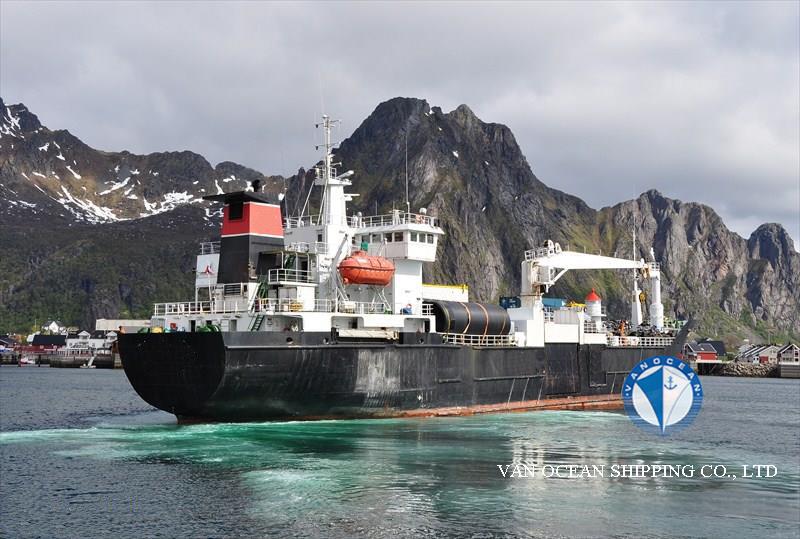

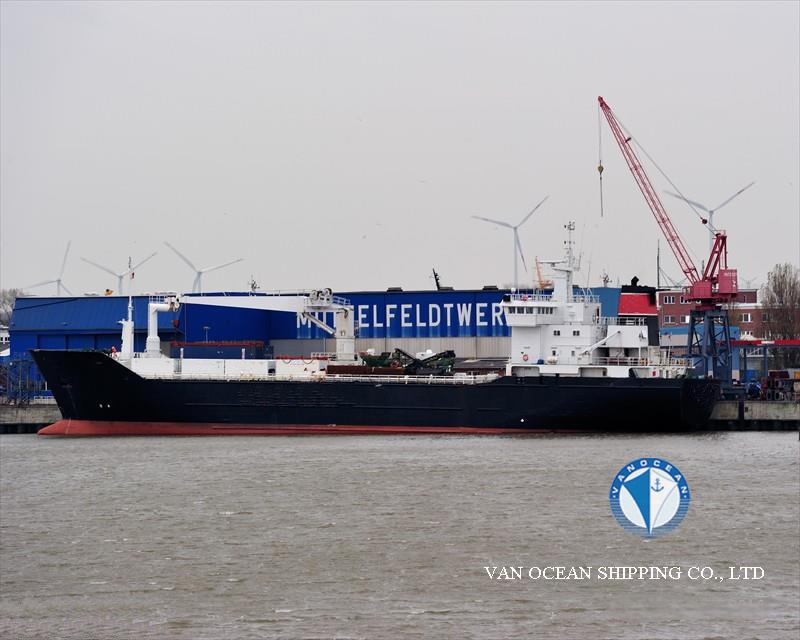

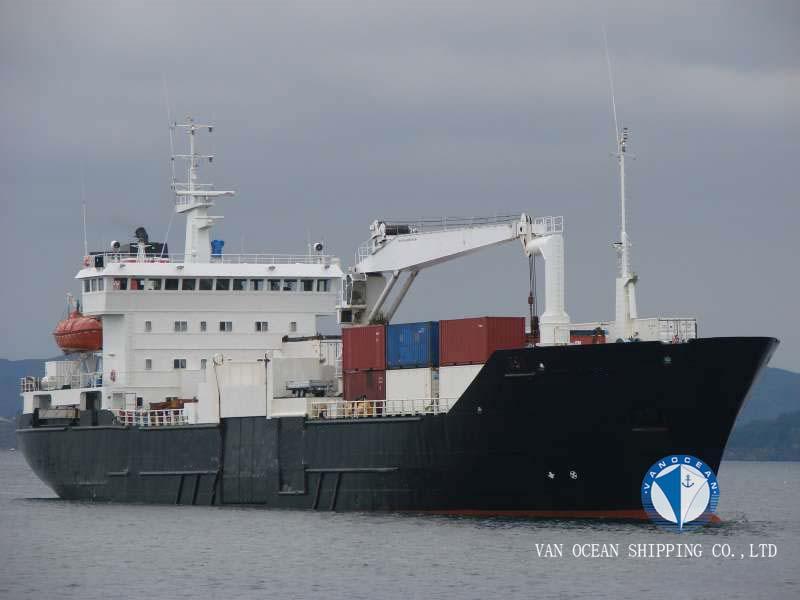

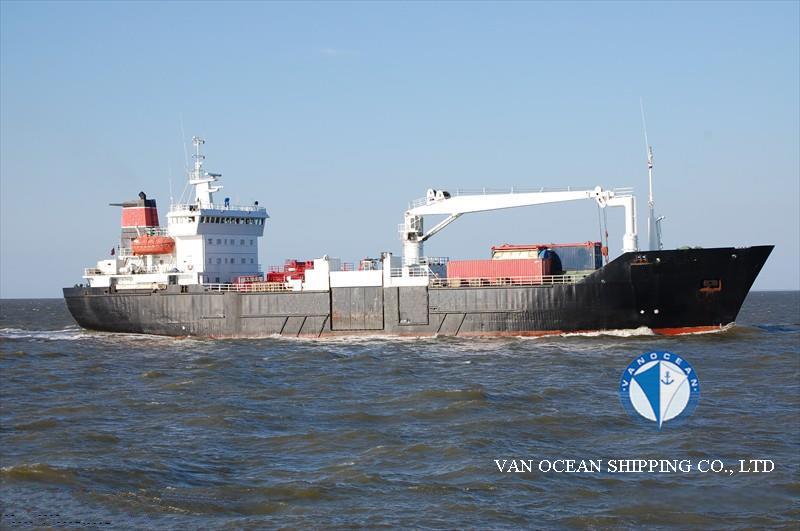

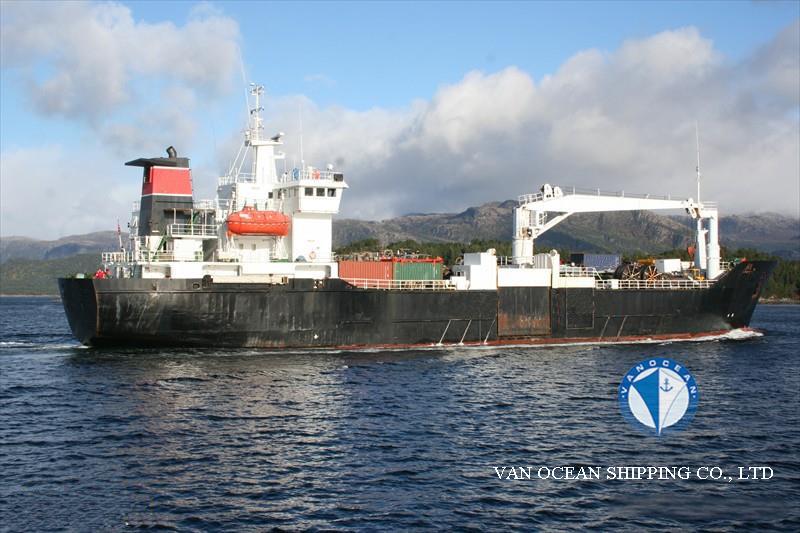

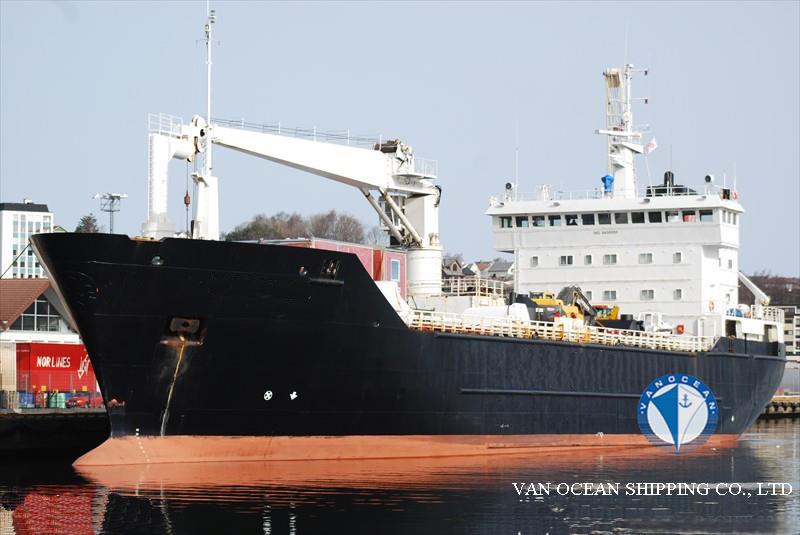

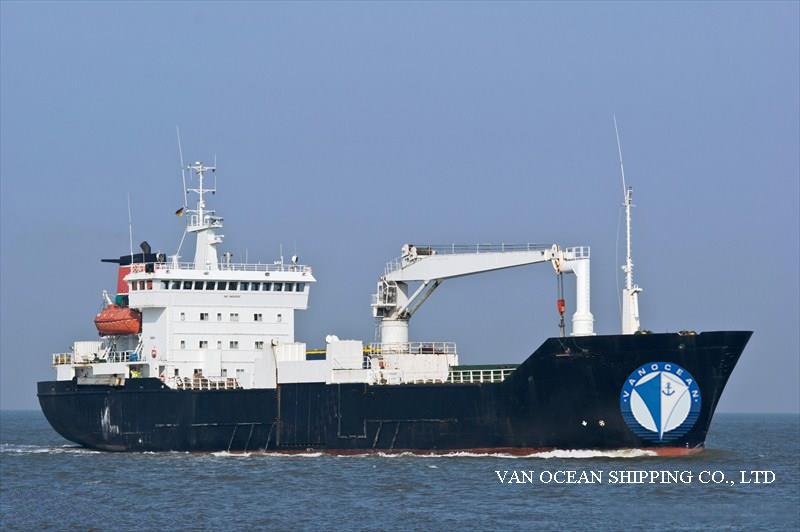

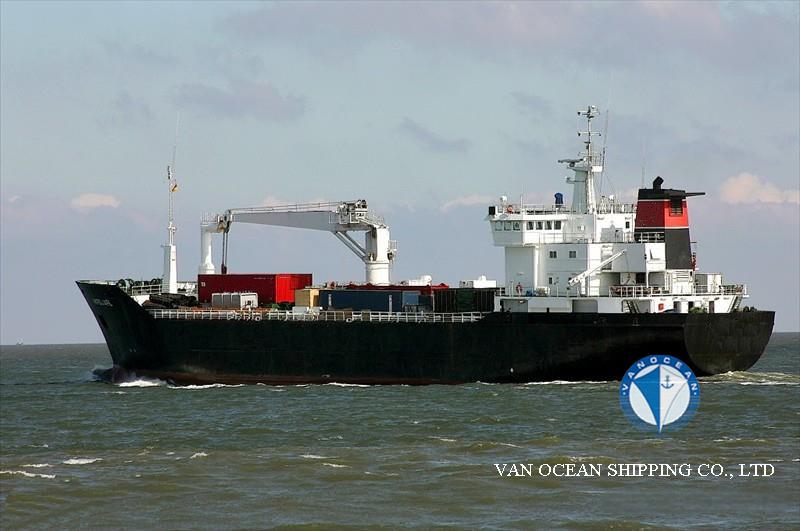

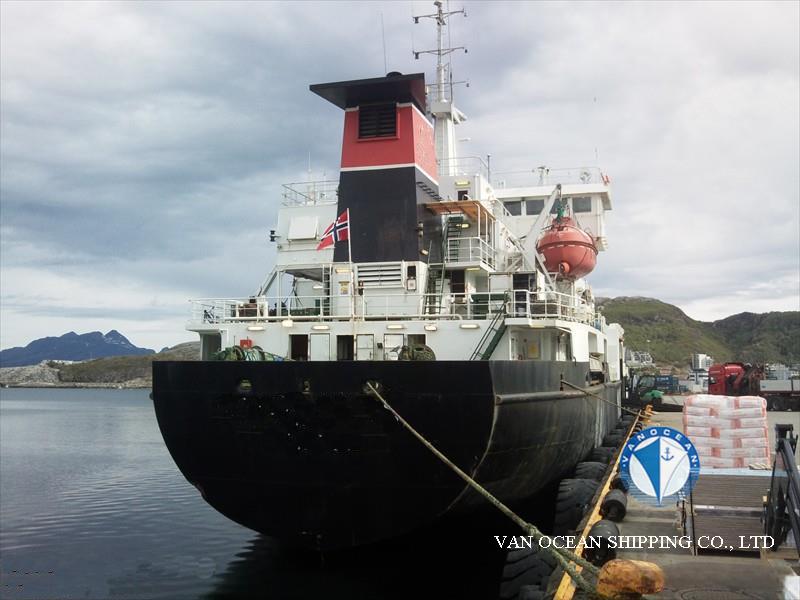

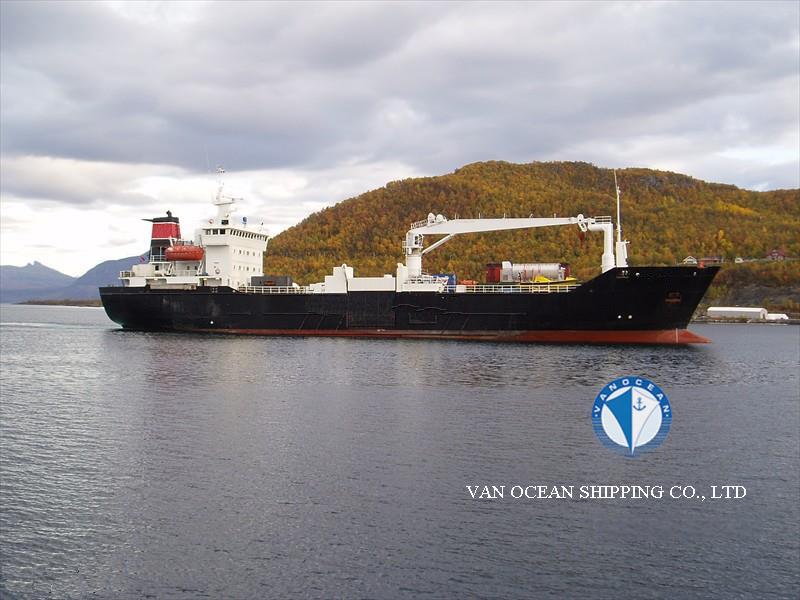

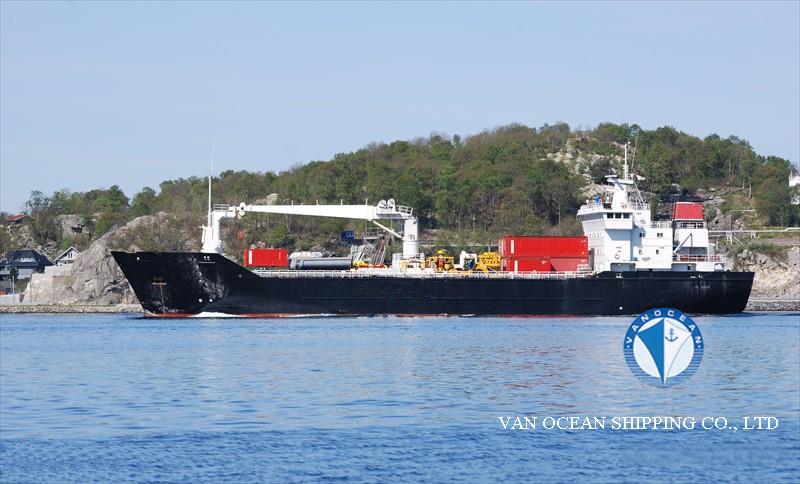

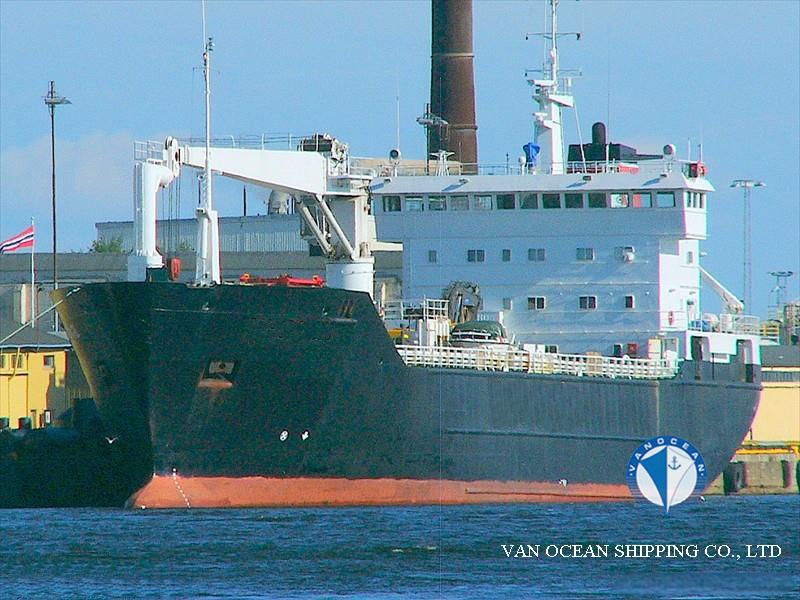

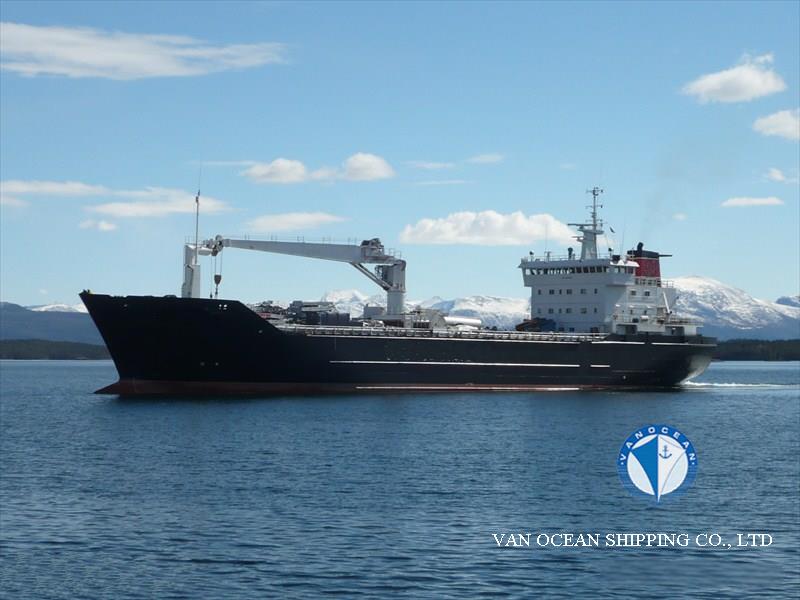

VESSEL NAME
REF486
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
FAROE ISLANDS
PORT OF REGISTRY
TÓRSHAVN
BUILT YEAR
1985
BUILT PLACE
ORSKOV YARD, FREDERIKSHAVN, DENMARK
CLASSIFICATION
RINA
CLASS NOTATION
C✠, ✠AUT-UMS ICE CLASS IB, ✠REF-CARGO
SS
2025/08
DD
2025/08
LOA (M)
95.55
LBP (M)
86.45
BEAM (M)
16.3
DEPTH (M)
10.45
SUMMER DRAFT (M)
5.181
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
3968
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1190
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
2607
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
CRANE, 1 x 50MT (12.50M) AT 25M 24MT
M/E(S)
MAK 6M551, 3995BHP
M/E POWER (KW)
2981
A/E(S)
2 x MAK, 6M281, 600KW
GENERATOR(S)
2 x AWK, 690 KVA, 440V, 60HZ
SHAFT GENERATOR(S)
1 x AWK, 804 KVA, 440V, 60HZ
PROPELLER(S)
CPP
COOLING SYSTEM (COMPRESSOR)
4 x SABROE A/S COMPRESSORS
REFRIGERANT: R22
SPEED/CONSUMPTIONS
14 KTS ON 14.5(380) + 2MT MDO IN PORT
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
395
TANKS CAPACITY (CBM)
MDO: 181
FW: 67
NUMBER OF CARGO HOLDS
2
HATCH NUMBER
2
HATCH TYPE
-
HATCH SIZE (M)
-
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
6
DECK(S)
3
DECK HEIGHT (M)
≥2.36
CARGO CAPACITY (CBFT)
171207
CARGO CAPACITY (CBM)
4849
FLOOR SPACE CAPACITY (SQM)
-
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
4
TEMPERATURE (℃)
-27 /+13
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
20
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
1640
CONTAINER CAPACITY
54 TEU ON DECK
REEFER PLUG(S)
32
SIDE DOOR(S)
2
7.0 x 6.7 M
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
15
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
BECKER RUDDER
ELECTRONICS:
1 x 10 CM RADAR, FURUNO (24 MT x 25 M);
1 x 3 CM RADAR, FURUNO;
ELECTRONIC CHART, TYPE MAXSEA;
3 x TRON VHF
BOW THRUSTER: BRUNVOLL 600
PALLET LIFT 5MT, 2 x 2.7 x 1.4M
6 x ELECTR FORKLIFTS 1.8-3.0MT
CAN ONLY DO 130,000 CBFT FISH ACCOUNT DWT DWCC 2,340
REBUILDING OF FREEZE FROM R22 TO NEW MEDIUM
