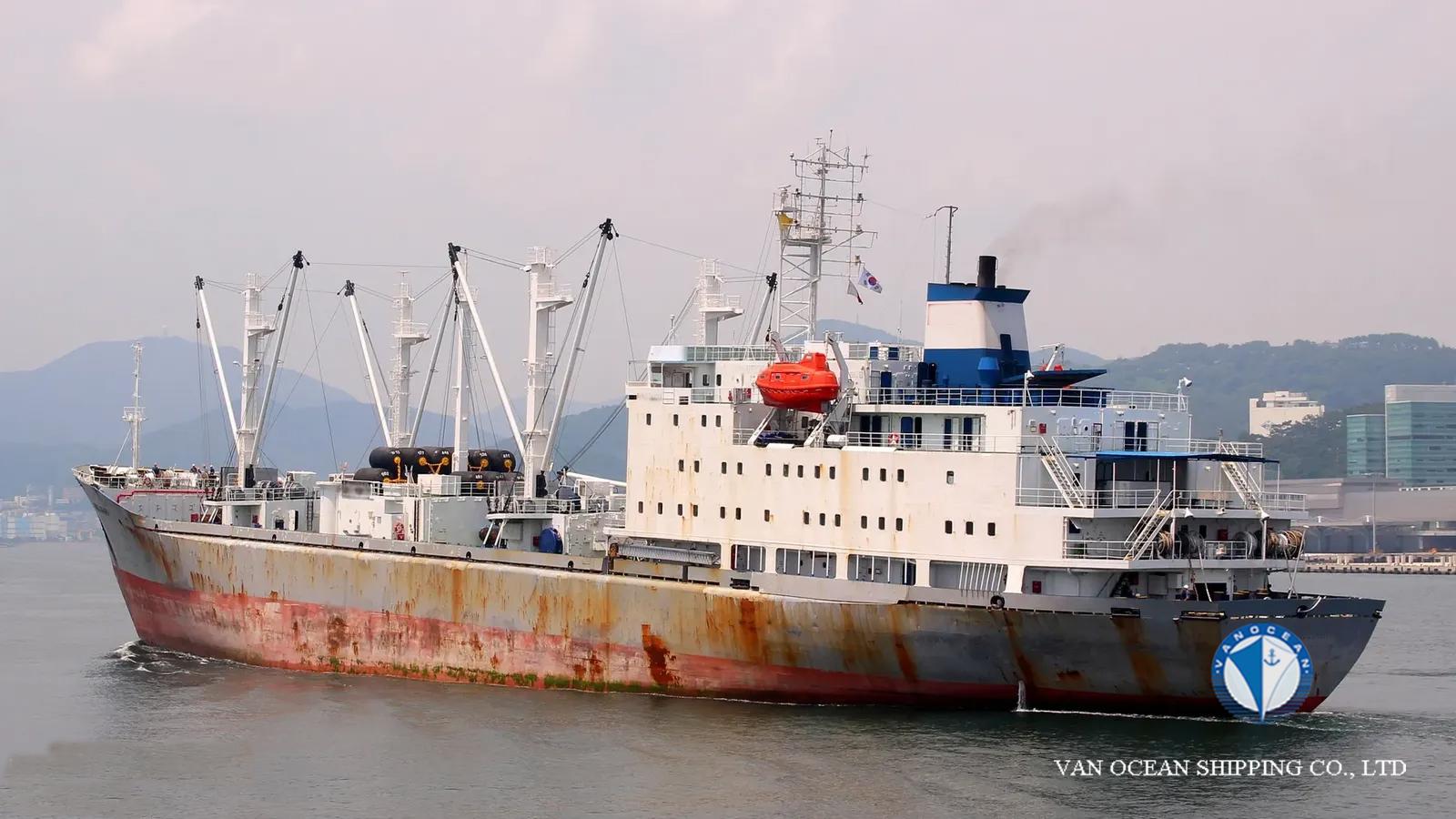

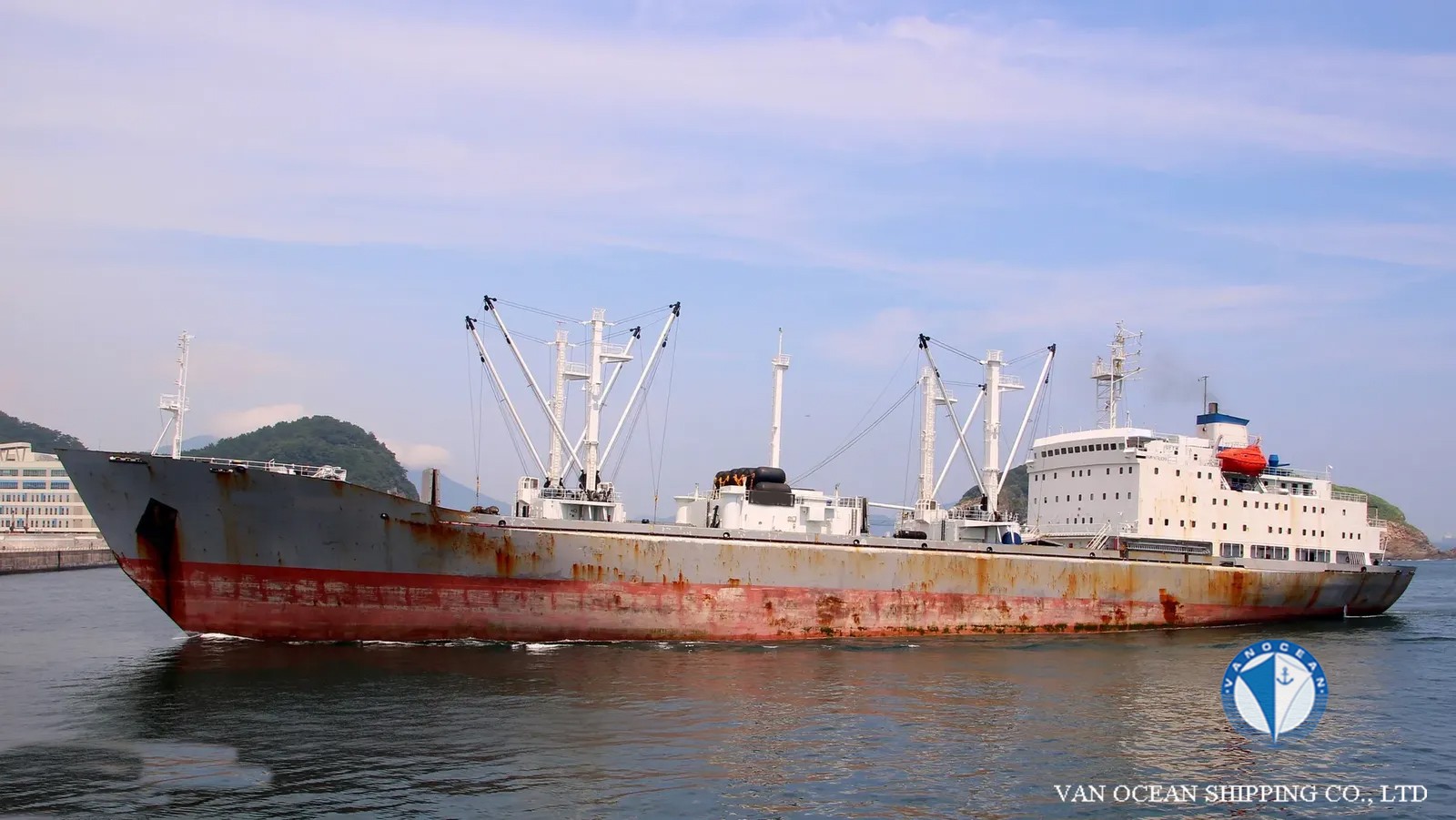

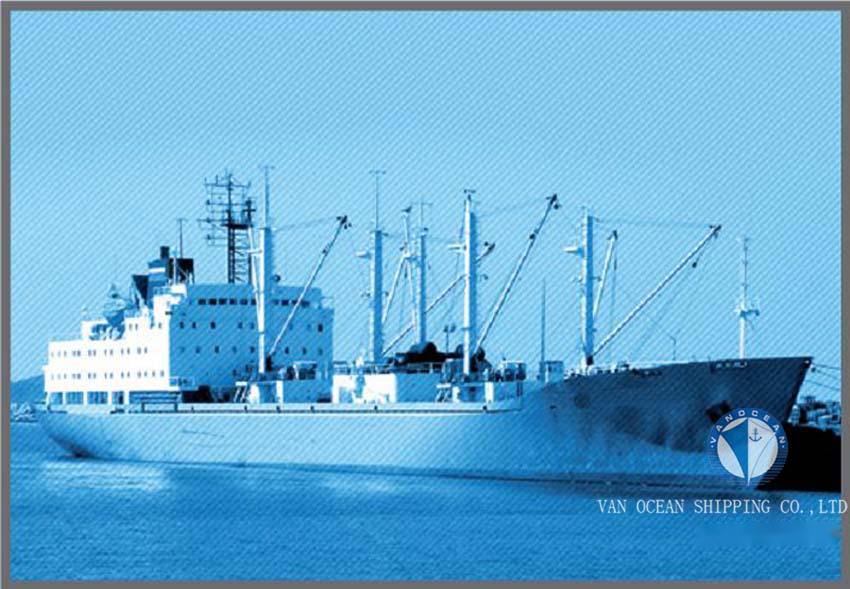

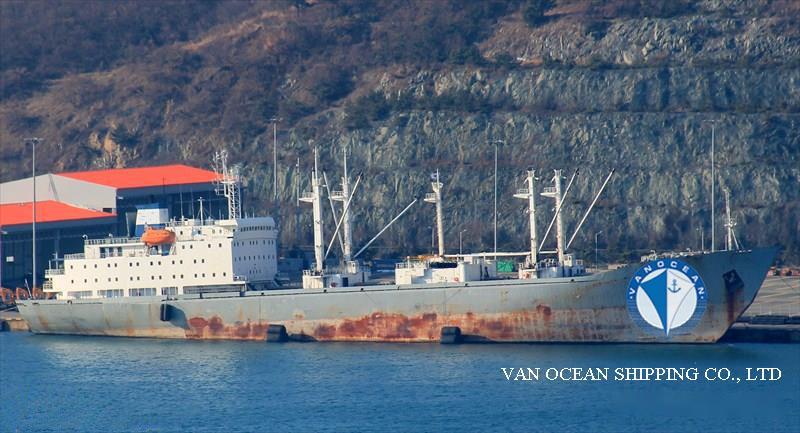

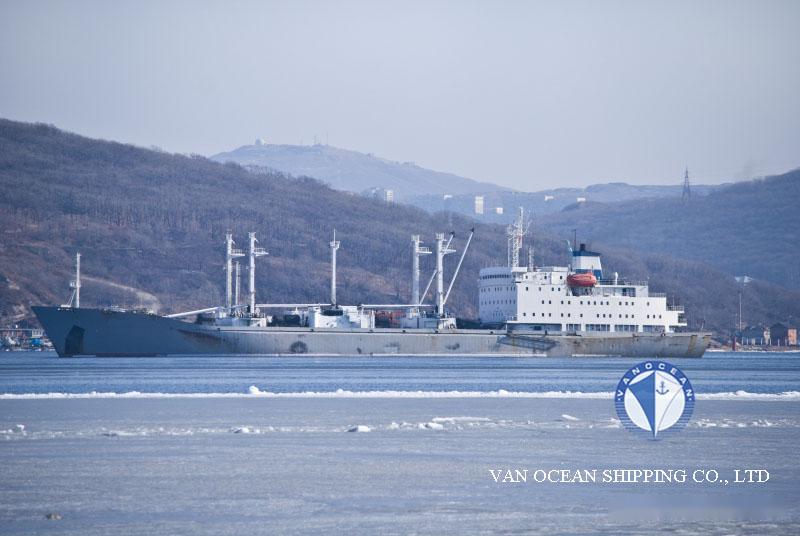

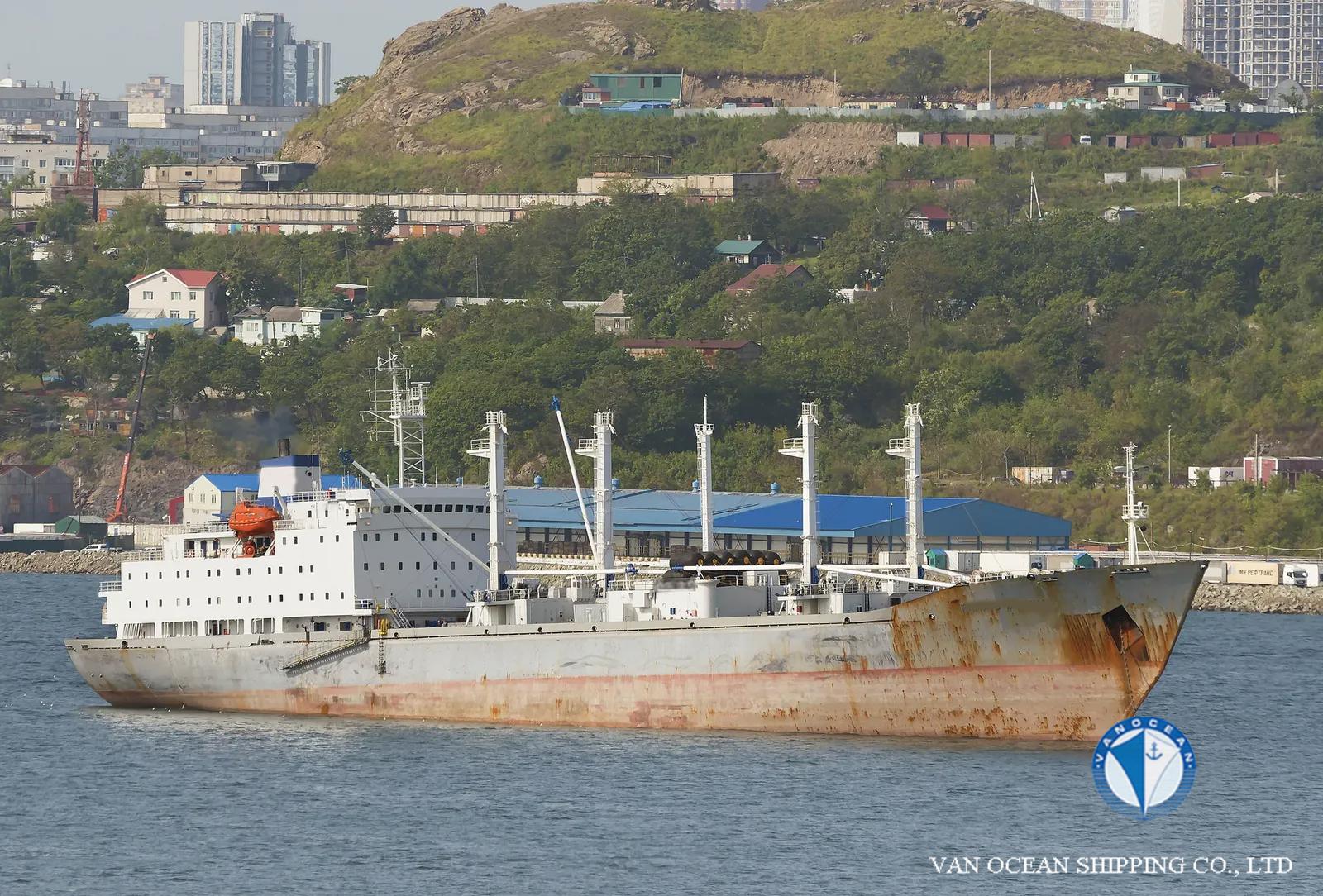

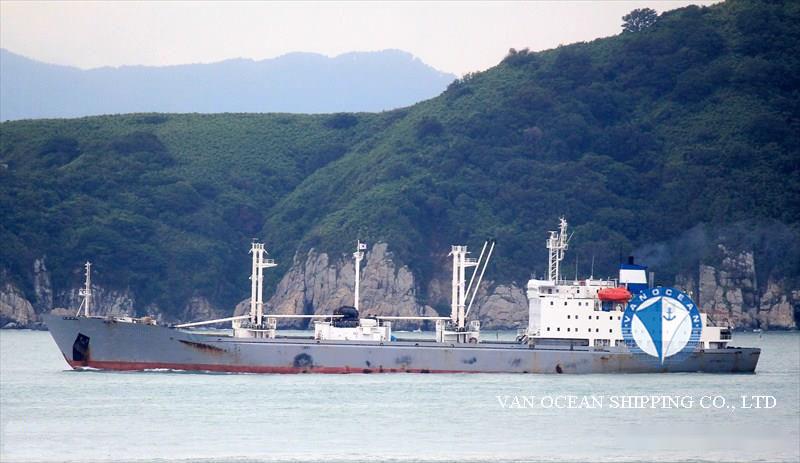

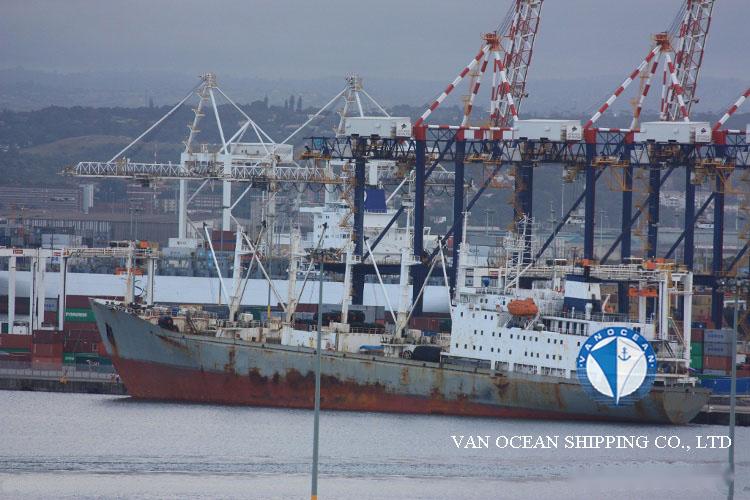

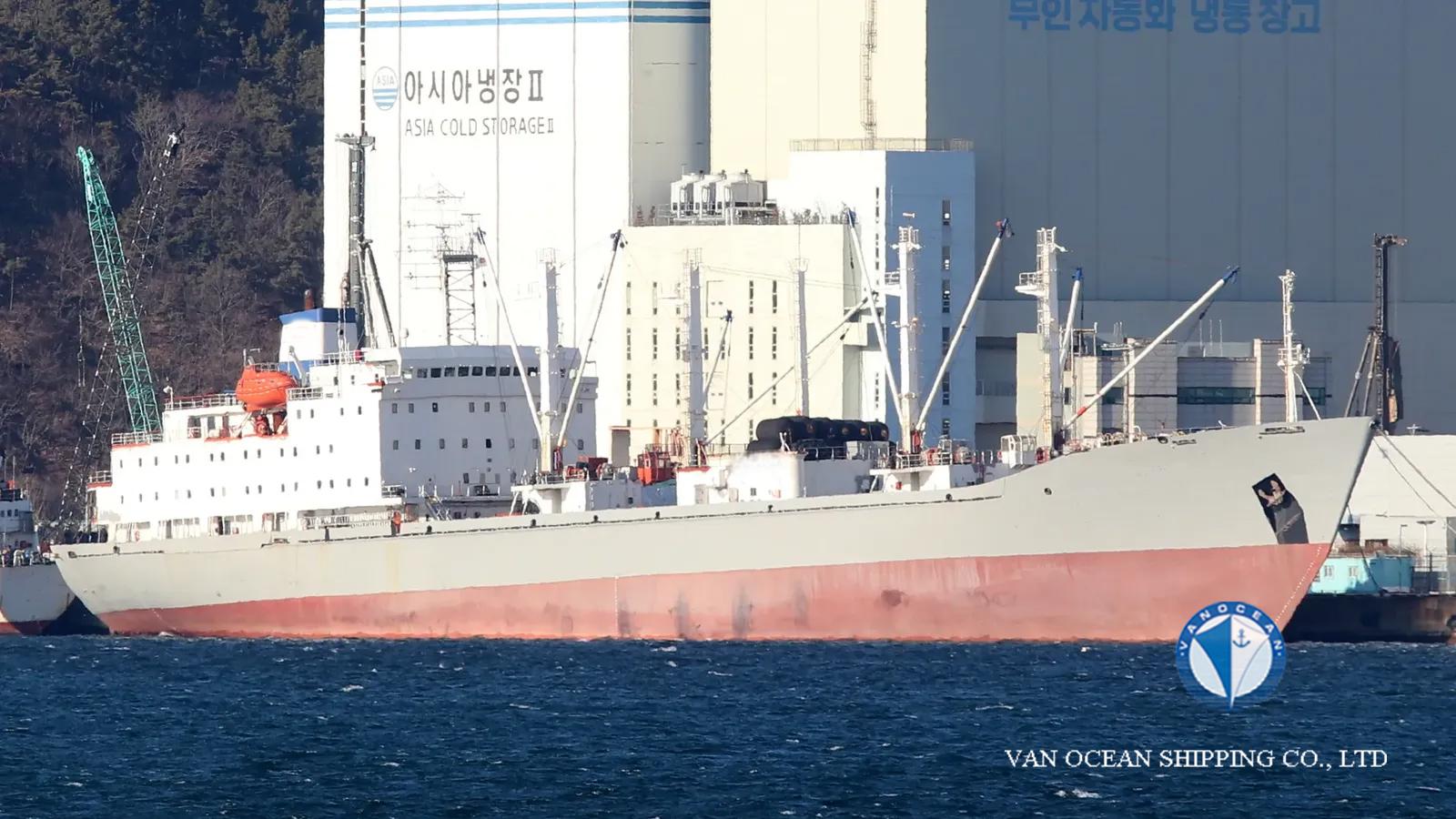

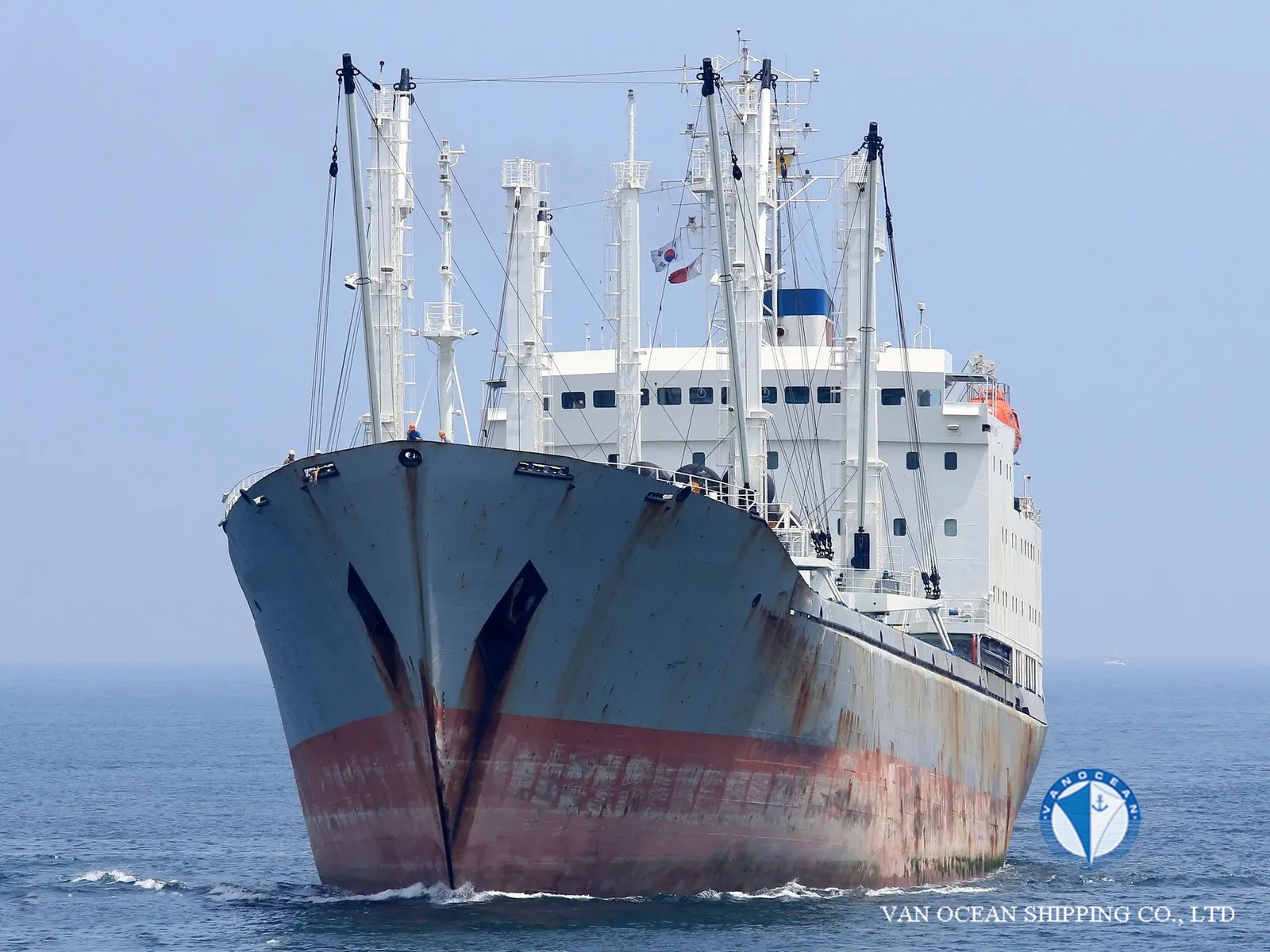

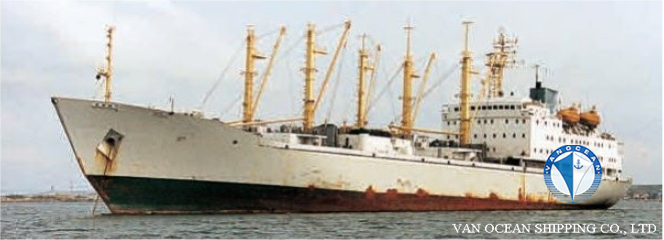

VESSEL NAME
REF518
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
RUSSIA
PORT OF REGISTRY
KALININGRAD
BUILT YEAR
1989
BUILT PLACE
WISMAR, GERMANY
CLASSIFICATION
RS
CLASS NOTATION
KM(*) L1 (at d<=8,17 m) REF
SS
2029-01
DD
2029-01
LOA (M)
152.94
LBP (M)
144.35
BEAM (M)
22.2
DEPTH (M)
13.6
SUMMER DRAFT (M)
9.6
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
12406
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
5510
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
13304
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
20702
GEAR(S)
6 x 5MT, 2 x 10MT
M/E(S)
MAN K5SZ 70/125 BL 10330 BHP
M/E POWER (KW)
7600
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP, RIGHT HANDED
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
FULL SPEED (MAX): 14 KTS ;
DEAD LOW (MIN): 5.0 KTS
FUEL TYPE
IFO180
BUNKER CAPACITY (CBM)
2297
TANKS CAPACITY (CBM)
MGO: 1753
FW: 320
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
4M x 6M
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
12
DECK(S)
3
DECK HEIGHT (M)
1A-4A/3.6M, 1B-4B/3.3M, 1C-4C/3.3M
CARGO CAPACITY (CBFT)
465395
CARGO CAPACITY (CBM)
13184
FLOOR SPACE CAPACITY (SQM)
4075
GRATING/DECK STRENGTH
2.32MT/SQM
TEMPERATURE ZONE(S)
8
TEMPERATURE (℃)
-30 /+8
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
25
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
M/E MAKER: LIZENZ MAN VEB DISELMOTORWERK ROSTOK DDR
VESSEL IS EQUIPPED WITH 20 OCEAN FENDERS FOR HIGH SEA TRANSHIPMENT
