REEFER S&P

HOME - REEFER S&P - REF544

PARTICULAR

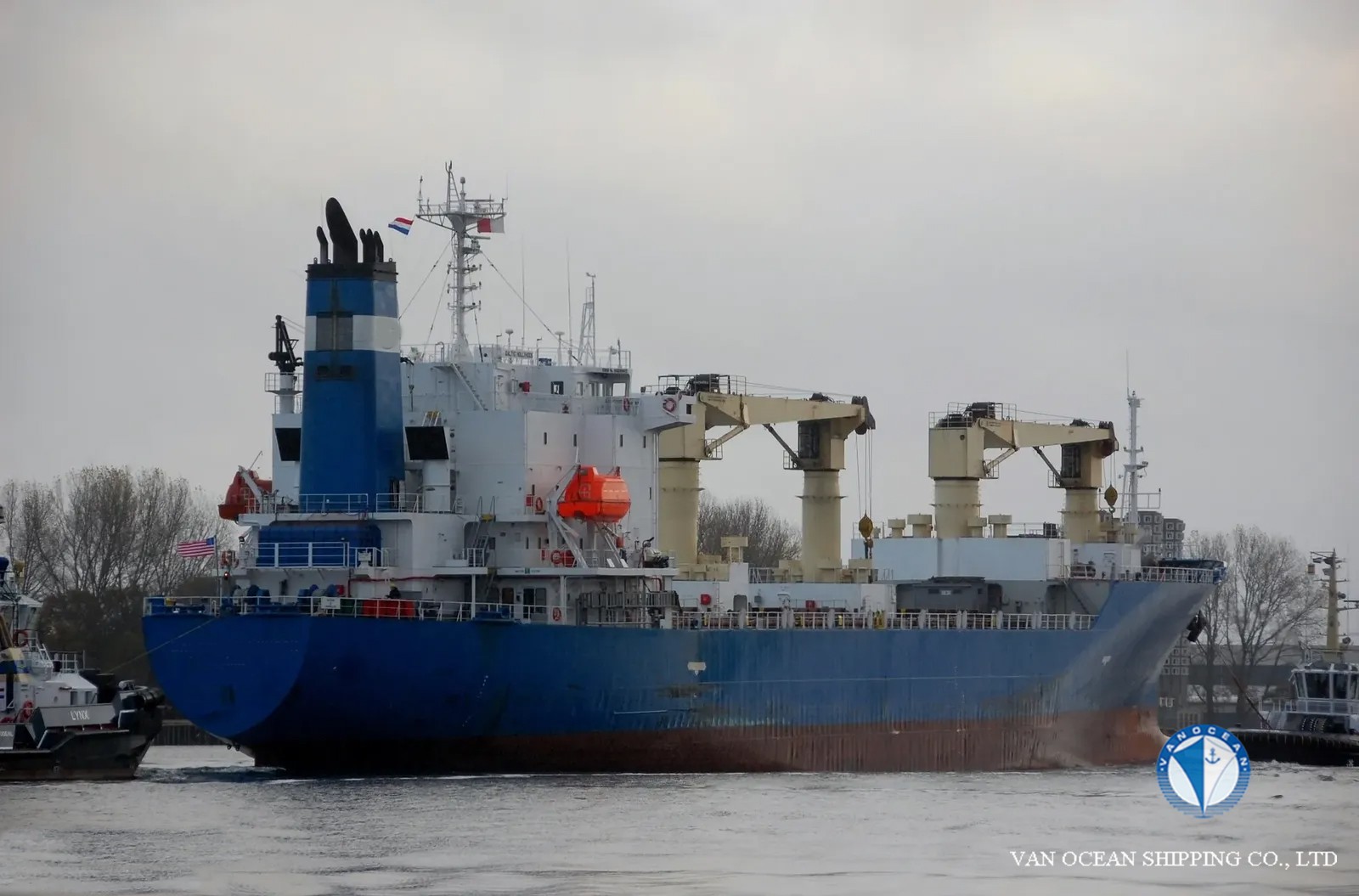

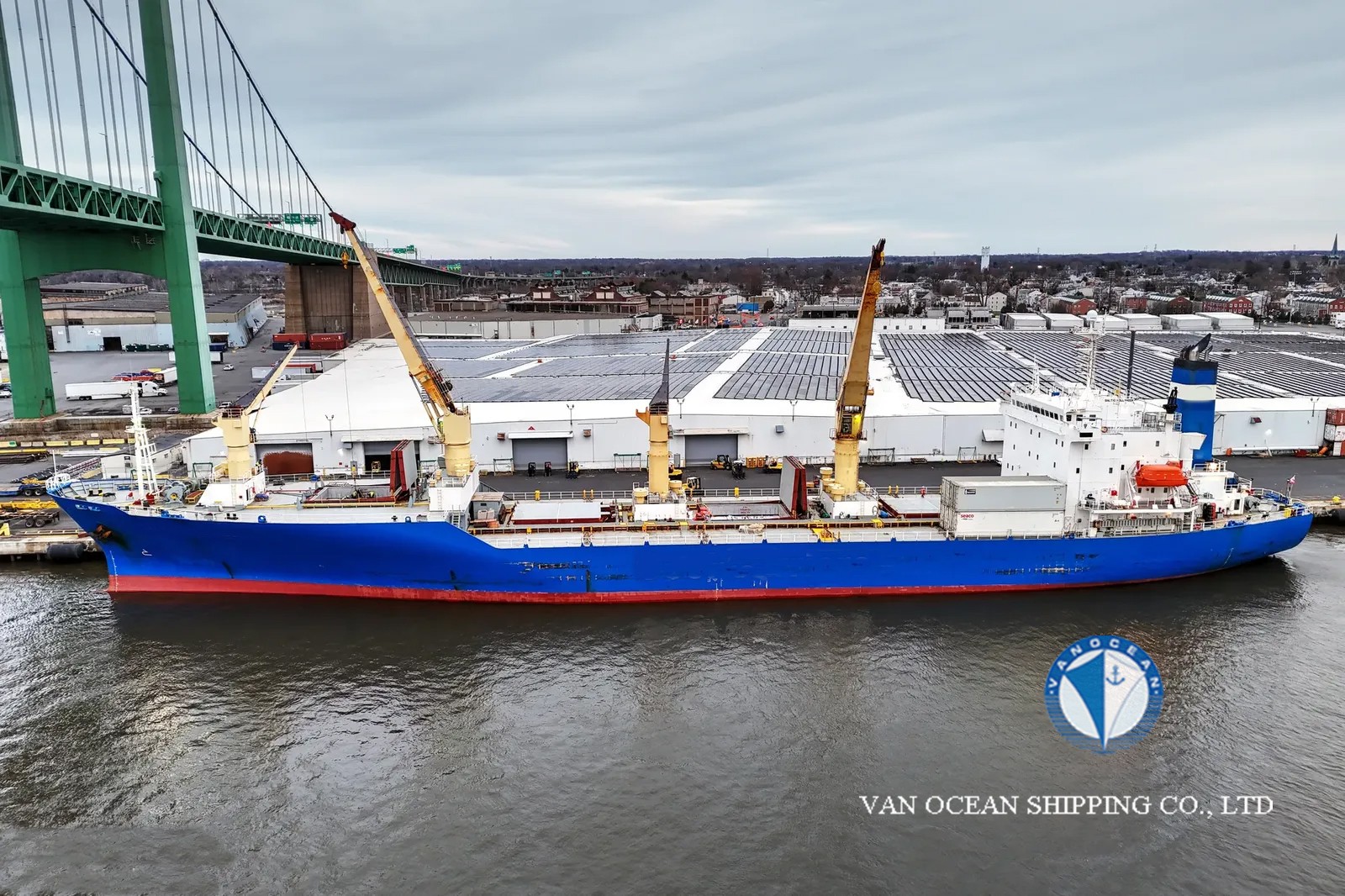

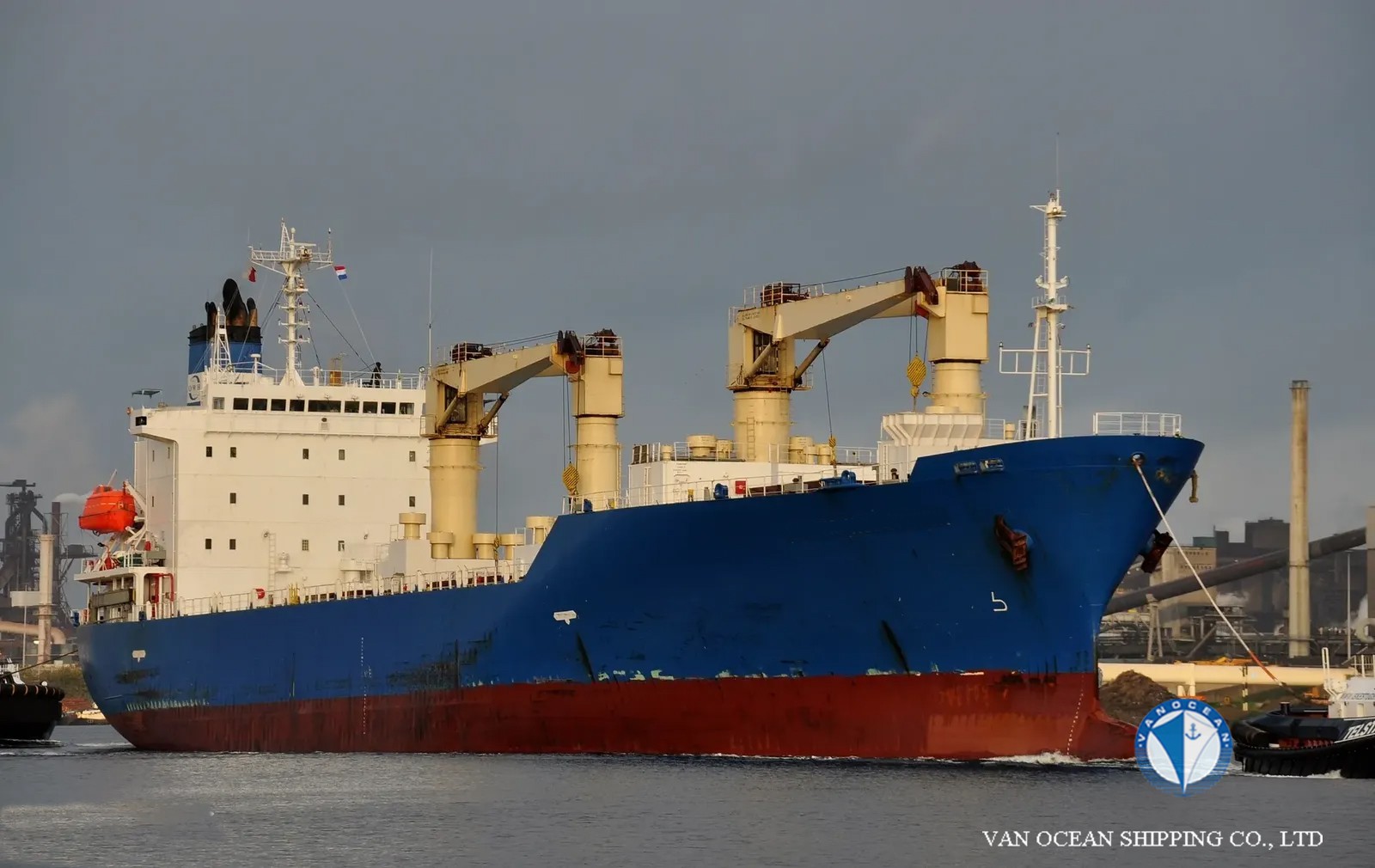

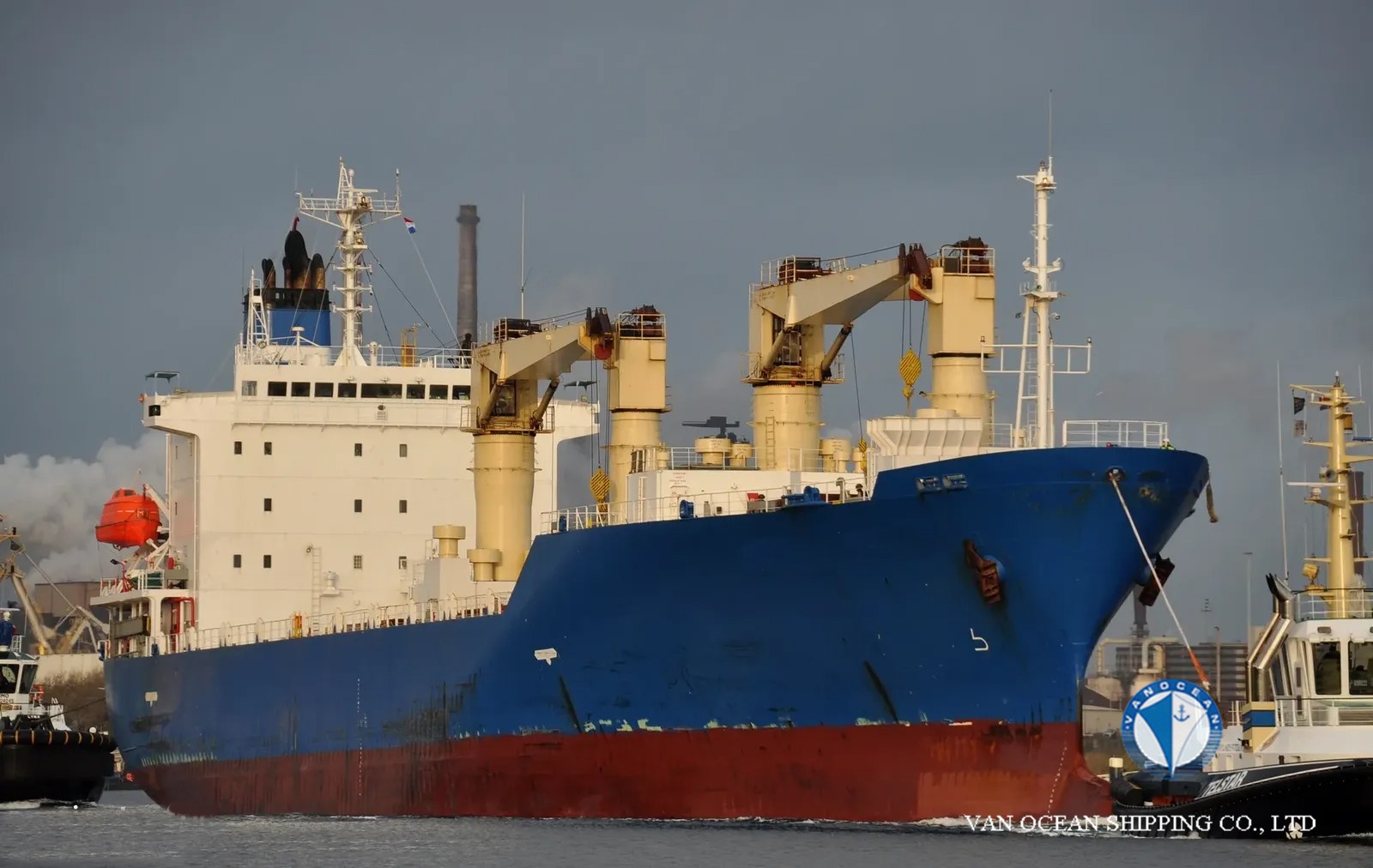

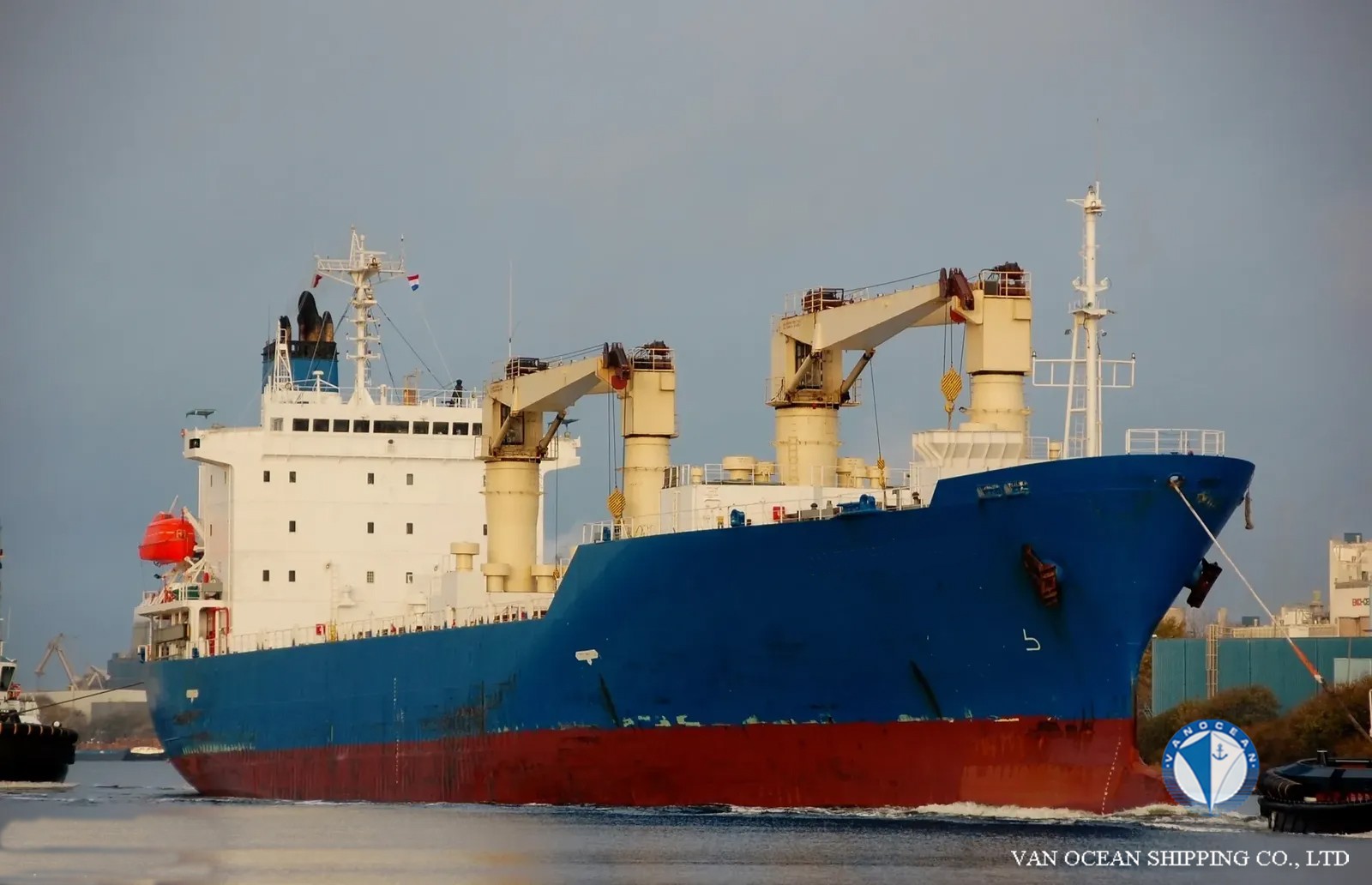

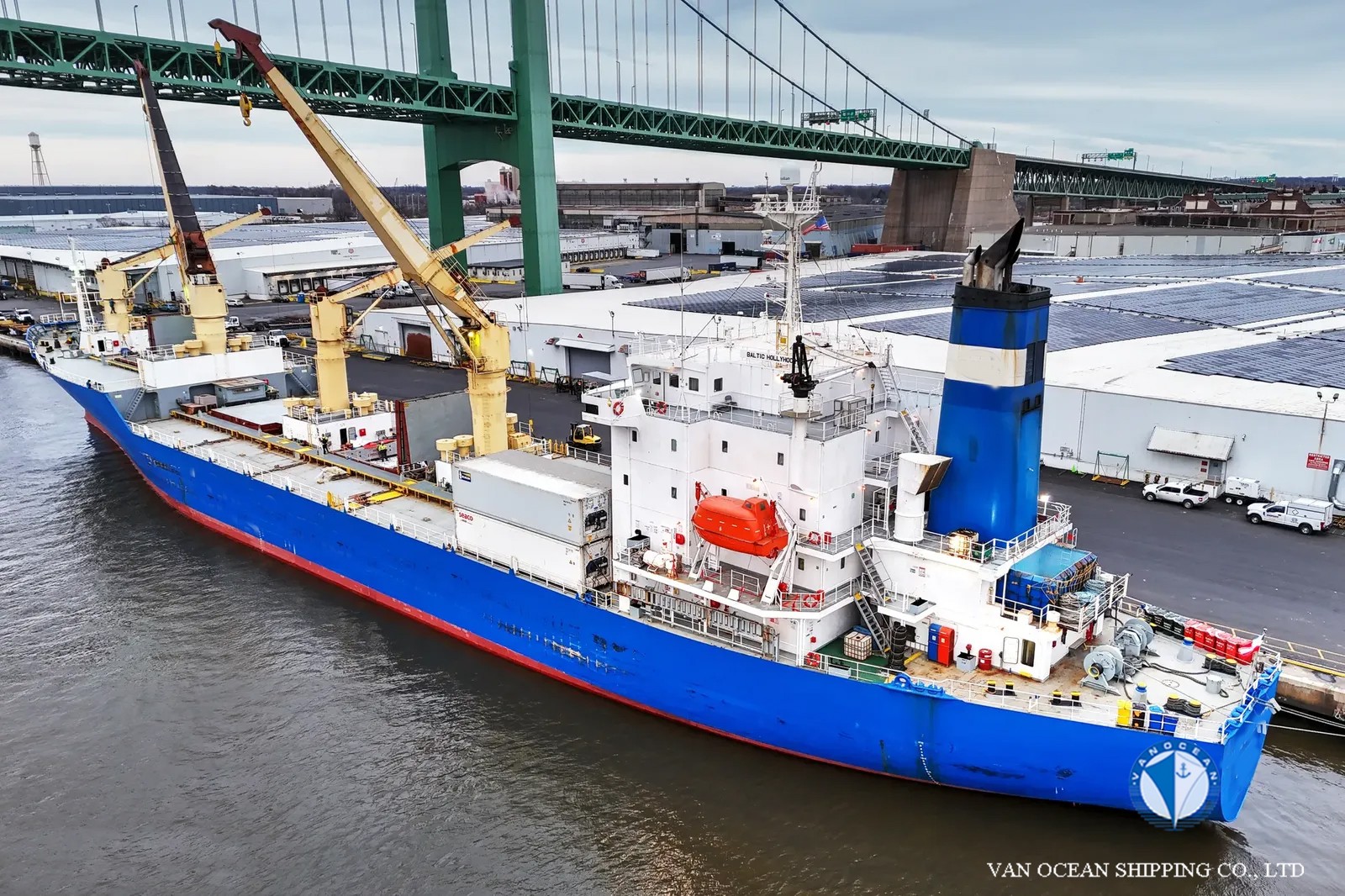

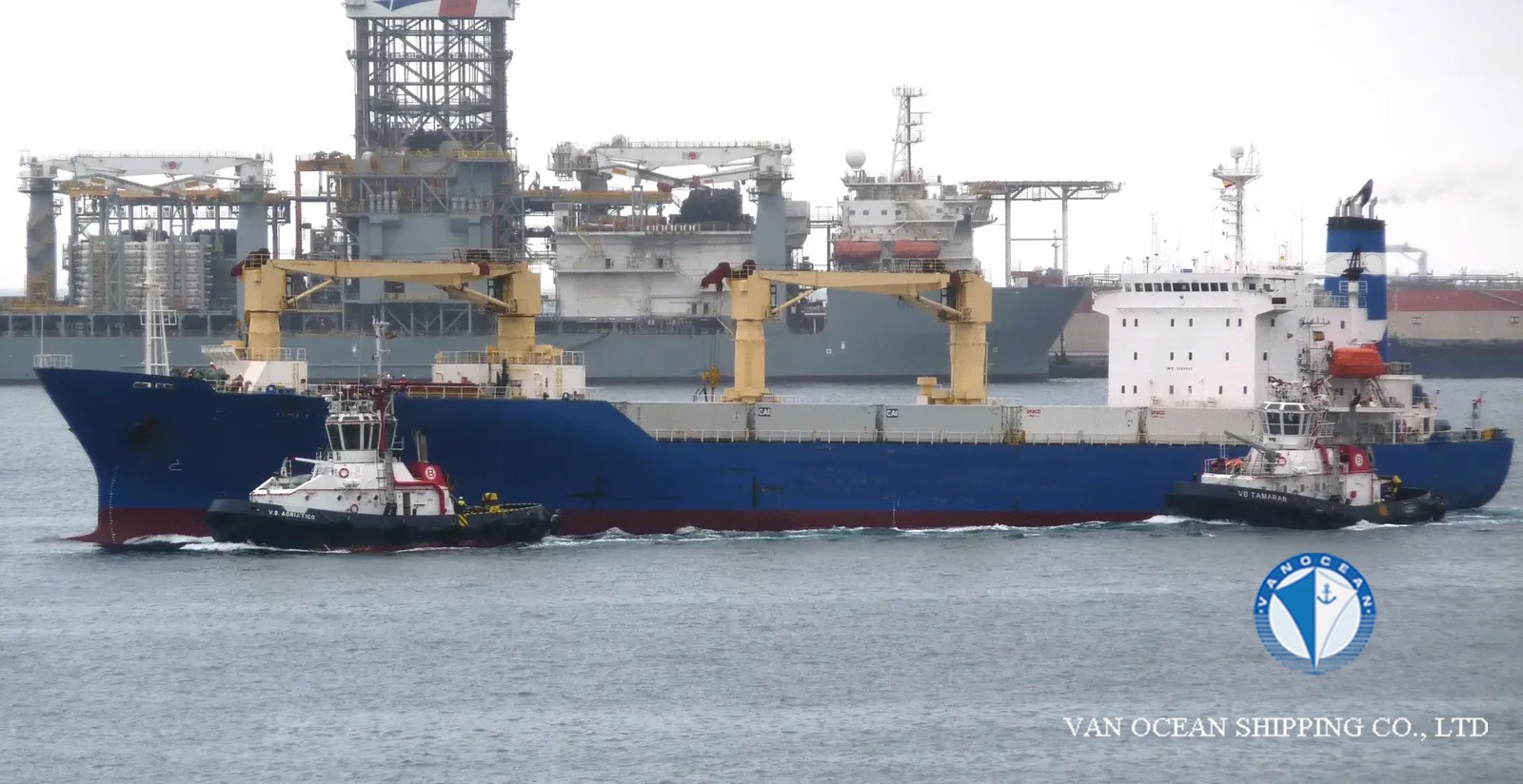

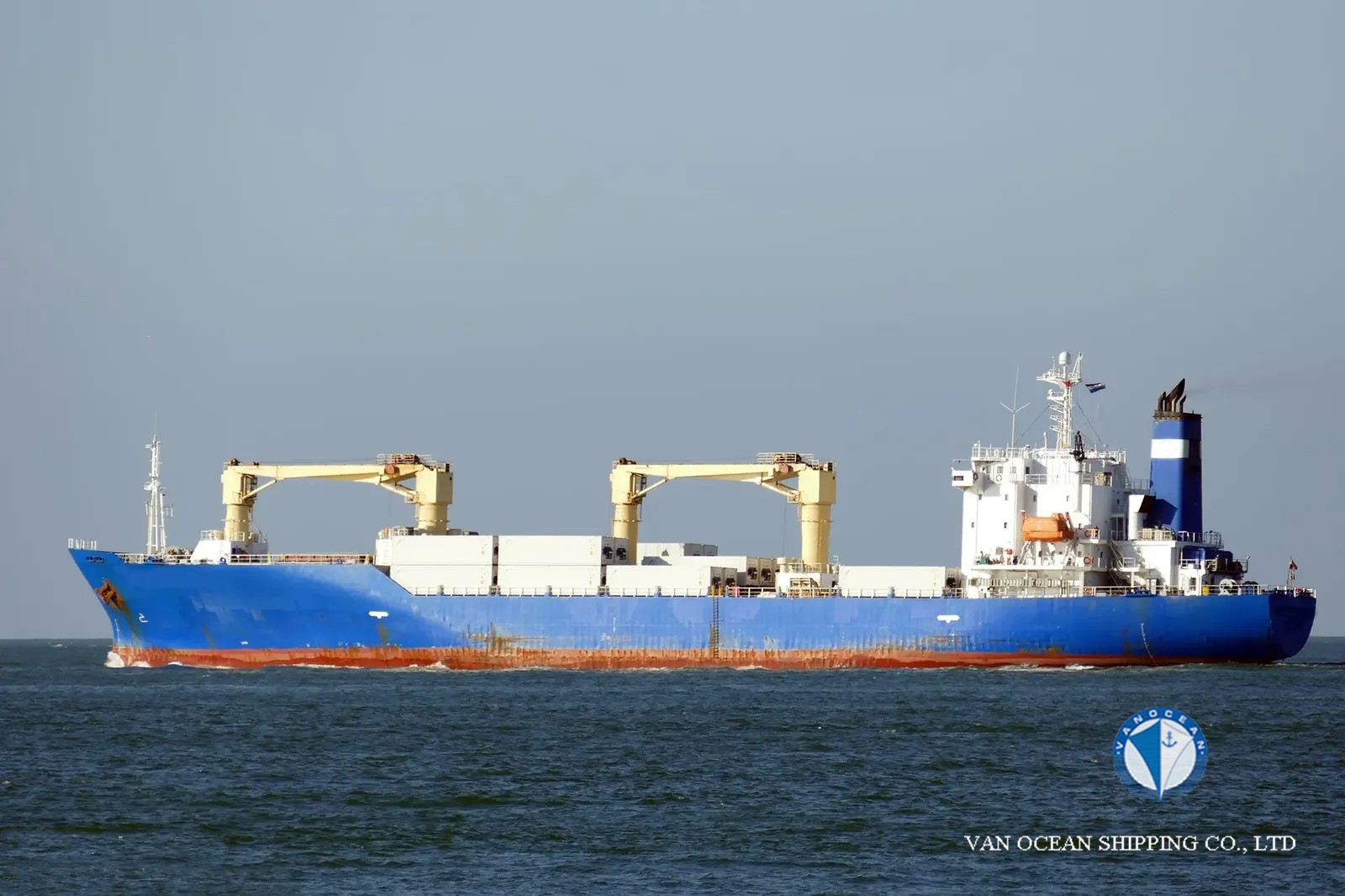

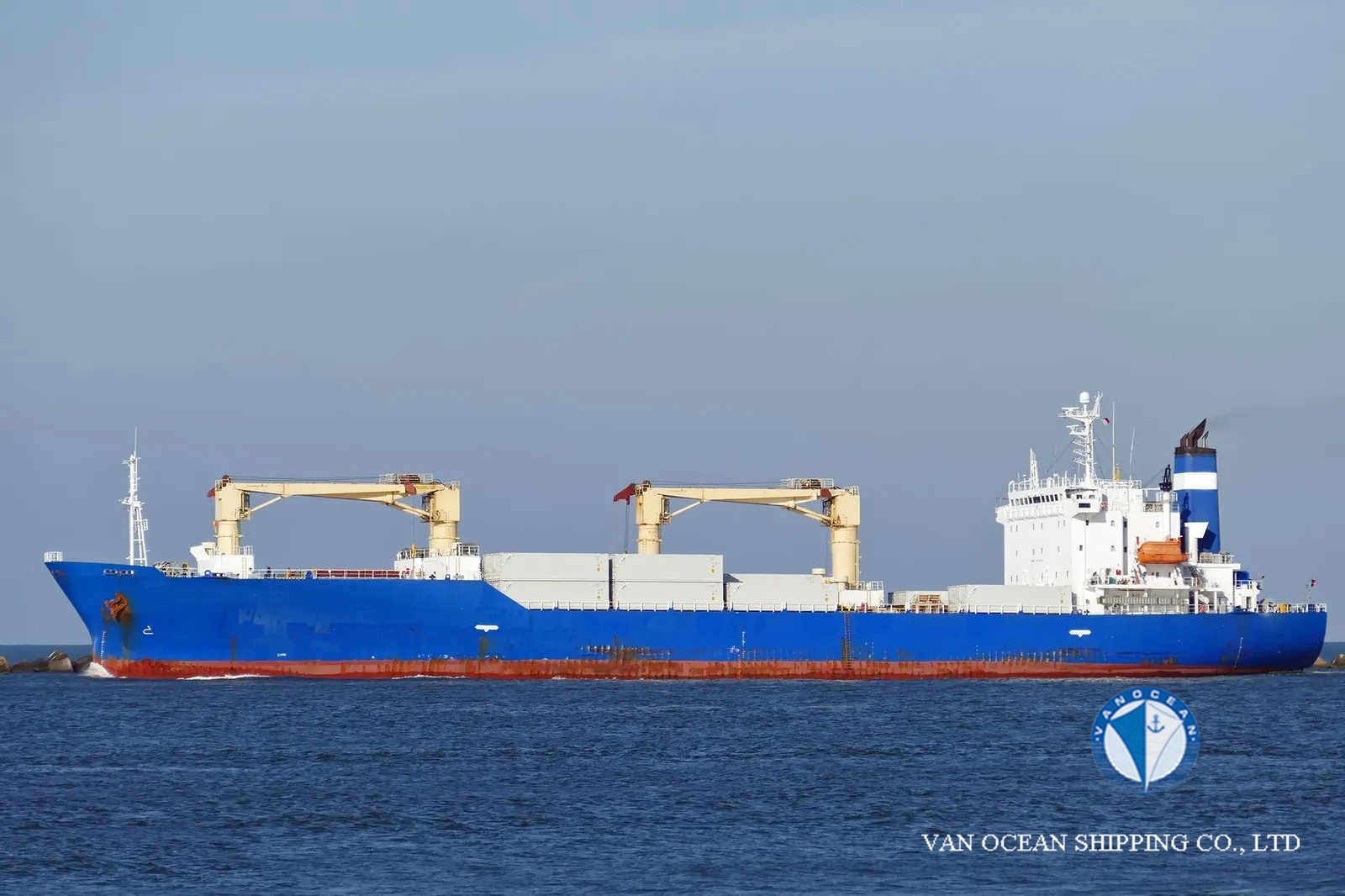

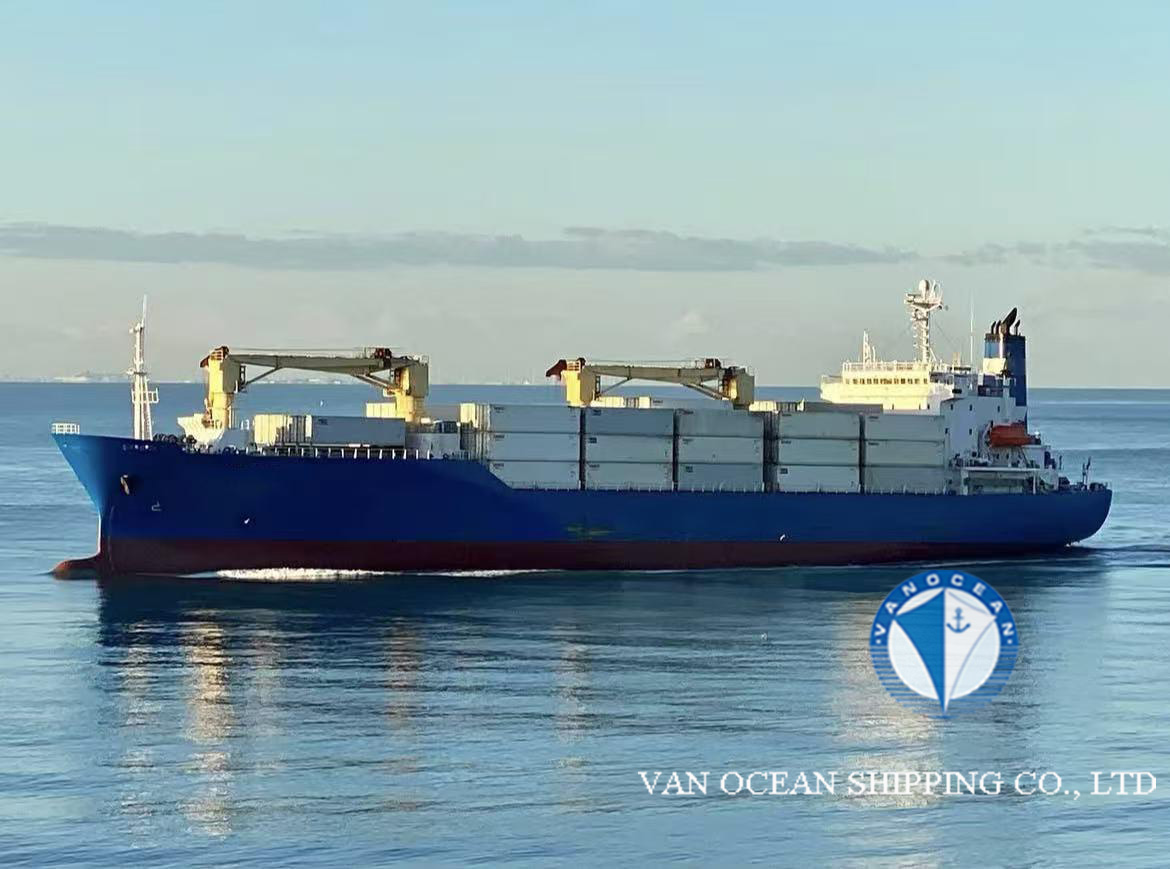

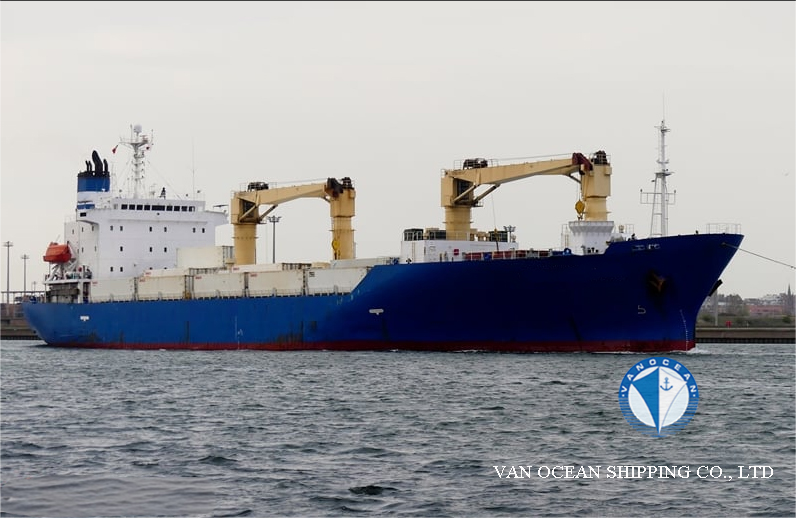

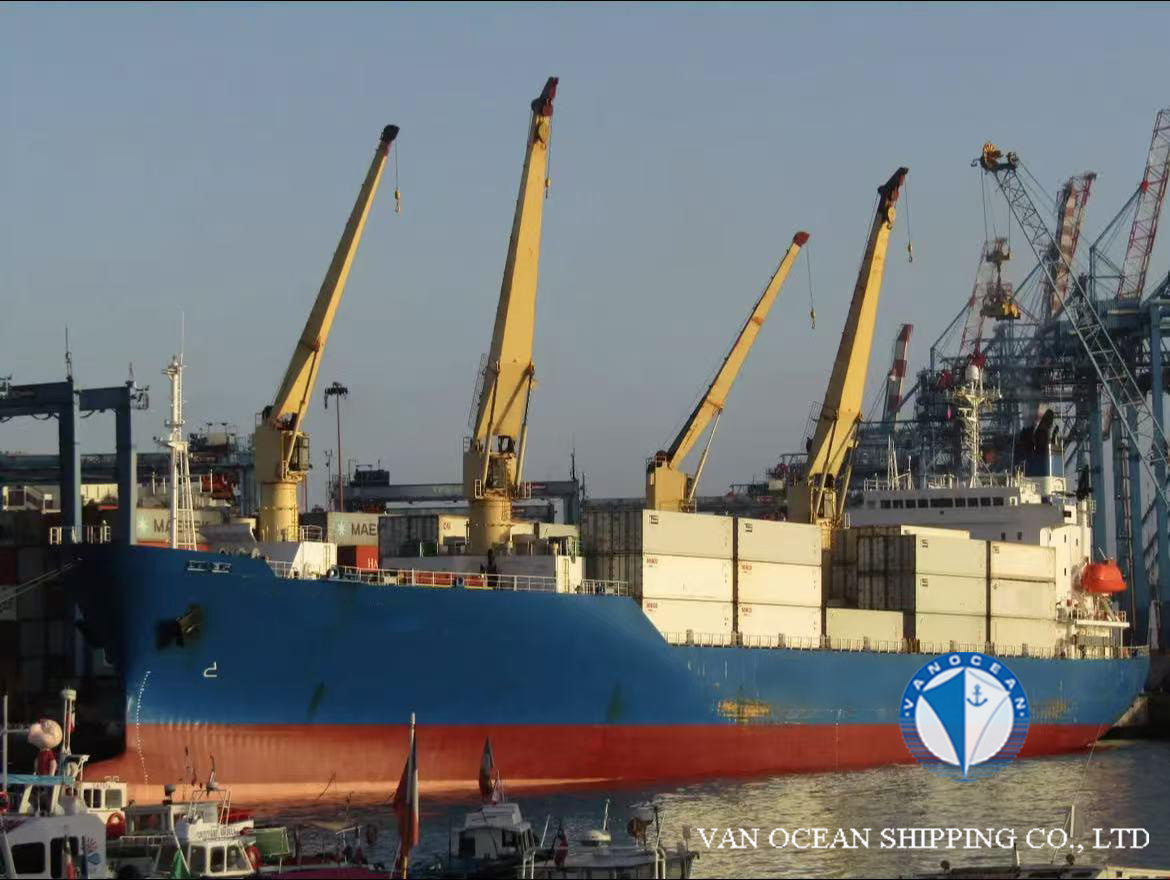

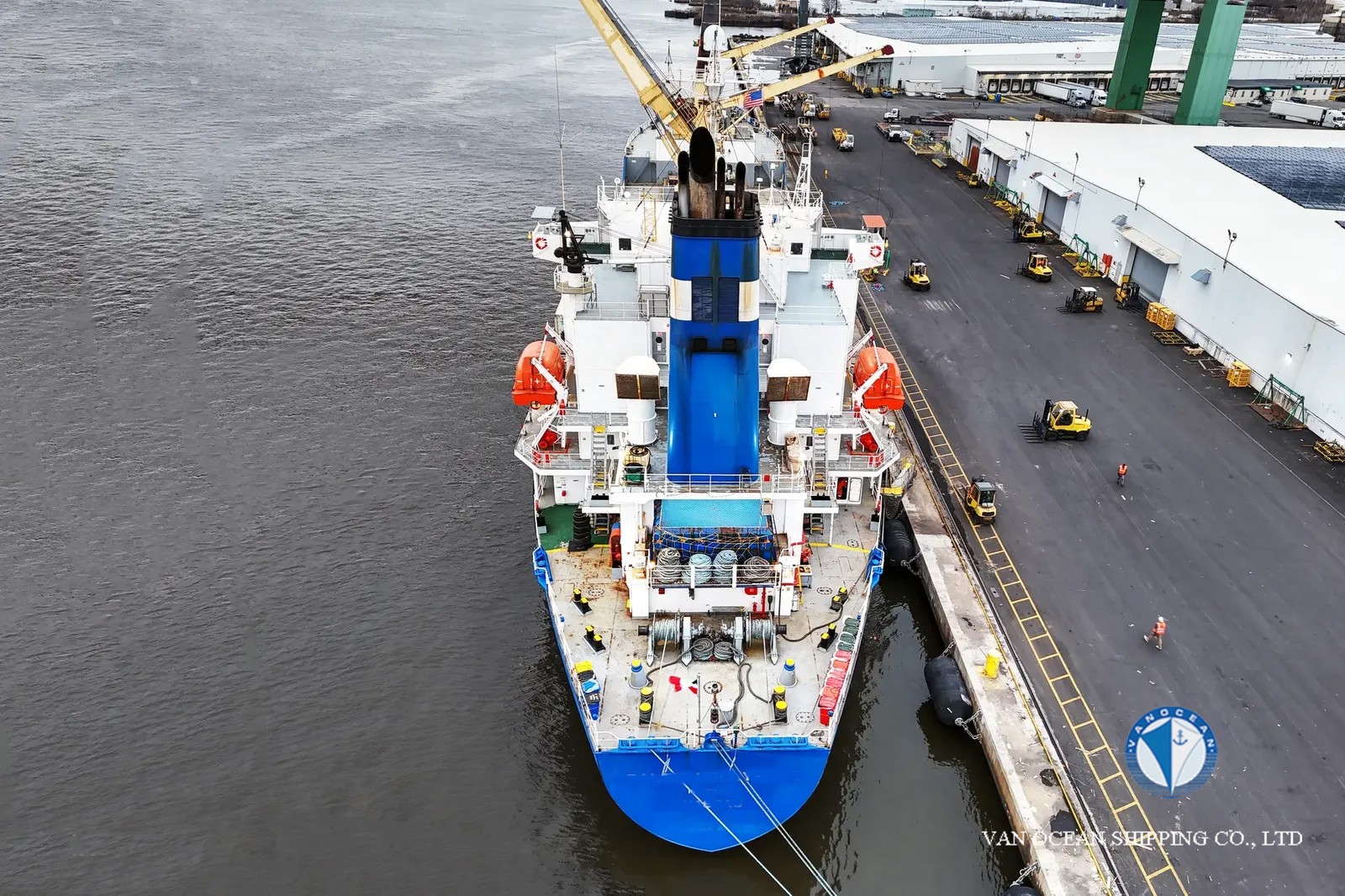

  • VESSEL NAME
  • REF544
  • TYPE
  • REEFER CARRIER
  • DEEP FREEZING OR NOT
  • NO
  • FLAG
  • BAHAMAS
  • PORT OF REGISTRY
  • NASSAU
  • BUILT YEAR
  • 1999
  • BUILT PLACE
  • SHIN KOCHI H.I., JAPAN
  • CLASSIFICATION
  • RINA
  • CLASS NOTATION
  • C❀ICE CLASS IC❀ REF-CARGO
  • SS
  • 2027-08
  • DD
  • 2025-08
  • LOA (M)
  • 144.52
  • LBP (M)
  • 136.36
  • BEAM (M)
  • 21.8
  • DEPTH (M)
  • 13.1
  • SUMMER DRAFT (M)
  • -
  • WINTER DRAFT (M)
  • -
  • TROPICAL DRAFT (M)
  • -
  • GT (MT)
  • 9649
  • PANAMA GT (MT)
  • -
  • SUEZ GT (MT)
  • 10536.7
  • NT (MT)
  • 5349
  • PANAMA NT (MT)
  • 8142
  • SUEZ NT (MT)
  • 8815.1
  • SUMMER DWT (MT)
  • 11788
  • WINTER DWT (MT)
  • -
  • TROPICAL DWT (MT)
  • -
  • LDT (MT)
  • -
  • DISPLACEMENT (MT)
  • -
  • GEAR(S)
  • 4 x ELECTRIC CRANES, NO. 1, 3 x 8 MT; NO. 2, 4 x 36 MT
  • M/E(S)
  • KOBE DIESEL 7UEC52LS 12600PS x 120RPM
  • M/E POWER (KW)
  • 9265
  • A/E(S)
  • -
  • GENERATOR(S)
  • 3 x YANMAR 6N21AL-EN 1125KVA (900KW)×AV450V
  • SHAFT GENERATOR(S)
  • -
  • PROPELLER(S)
  • -
  • COOLING SYSTEM (COMPRESSOR)
  • -
  • SPEED/CONSUMPTIONS
  • 19.5KTS
  • FUEL TYPE
  • -
  • BUNKER CAPACITY (CBM)
  • -
  • TANKS CAPACITY (CBM)
  • -
  • NUMBER OF CARGO HOLDS
  • 4
  • HATCH NUMBER
  • 4
  • HATCH TYPE
  • -
  • HATCH SIZE (M)
  • 8.1 x 5.20 – 6.60
  • HEIGHT OF HATCH COAMING (M)
  • -
  • COMPARTMENT(S)
  • 16
  • DECK(S)
  • -
  • DECK HEIGHT (M)
  • -
  • CARGO CAPACITY (CBFT)
  • 530147
  • CARGO CAPACITY (CBM)
  • 15018
  • FLOOR SPACE CAPACITY (SQM)
  • 5822
  • GRATING/DECK STRENGTH
  • SUITABLE FOR PNEUMATIC FORKLIFTS WITH ALL-UP WEIGHT OF 7MT
  • TEMPERATURE ZONE(S)
  • 8, 1A/BCD, 2AB/CD, 3AB/CD, 4AB/CD
  • TEMPERATURE (℃)
  • -30/+15
  • TYPE OF VENT SYSTEM
  • -
  • VENT (TIMES/HOUR)
  • 90/60/45
  • AIR CHANGE (TIMES/HOUR)
  • 2/1
  • PALLET(S)
  • -
  • CONTAINER CAPACITY
  • 88 FEU
  • REEFER PLUG(S)
  • 80
  • SIDE DOOR(S)
  • -
  • FENDER(S)
  • -
  • ANCHOR CHAIN(S)
  • -
  • USDA CERTIFICATE
  • -
  • INSURANCE
  • -
  • CREW
  • 25
  • ACCOMMODATION
  • -
  • INSPECTION
  • -
  • DELIVERY
  • -
  • PRICE
  • BUYERS OFFER
  • REMARK(S)
  • -
