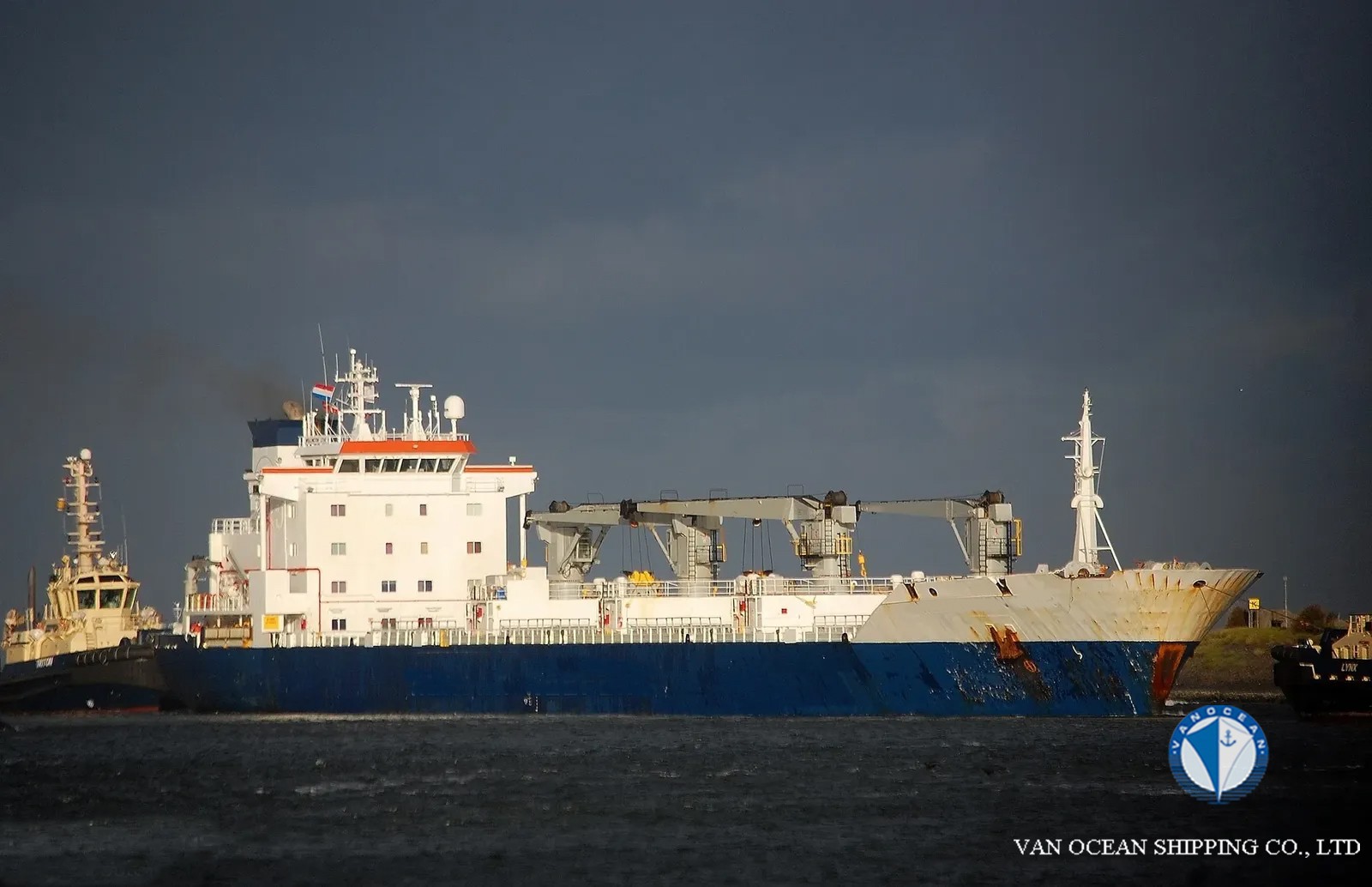

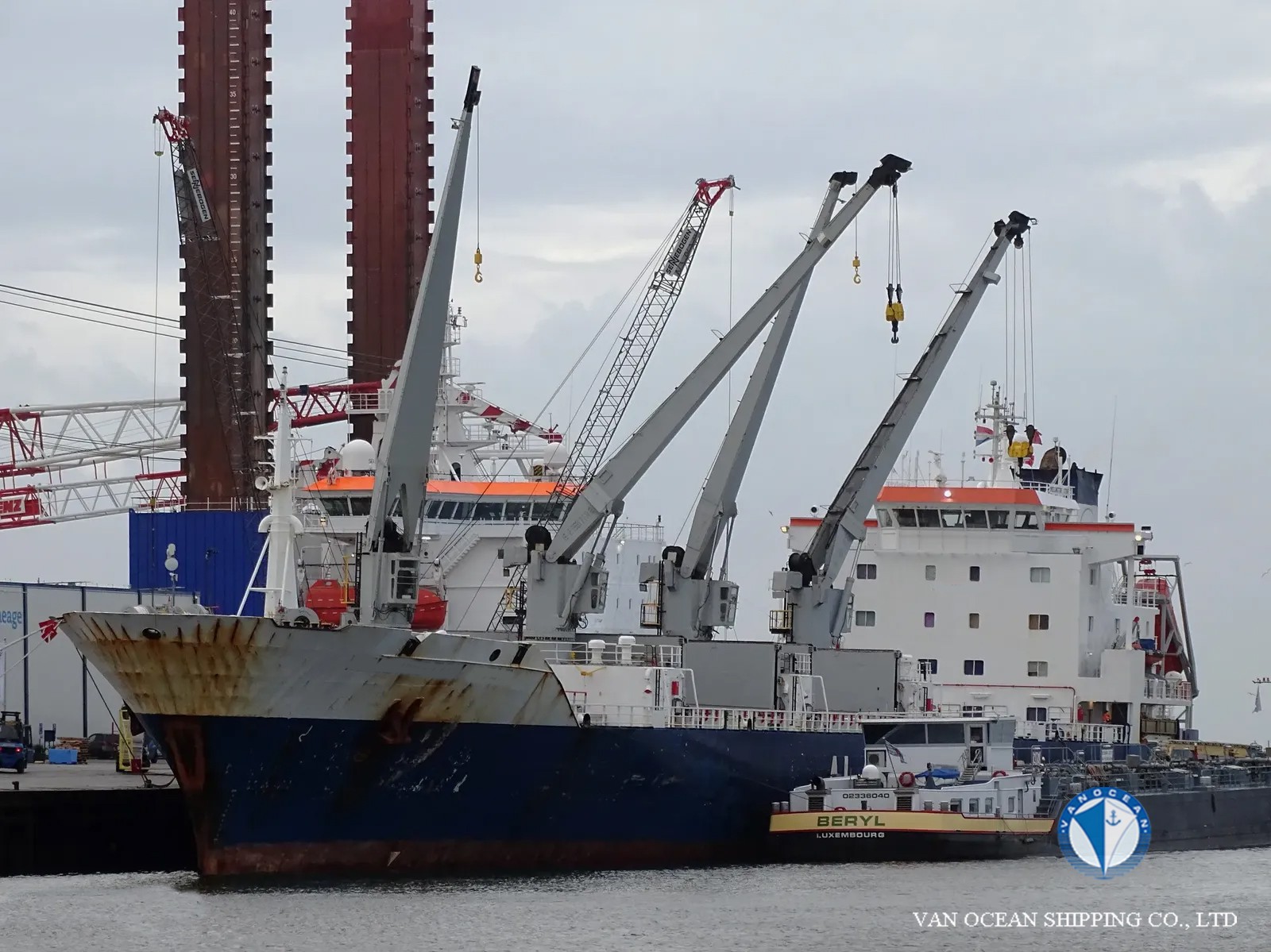

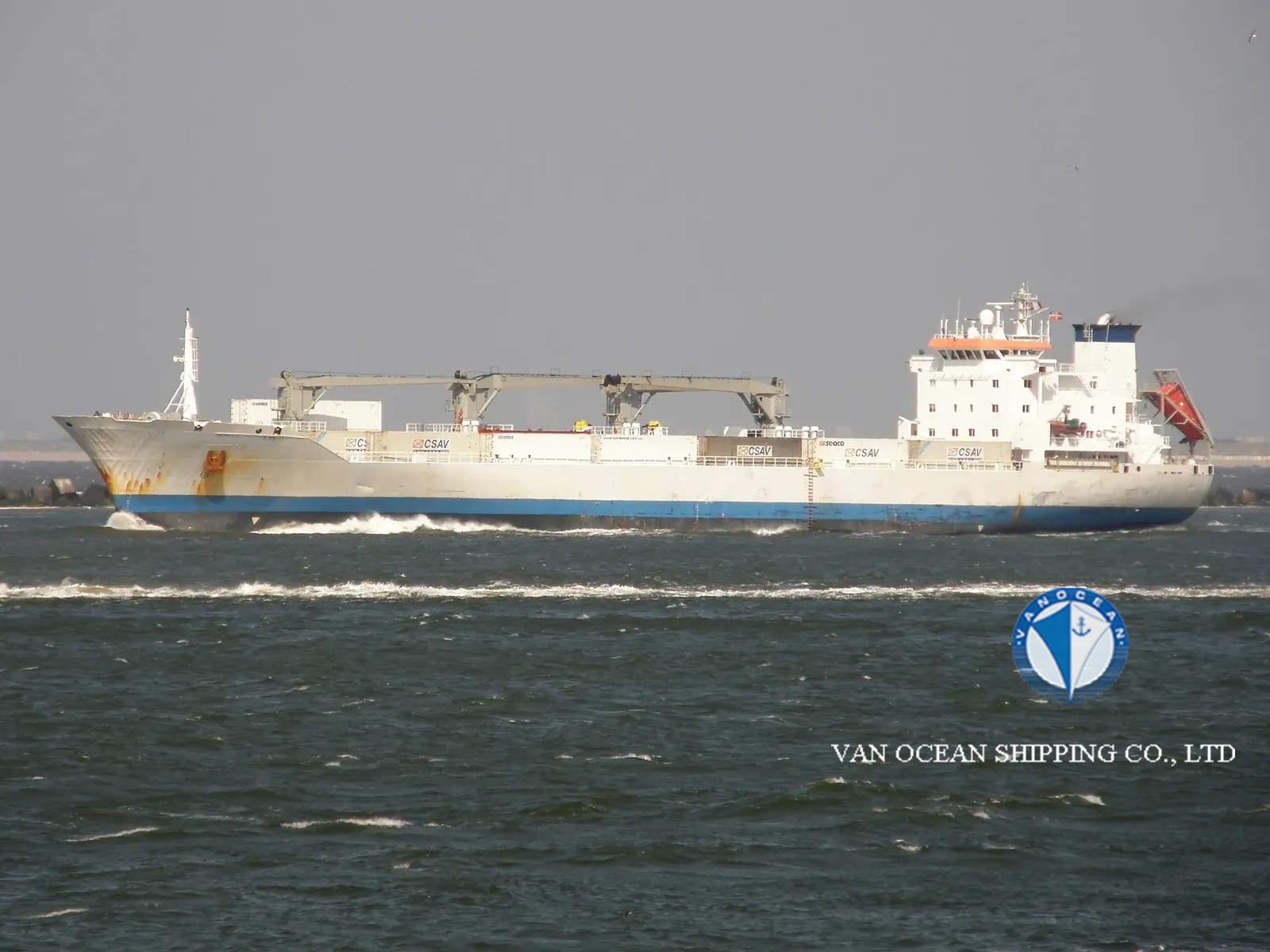

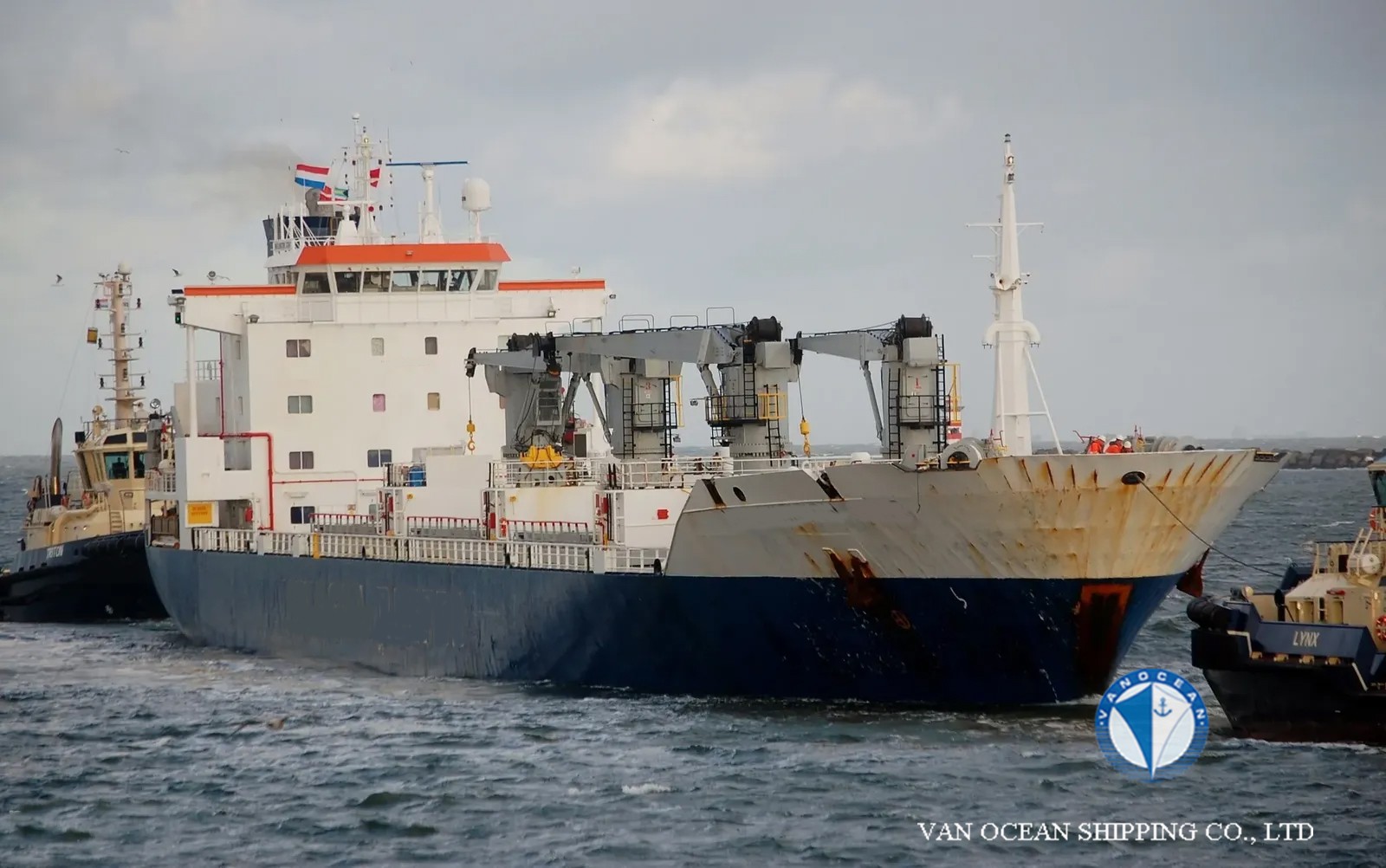

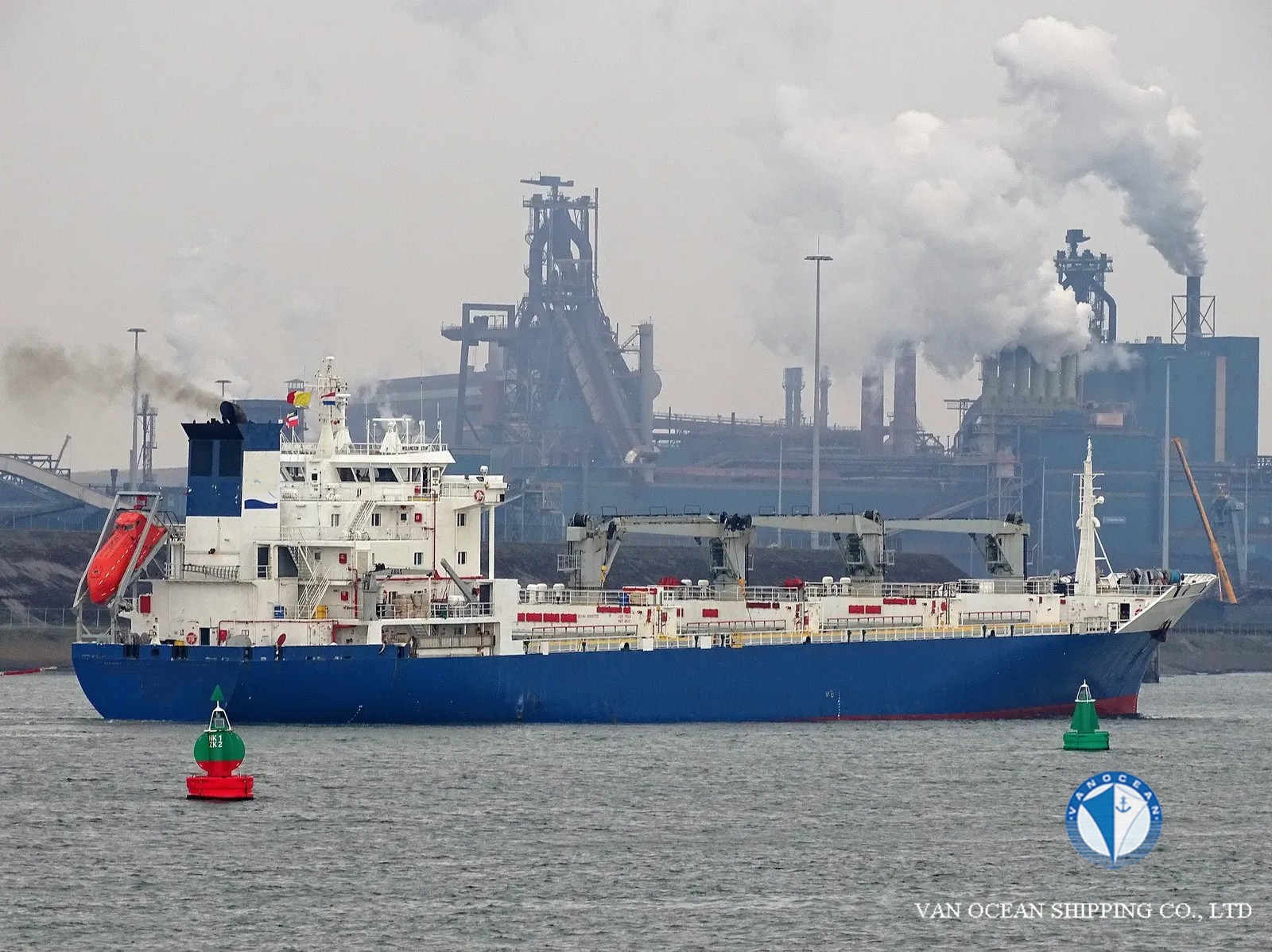

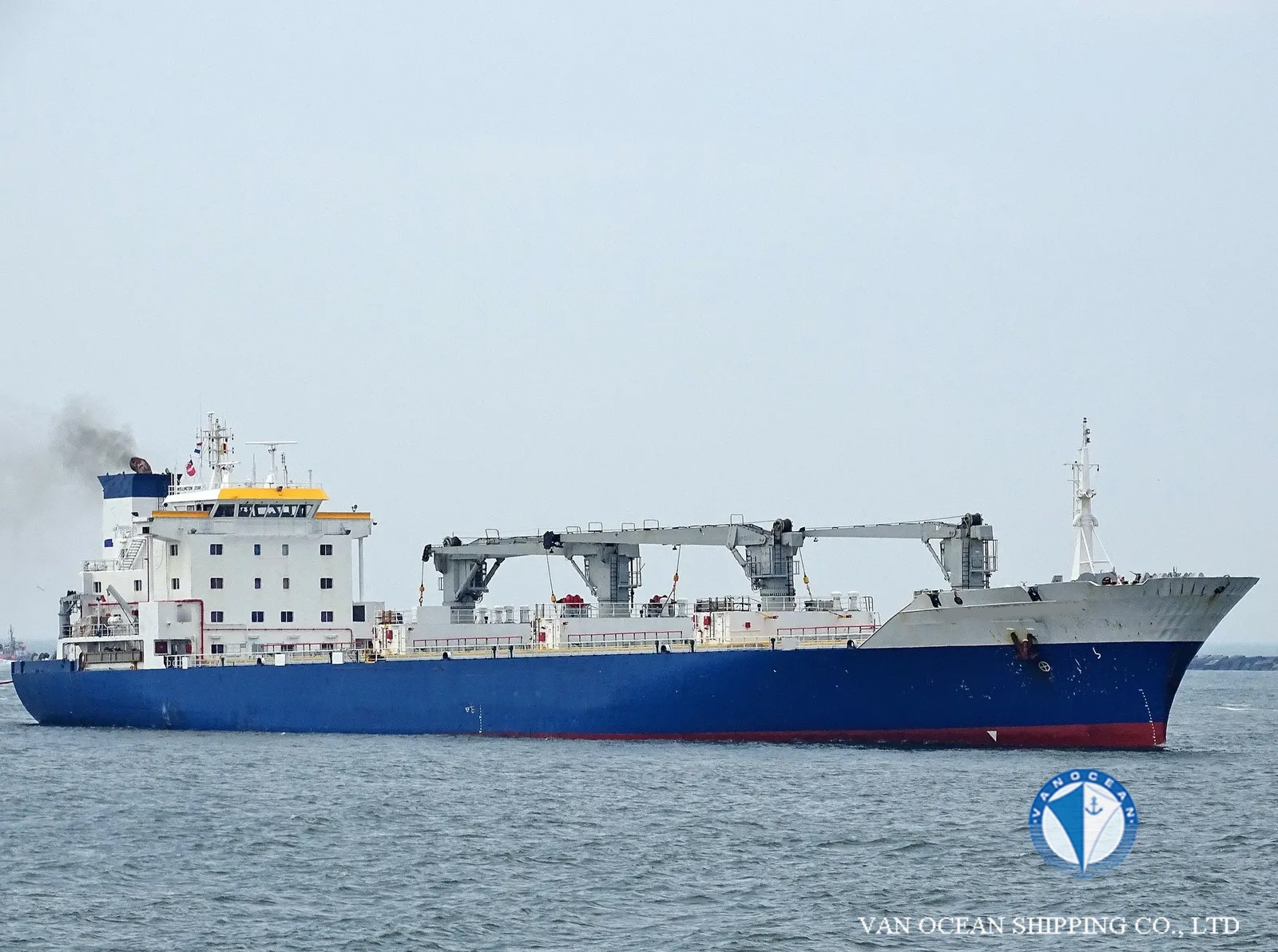

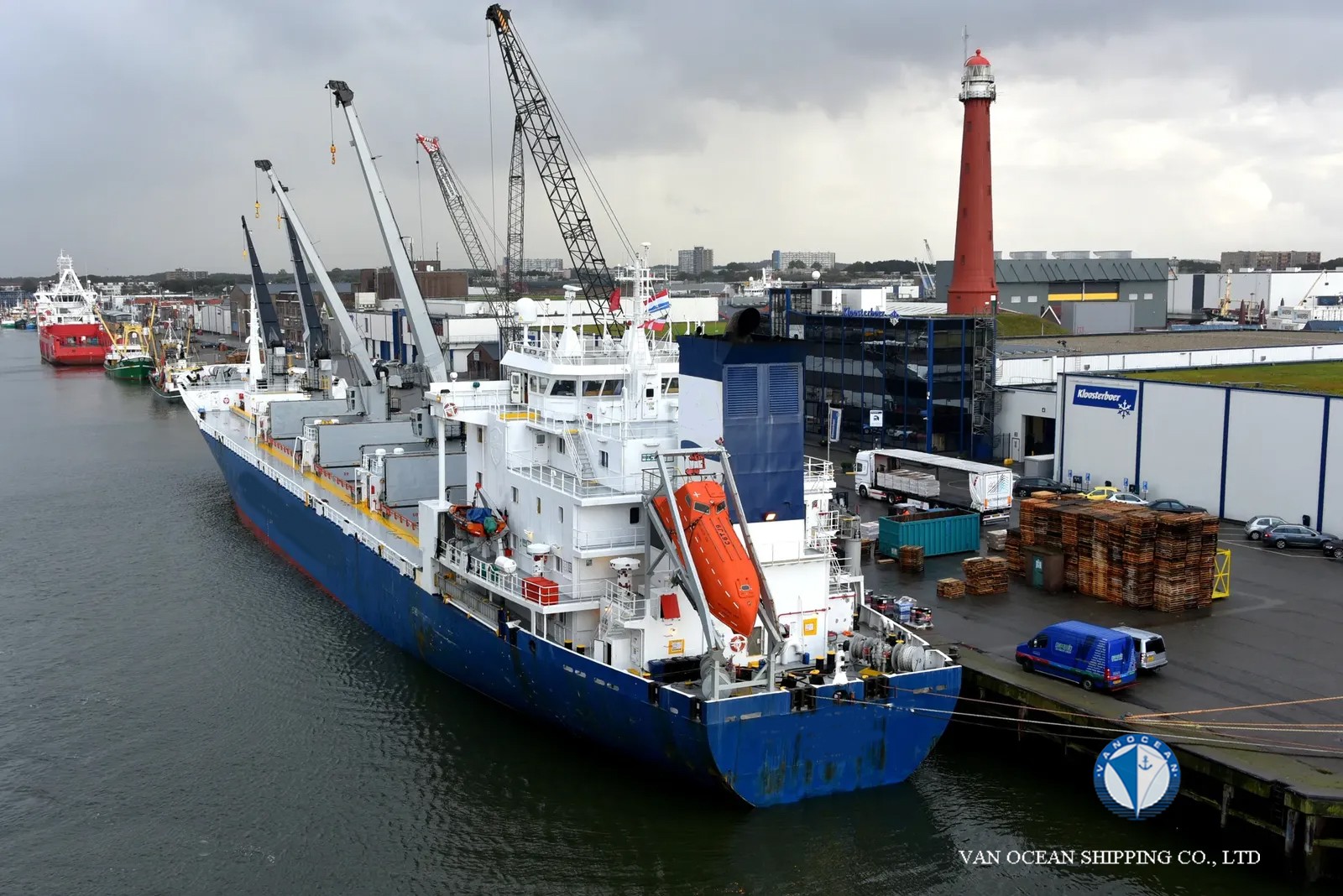

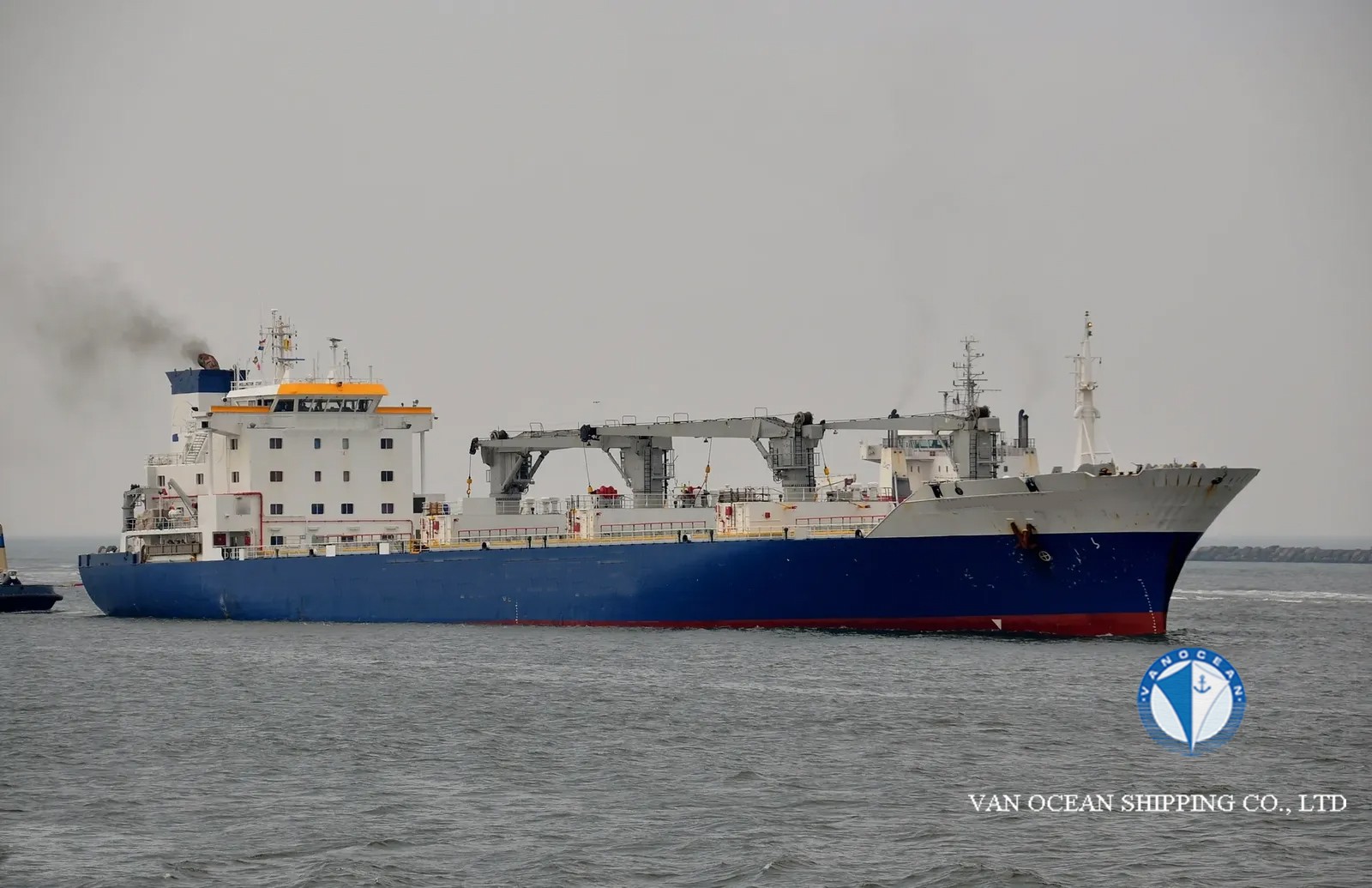

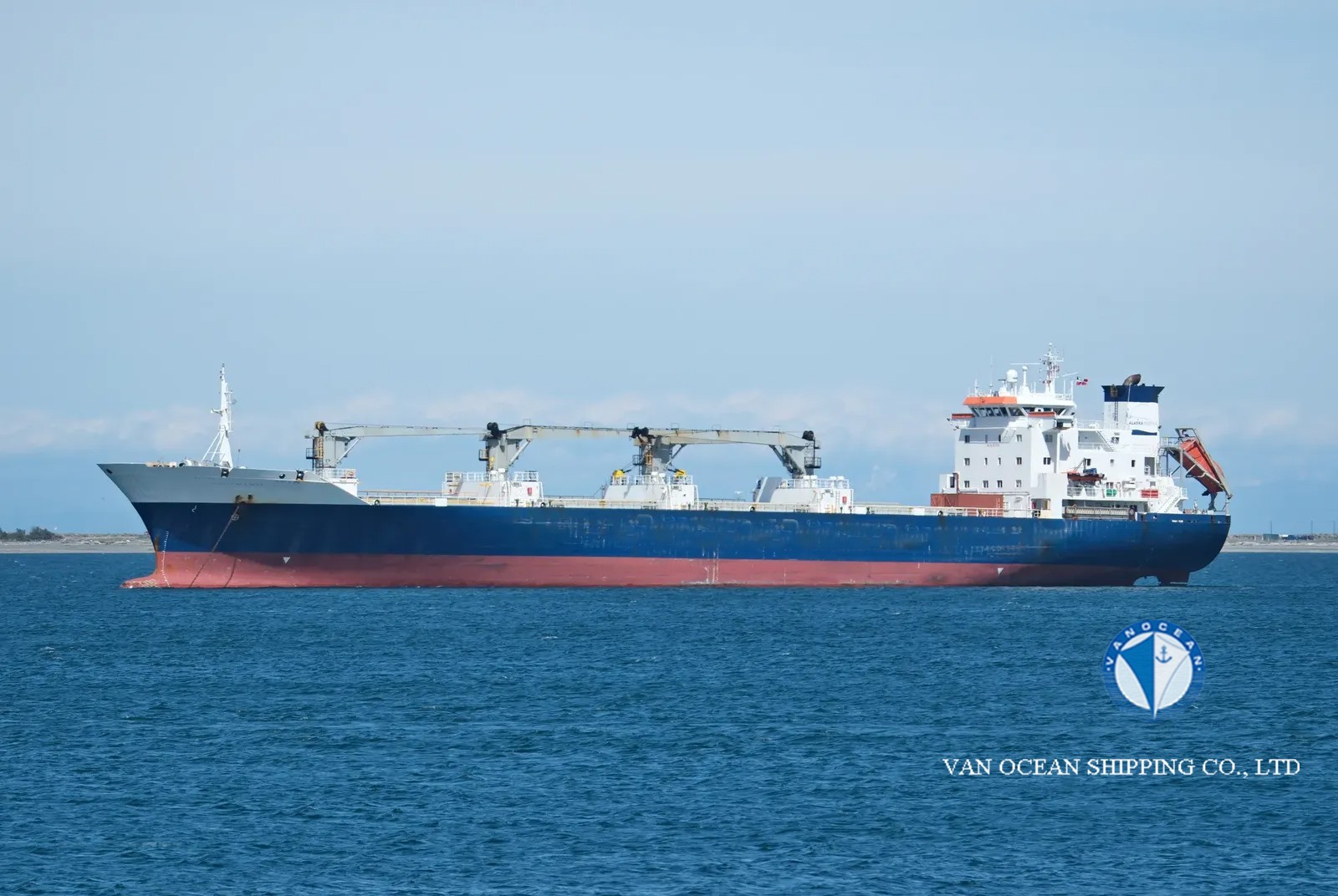

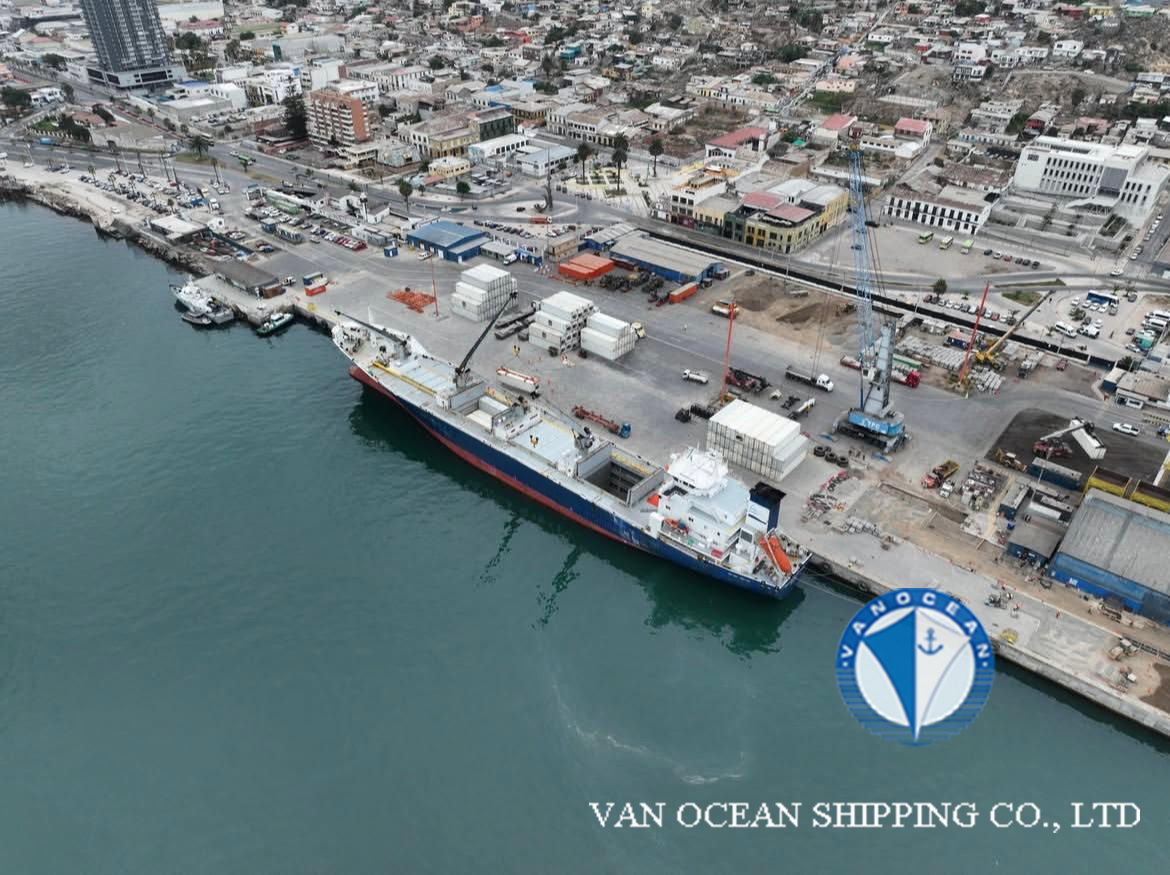

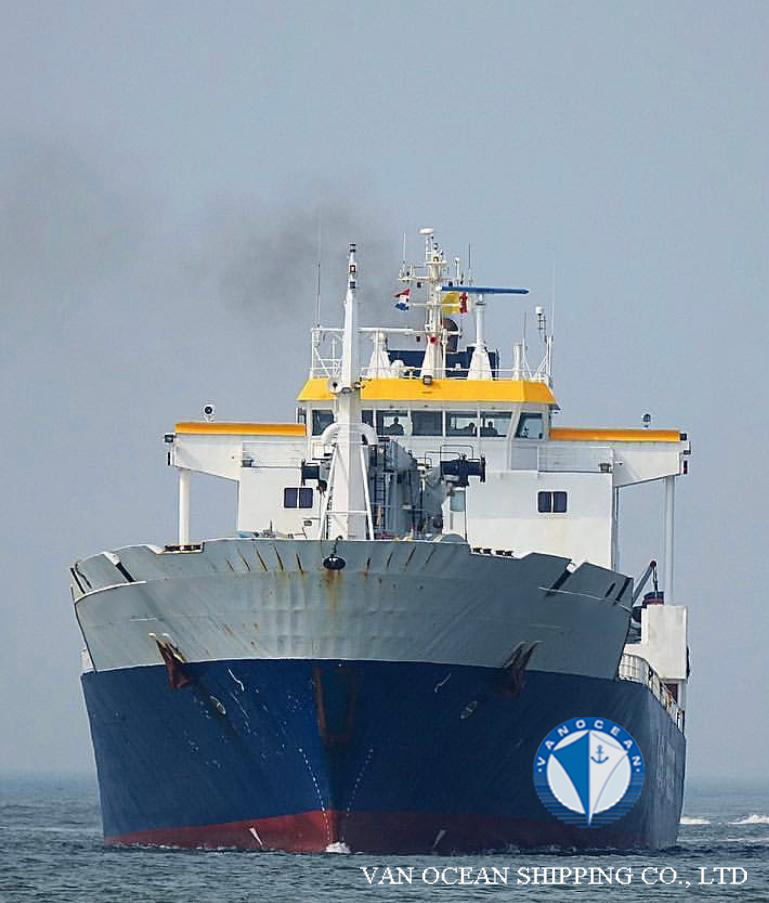

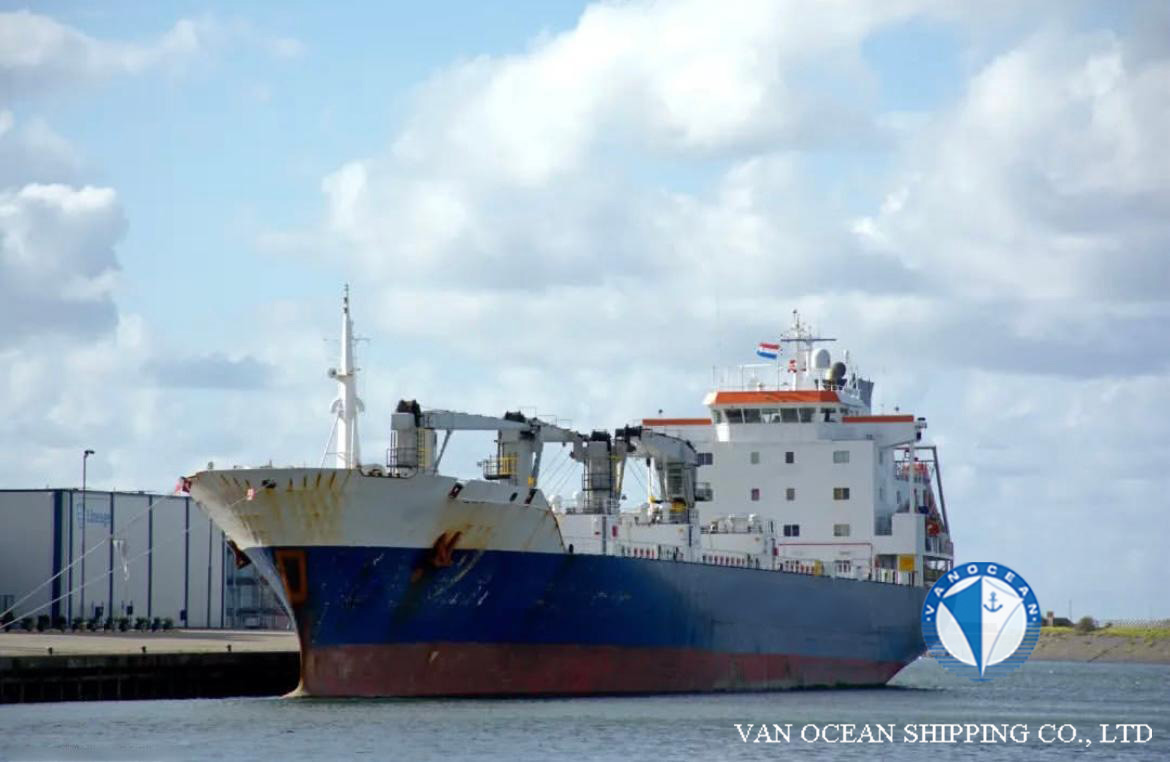

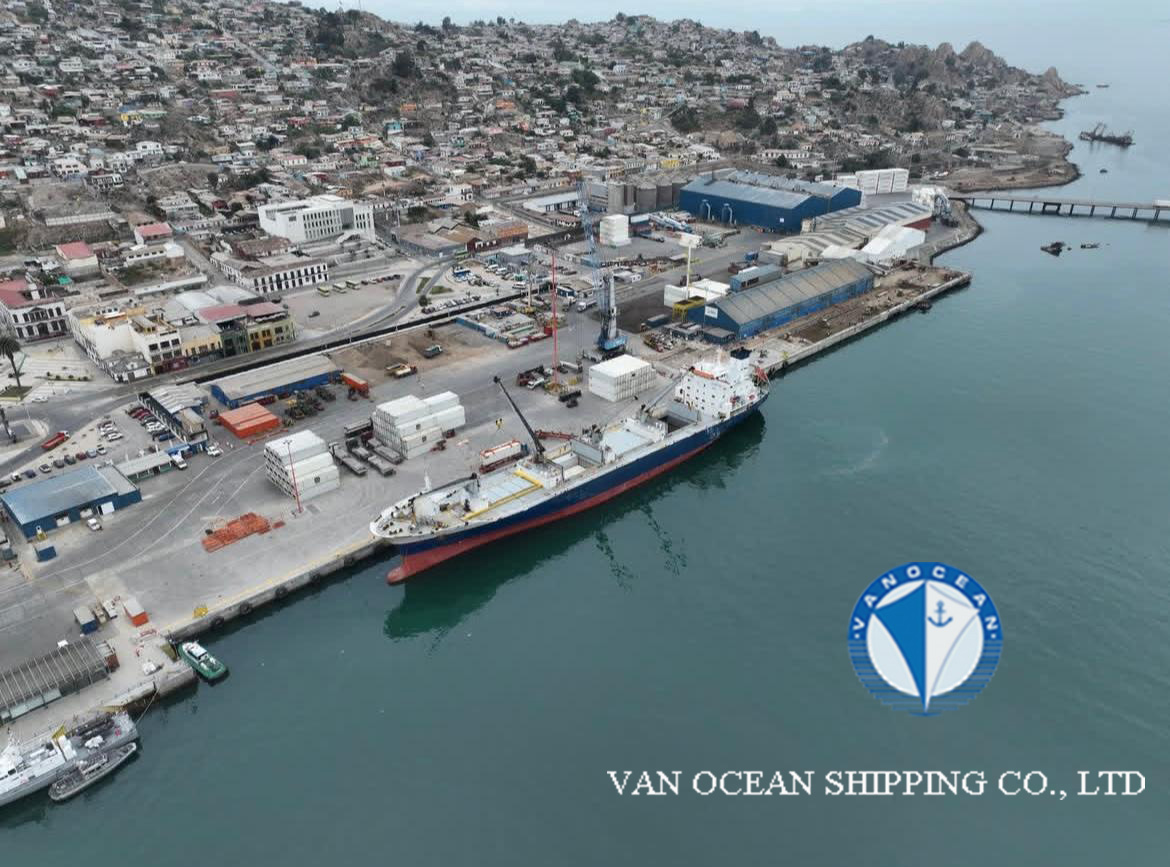

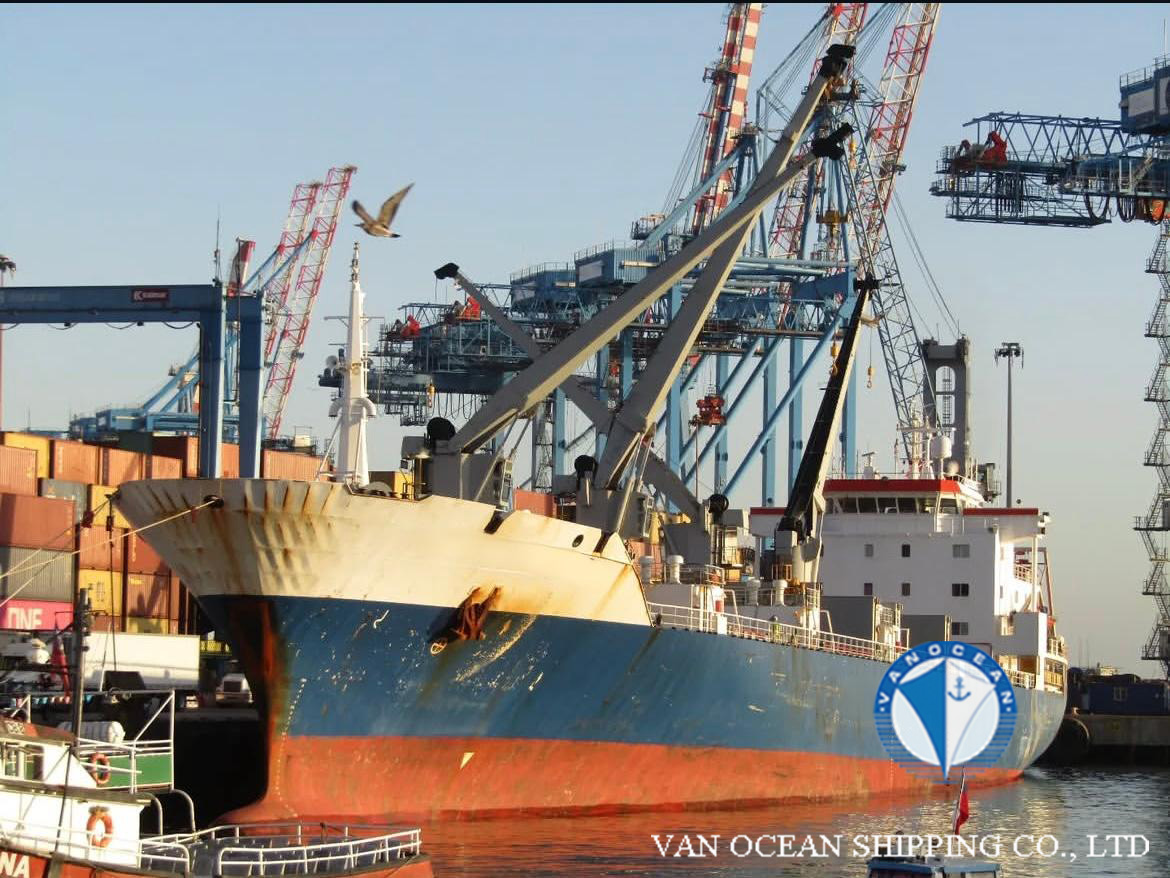

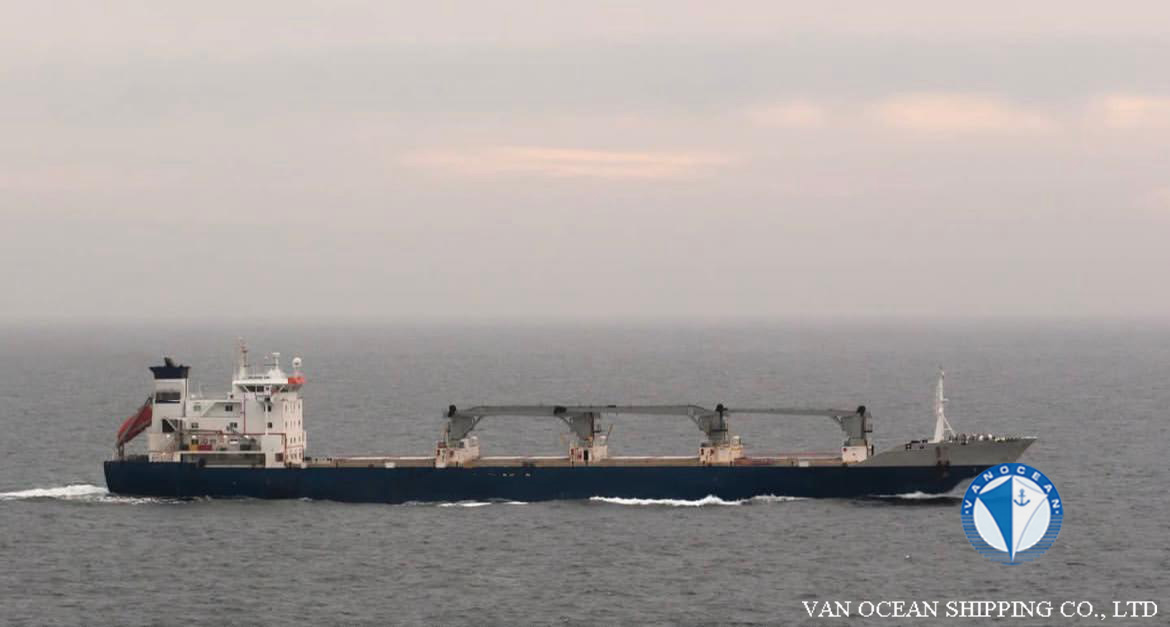

VESSEL NAME
REF559
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
BAHAMAS
PORT OF REGISTRY
NASSAU
BUILT YEAR
1992
BUILT PLACE
KALDNES KLEVEN, NORWAY
CLASSIFICATION
BV
CLASS NOTATION
I❀Hull❀Mach，❀AUT-UMS , MON-SHAFT , ❀REF-CARGO
SS
2027-12
DD
2026-01
LOA (M)
140.5
LBP (M)
130
BEAM (M)
19.7
DEPTH (M)
13
SUMMER DRAFT (M)
9.62
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
7944
PANAMA GT (MT)
8532
SUEZ GT (MT)
-
NT (MT)
4632
PANAMA NT (MT)
6395
SUEZ NT (MT)
6774
SUMMER DWT (MT)
11103
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
4951
DISPLACEMENT (MT)
-
GEAR(S)
CRANES, 2 x 36MT
M/E(S)
MAN B&W 9L58/64 16202BHP 428RPM
M/E POWER (KW)
11925
A/E(S)
1 x 1800 KW
4 x 652KW
1 x EMERGENCY, 154 KW
GENERATOR(S)
1 x 2250 KVA, 440 V, 60 HZ
4 x DIESEL GENERATOR, 815 KVA, 440 V, 60 HZ
1 x EMERGENCY, 193 KVA, 440 V, 60 HZ
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
ABOUT 21.0KTS/ABOUT 42MT IFO380CST INCLUDING SHAFT ALTERNATOR (IN PORT 5MT MGO/DAY) FOR AUXILARIES
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
-
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
4
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
424000
CARGO CAPACITY (CBM)
12006
FLOOR SPACE CAPACITY (SQM)
4735
GRATING/DECK STRENGTH
SUITABLE FOR PNEUMATIC-TYRED FORKLIFTS WITH ALL-UP WEIGHT OF 7MT
TEMPERATURE ZONE(S)
8
1A/BC, 2A/BCD, 3A/BCD, 4A/BCD
TEMPERATURE (℃)
-29 /+32
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
2
PALLET(S)
3550
CONTAINER CAPACITY
42 TUE
REEFER PLUG(S)
42
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
BOW THRUST FITTED
