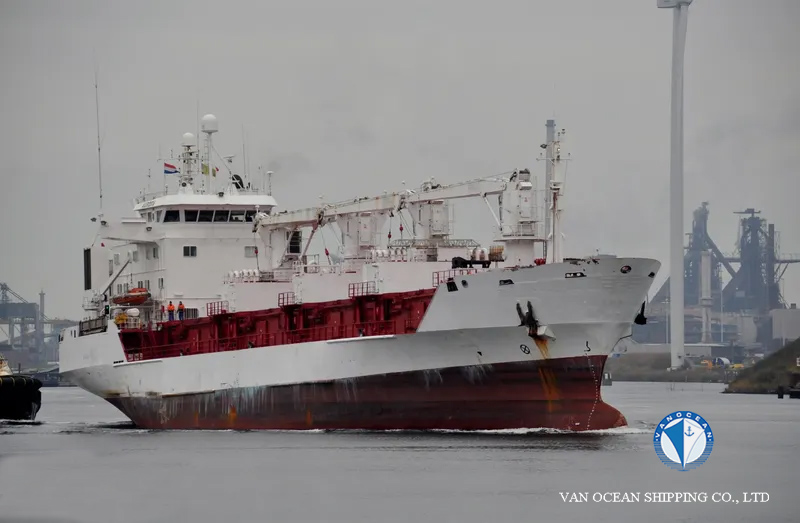

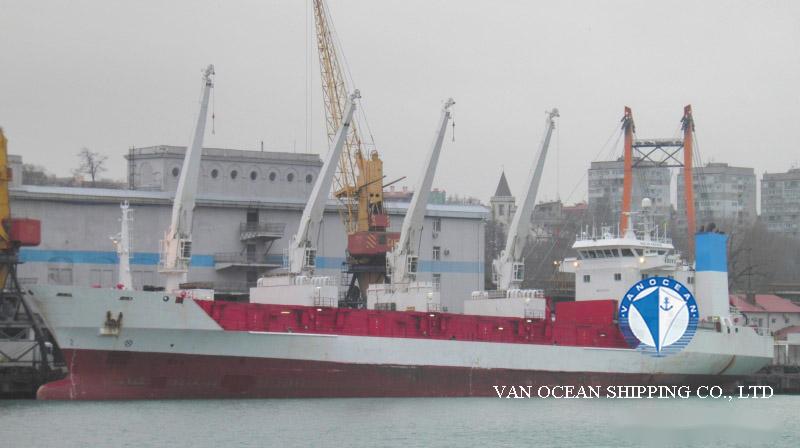

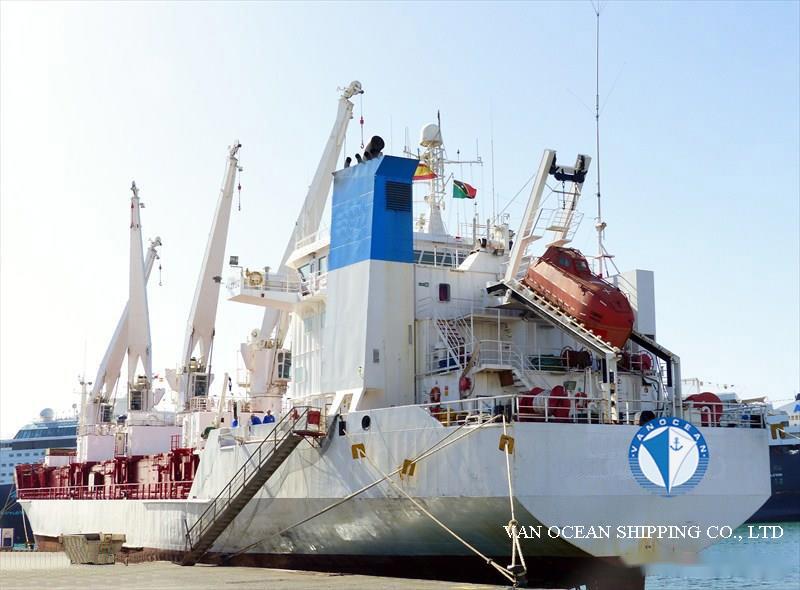

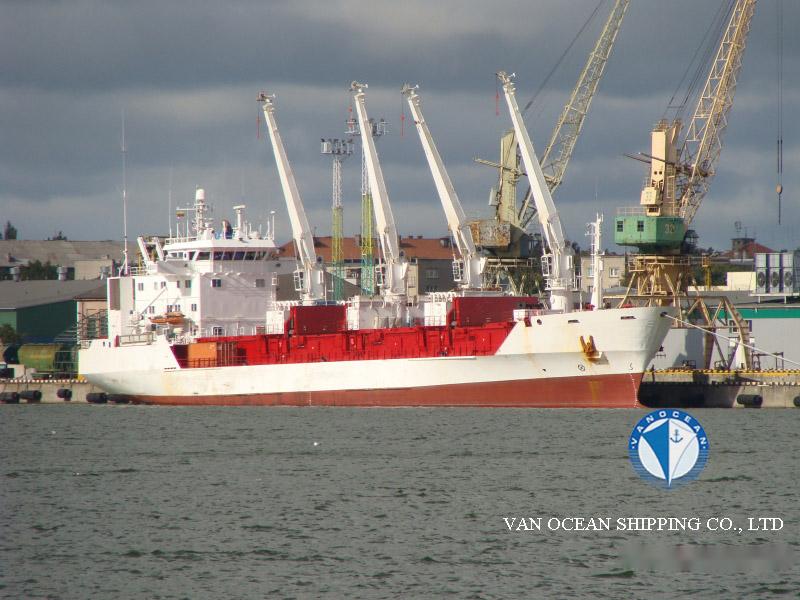

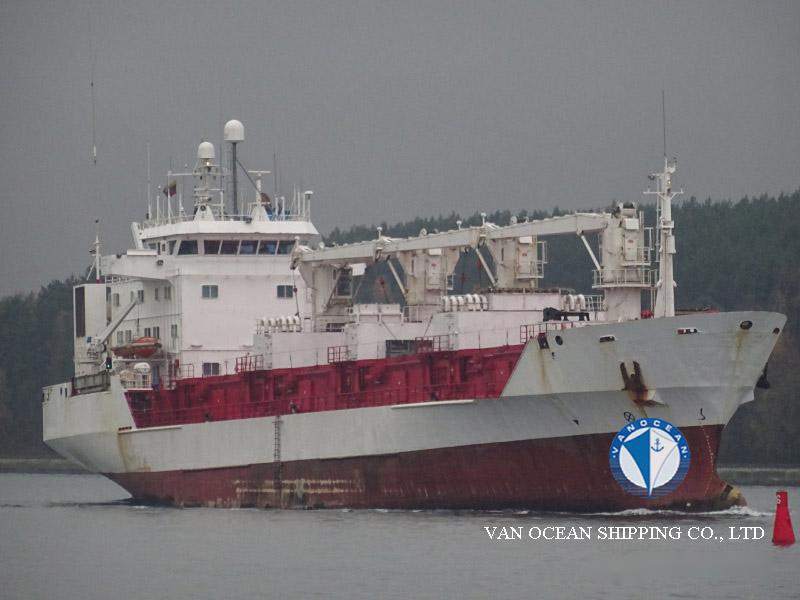

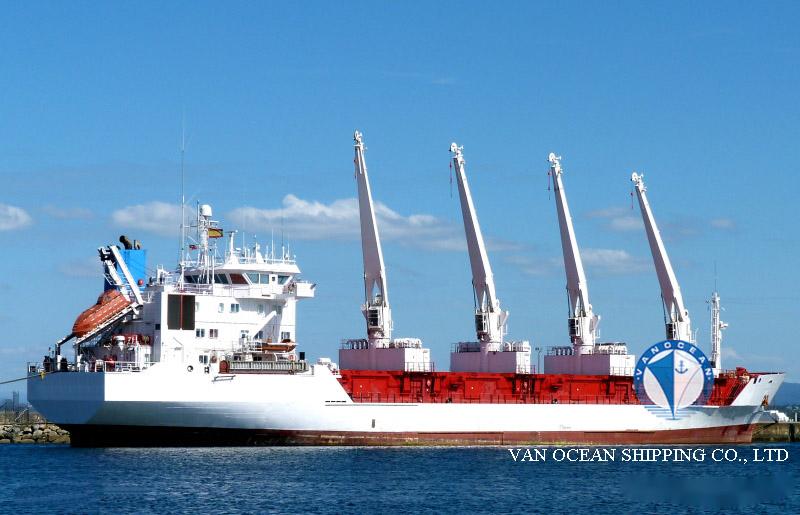

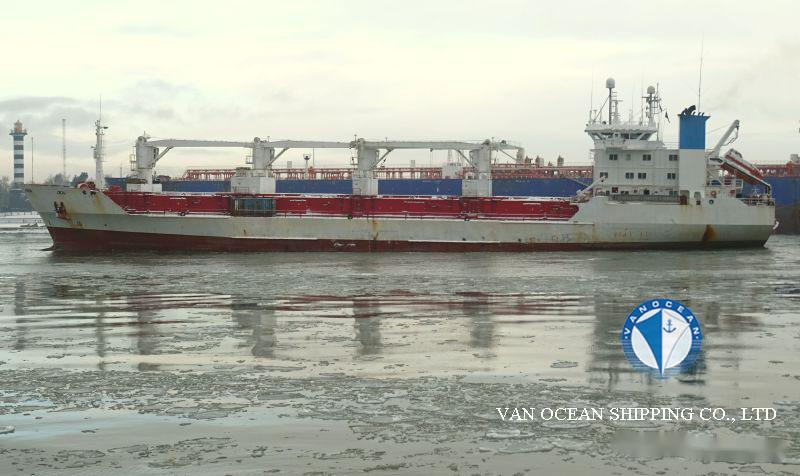

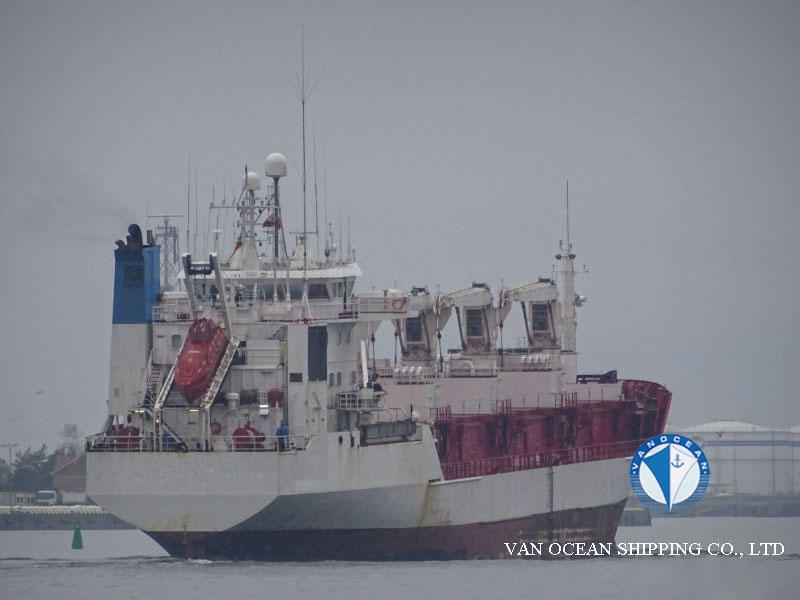

VESSEL NAME
REF573
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
FAROE IS
PORT OF REGISTRY
TORSHAVN
BUILT YEAR
1991
BUILT PLACE
KLEVEN YARD, NORWAY
CLASSIFICATION
DNV
CLASS NOTATION
1A1 REEFER (-25C/+32C SEA)EO
SS
2026-02-28
DD
2026-02-28
LOA (M)
109
LBP (M)
101.4
BEAM (M)
18
DEPTH (M)
9.8
SUMMER DRAFT (M)
7.41
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
5084
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
3163
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
6120
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
CRANES, 4 x 6MT
M/E(S)
WARTSILA VASA-12V32D 5420BHP
M/E POWER (KW)
4045
A/E(S)
2 x 415KW MITSUBISHI S6R-MPT
1 x 522KW MITSUBISHI S6R-MPTA
GENERATOR(S)
-
SHAFT GENERATOR(S)
1 x 890KW STANFORD MNC634DA
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
LADEN: 14.5 KTS, 15.0MT IFO380, NO DIESEL AT SEA
BALLAST: 15.5KTS, 13.0MT IFO380, NO DIESEL AT SEA
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
540
TANKS CAPACITY (CBM)
MGO: 114
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
HYDRAULIC OPERATED
HATCH SIZE (M)
9.8 x 8.5
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
16
DECK(S)
4
DECK HEIGHT (M)
2.2
CARGO CAPACITY (CBFT)
265745
CARGO CAPACITY (CBM)
7525
FLOOR SPACE CAPACITY (SQM)
3235
GRATING/DECK STRENGTH
FORKLIFT+CARGO 5MT
TEMPERATURE ZONE(S)
8
TEMPERATURE (℃)
-25/+32
TYPE OF VENT SYSTEM
VERT
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
2400-2500
CONTAINER CAPACITY
60-142 TEU
REEFER PLUG(S)
20
SIDE DOOR(S)
PERMANENTLY SQUARED OFF
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 4.0 MILLION
REMARK(S)
BOW THRUSTER
STEERINNG GEAR: 1-18M 300/2 GM 620 MAKER TENFJORD MEL VERKSTED NORWAY
