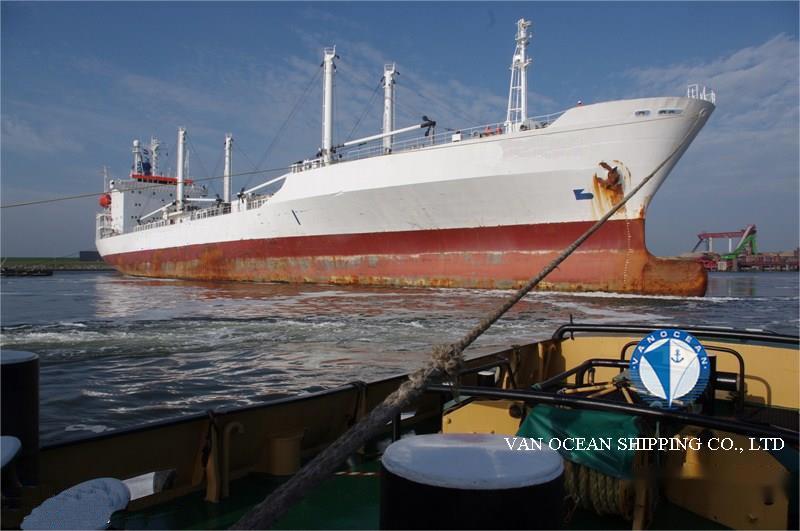

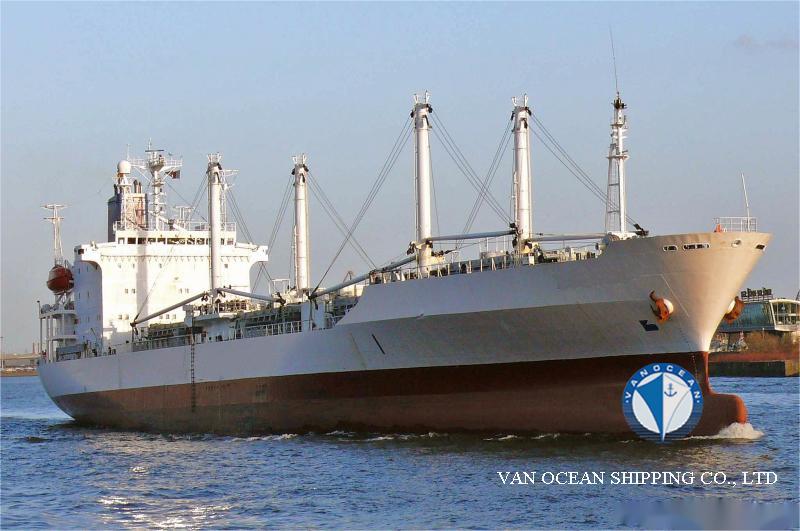

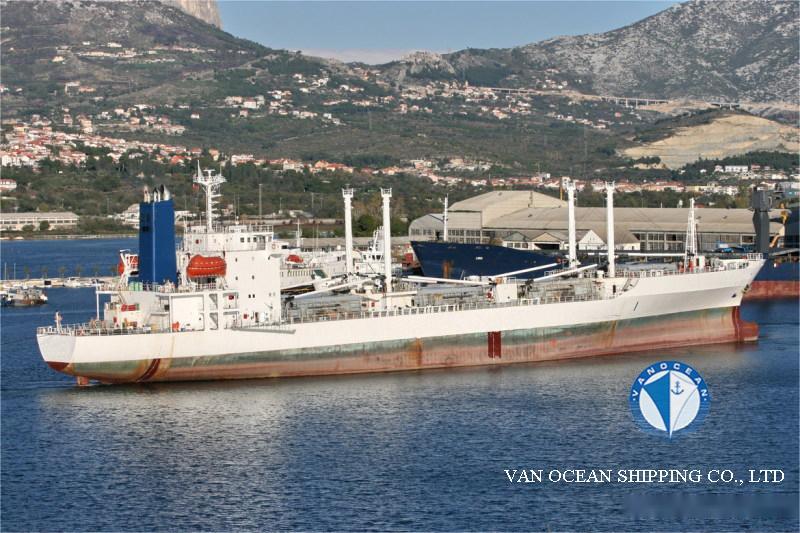

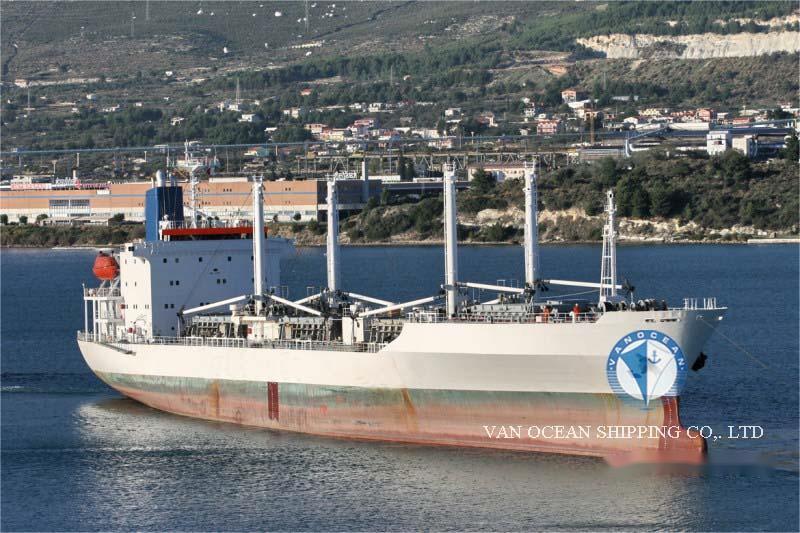

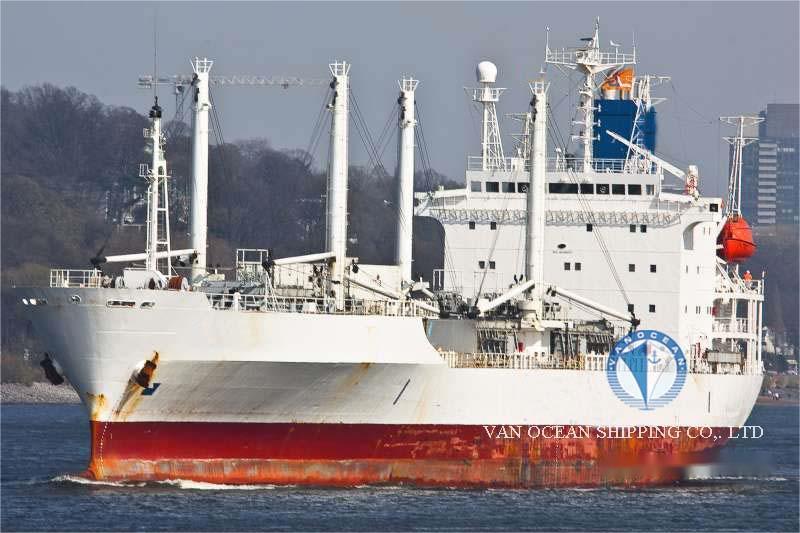

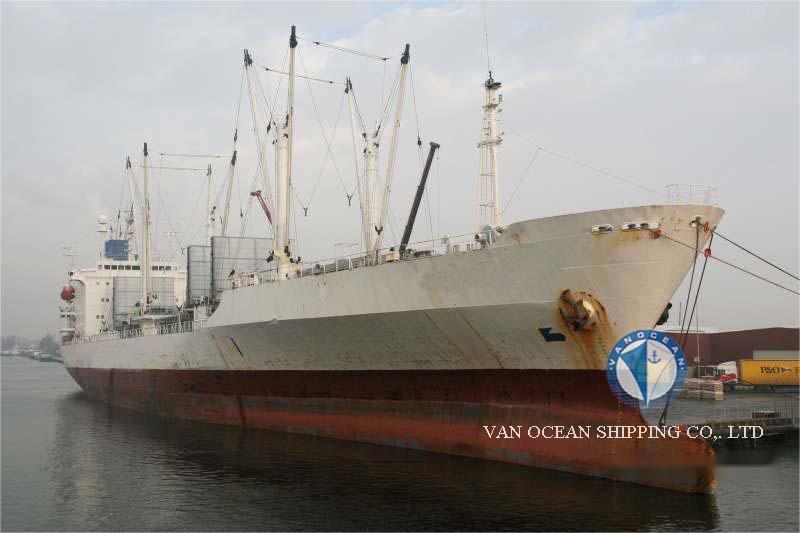

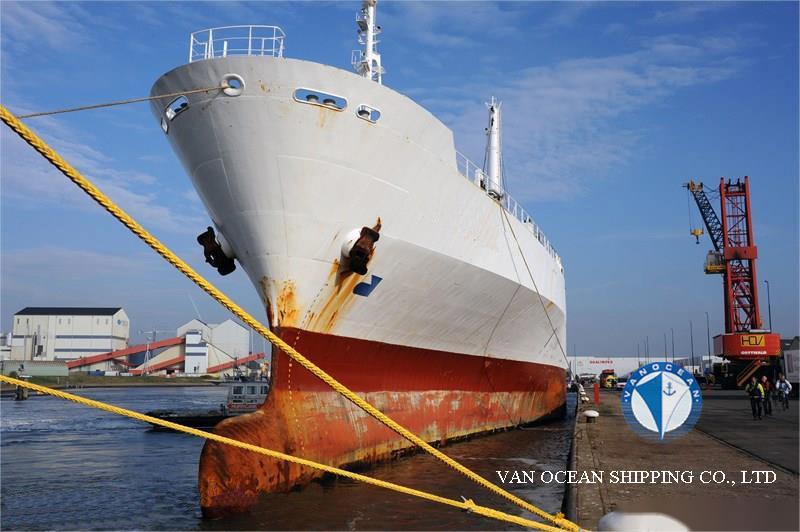

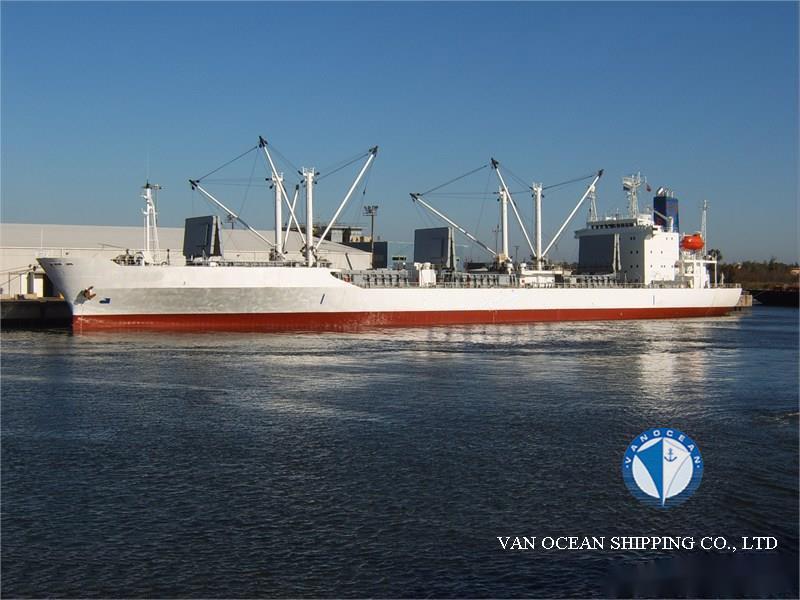

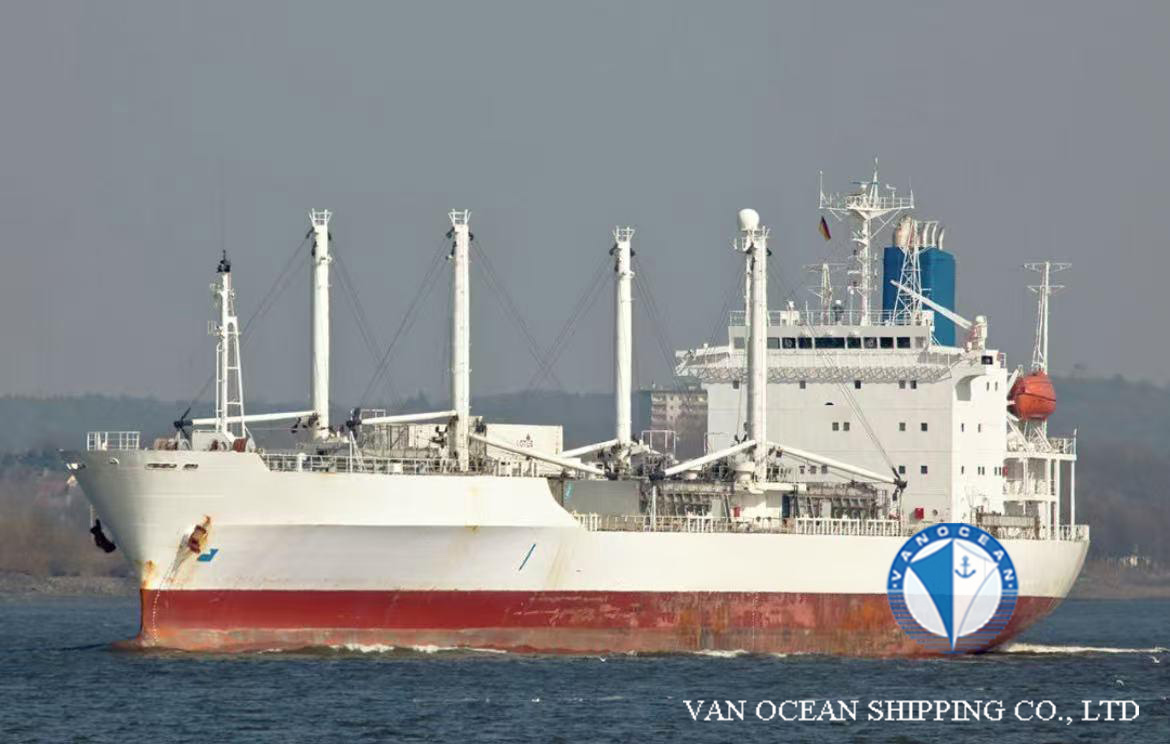

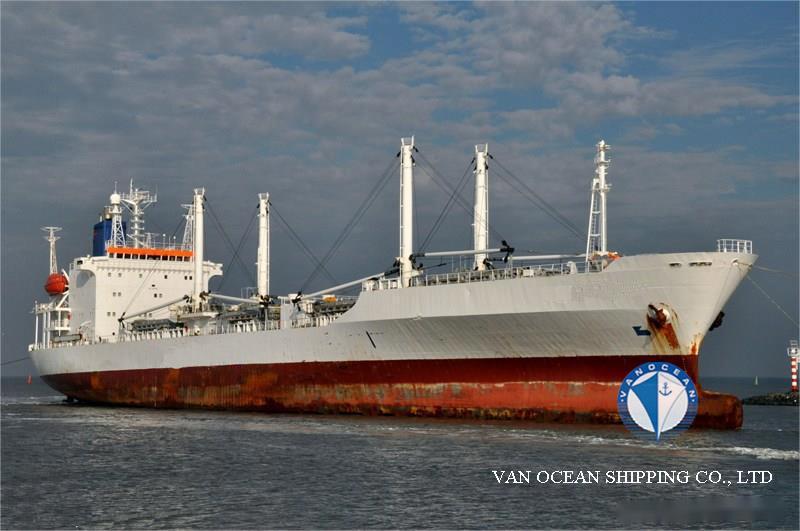

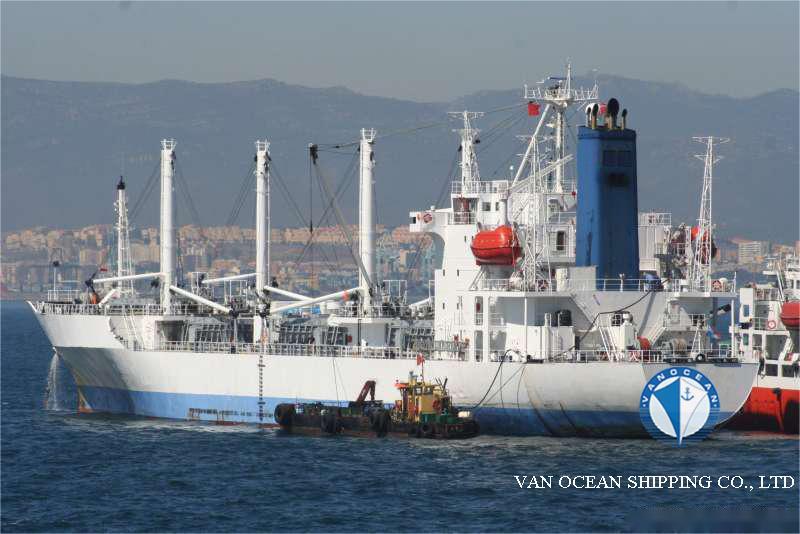

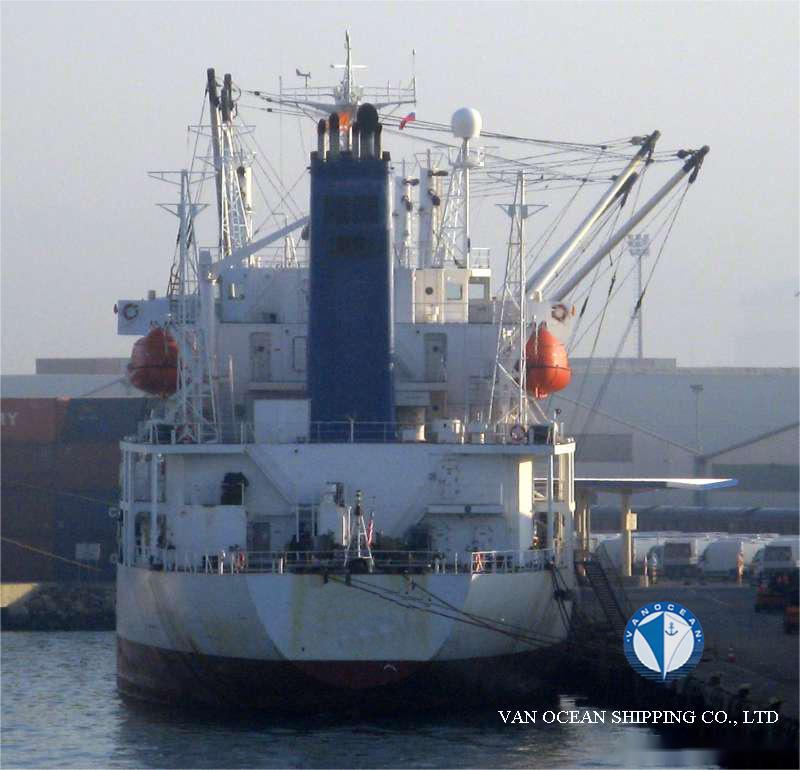

VESSEL NAME
REF611
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
LIBERIA
PORT OF REGISTRY
MONROVIA
BUILT YEAR
1992
BUILT PLACE
KANASASHI K.K. JAPAN
CLASSIFICATION
BV
CLASS NOTATION
I, +HULL, +MACH, UNRESTRICTED NAVIGATION, +REF-CARGO, +MACH
SS
-
DD
-
LOA (M)
148.8
LBP (M)
140.44
BEAM (M)
20.6
DEPTH (M)
12.8
SUMMER DRAFT (M)
9.42
WINTER DRAFT (M)
9.22
TROPICAL DRAFT (M)
9.61
GT (MT)
9074
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
5844
PANAMA NT (MT)
8095
SUEZ NT (MT)
7888.83
SUMMER DWT (MT)
11581
WINTER DWT (MT)
11128
TROPICAL DWT (MT)
12039
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS, 8 x 7MT OR UP 4 x 5MT
M/E(S)
MITSUBISHI 2 S.A. 6 CYL. 9592HP
M/E POWER (KW)
7164
A/E(S)
-
GENERATOR(S)
3 - 850 kVA - 680 kW - 1000 HP
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
BALLAST: 18 KTS AT 21 + 3 MT/DAY
BANANA LADEN: 17.30 KTS AT 23 + 5 MT/DAY
FROZEN: 17 KTS AT 25 + 3MT/DAY
PORT: A/E 4 MT/DAY
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
1027
TANKS CAPACITY (CBM)
MGO: 141
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
HOLD 1: 10 x 7.5
HOLD 2，3，4：12.6 x 8.2
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
19
DECK(S)
4
DECK HEIGHT (M)
≥2.20
CARGO CAPACITY (CBFT)
512361
CARGO CAPACITY (CBM)
14508
FLOOR SPACE CAPACITY (SQM)
5894
GRATING/DECK STRENGTH
MAX 6MT (FORKLIFT TO BE EQUIPED WITH MIN 4 AIRTYRES)
TEMPERATURE ZONE(S)
8; 1AB/CD, 2 UPDAB/CD, 3 UPDAB/CD, 4UPDAB/CD
TEMPERATURE (℃)
-25 /+15
TYPE OF VENT SYSTEM
VERICAL
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
4845
CONTAINER CAPACITY
19 FEU OR 20 TEU
REEFER PLUG(S)
19
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
YES, EXPIRED
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
-
-
-
-
