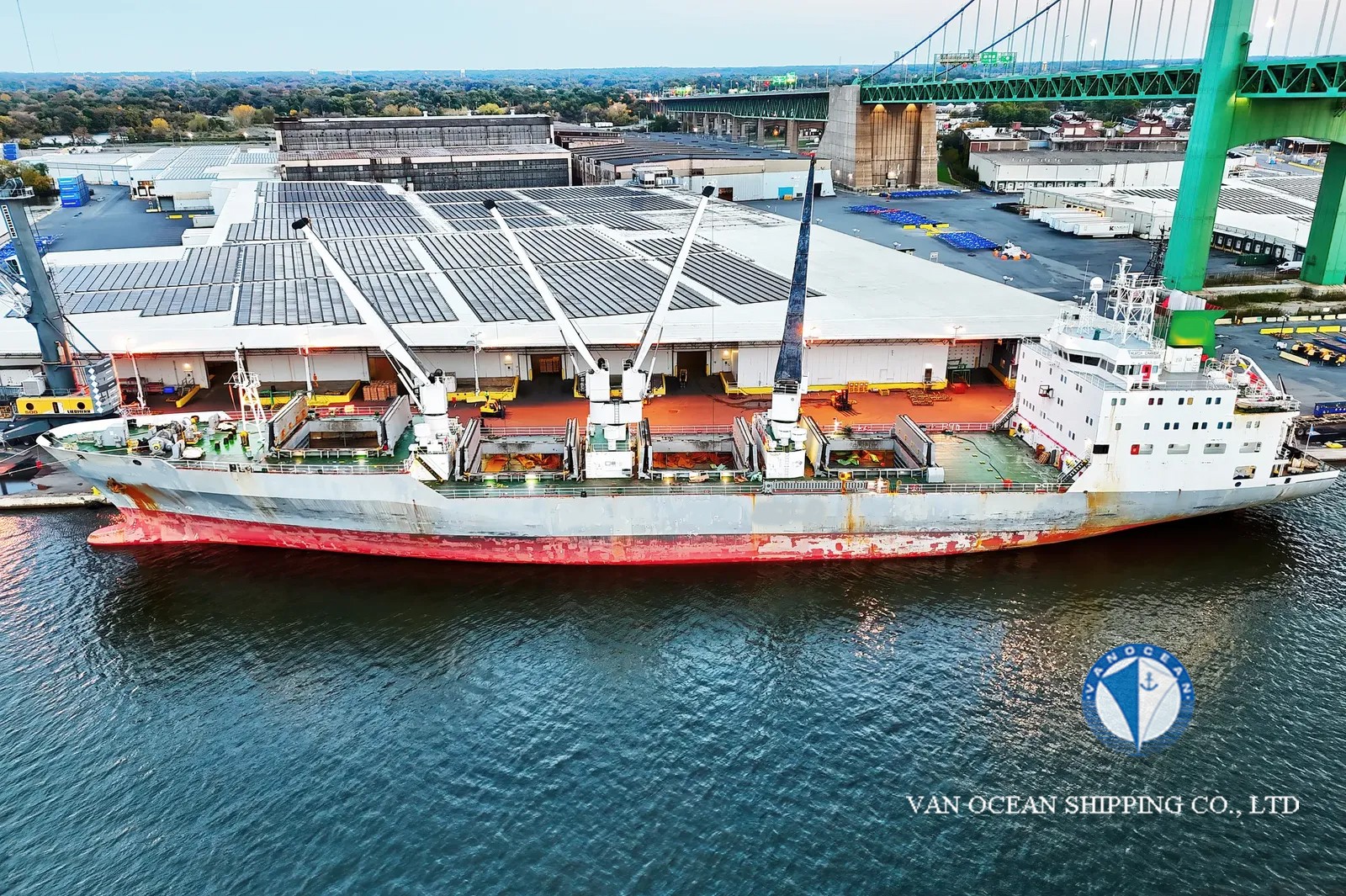

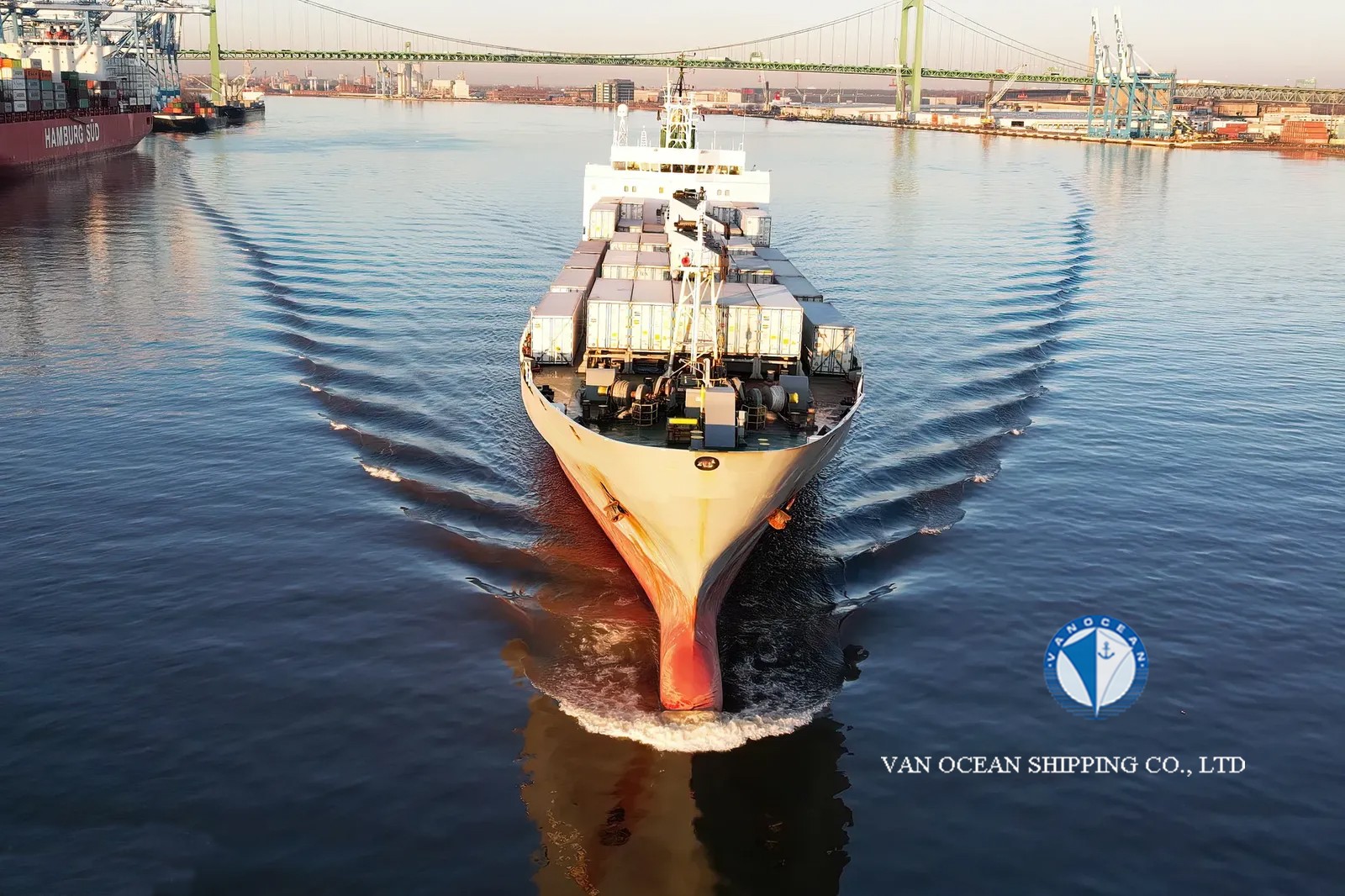

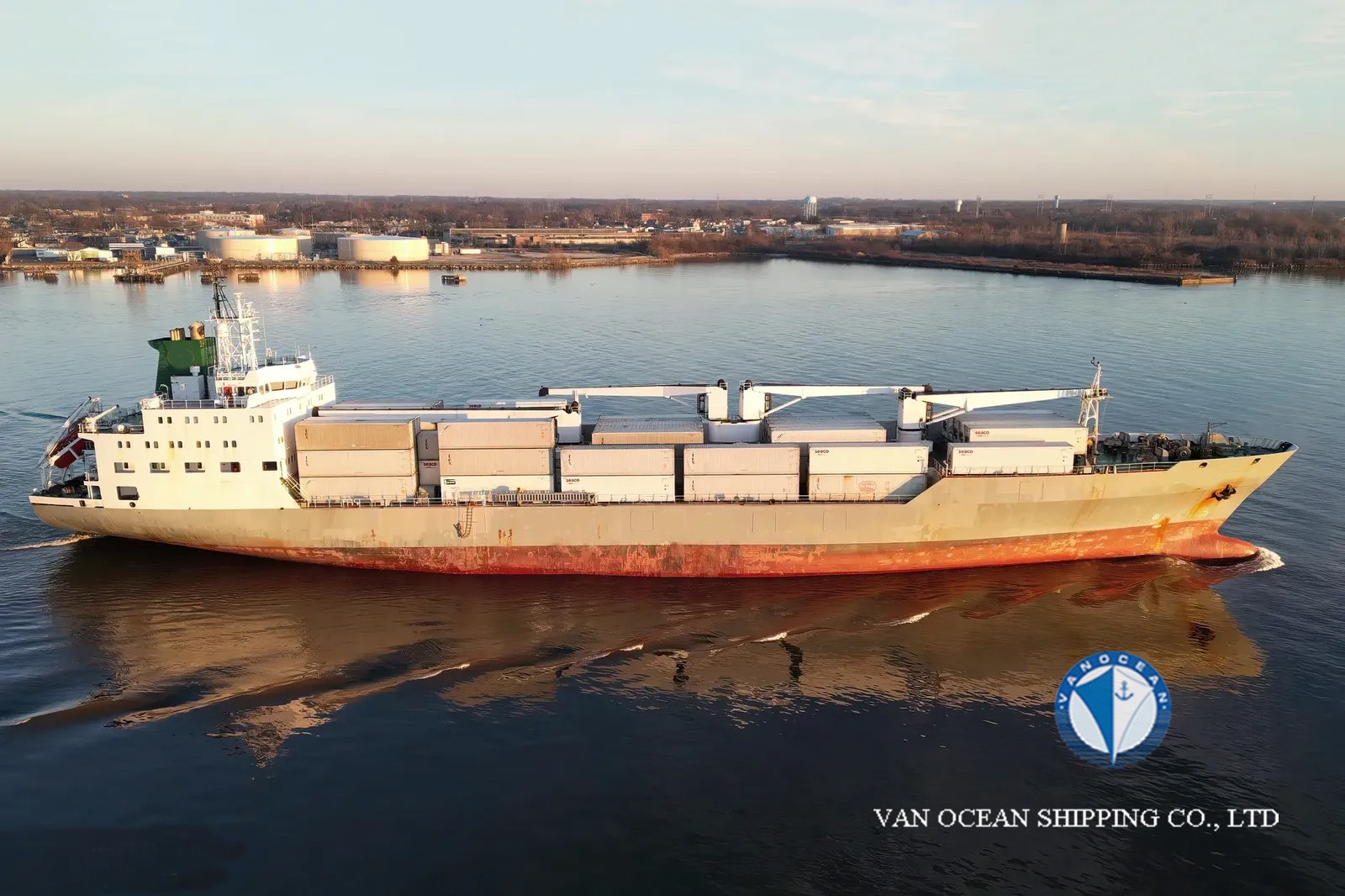

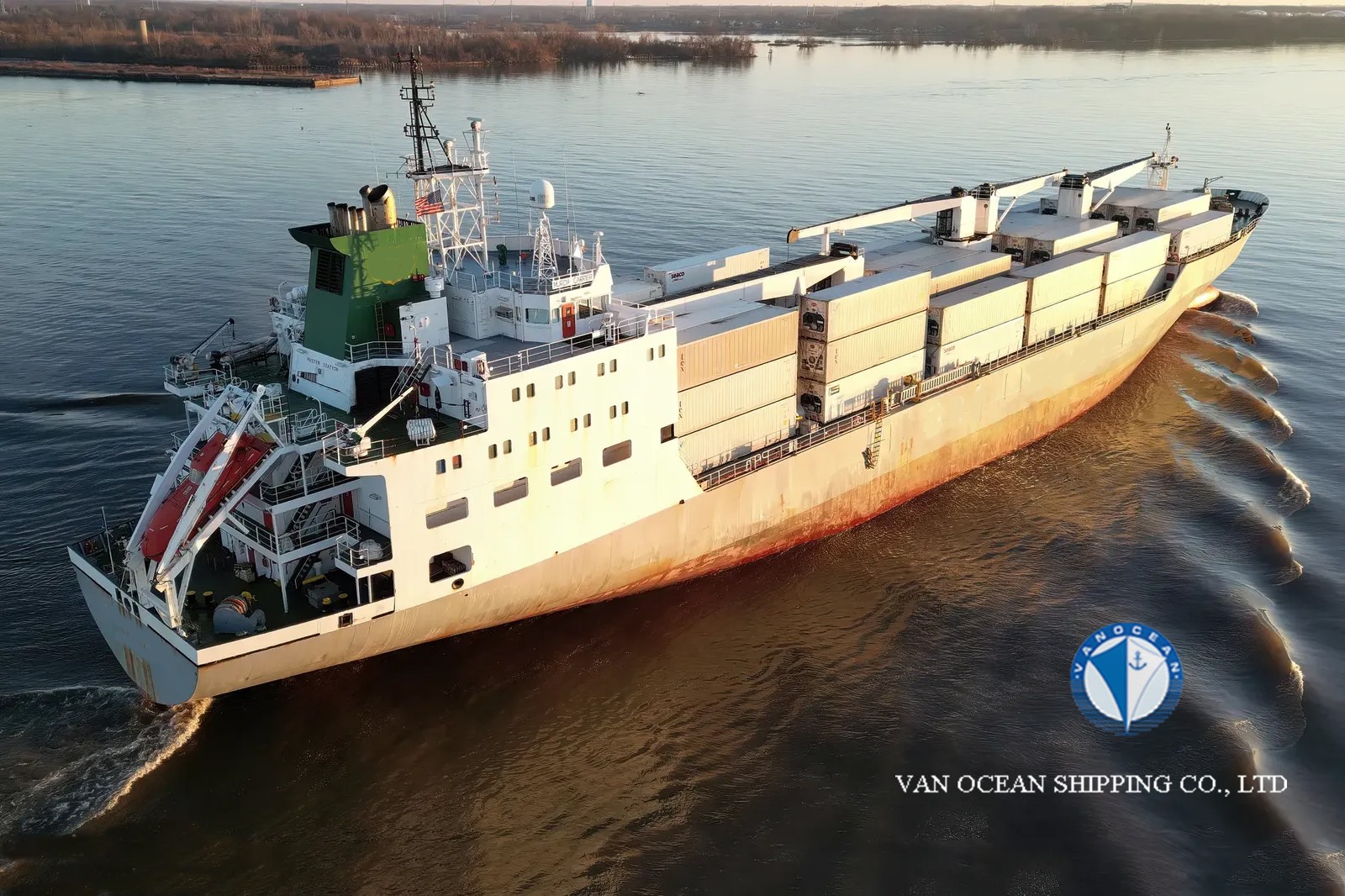

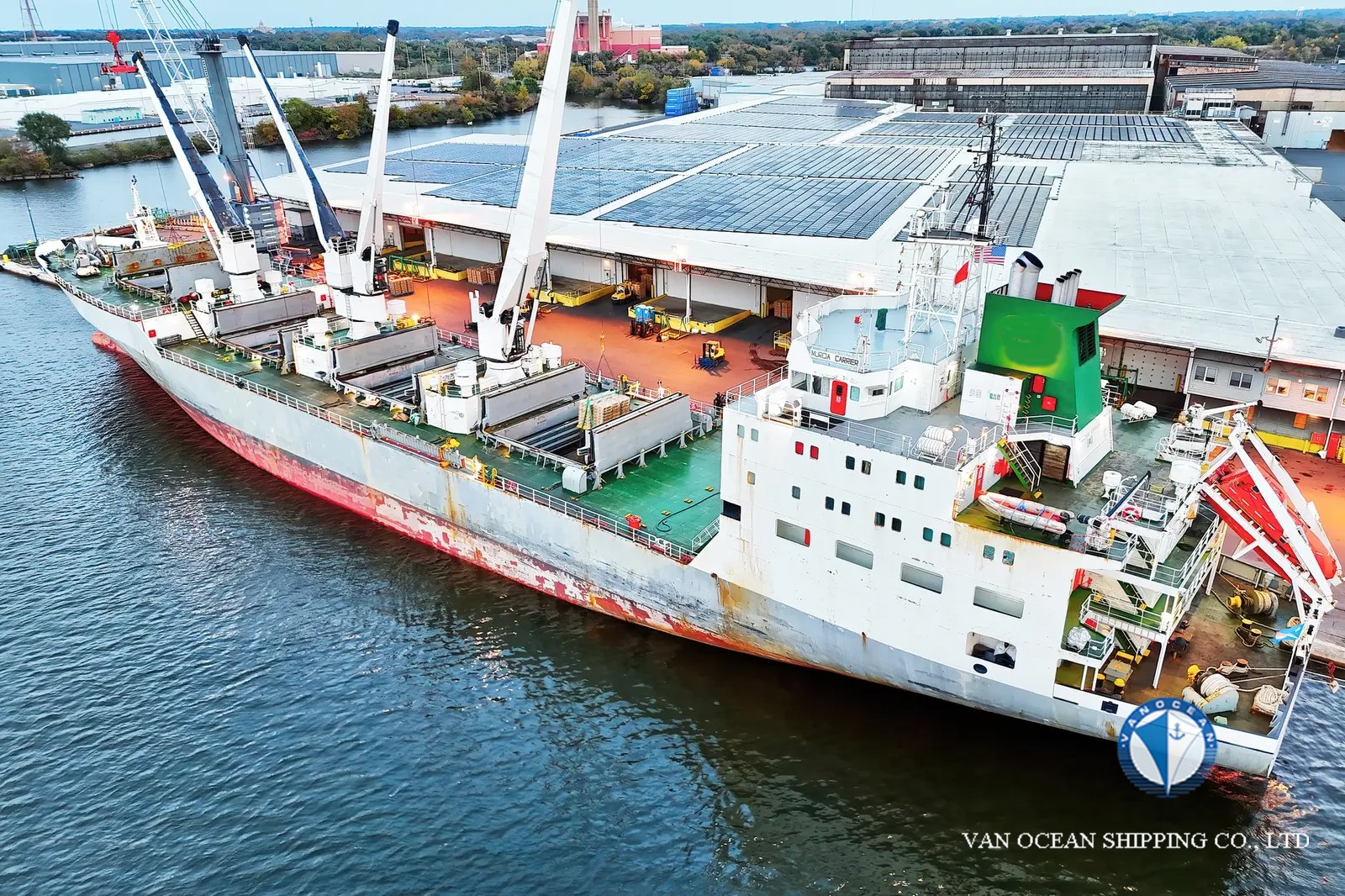

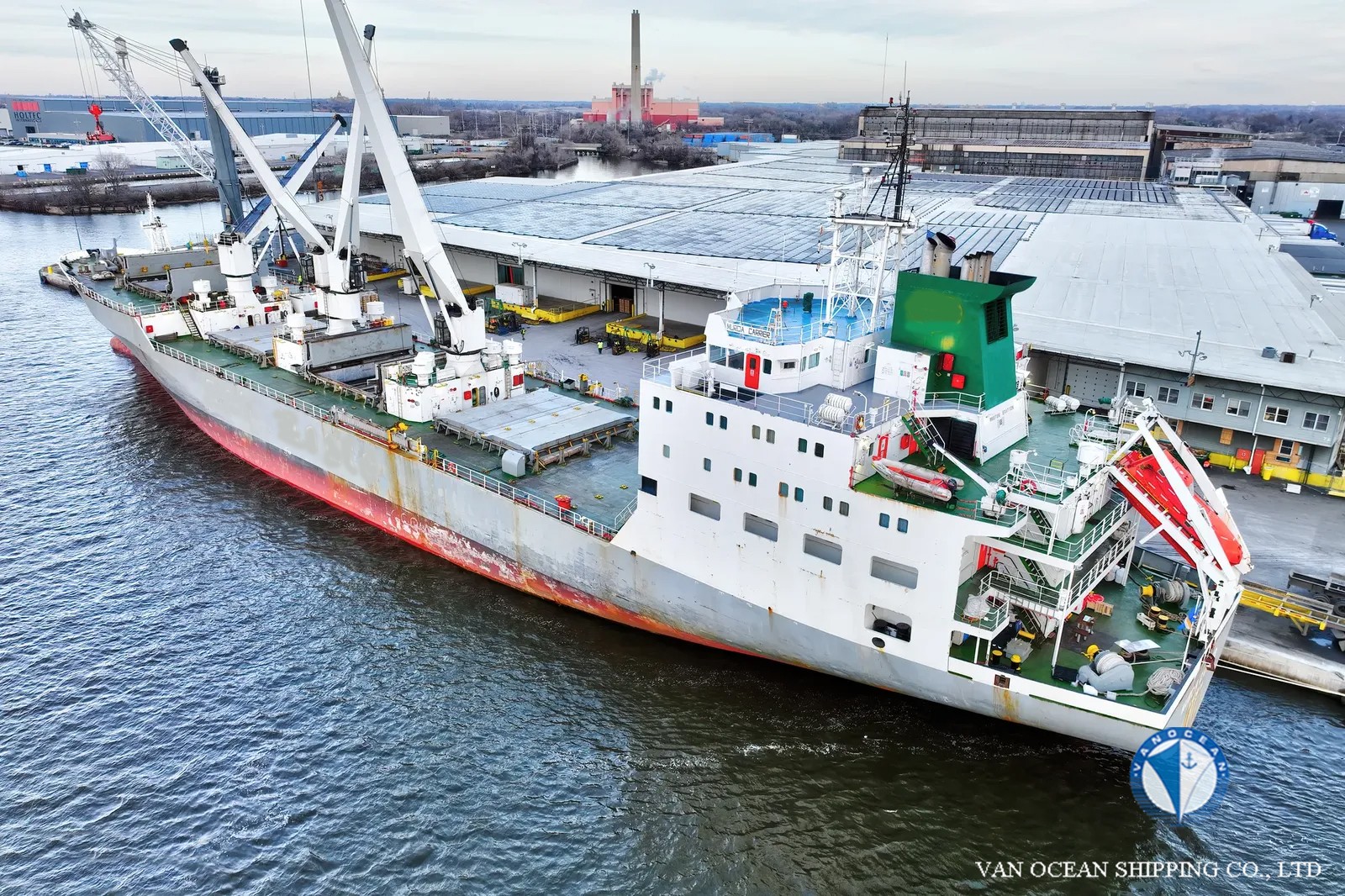

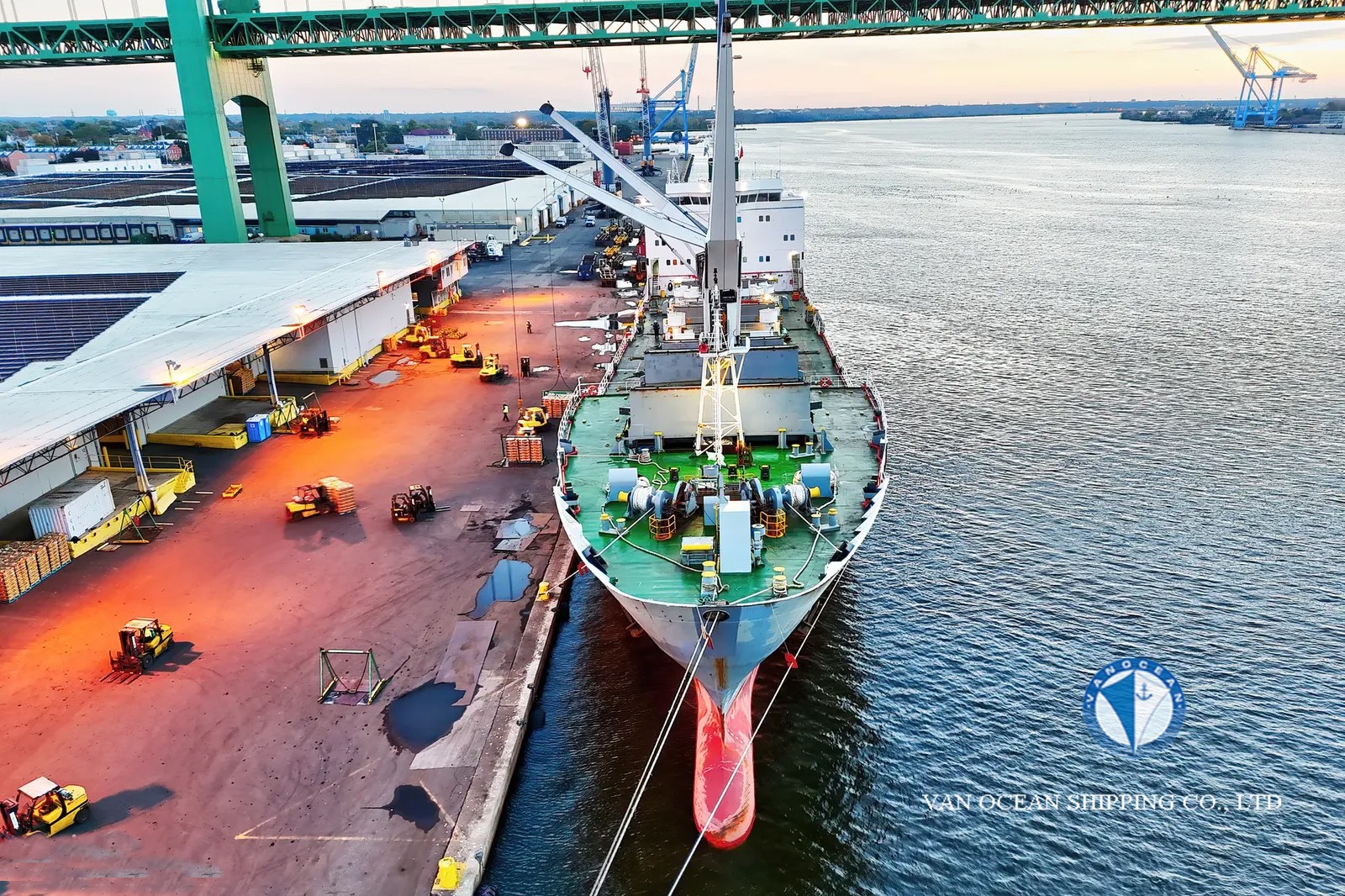

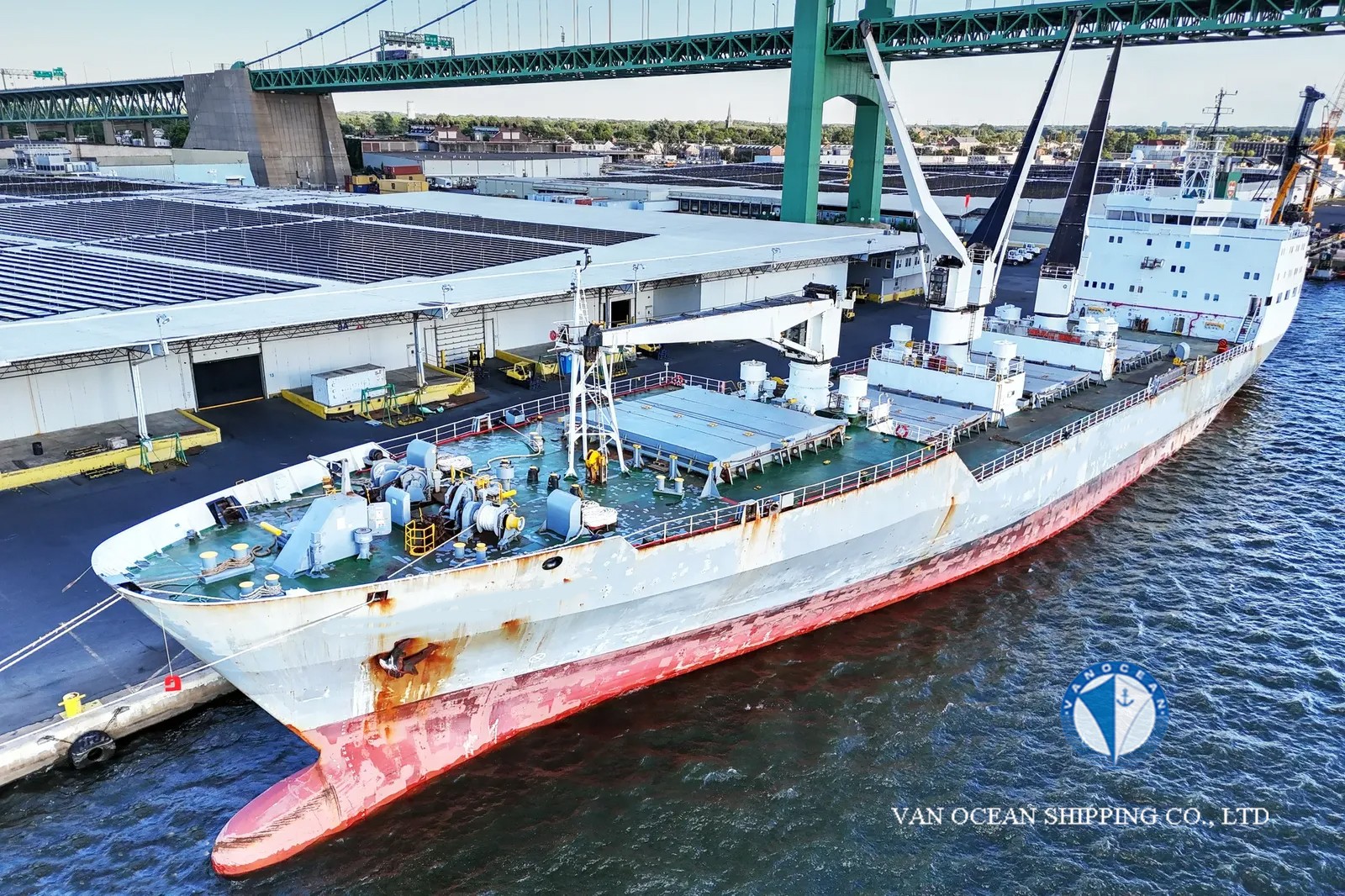

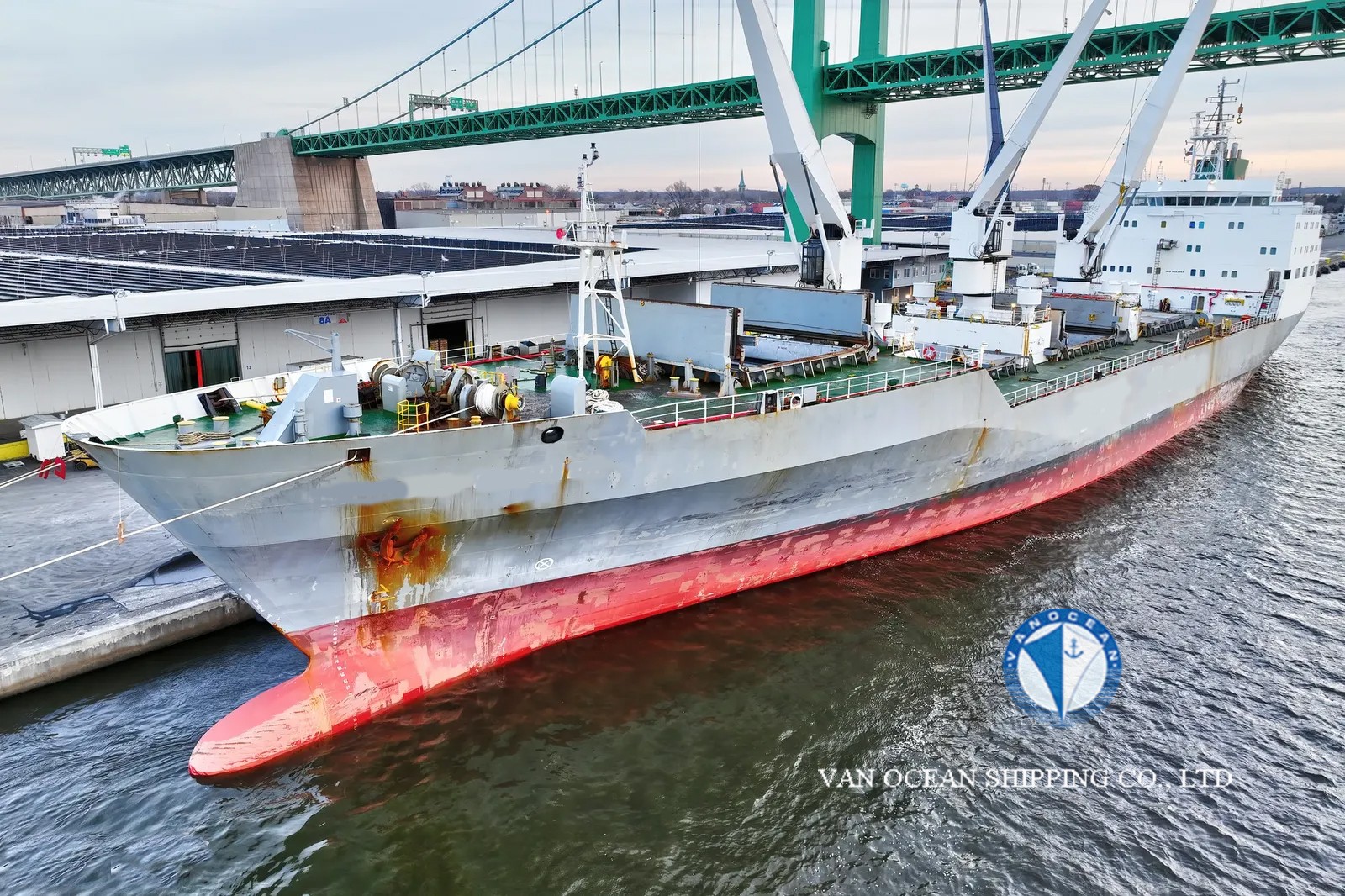

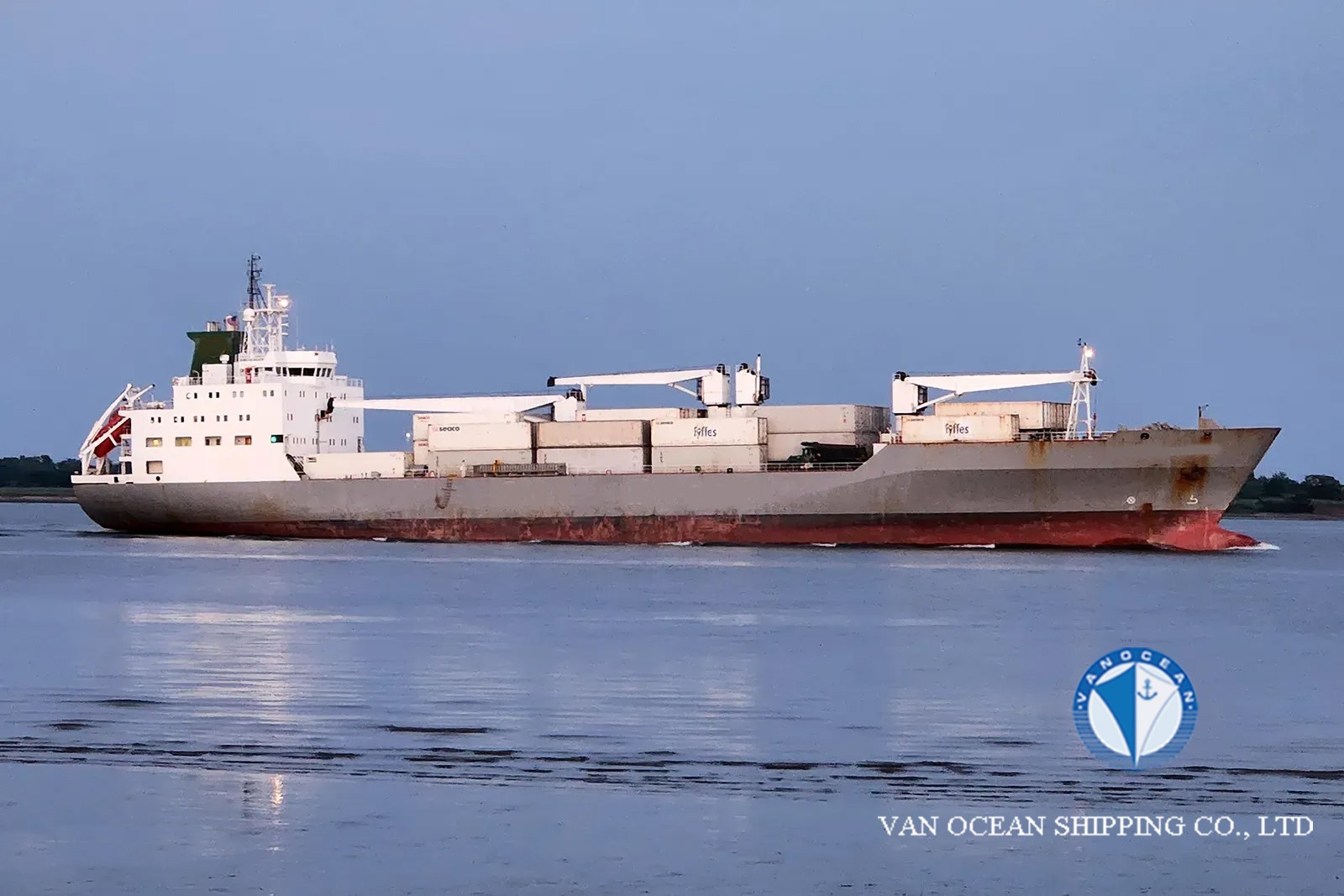

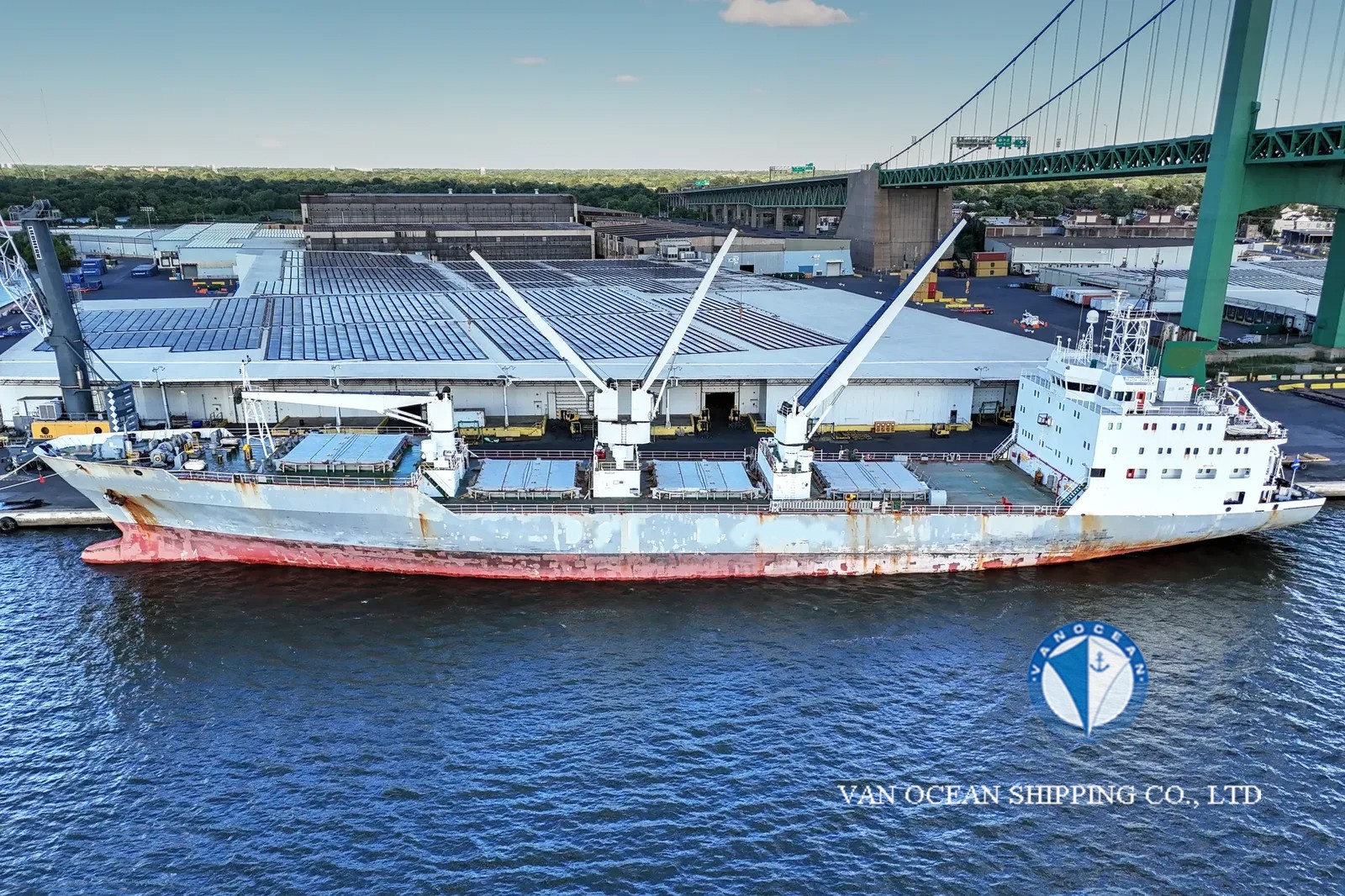

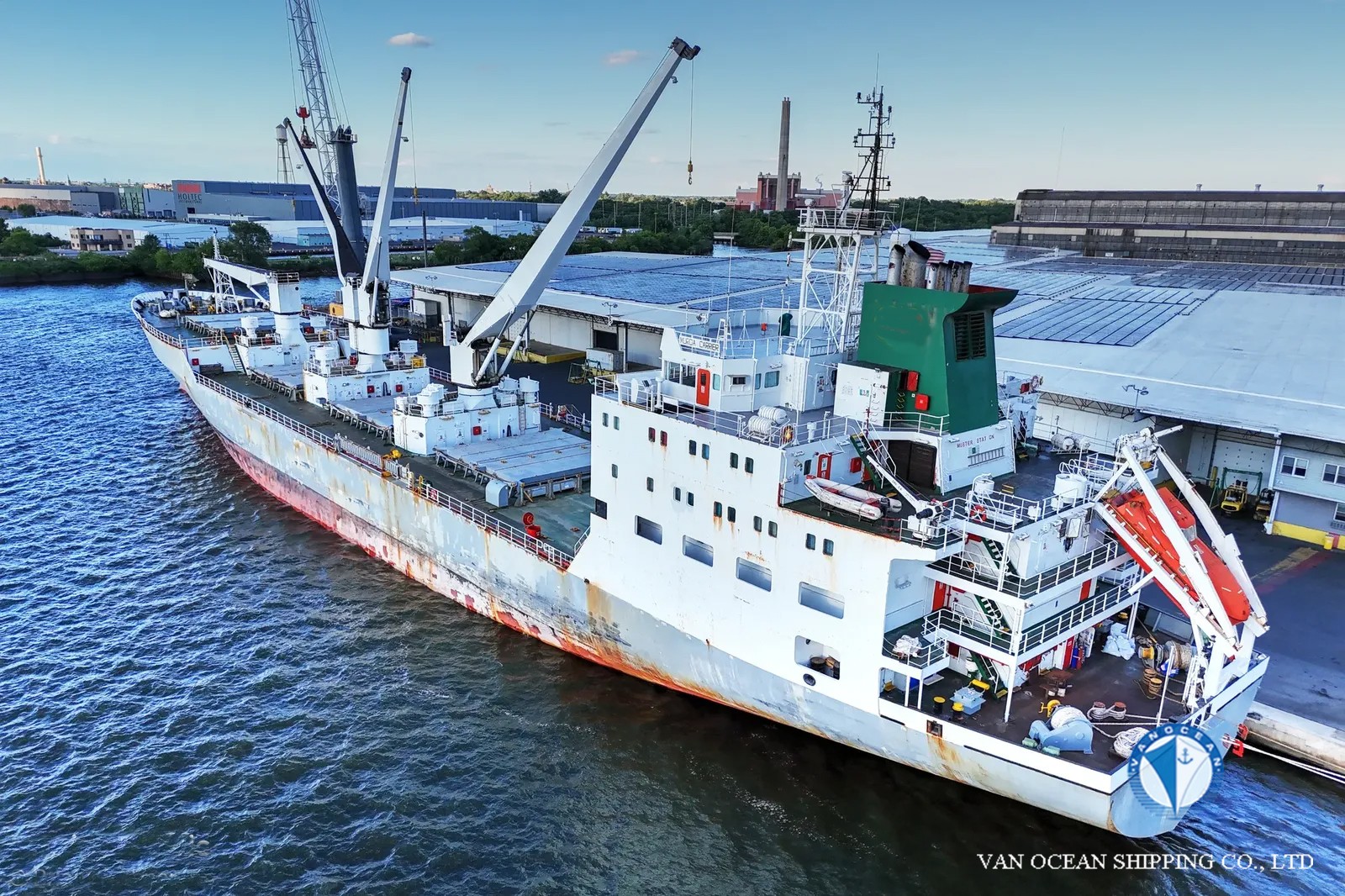

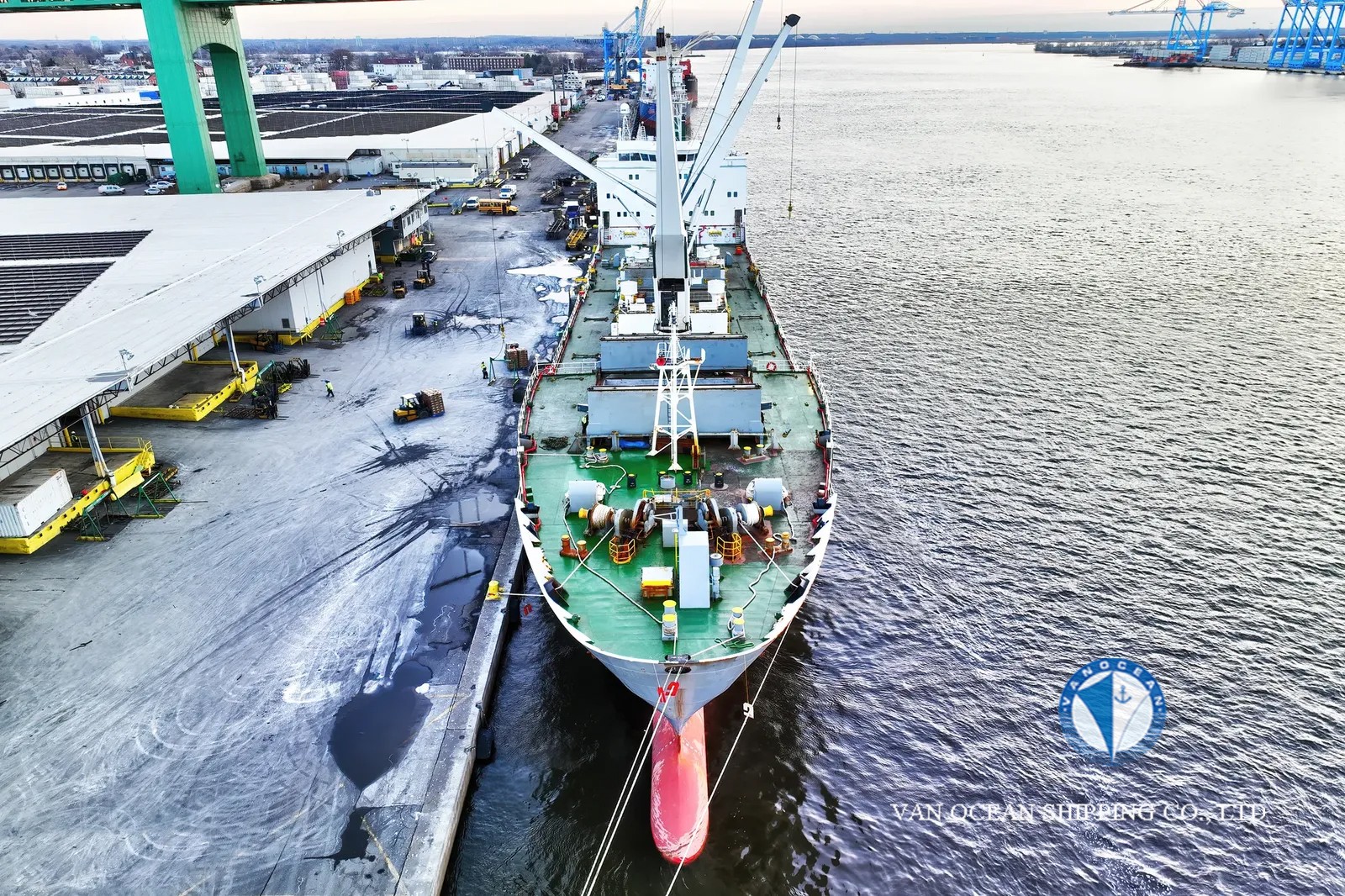

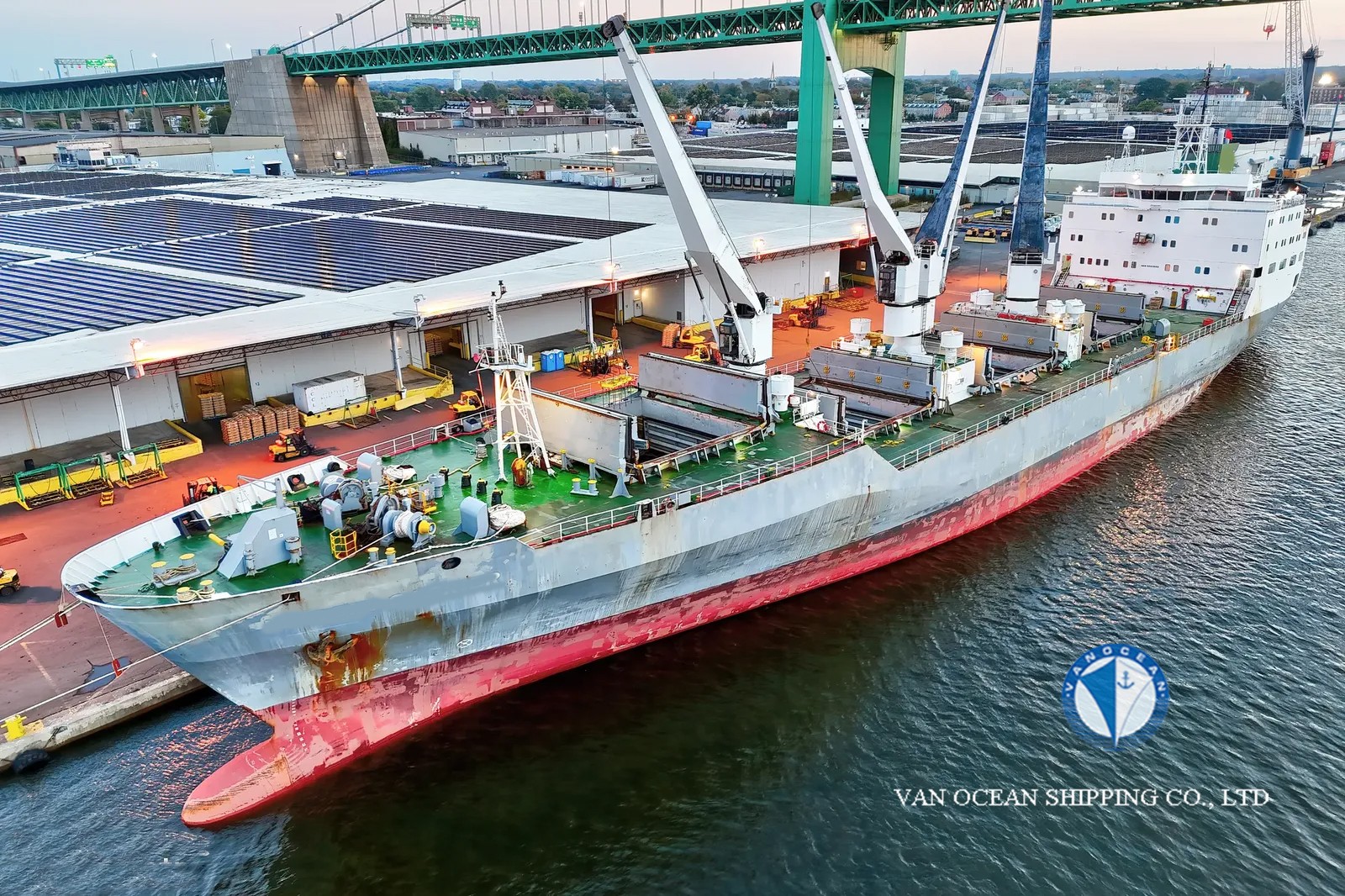

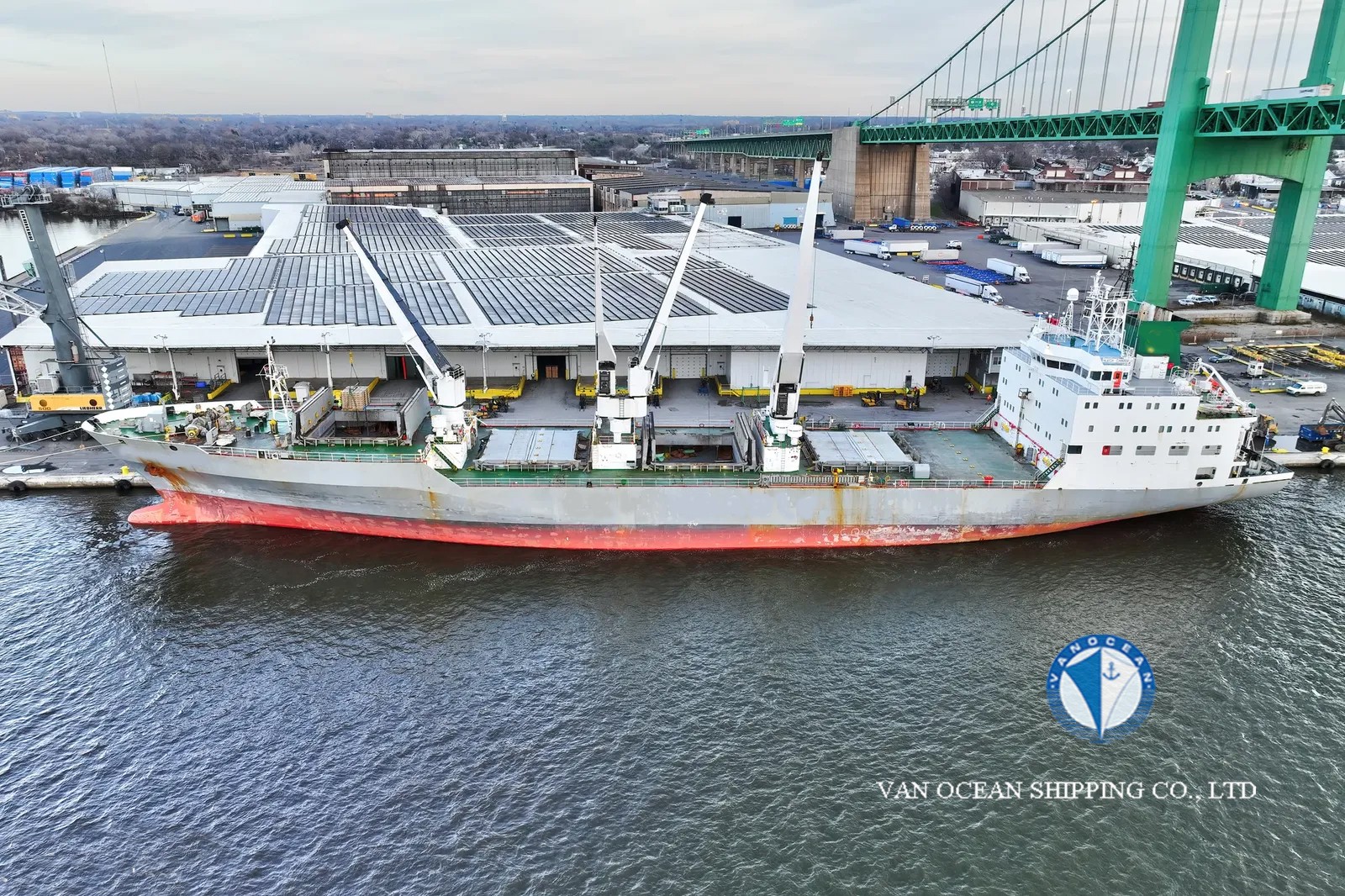

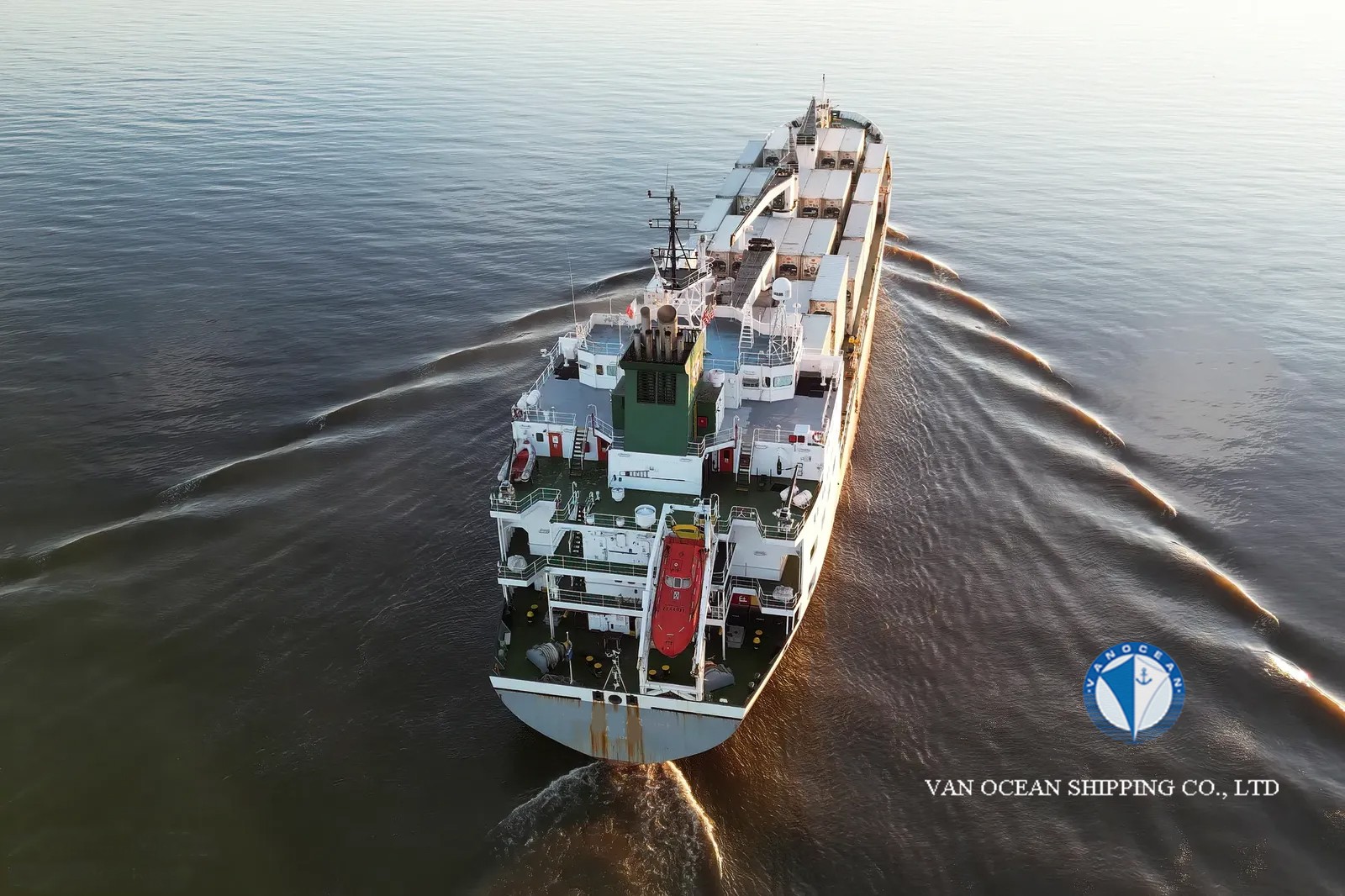

VESSEL NAME
REF614
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
MARSHALL ISLANDS
PORT OF REGISTRY
MAJURO
BUILT YEAR
1996
BUILT PLACE
STOCZNIA GDANSK, POLAND
CLASSIFICATION
BV
CLASS NOTATION
I❀ Hull❀ Mach，❀AUT-UMS , MON-SHAFT,❀REF-CARGO
SS
2026-05
DD
2026-05
LOA (M)
137.8
LBP (M)
126.8
BEAM (M)
21.5
DEPTH (M)
13.15
SUMMER DRAFT (M)
8.85
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
9438
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
4037
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
9357
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
5685
DISPLACEMENT (MT)
-
GEAR(S)
CRANES, 1 x 32MT 22M, 1 x 32MT 24M, 2 x 8MT 22M
M/E(S)
MAN B&W 7S50MC MCR 13600BHP 127RPM
M/E POWER (KW)
10010
A/E(S)
-
GENERATOR(S)
4 x BERGEN 1020KW ALTS. 1260KVA 720RPM
EMERGENCY GEN 90KW
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
R22, CACL2 BRINE, 4 BRINE CHILLERS+COMPRESSORS
SPEED/CONSUMPTIONS
BANANA: 20KTS ON 45MT(380)/ 17KTS ON 31MT+3.5-5.5MT(380)
BALLAST: 20KTS ON 38MT/ 17KTS ON 28MT
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
1922
TANKS CAPACITY (CBM)
MDO: 150; FW: 245
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
-
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
16
DECK(S)
4
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
419894
CARGO CAPACITY (CBM)
11895
FLOOR SPACE CAPACITY (SQM)
4948
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
8, EACH ZONE 2 CHAMBERS
TEMPERATURE (℃)
-25 /+13
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
3700
CONTAINER CAPACITY
52FEU
REEFER PLUG(S)
52
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
