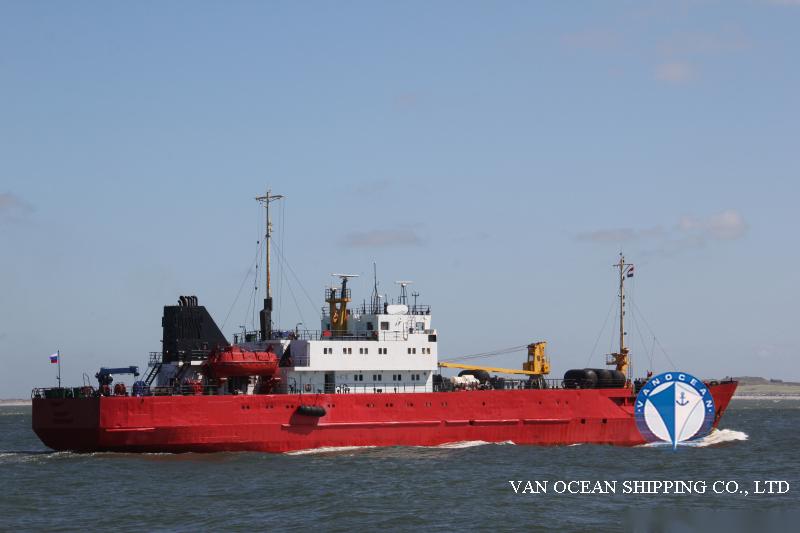

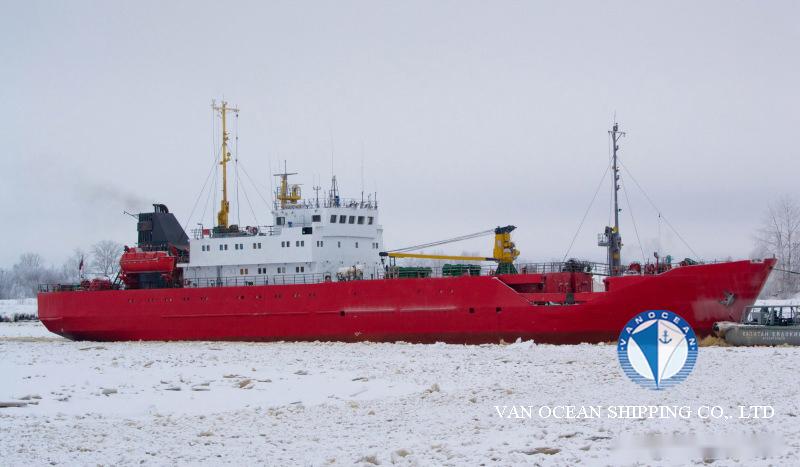

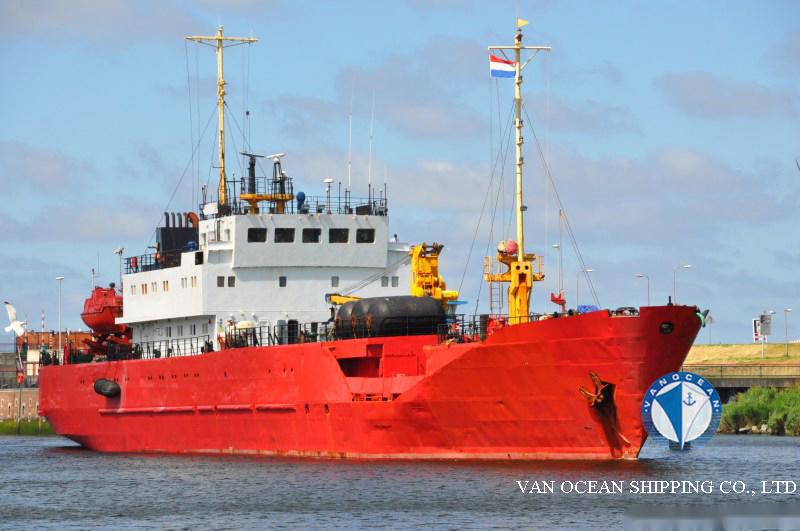

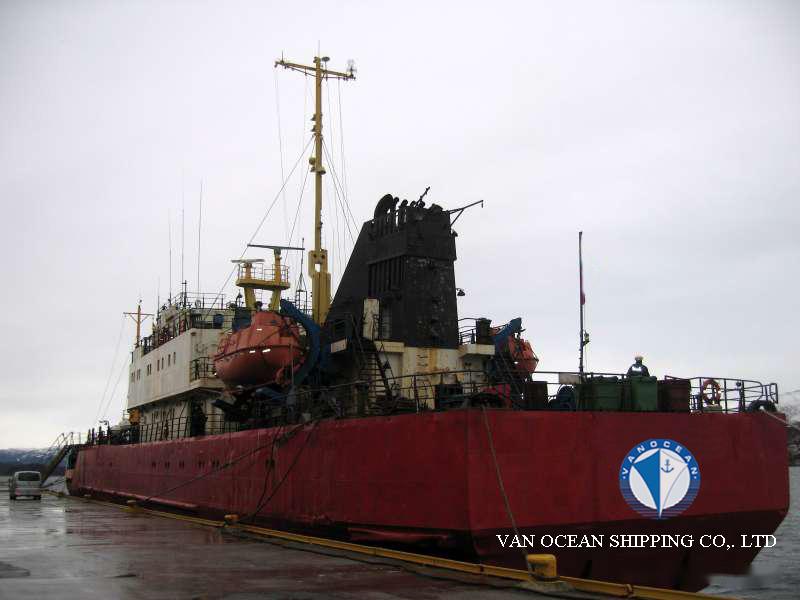

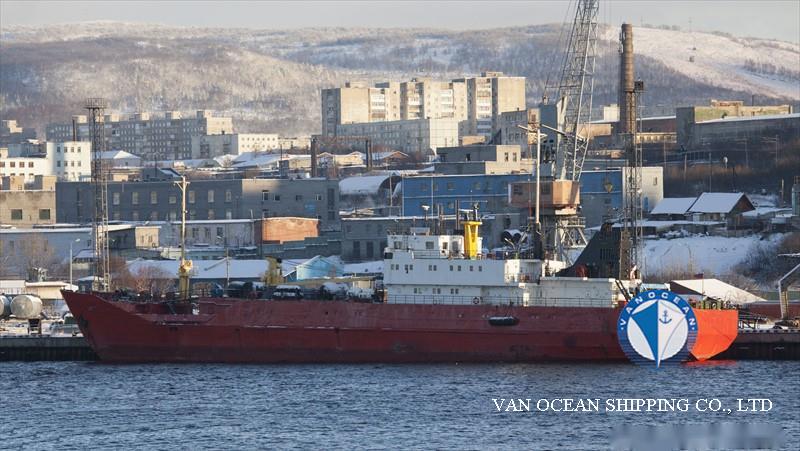

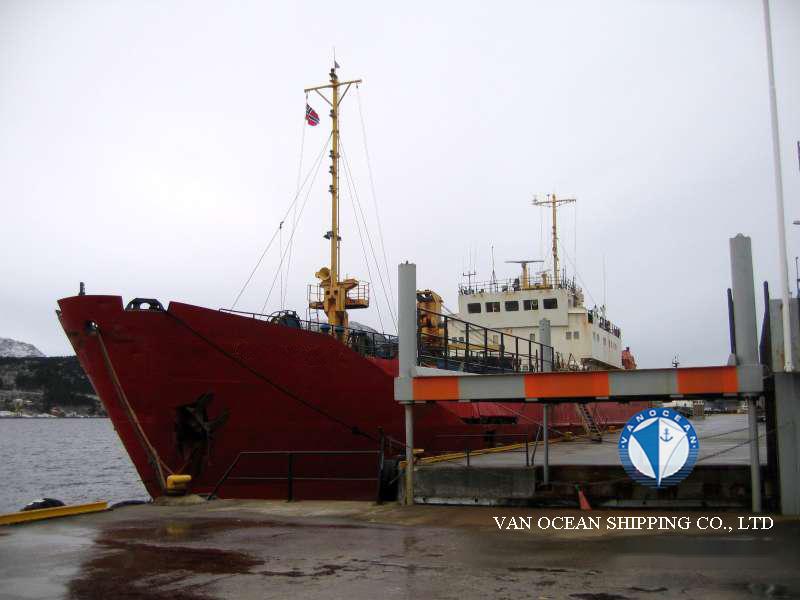

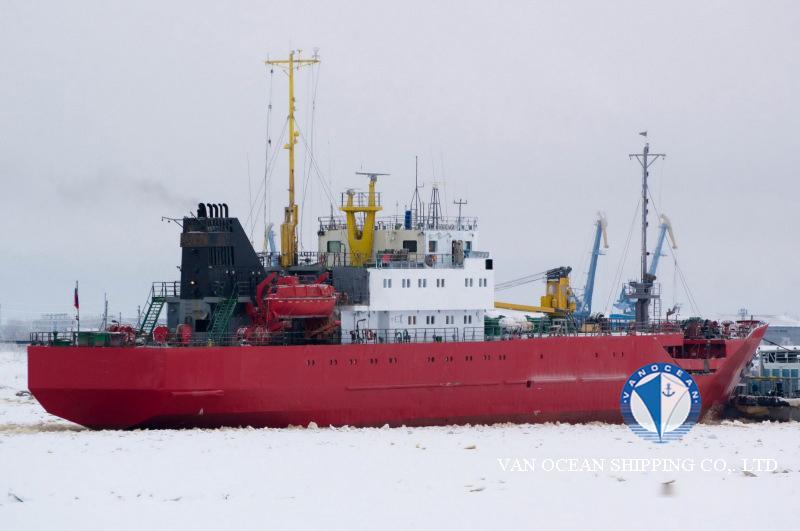

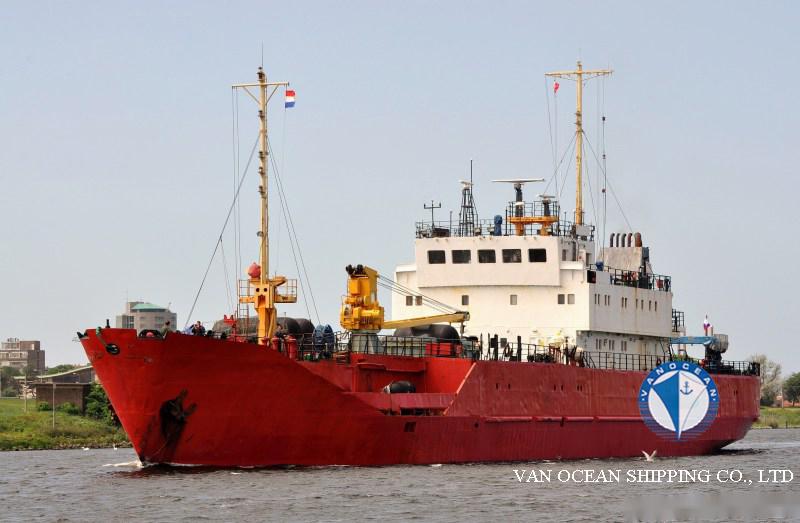

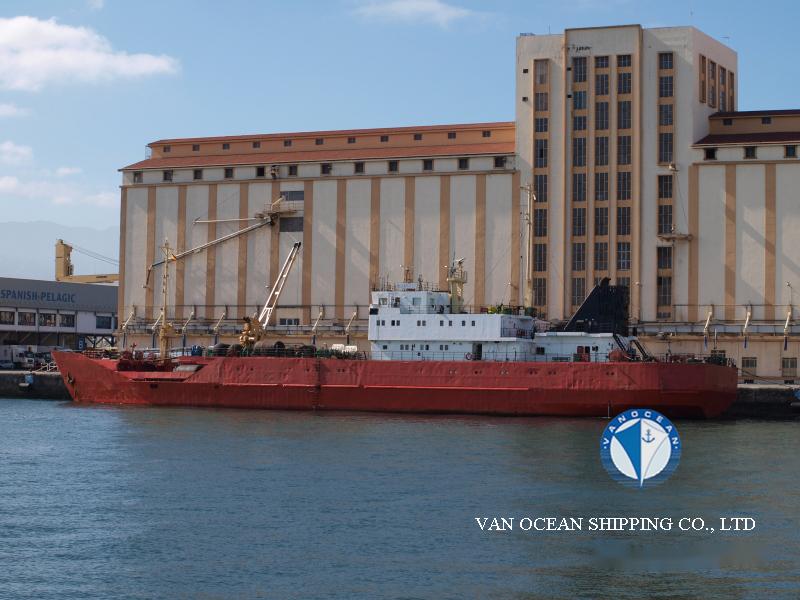

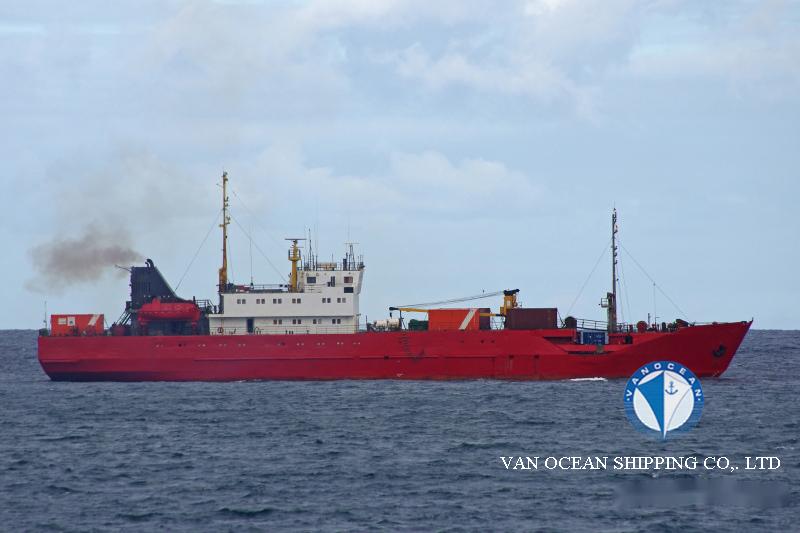

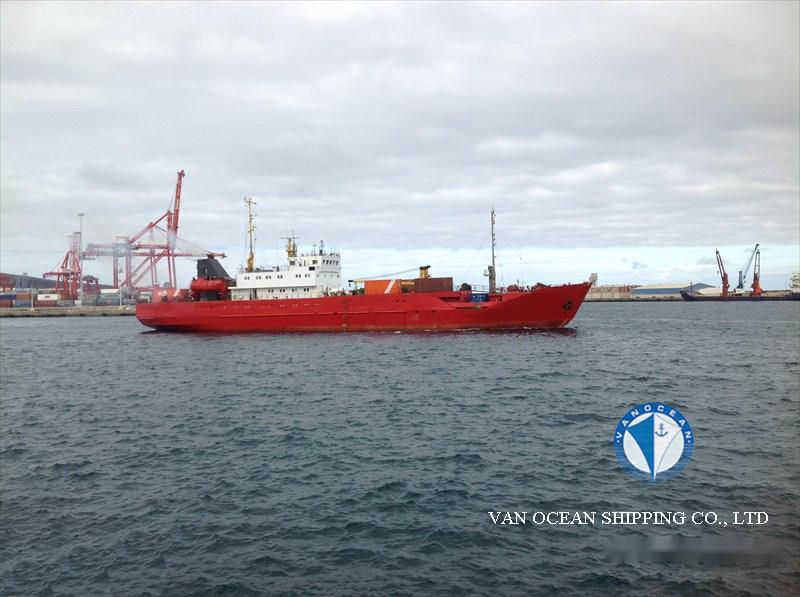

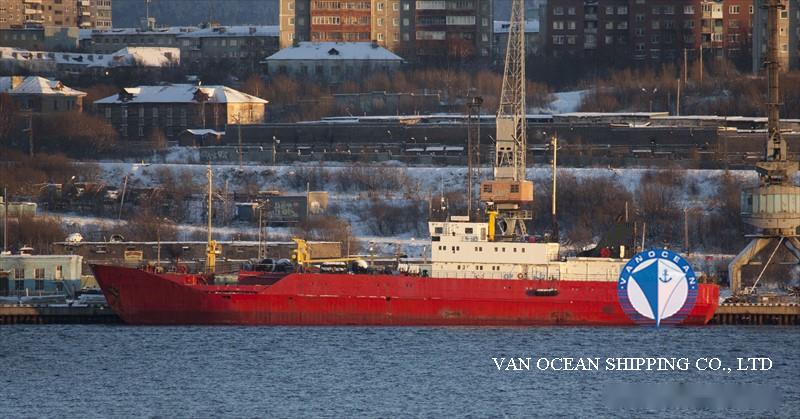

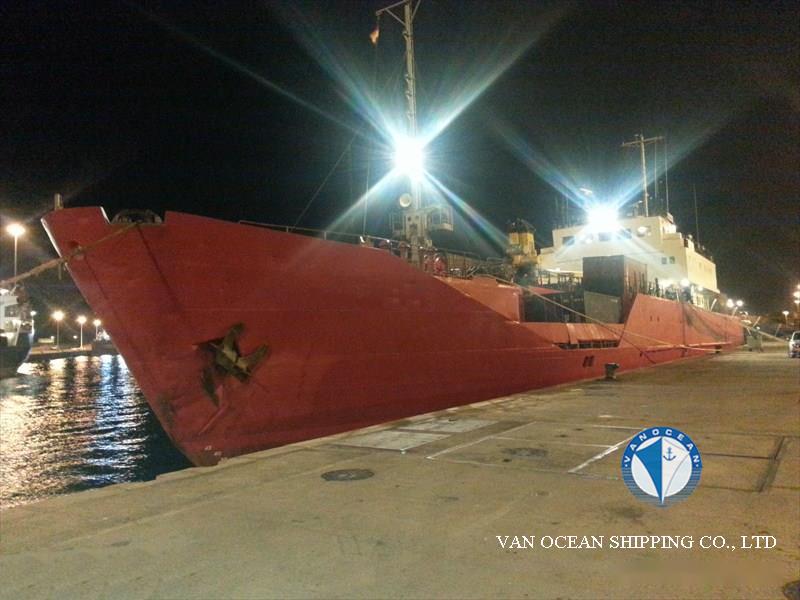

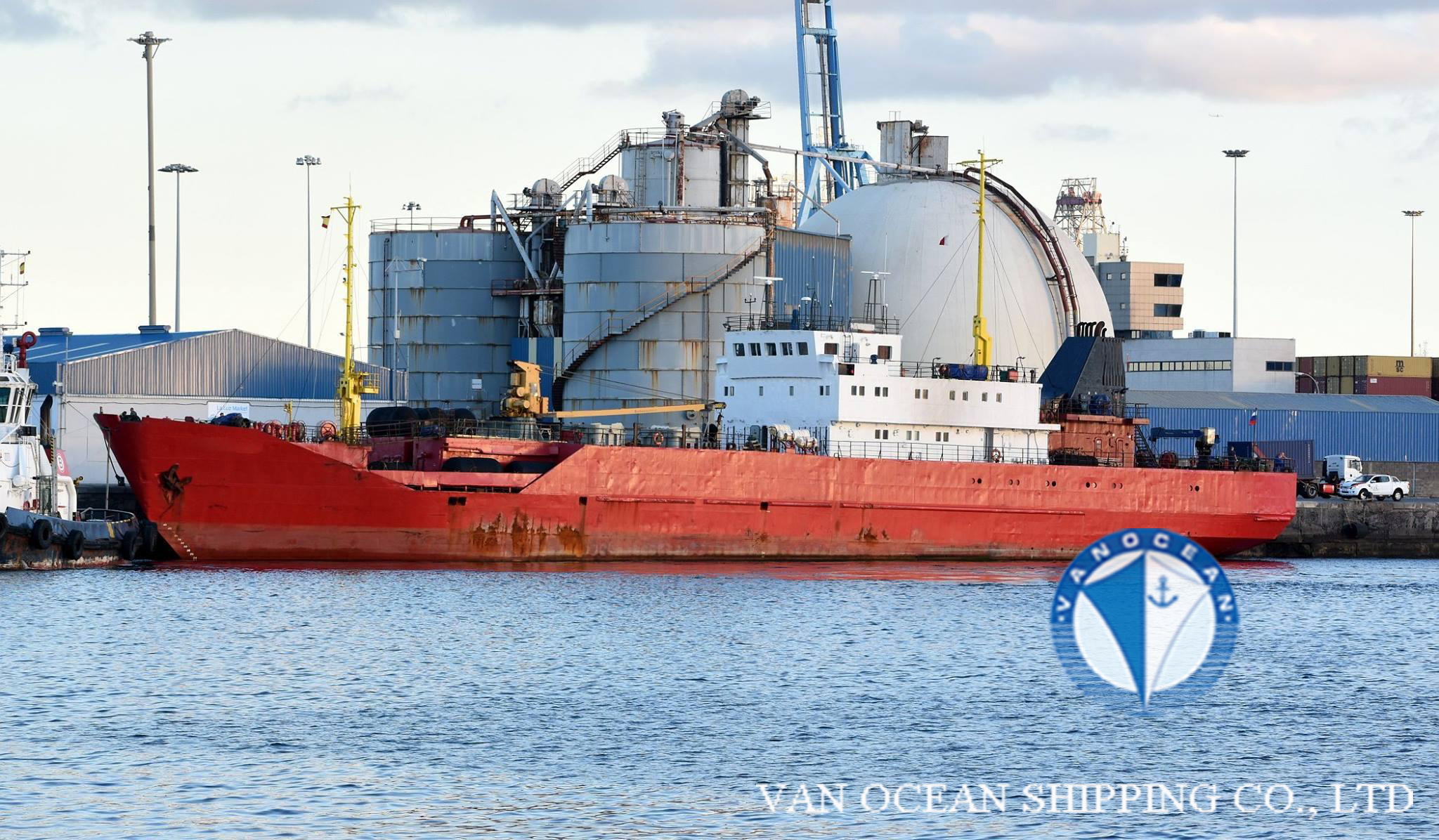

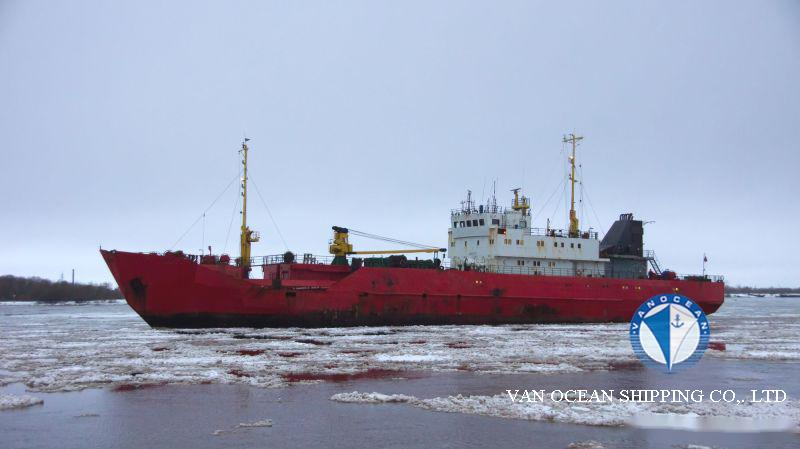

VESSEL NAME
REF633
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
RUSSIA
PORT OF REGISTRY
ST. PETERSBURG
BUILT YEAR
1987
BUILT PLACE
BALTIJA SHIPBUILDING YARD, KLAIPEDA, LITHUANIA
CLASSIFICATION
RS
CLASS NOTATION
KM(*) L3 (at d <= 3,75 m) L4 (at d <= 4,04 m) [1] AUT2 REF
SS
07-2027
DD
07-2025
LOA (M)
85.1
LBP (M)
76.8
BEAM (M)
13.04
DEPTH (M)
6.5
SUMMER DRAFT (M)
4.49
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
2399
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
719
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
1426
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
CRANES, 1 x 3.2MT, OUTREACH 5.0M
STERN HYDRAULIC CRANE, 11MT, 1M； 0.4MT 20M
M/E(S)
1 x DVS 8NVD 48A2U 1160BHP (BUILT 1986 GERMANY)
M/E POWER (KW)
852
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
FREON: R-22
SPEED/CONSUMPTIONS
MAX 10.2 KTS: 5 MT/DAY; ECONOMICAL 8.5 KTS: 4.2MT/ DAY
4.2 MT SAILING, 0.7 MT PORT
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
254
TANKS CAPACITY (CBM)
-
NUMBER OF CARGO HOLDS
2
HATCH NUMBER
2
HATCH TYPE
-
HATCH SIZE (M)
2.2 x 3.4
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
-
DECK(S)
1
DECK HEIGHT (M)
2.7
CARGO CAPACITY (CBFT)
71500
CARGO CAPACITY (CBM)
2620
FLOOR SPACE CAPACITY (SQM)
-
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
-
TEMPERATURE (℃)
-24/+10
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
60
(17 CREW+12 PASSENGERS+31 SPECIALISTS) IN SINGLE, DOUBLE AND 4 MAN SUITS OFFICE LABORATORY AND CONFERENCE OPTIONS
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
BOILERS: 1987 KLAIPEDA, 15.0 SQM, 5.0 KG/SQCM
UNLIMITED NAVIGATION AREA
