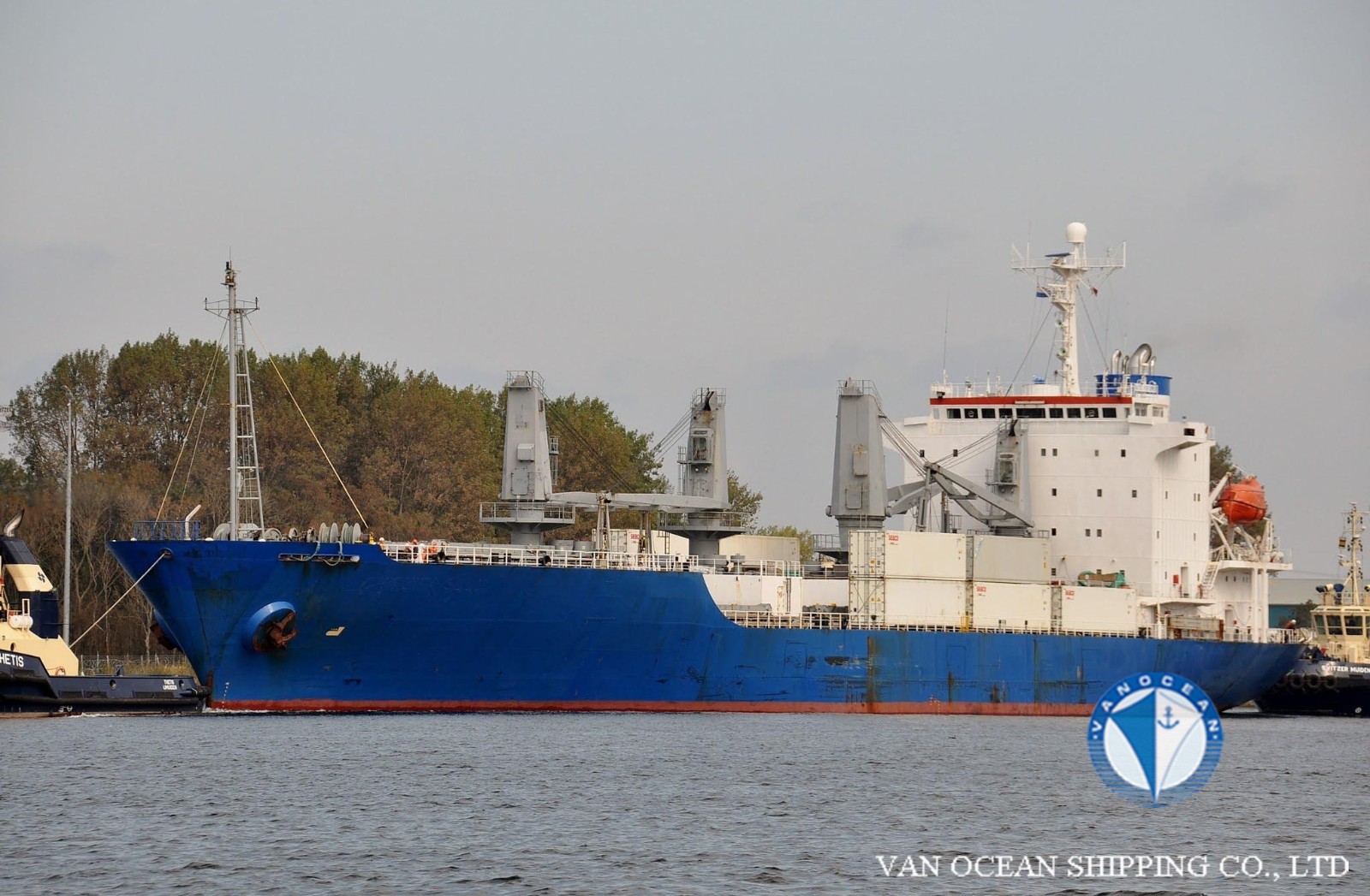

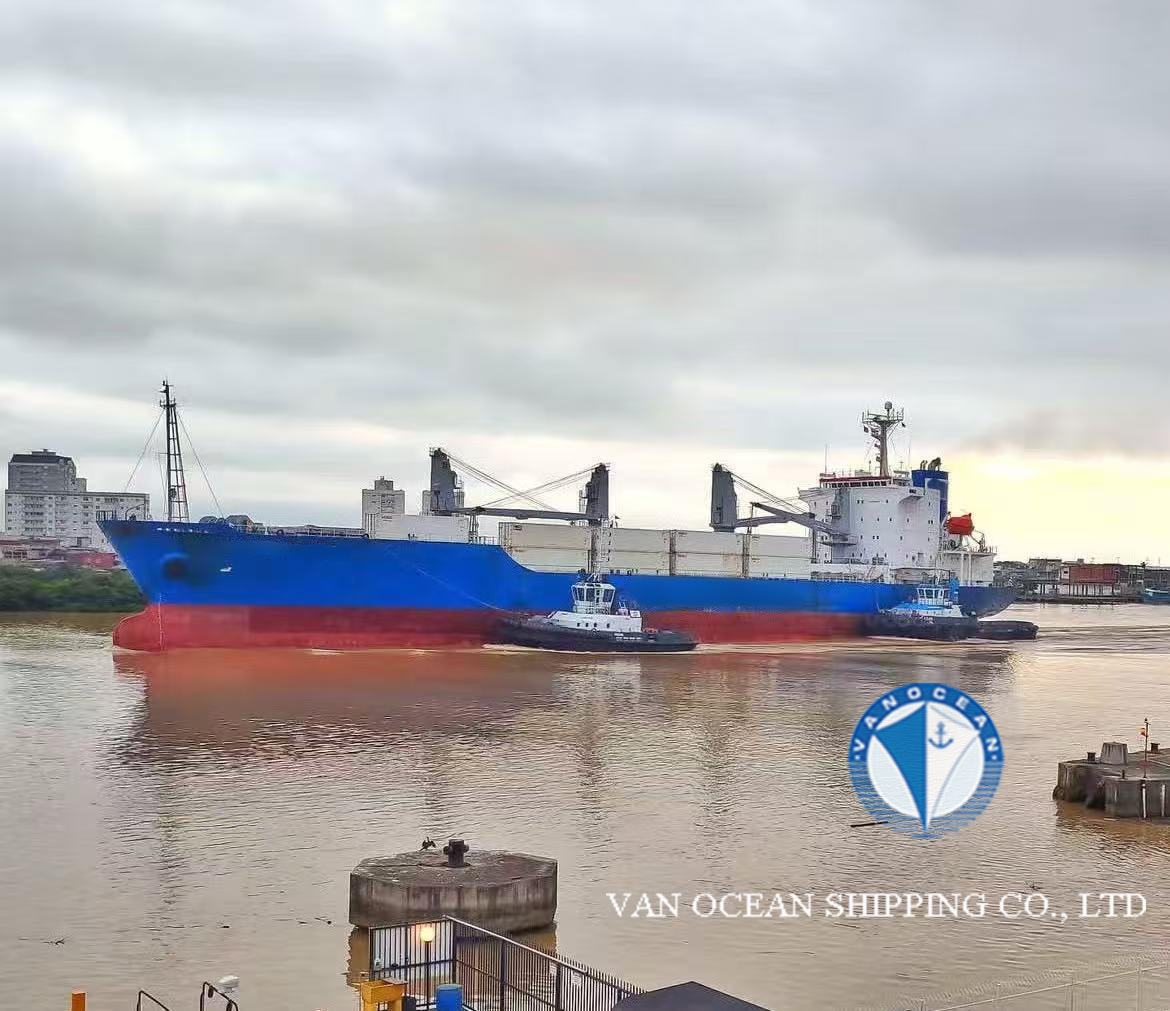

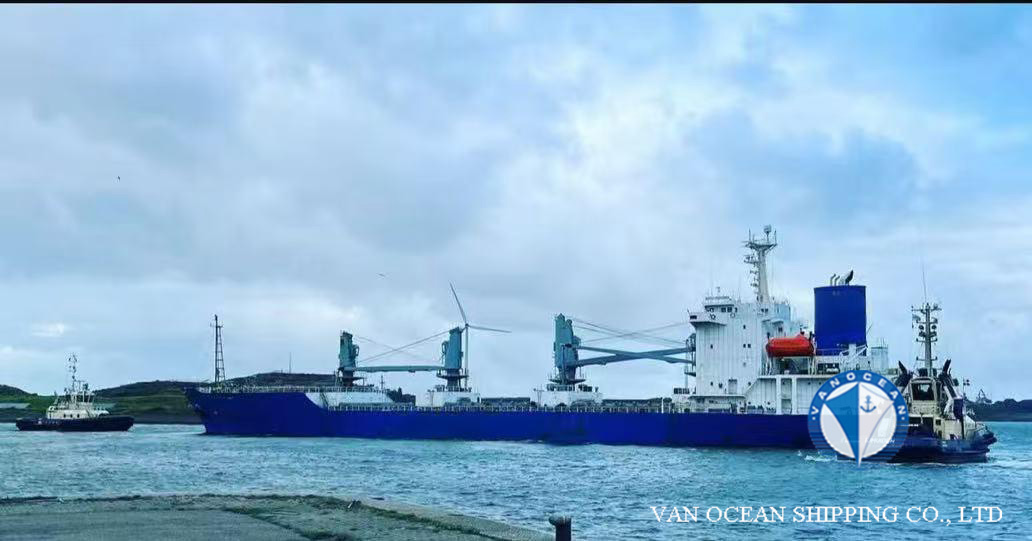

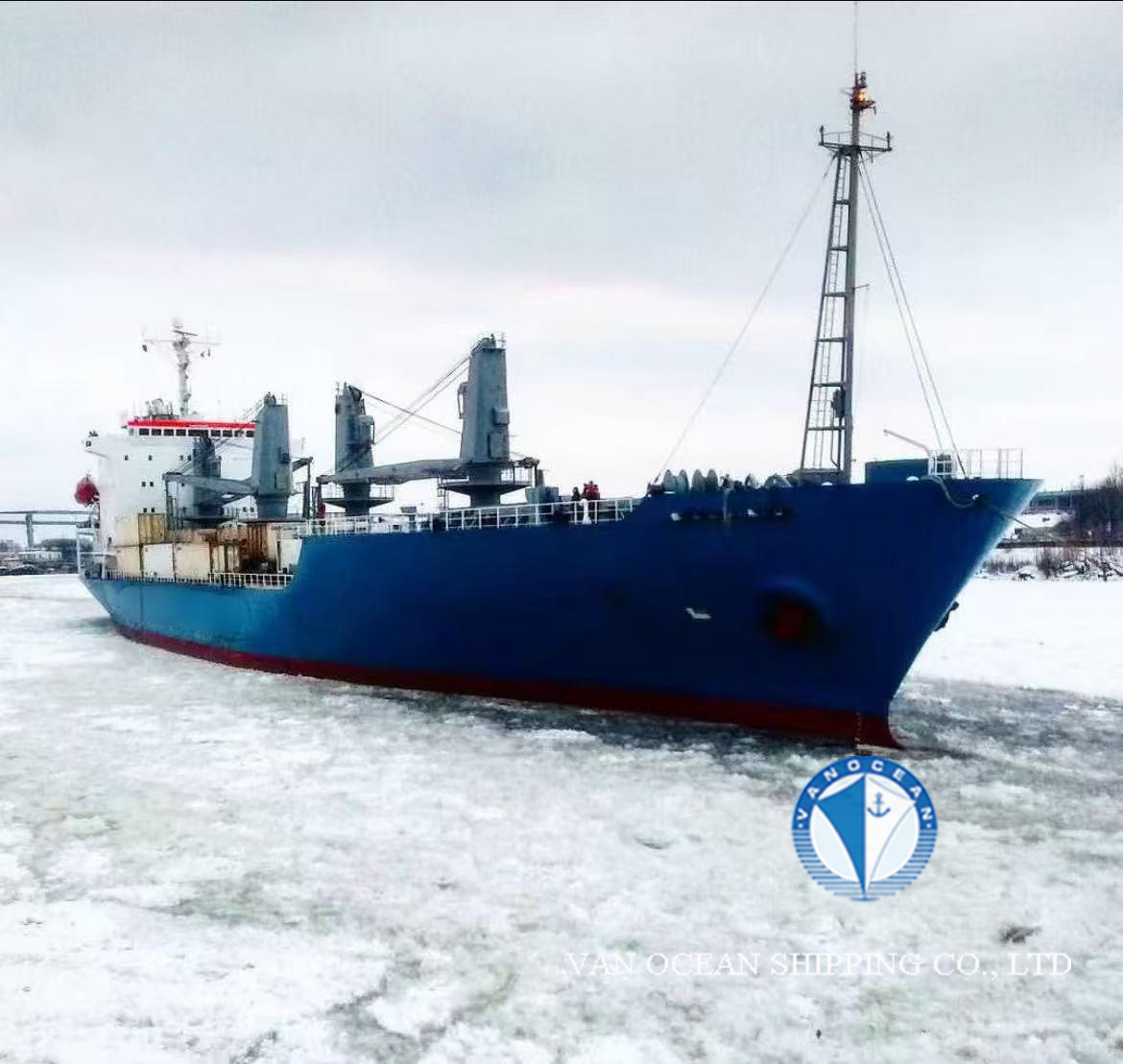

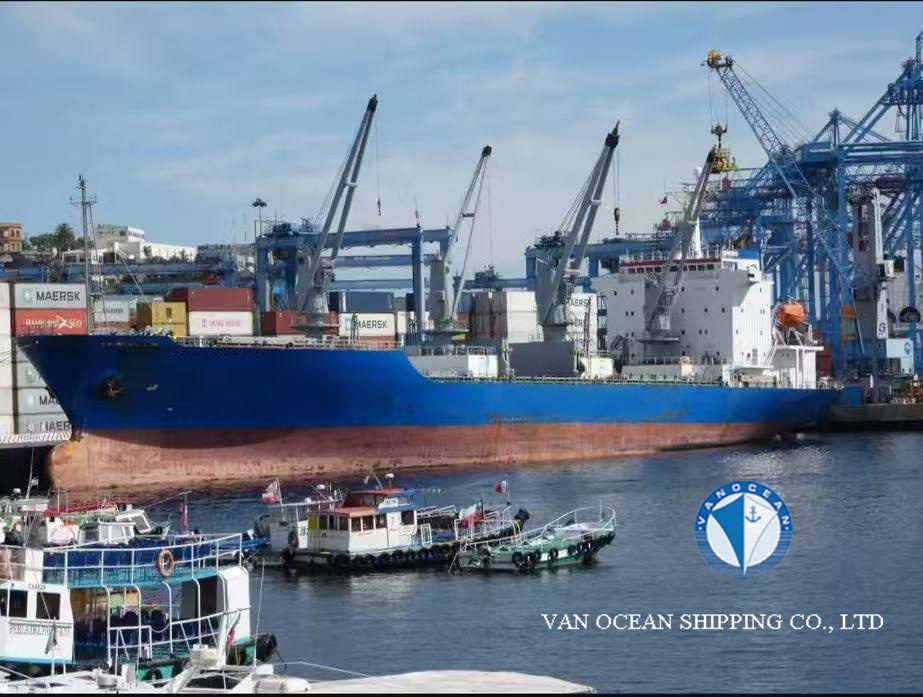

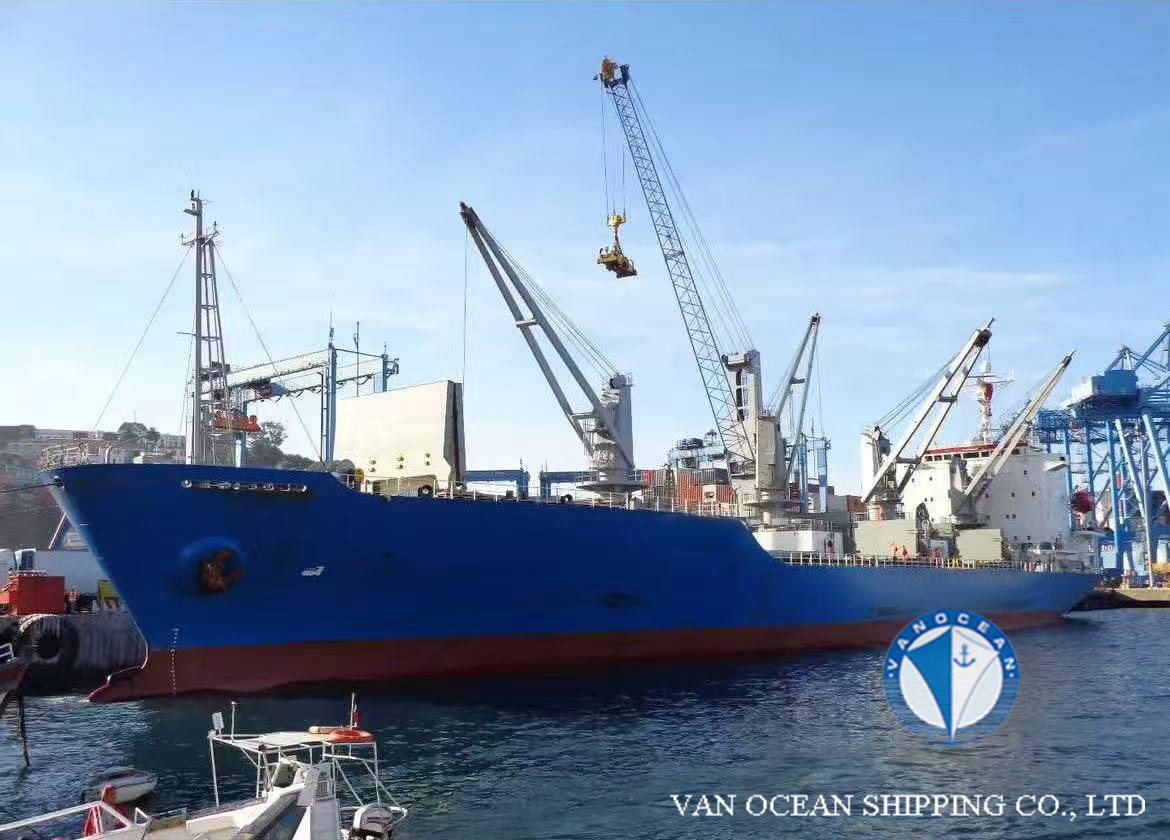

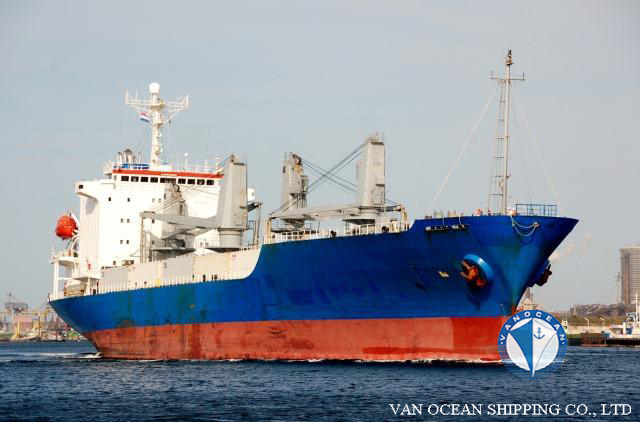

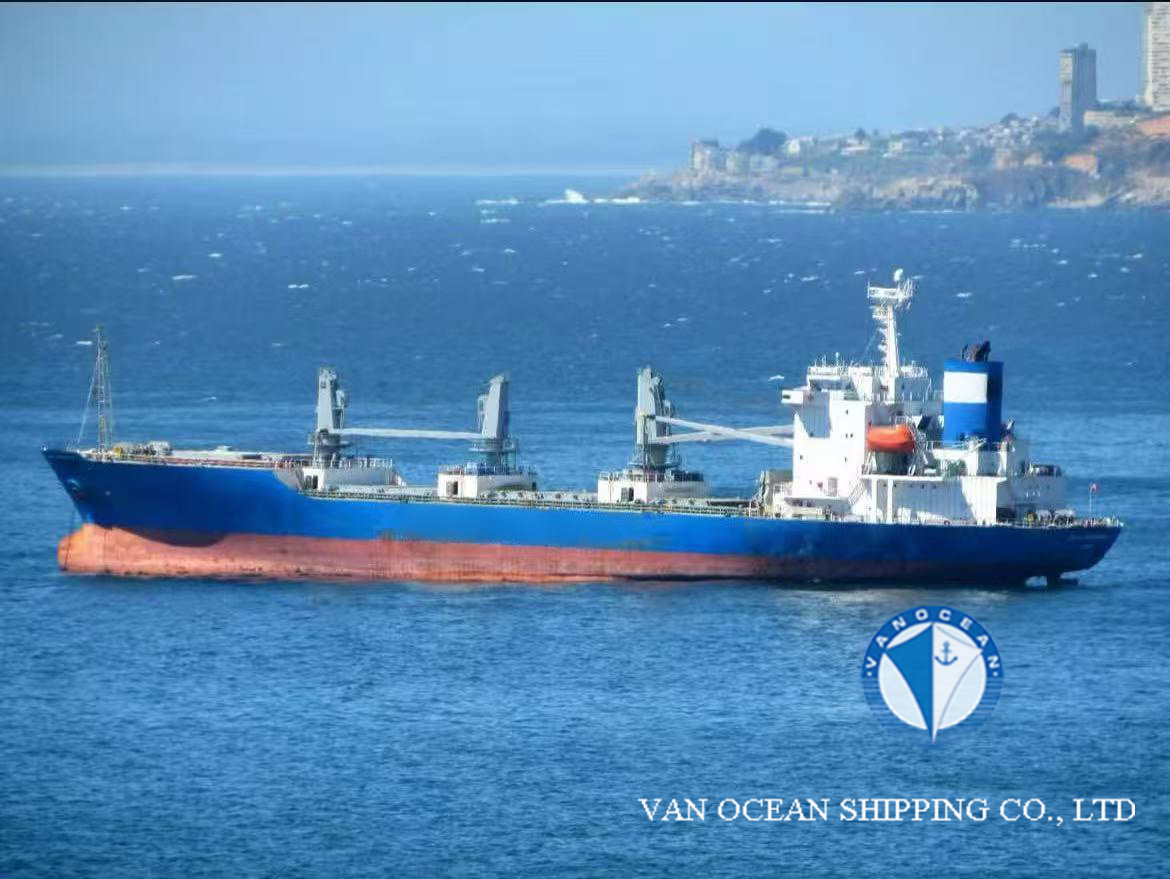

VESSEL NAME
REF671
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
BAHAMAS
PORT OF REGISTRY
NASSAU
BUILT YEAR
1992
BUILT PLACE
SHIKOKU DOCK, JAPAN
CLASSIFICATION
RINA
CLASS NOTATION
C❀ ICE CLASS ID❀ REF-CARGO
SS
07-2027
DD
07-2025
LOA (M)
150.01
LBP (M)
142.13
BEAM (M)
22.5
DEPTH (M)
13.2
SUMMER DRAFT (M)
9.06
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
10381
PANAMA GT (MT)
11397
SUEZ GT (MT)
11027
NT (MT)
5253
PANAMA NT (MT)
8688
SUEZ NT (MT)
8446
SUMMER DWT (MT)
10603
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
6355
DISPLACEMENT (MT)
-
GEAR(S)
ELECTRIC CRANES: NO. 3 x 35 MT; NO. 1, 2, 4 x 8 MT EACH
OUTREACH: 8M
M/E(S)
MITSUI B&W 6S60 MC 15084BHP
M/E POWER (KW)
11253
A/E(S)
4 x DAIHATSU 6DBL-22 662KW
1 x MITSUI-DEUTZ 82KW
GENERATOR(S)
4 x NISHISHIBA ELECTRIC 610KW
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
4 x STALL REFRIGERATIONBN 528 OM 154KW
R22 DIRECT COOLING
SPEED/CONSUMPTIONS
20KTS，39.5MT/DAY + 2.5MT/DAY FOR AUX ENG（SINGLE）
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
NO.1：13.2 x 8.9
NO2，3，4：13.2 x 10.5
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
-
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
526764
CARGO CAPACITY (CBM)
14922
FLOOR SPACE CAPACITY (SQM)
5851
GRATING/DECK STRENGTH
SUITABLE FOR PNEUMATIC FORKLIFTS WITH ALL-UP WEIGHT OF 6 MT
TEMPERATURE ZONE(S)
8, 1FC/AB, 2AB/CD, 3AB/CD, 4AB/CD
TEMPERATURE (℃)
-30/+15
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
2
PALLET(S)
5442
CONTAINER CAPACITY
54FEU
REEFER PLUG(S)
54 SOCKERS ON DECK
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
28
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
