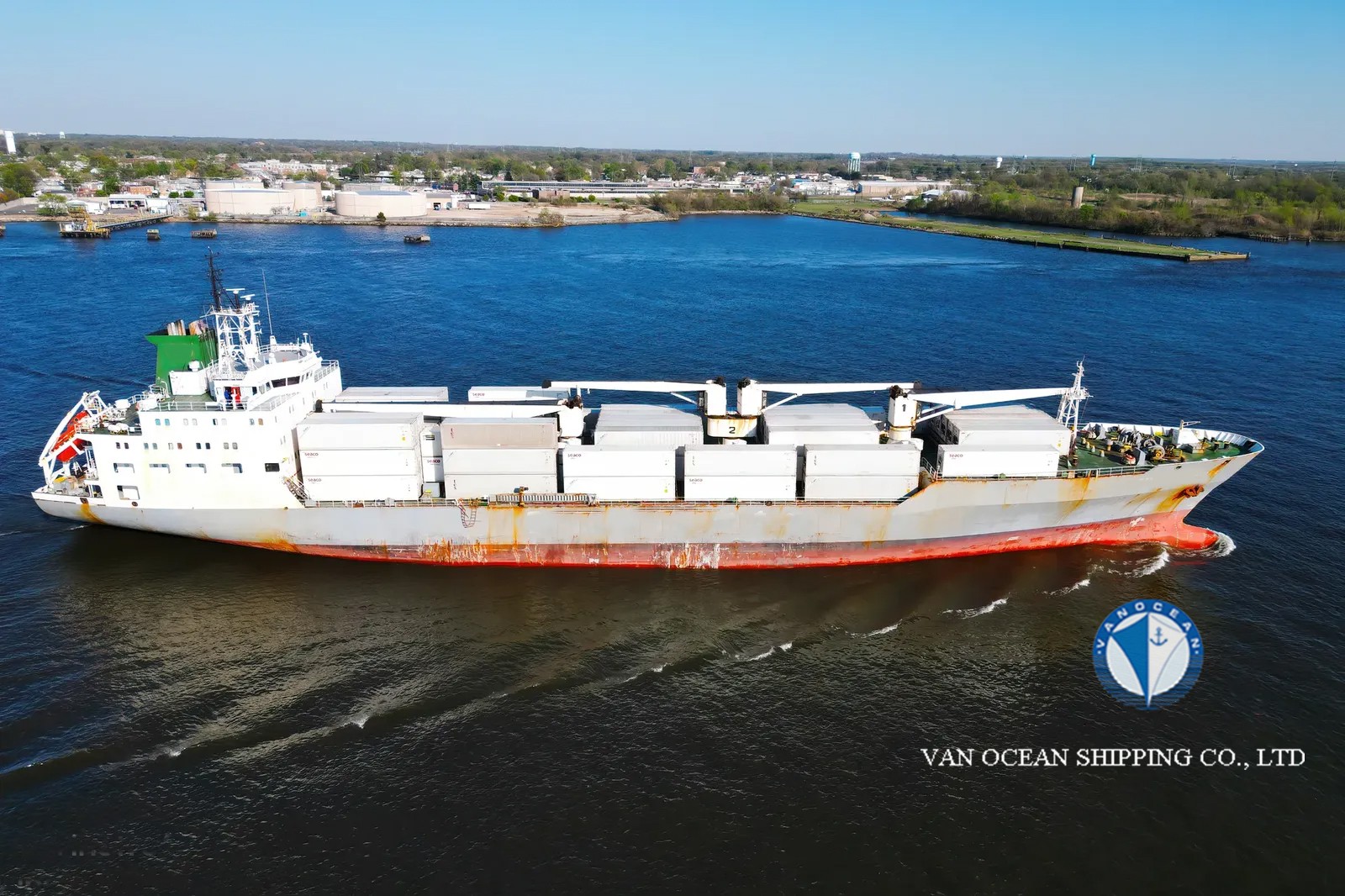

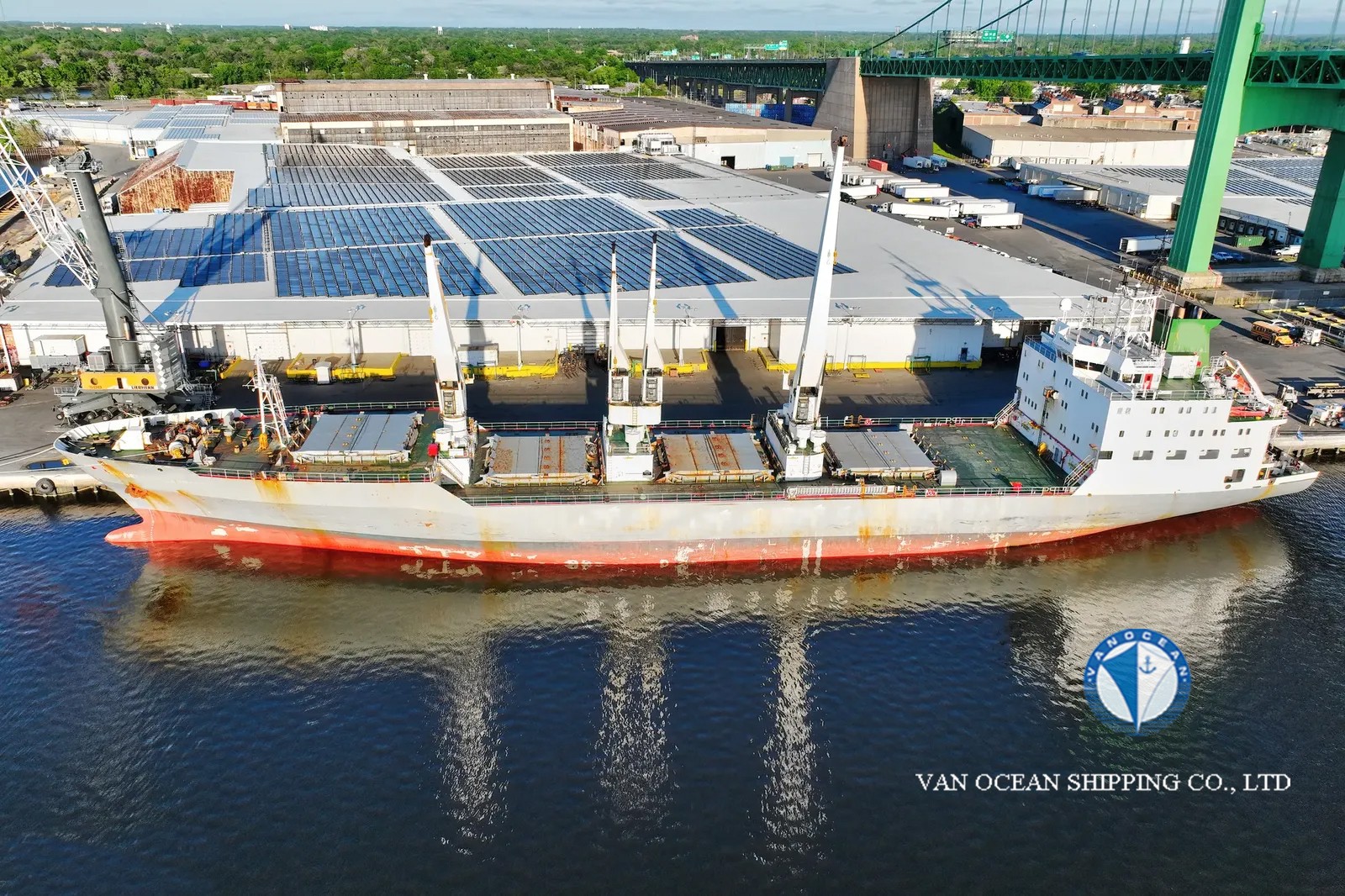

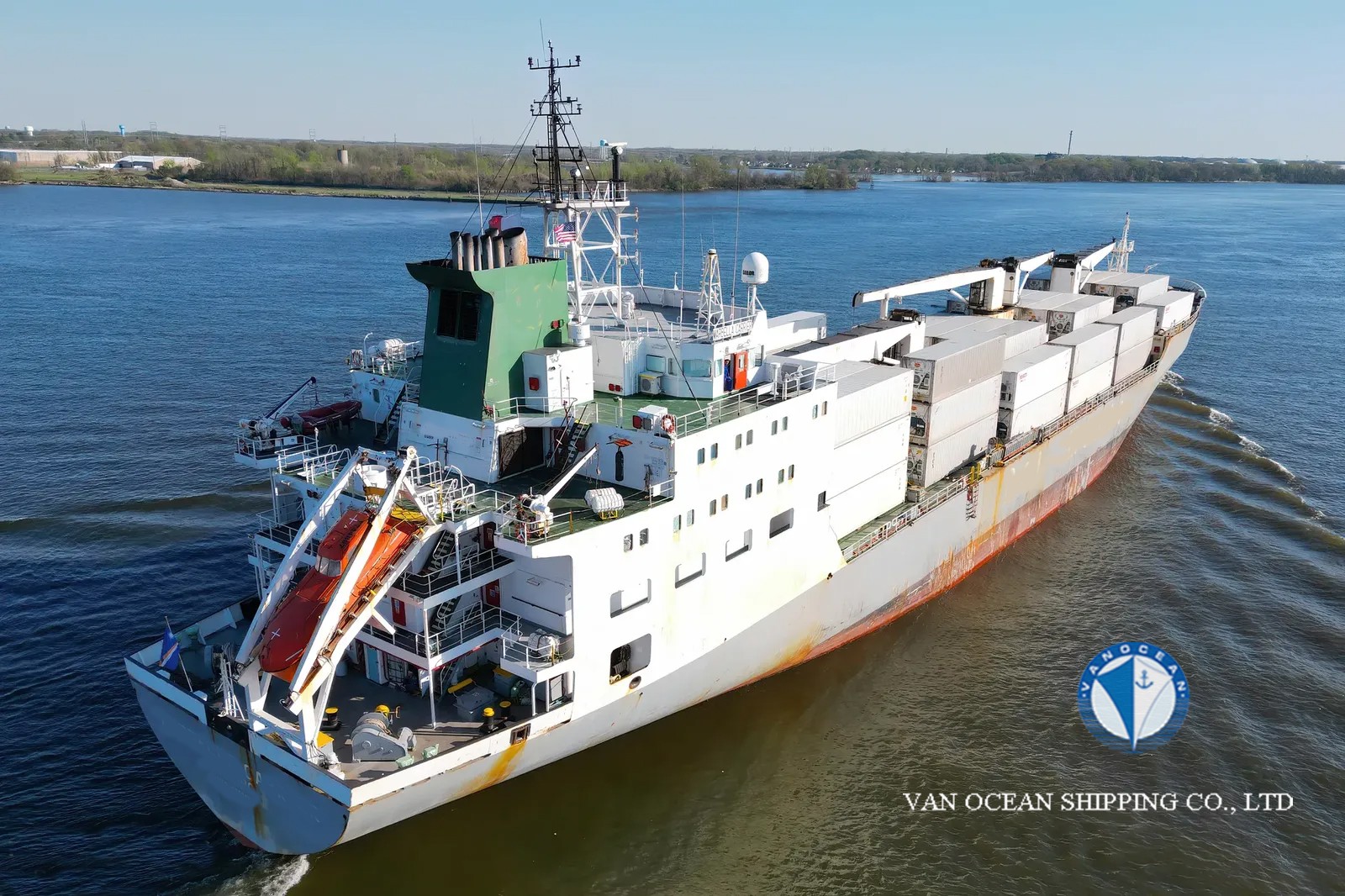

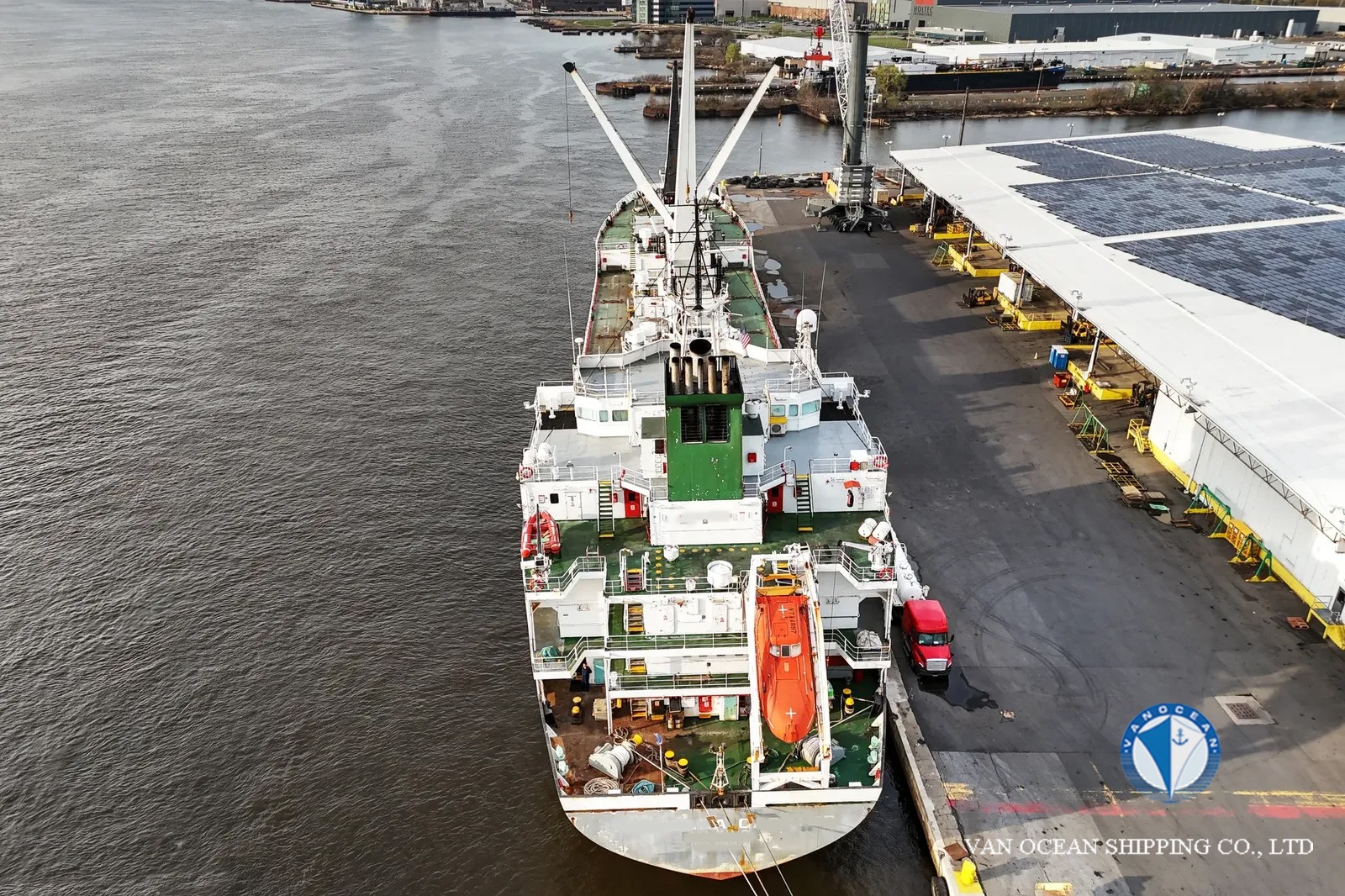

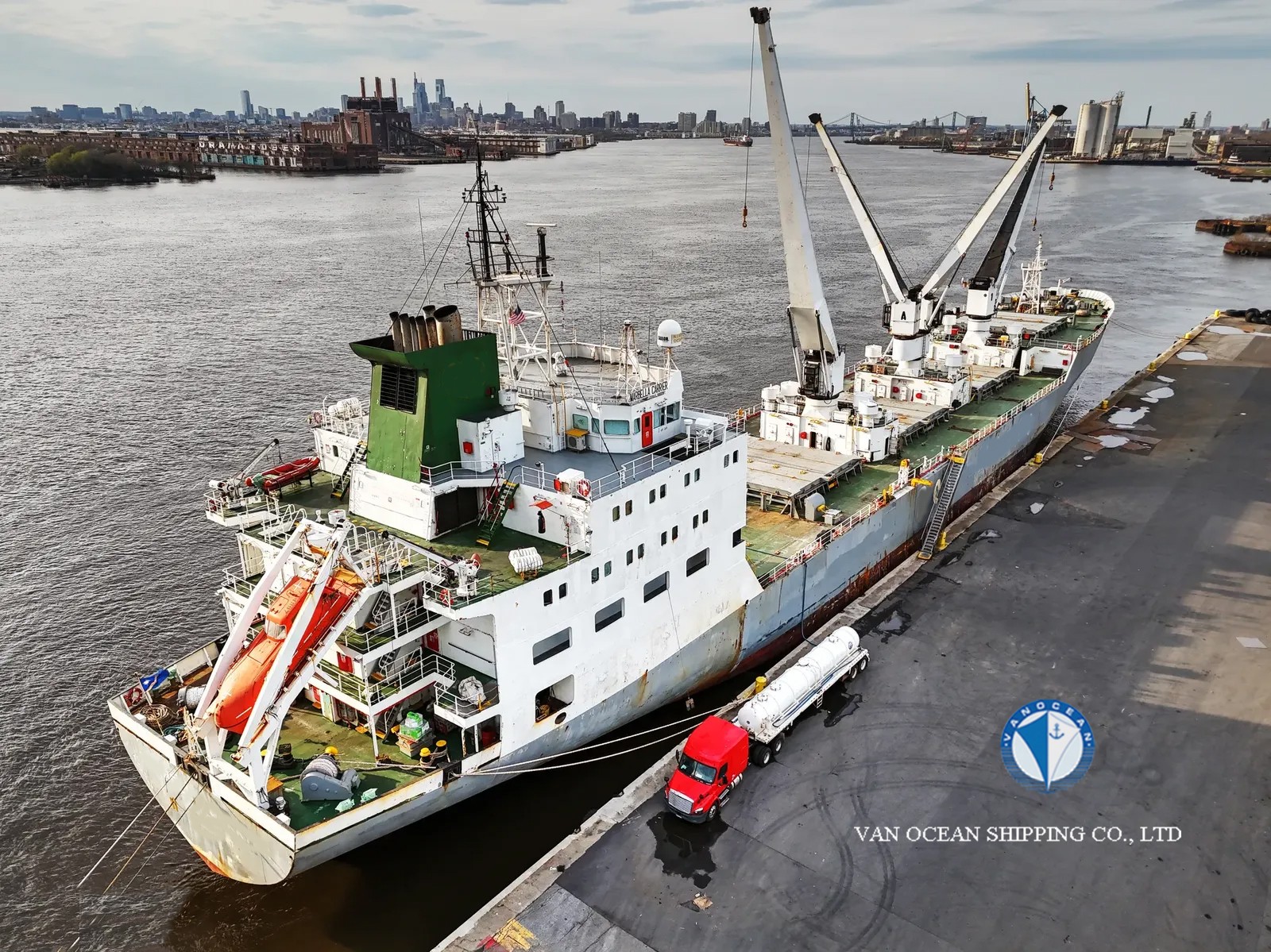

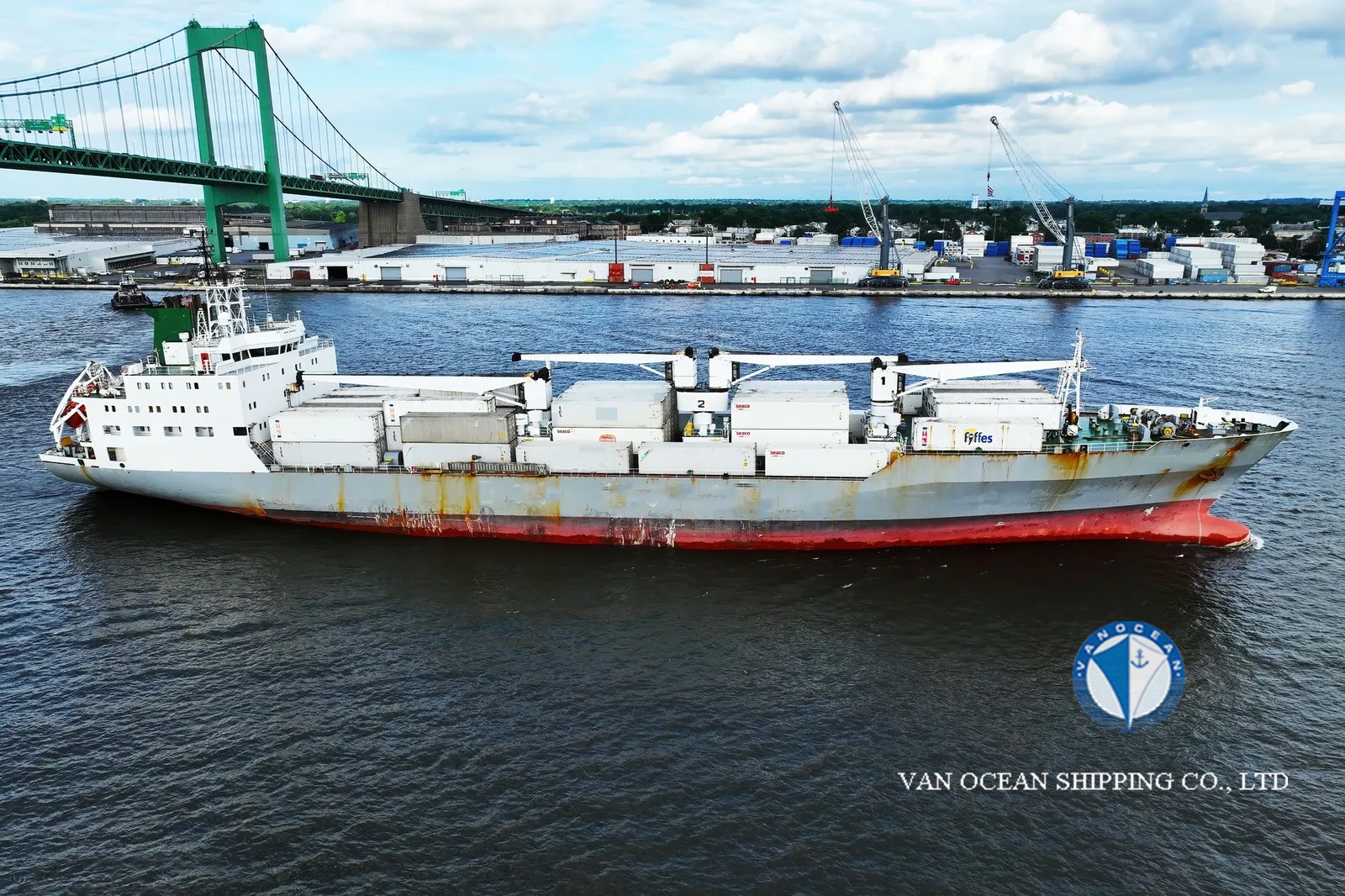

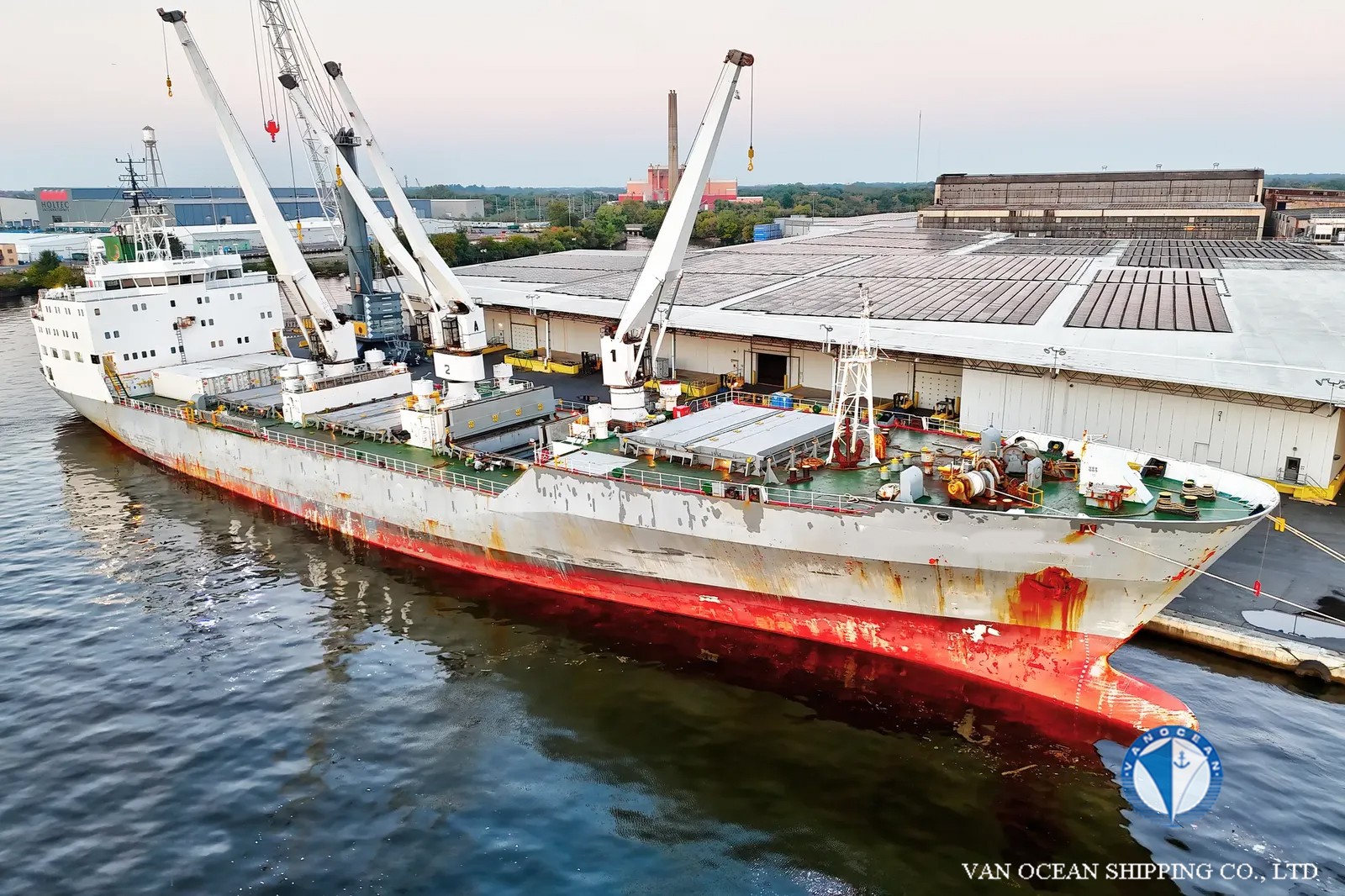

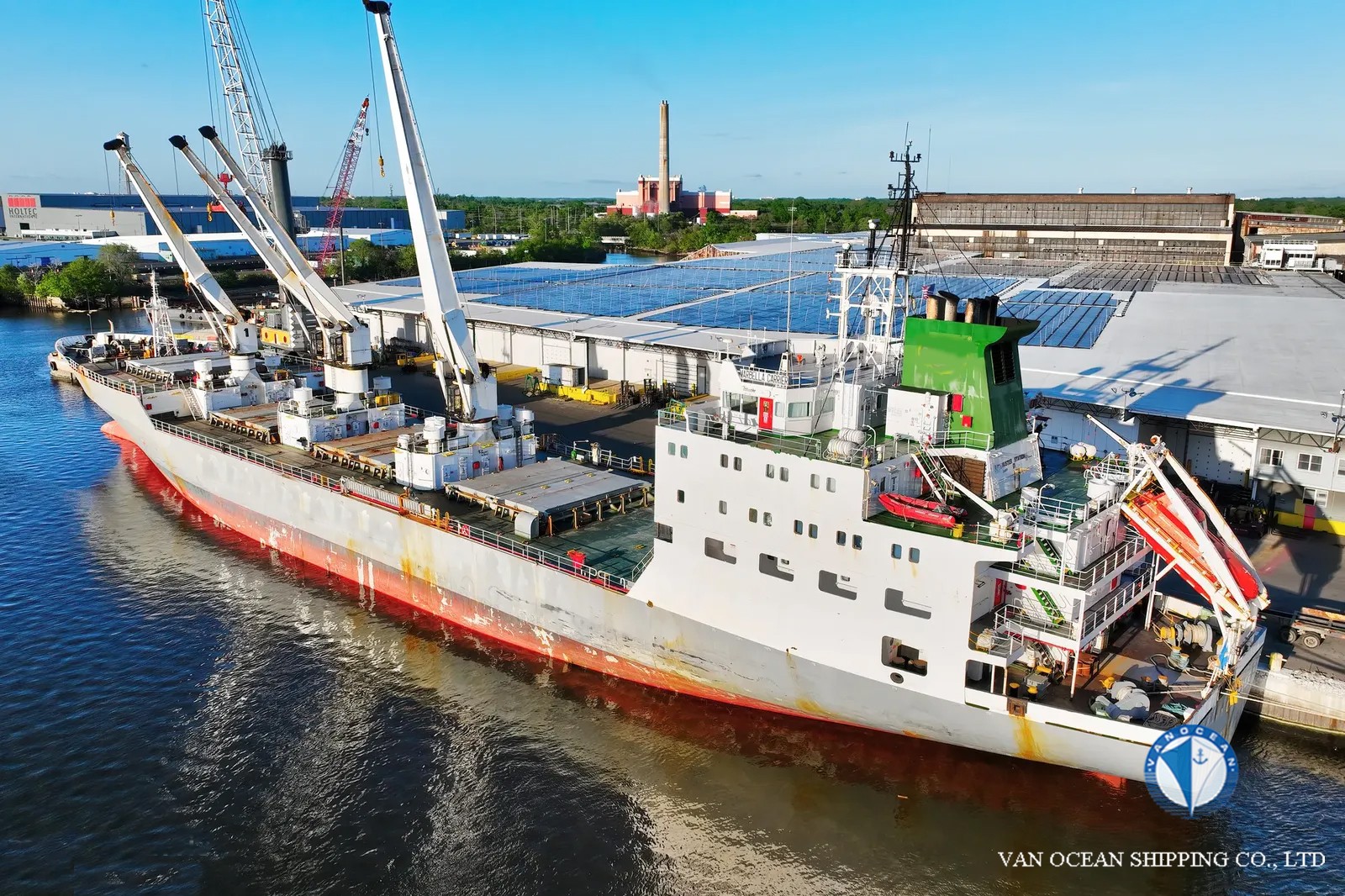

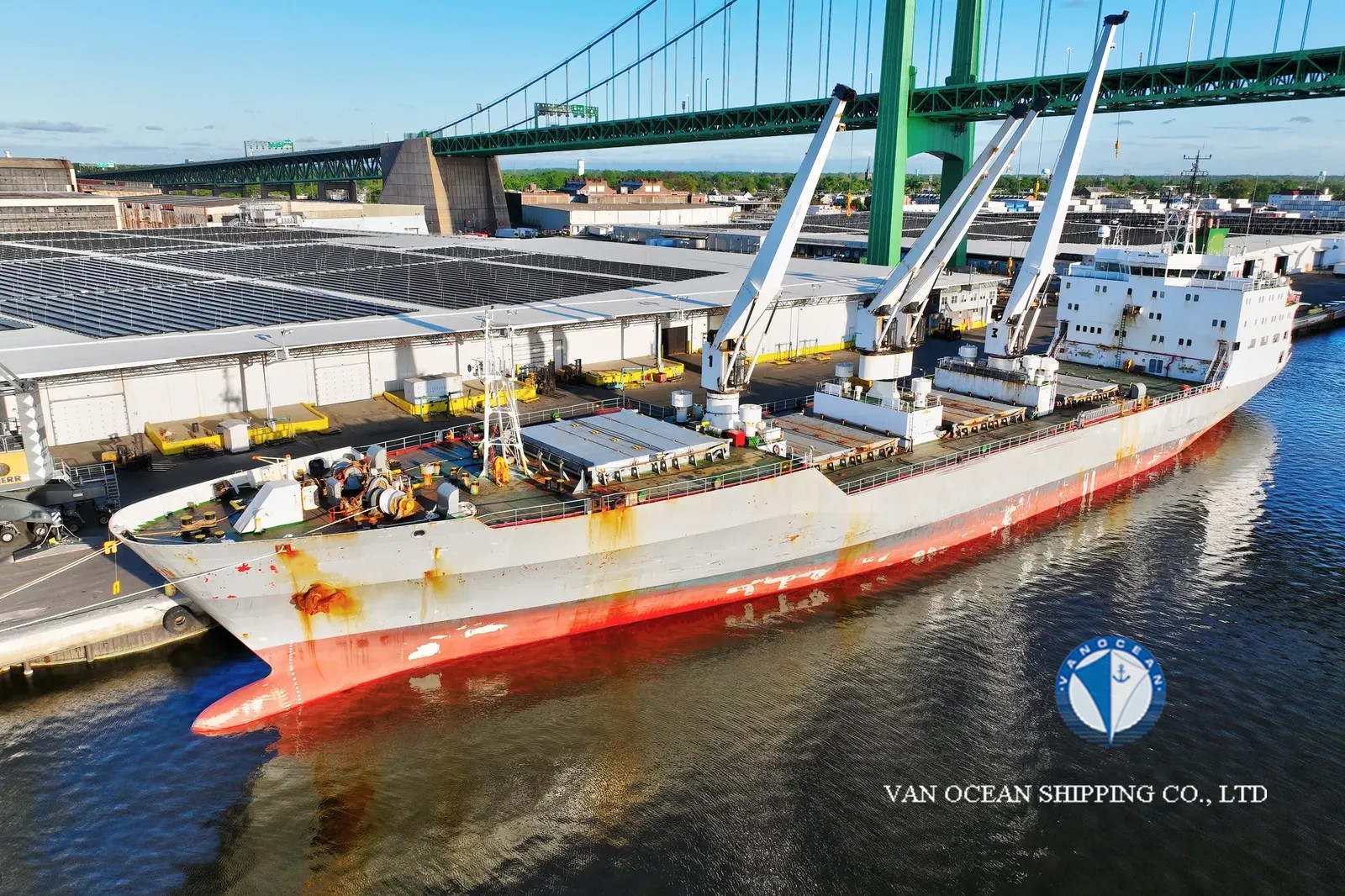

VESSEL NAME
REF750
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
MARSHALL ISLANDS
PORT OF REGISTRY
MAJURO
BUILT YEAR
1996
BUILT PLACE
STOCZNIA GDANSK, POLAND
CLASSIFICATION
BV
CLASS NOTATION
IE/3E, ICE III
SS
2026-01
DD
2026-01
LOA (M)
137.7
LBP (M)
126.8
BEAM (M)
21.5
DEPTH (M)
13.15
SUMMER DRAFT (M)
8.85
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
9438
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
4037
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
9357
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
5685
DISPLACEMENT (MT)
-
GEAR(S)
CRANES, 1 x 32MT 22M, 1 x 32MT 24M, 2 x 8MT 22M
M/E(S)
MAN B&W 7S50MC MCR 13600BHP 127RPM
M/E POWER (KW)
10010
A/E(S)
-
GENERATOR(S)
4 x BERGEN 1020KW, ALTERNATOR 1260KVA 720RPM
EMERGENCY GEN 90KW
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
R22, CACL2 BRINE, 4 BRINE CHILLERS+COMPRESSORS
SPEED/CONSUMPTIONS
BANANA: 20KTS ON 45MT(380)/ 17KTS ON 31MT+3.5-5.5MT(380)
BALLAST: 20KTS ON 38MT/ 17KTS ON 28MT
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
1747
TANKS CAPACITY (CBM)
MDO: 153; FW: 245
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
-
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
16
DECK(S)
4
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
427806
CARGO CAPACITY (CBM)
12114
FLOOR SPACE CAPACITY (SQM)
4948
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
8, EACH ZONE 2 CHAMBERS
TEMPERATURE (℃)
-25 /+15
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
3700
CONTAINER CAPACITY
52 FEU ON DECK
REEFER PLUG(S)
52
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
