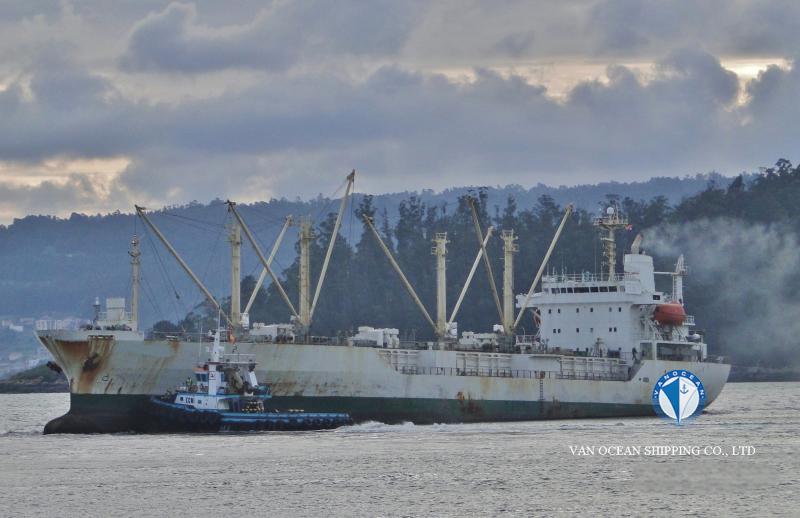

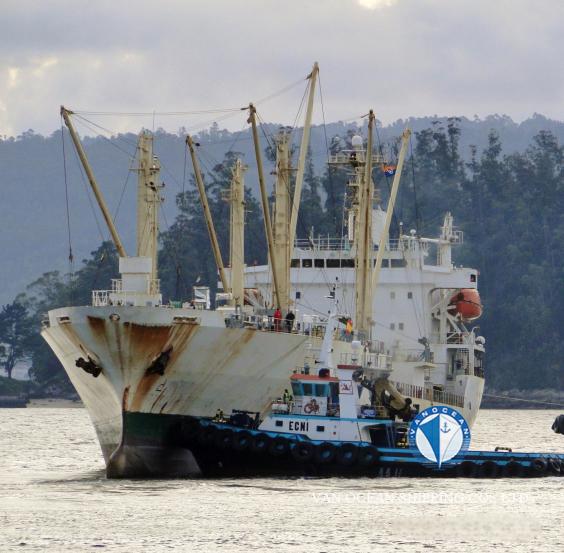

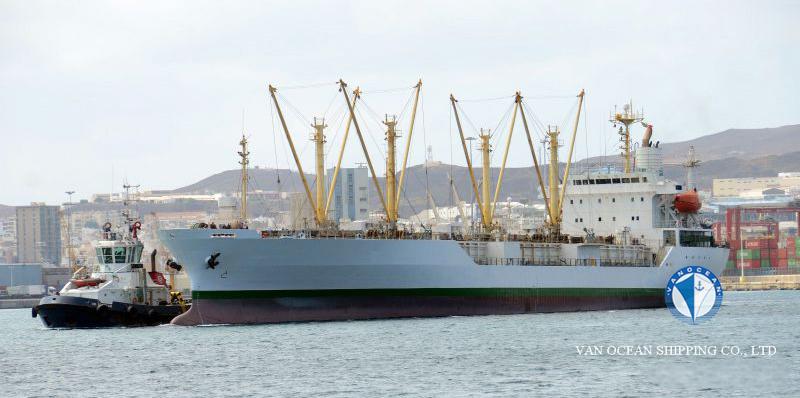

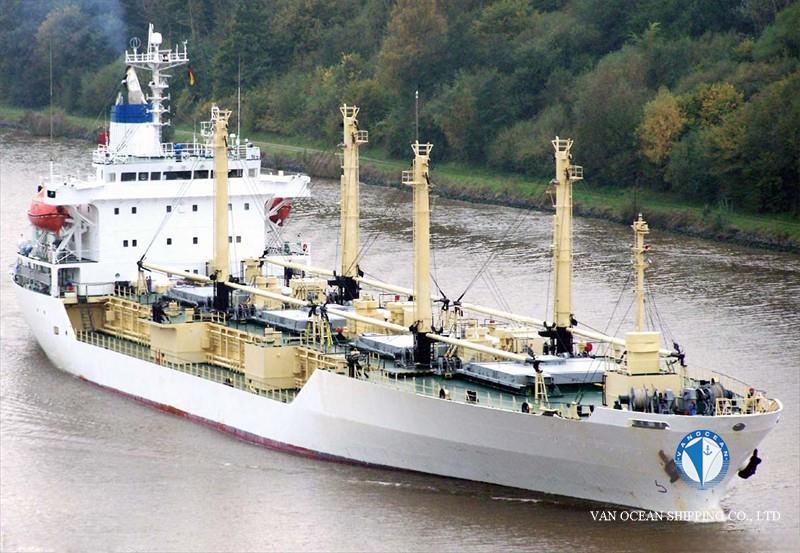

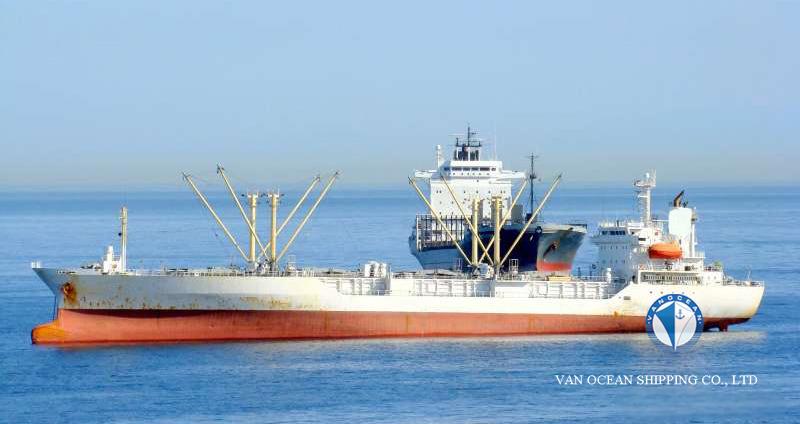

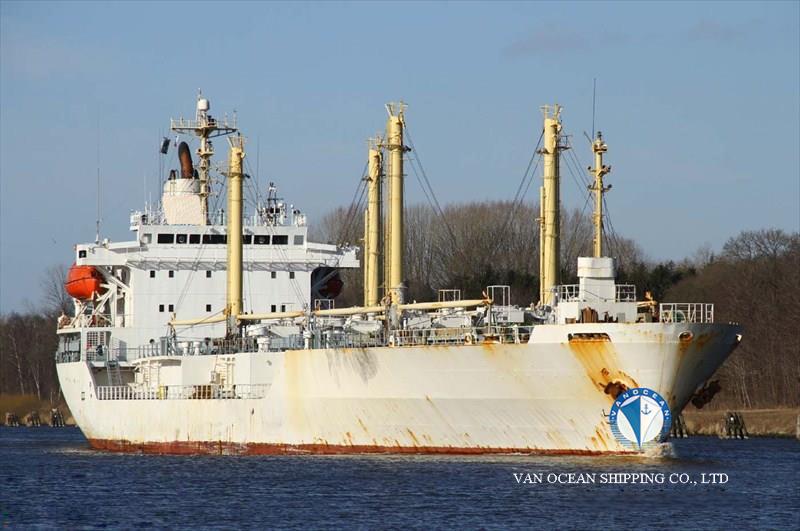

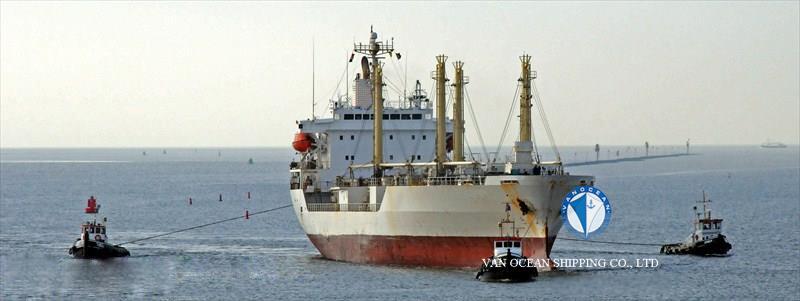

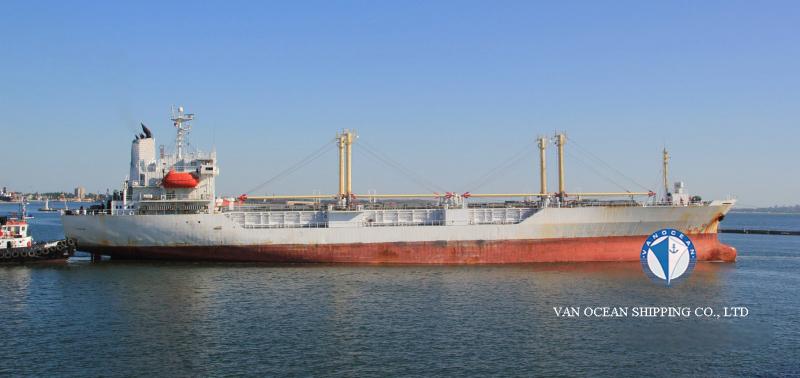

VESSEL NAME
REF749
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
LITHUANIAN
PORT OF REGISTRY
KLAIPEDA
BUILT YEAR
1993
BUILT PLACE
SHIN KOCHJYUKO CO.LTD., JAPAN
CLASSIFICATION
BV
CLASS NOTATION
I✠Hull✠Mach, Refrigerated cargo ship, Unrestricted navigation,
✠REF-CARGO, 2(Ch 48 Q3)
SS
2025-06
DD
2025-05
LOA (M)
134.02
LBP (M)
125
BEAM (M)
20.8
DEPTH (M)
10.17
SUMMER DRAFT (M)
7.57
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
7326
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
4810
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
8043
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS, 8 x 5MT OR 4 x 3.5MT UP
M/E(S)
MITSUBISHI 8UEC45LA, 9600BHP 158RPM
M/E POWER (KW)
7066
A/E(S)
-
GENERATOR(S)
3 - 625 kVA - 500 kW - 750 HP
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
15.5 KNOTS 24MT IFO380+0.2MT MDO BANANA LADEN
16.5 KNOTS 20MT IFO380+0.2MT MDO BALLAST
3.0MT IFO380+0.2MT MDO PORT
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
991
TANKS CAPACITY (CBM)
MDO: 173.2
BW: 875
FW: 256
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
7.40 x 7.30
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
4
DECK HEIGHT (M)
2.2
CARGO CAPACITY (CBFT)
394130
CARGO CAPACITY (CBM)
11166
FLOOR SPACE CAPACITY (SQM)
4535.21
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
8
TEMPERATURE (℃)
-25 /+15
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
90 /60
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
3435
CONTAINER CAPACITY
6 FEU OR 12TEU
REEFER PLUG(S)
12
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
