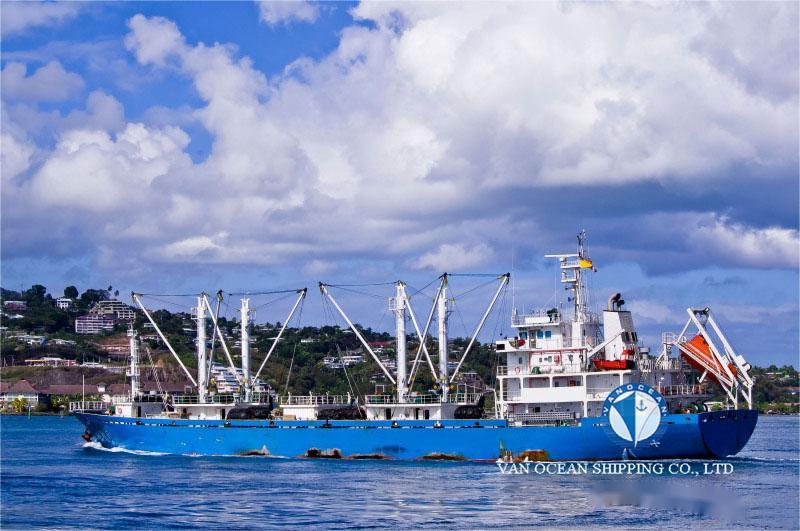

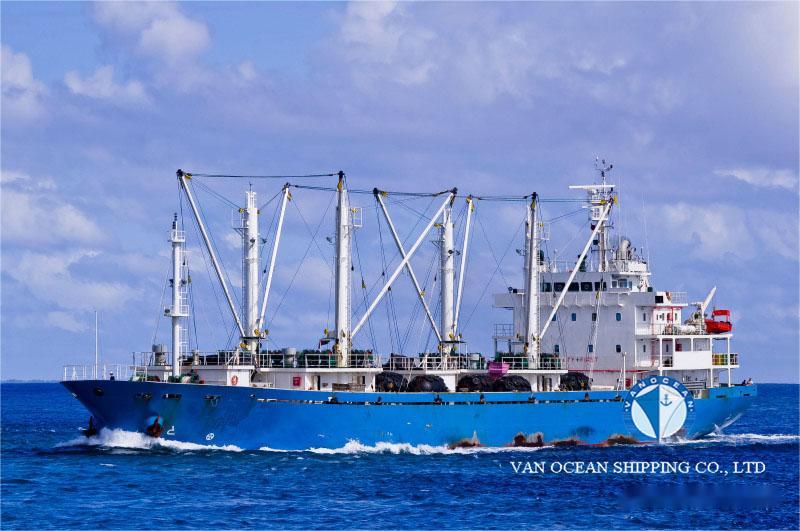

VESSEL NAME
REF722
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
YES
FLAG
KOREA
PORT OF REGISTRY
JEJU
BUILT YEAR
2014
BUILT PLACE
CHINA
CLASSIFICATION
KR
CLASS NOTATION
-
SS
2029-03-04
DD
2026-12-30
LOA (M)
96.94
LBP (M)
89.8
BEAM (M)
15.5
DEPTH (M)
9
SUMMER DRAFT (M)
5.75
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
3350
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1425
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
3355
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
5533

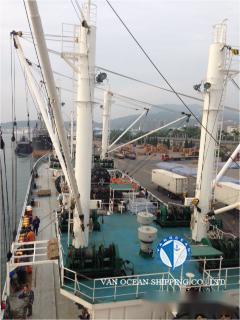

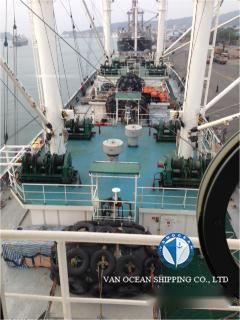

GEAR(S)
DERRICKS, 8 x 3.5MT, UP 2MT
M/E(S)
MAN 6L32/40, 8-CYL, 3618 BHP
M/E POWER (KW)
2700
A/E(S)
2 x ANQING DAFA DIESEL ENGINES, 770KW, 720RPM
GENERATOR(S)
2 x GENERATORS, LANZHOU MOTOR FACTORY, 700KW, 720RPM, AC450V, 60HZ
1 x EMERGENCY GENERATOR: WEICHAI DIESEL TD226B-4CD-1, 60KW, 1800RPM + MALASONG GENERATOR, 50KW, 1800RPM, AC450V, 60HZ
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP, DIA 900MM
COOLING SYSTEM (COMPRESSOR)
2 x JIANGSU TAIZHOU COMPRESSORS: ERECT CENTRIFUGAL PUMP
SPEED/CONSUMPTIONS
13 KNOTS/8 MT IFO+3 MT MGO IN BALLAST
11.5 KNOTS/8.7 MT IFO+3 MT MGO IN LADEN
2.70 MT MGO IN PORT IDLE
FUEL TYPE
IFO 180
BUNKER CAPACITY (CBM)
513
TANKS CAPACITY (CBM)
MDO: 78
LO :21
FW: 165
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
-
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
-
DECK(S)
2
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
195138
CARGO CAPACITY (CBM)
5528
FLOOR SPACE CAPACITY (SQM)
-
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
-
TEMPERATURE (℃)
-55
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
28
ACCOMMODATION
-
INSPECTION
KOREA
DELIVERY
KOREA
PRICE
BUYERS OFFER
REMARK(S)
BOW THRUSTER
