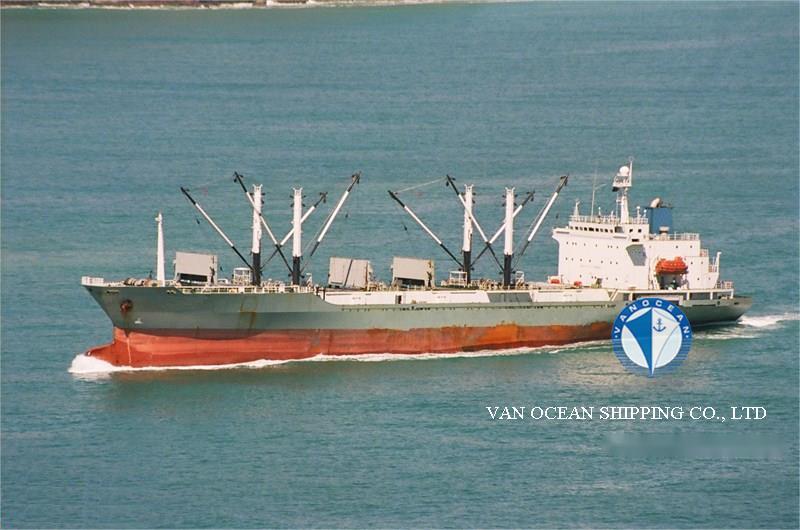

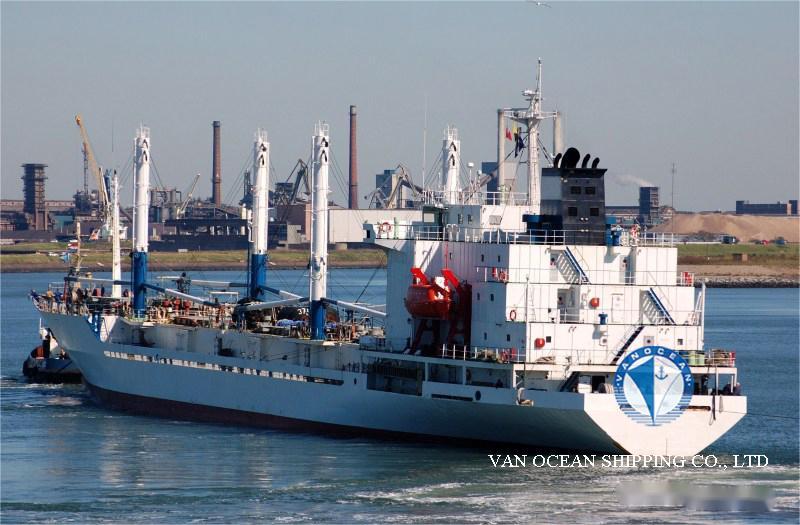

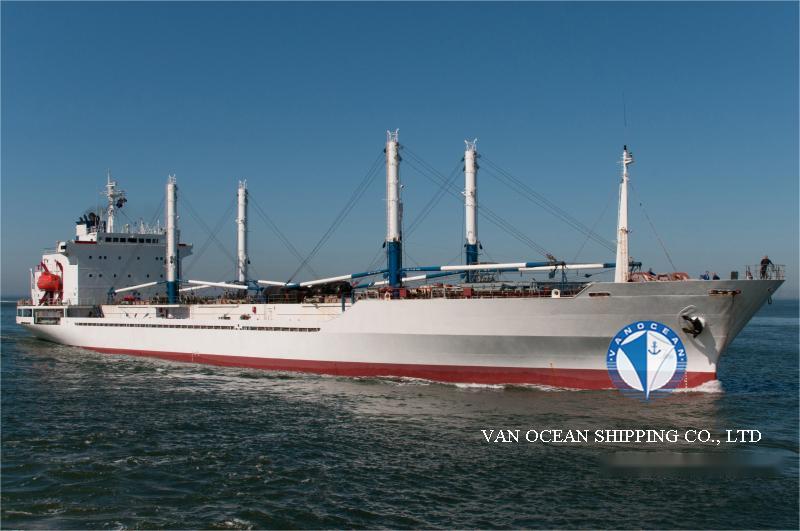

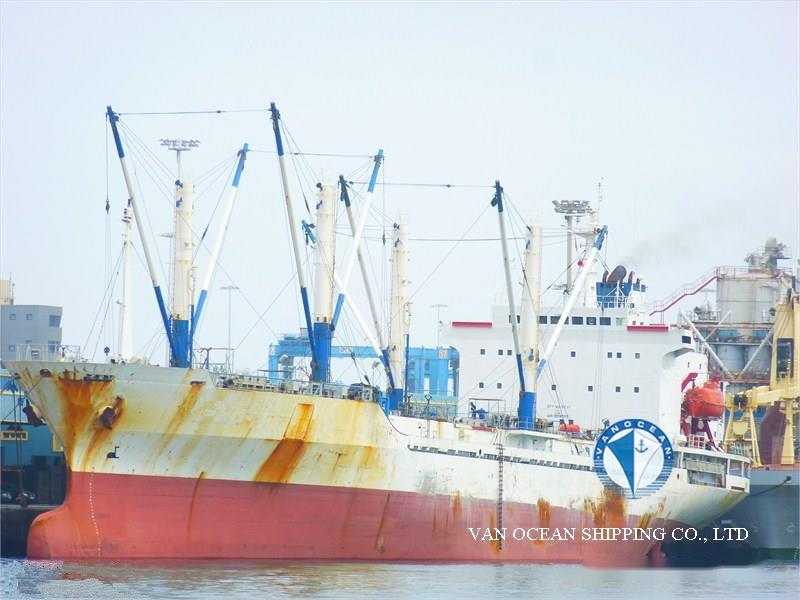

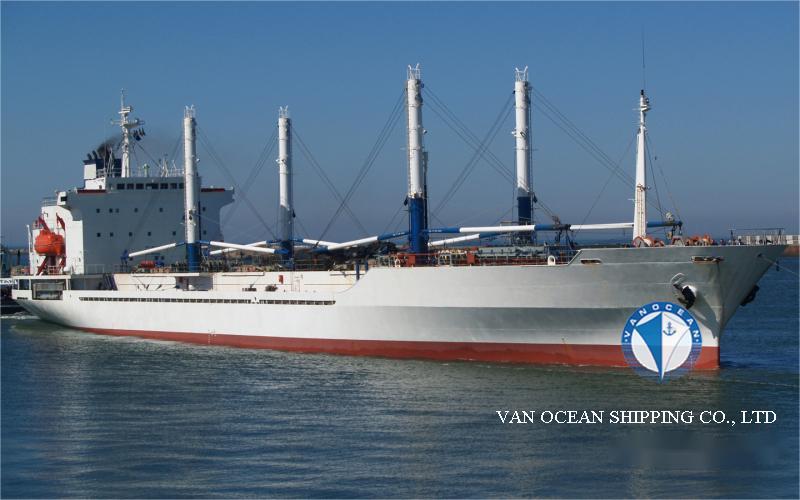

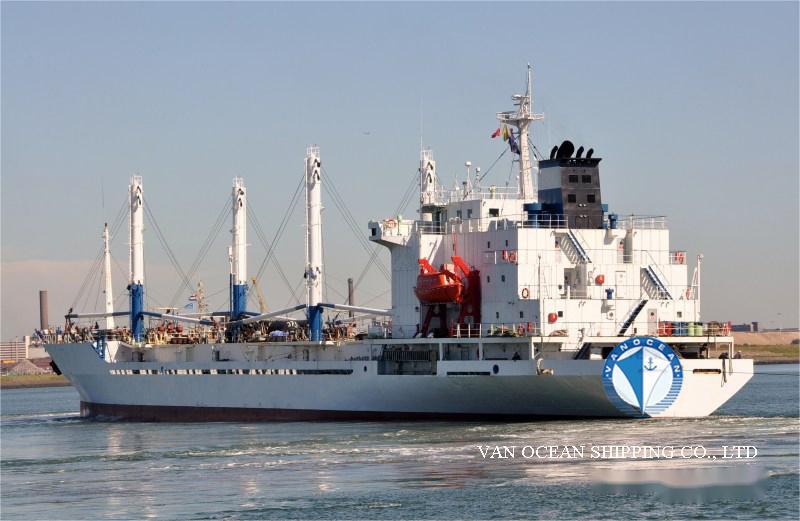

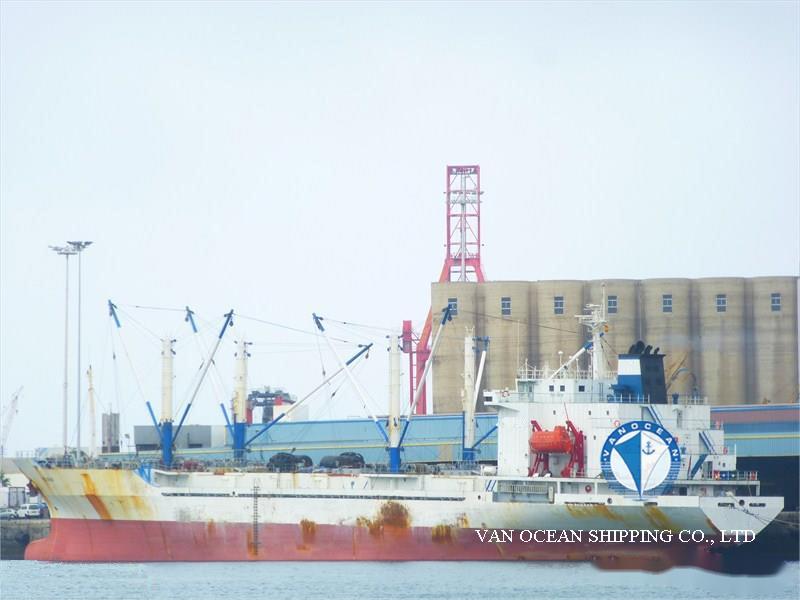

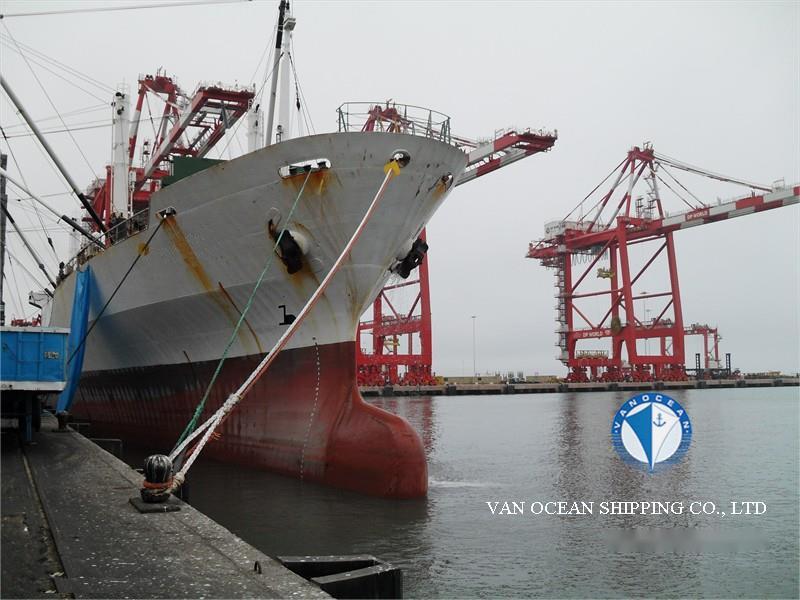

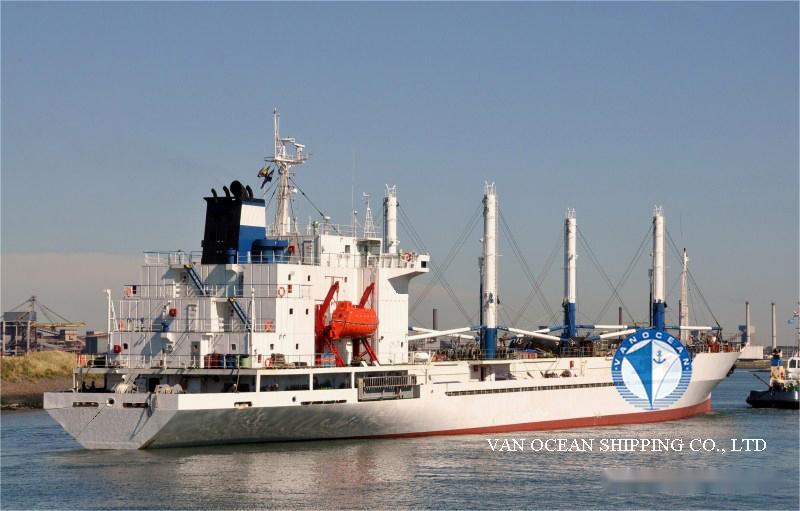

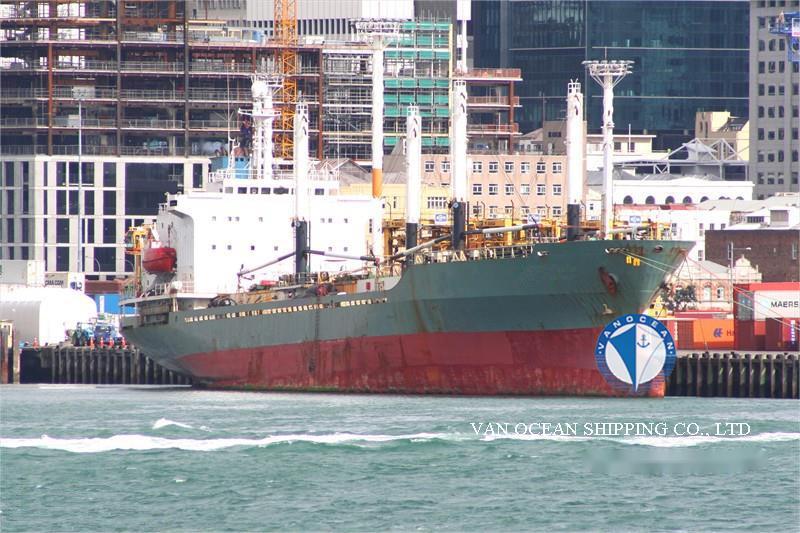

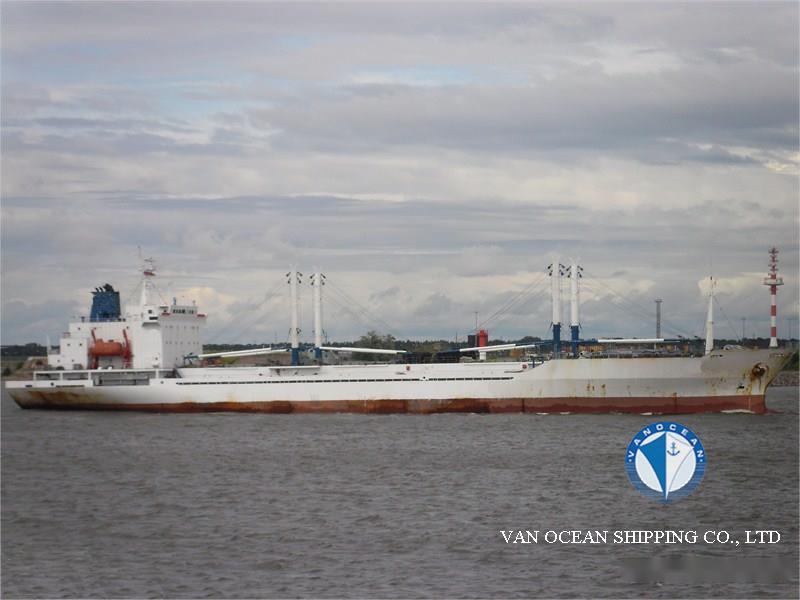

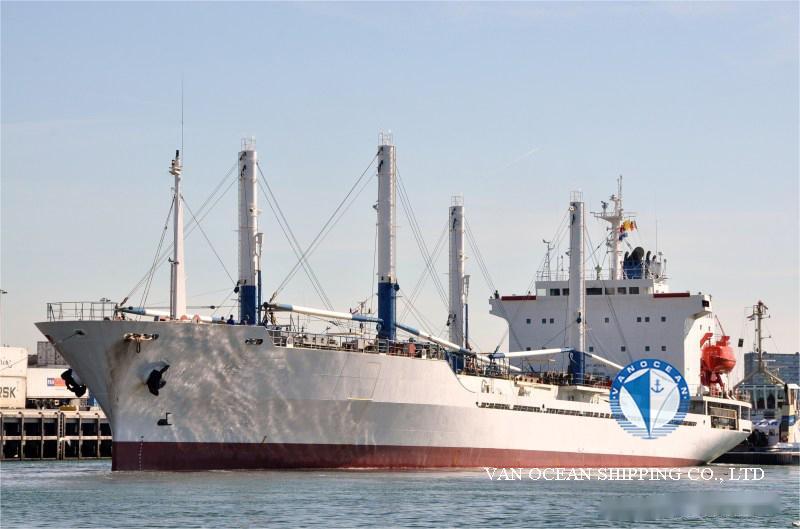

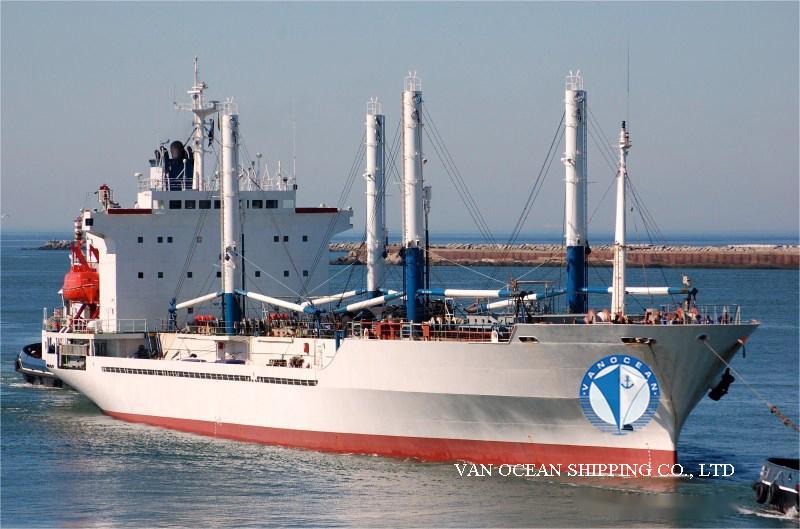

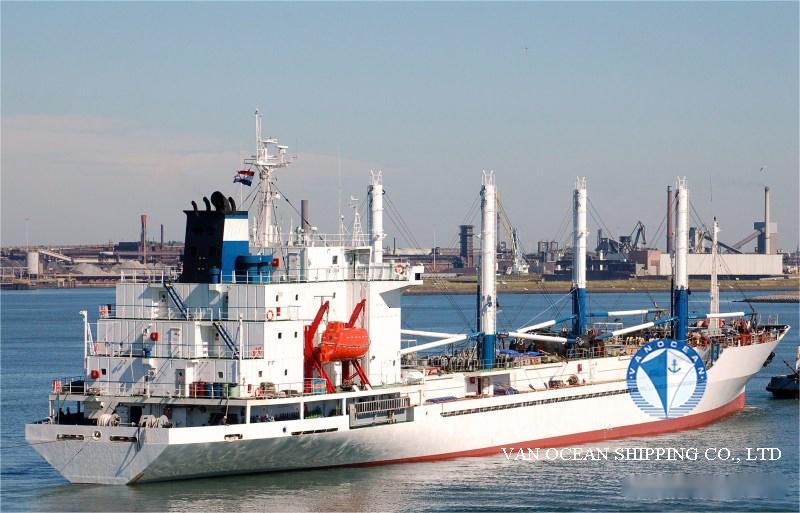

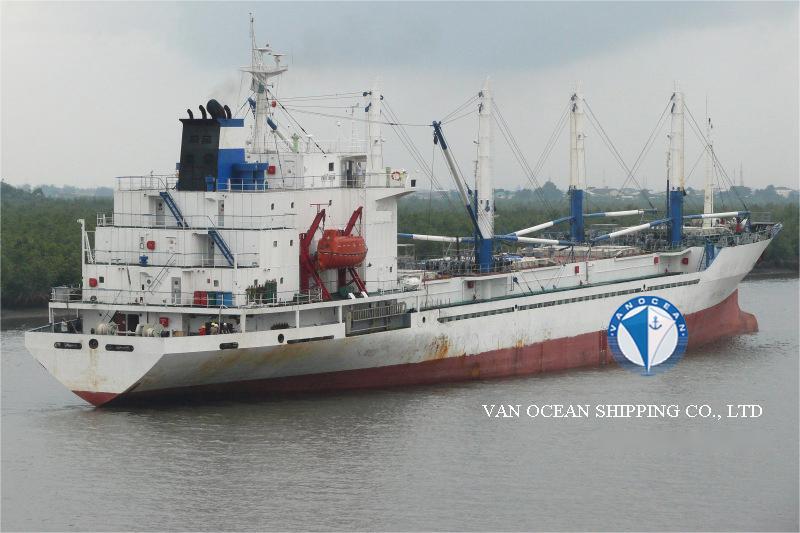

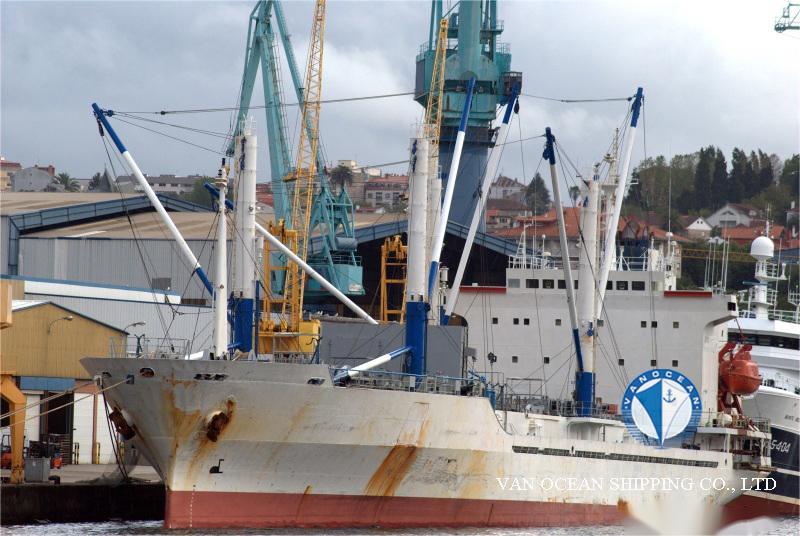

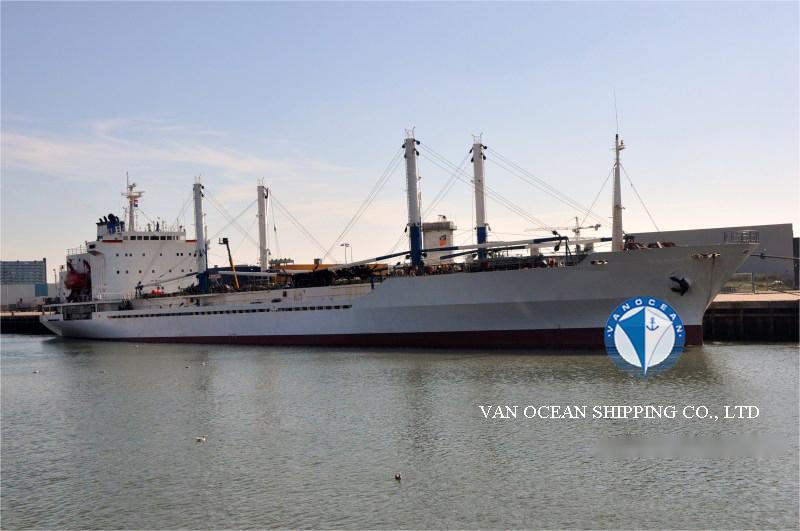

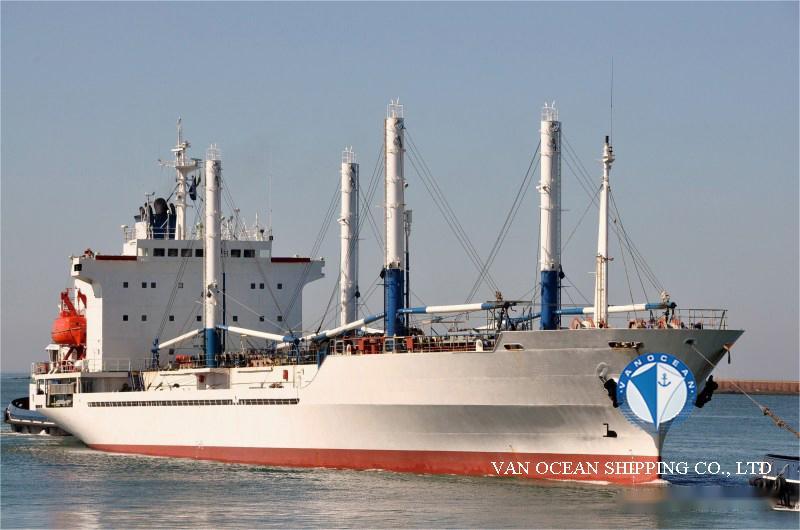

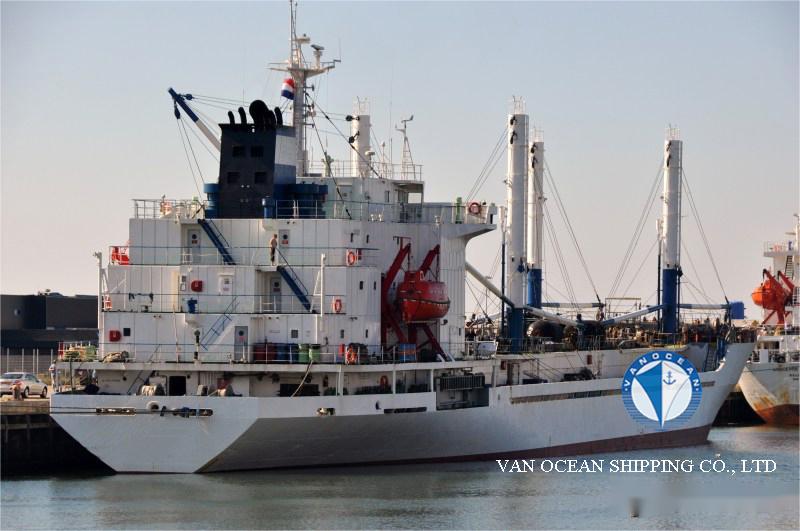

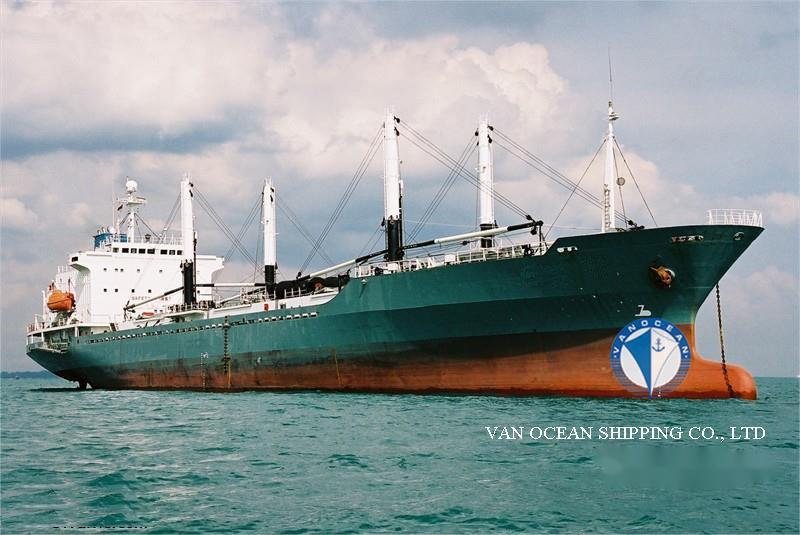

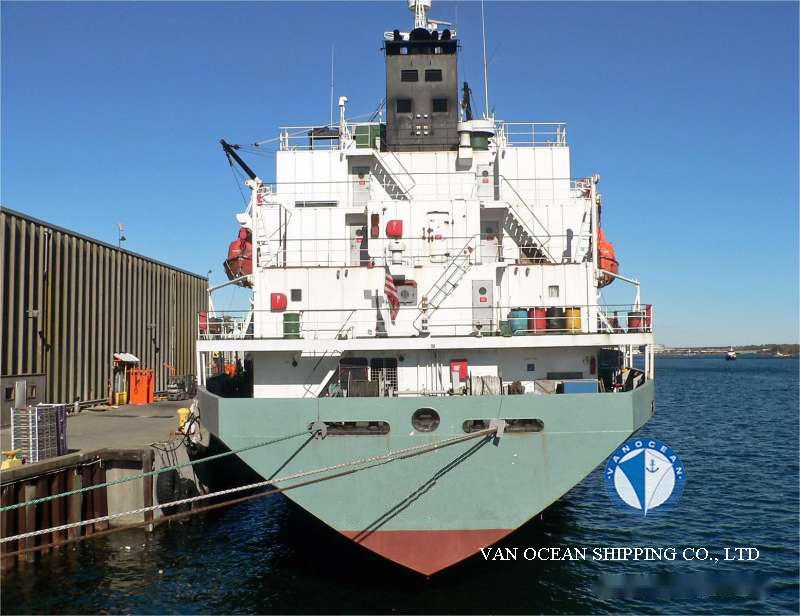

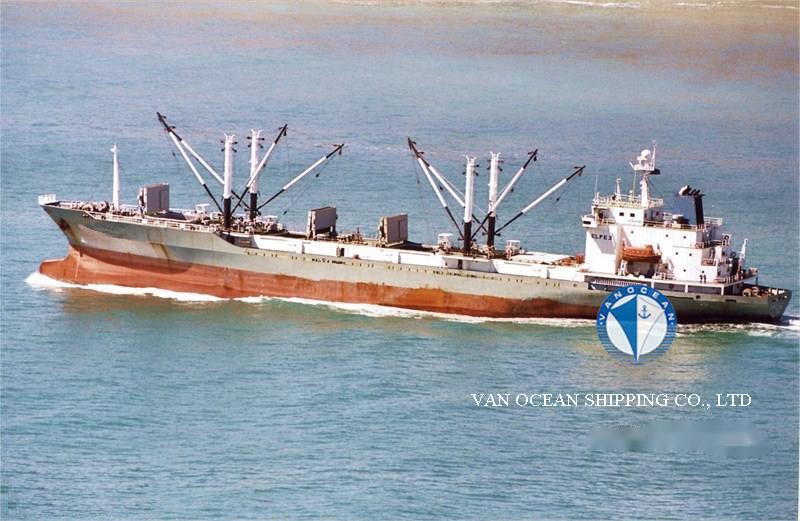

VESSEL NAME
REF735
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
-
PORT OF REGISTRY
-
BUILT YEAR
1992
BUILT PLACE
KITANIHON, JAPAN
CLASSIFICATION
NK
CLASS NOTATION
NS* MNS* RMC*
SS
2017-09
DD
2017-09
LOA (M)
126
LBP (M)
-
BEAM (M)
19
DEPTH (M)
10.3
SUMMER DRAFT (M)
7.93
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
6082
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
4061
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
7456
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS, 8 x 5MT, UP 3.2MT OUTREACH: 12M
M/E(S)
MITSUBISHI 6UEC52LA, 8640BHP, 128RPM
M/E POWER (KW)
7060
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
FISH: 17.5KTS ON 29MT (IFO180) INCL. AUX.
FRUIT: 18.3KTS ON 29MT (IFO380) INCL. AUX.
BALLAST: 18.5KTS ON 25MT INCL. AUX.
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
1181
TANKS CAPACITY (CBM)
MGO: 168
FW: 162
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
-
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
2
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
347125
CARGO CAPACITY (CBM)
9834
FLOOR SPACE CAPACITY (SQM)
3912
GRATING/DECK STRENGTH
5MT
TEMPERATURE ZONE(S)
9
TEMPERATURE (℃)
-25/+15
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
2965
CONTAINER CAPACITY
-
REEFER PLUG(S)
12
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
