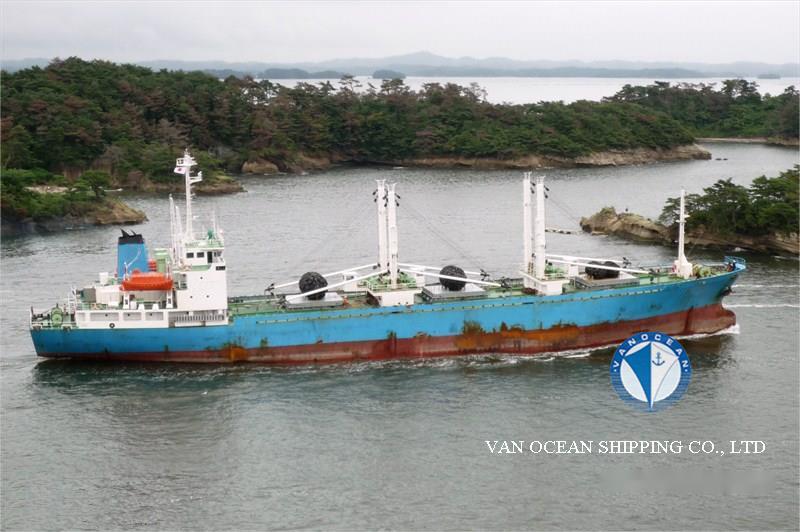

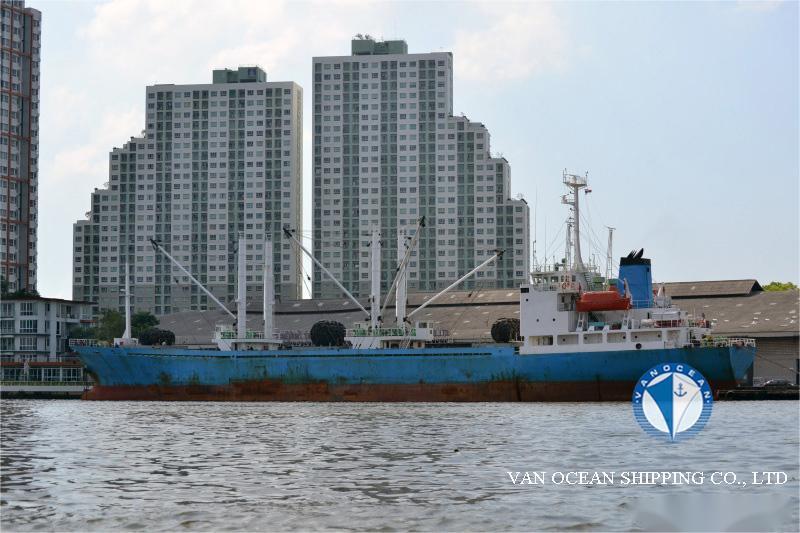

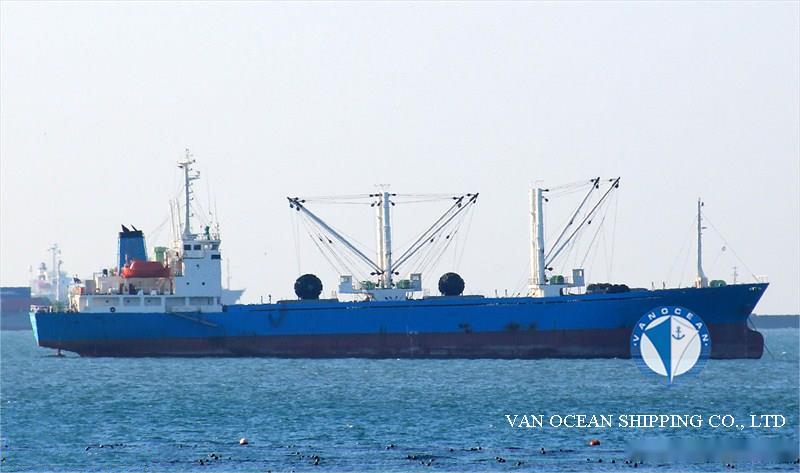

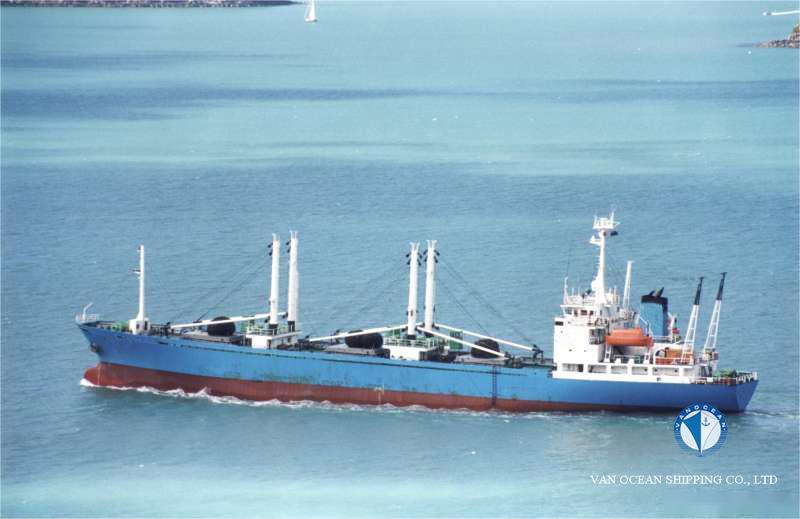

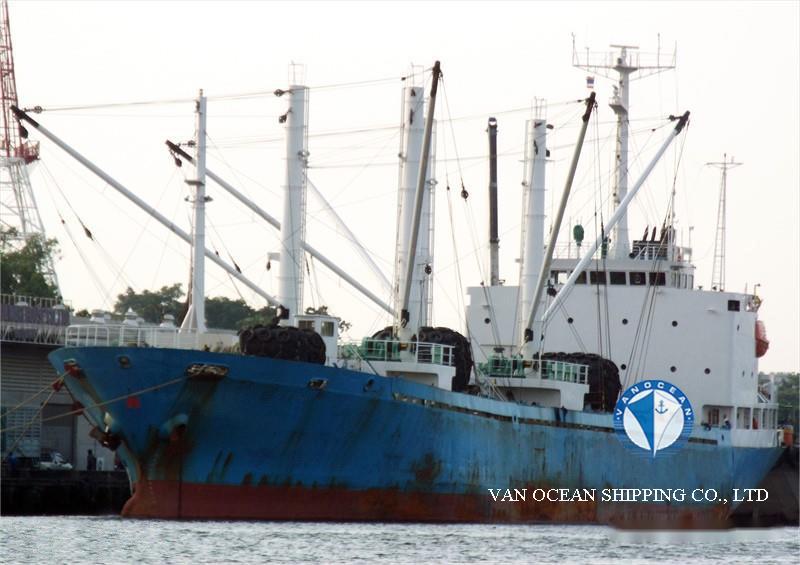

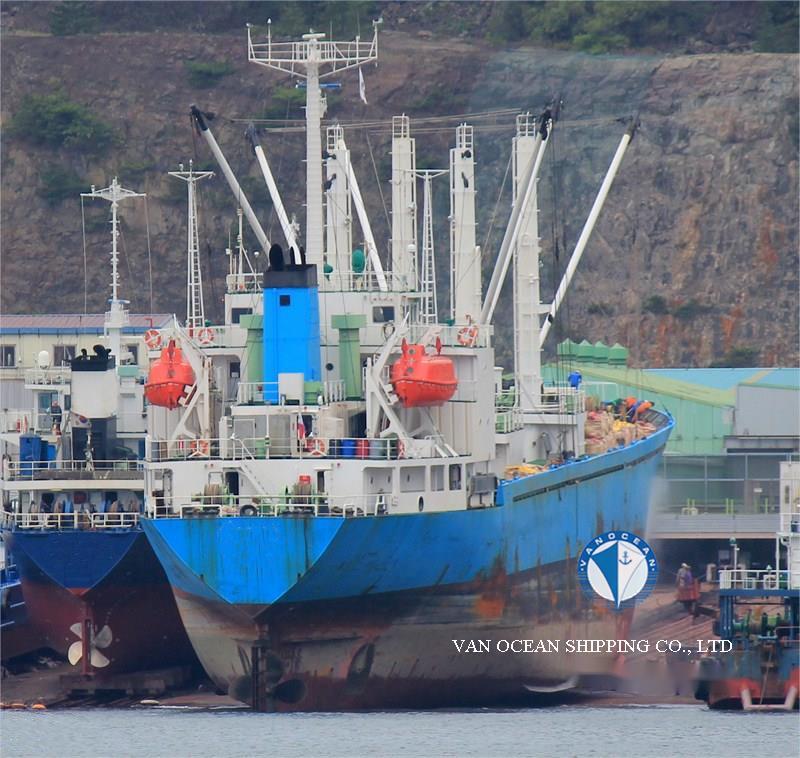

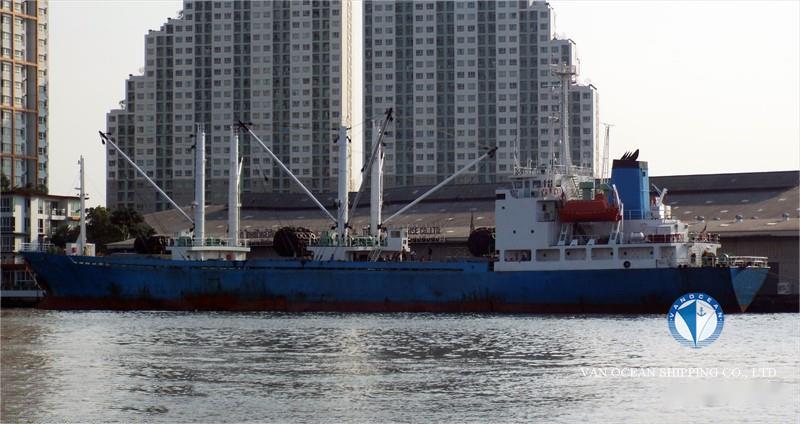

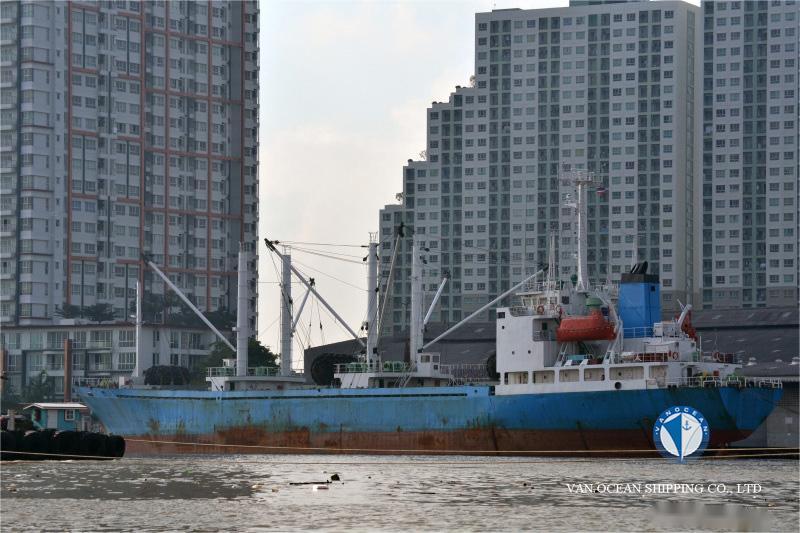

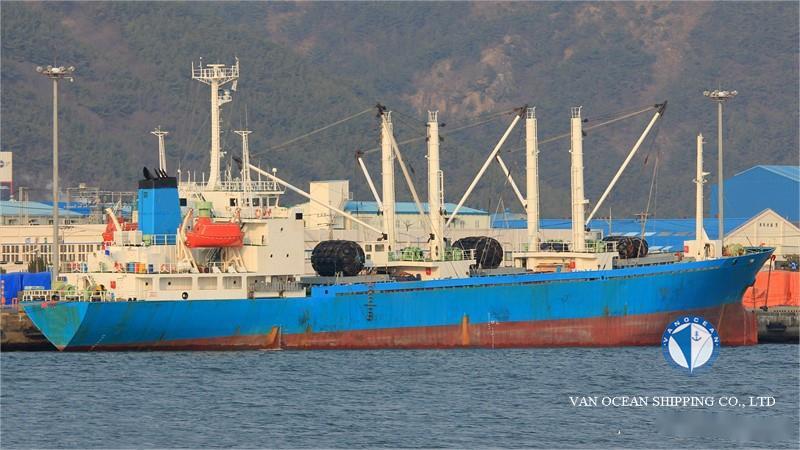

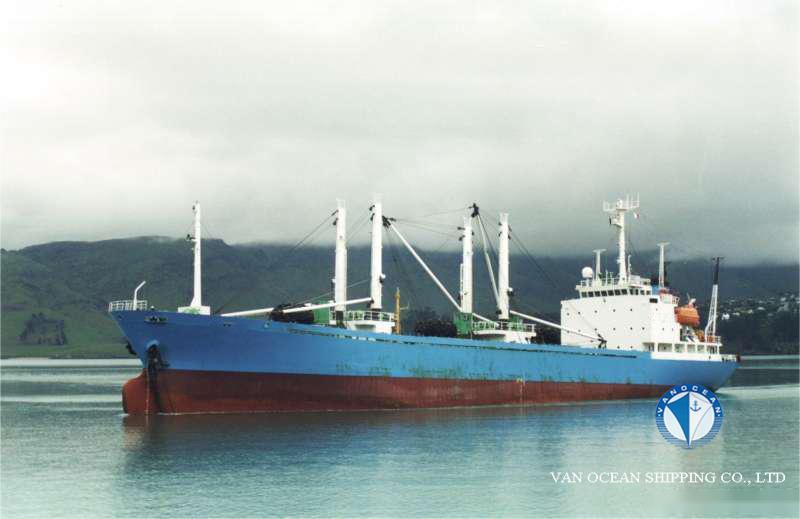

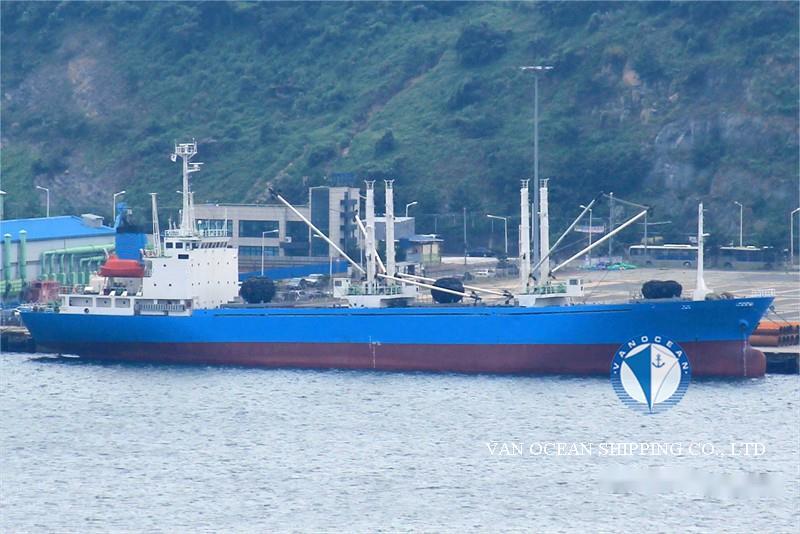

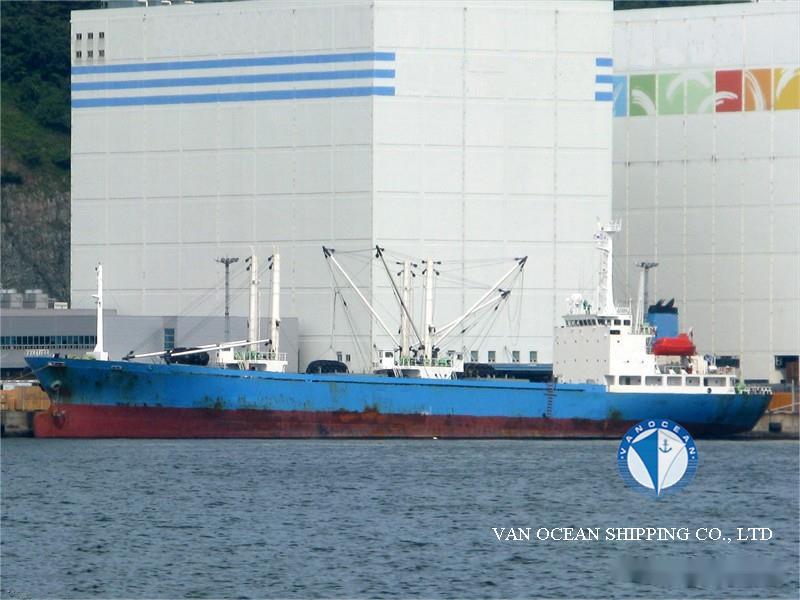

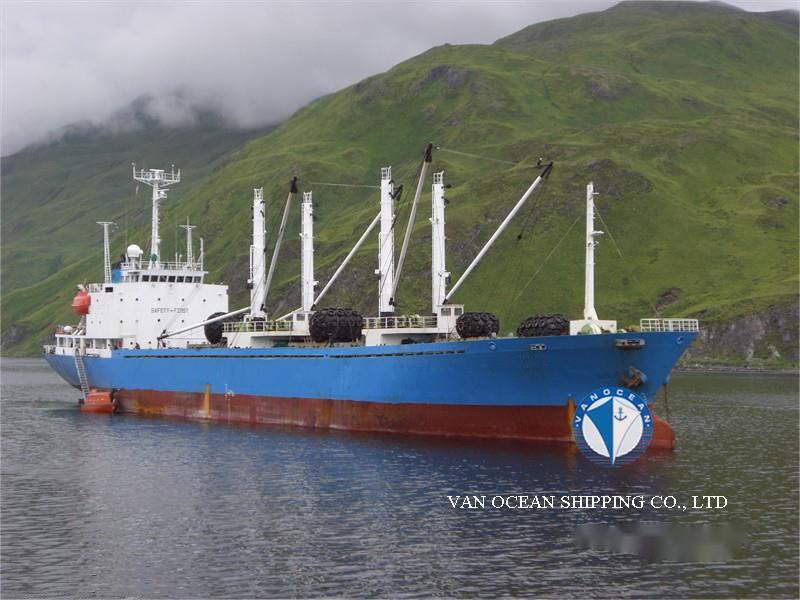

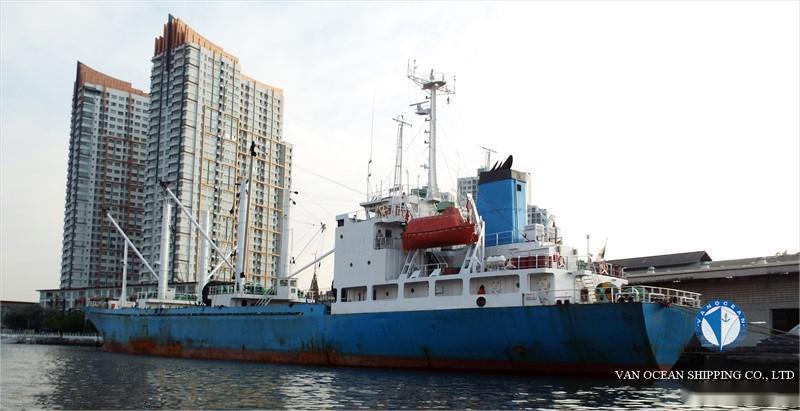

VESSEL NAME
REF742
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
YES
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1988
BUILT PLACE
TERAOKA SHIPYARD CO., LTD. , JAPAN
CLASSIFICATION
NK
CLASS NOTATION
NS*, MNS*, RMC*
SS
2018-10-22
DD
2016-10-06
LOA (M)
100.80
LBP (M)
-
BEAM (M)
15.60
DEPTH (M)
9.50
SUMMER DRAFT (M)
6.20
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
3475.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1720.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
4218.03
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS, UP 4 MT, WINCH 4 MT x 30/60 M/MIN, OUT REACH 4.5 M
M/E(S)
1 x AKASAKA 7UEC37LA, 2-CYCLE DIESEL ENGINE, 4900PS x 210RPM
TURBO-CHARGER MITSUBISHI MET-42SC
M/E POWER (KW)
3603
A/E(S)
3 x DOOSAN AD222TIS, 720PS x 1800RPM, 625KVA
BOILER&EXH GAS ECONOMIZER: MIURA VWK-1620
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
MYCOM SCREW TYPE REF. COMPRESSOR, 3550RPM
2 x F160LUD2-M 88.3R/T, 120KW x 2P x 138.3BKW
2 x F162C2-61A 20.OR/T, 150KW x 2P x 70.4BKW
SPEED/CONSUMPTIONS
BALLAST: 13.5 KONTS; FULL LOAD: 12.5 - 13.0 KONTS
AT SEA IFO: 13.50 MT/DAY(M/E); MGO: 2.50 MT/DAY(G/E)
IN PORT IFO: 0.7 MT/DAY(BLR); MGO: 2.50 MT/DAY(G/E)
FUEL TYPE
-
BUNKER CAPACITY (CBM)
827.17
TANKS CAPACITY (CBM)
101.61(FW); 37.22(WB/FPT)
NUMBER OF CARGO HOLDS
3
HATCH NUMBER
3
HATCH TYPE
-
HATCH SIZE (M)
-
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
-
DECK(S)
3
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
191422.70
CARGO CAPACITY (CBM)
5281.24
FLOOR SPACE CAPACITY (SQM)
-
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
-
TEMPERATURE (℃)
-30/+32(1&3 HOLD); -50/+32(2 HOLD)
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
25
ACCOMMODATION
-
INSPECTION
-
DELIVERY
FAR EAST
PRICE
USD 3.8 MILLION
REMARK(S)
FW GENERATOR: NAIDER MIURA CO., LTD. MODEL WM-5M, 5 MT/DAY
S.S.B.: JRC JSB-77, 1.6-14MHZ, 24 CHANNEL
RADAR: JRC NO.1 JMA 627-6, NO.2 JMA 527-6
