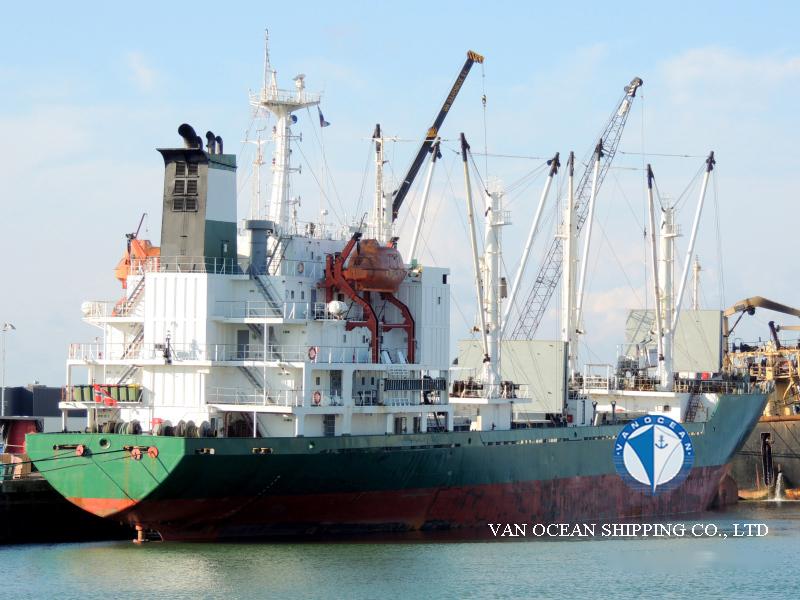

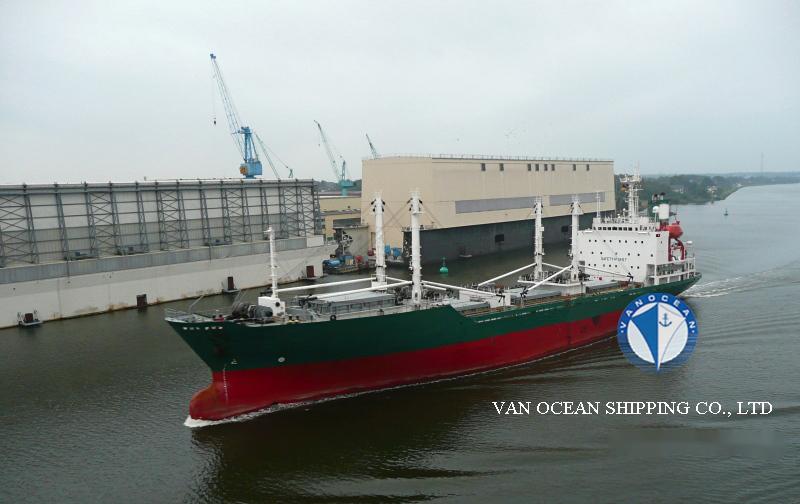

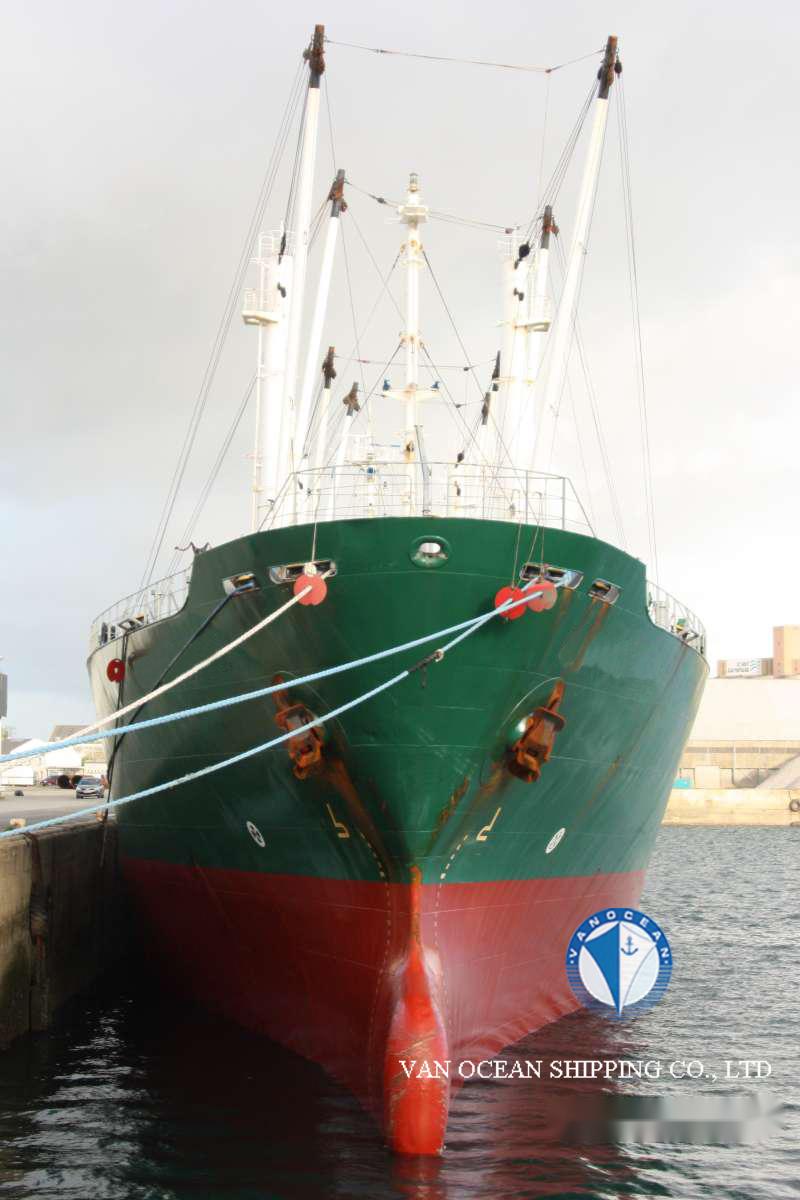

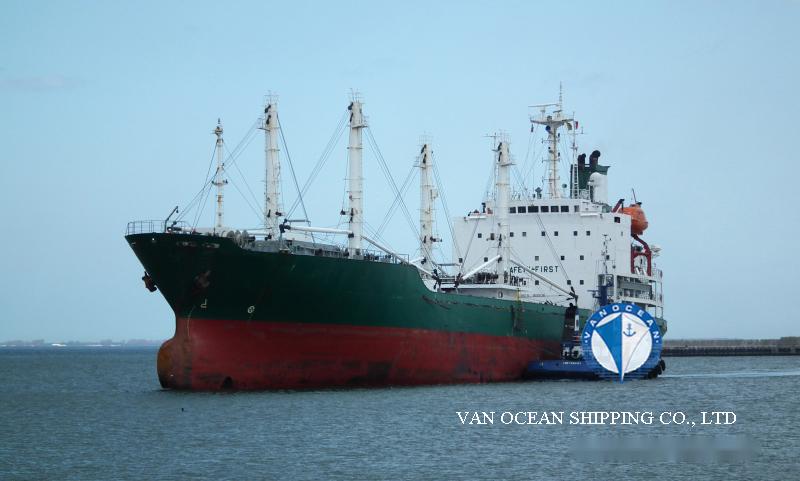

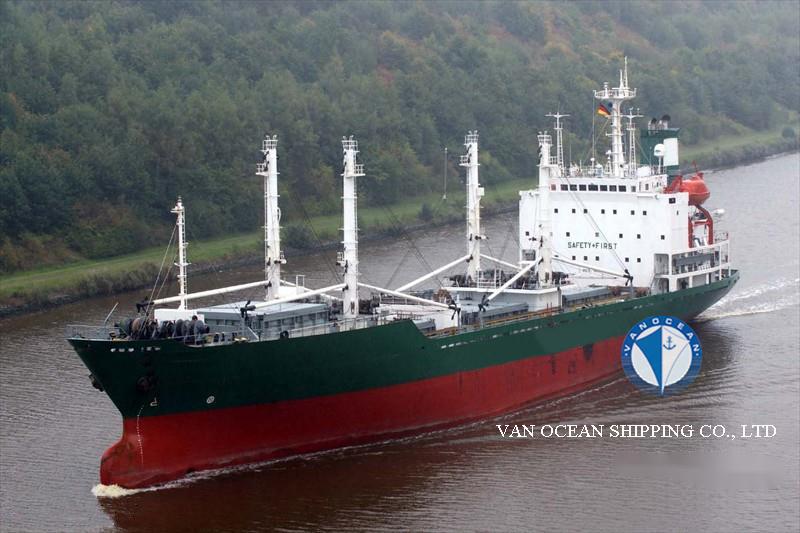

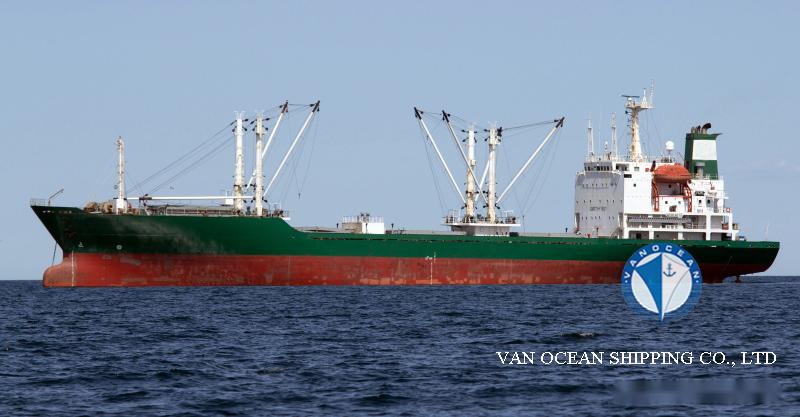

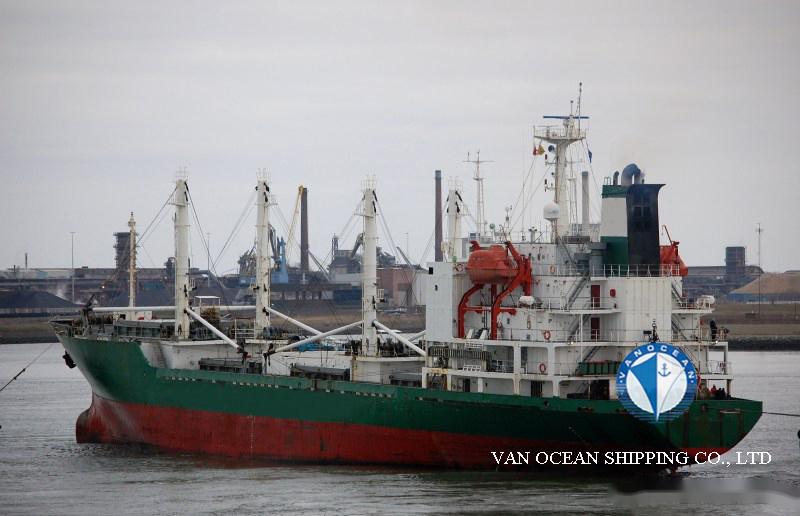

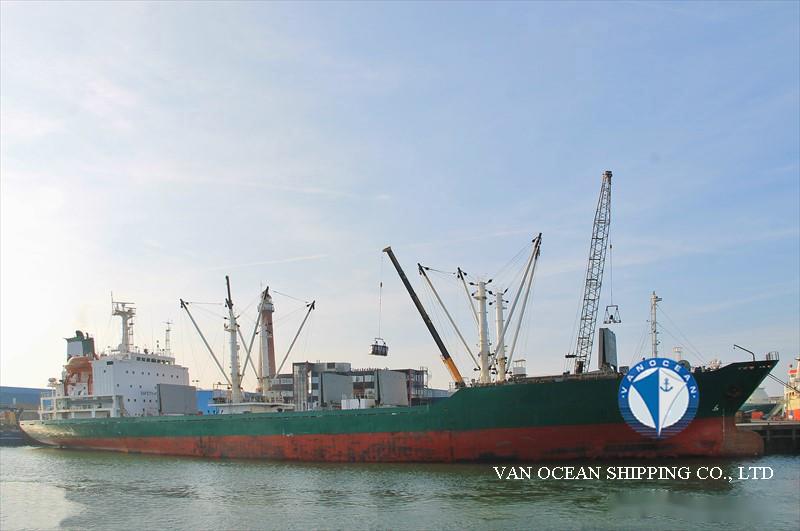

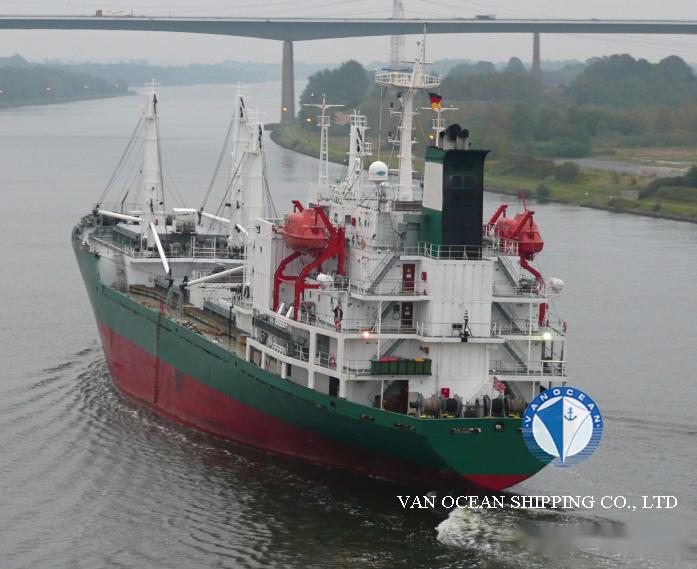

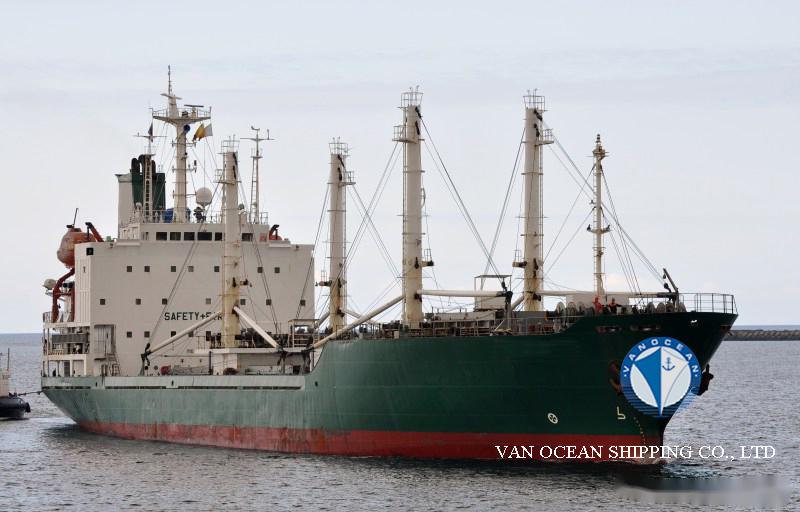

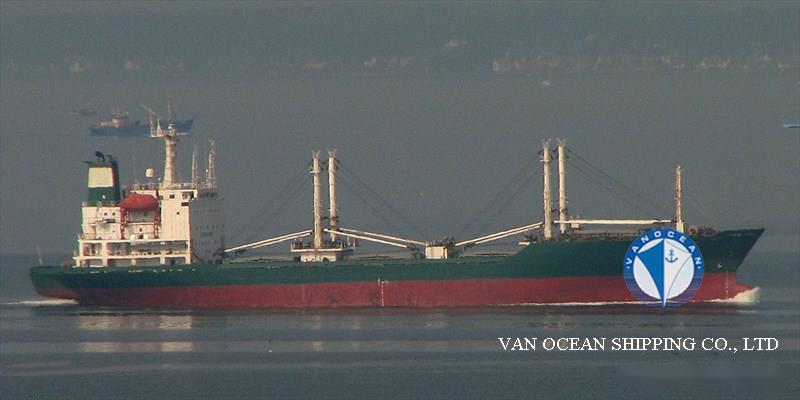

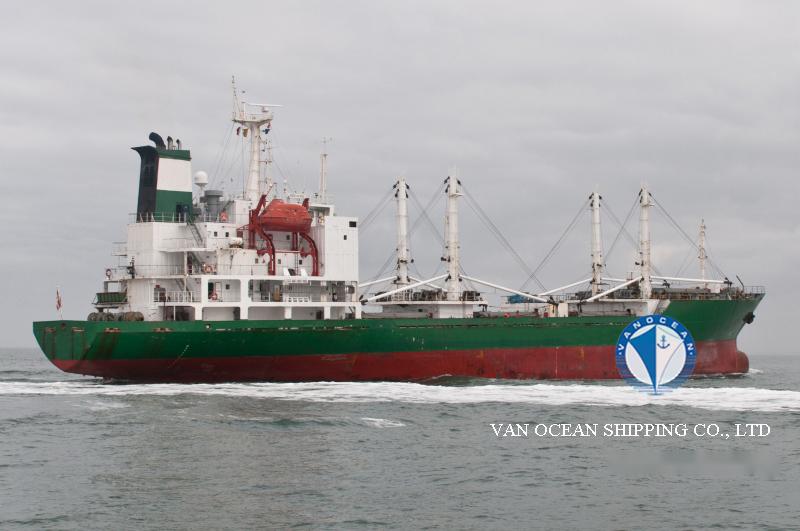

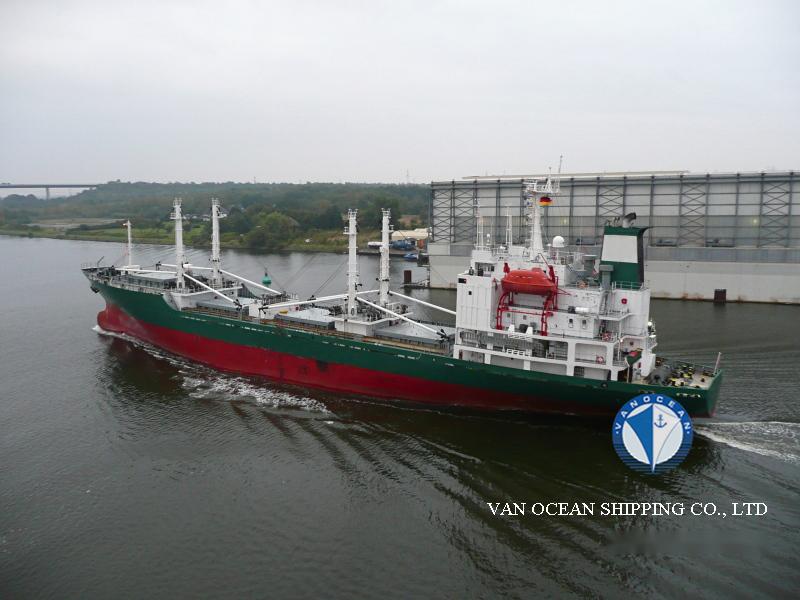

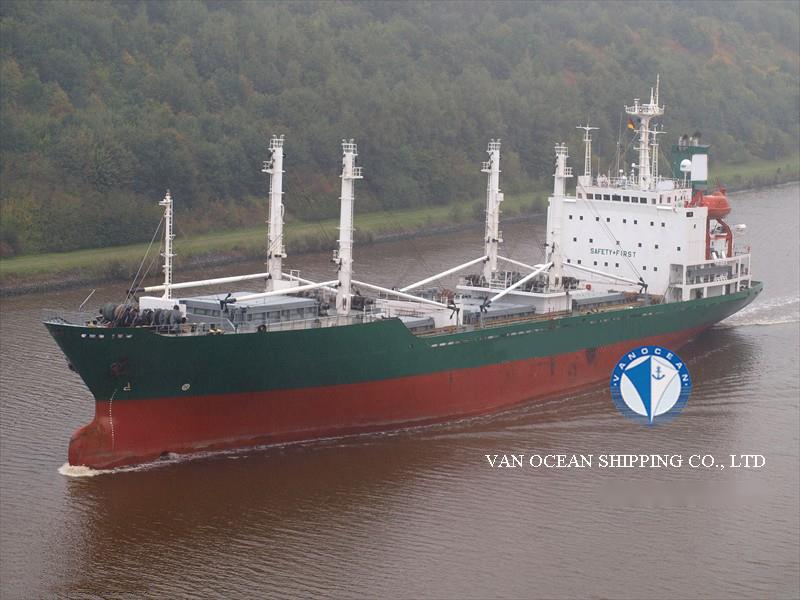

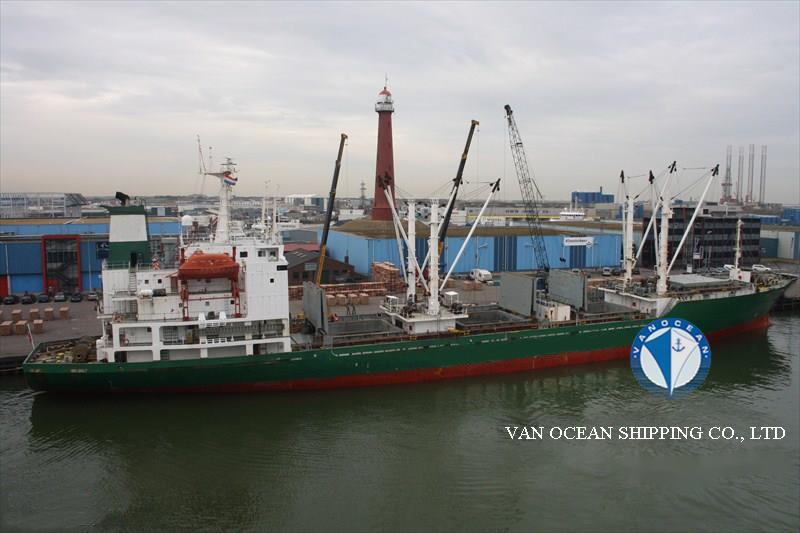

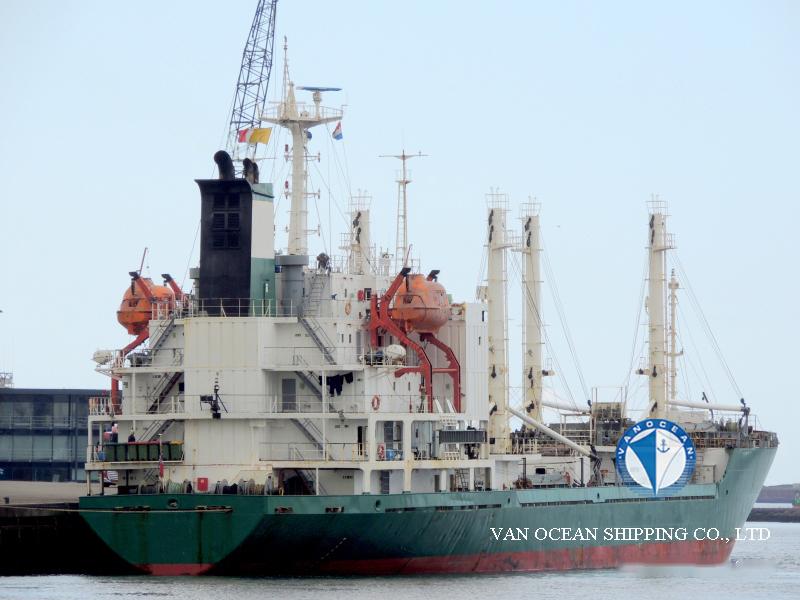

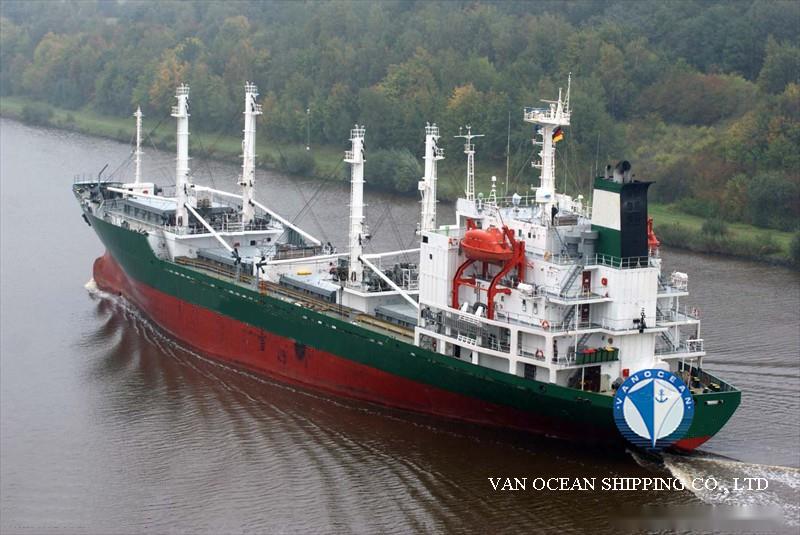

VESSEL NAME
REF746
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1991
BUILT PLACE
FUKUOKA, JAPAN
CLASSIFICATION
OMCS
CLASS NOTATION
+1A1 REEFER -34 °C/+32 °C SEA
SS
2028-08
DD
-
LOA (M)
119.55
LBP (M)
-
BEAM (M)
18.6
DEPTH (M)
10.25
SUMMER DRAFT (M)
7.76
WINTER DRAFT (M)
7.6
TROPICAL DRAFT (M)
7.93
GT (MT)
5617
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
3506
PANAMA NT (MT)
5012
SUEZ NT (MT)
5085.05
SUMMER DWT (MT)
7075
WINTER DWT (MT)
6800
TROPICAL DWT (MT)
7353
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS, 8 x 5.0 MT OR 4 x 3.0 MT IN UNION PURCHASE
M/E(S)
MITSUBISHI 2 S.A. 6-CYL, 7200 HP
M/E POWER (KW)
5373
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
3 x MYCOM-F160MUD2-VE, 140KW
SPEED/CONSUMPTIONS
16 KONTS ON 19 MT/DAY
FUEL TYPE
IFO380, MGO
BUNKER CAPACITY (CBM)
1041
TANKS CAPACITY (CBM)
MGO: 91
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
-
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
12
DECK(S)
-
DECK HEIGHT (M)
≥2.20
CARGO CAPACITY (CBFT)
302047
CARGO CAPACITY (CBM)
8553
FLOOR SPACE CAPACITY (SQM)
3100.63
GRATING/DECK STRENGTH
MAX ALLOWABLE WEIGHT OF FORKLIFT EQUIPED WITH MINIMUM 4 AIRTYPES (INCLUDING CARGOS) IS 5 MT
TEMPERATURE ZONE(S)
8
TEMPERATURE (℃)
-30/+15
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90/60/45
AIR CHANGE (TIMES/HOUR)
4
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
