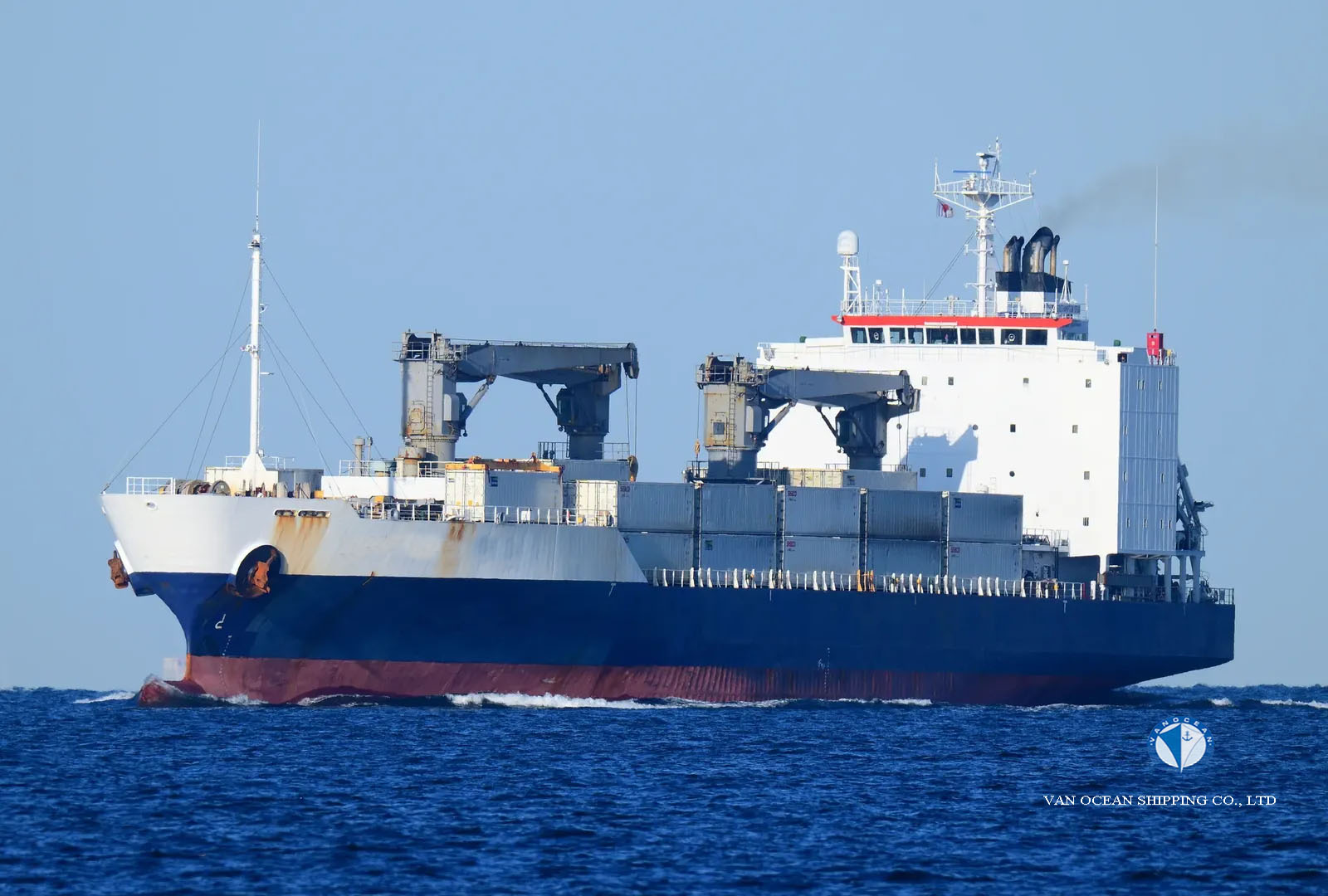

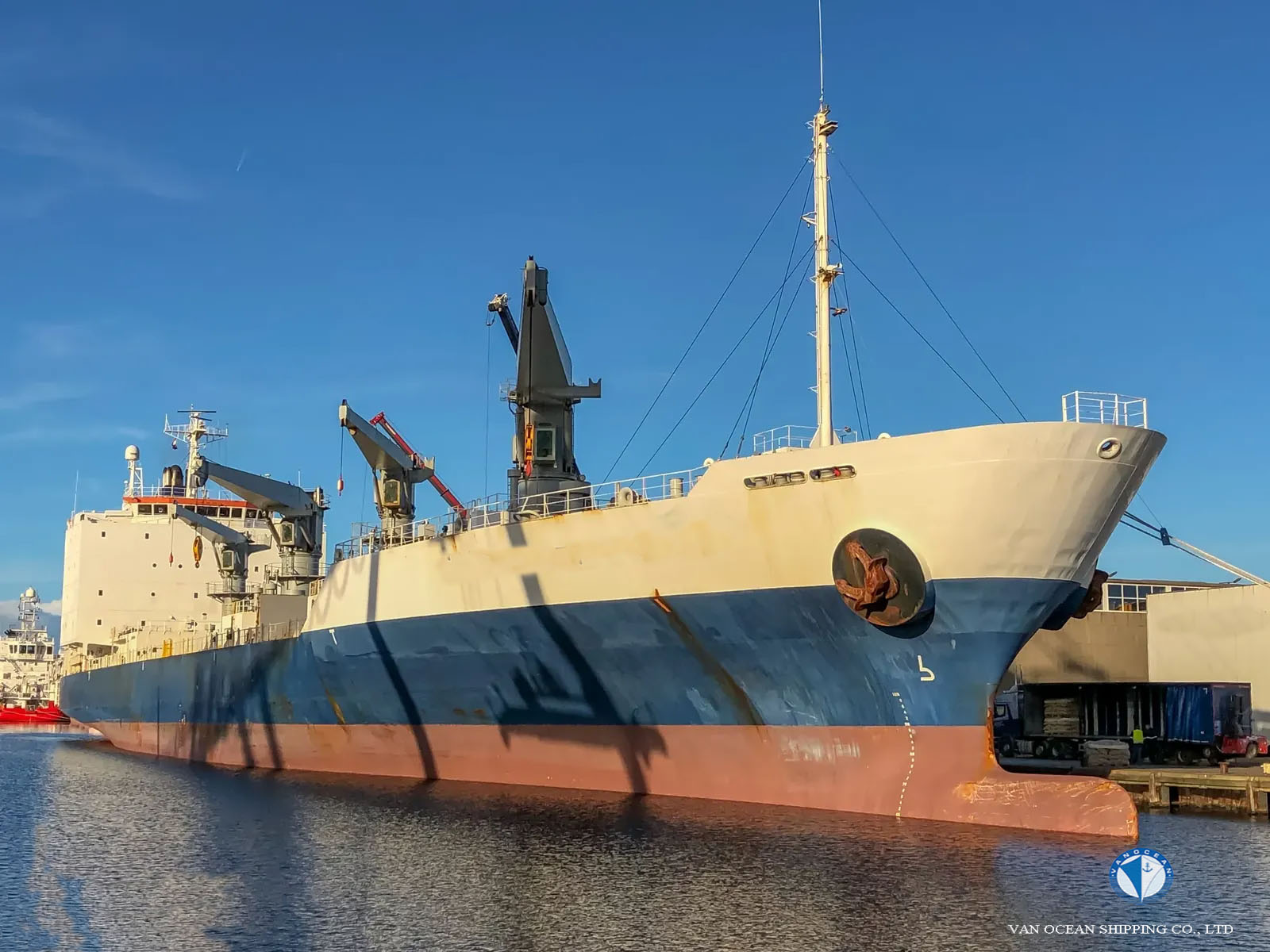

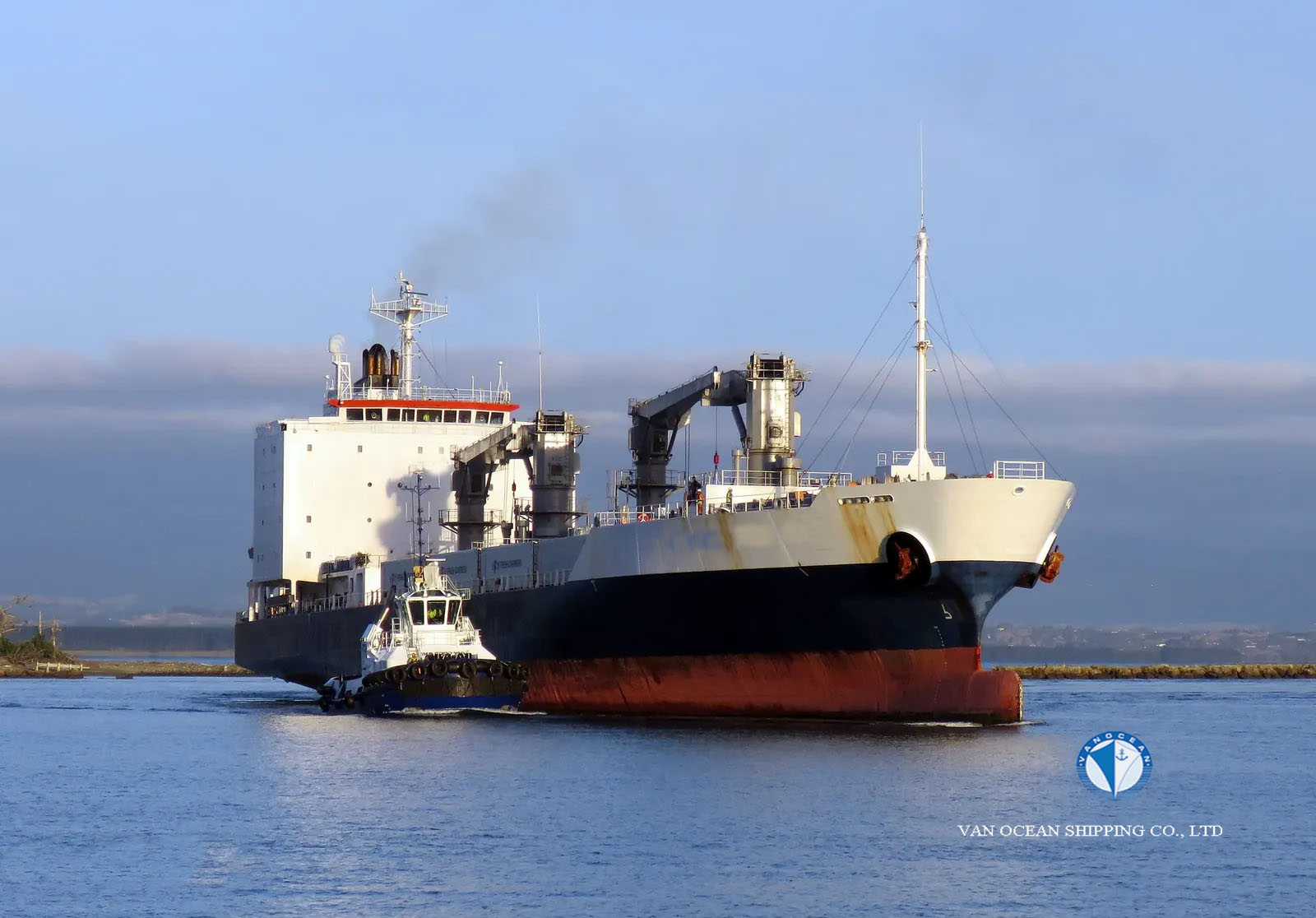

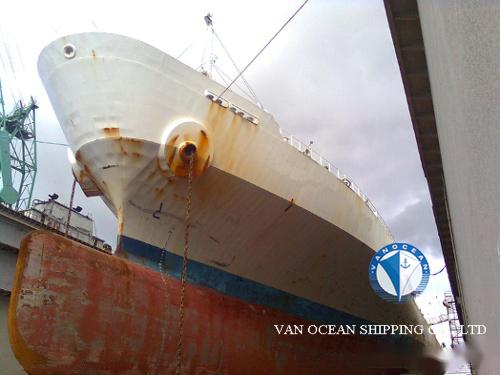

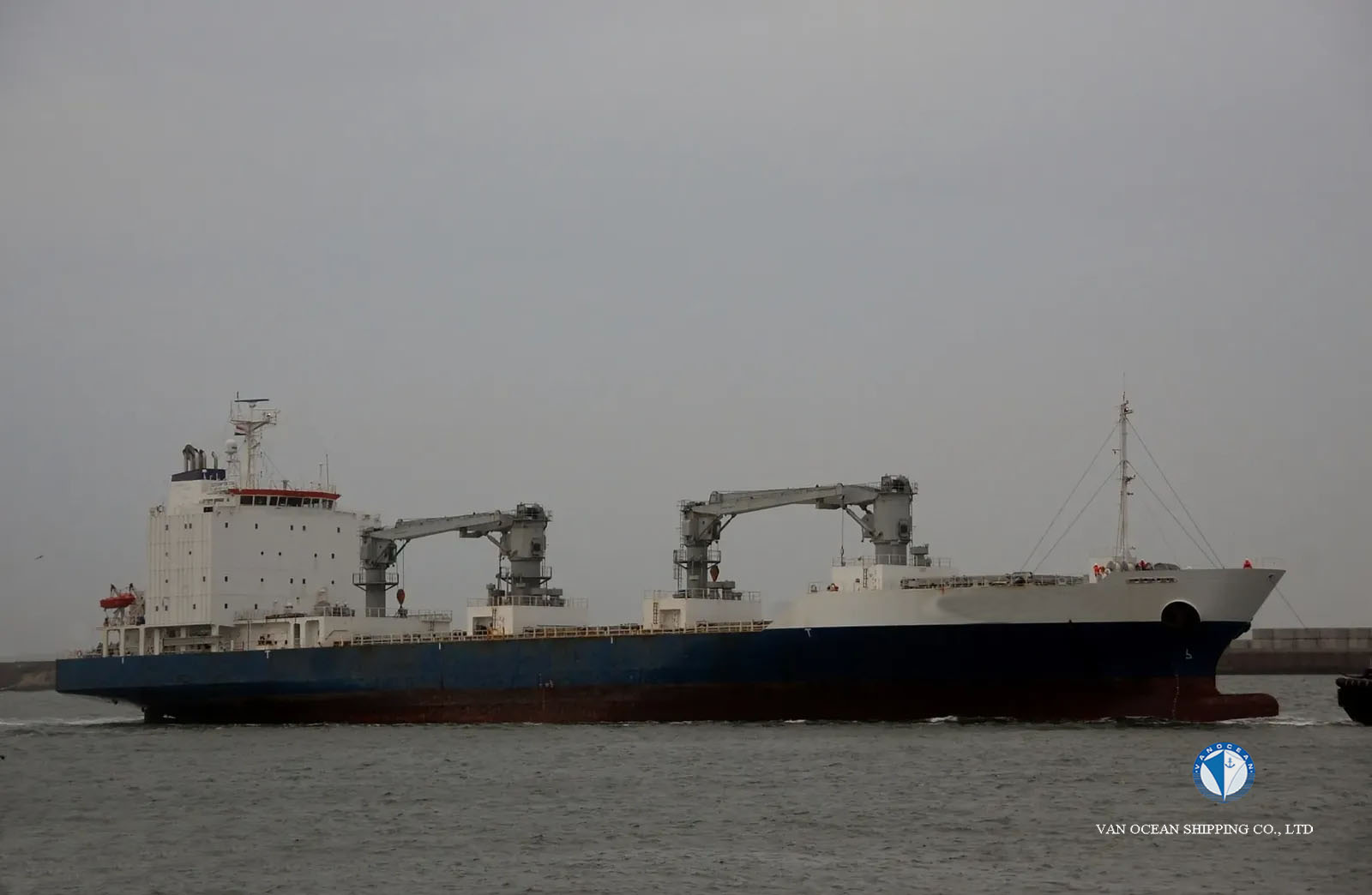

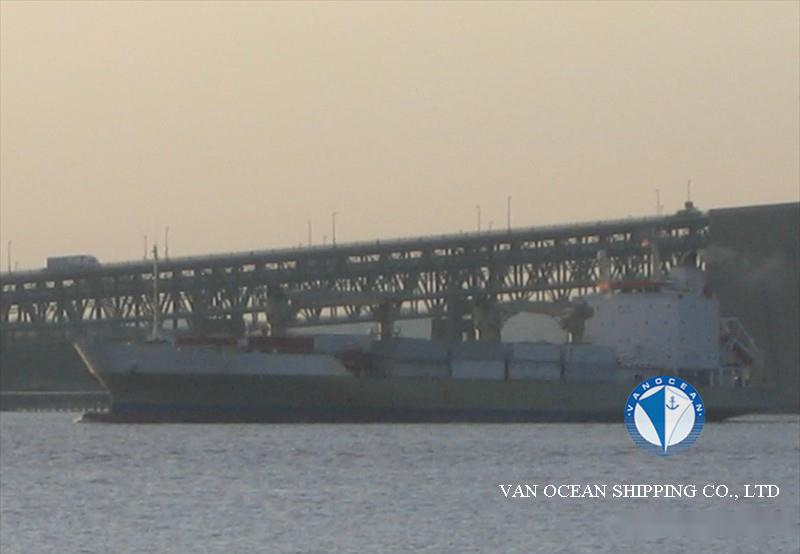

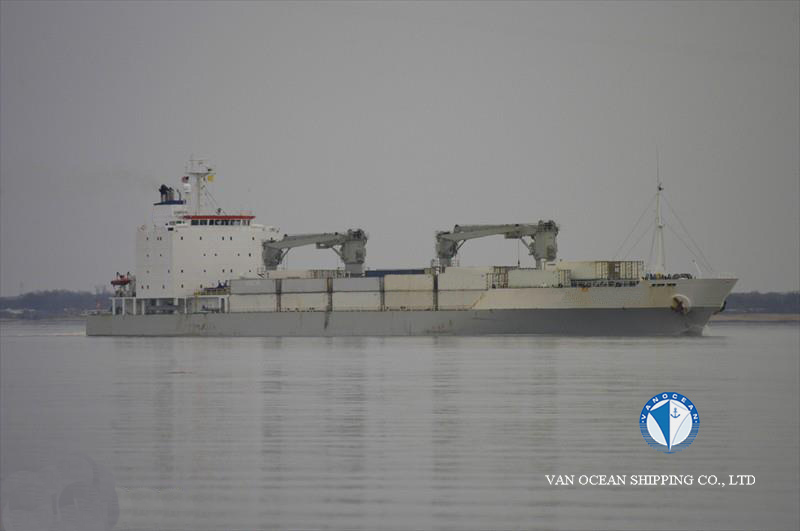

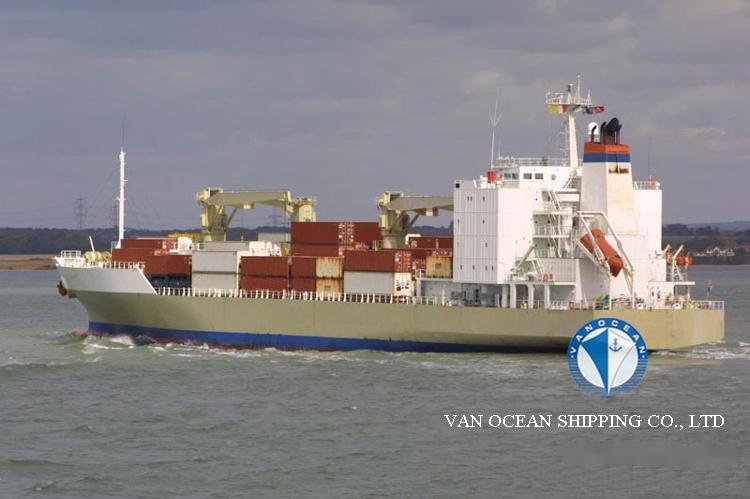

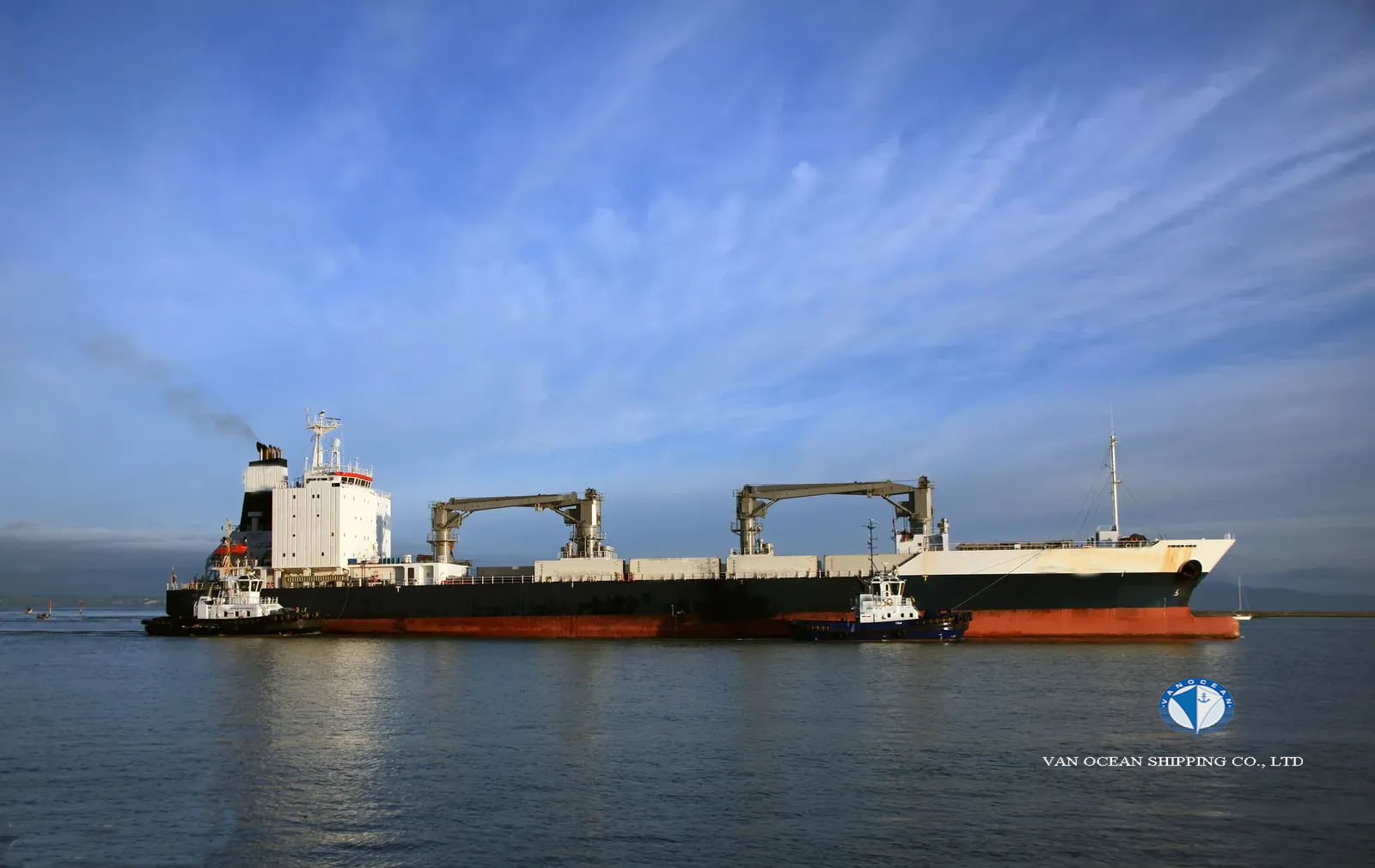

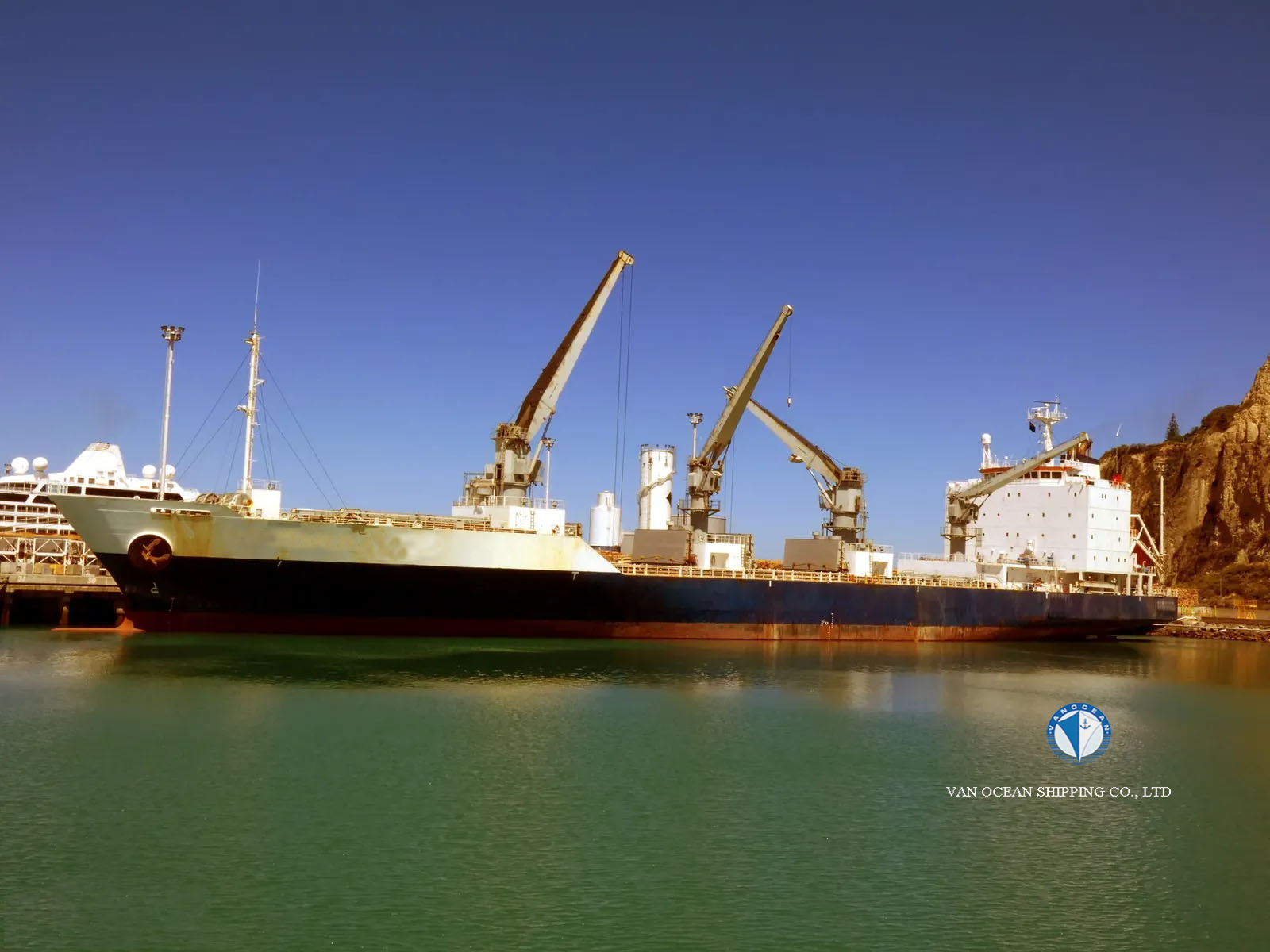

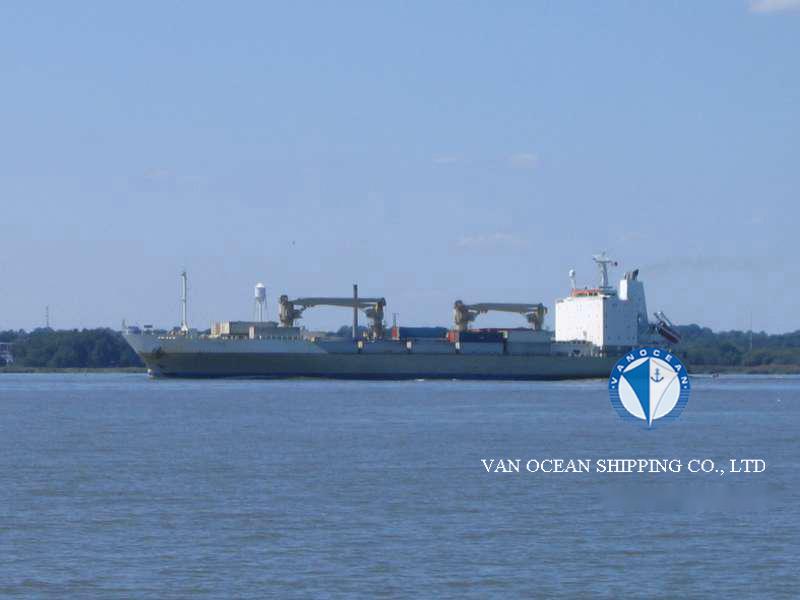

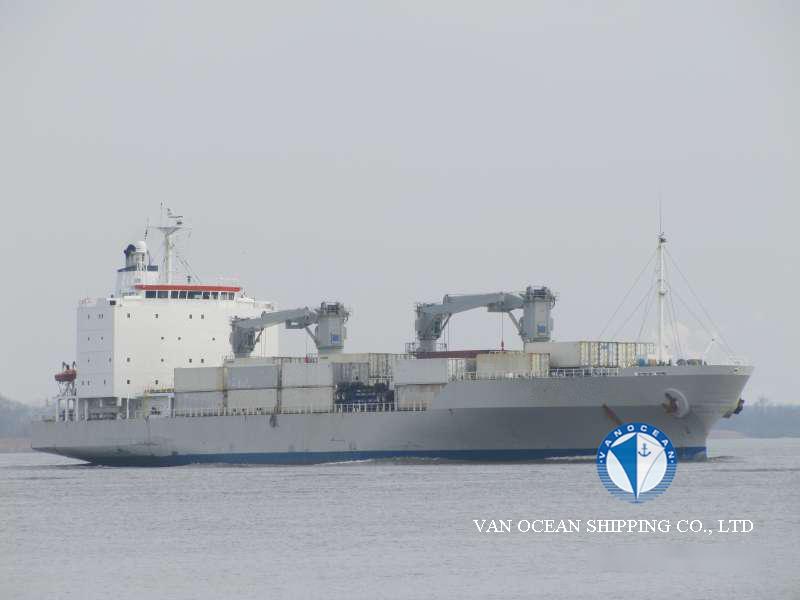

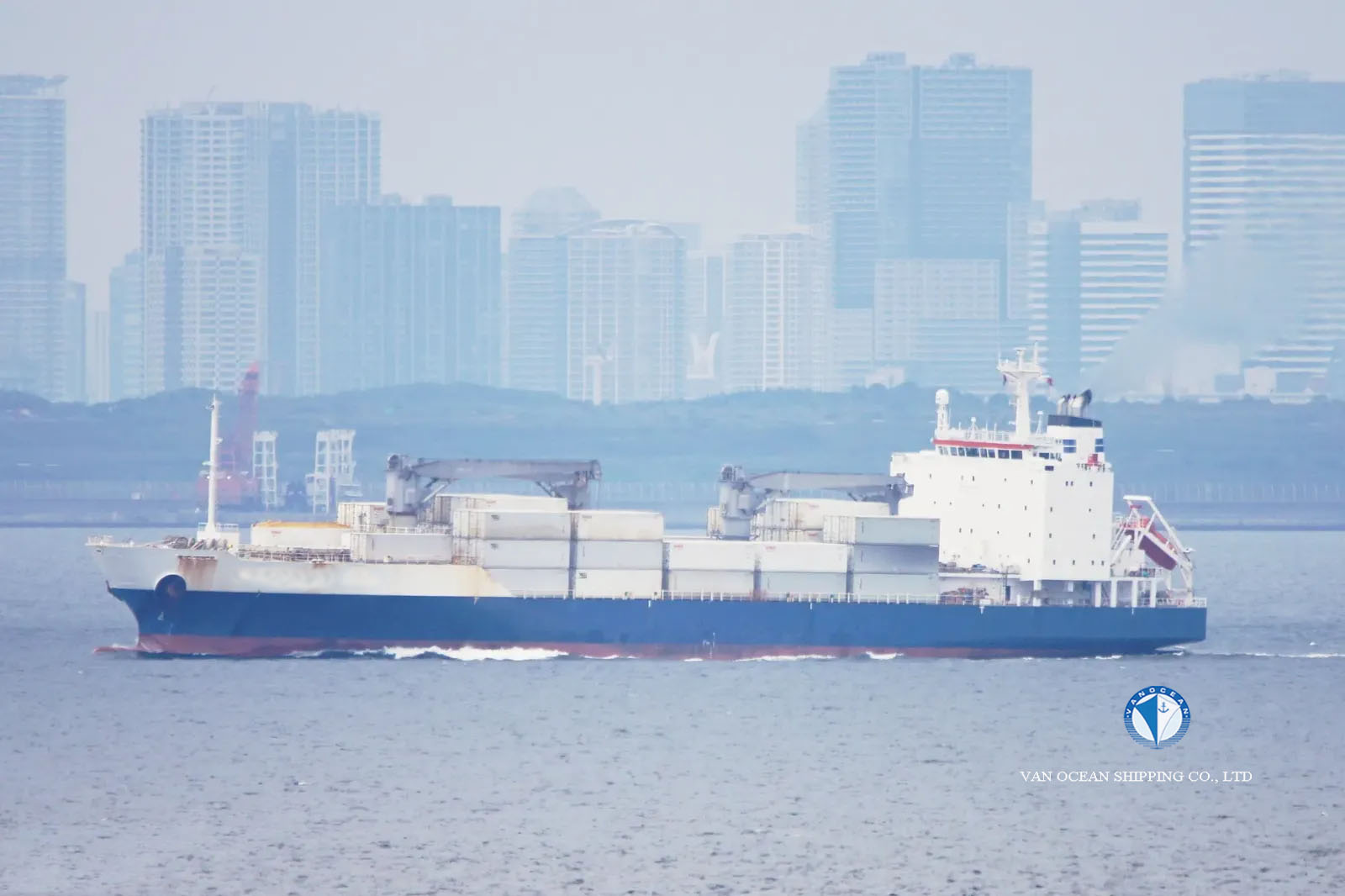

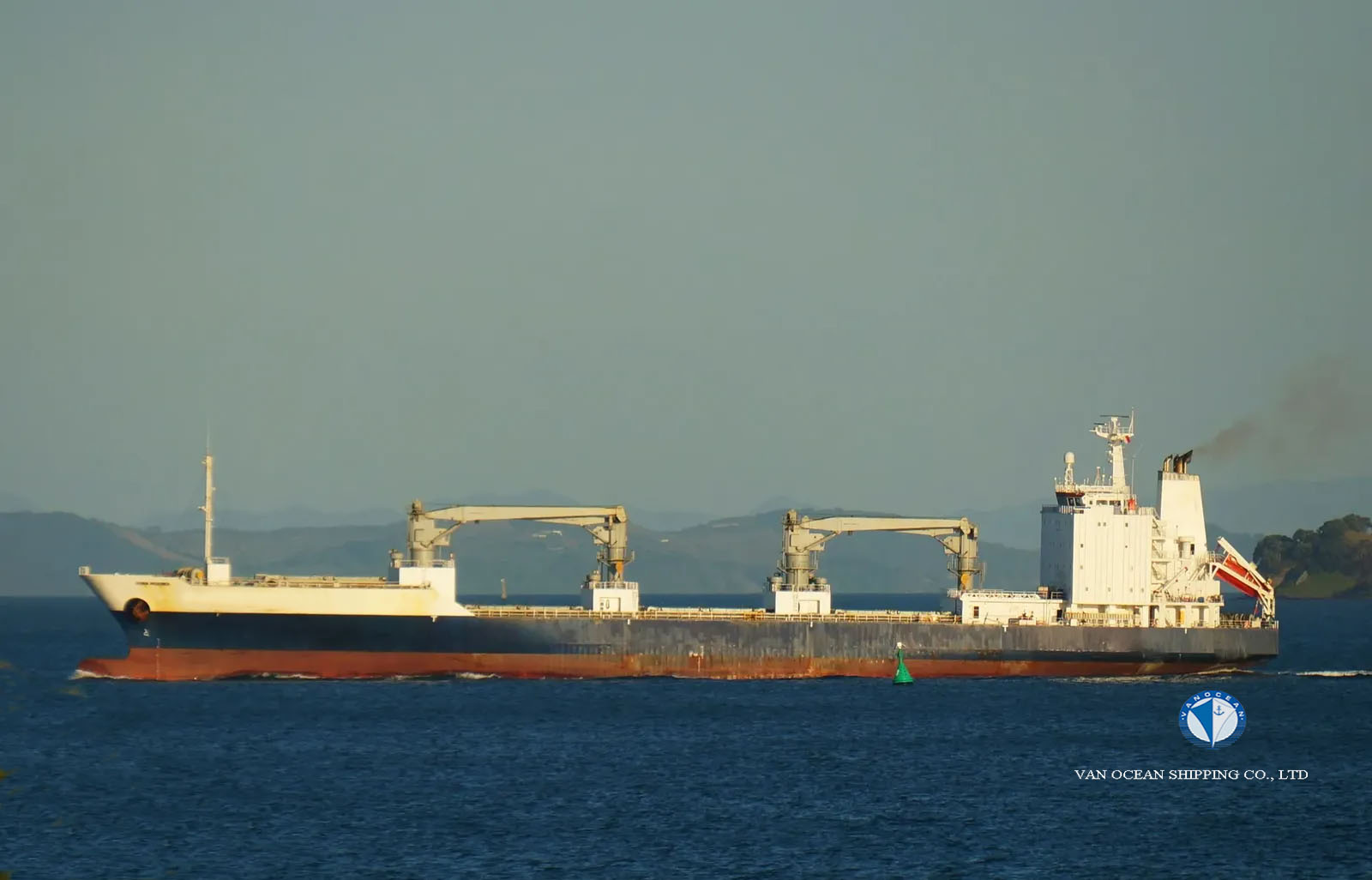

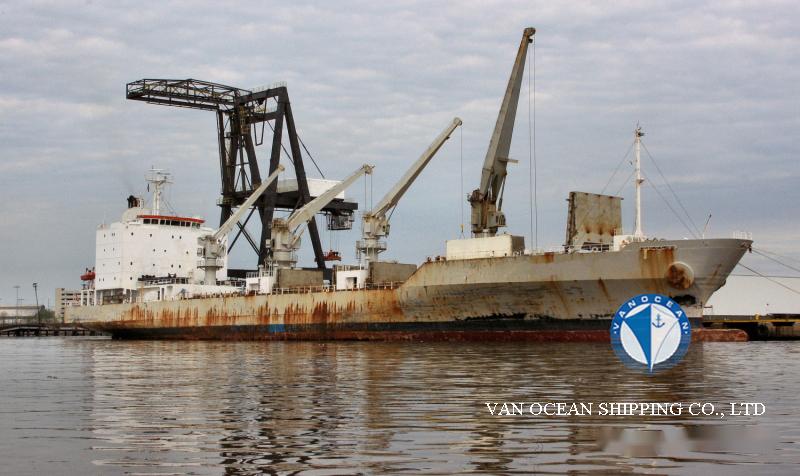

VESSEL NAME
REF699
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
BAHAMAS
PORT OF REGISTRY
MONROVIA
BUILT YEAR
1999
BUILT PLACE
SHIKOKU, JAPAN
CLASSIFICATION
NK
CLASS NOTATION
NS*, NMS*, RMC*, CA
SS
-
DD
-
LOA (M)
150
LBP (M)
-
BEAM (M)
23
DEPTH (M)
13.3
SUMMER DRAFT (M)
9.02
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
10804
PANAMA GT (MT)
9313
SUEZ GT (MT)
11703
NT (MT)
5320
PANAMA NT (MT)
-
SUEZ NT (MT)
9710
SUMMER DWT (MT)
9709
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
CRANES, 2 X 8MT, 2 X 40MT
M/E(S)
B&W 2 S.A., 8-CYL., 17186 HP
M/E POWER (KW)
12825
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-

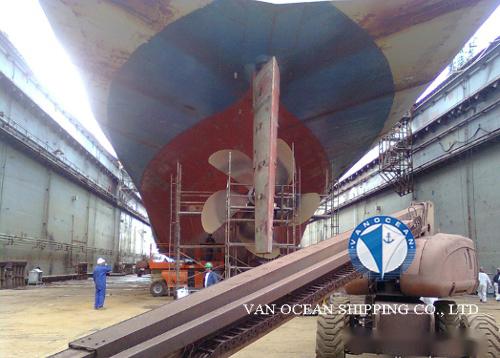

PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
SALT WATER COOLING
SPEED/CONSUMPTIONS
MAX 21.5KTS
BANANA LADEN: 19 KTS ON 38MT +AUX 6.5 MT (+ 3MT MDO/MONTH)
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
12.60 x 7.80
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
4
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
506228
CARGO CAPACITY (CBM)
14335
FLOOR SPACE CAPACITY (SQM)
5944
GRATING/DECK STRENGTH
PNEUMATIC-TYERED FORKLIFTS WITH ALL-UP WEIGHT OF 6.0 MT
TEMPERATURE ZONE(S)
7
1ABC, 2AB/CD, 3AB/CD, 4AB/CD
TEMPERATURE (℃)
-25/+15
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
2
PALLET(S)
4664
CONTAINER CAPACITY
-
REEFER PLUG(S)
100
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYER OFFER
REMARK(S)
-
