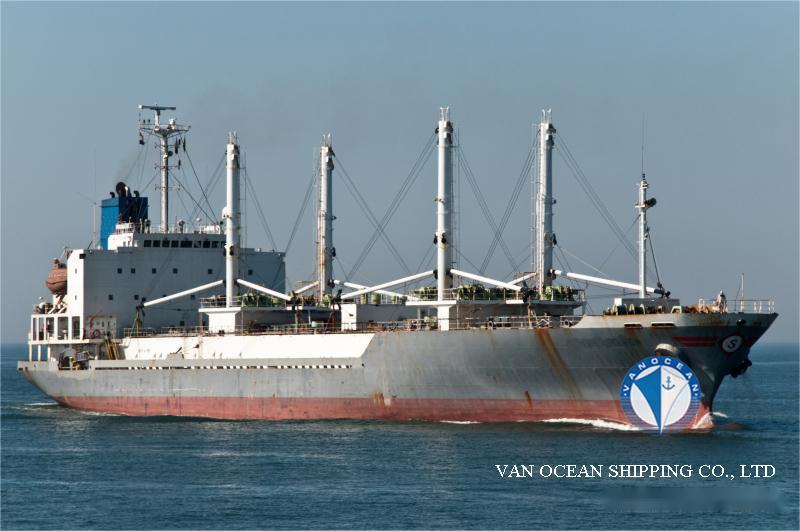

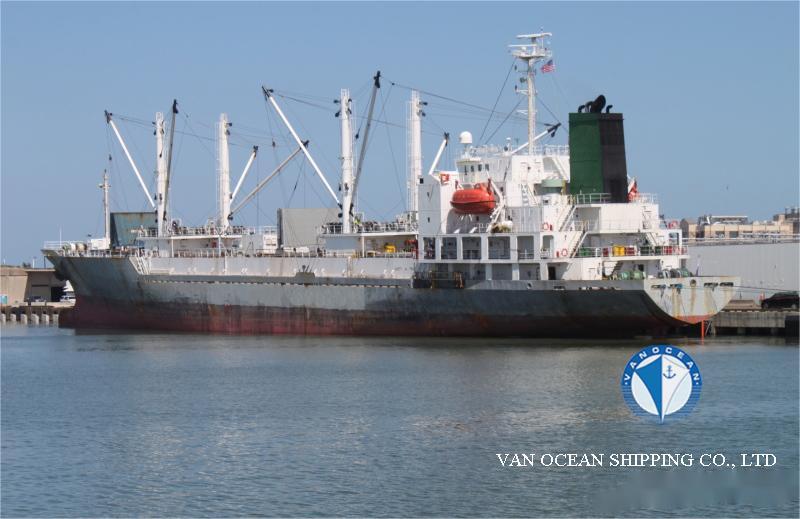

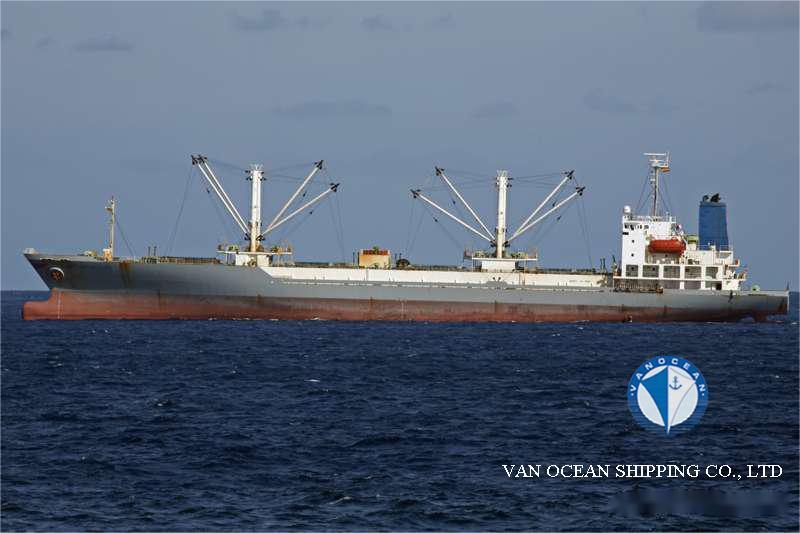

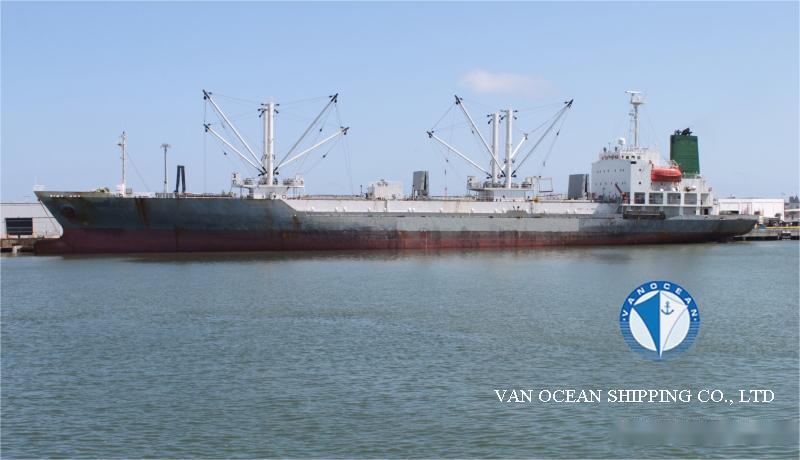

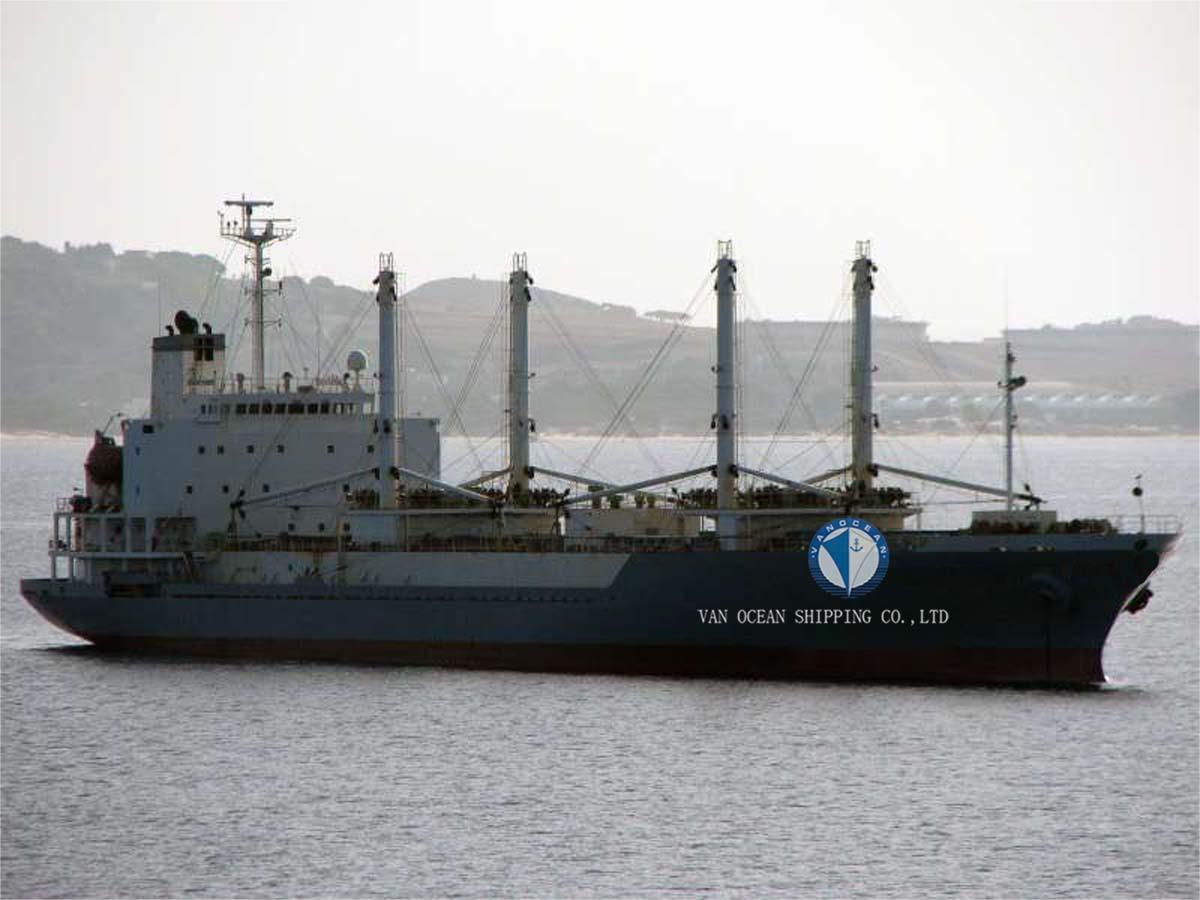

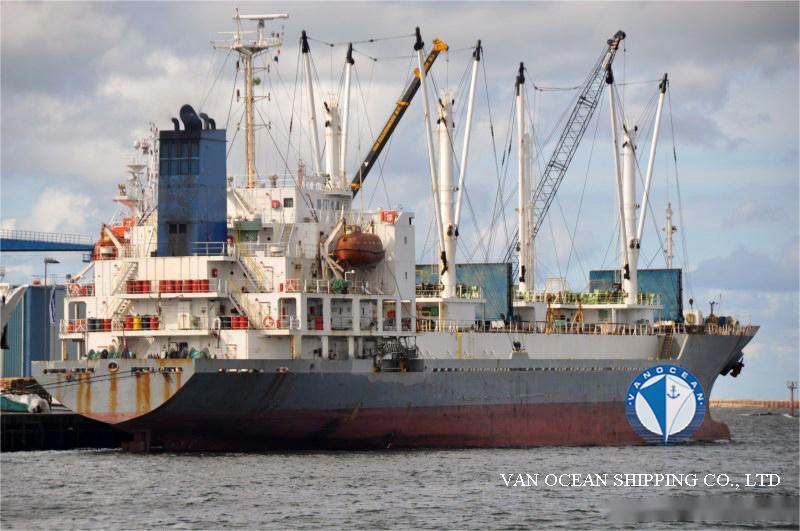

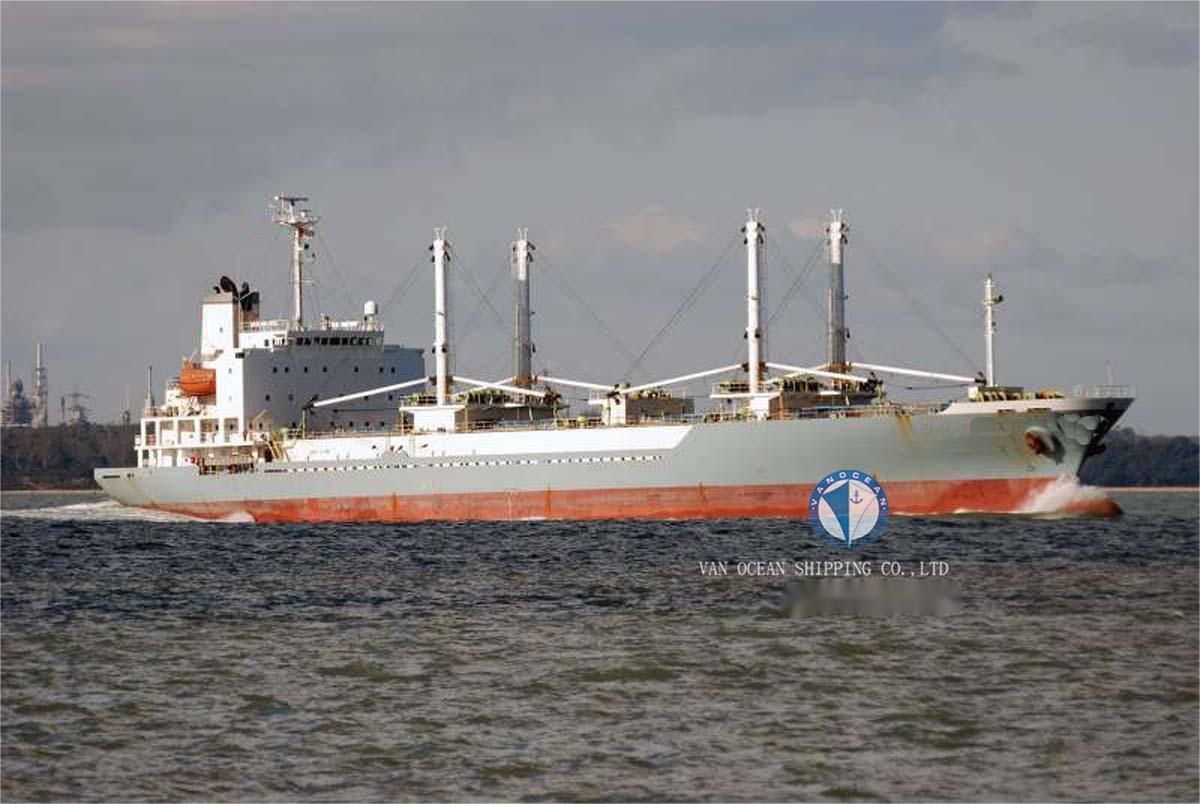

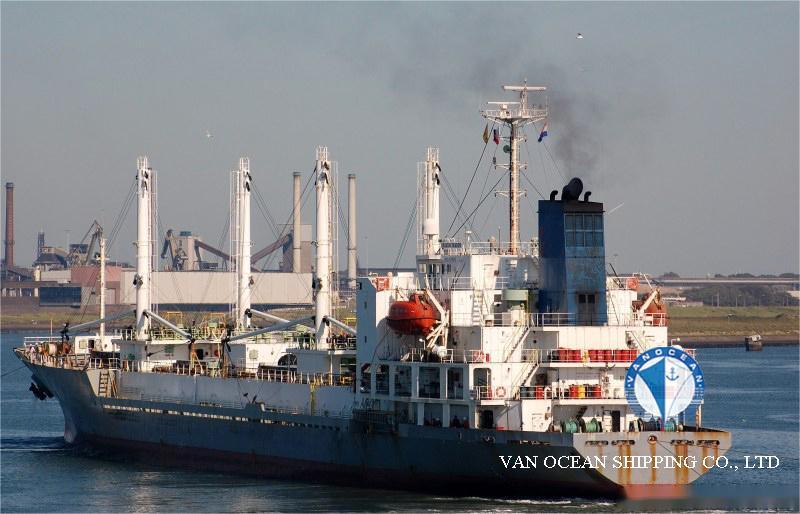

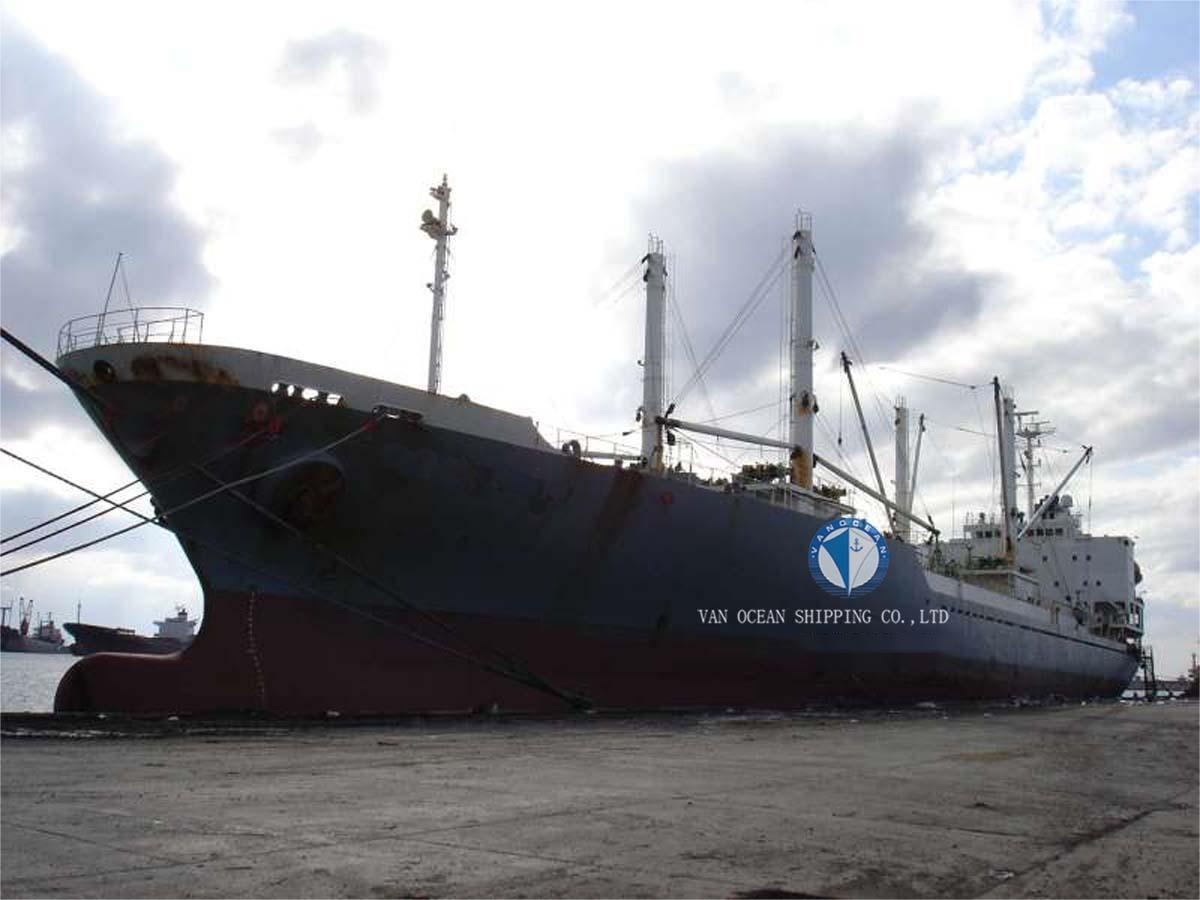

VESSEL NAME
REF529
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
MARSHALL ISLANDS
PORT OF REGISTRY
MAJURO
BUILT YEAR
2000
BUILT PLACE
USUKI SHIPYARD CO., LTD, JAPAN
CLASSIFICATION
BV
CLASS NOTATION
I✠Hull✠Mach, Refrigerated cargo ship,Special Service - carriage of vehicles,
Unrestricted navigation, ✠REF-CARGO -AIRCONT, 2(Ch 54 Q2)
SS
2029-09
DD
2027-08
LOA (M)
139
LBP (M)
130
BEAM (M)
20.6
DEPTH (M)
10.2
SUMMER DRAFT (M)
7.85
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
7627
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
5110
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
8994
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
DERRICKS, SWL 8 x 5MT, OR 4 x 5MT IN UP
M/E(S)
MITSUI MAN B&W 7S46 MC-C, 12496PS @ 129RPM
M/E POWER (KW)
9190
A/E(S)
DAIHATSU 6 DK 20, 3 x 600KW
GENERATOR(S)
3 - 750 kVA - 600 kW - 897 HP
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
BALLAST: ABT 20.80KTS ON ABT 34MT
BANANA LADEN: ABT 20KTS ON ABT 33MT
FUEL TYPE
IFO 380CST
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
7.30 x 7.30
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
-
DECK HEIGHT (M)
2.2
CARGO CAPACITY (CBFT)
437654
CARGO CAPACITY (CBM)
12393
FLOOR SPACE CAPACITY (SQM)
4943
GRATING/DECK STRENGTH
WOODEN, 6.5MT (FORKLIFT + CARGO)
TEMPERATURE ZONE(S)
8
1A/BC, 2AB/CD, 3AB/CD, 4AB/CD,
TEMPERATURE (℃)
-20/+35
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
100/45/22
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
3750
CONTAINER CAPACITY
24 TEU
REEFER PLUG(S)
12
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
