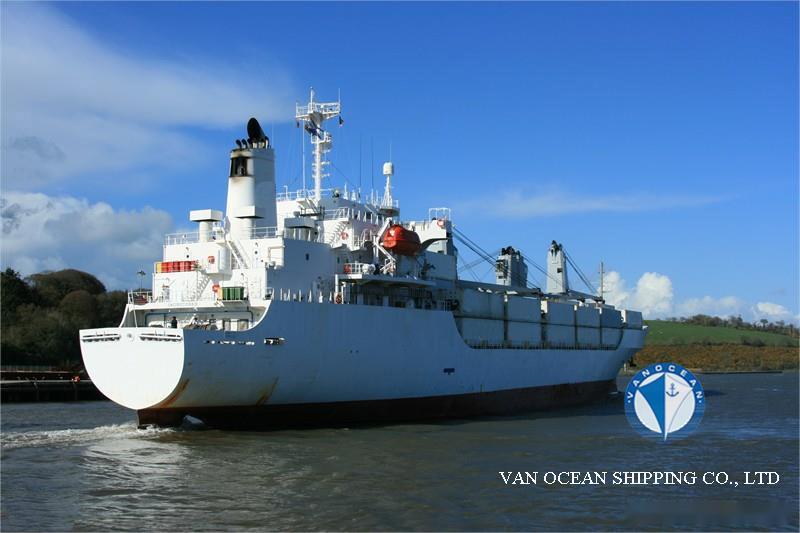

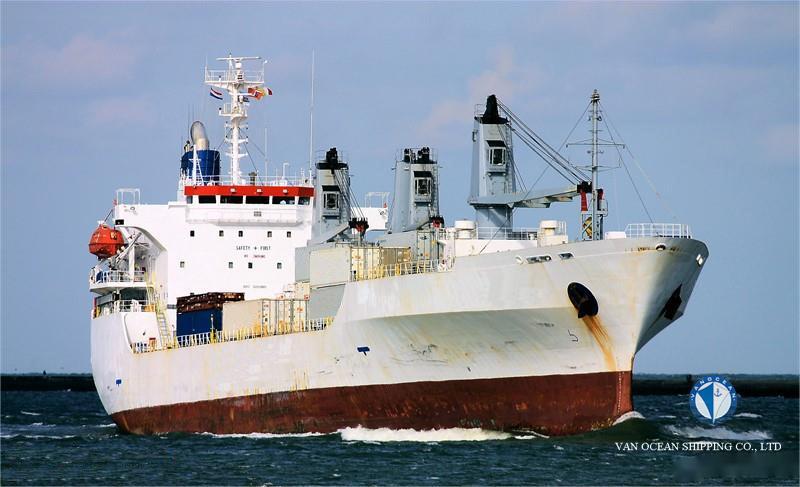

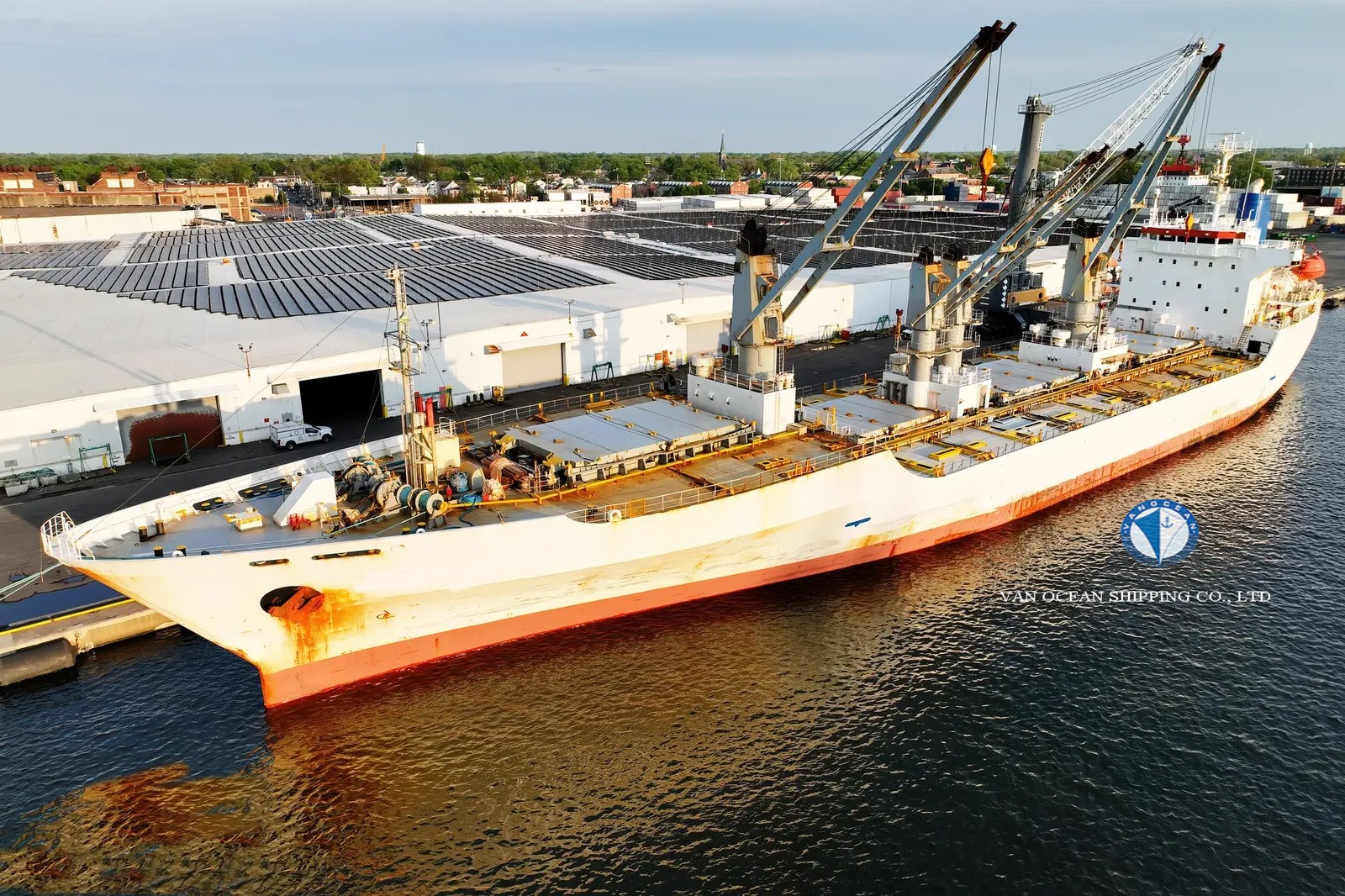

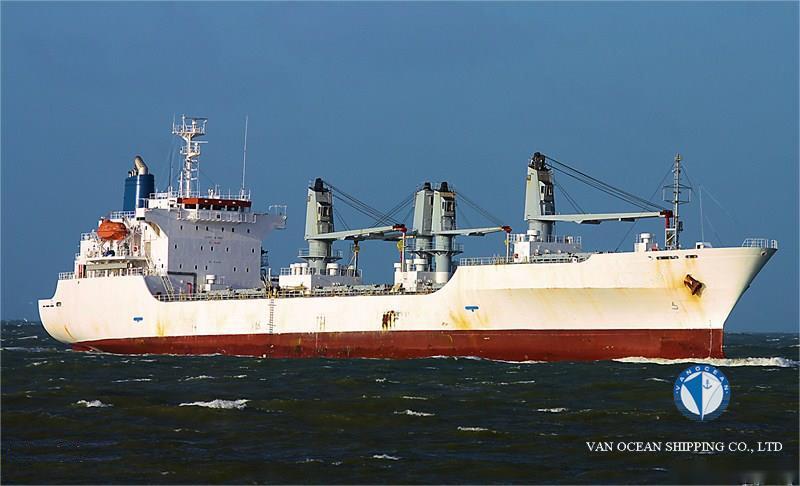

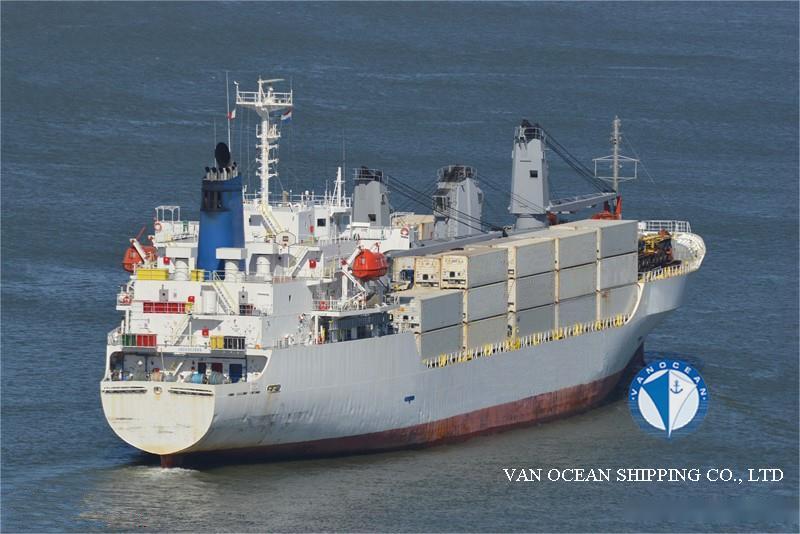

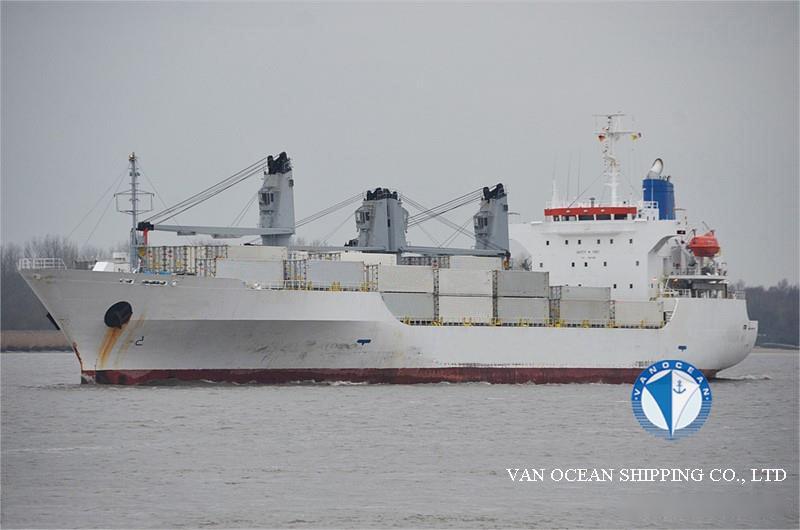

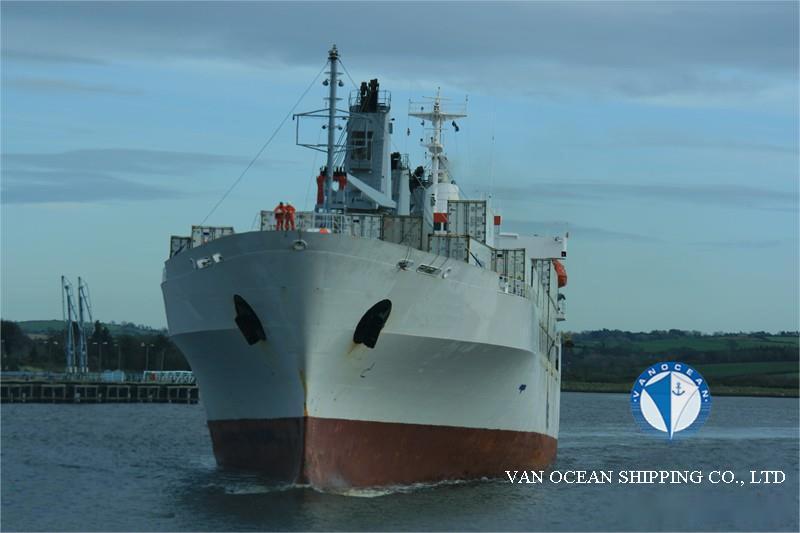

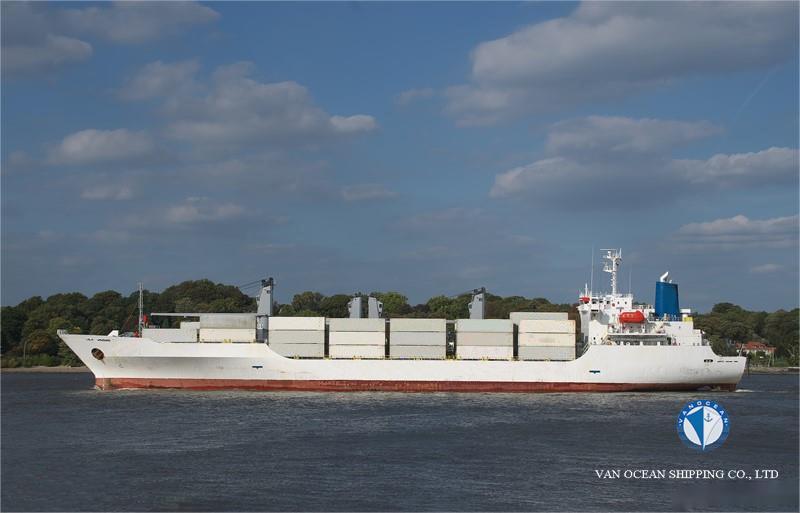

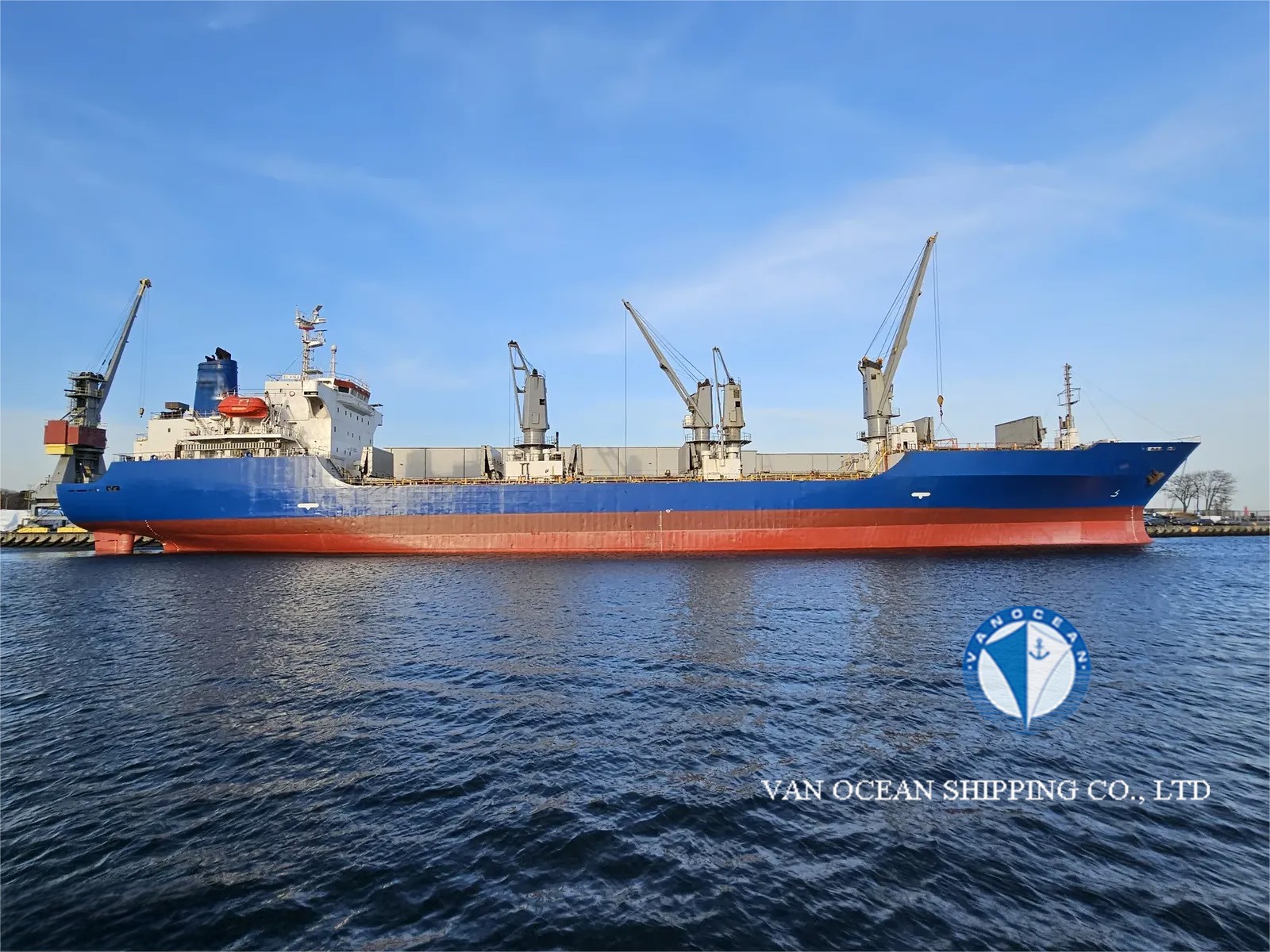

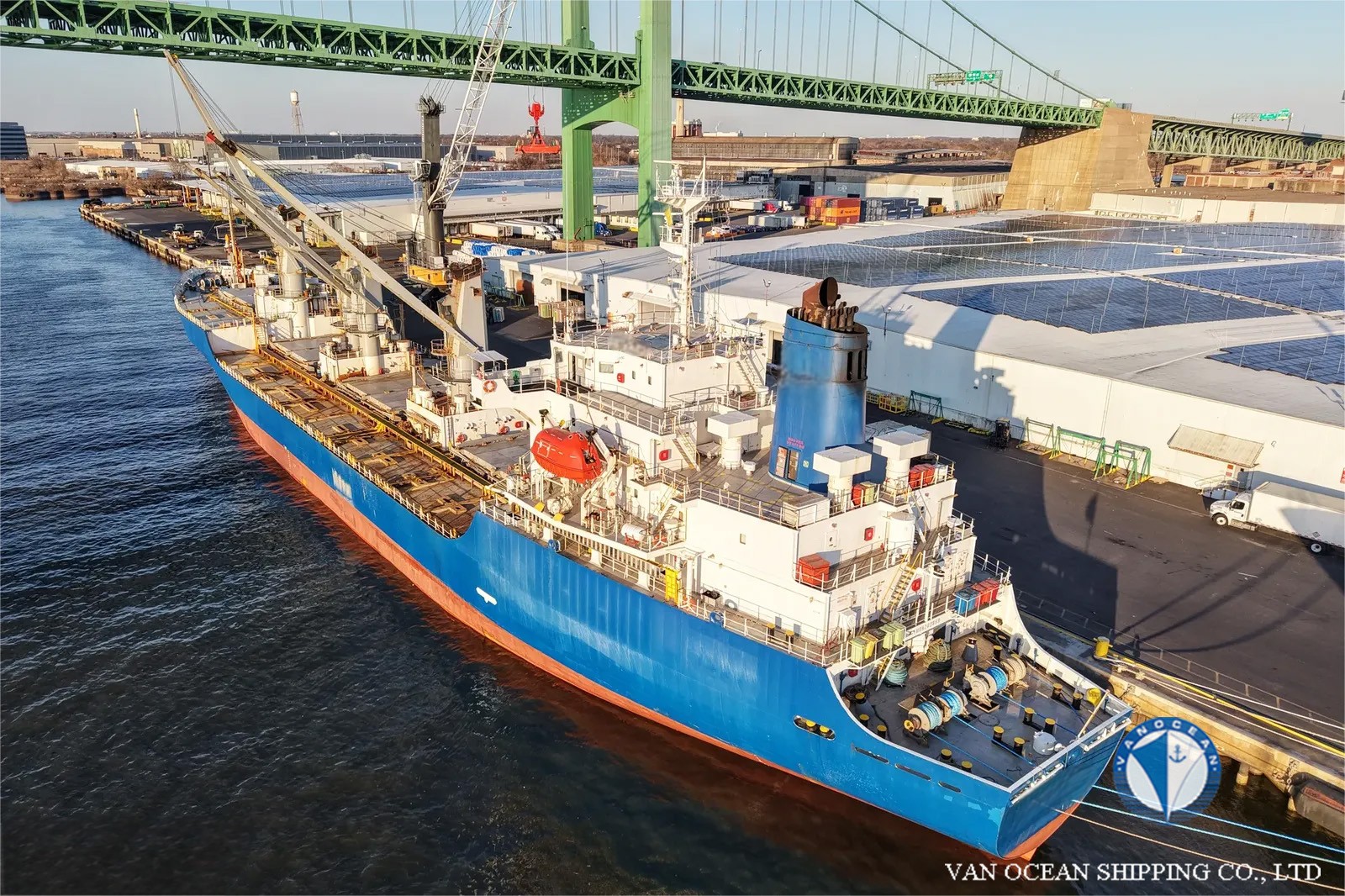

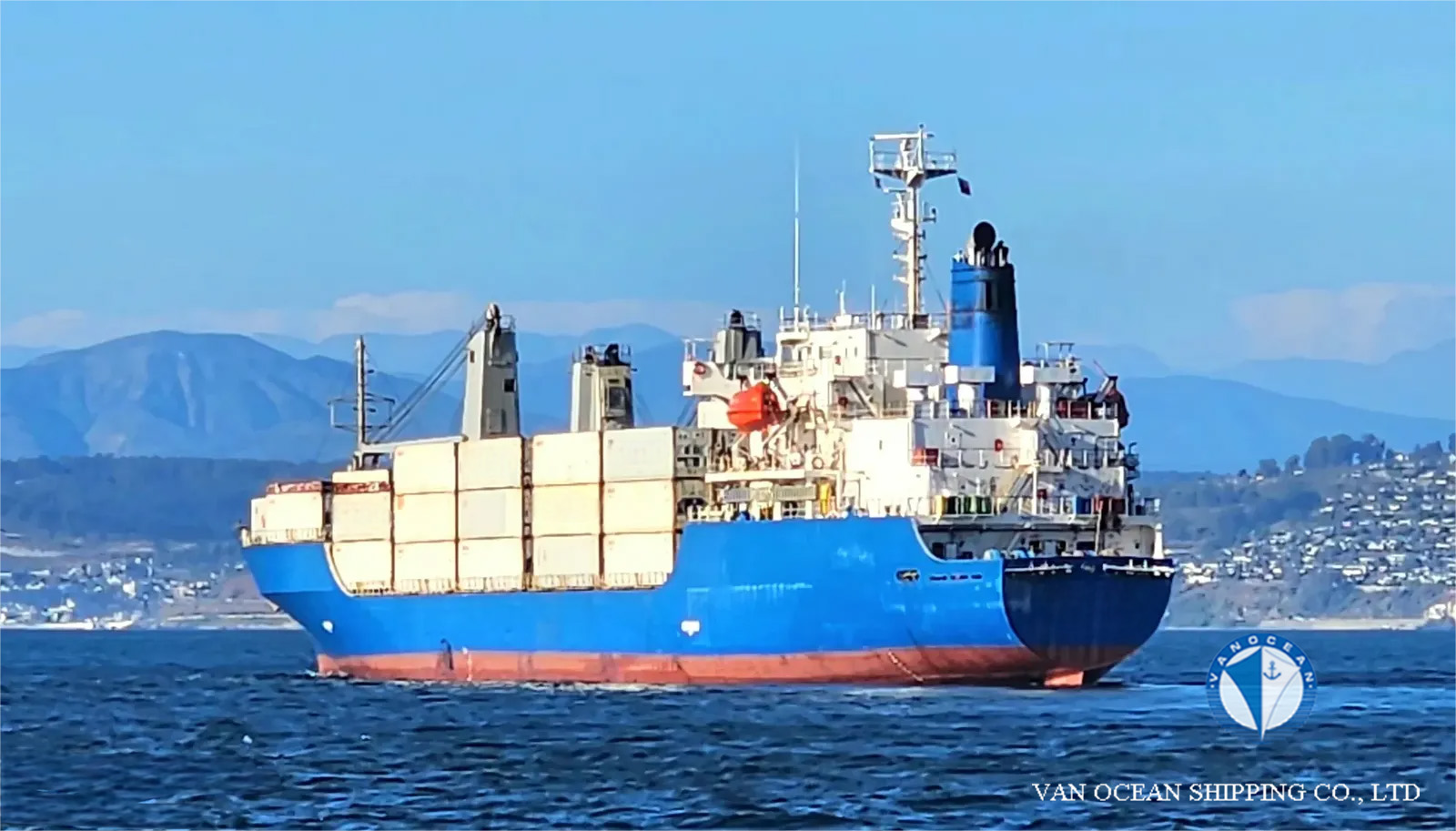

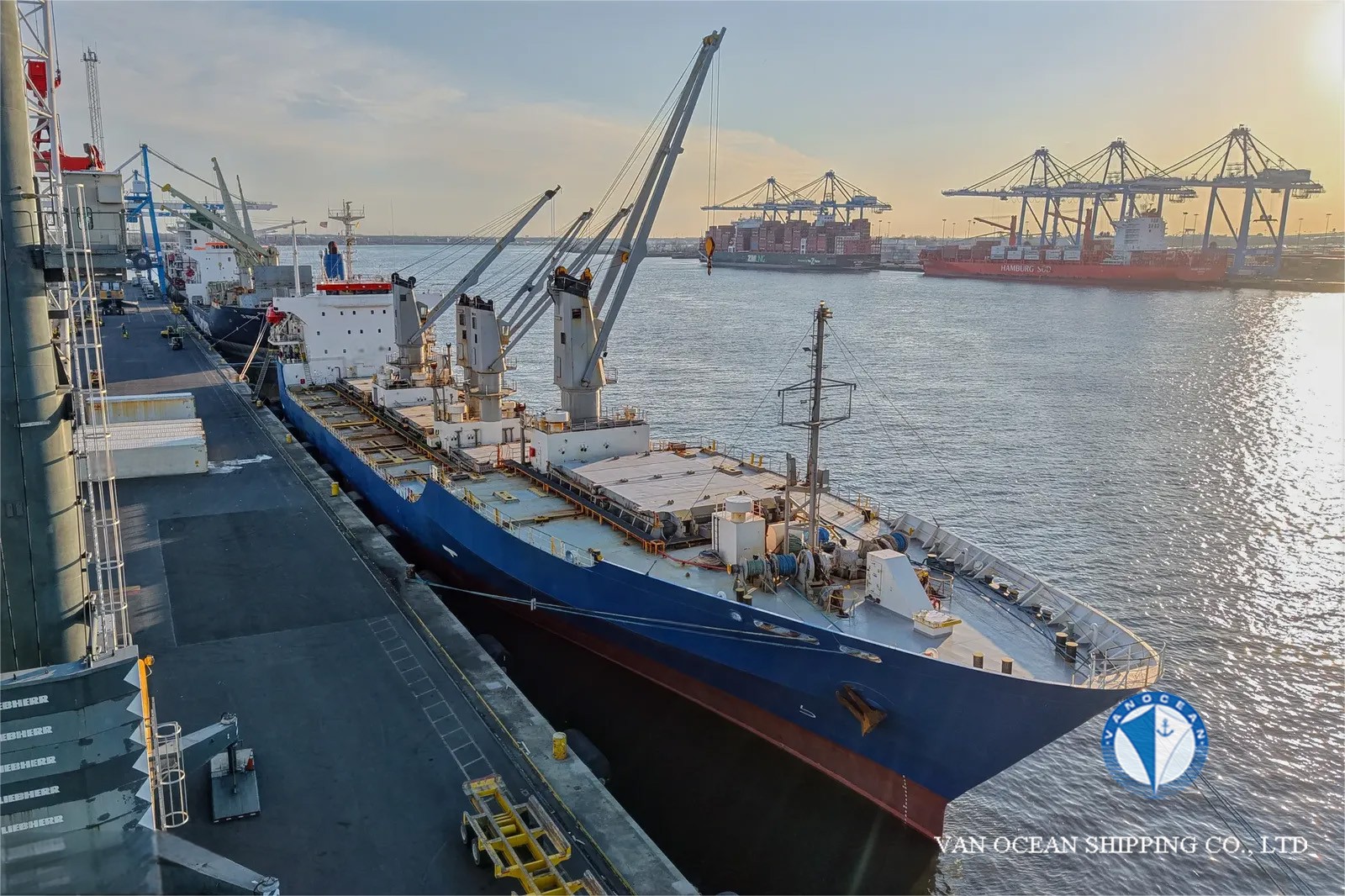

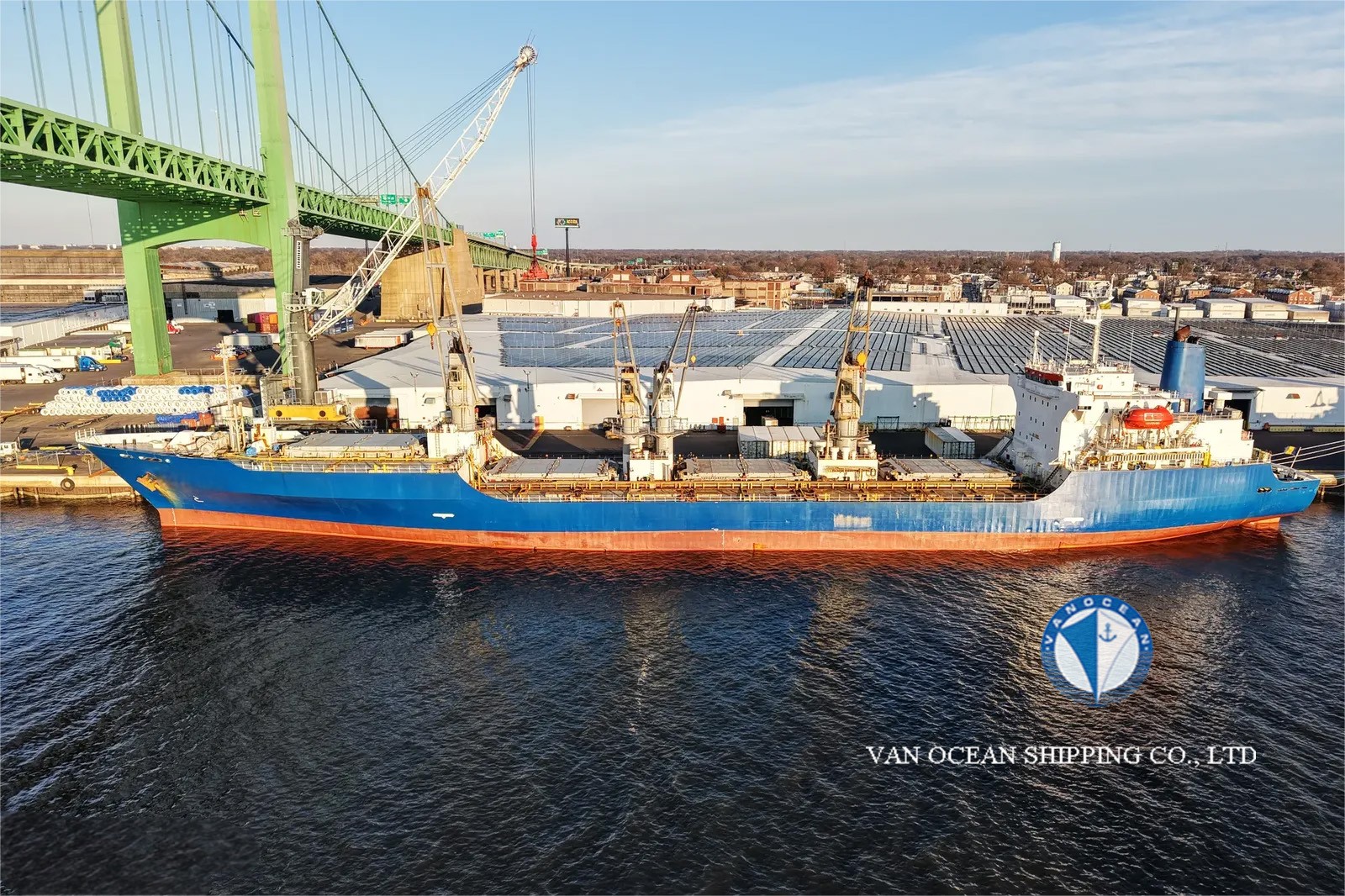

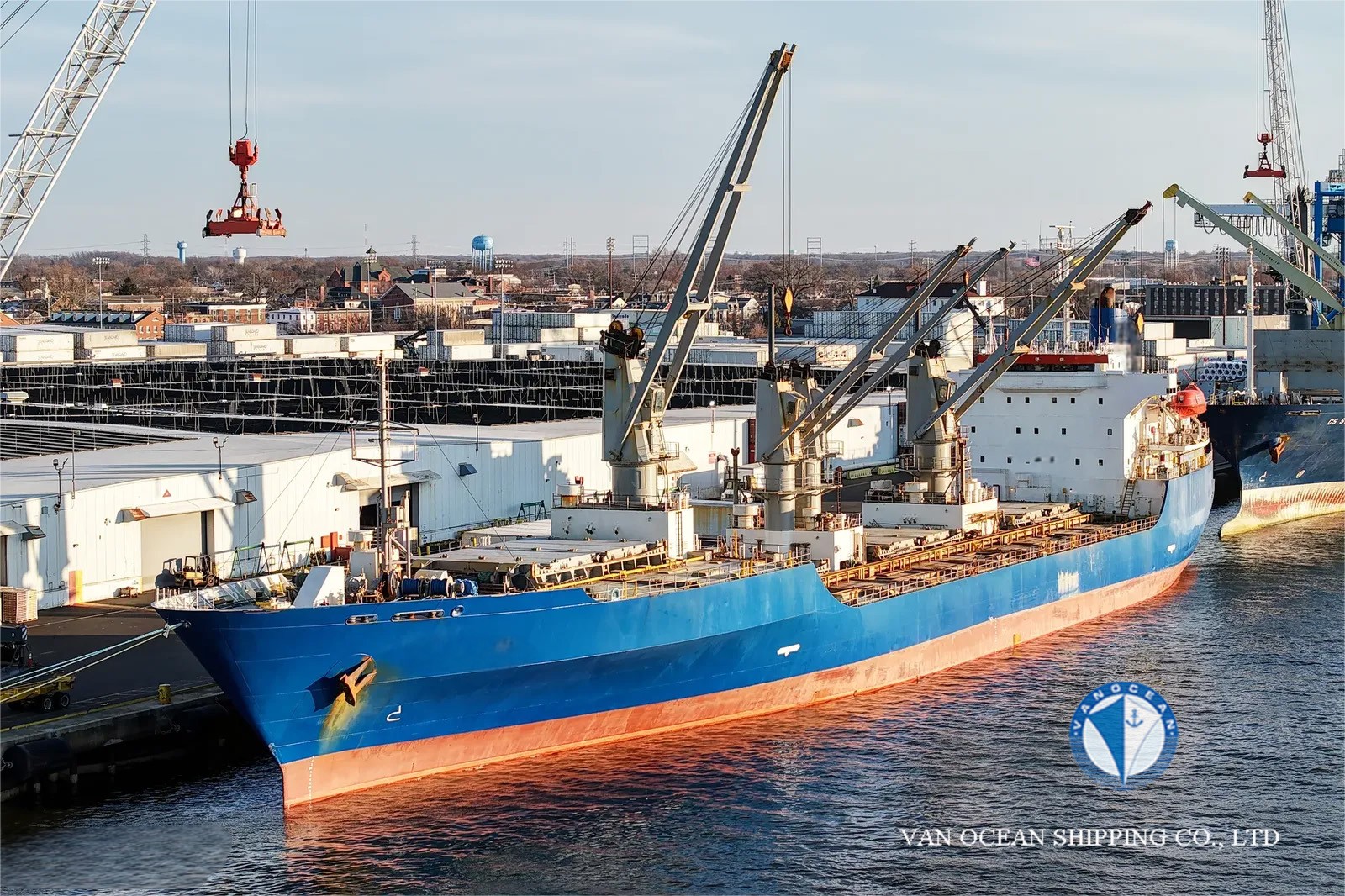

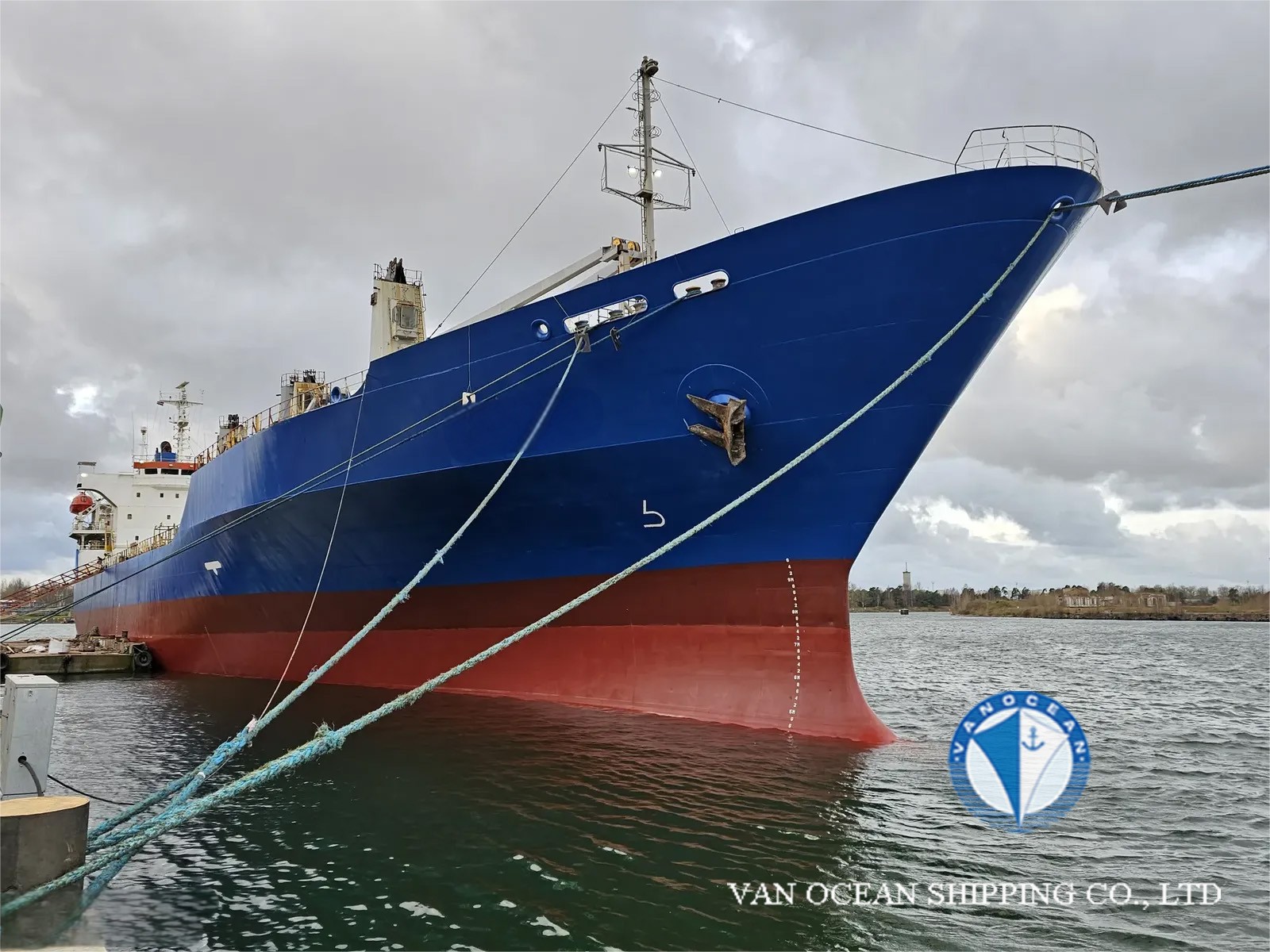

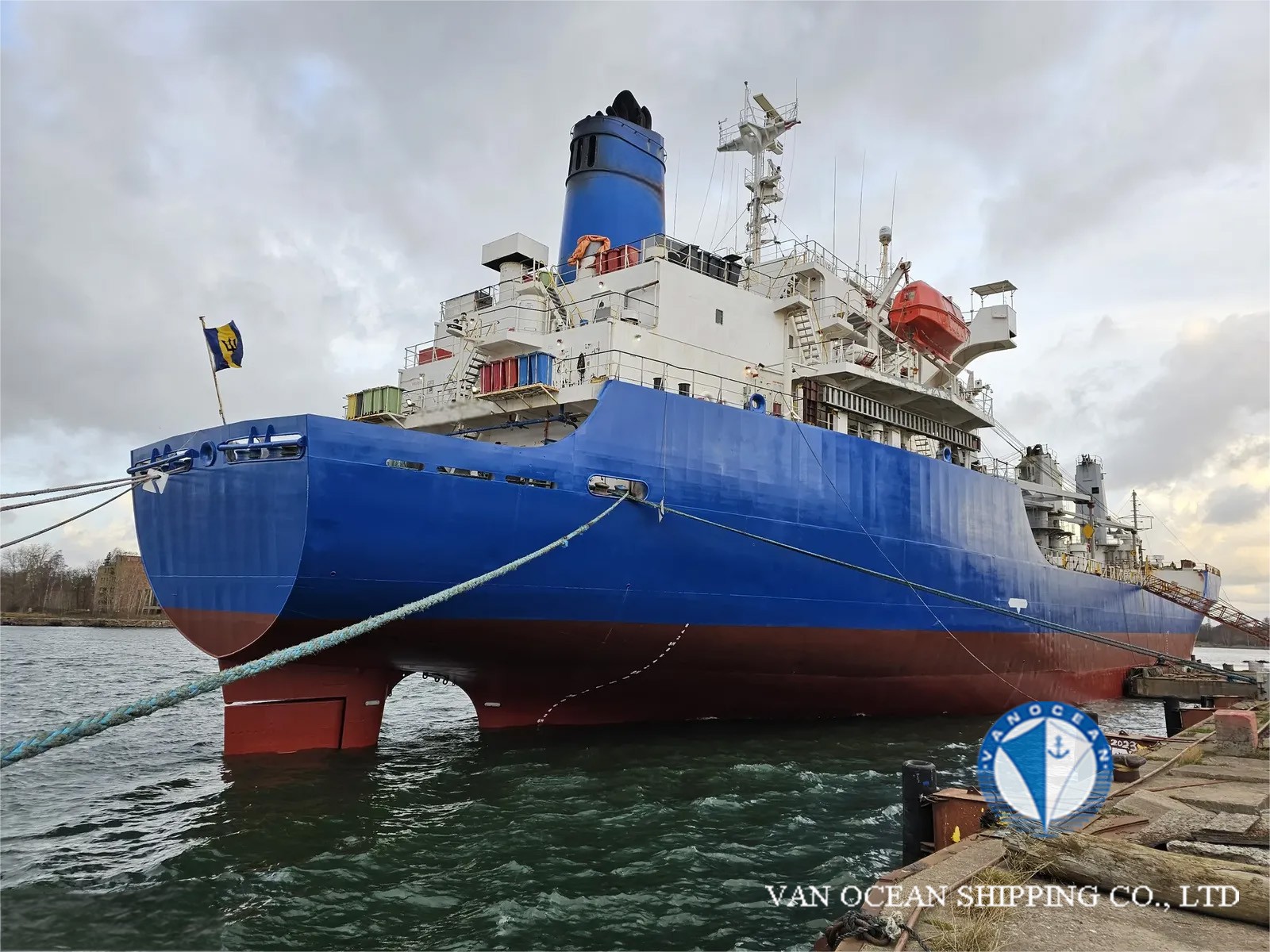

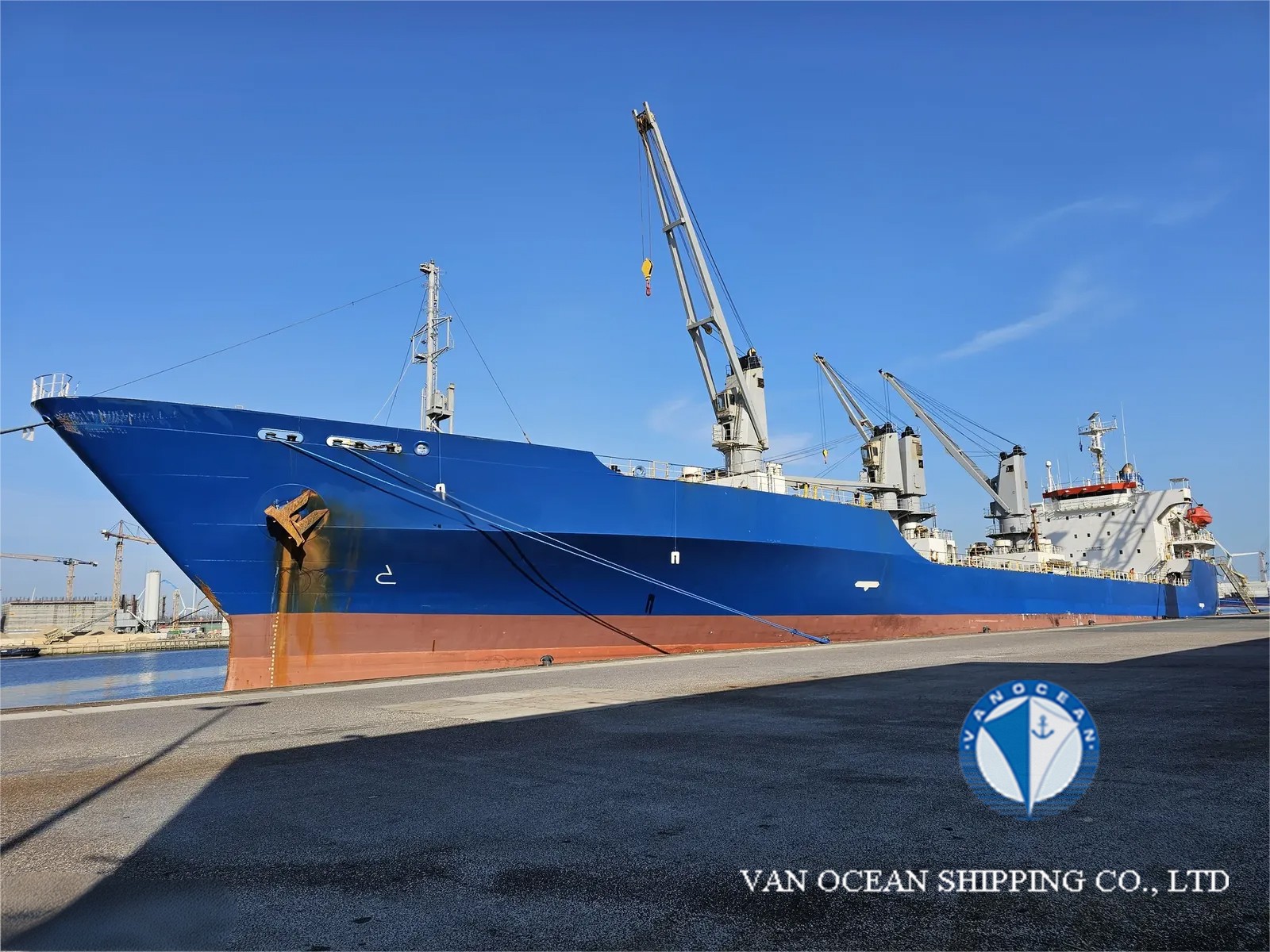

VESSEL NAME
REF872
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
BARBADOS
PORT OF REGISTRY
BRIDGETOWN
BUILT YEAR
2000
BUILT PLACE
IWAGI ZOSEN, JAPAN
CLASSIFICATION
NK
CLASS NOTATION
I✠Hull✠Mach, Refrigerated cargo ship,-equipped for carriage of containers, Unrestricted navigation, MON-SHAFT , ✠REF-CARGO -AIRCONT, 2(Ch 62 Q2)
SS
2030-03
DD
2027-11
LOA (M)
151.99
LBP (M)
141.15
BEAM (M)
23
DEPTH (M)
13
SUMMER DRAFT (M)
9.67
WINTER DRAFT (M)
9.67
TROPICAL DRAFT (M)
9.67
GT (MT)
10532
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
5406
PANAMA NT (MT)
9084
SUEZ NT (MT)
9119.27
SUMMER DWT (MT)
12735
WINTER DWT (MT)
12735
TROPICAL DWT (MT)
12735
LDT (MT)
6175
DISPLACEMENT (MT)
19077
GEAR(S)
CRANES, 4 x 36MT, 2 x 18MT
M/E(S)
MITSUBISHI 2S.A. 6 CYL, 16200HP @105RPM
M/E POWER (KW)
12090
A/E(S)
2 DIESEL 1103KW, 1499HP
2 DIESEL 552KW,750HP
GENERATOR(S)
2 SETS 625 kVA - 500 kW - 450V
2 SETS 1250 kVA - 1000 kW - 450V
EMERGENCY 60 kVA - 48kW - 450V
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
COOLING SYSTEM (COMPRESSOR)
R22 BRINE, 3 SETS MAYEKAWA
SPEED/CONSUMPTIONS
21KTS
FUEL TYPE
IFO, MDO
BUNKER CAPACITY (CBM)
IFO 1701.7 CBM, MDO 103.81 CBM
TANKS CAPACITY (CBM)
FW 381.22 CBM
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
4*13.00 x 7.85M
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
16
DECK(S)
3
DECK HEIGHT (M)
≥2.20M
CARGO CAPACITY (CBFT)
547905
CARGO CAPACITY (CBM)
15521
FLOOR SPACE CAPACITY (SQM)
6243.76
GRATING/DECK STRENGTH
MAXIMUM 6 MT (FORKLIFT WITH MINIMUM 4 NON HARD RUBBER AIRTYRES)
TEMPERATURE ZONE(S)
8
TEMPERATURE (℃)
-25
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
4
PALLET(S)
-
CONTAINER CAPACITY
DECK: 212
HOLD: 72
REEFER PLUG(S)
106
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
24
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
