REEFER S&P

HOME - REEFER S&P - REF907

PARTICULAR

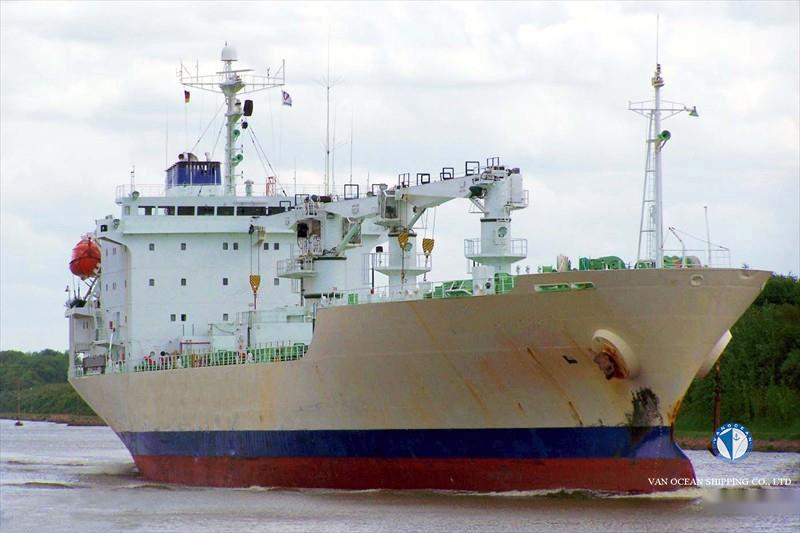

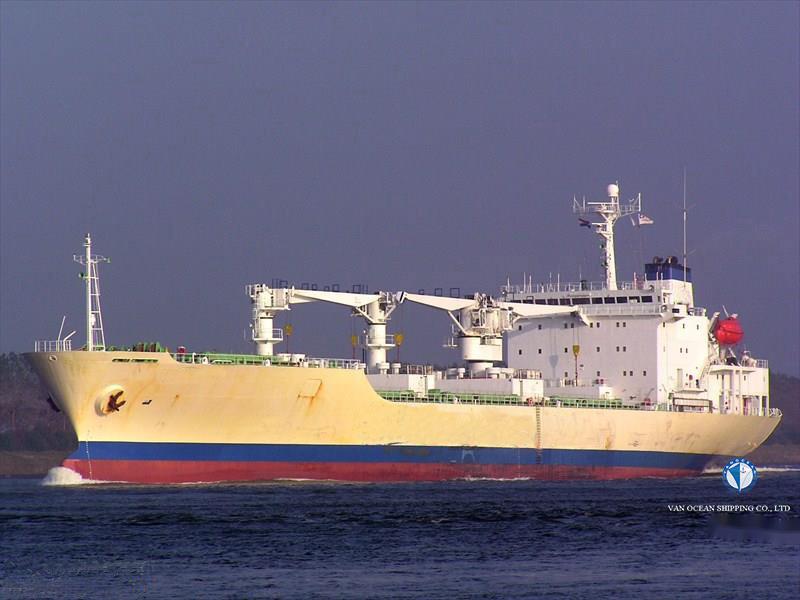

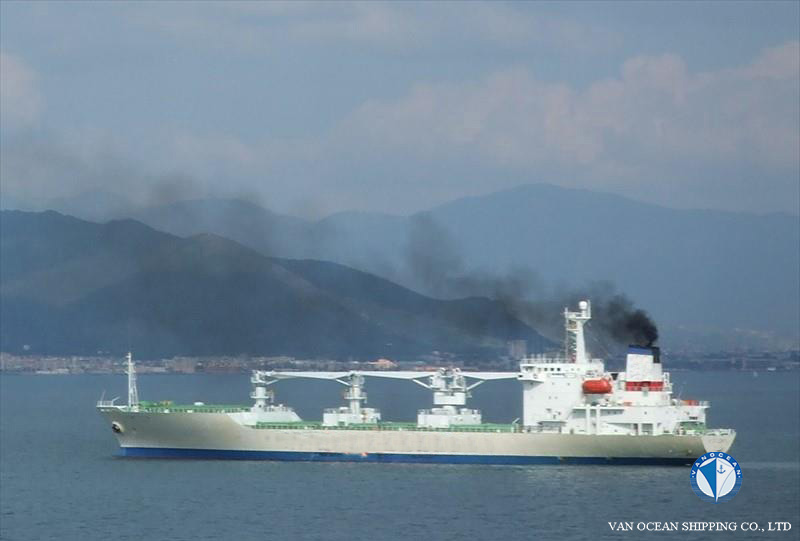

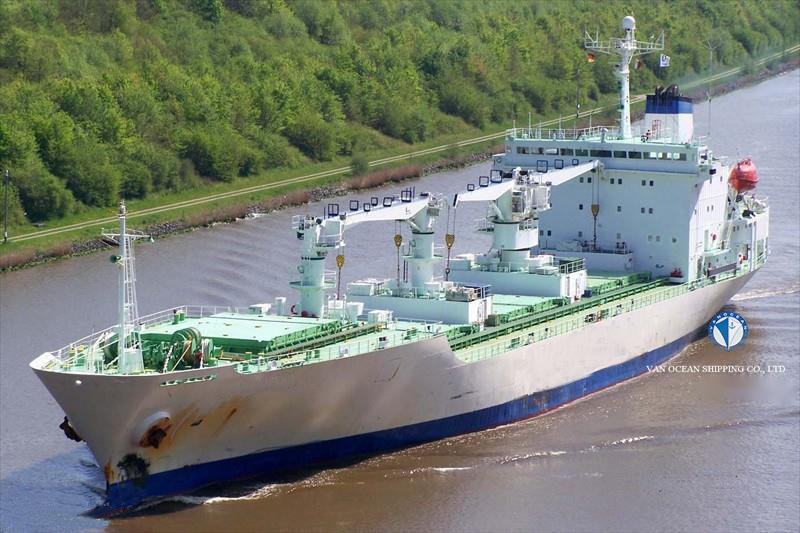

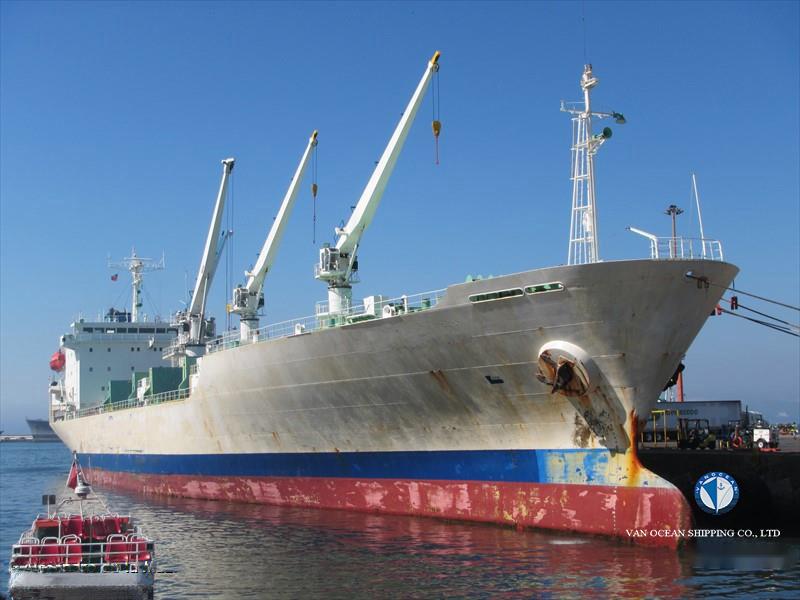

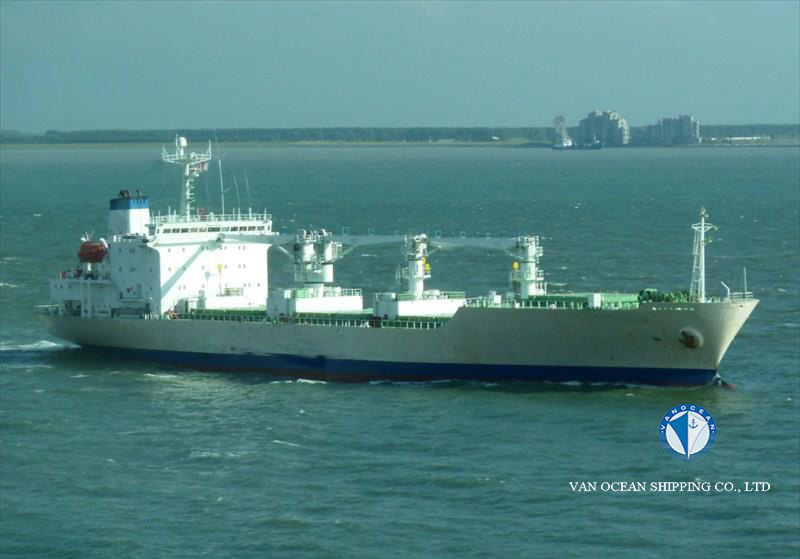

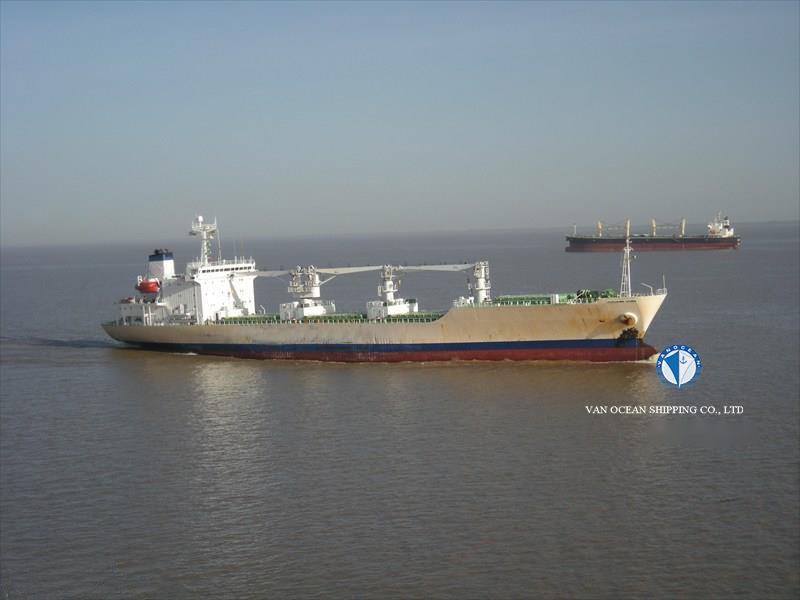

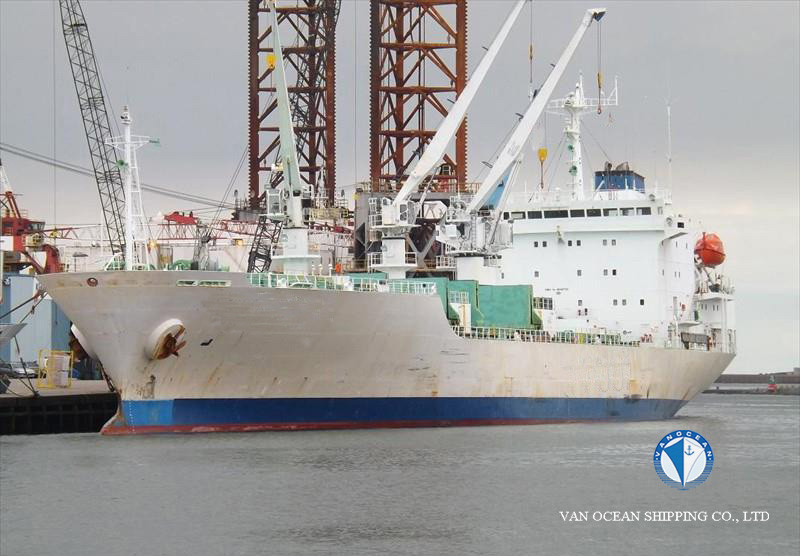

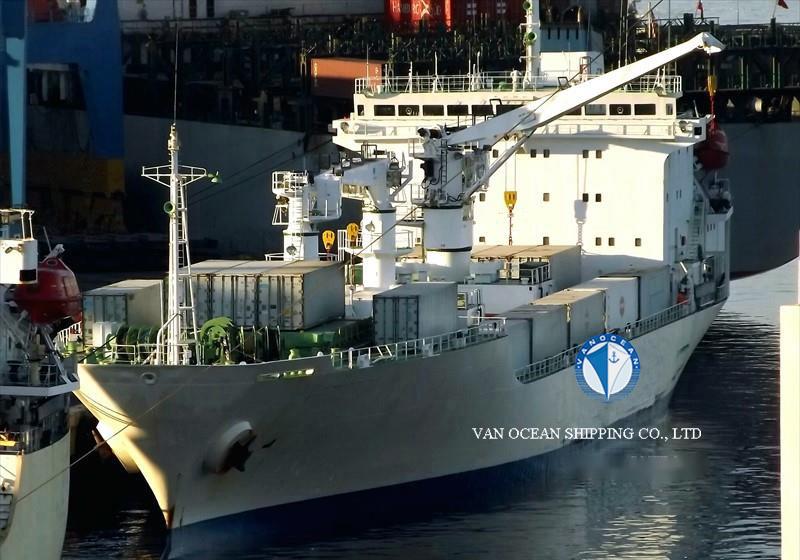

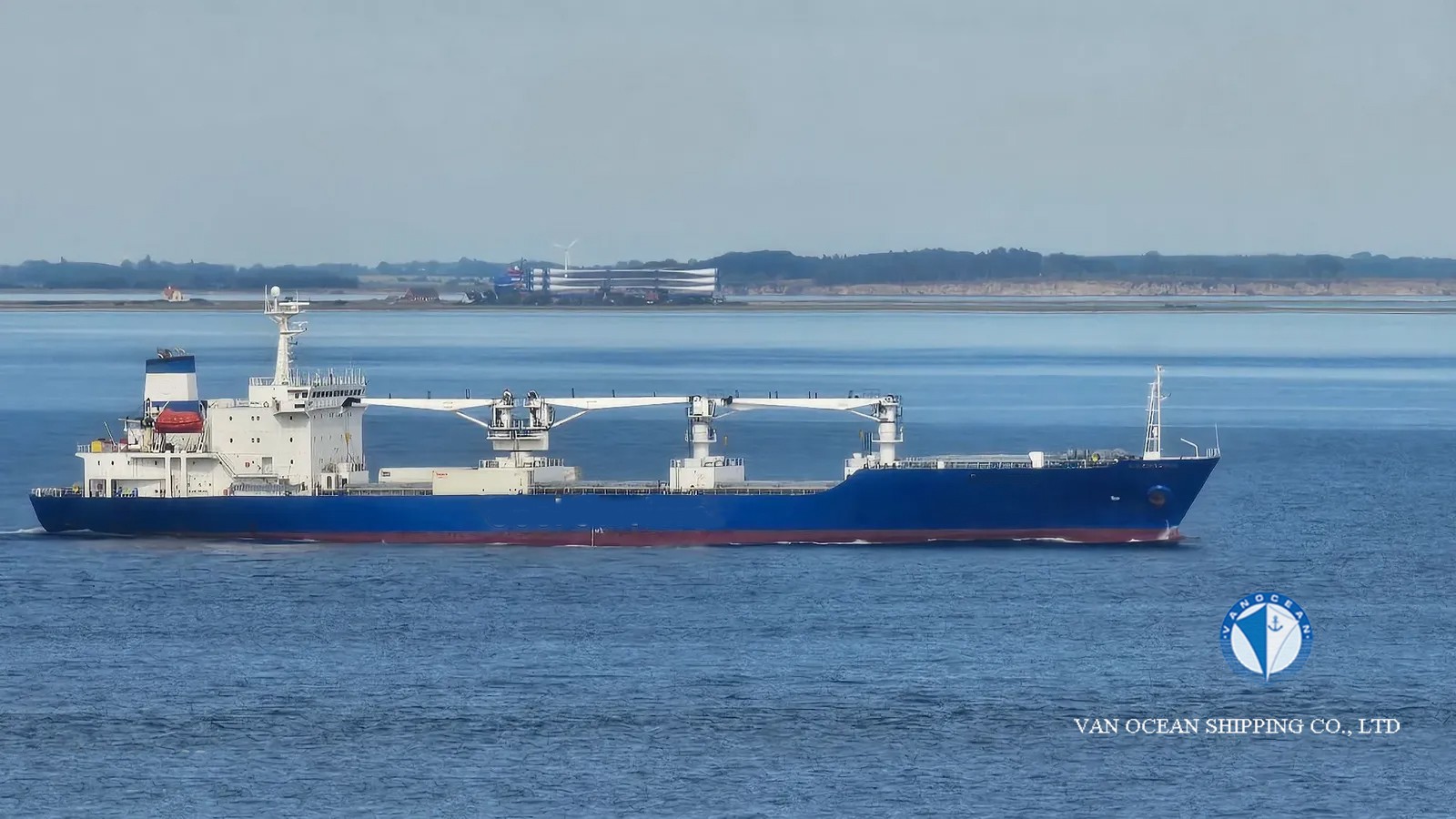

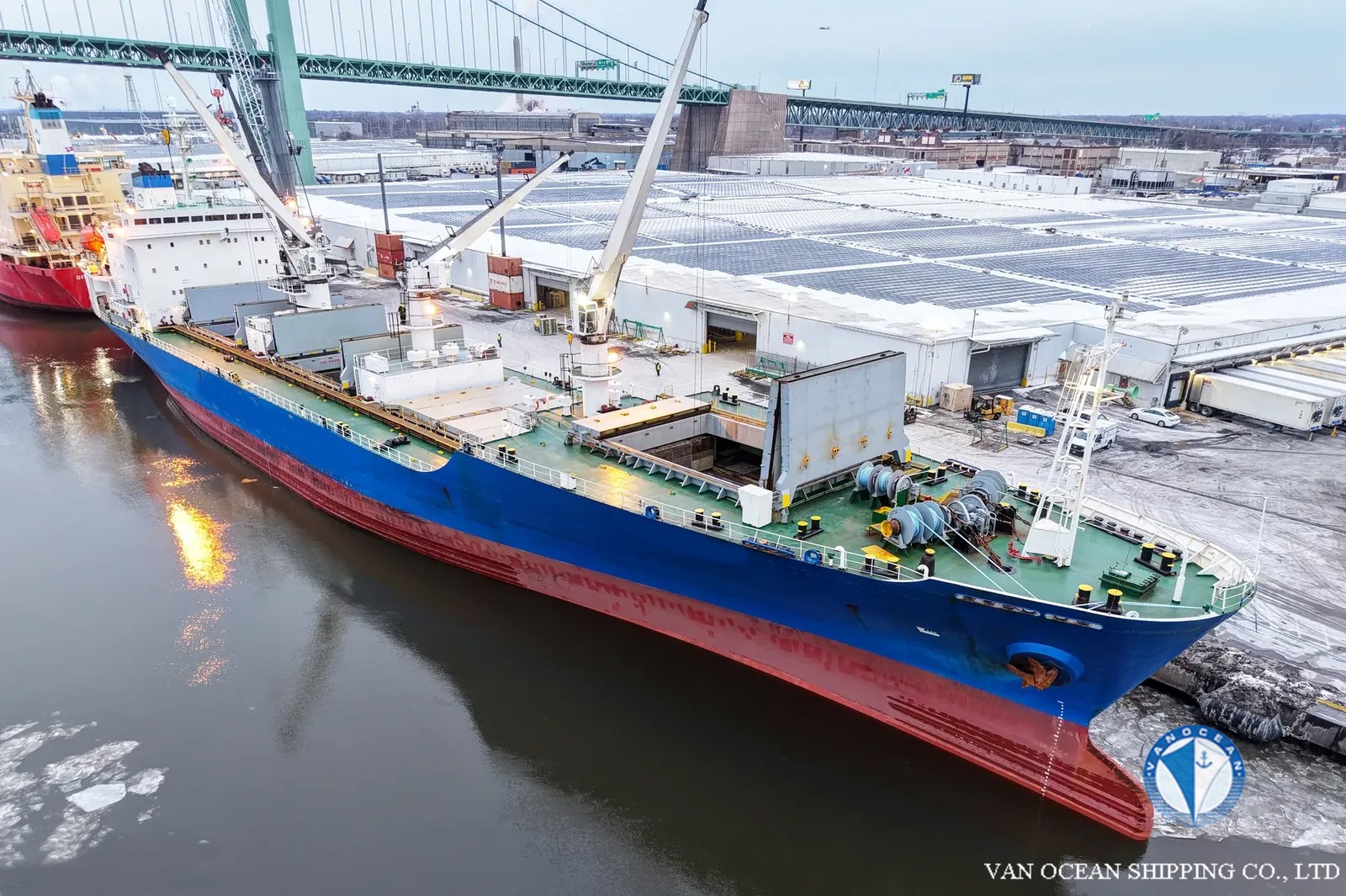

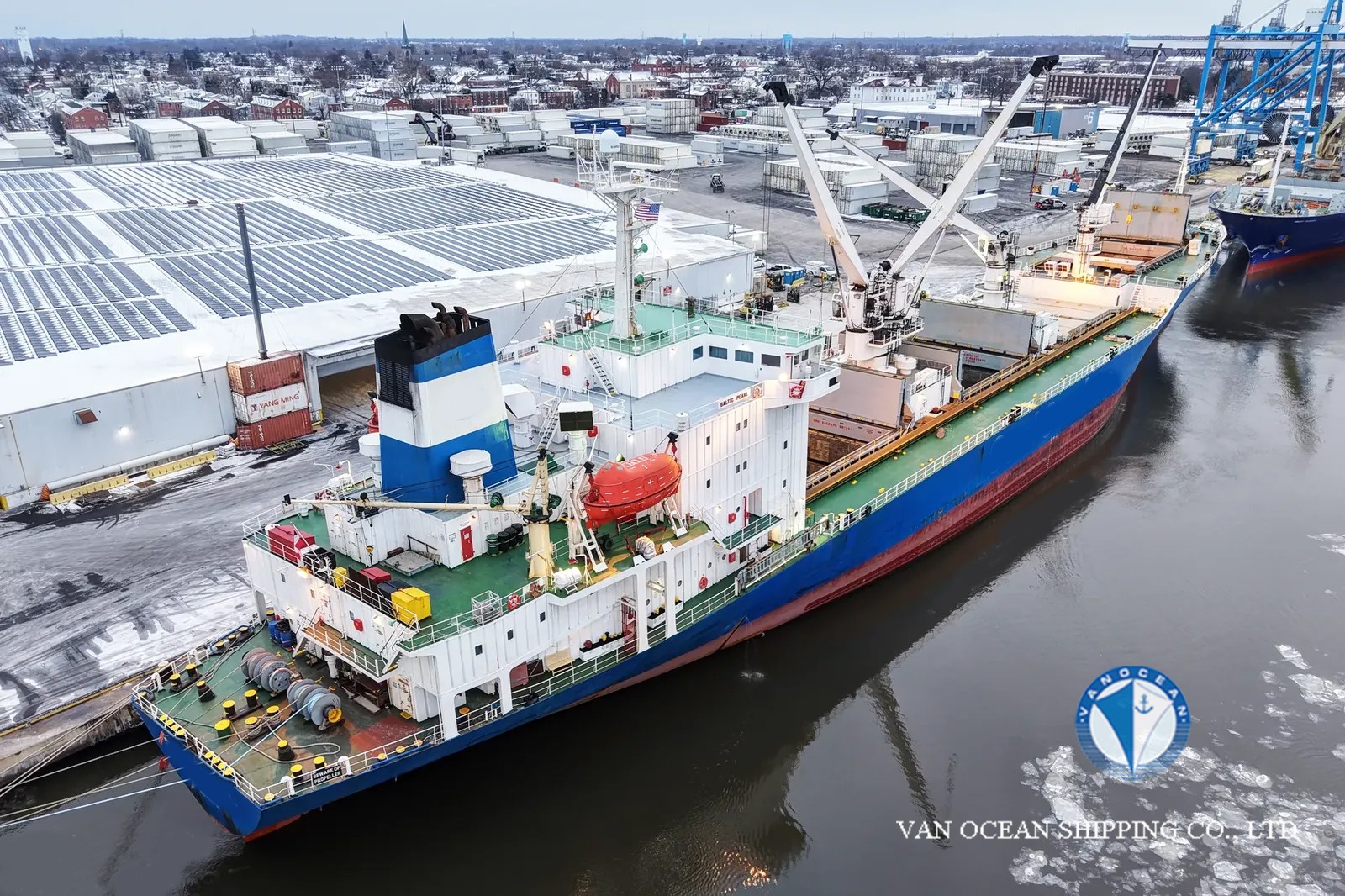

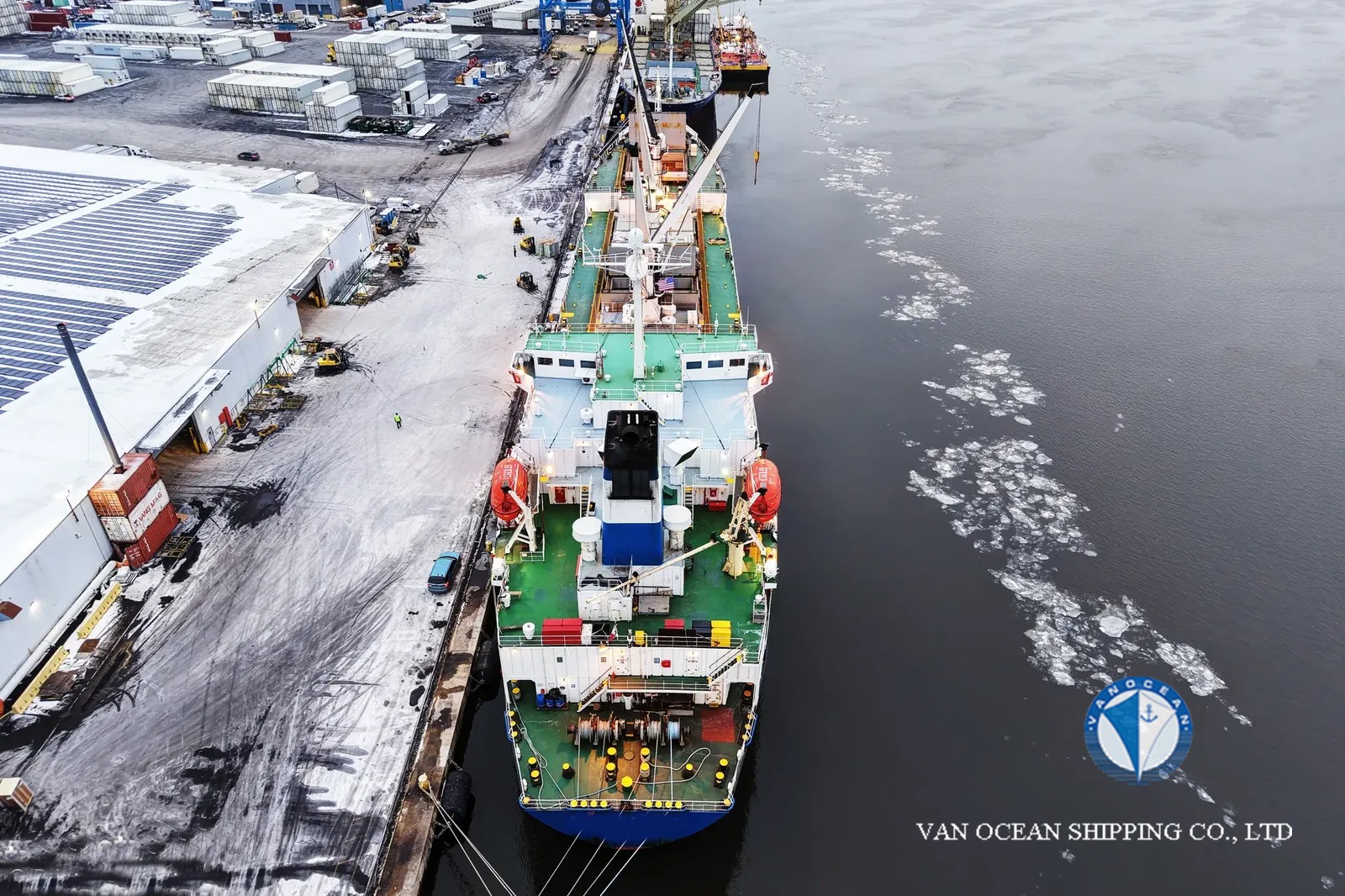

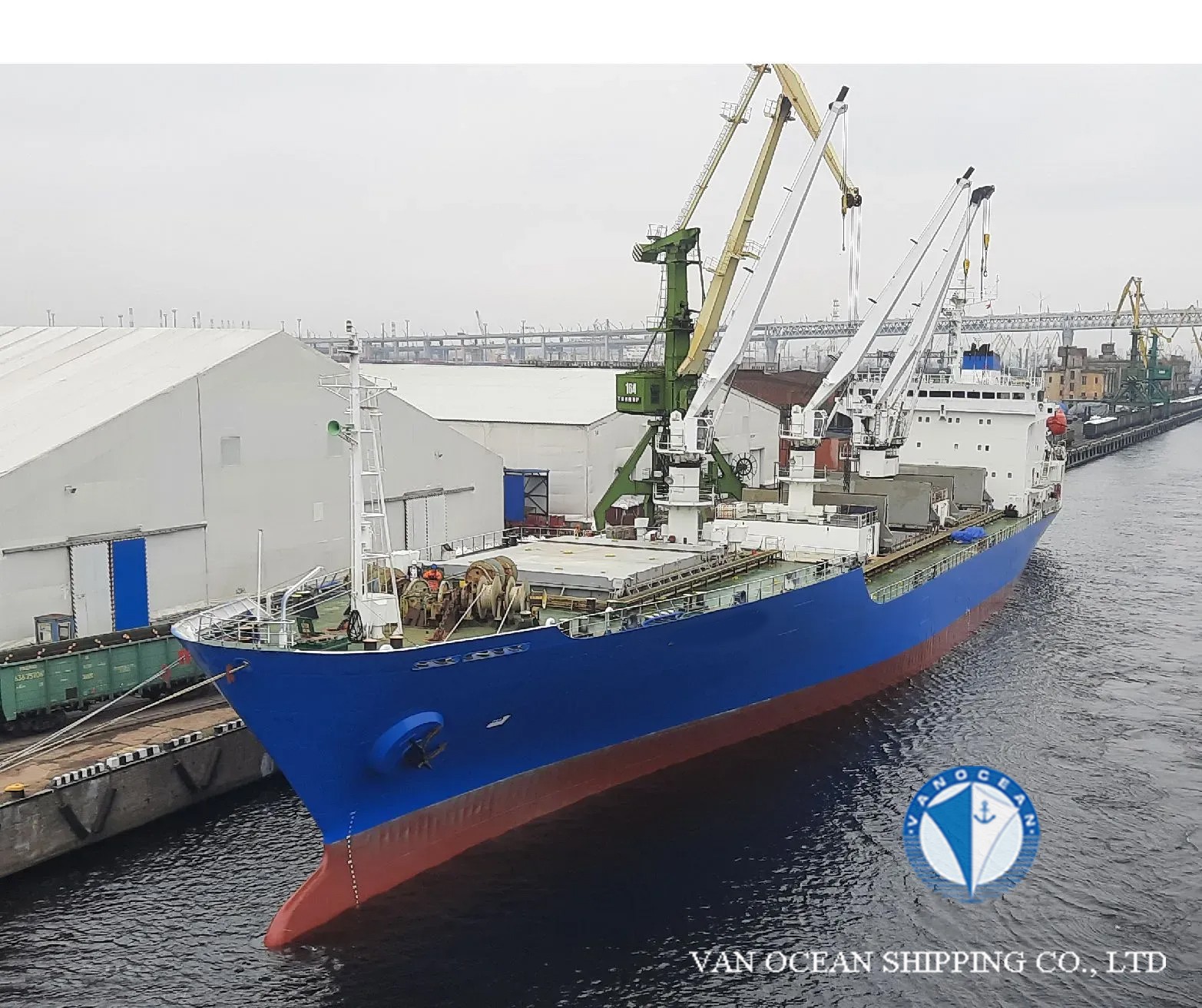

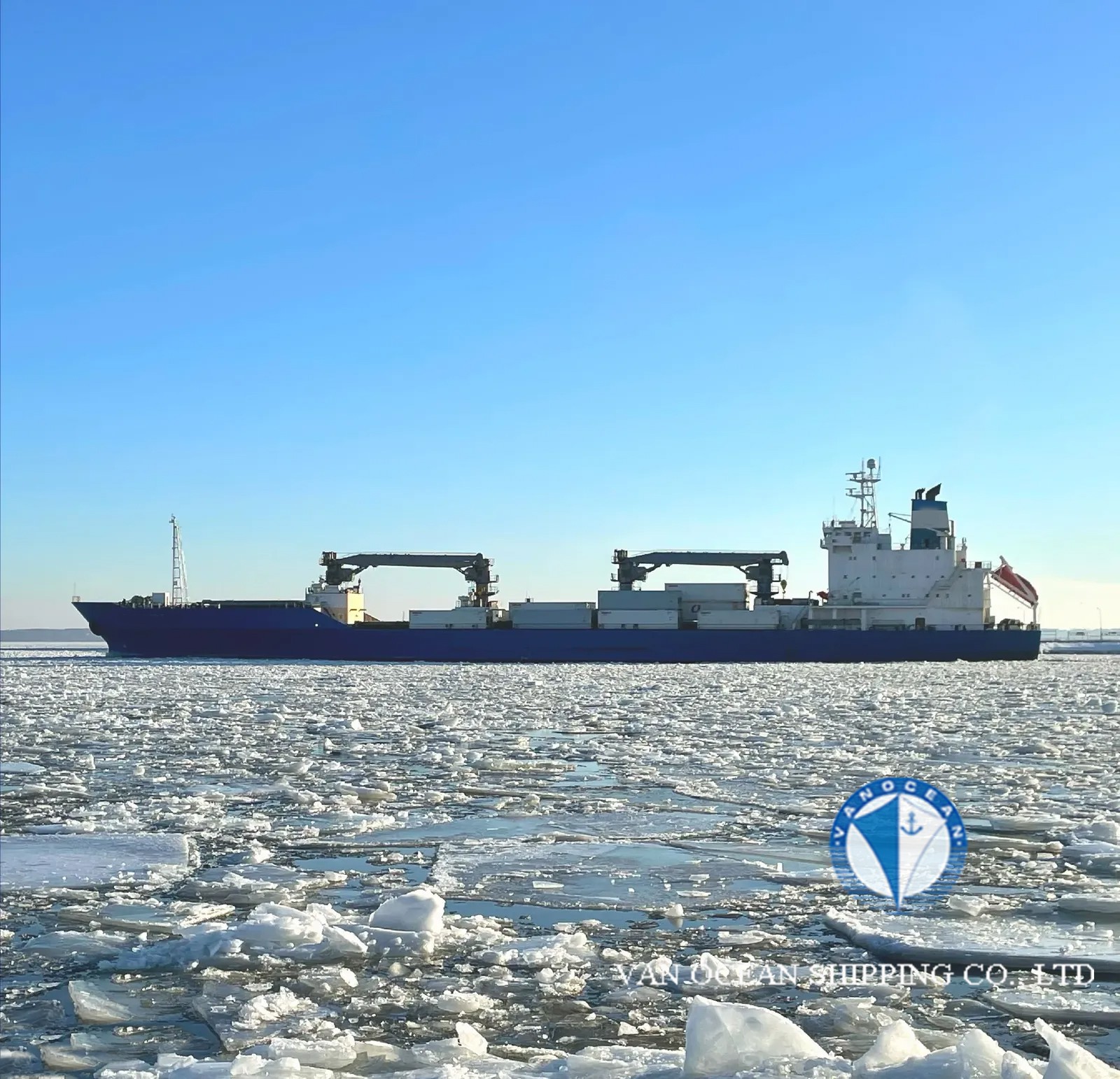

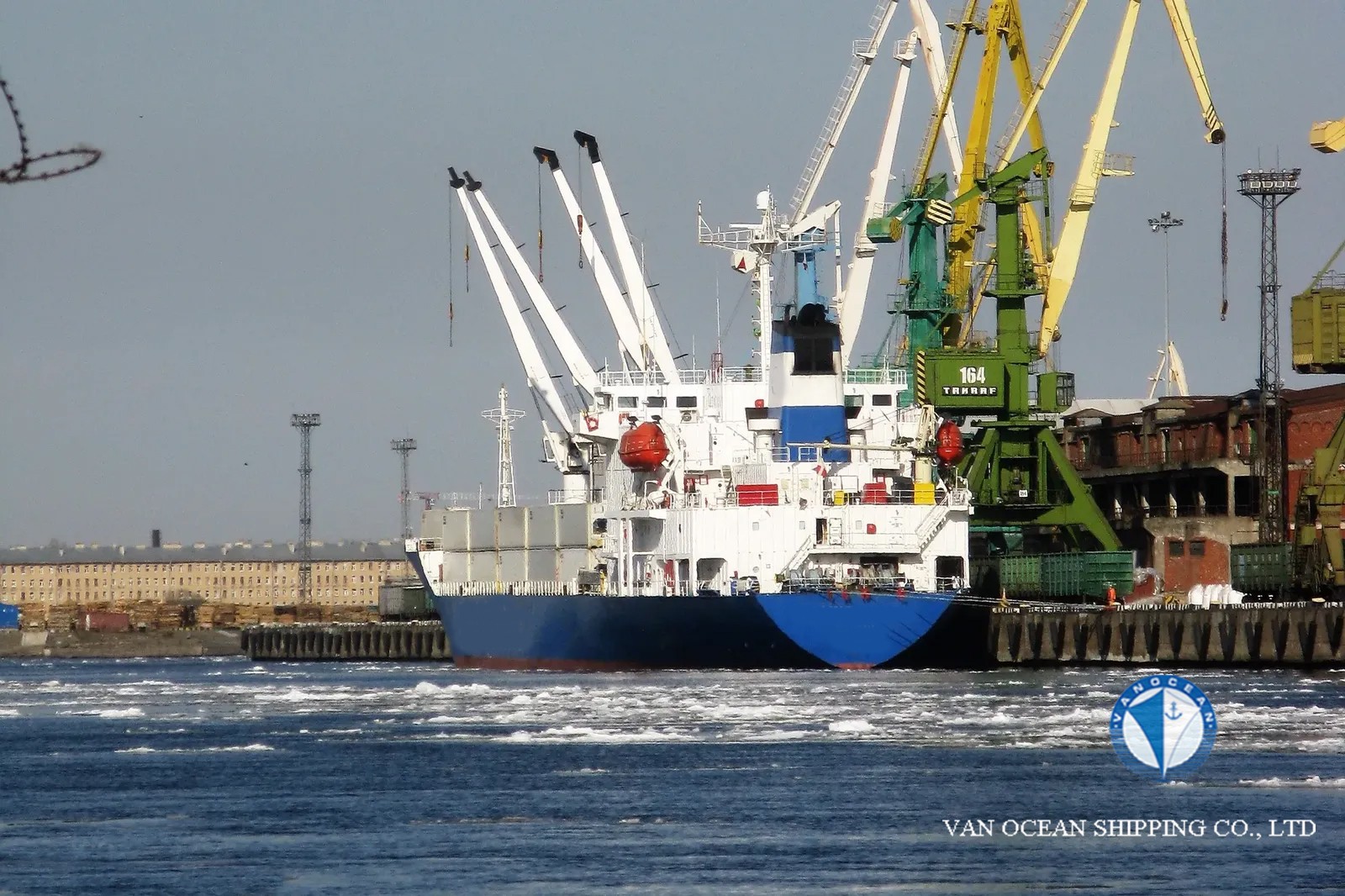

  • VESSEL NAME
  • REF907
  • TYPE
  • REEFER CARRIER
  • DEEP FREEZING OR NOT
  • NO
  • FLAG
  • BAHAMAS
  • PORT OF REGISTRY
  • NASSAU
  • BUILT YEAR
  • 1991
  • BUILT PLACE
  • SHIKOKU DOCK, JAPAN
  • CLASSIFICATION
  • RINA
  • CLASS NOTATION
  • -
  • SS
  • -
  • DD
  • -
  • LOA (M)
  • 150.01
  • LBP (M)
  • -
  • BEAM (M)
  • 22.5
  • DEPTH (M)
  • 13.2
  • SUMMER DRAFT (M)
  • 9.067
  • WINTER DRAFT (M)
  • -
  • TROPICAL DRAFT (M)
  • -
  • GT (MT)
  • 10412
  • PANAMA GT (MT)
  • 11444
  • SUEZ GT (MT)
  • 11015
  • NT (MT)
  • 5253
  • PANAMA NT (MT)
  • 8523
  • SUEZ NT (MT)
  • 8413
  • SUMMER DWT (MT)
  • 10713
  • WINTER DWT (MT)
  • -
  • TROPICAL DWT (MT)
  • -
  • LDT (MT)
  • -
  • DISPLACEMENT (MT)
  • -
  • GEAR(S)
  • ELTR. CRANES, 2 x 18MT; ELTR. CRANES, 2 x 8MT;
  • M/E(S)
  • 1 x MITSUI-MAN B&W 6S60MC MCR: 15200 PS x 102RPM
  • M/E POWER (KW)
  • 11176
  • A/E(S)
  • 4-750KVA 600KW 900HP EMERG 180KVA 64KW 98HP
  • GENERATOR(S)
  • -
  • SHAFT GENERATOR(S)
  • -
  • PROPELLER(S)
  • -
  • COOLING SYSTEM (COMPRESSOR)
  • -
  • SPEED/CONSUMPTIONS
  • 21 KTS AT 44MT
  • FUEL TYPE
  • -
  • BUNKER CAPACITY (CBM)
  • -
  • TANKS CAPACITY (CBM)
  • -
  • NUMBER OF CARGO HOLDS
  • 4
  • HATCH NUMBER
  • 4
  • HATCH TYPE
  • -
  • HATCH SIZE (M)
  • -
  • HEIGHT OF HATCH COAMING (M)
  • -
  • COMPARTMENT(S)
  • 15
  • DECK(S)
  • 4
  • DECK HEIGHT (M)
  • -
  • CARGO CAPACITY (CBFT)
  • 527399
  • CARGO CAPACITY (CBM)
  • 14940
  • FLOOR SPACE CAPACITY (SQM)
  • 5858
  • GRATING/DECK STRENGTH
  • 6MT FOLKLIFT
  • TEMPERATURE ZONE(S)
  • 8 1A,1BC, 2AB,2CD, 3AB,3CD, 4AB,4CD
  • TEMPERATURE (℃)
  • -30+15
  • TYPE OF VENT SYSTEM
  • VERTCAL
  • VENT (TIMES/HOUR)
  • 90
  • AIR CHANGE (TIMES/HOUR)
  • 2
  • PALLET(S)
  • -
  • CONTAINER CAPACITY
  • 214 TEU /104 FEU
  • REEFER PLUG(S)
  • 51
  • SIDE DOOR(S)
  • -
  • FENDER(S)
  • -
  • ANCHOR CHAIN(S)
  • -
  • USDA CERTIFICATE
  • -
  • INSURANCE
  • P&I – INGOSSTRAKH H&M - ROSGOSSTRAKH
  • CREW
  • -
  • ACCOMMODATION
  • -
  • INSPECTION
  • -
  • DELIVERY
  • CHINA
  • PRICE
  • USD 4.0 MILLION
  • REMARK(S)
  • -
