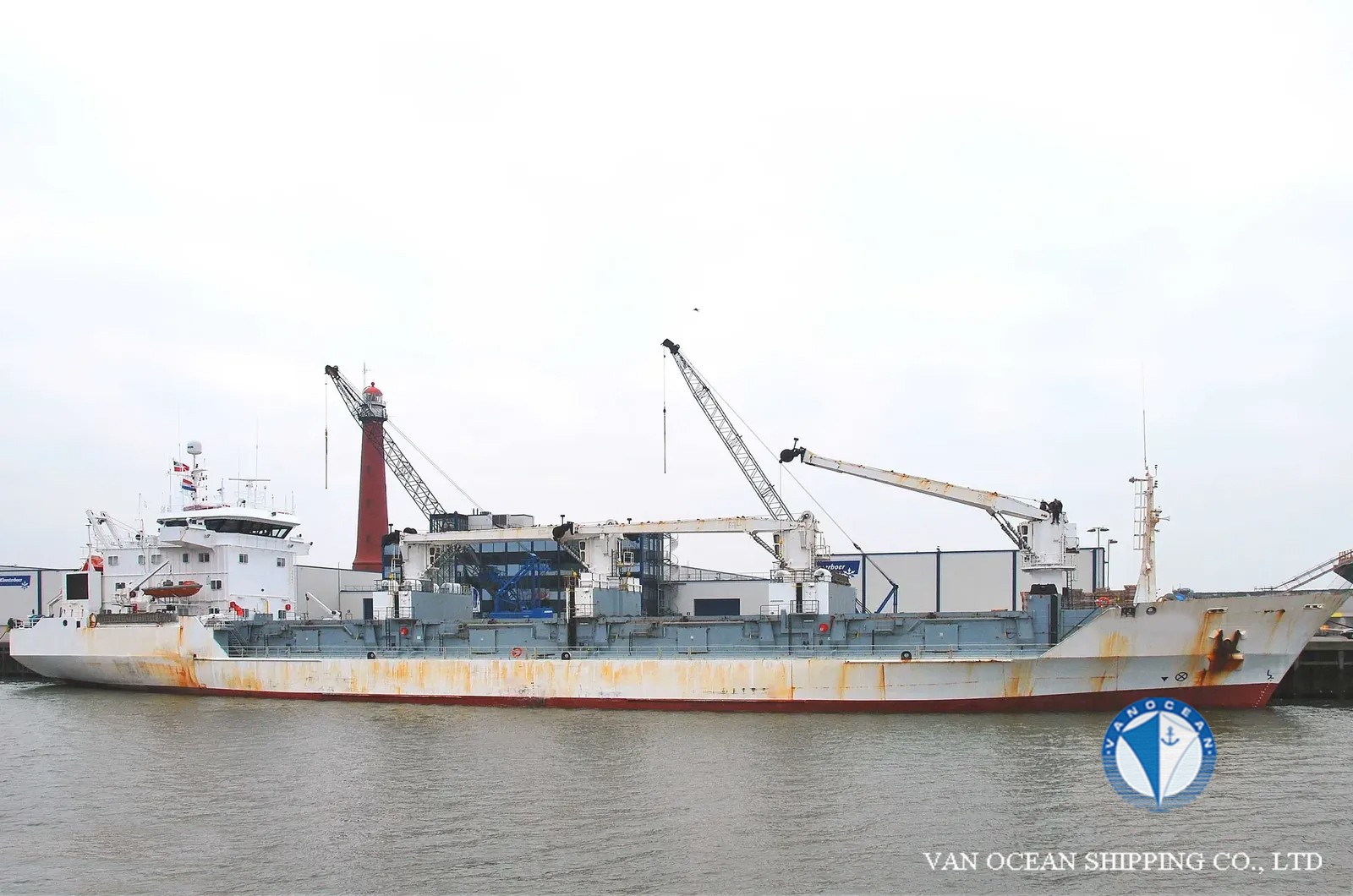

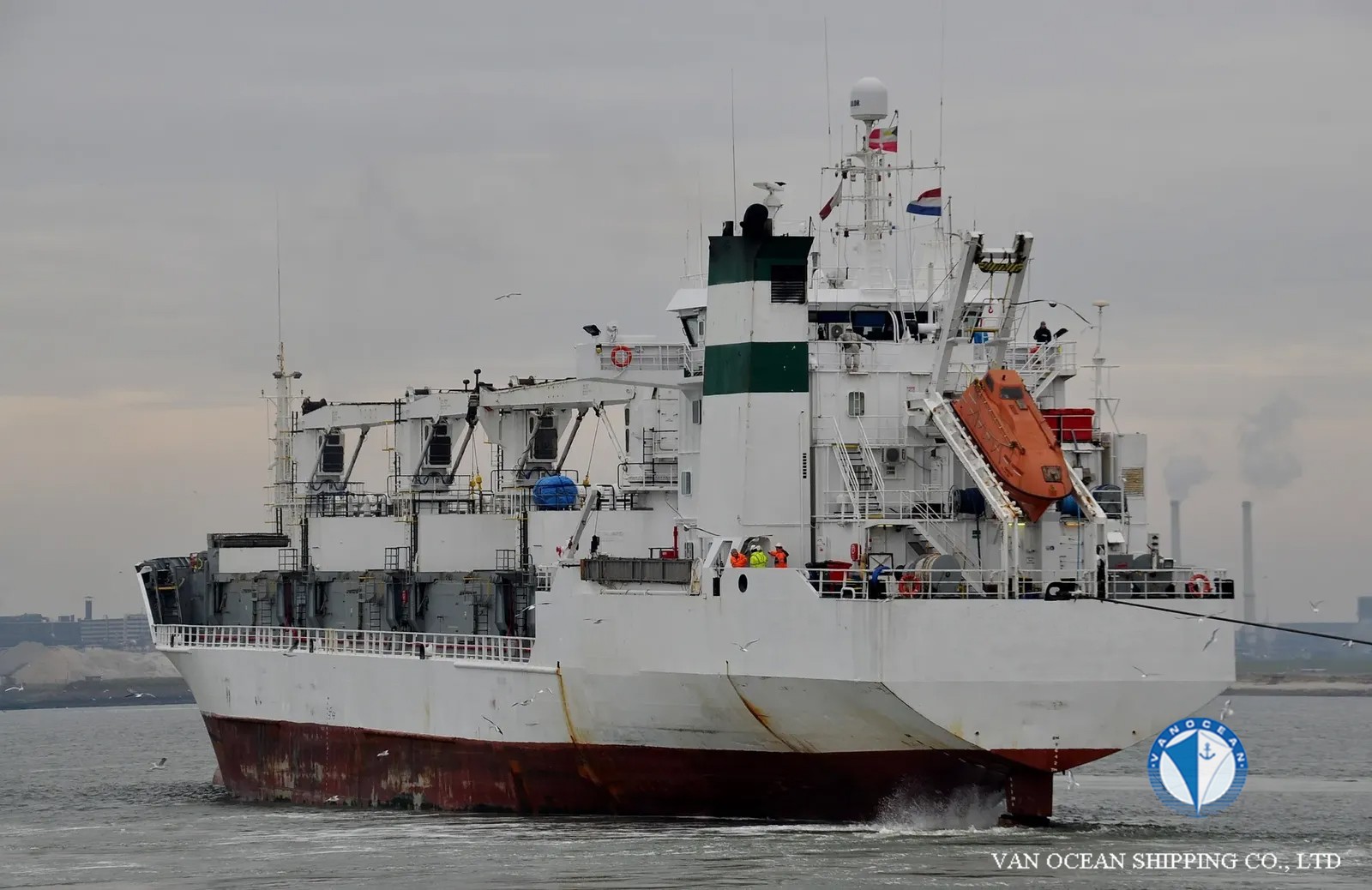

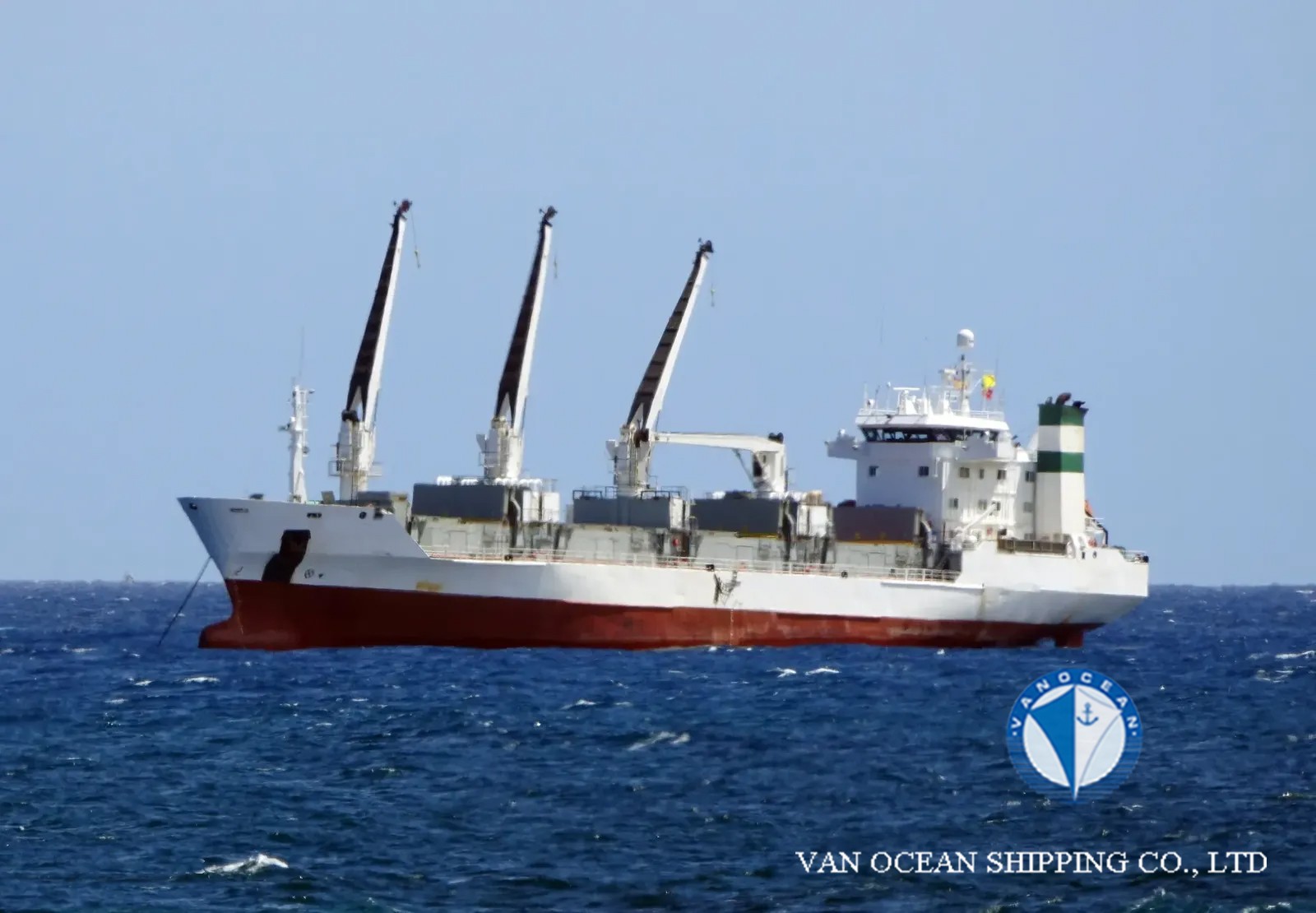

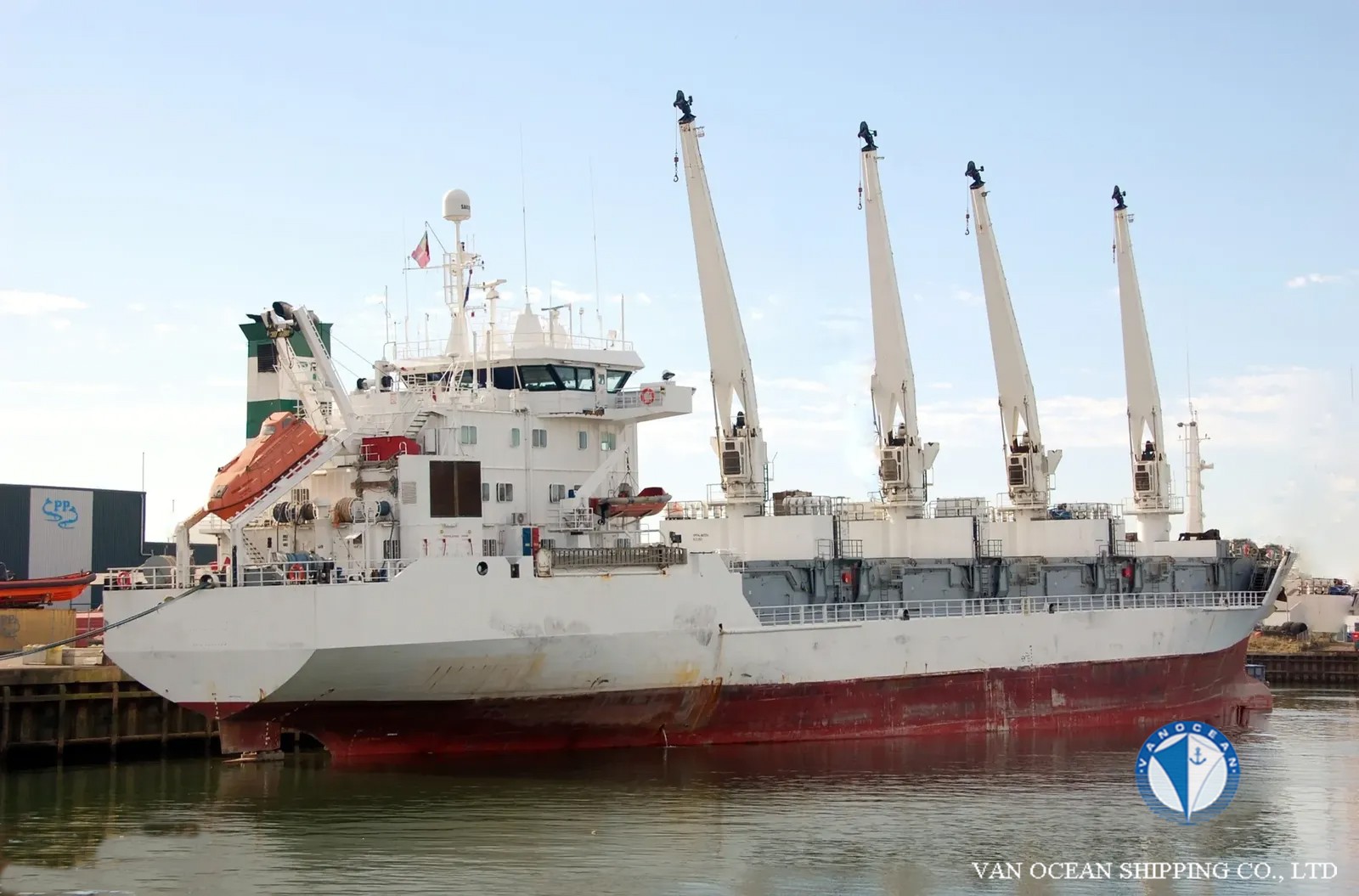

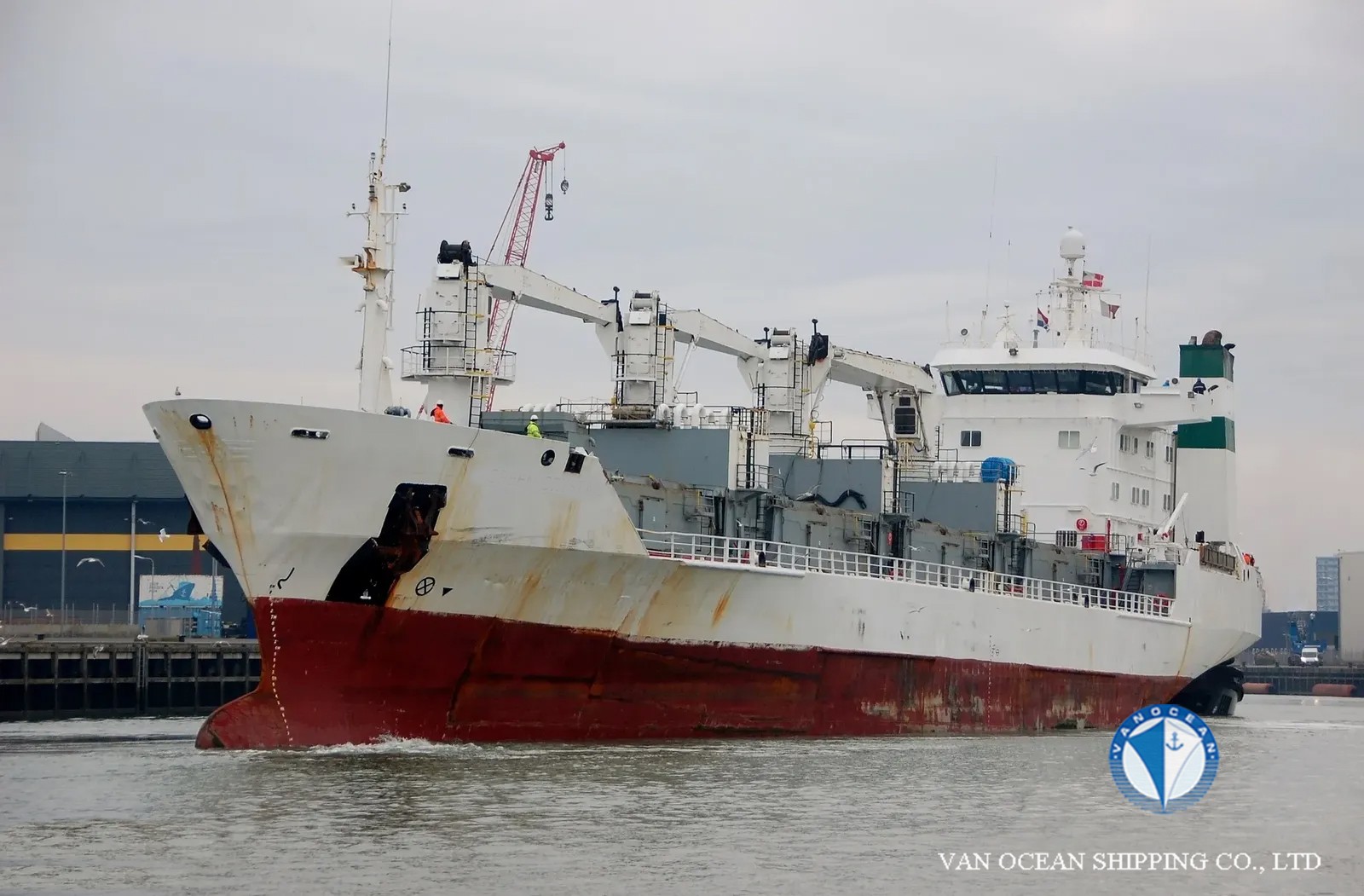

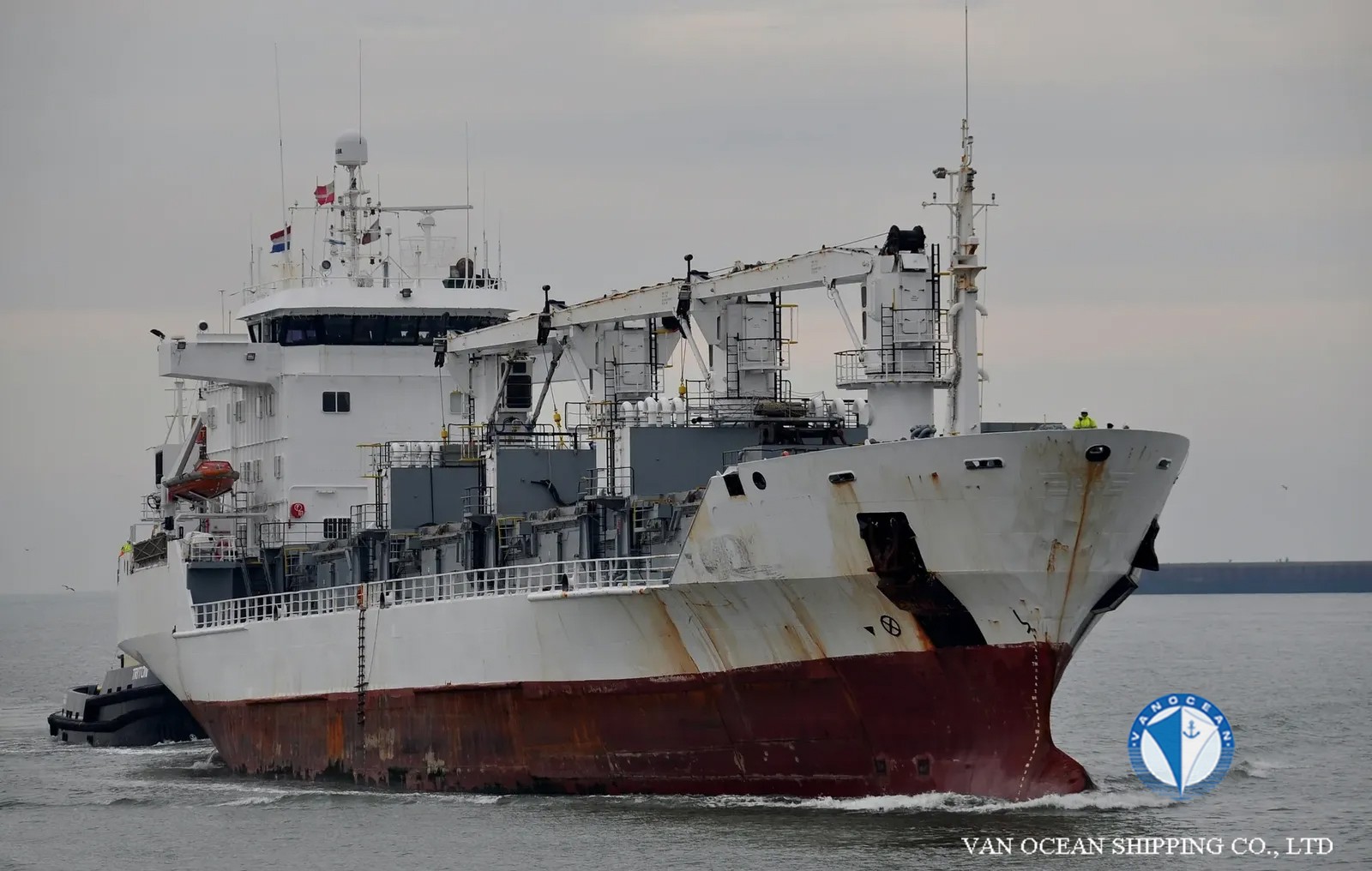

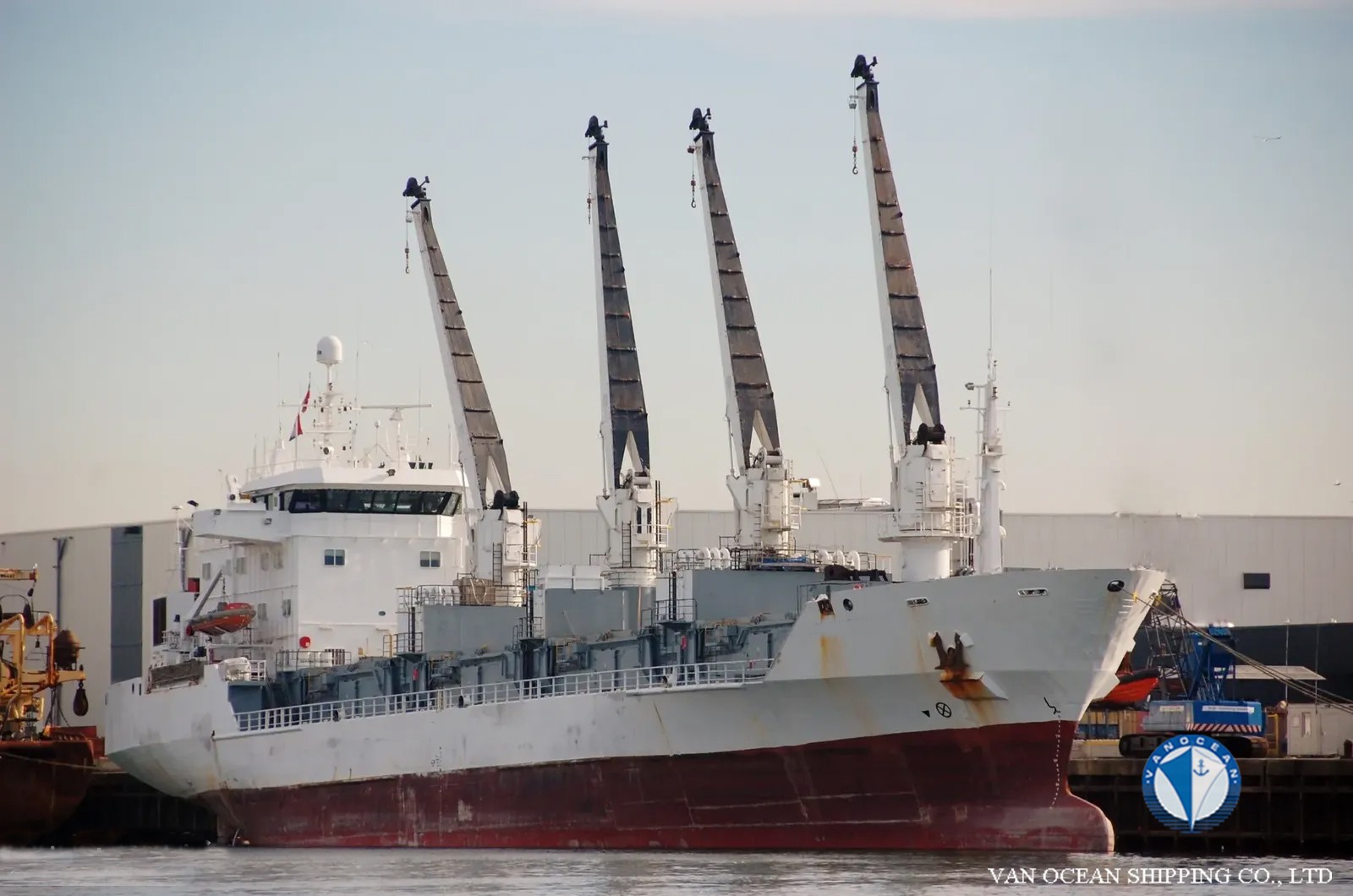

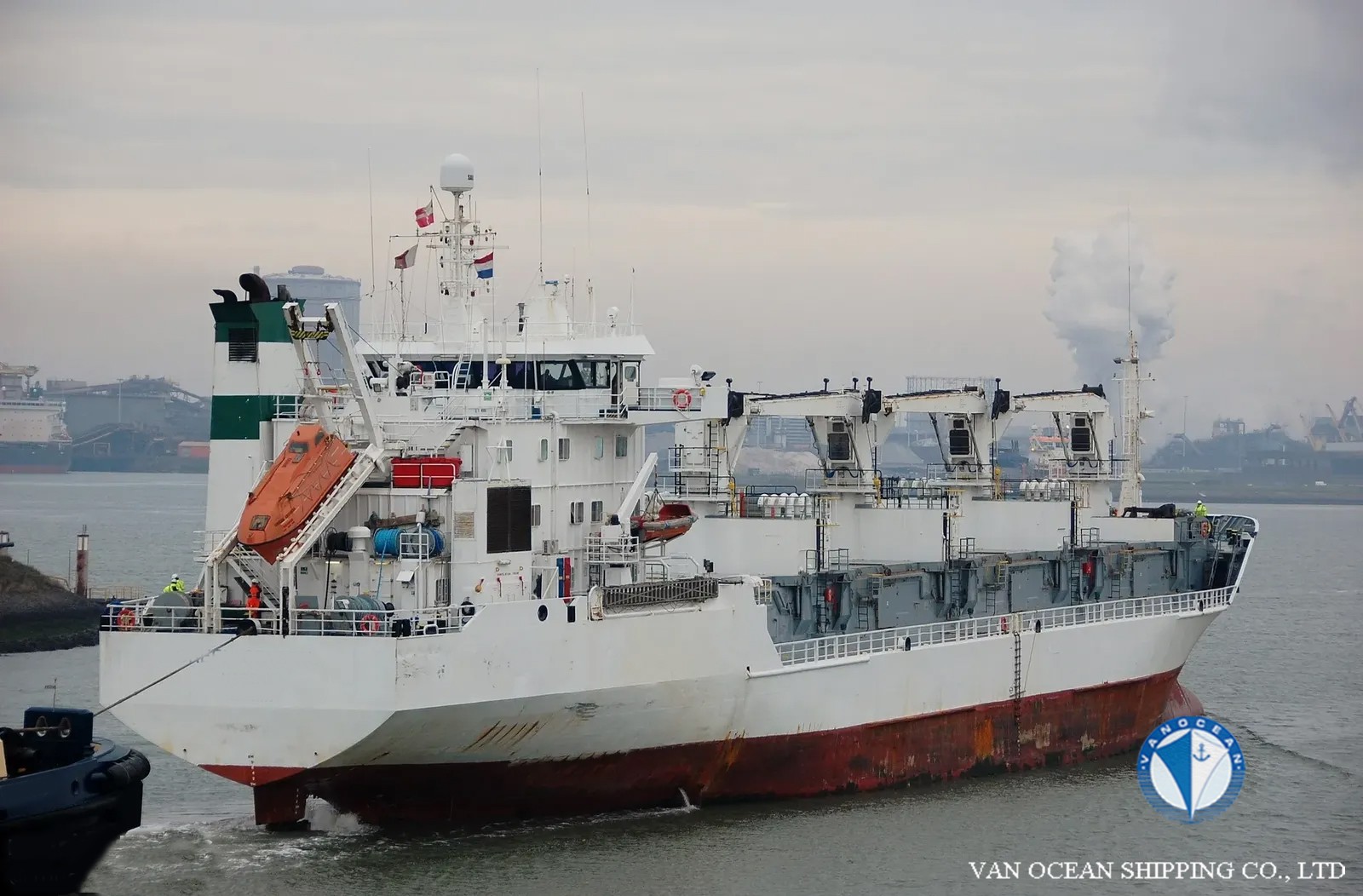

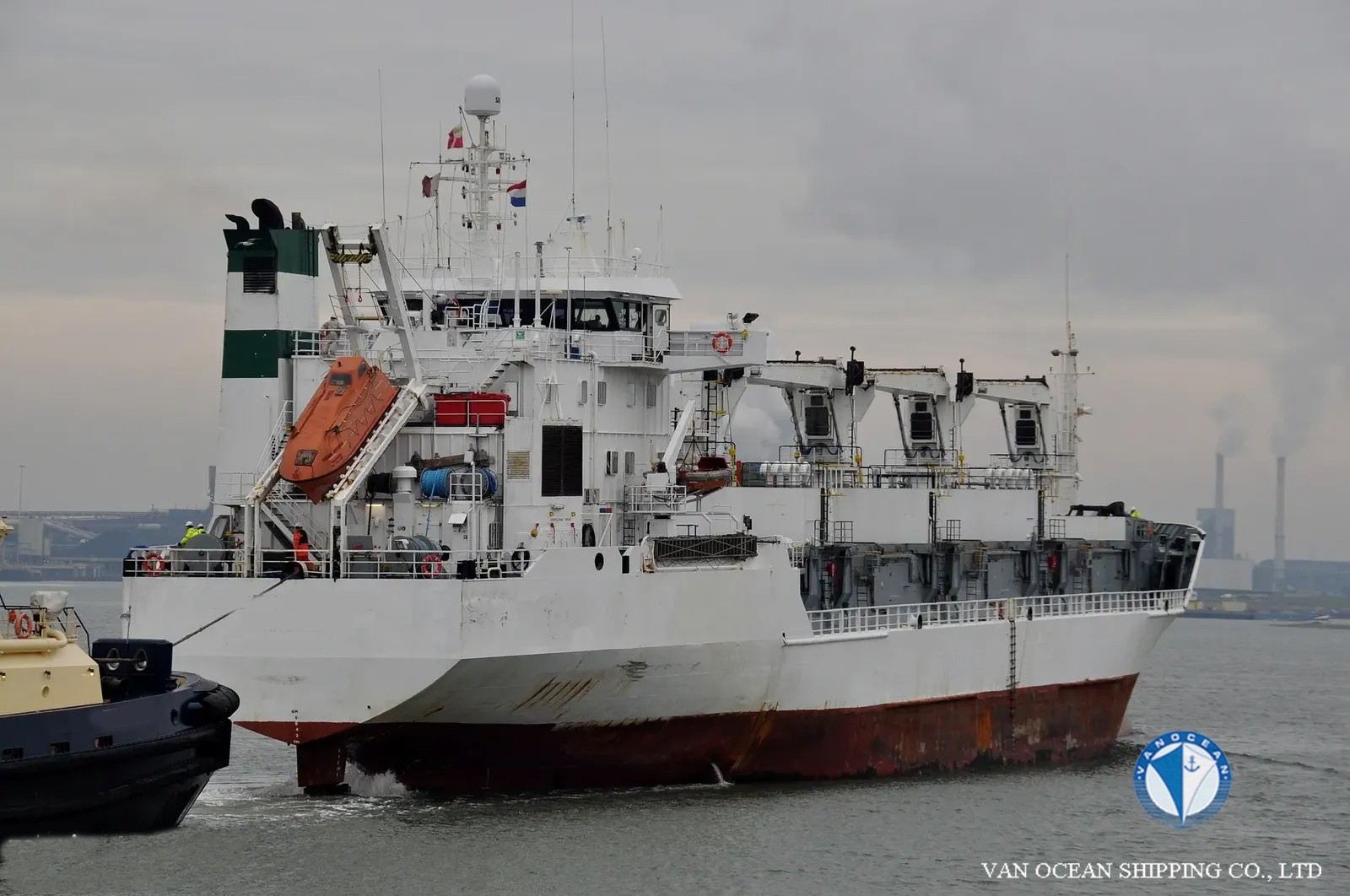

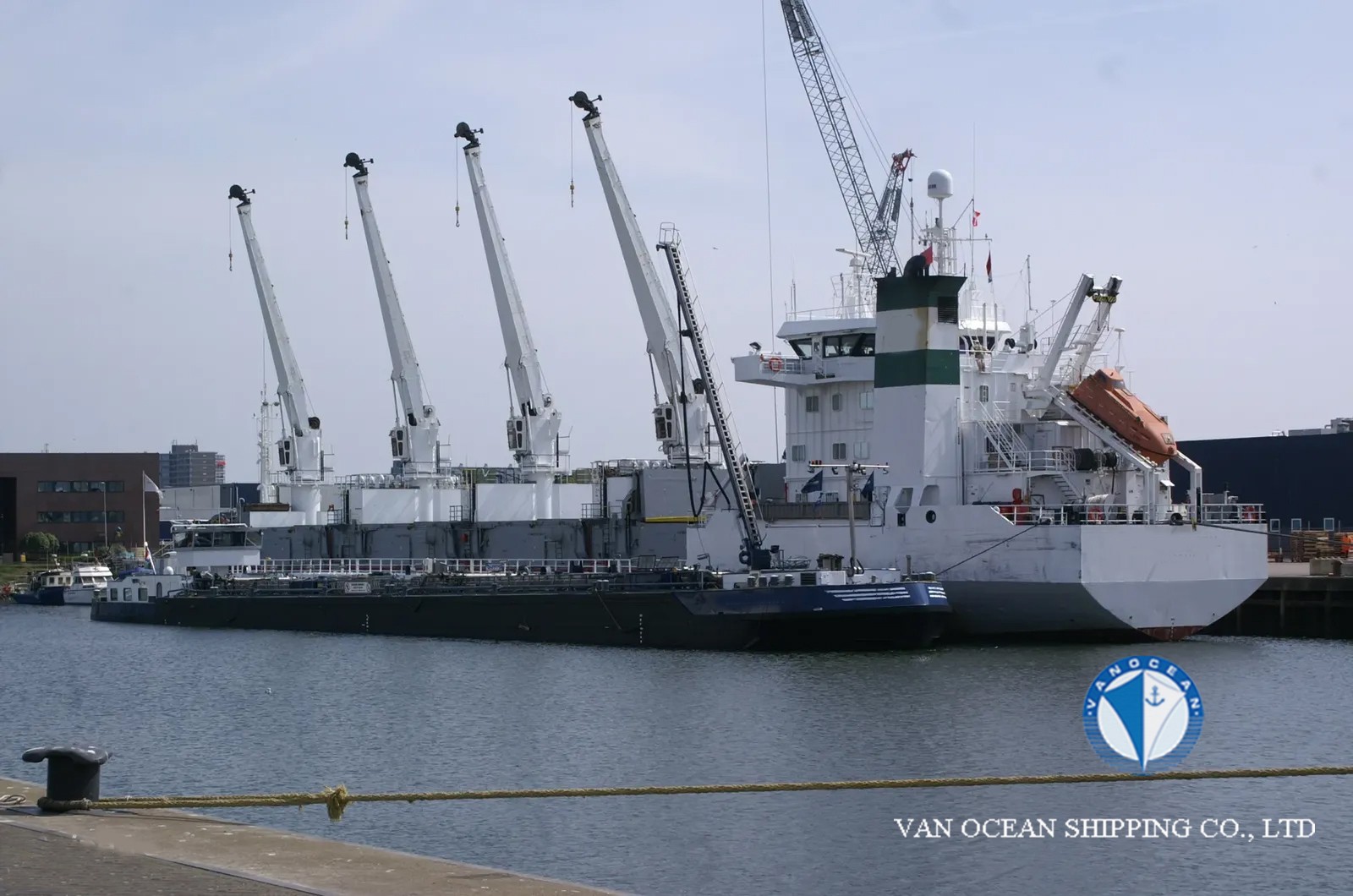

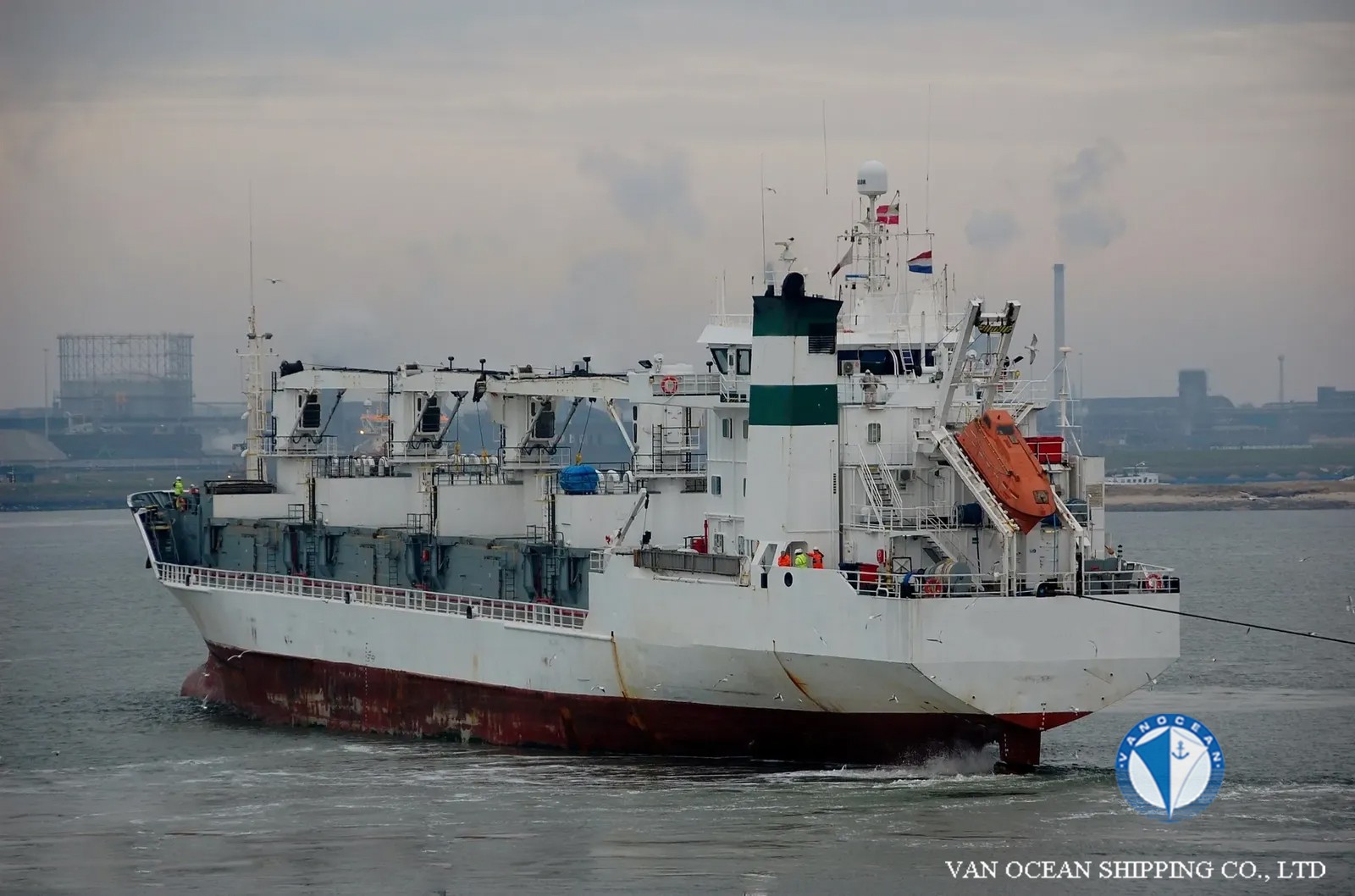

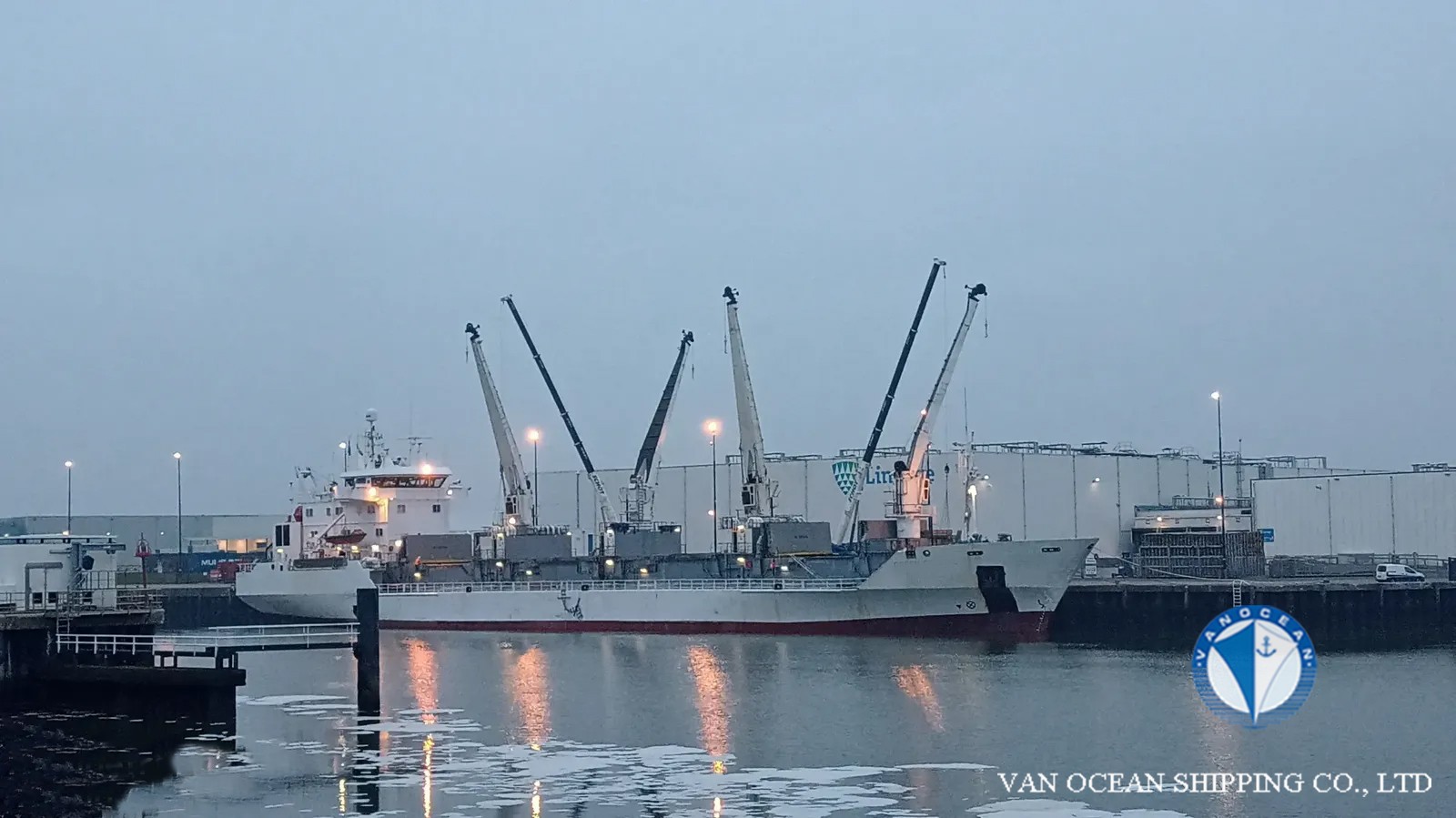

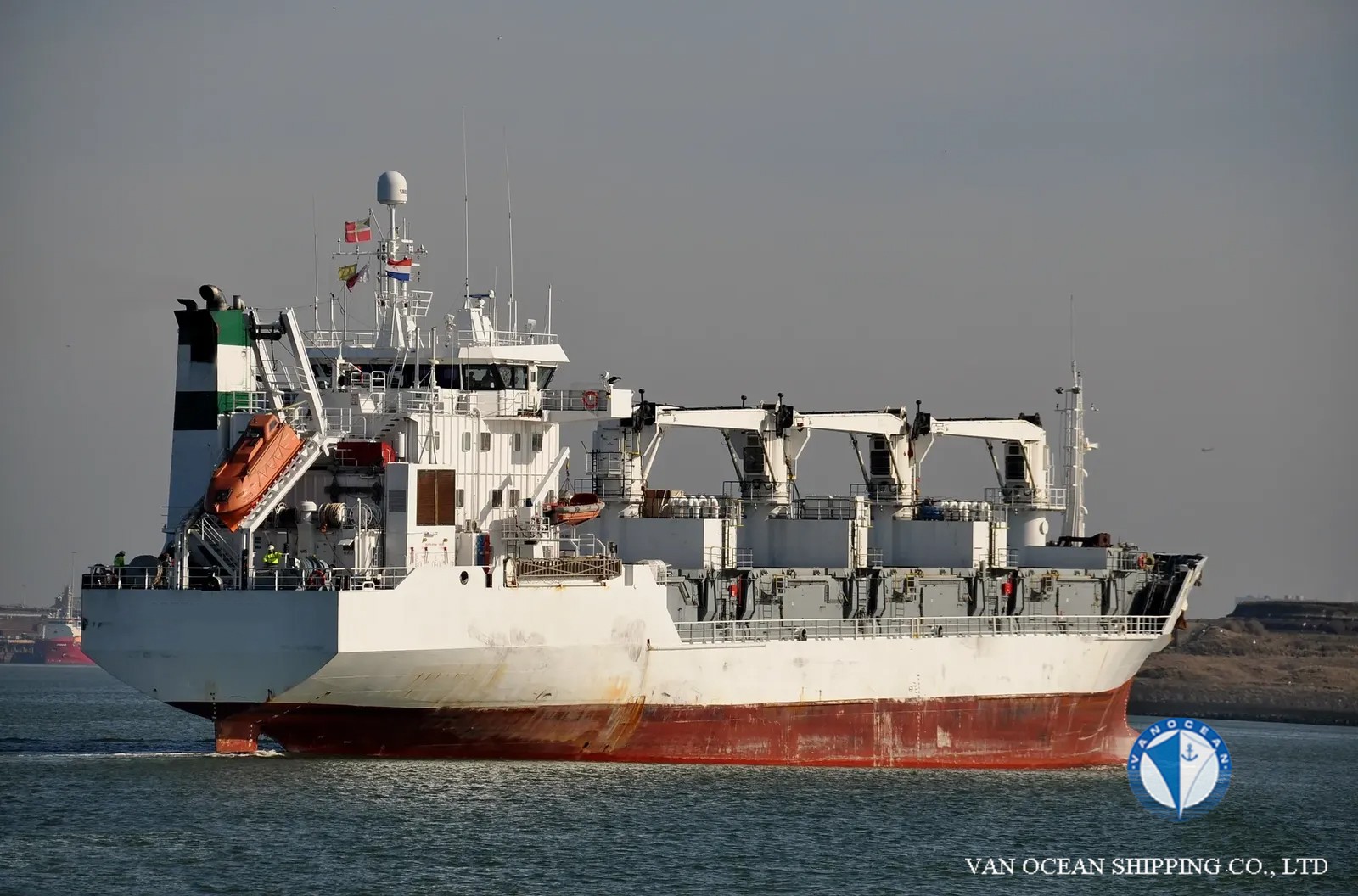

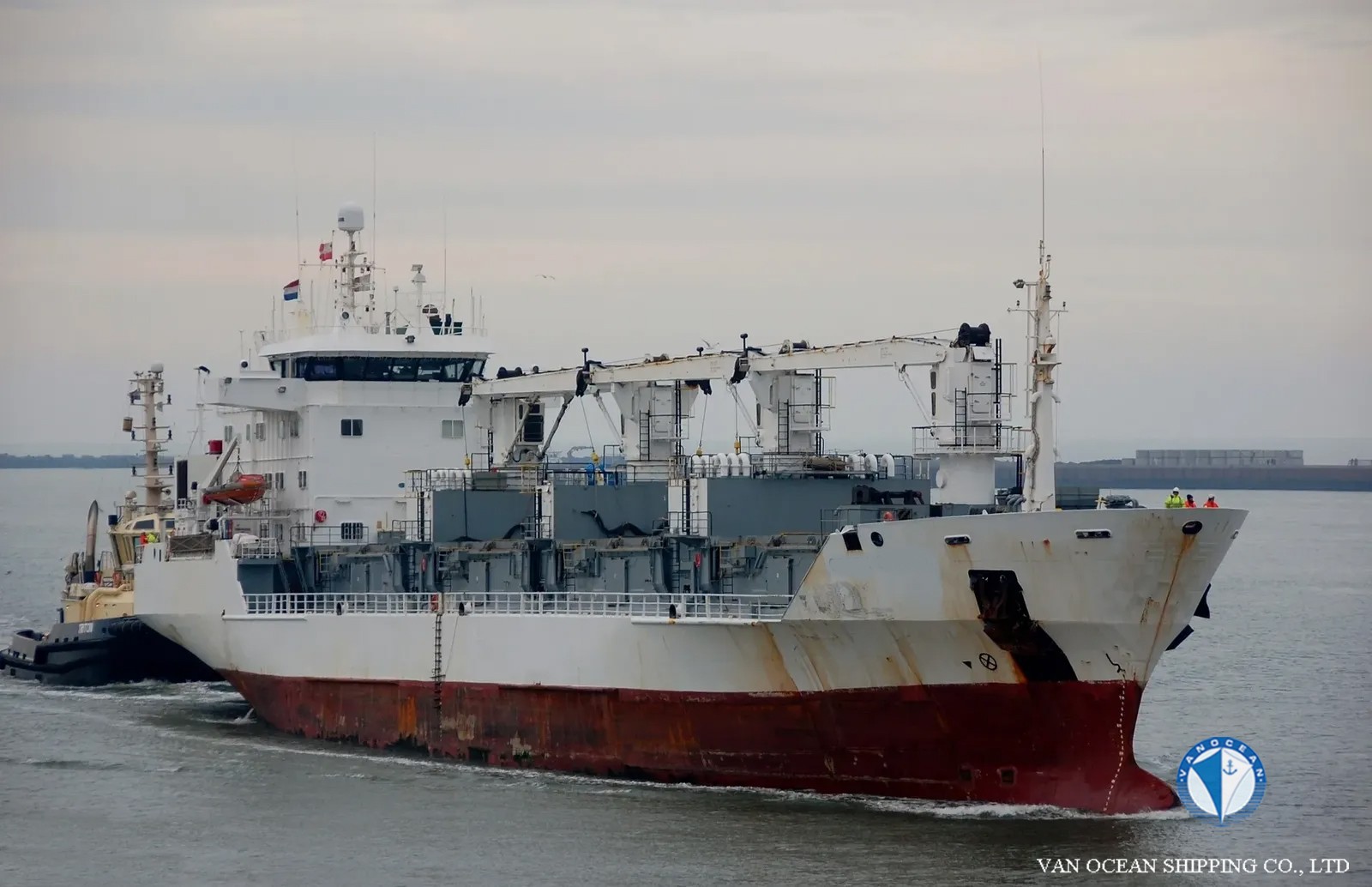

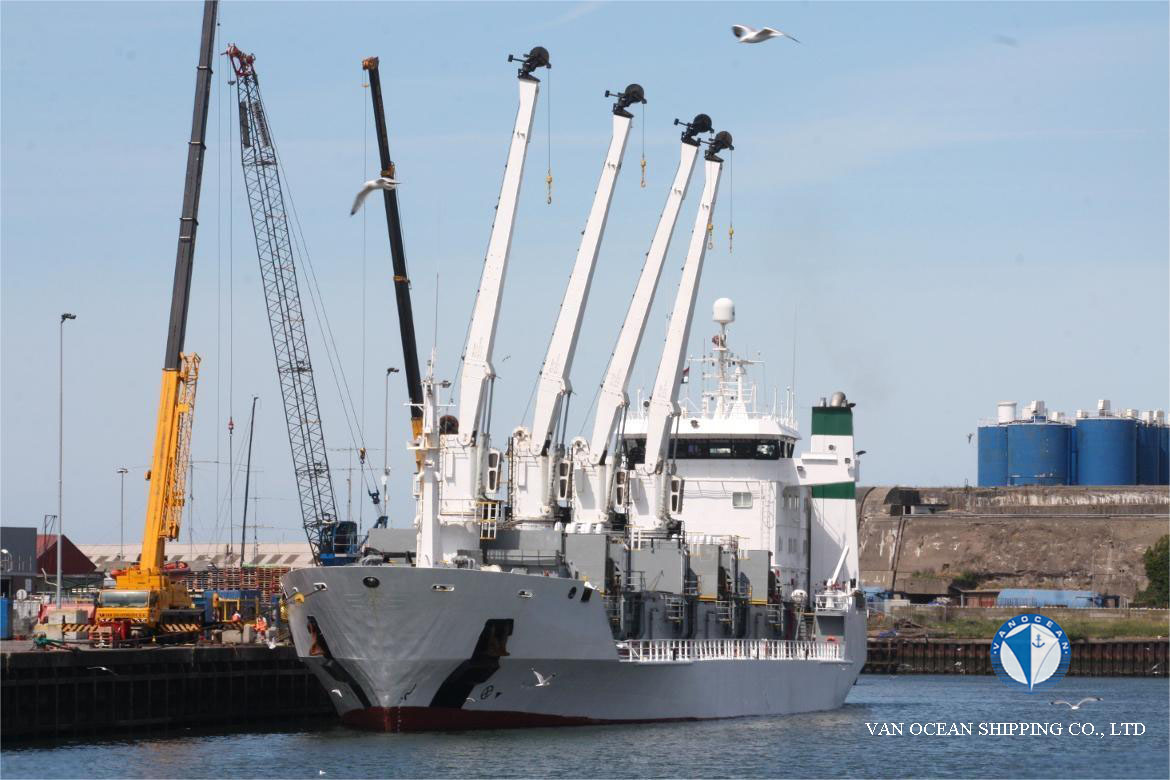

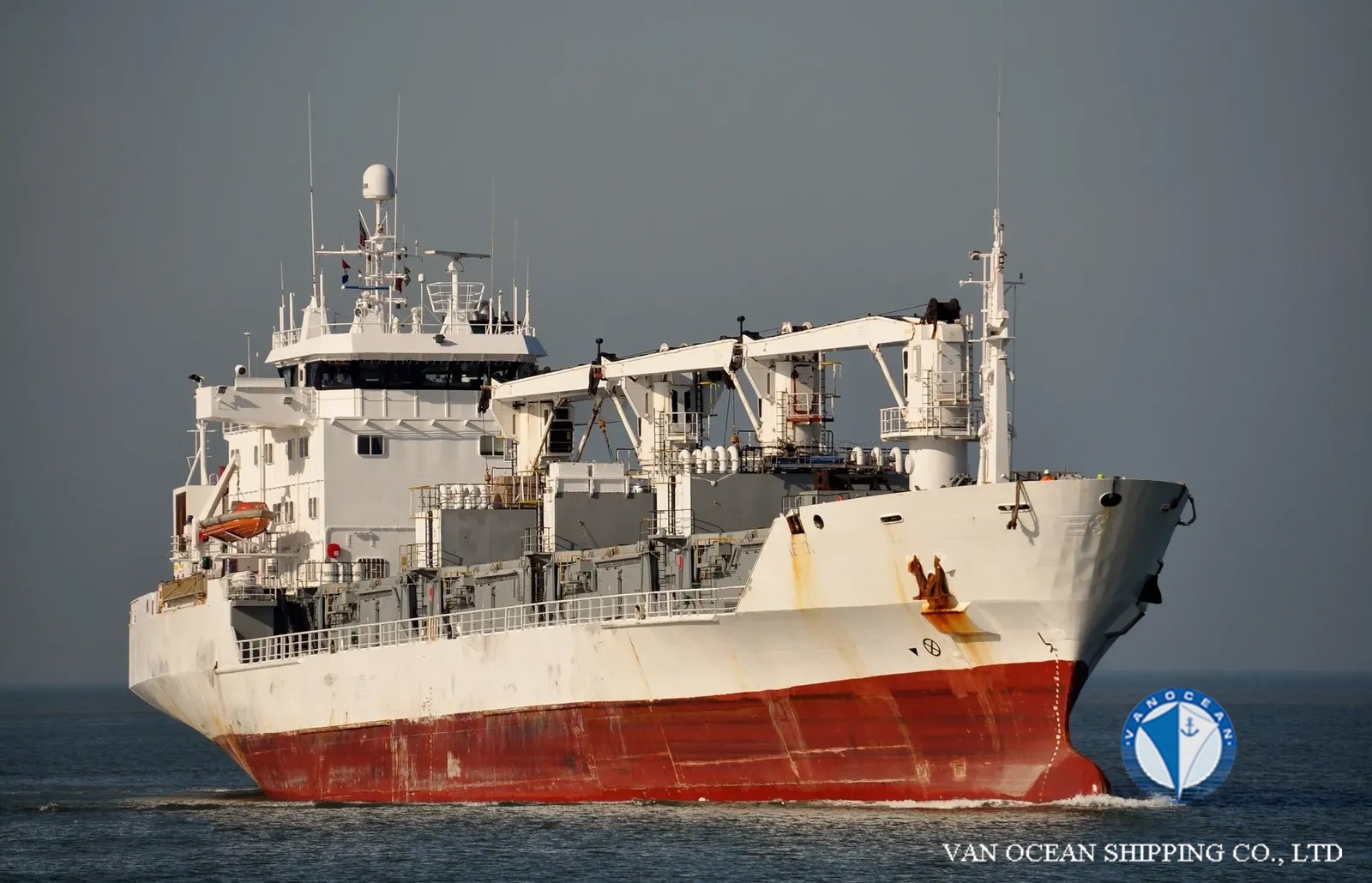

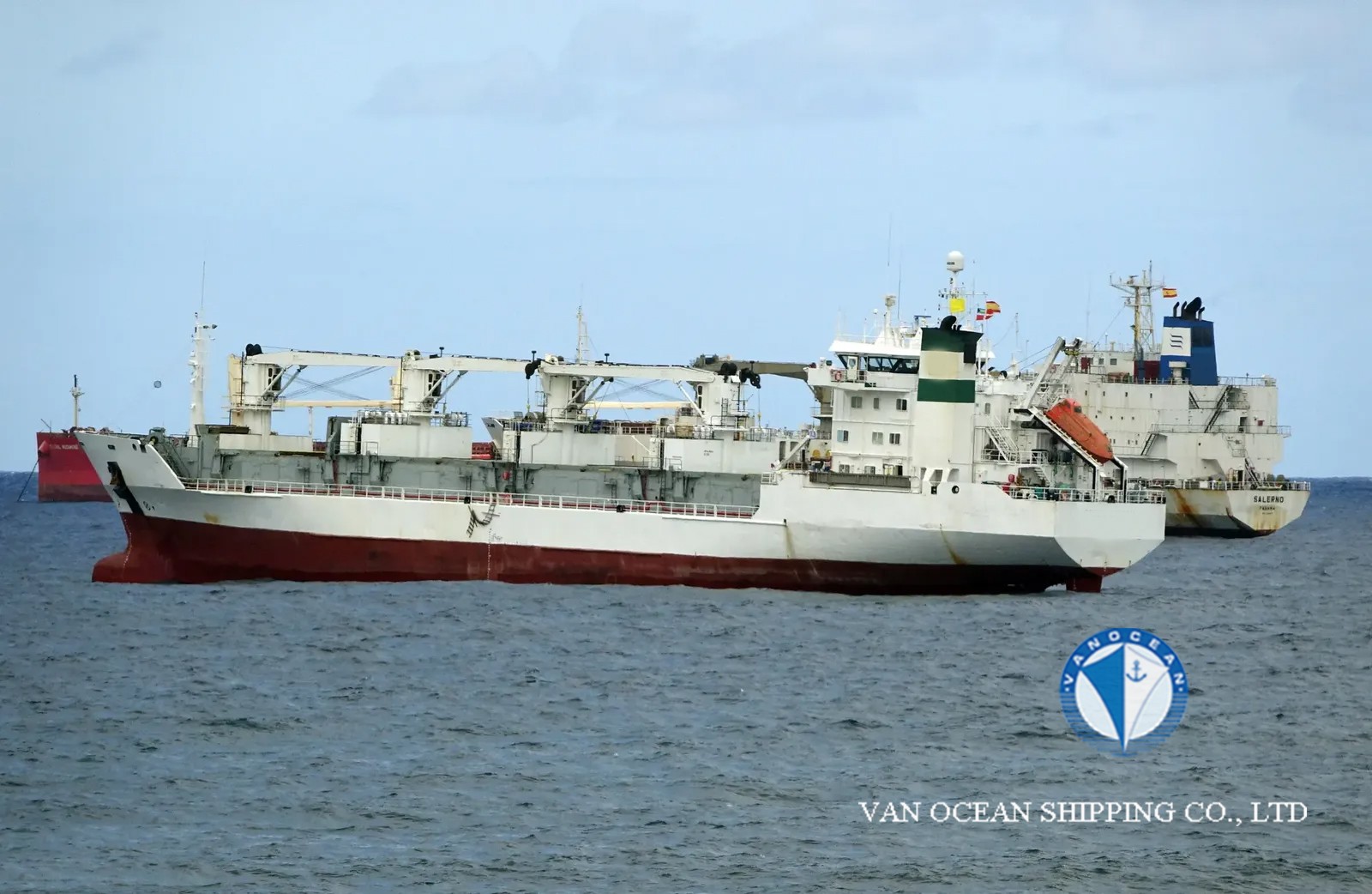

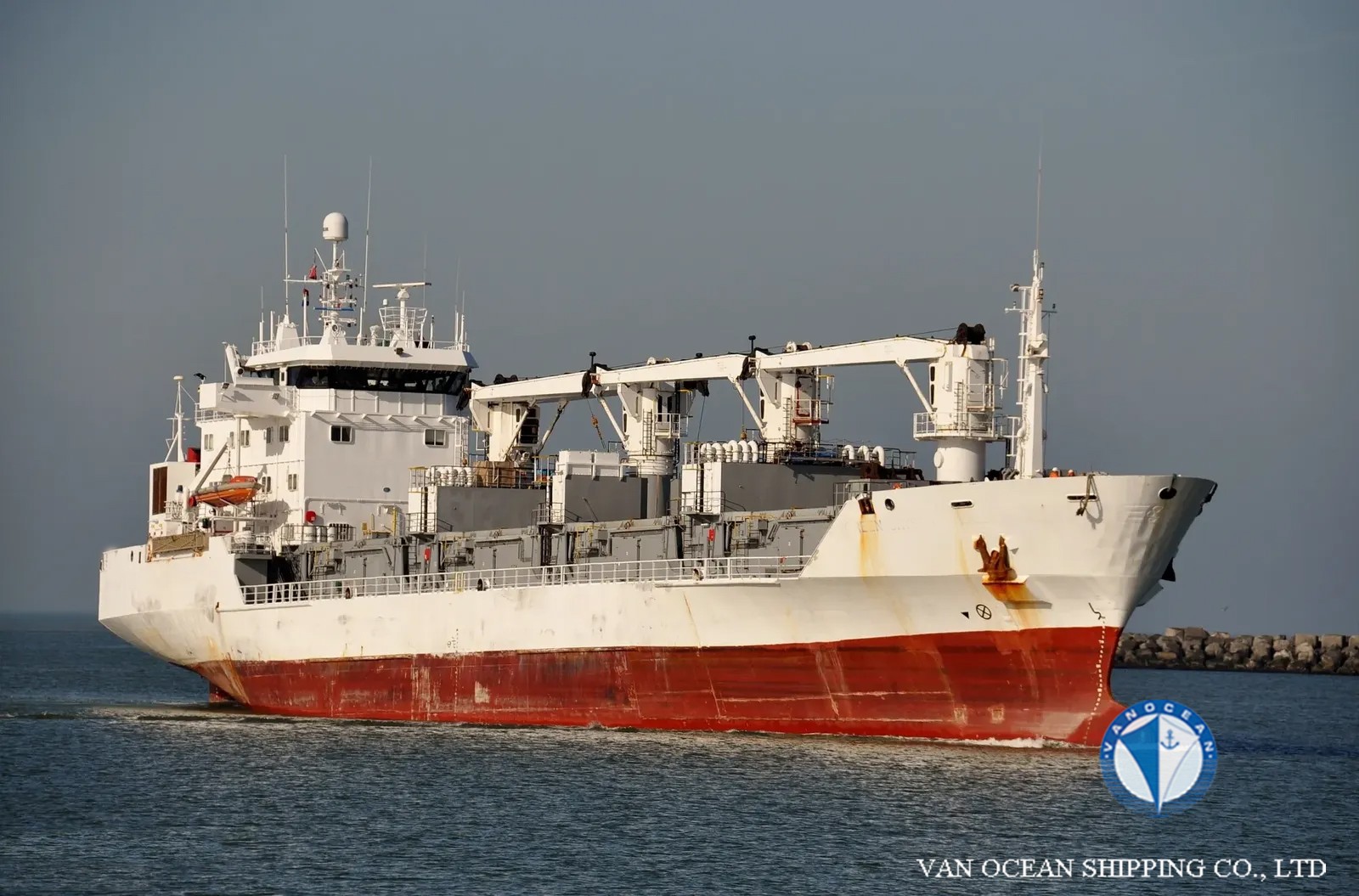

VESSEL NAME
REF898
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
BAHAMAS
PORT OF REGISTRY
NASSAU
BUILT YEAR
1992
BUILT PLACE
KVAERNER KLEVERN, NORWAY
CLASSIFICATION
BV
CLASS NOTATION
I✠Hull✠Mach, Refrigerated cargo ship, Unrestricted navigation, µ AUT-UMS , BWT , REF-CARGO -PRECOOLING , INWATERSURVEY
SS
2027-03
DD
2027-03
LOA (M)
109
LBP (M)
101.4
BEAM (M)
18
DEPTH (M)
9.81
SUMMER DRAFT (M)
7.41
WINTER DRAFT (M)
7.26
TROPICAL DRAFT (M)
7.72
GT (MT)
5084
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
3163
PANAMA NT (MT)
4457
SUEZ NT (MT)
4454
SUMMER DWT (MT)
6121
WINTER DWT (MT)
5795
TROPICAL DWT (MT)
6255
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
CRANES 4 x 6 MT
M/E(S)
Wärtsilä Finland Oy, 4044KW AT 720RPM
M/E POWER (KW)
5495 HP
A/E(S)
2 x 488 kVA - 390 kW ,1 x 588 kVA - 470 kW
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
14 KNOTS
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
878
TANKS CAPACITY (CBM)
MGO:125
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
8.5 x 9.8
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
16
DECK(S)
-
DECK HEIGHT (M)
2.2
CARGO CAPACITY (CBFT)
265770
CARGO CAPACITY (CBM)
7529
FLOOR SPACE CAPACITY (SQM)
3233
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
8
1AB/CD,2AB/CD,3AB/CD,4AB/CD
TEMPERATURE (℃)
-25/+12
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
3
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
20
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
BOWTHRUSTER x 1
