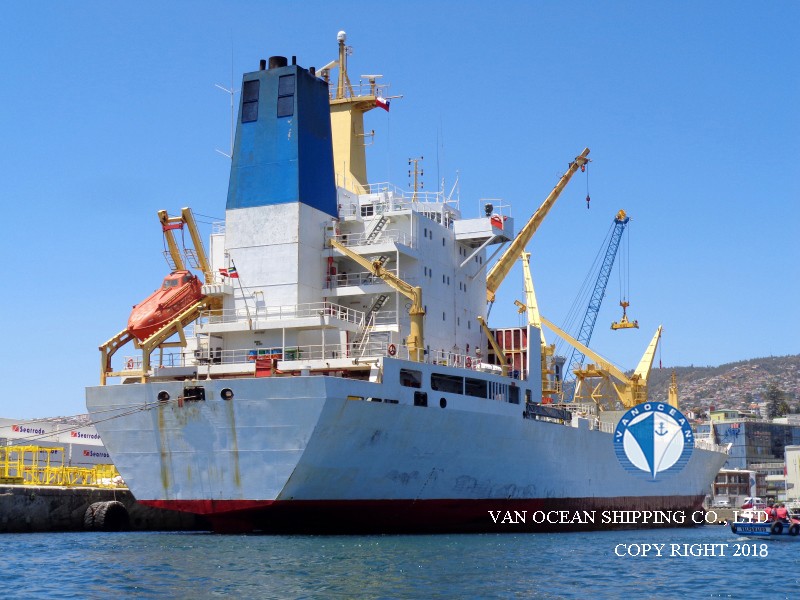

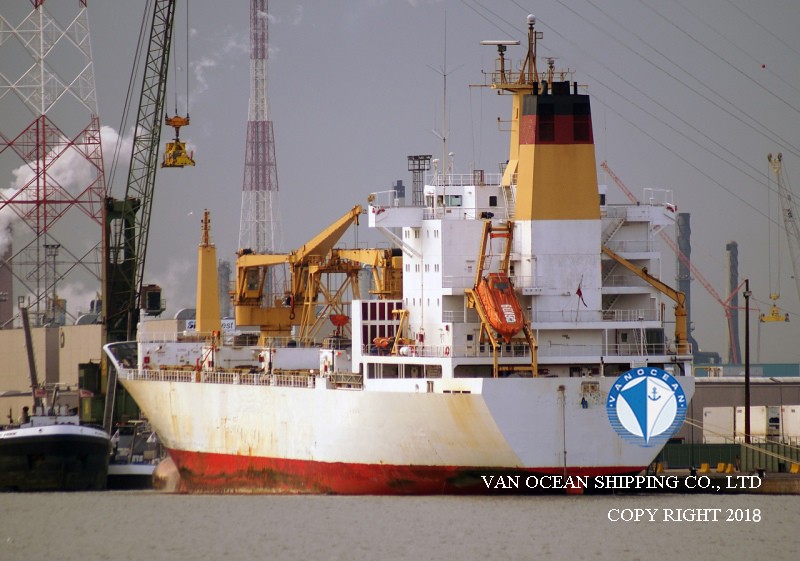

VESSEL NAME
REF890
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
BAHAMAS
PORT OF REGISTRY
NASSAU
BUILT YEAR
1991
BUILT PLACE
DANYARD FREDERIKSHAVN, DANMARK
CLASSIFICATION
BV
CLASS NOTATION
I✠Hull✠Mach, Refrigerated cargo ship,
Unrestricted navigation, MON-SHAFT, 2(Ch 63 Q3)
SS
2025-08
DD
2025-08
LOA (M)
158.13
LBP (M)
145
BEAM (M)
24.4
DEPTH (M)
15.7
SUMMER DRAFT (M)
10.02
WINTER DRAFT (M)
9.81
TROPICAL DRAFT (M)
10.22
GT (MT)
13049
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
5353
PANAMA NT (MT)
10877
SUEZ NT (MT)
10958.59
SUMMER DWT (MT)
13930
WINTER DWT (MT)
13323
TROPICAL DWT (MT)
14542
LDT (MT)
9156.7 (INCLUDING 1400MT PERMANENT BALLAST)
DISPLACEMENT (MT)
21531

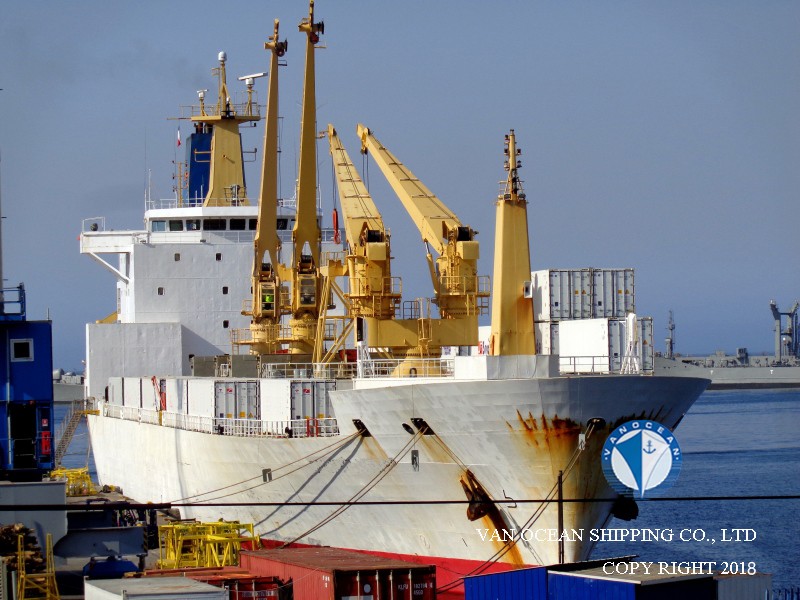

GEAR(S)
CRANE, 2 x 36 MT, CRANE 2 x 20MT

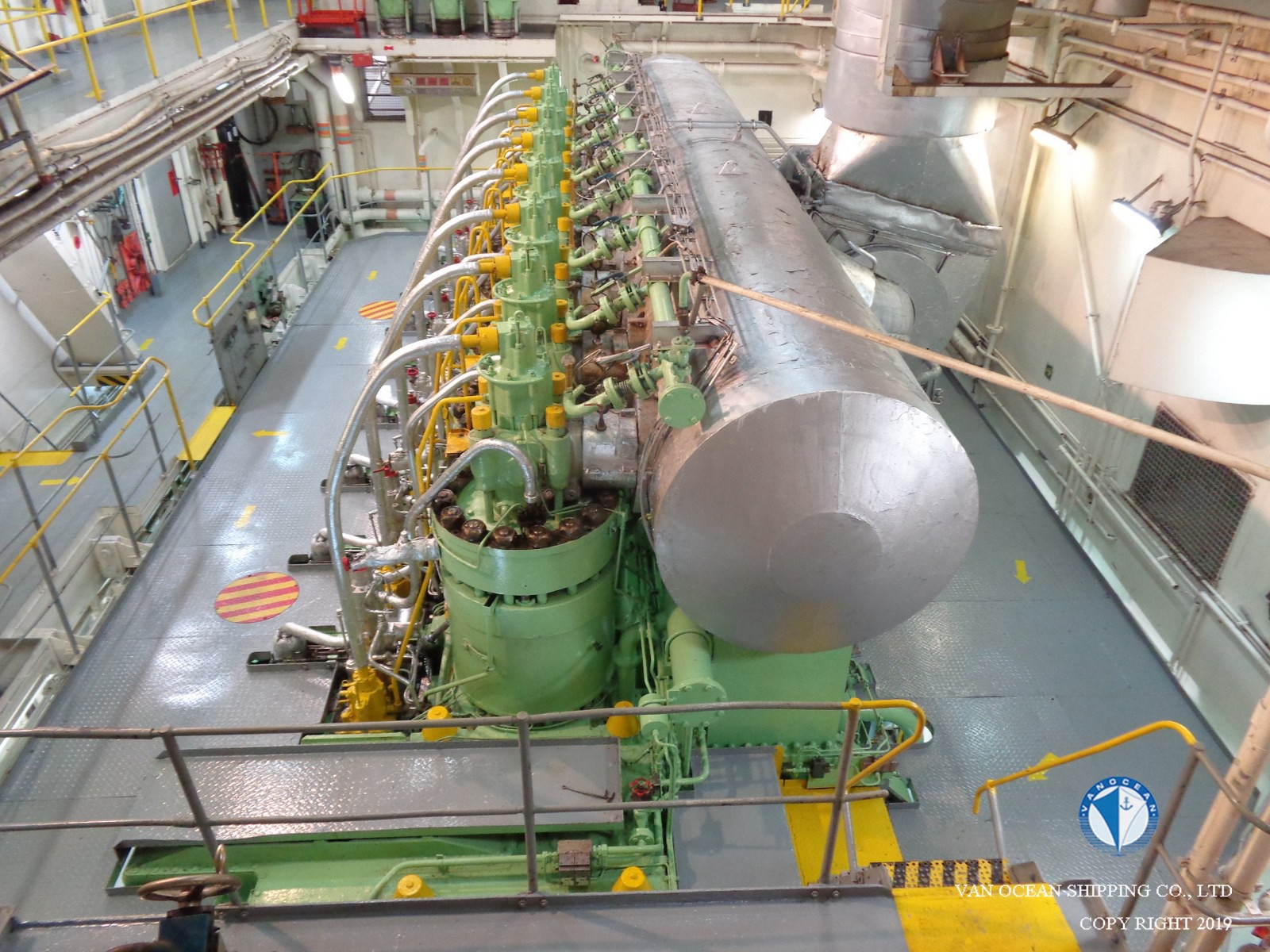

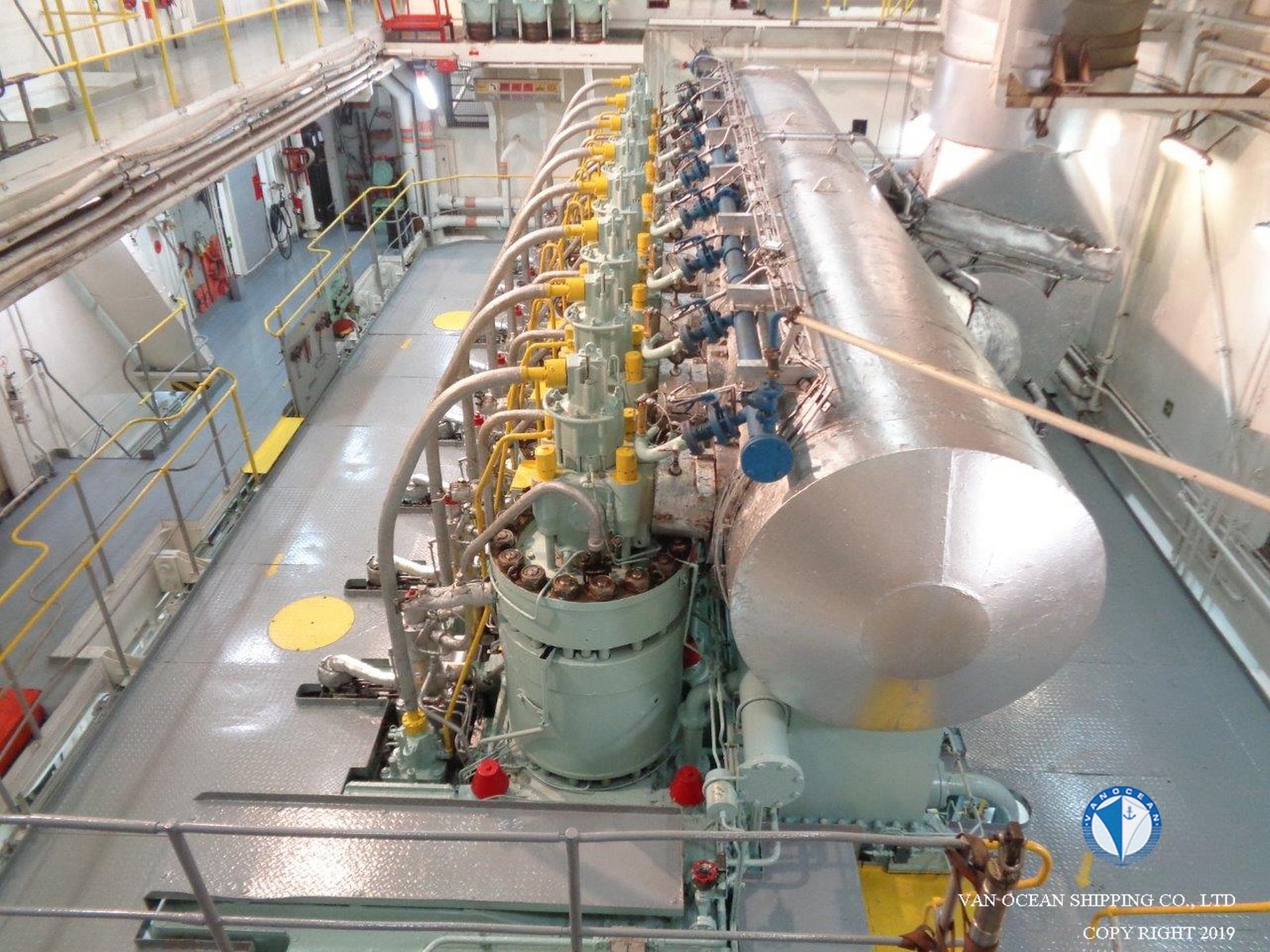

M/E(S)
KAWASAKI HI MAN B & W 8S60MC 2T, 20326HP, 8 CYL, 102RMP
M/E POWER (KW)
14960

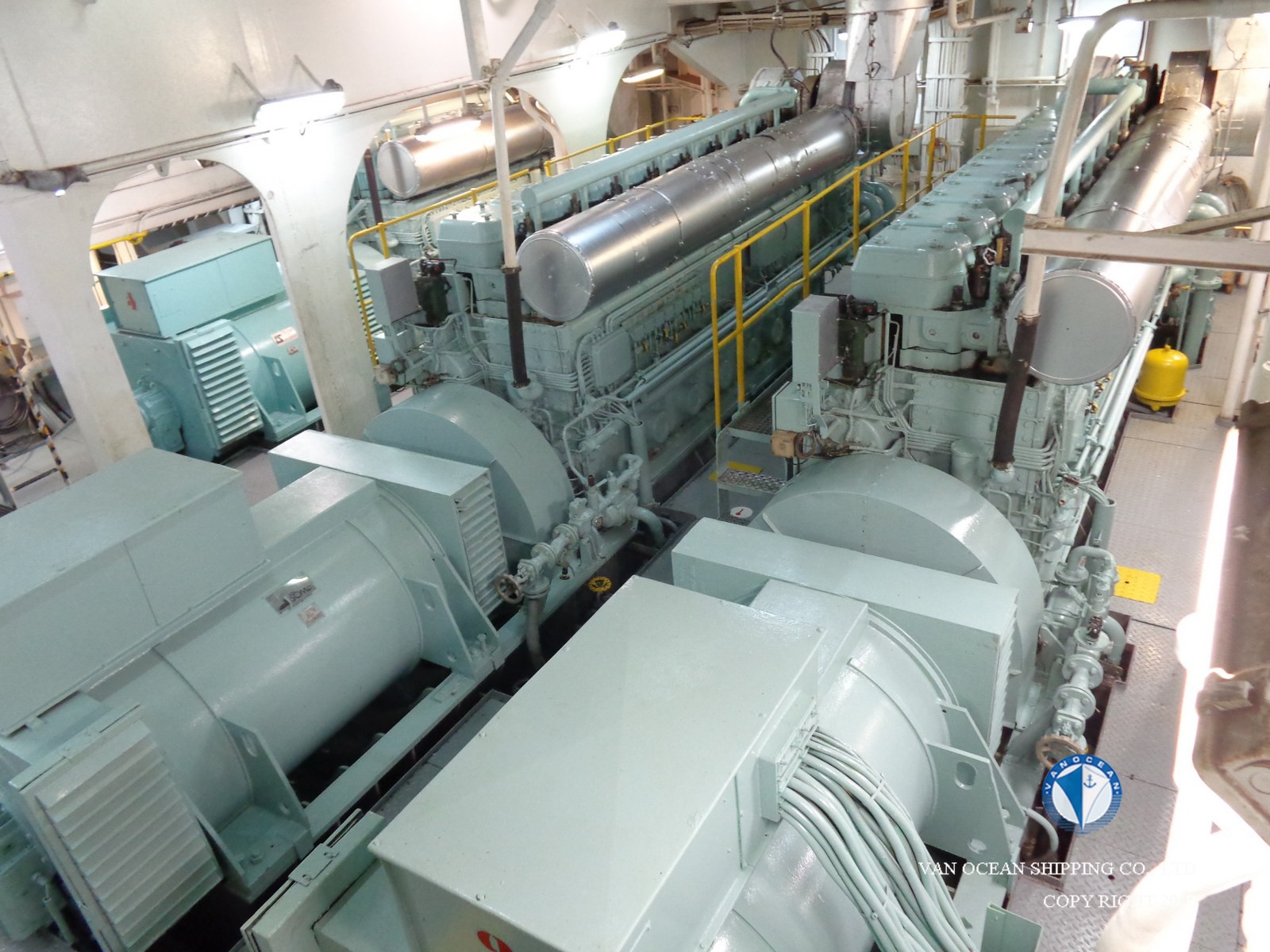

A/E(S)
NO 1&4: MAN B & W HOLEBY, 5L28/32H, 1610KW
NO.2&3: MAN B & W HOLEBY, 8L28/32H, 1000KW
GENERATOR(S)
2 DIESEL GENERATORS 1250KVA (1000KW), 40V, 60HZ
2 DIESEL GENERATORS 1610KVA (1000KW), 40V, 60HZ
1 DIESEL GENERATOR 195KVA (156KW), 40V, 60HZ
SHAFT GENERATOR(S)
-
PROPELLER(S)
1 x SOLID SCREW PROPELLER LB 10, 102 RPM
COOLING SYSTEM (COMPRESSOR)
4 x SABORE REFRIGERATION A/S
R22-BRINE
INSULATION: POLYURETHANE - ALUMINIUM AND WOOD
SPEED/CONSUMPTIONS
21.5 KTS
FUEL TYPE
IFO380, MGO
BUNKER CAPACITY (CBM)
IFO380 2039CBM, MGO 95CBM
TANKS CAPACITY (CBM)
FW 200.3 CBM
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
HYDRAULIC FOLDING HATCH
HATCH SIZE (M)
4*13.7 x 10.7M
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
18
DECK(S)
6
DECK HEIGHT (M)
≥2.25M
CARGO CAPACITY (CBFT)
645319
CARGO CAPACITY (CBM)
18281
FLOOR SPACE CAPACITY (SQM)
7565
GRATING/DECK STRENGTH
MAXIMUM 7MT (FORKLIFT MINIMUM 4 NON HARD RUBBER AIRTYRES)
TEMPERATURE ZONE(S)
7
TEMPERATURE (℃)
-29/+15
TYPE OF VENT SYSTEM
VERTCAL
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
2
PALLET(S)
8610

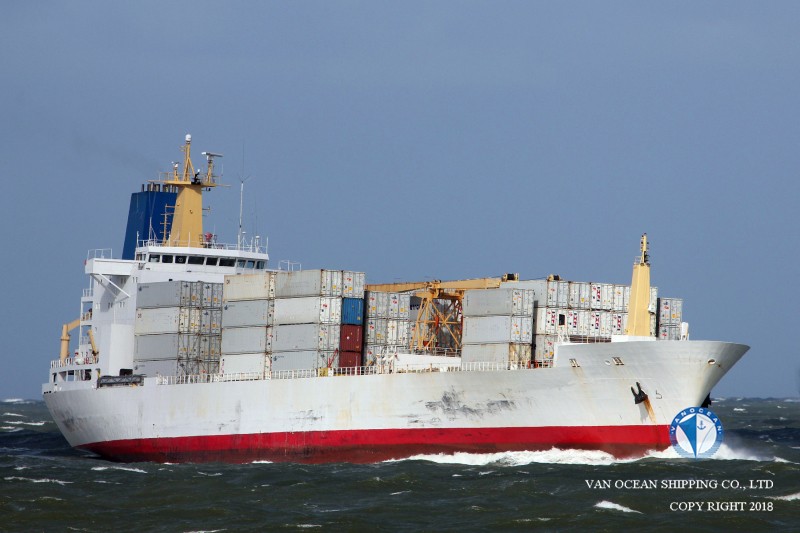

CONTAINER CAPACITY
439TEU
REEFER PLUG(S)
147
SIDE DOOR(S)
4 PORTSIDE
FENDER(S)
-
ANCHOR CHAIN(S)
GRADE Q3, DIAMETER 63MM
USDA CERTIFICATE
UNTIL 2024-07
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
-
