REEFER S&P

HOME - REEFER S&P - REF867

PARTICULAR

  • VESSEL NAME

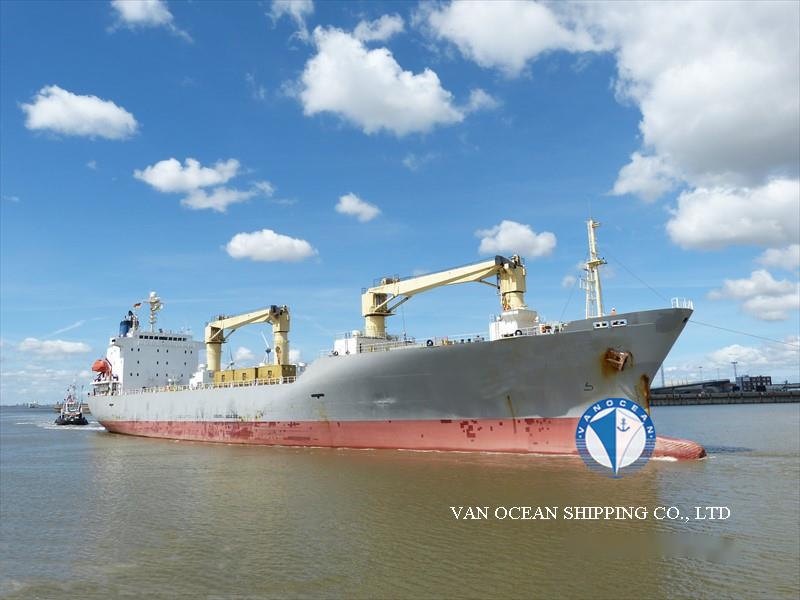

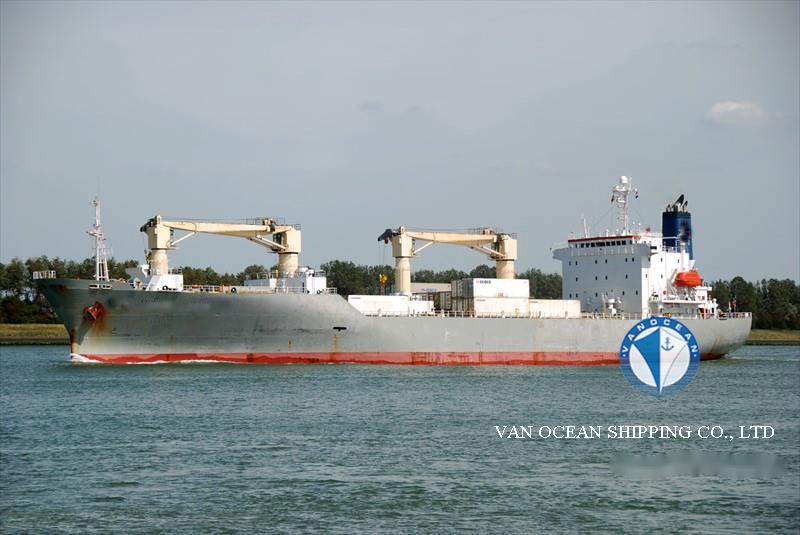

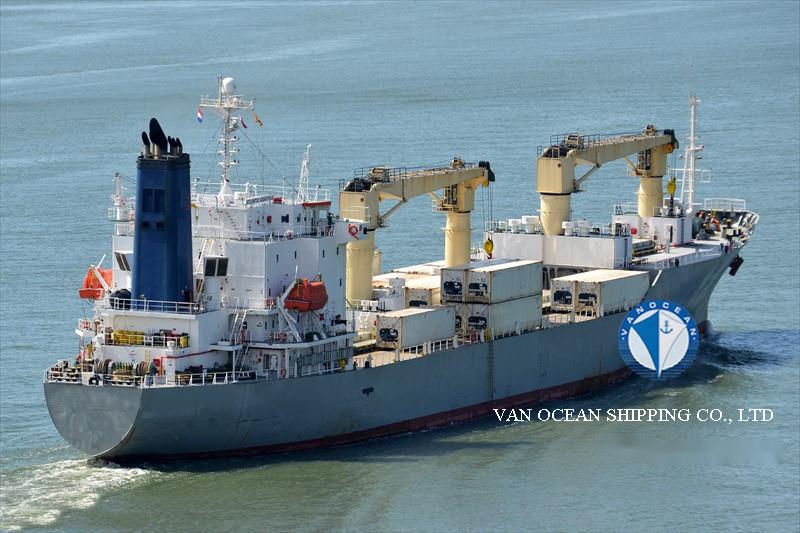

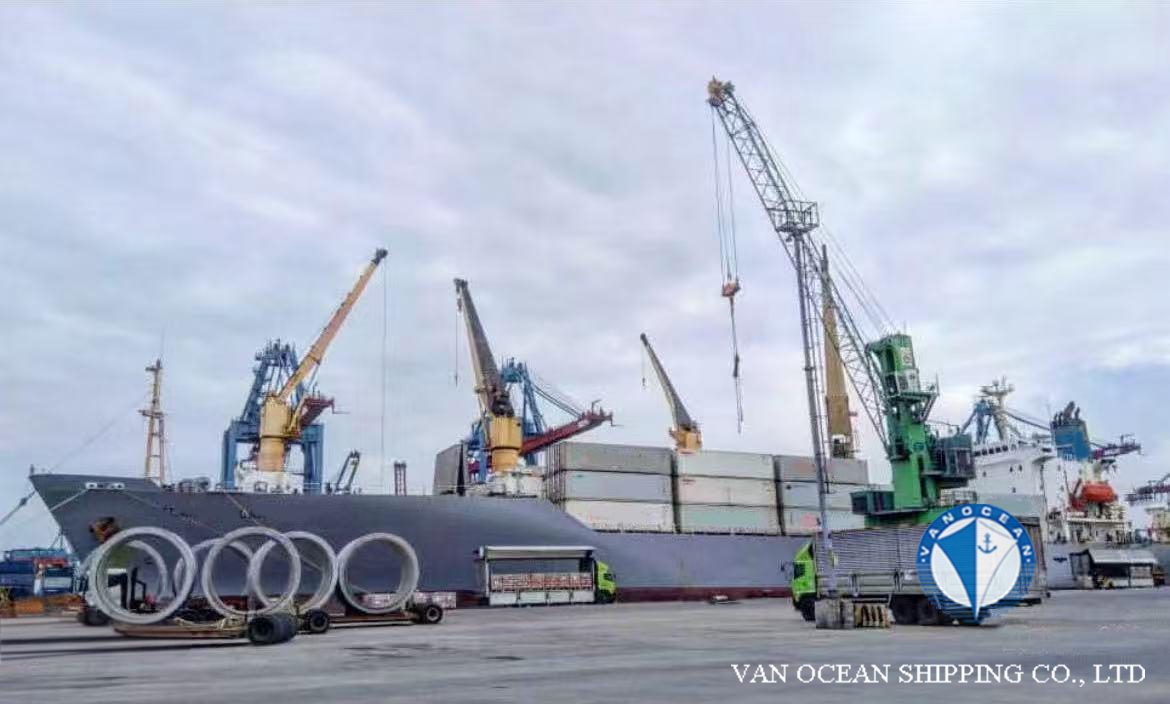

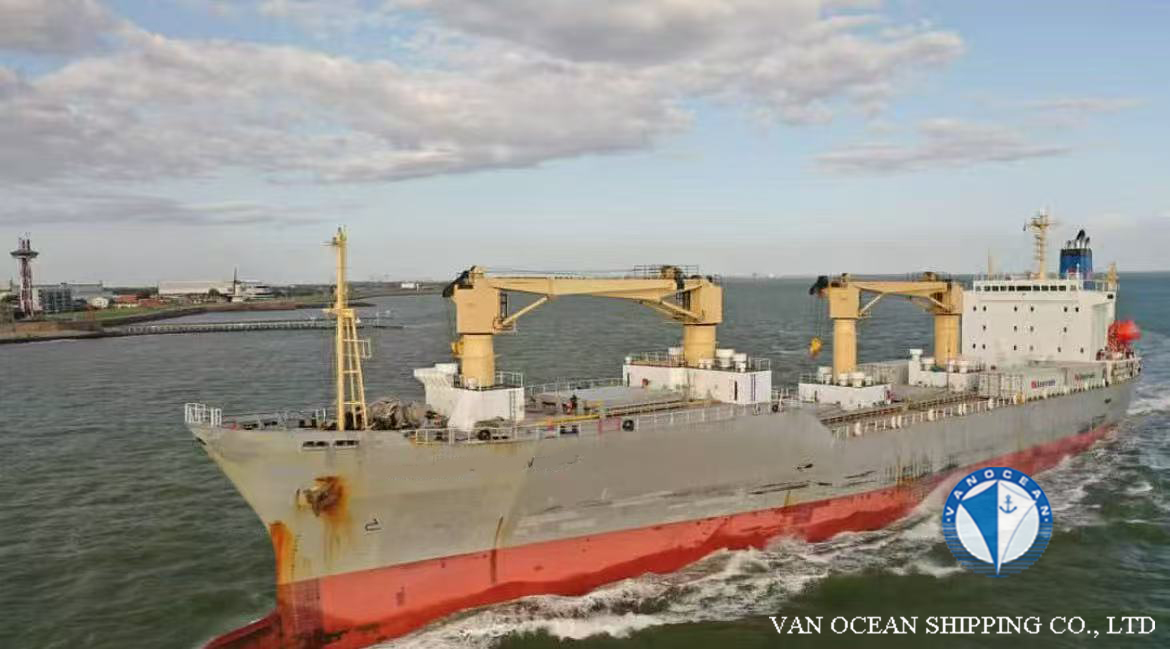

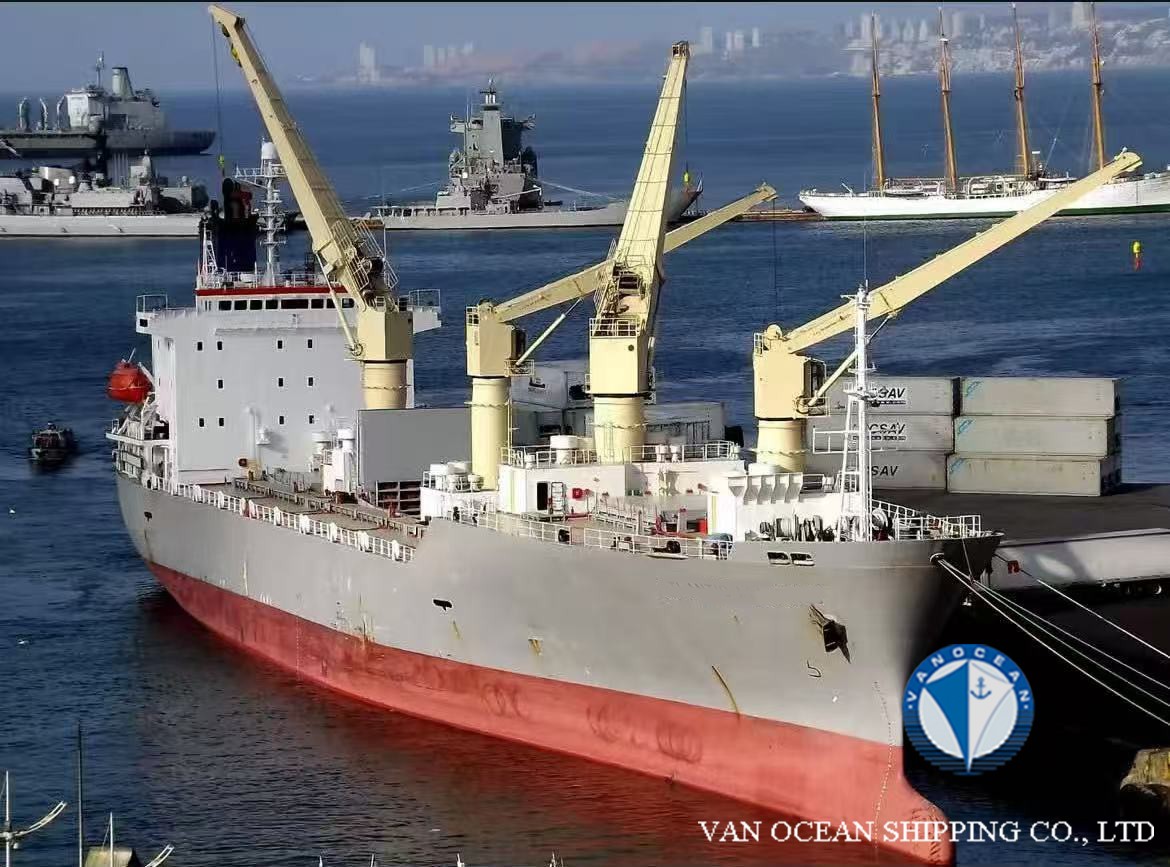

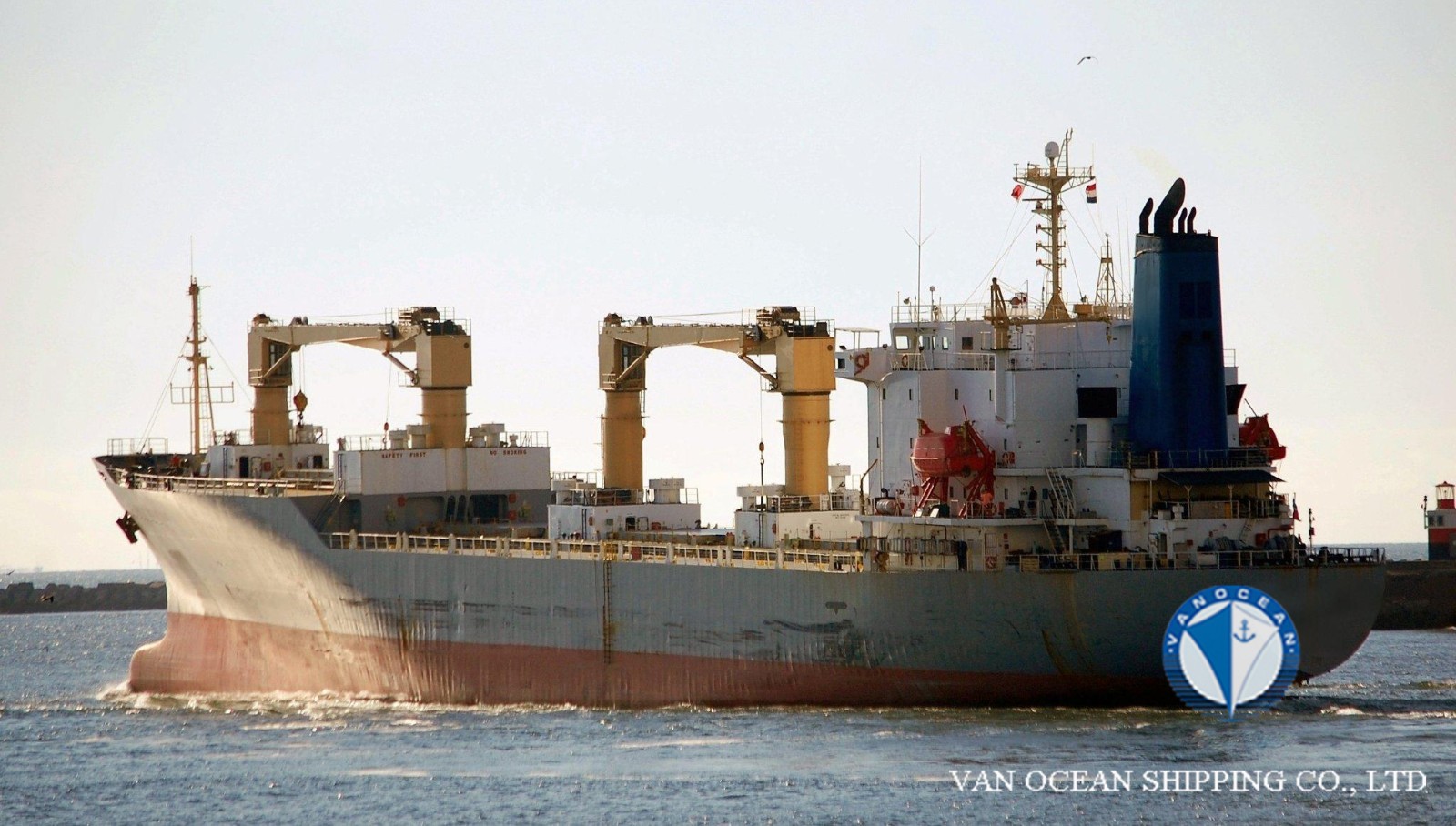

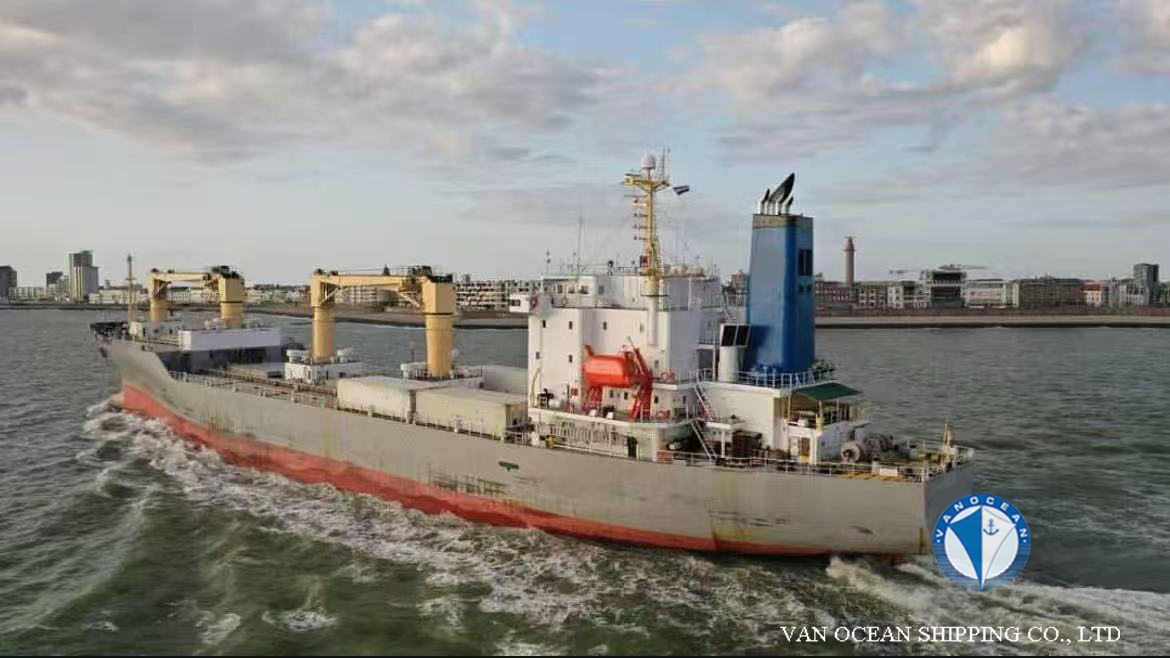

  • REF867
  • TYPE
  • REEFER CARRIER
  • DEEP FREEZING OR NOT
  • NO
  • FLAG
  • BAHAMAS
  • PORT OF REGISTRY
  • NASSAU
  • BUILT YEAR
  • 1999
  • BUILT PLACE
  • SHIN KOCHI H.I., JAPAN
  • CLASSIFICATION
  • NK
  • CLASS NOTATION
  • NS* (EQ CV)/MNS* RMC*, CA(-30/32 EQF FOR ACH. CA), CHG, MPP, LSA, RCF, AFS
  • SS
  • -
  • DD
  • -
  • LOA (M)
  • 144.52
  • LBP (M)
  • 136.36
  • BEAM (M)
  • 21.8
  • DEPTH (M)
  • 13.1
  • SUMMER DRAFT (M)
  • 9.18
  • WINTER DRAFT (M)
  • 8.98
  • TROPICAL DRAFT (M)
  • 9.37
  • GT (MT)
  • 9649
  • PANAMA GT (MT)
  • -
  • SUEZ GT (MT)
  • -
  • NT (MT)
  • 5349
  • PANAMA NT (MT)
  • 8142
  • SUEZ NT (MT)
  • 8815.11
  • SUMMER DWT (MT)
  • 11793
  • WINTER DWT (MT)
  • 11338
  • TROPICAL DWT (MT)
  • 12251
  • LDT (MT)
  • -
  • DISPLACEMENT (MT)
  • -
  • GEAR(S)
  • CRANES, 2 x 36MT, 2 x 8MT
  • M/E(S)
  • MITSUB, 2 S.A. 7-CYL 12600HP, 120 RPM
  • M/E POWER (KW)
  • 9267
  • A/E(S)
  • -
  • GENERATOR(S)
  • -
  • SHAFT GENERATOR(S)
  • -
  • PROPELLER(S)
  • -
  • COOLING SYSTEM (COMPRESSOR)
  • -
  • SPEED/CONSUMPTIONS
  • 20KTS
  • FUEL TYPE
  • IFO380
  • BUNKER CAPACITY (CBM)
  • 1432
  • TANKS CAPACITY (CBM)
  • MDO: 71 MGO: 85
  • NUMBER OF CARGO HOLDS
  • 4
  • HATCH NUMBER
  • 4
  • HATCH TYPE
  • -
  • HATCH SIZE (M)
  • 8.10 x 6.60; 8.10 x 6.00
  • HEIGHT OF HATCH COAMING (M)
  • -
  • COMPARTMENT(S)
  • 16
  • DECK(S)
  • 4
  • DECK HEIGHT (M)
  • ≥2.20
  • CARGO CAPACITY (CBFT)
  • 504510
  • CARGO CAPACITY (CBM)
  • 14292
  • FLOOR SPACE CAPACITY (SQM)
  • 5759
  • GRATING/DECK STRENGTH
  • MAXIMUM 7MT (MIN 4 NON-HARD RUBBER AIRTYRES)
  • TEMPERATURE ZONE(S)
  • 8 1A/BCD, 2AB/CD, 3AB/CD, 4AB/CD
  • TEMPERATURE (℃)
  • -30/+12
  • TYPE OF VENT SYSTEM
  • -
  • VENT (TIMES/HOUR)
  • 90/60/45
  • AIR CHANGE (TIMES/HOUR)
  • 2
  • PALLET(S)
  • 5803
  • CONTAINER CAPACITY
  • -
  • REEFER PLUG(S)
  • 80
  • SIDE DOOR(S)
  • 3
  • FENDER(S)
  • -
  • ANCHOR CHAIN(S)
  • -
  • USDA CERTIFICATE
  • -
  • INSURANCE
  • -
  • CREW
  • -
  • ACCOMMODATION
  • -
  • INSPECTION
  • -
  • DELIVERY
  • -
  • PRICE
  • BUYERS OFFER
  • REMARK(S)
  • -
