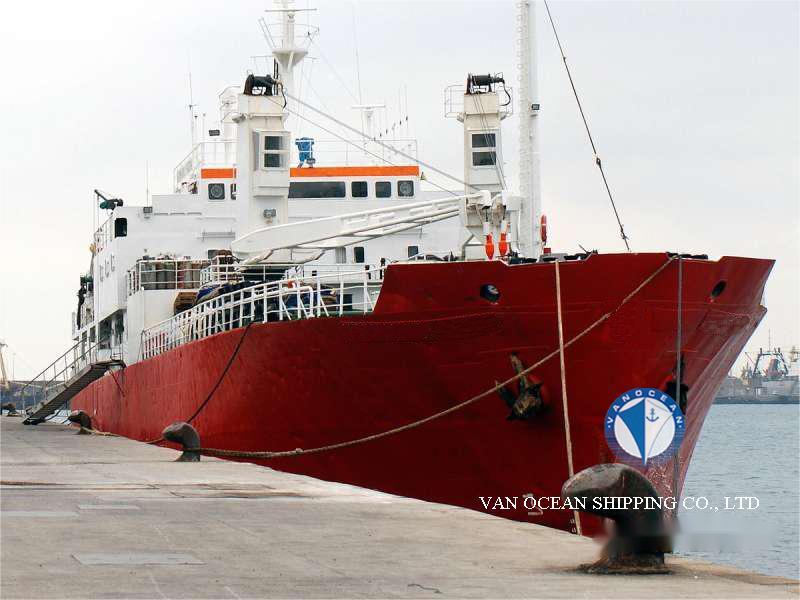

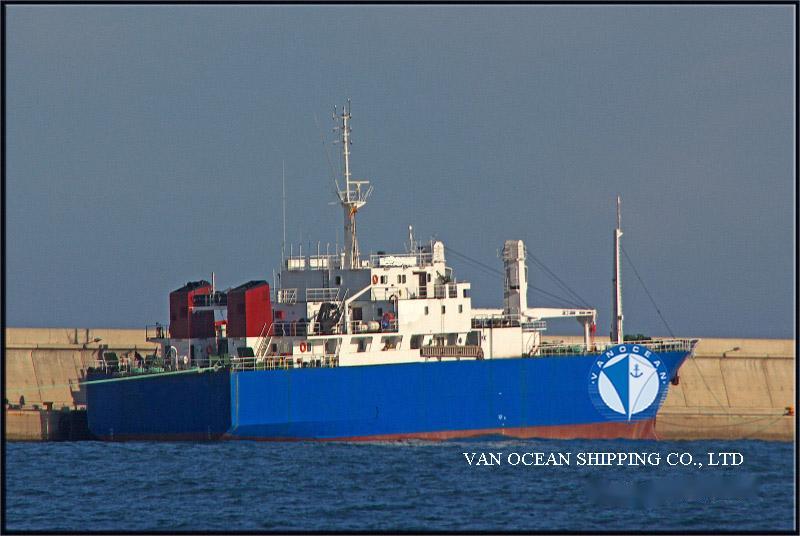

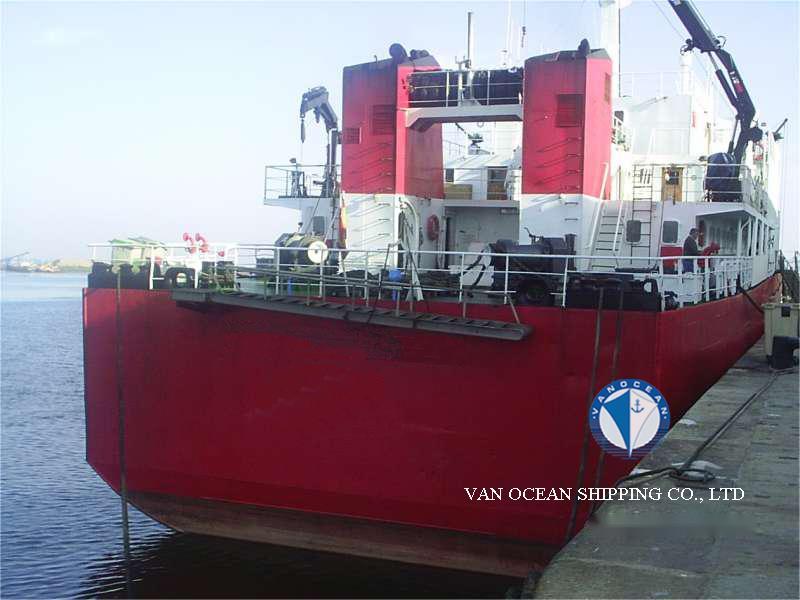

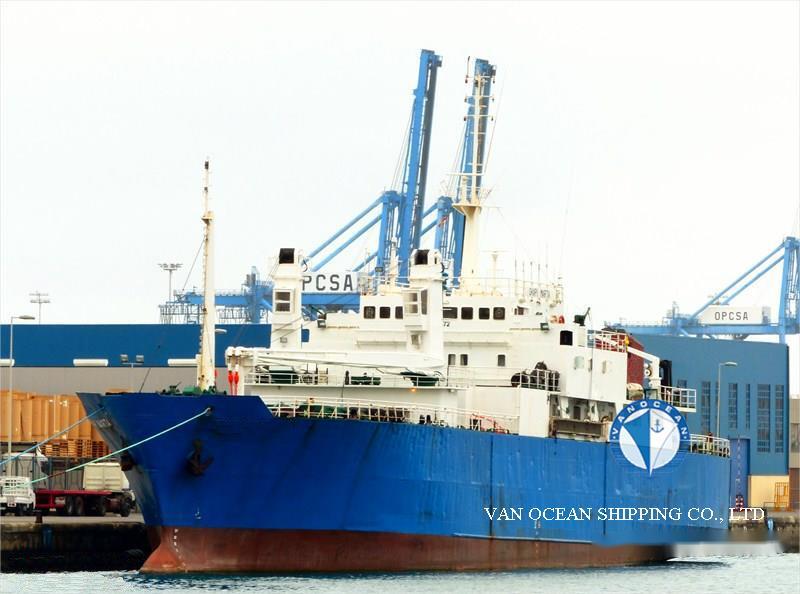

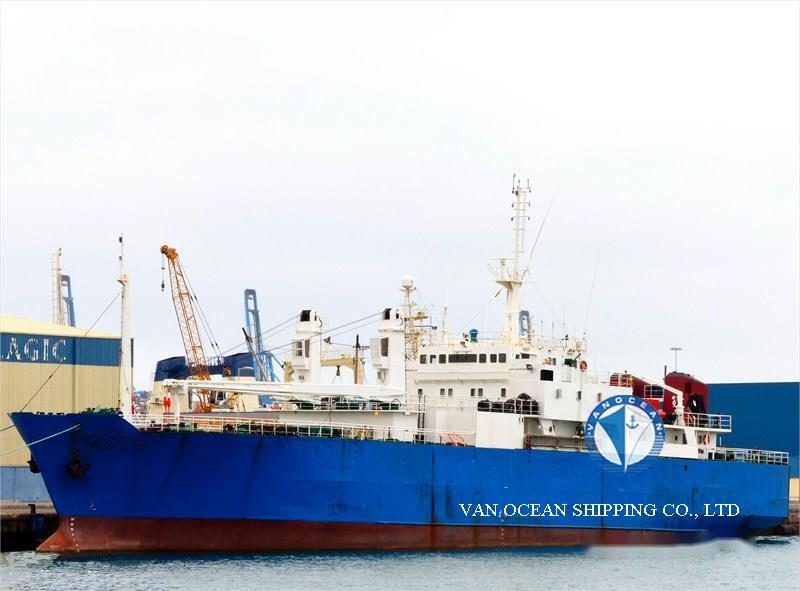

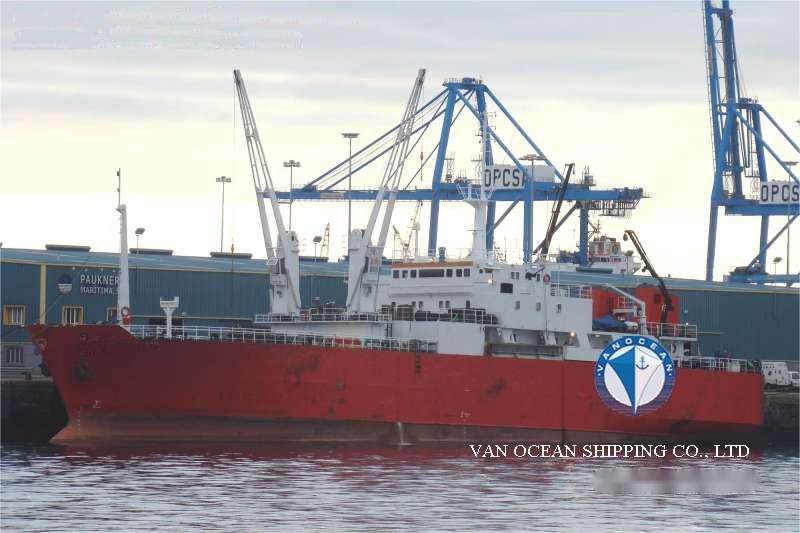

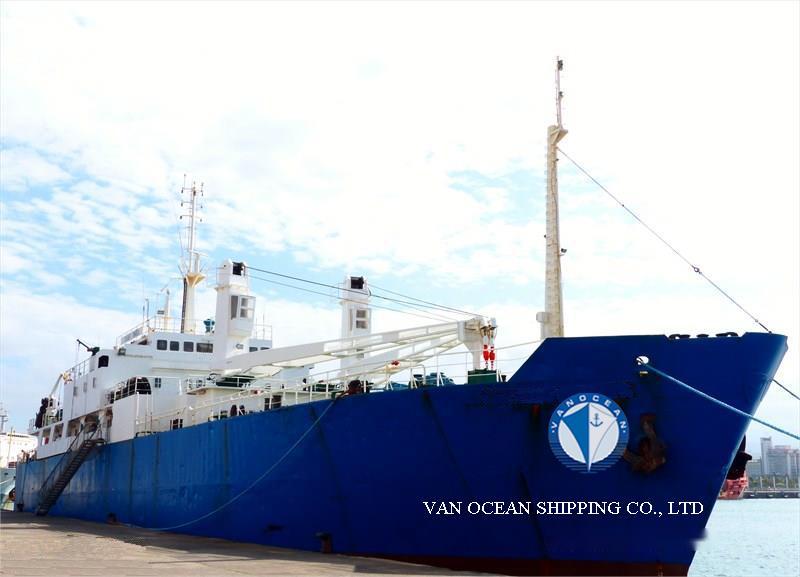

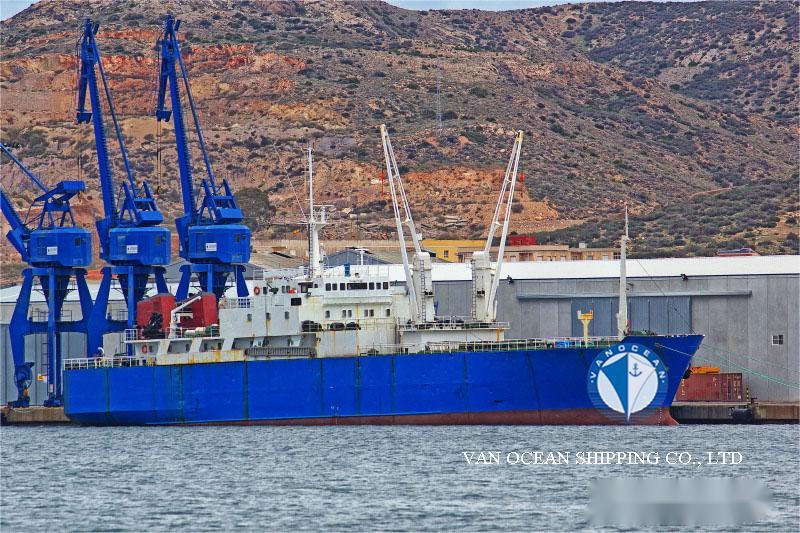

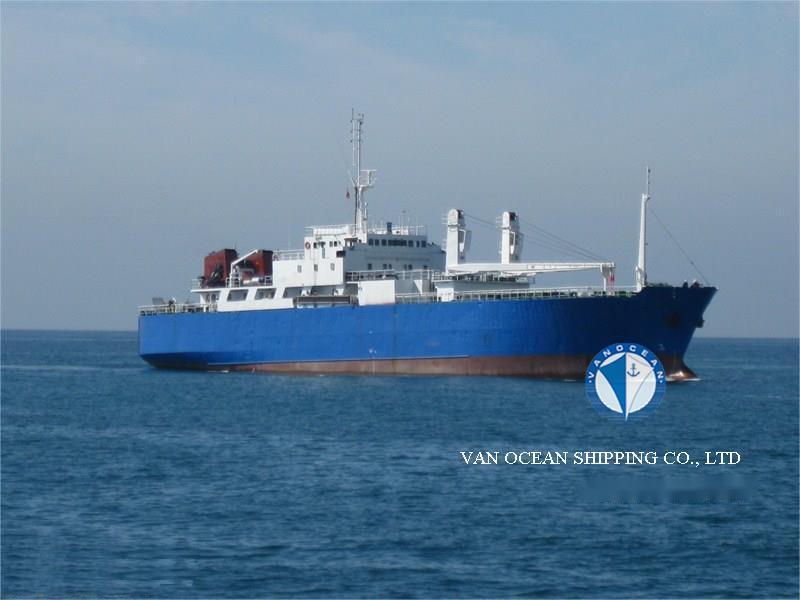

VESSEL NAME
REF727
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
BELIZE
PORT OF REGISTRY
-
BUILT YEAR
1987
BUILT PLACE
HUELVA SHIPYARD S.A, SPAIN
CLASSIFICATION
INTERMARITIME CERTIFICATION SERVICE (ICS)
CLASS NOTATION
1*HULL*MACH REGRIGERATED CARGO SHIP *REF-CARGO*UNRESTRICTED NAVIGATION
SS
2013-06
DD
2013-06
LOA (M)
74.67
LBP (M)
69.20
BEAM (M)
14.20
DEPTH (M)
4.20
SUMMER DRAFT (M)
4.57
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
2617.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
785.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
1960.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
LDT (MT)
-
DISPLACEMENT (MT)
-

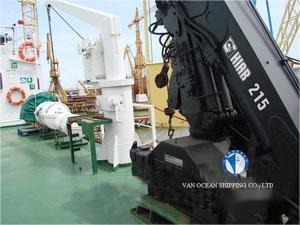

GEAR(S)

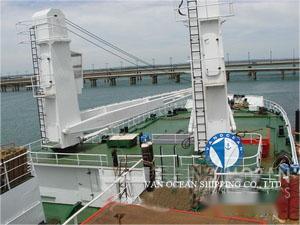

CRANES 2

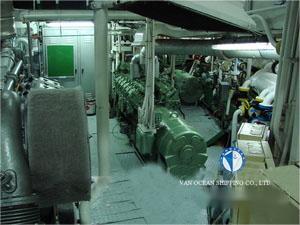

M/E(S)
B&W ECHEVARRIA TYPE: 14V 23L-VO, 2031 BHP, 245 RPM
REGULATOR WOODWARD-TYPE: UG-81
M/E POWER (KW)
1494

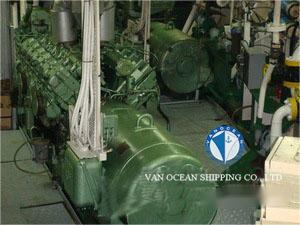

A/E(S)
2 x GUASCOR TYPE F18TASG of 470 BHP AT 1800 RPM (NEW 2007)
1 x BAUDOUIN TYPE DNP12 of 430 BHP AT 1800 RPM
GENERATOR(S)
3 x ALTERNATORS JOUDAX 355 M of 350 KVA EACH
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
COOLING SYSTEM (COMPRESSOR)
3 x SCREW COMPRESSORS MYCOM F125 LG-MX R-22 OF 71000 FG/H (+33℃; -33℃) EACH, ALCONZA MOTORS 82.3KW EACH
SPEED/CONSUMPTIONS
11 KONTS
AT SEA: 7500LTS/DAY WITH REFRIGERATION
AT PORT UNDER DISCHARGING OPERATION: 1200LTS/DAY
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
GO: 1350
NUMBER OF CARGO HOLDS
-
HATCH NUMBER
-
HATCH TYPE
-
HATCH SIZE (M)
-
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
-
DECK(S)
-
DECK HEIGHT (M)
-
CARGO CAPACITY (CBFT)
104640
CARGO CAPACITY (CBM)
2963
FLOOR SPACE CAPACITY (SQM)
-
GRATING/DECK STRENGTH
-
TEMPERATURE ZONE(S)
-
TEMPERATURE (℃)
-
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
-
CONTAINER CAPACITY
-
REEFER PLUG(S)
-
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
14
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 1.2 MILLION
REMARK(S)
DEPTH TO UPPER DECK: 9.70M
HOLD CAPACITY: 104640CBFT=36516 CBFT IN MAIN HOLD+31445 CBFT IN UPPER BETWEEN DECK HOLD + 36679 CBFT IN THE LOWER BETWEEN DECKHOLD
