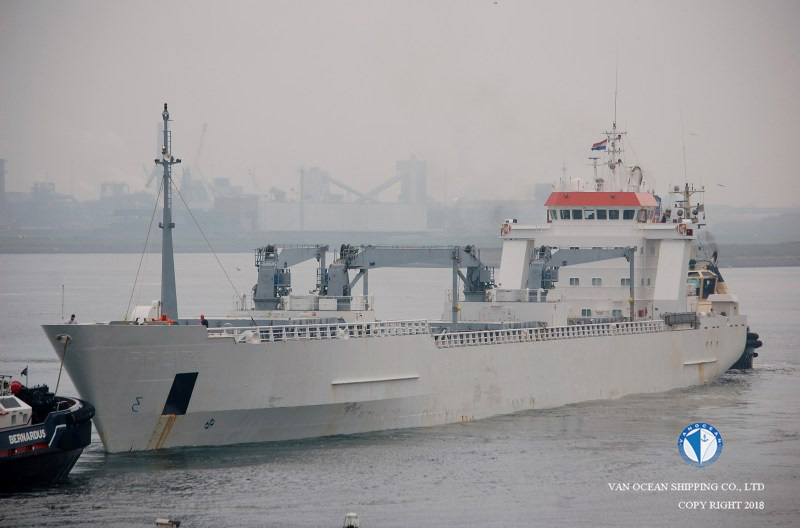

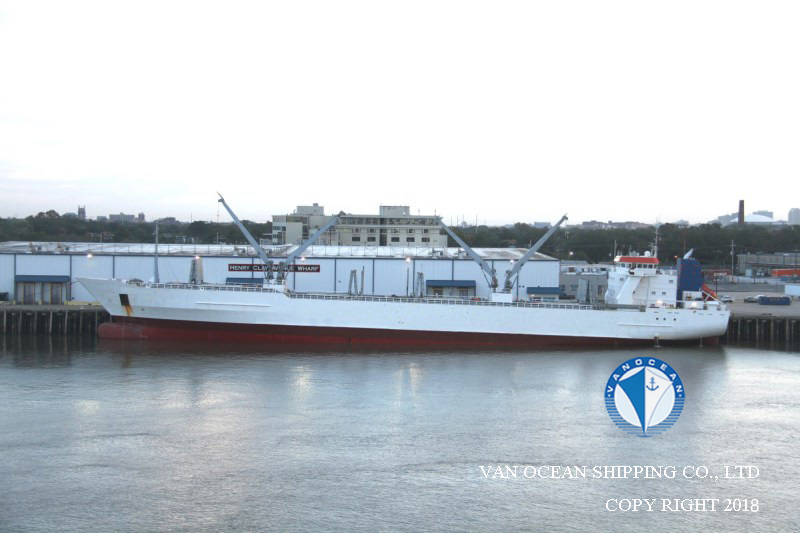

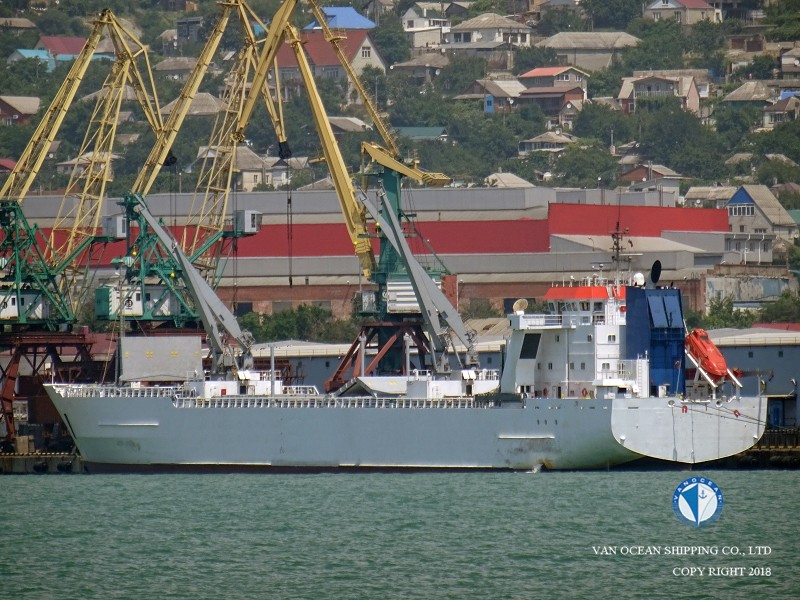

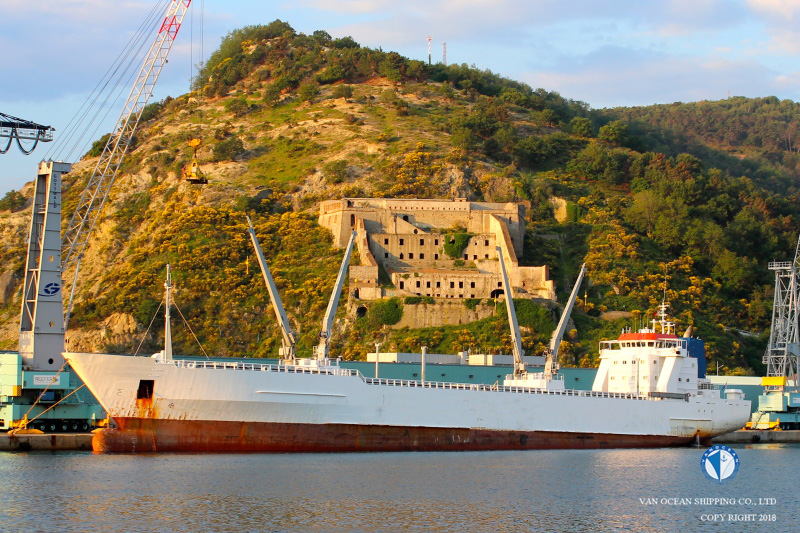

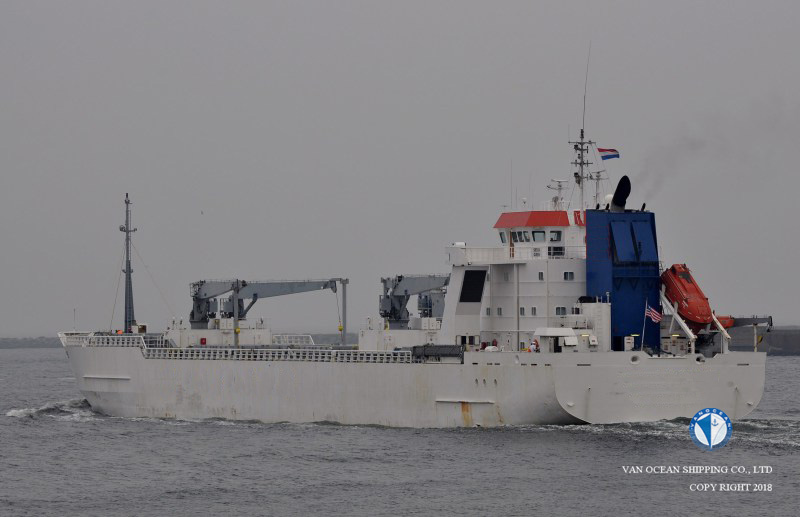

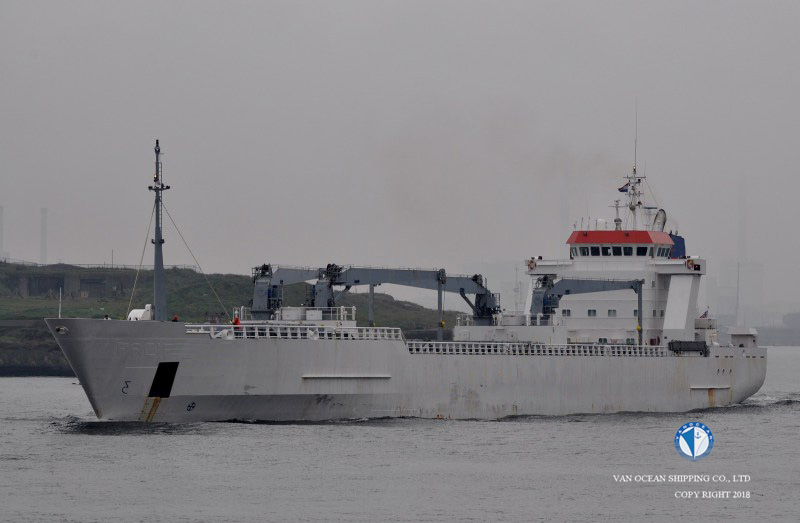

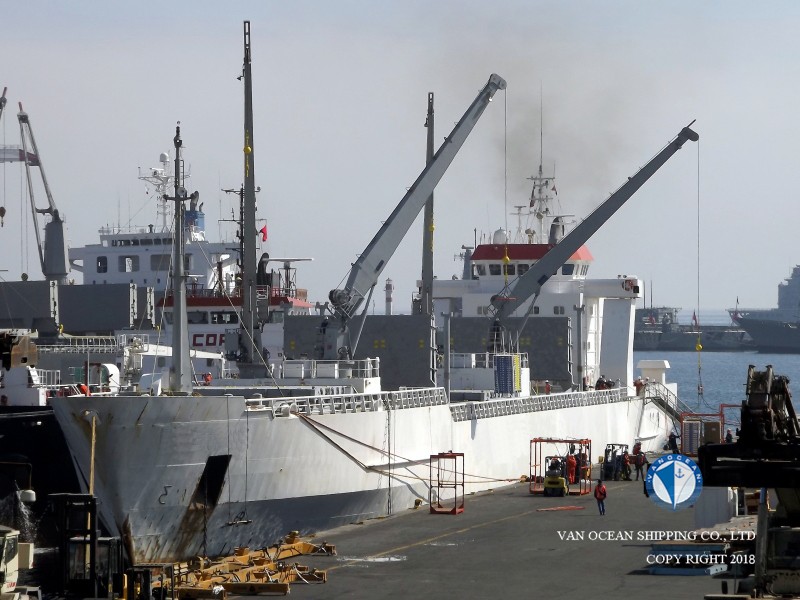

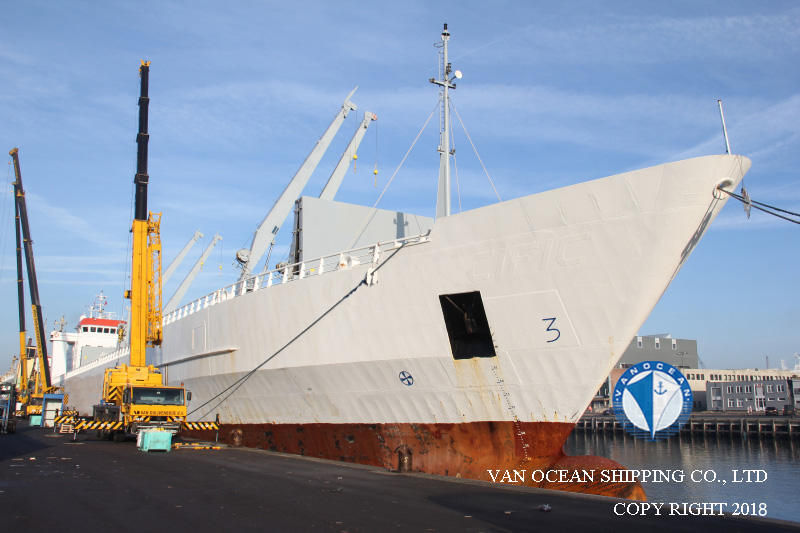

VESSEL NAME
REF858
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
BAHAMAS
PORT OF REGISTRY
NASSAU
BUILT YEAR
1996
BUILT PLACE
GEBR,VAN DIEPEN, NETHERLAND
CLASSIFICATION
BV
CLASS NOTATION
I✠Hull✠Mach, Refrigerated cargo ship, Unrestricted navigation,
✠AUT-UMS , MON-SHAFT , REF-CARGO
SS
2026-06
DD
2026-06
LOA (M)
134
LBP (M)
123
BEAM (M)
15.85
DEPTH (M)
11.3
SUMMER DRAFT (M)
7.91
WINTER DRAFT (M)
7.74
TROPICAL DRAFT (M)
8.07
GT (MT)
5918
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
3177
PANAMA NT (MT)
5088
SUEZ NT (MT)
4294.14
SUMMER DWT (MT)
7947
WINTER DWT (MT)
7647
TROPICAL DWT (MT)
8250
LDT (MT)
-
DISPLACEMENT (MT)
-
GEAR(S)
CRANES: 4 x 7MT
M/E(S)
MAK 4SA 6CYL 7500KW, 10190 HP @ 425RPM
M/E POWER (KW)
7500
A/E(S)
-
GENERATOR(S)
3 SETS 456KVA, 365KW, 538HP
SHAFT GENERATOR(S)
-
PROPELLER(S)
CPP
COOLING SYSTEM (COMPRESSOR)
-
SPEED/CONSUMPTIONS
BALLAST:
17.00KTS, 20.50MT IFO
18.50KTS, 27.50MT IFO
FROZEN:
14.00KTS, 22.00MT IFO
16.50KTS. 27.50MT IFO
IN PORT:
MGO: AE:1MT+BOILER:0.5MT+REEFER:2MT
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
1074
TANKS CAPACITY (CBM)
MGO: 74
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
4*8.10 x 8.08
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
16
DECK(S)
4
DECK HEIGHT (M)
≥2.20
CARGO CAPACITY (CBFT)
398470
CARGO CAPACITY (CBM)
11288
FLOOR SPACE CAPACITY (SQM)
4736
GRATING/DECK STRENGTH
MAXIMUM 5 MT (FORKLIFT MINIMUM 4 AIRTYRES)
TEMPERATURE ZONE(S)
8，1AB/ACB, 2AB/2CD, 3AB/3CD, 4AB/4CD
TEMPERATURE (℃)
-25/+12
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
-
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
-
CONTAINER CAPACITY
DECK: 90 TEU
HOLD: 40 TEU
REEFER PLUG(S)
25
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
YES, EXPIRED
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
1 x BOW THRUSTER
