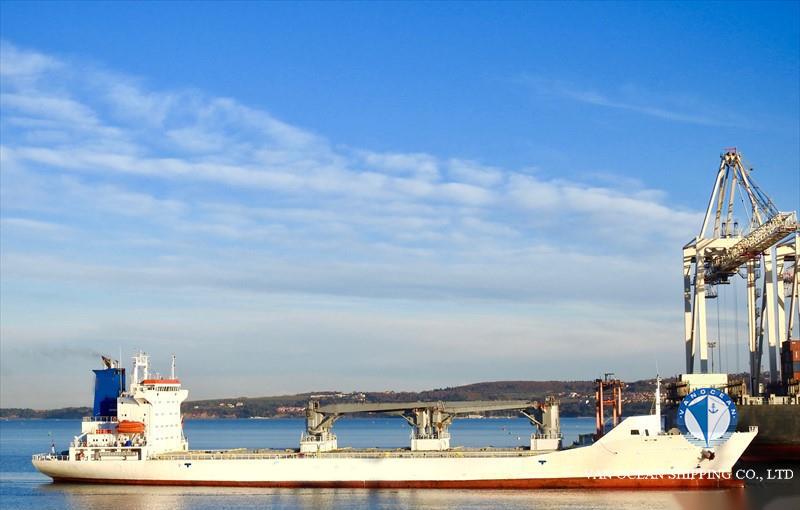

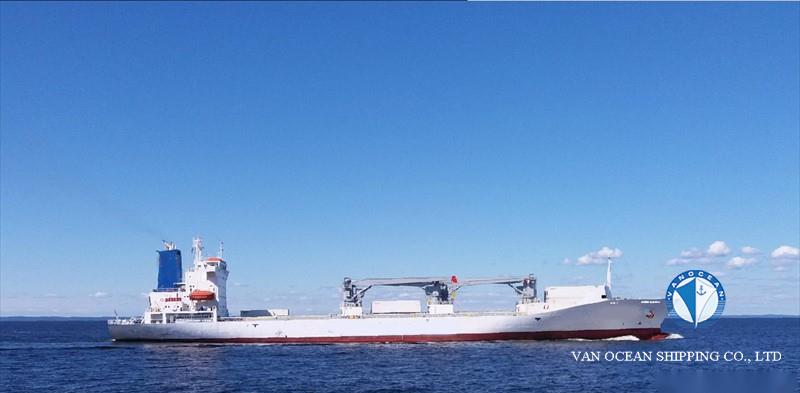

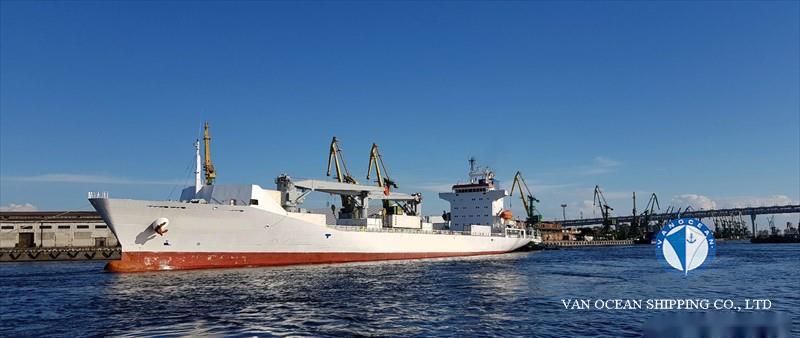

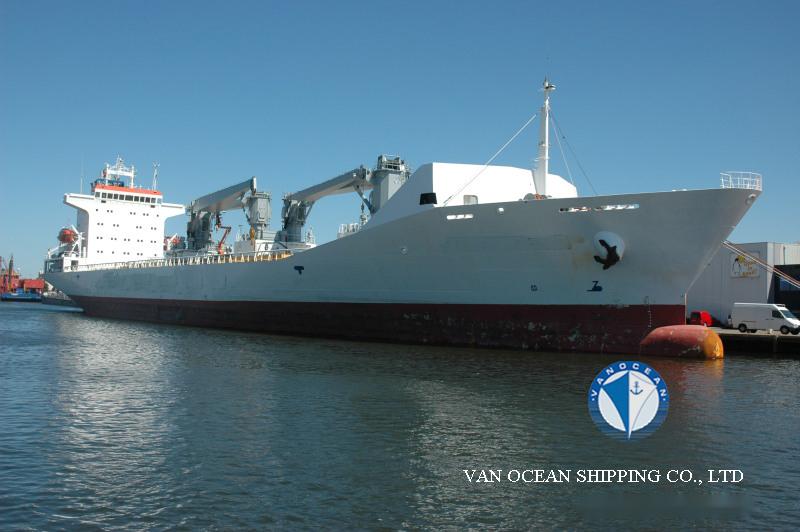

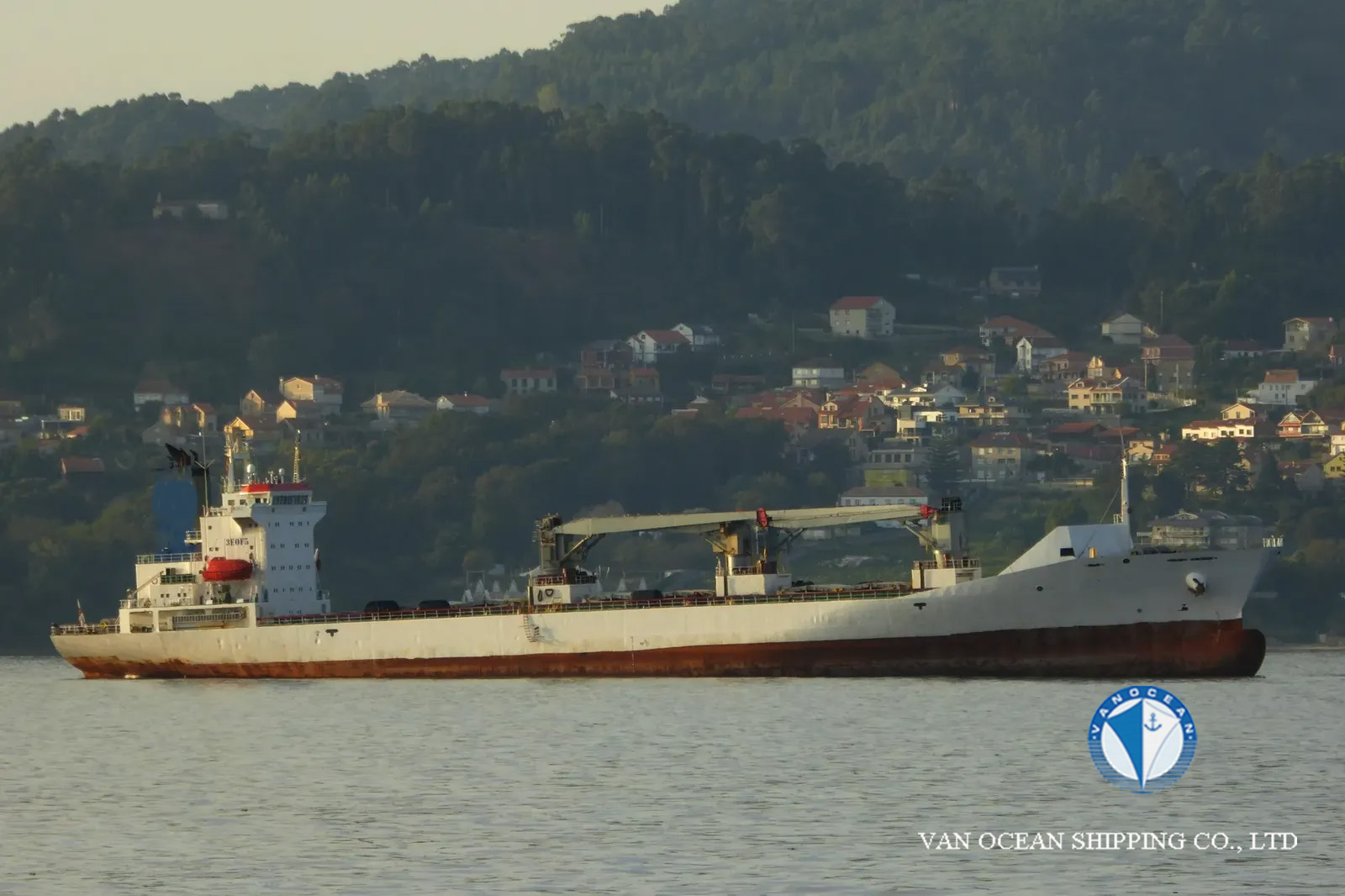

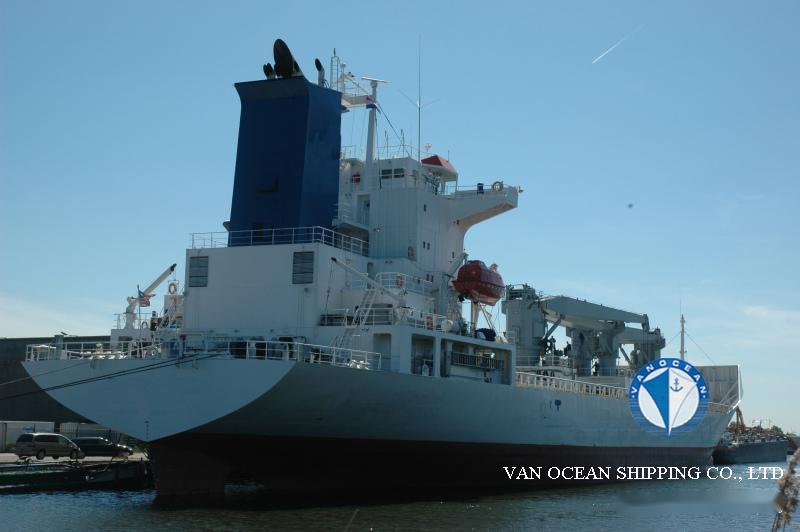

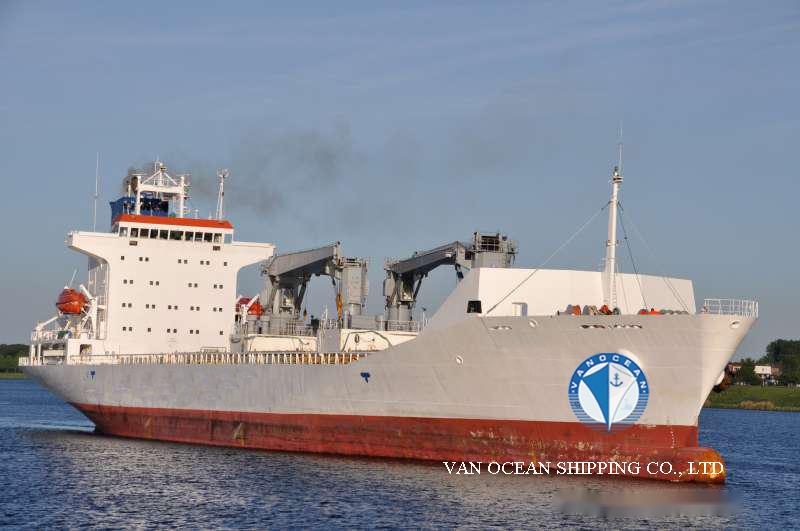

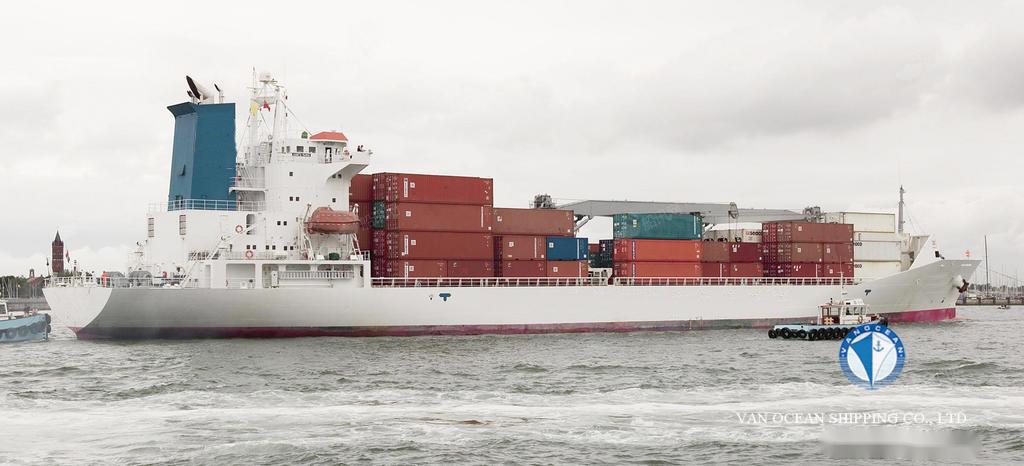

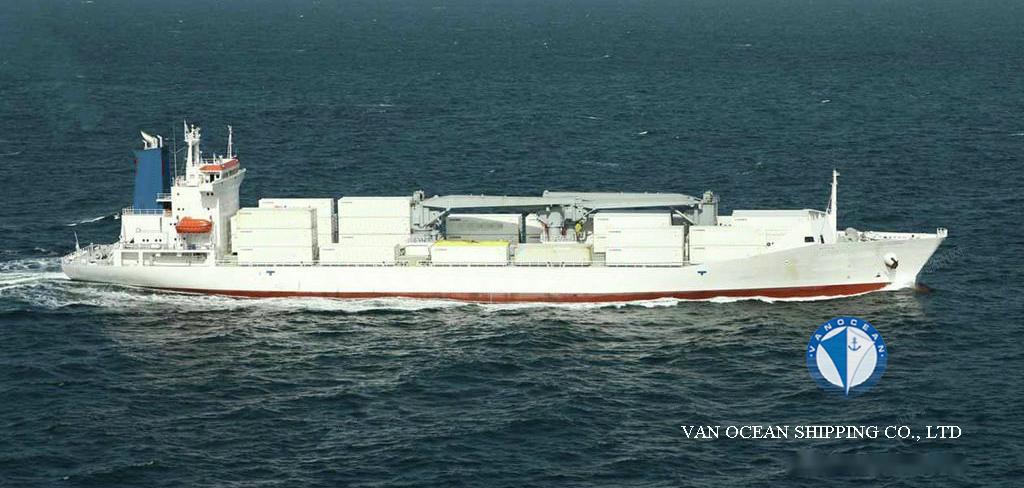

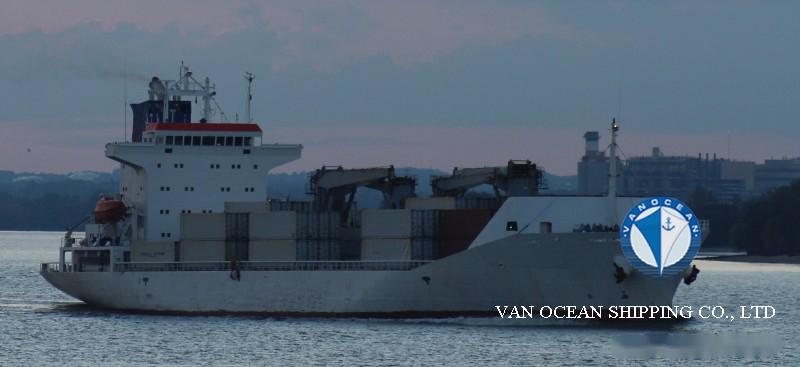

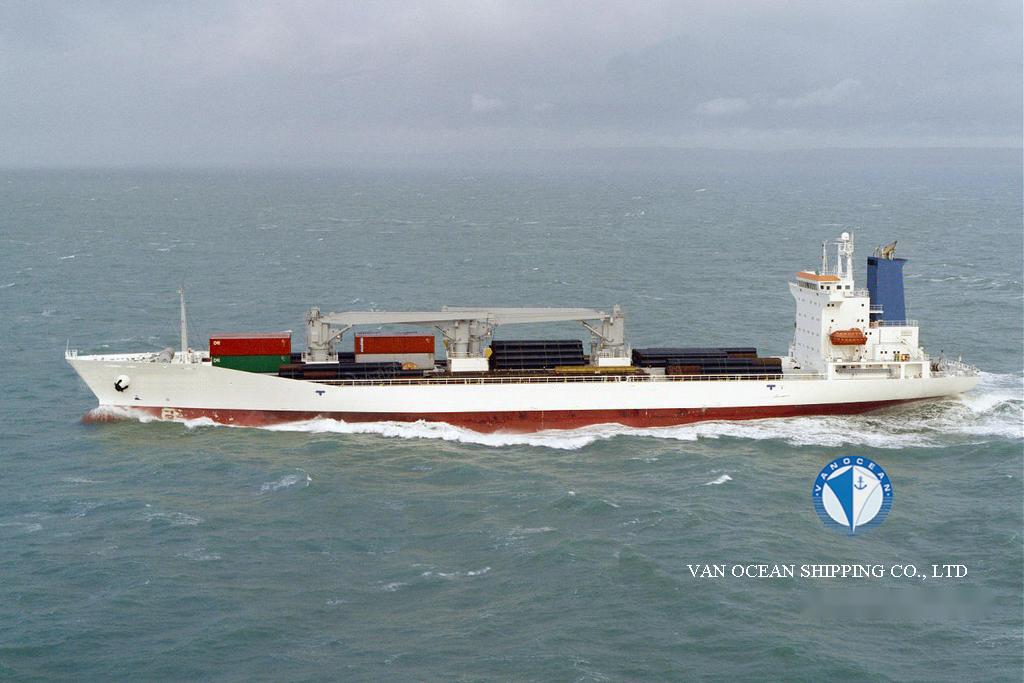

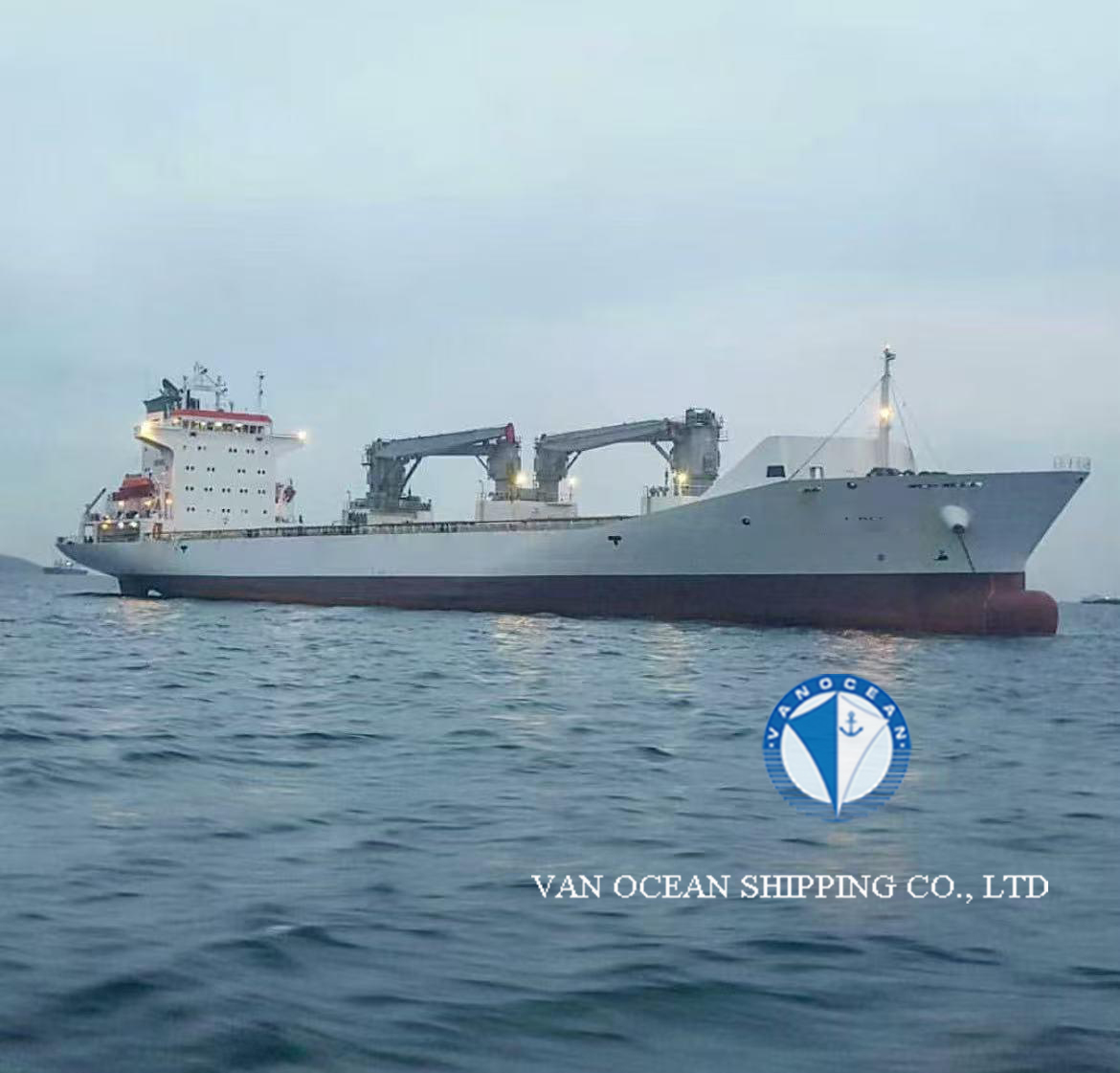

VESSEL NAME
REF849
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1999
BUILT PLACE
KITANIHON ZOSEN, JAPAN
CLASSIFICATION
BV
CLASS NOTATION
I✠Hull✠Mach, Container ship, Refrigerated cargo ship, Unrestricted navigation, MON-SHAFT,✠REF-CARGO, ICE CLASS IA
SS
2029-05
DD
2027-06
LOA (M)
143
LBP (M)
133.61
BEAM (M)
21.8
DEPTH (M)
13.01
SUMMER DRAFT (M)
9.27
WINTER DRAFT (M)
9.075
TROPICAL DRAFT (M)
9.461
GT (MT)
8507
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
4734
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
9566
WINTER DWT (MT)
9081.18
TROPICAL DWT (MT)
9993.91
LDT (MT)
6328
DISPLACEMENT (MT)
15814.75
GEAR(S)
CRANES: 2 x 8MT; 2 x 40MT
M/E(S)
MITSUBISHI 8 UEC 50LS II, 2S.A 8CYL 14960HP @ 124RPM
M/E POWER (KW)
11010
A/E(S)
3 SETS B&W/MAN (HOLEBY) 8L23/30H, 1065KW @ 720RPM
EMERGENCY MAN D2866TE 296HP @ 1800RPM
GENERATOR(S)
3 SETS HYUNDAI, HFC6 566 14K, 1250KVA, 1000KW, 1444KW
EMERGENCY STAMFORD MHC 434D, 250KVA, 450V
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP
COOLING SYSTEM (COMPRESSOR)
3 SETS MAYEKAWA MFG, R22 DIRECT
SPEED/CONSUMPTIONS
LADEN: 21KTS / 40MT IFO380 (INCL REEFER) + 4 MT IFO380
FUEL TYPE
IFO380, MDO
BUNKER CAPACITY (CBM)
IFO380: 1502CBM, MDO: 151.16CBM
TANKS CAPACITY (CBM)
FW: 215.17 CBM
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
MECHANICALLY OPERATED
HATCH SIZE (M)
NO.1： 7.00 x 8.00
NO.2，3，4： 12.60 x 8.00
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
14
DECK(S)
4
DECK HEIGHT (M)
2.2
CARGO CAPACITY (CBFT)
438073
CARGO CAPACITY (CBM)
12410
FLOOR SPACE CAPACITY (SQM)
5140
GRATING/DECK STRENGTH
MAX 9 MT WITH RUBBER WHEEL FORKLIFTS
TEMPERATURE ZONE(S)
8
TEMPERATURE (℃)
-25/+15DC
TYPE OF VENT SYSTEM
VERTICAL
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
-
PALLET(S)
3950
CONTAINER CAPACITY
150TEU + 24FEU OR 99FEU
REEFER PLUG(S)
99
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
GRADE Q2, DIAMETER 60MM
USDA CERTIFICATE
-
INSURANCE
-
CREW
24
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
BOW THRUSTER: 1 x 640KW
