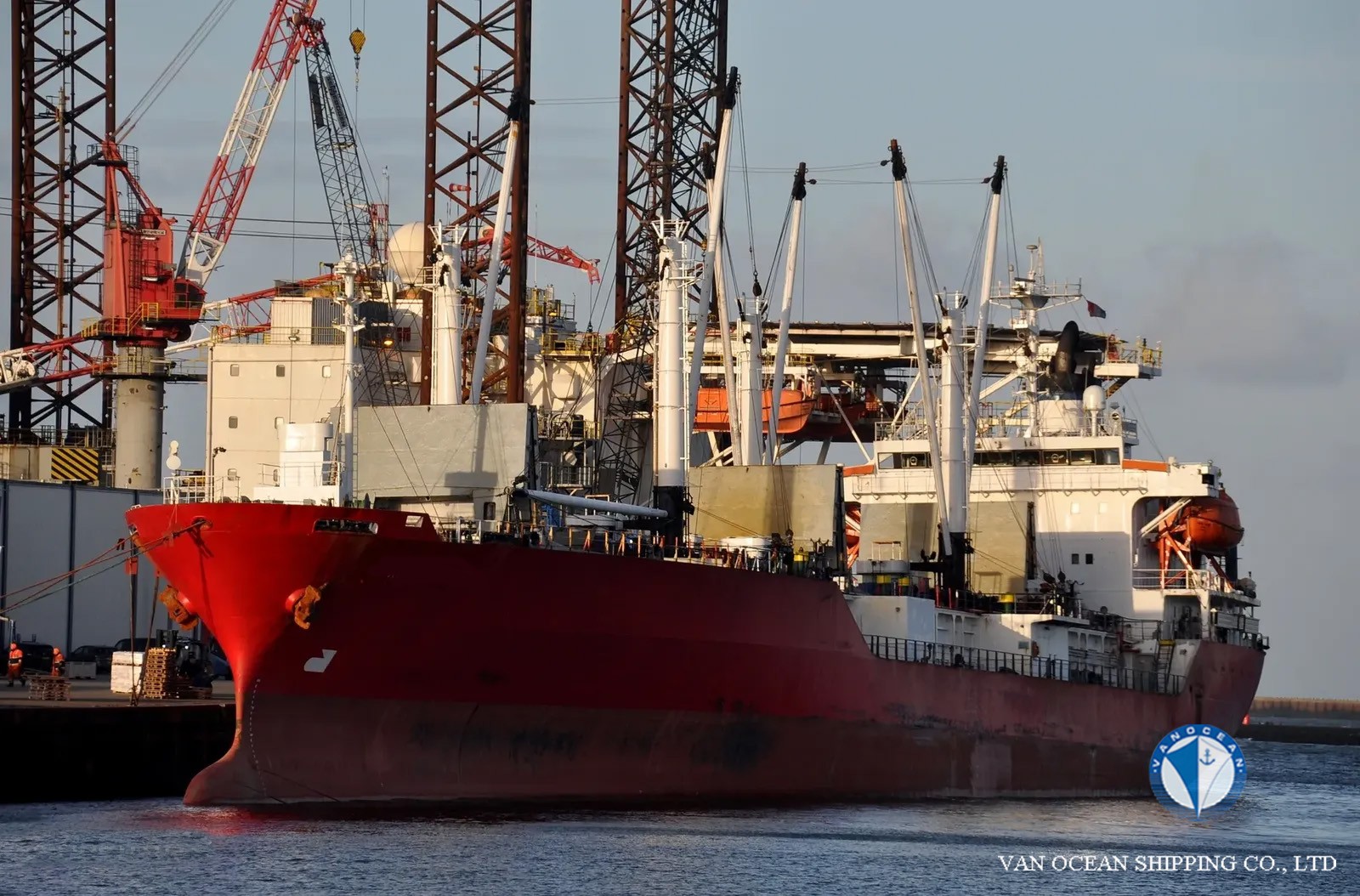

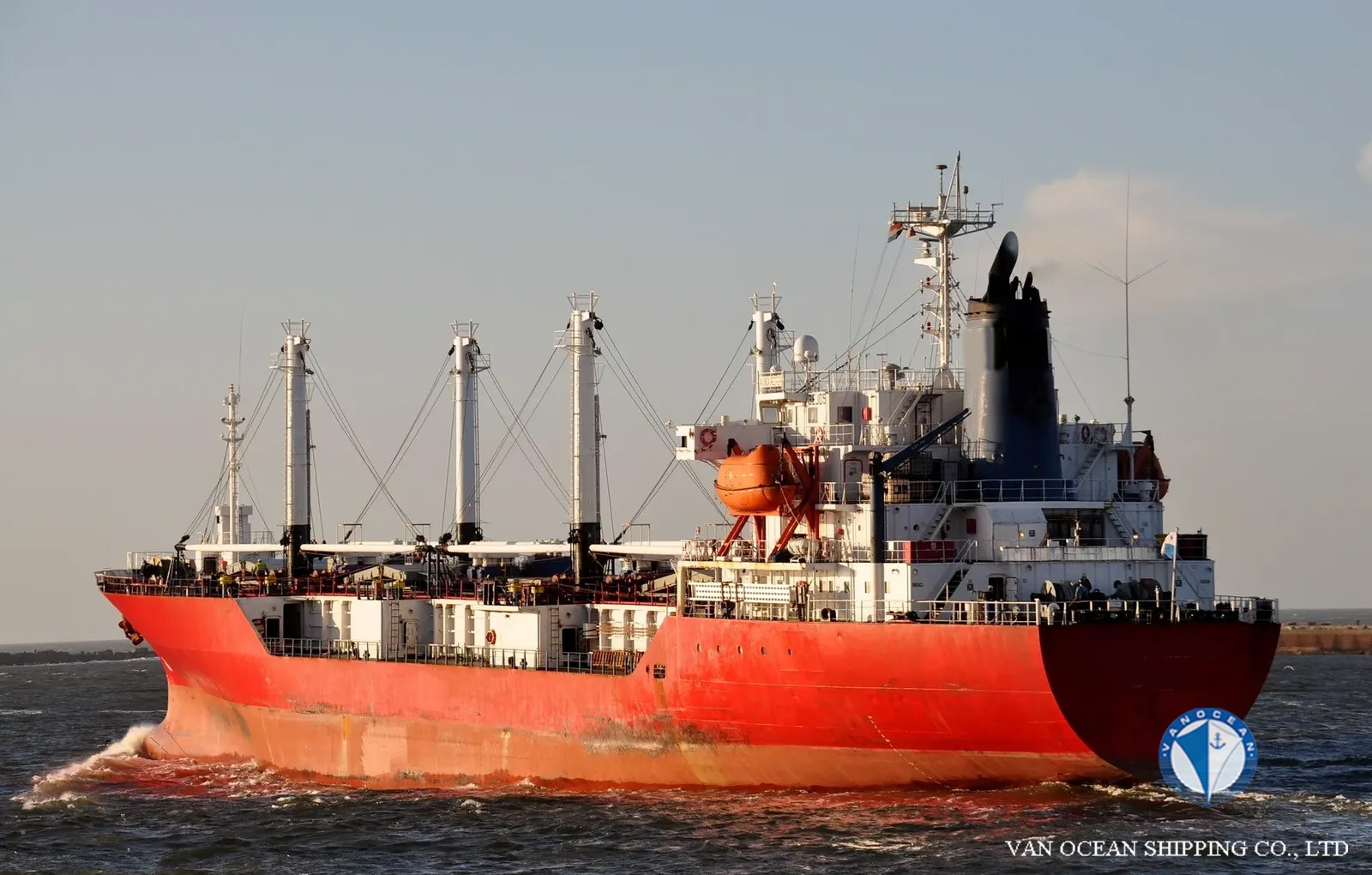

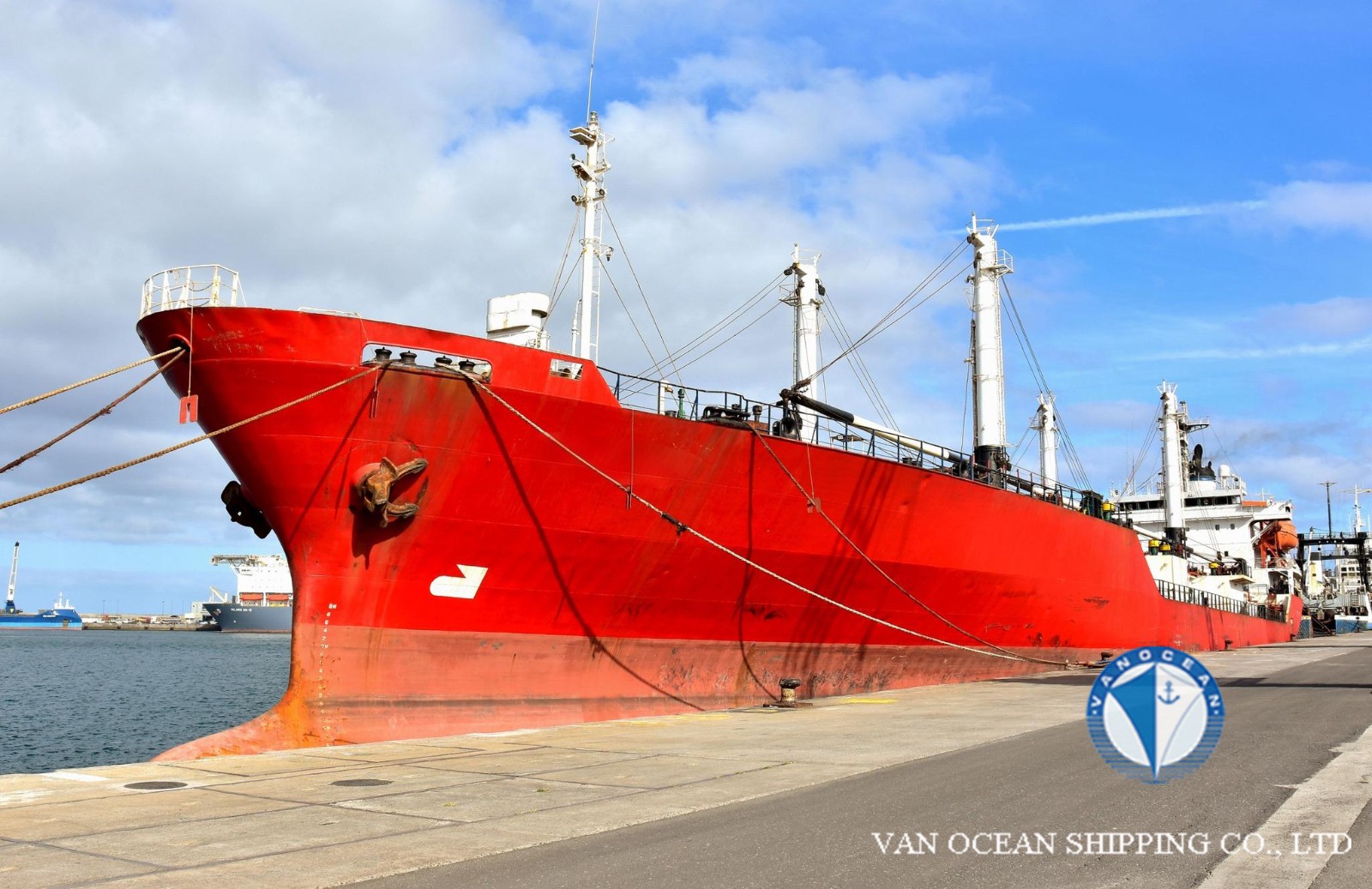

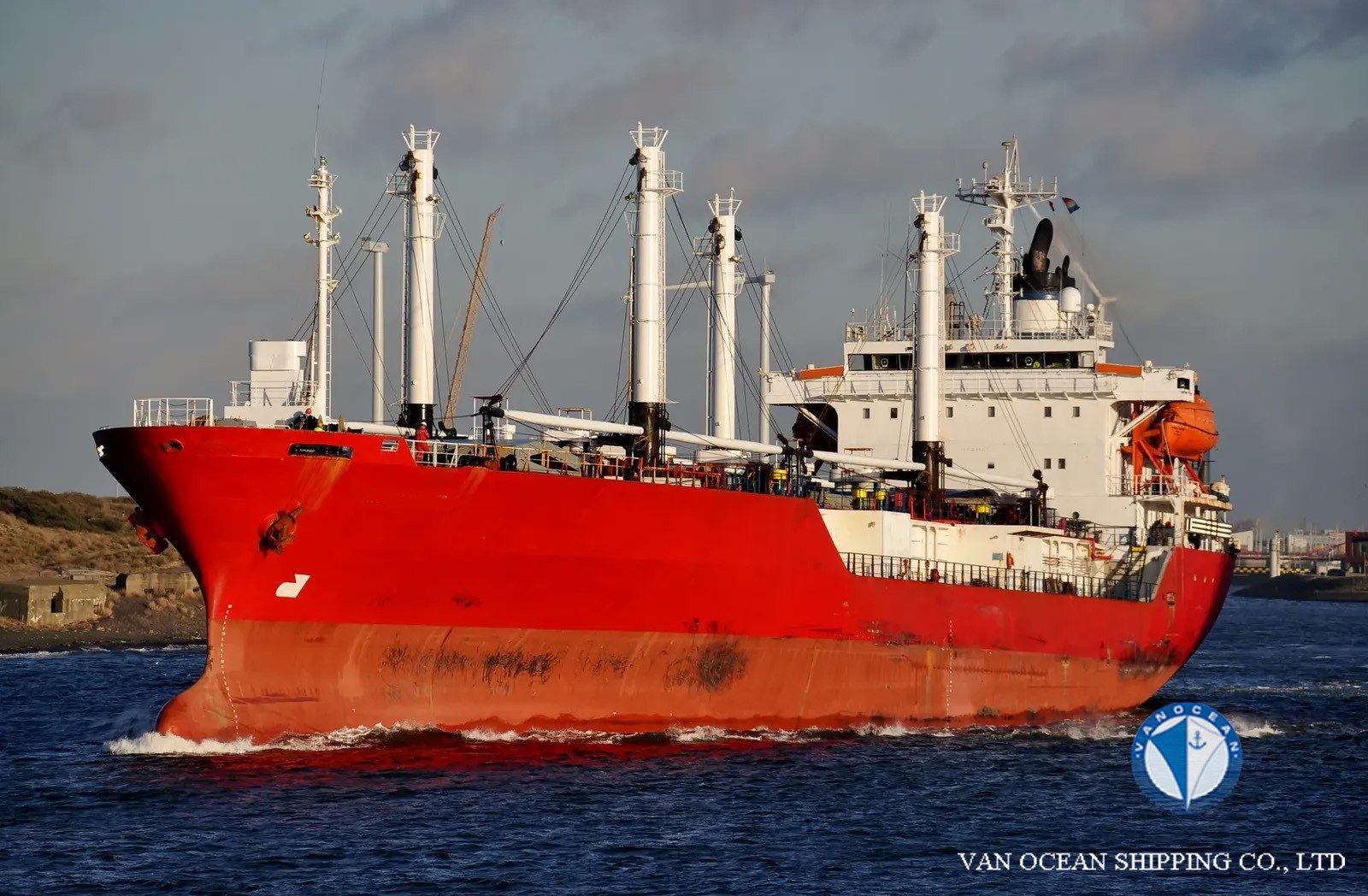

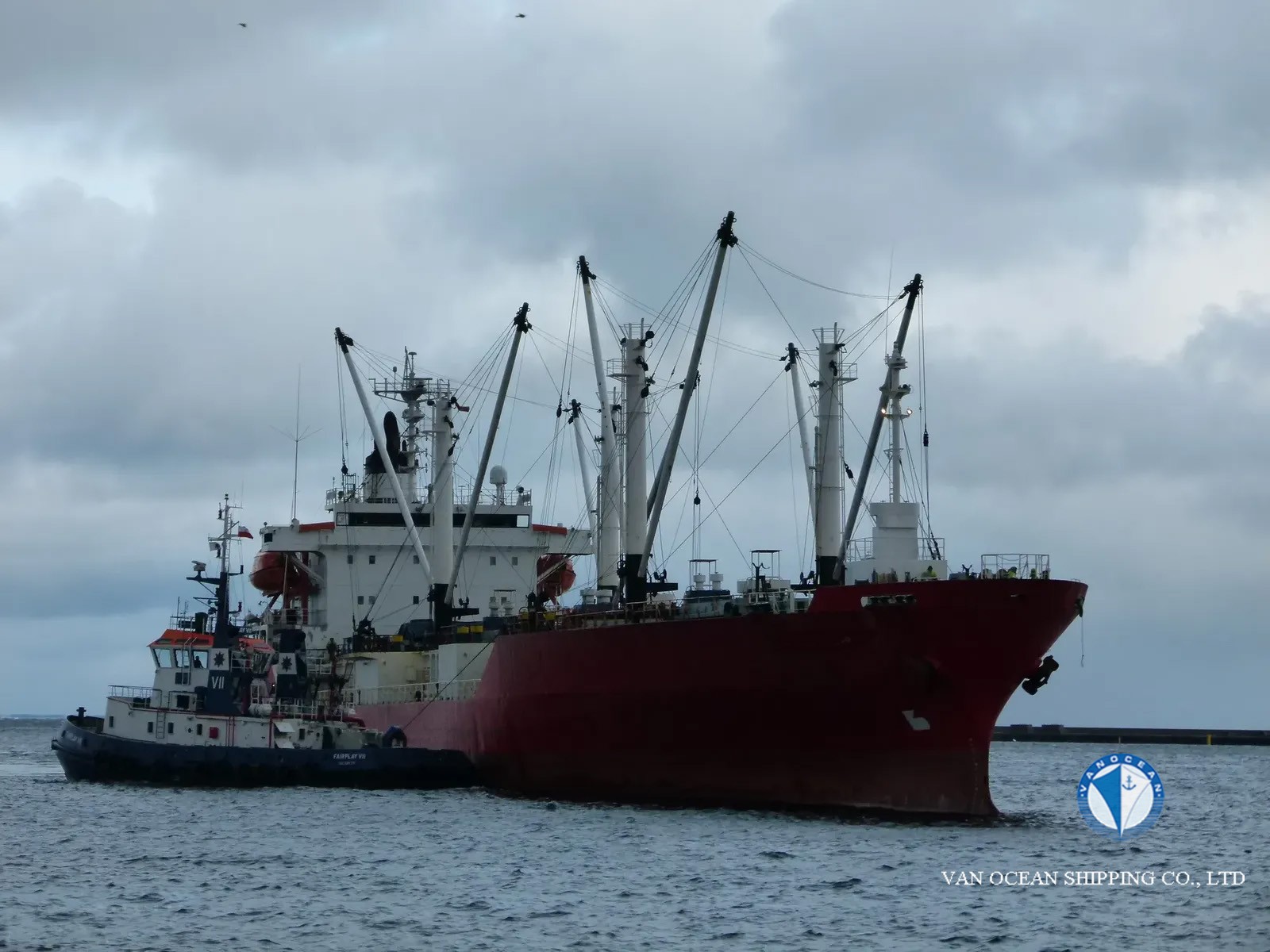

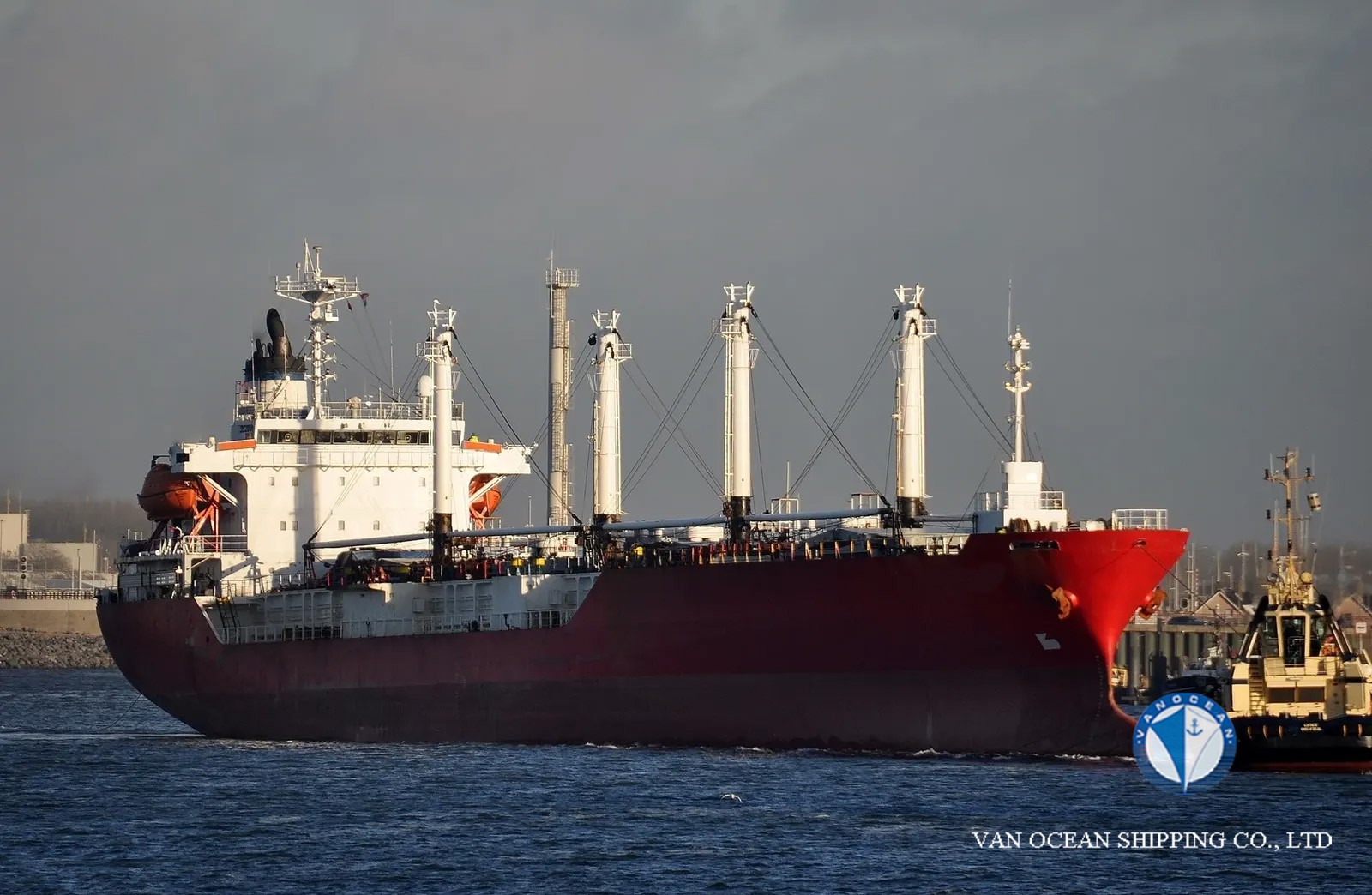

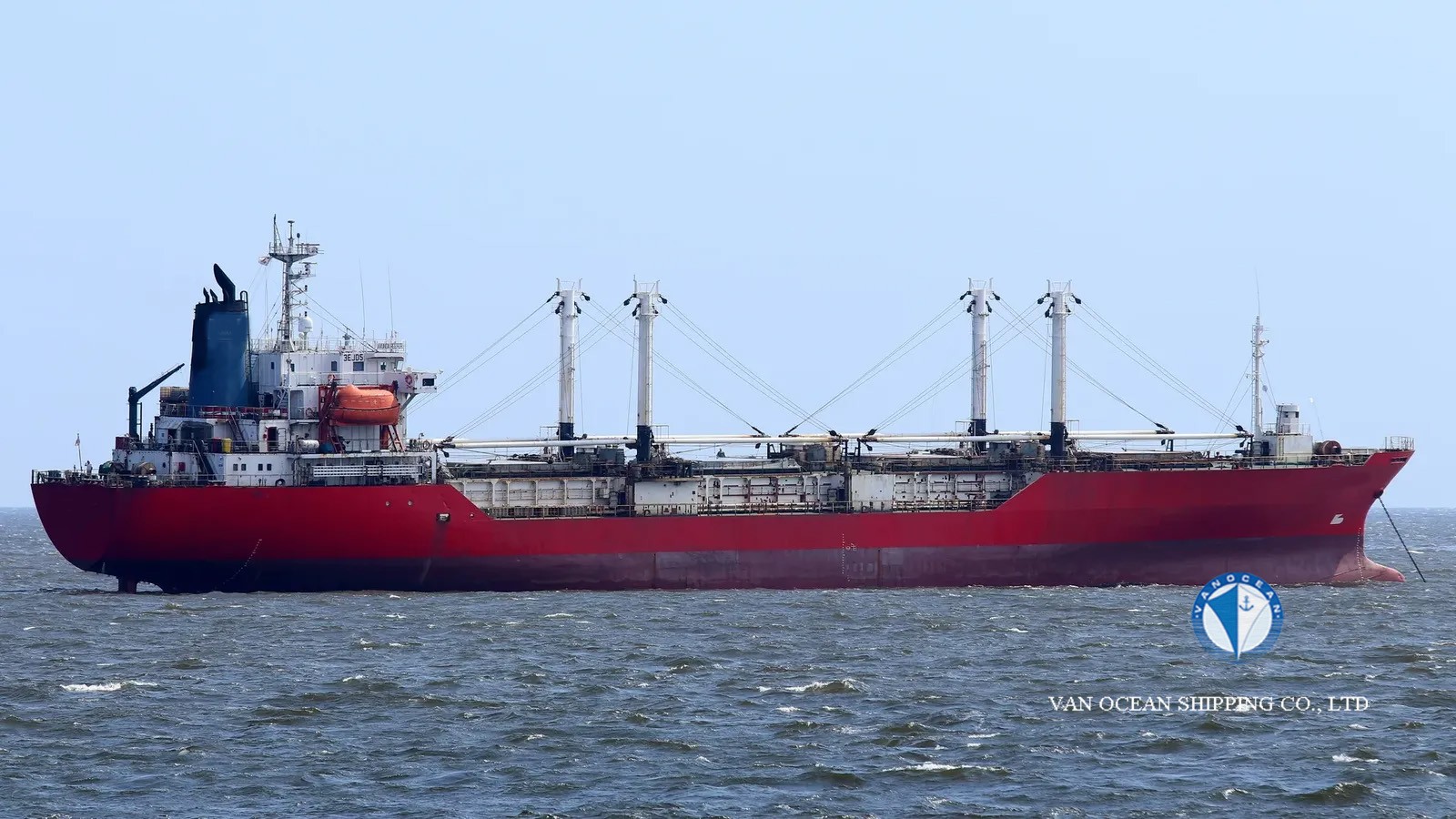

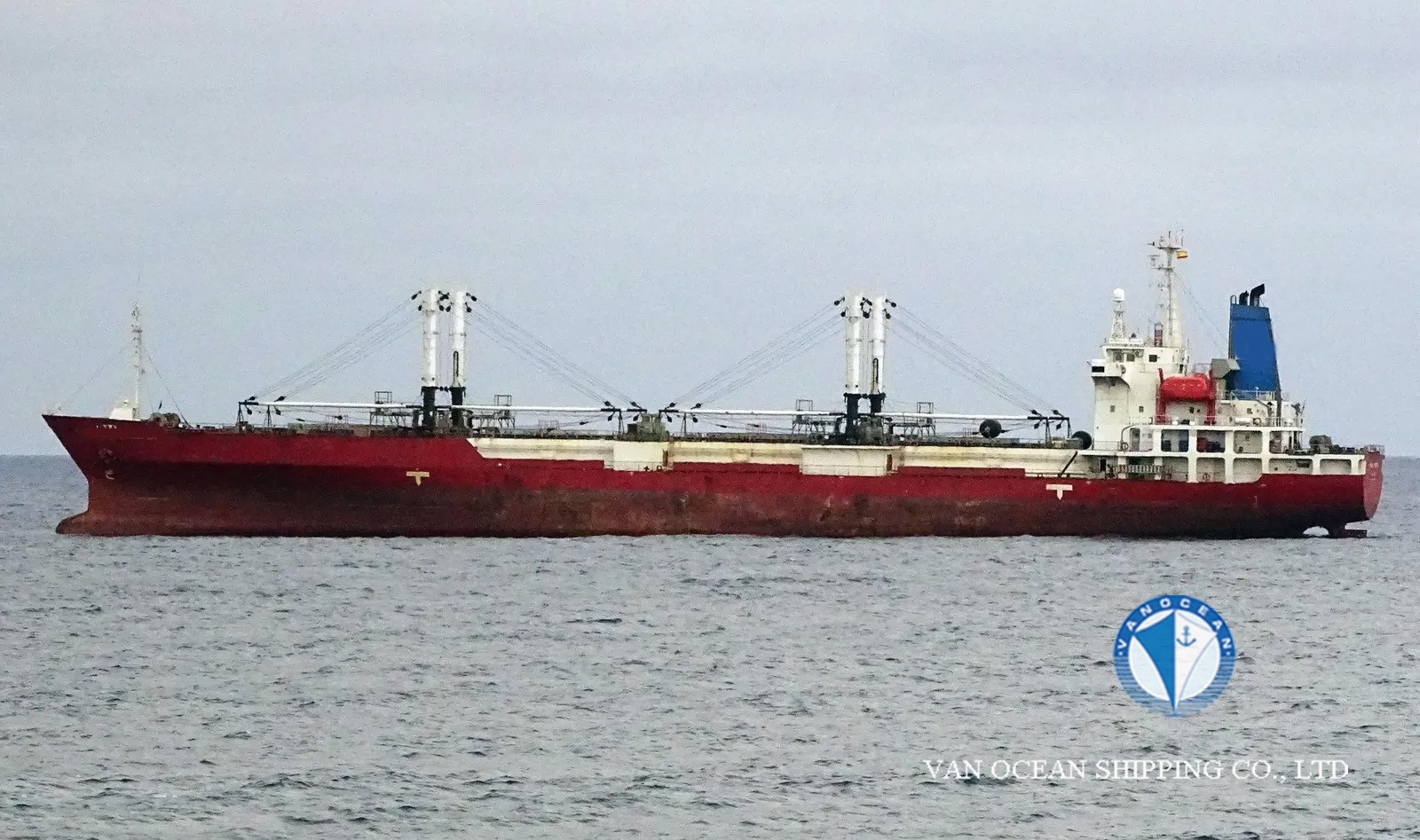

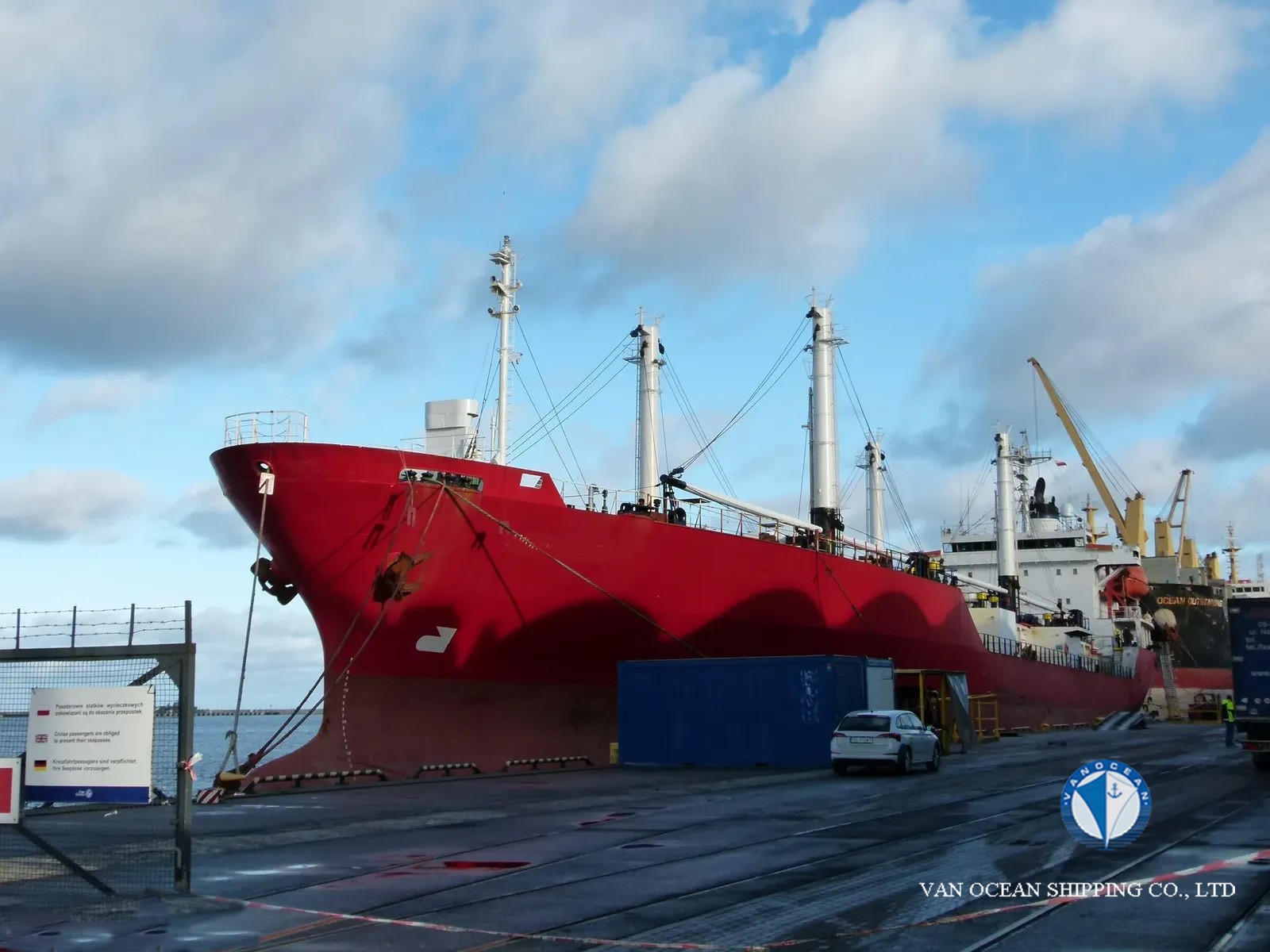

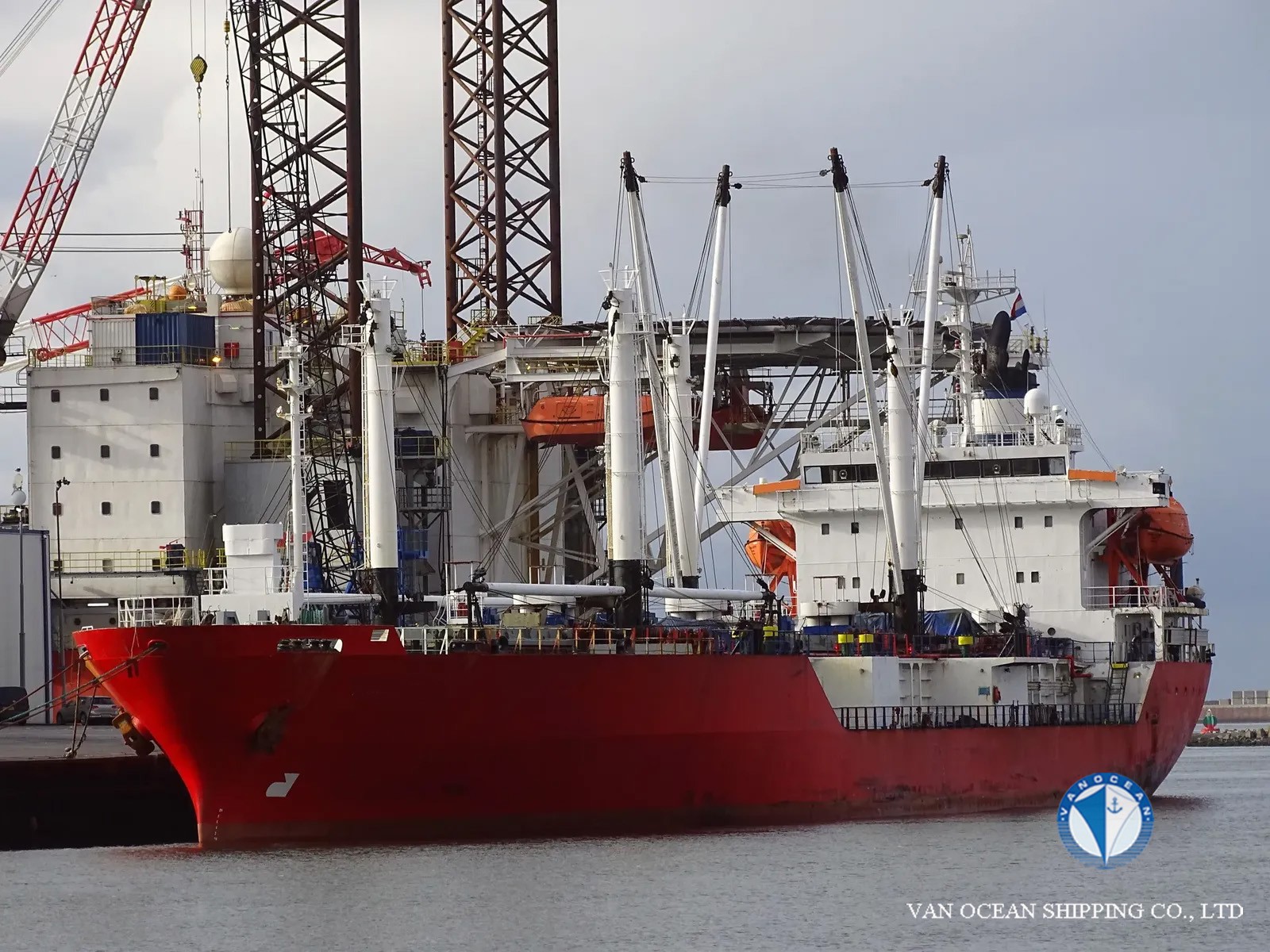

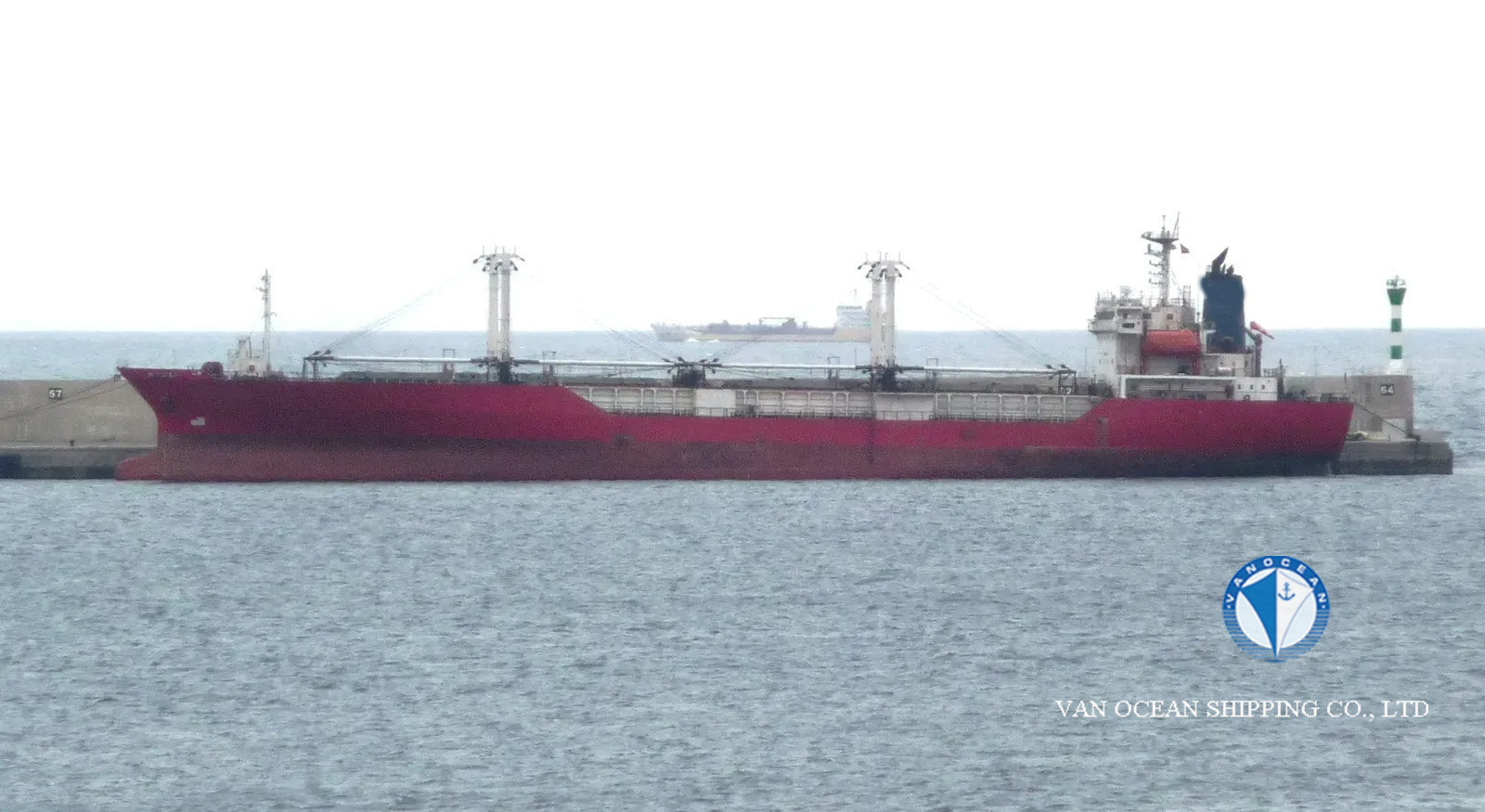

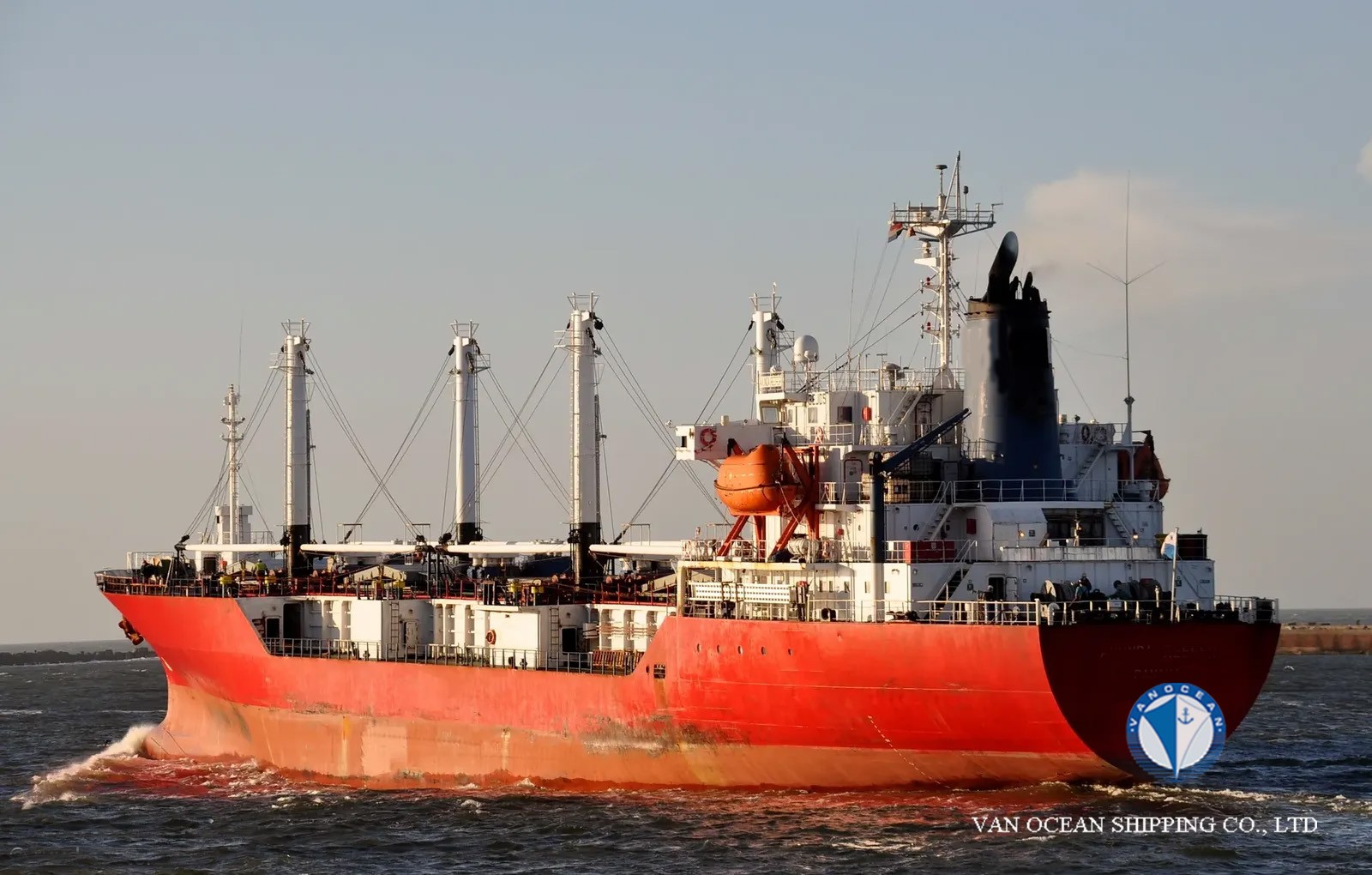

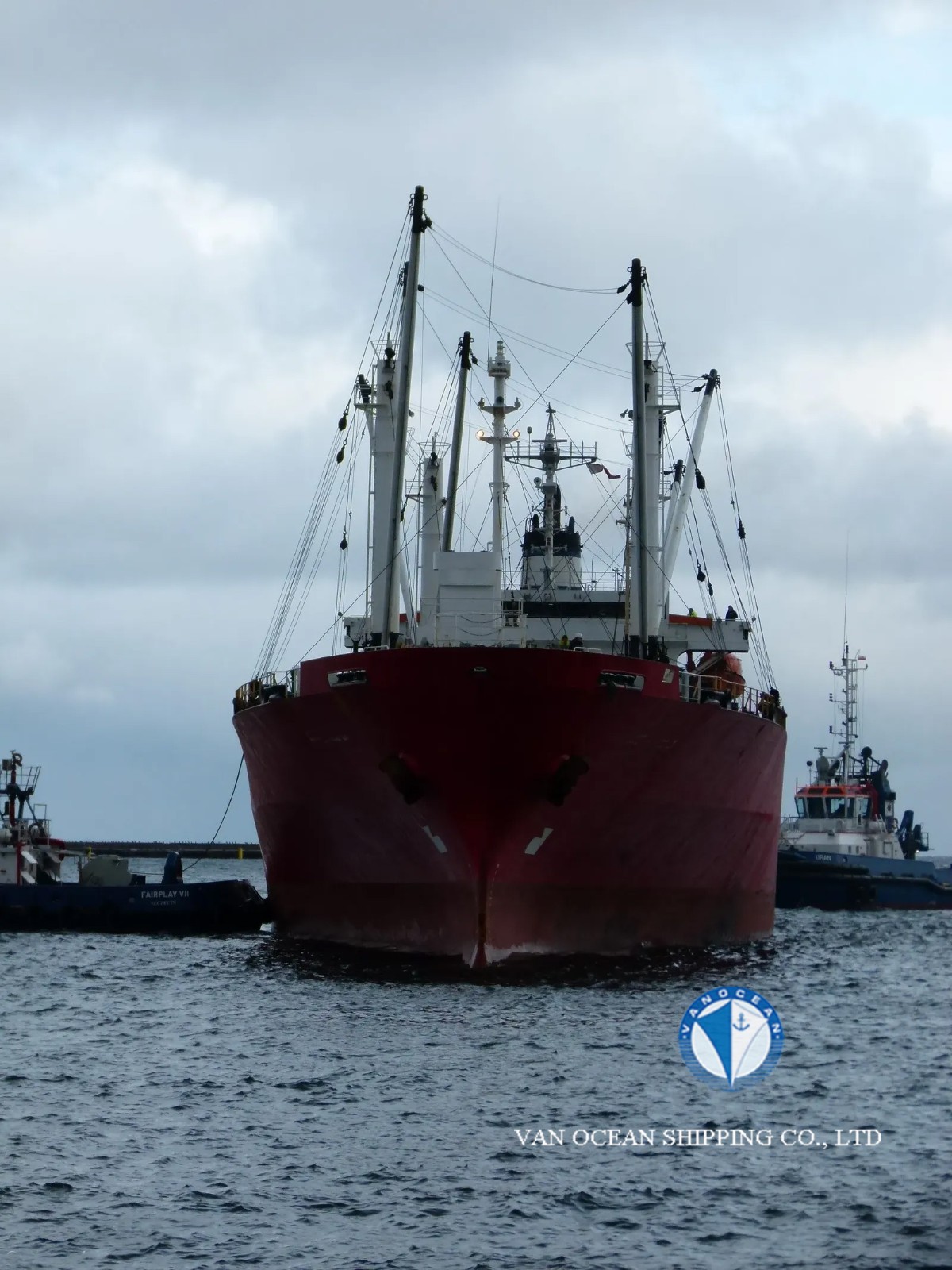

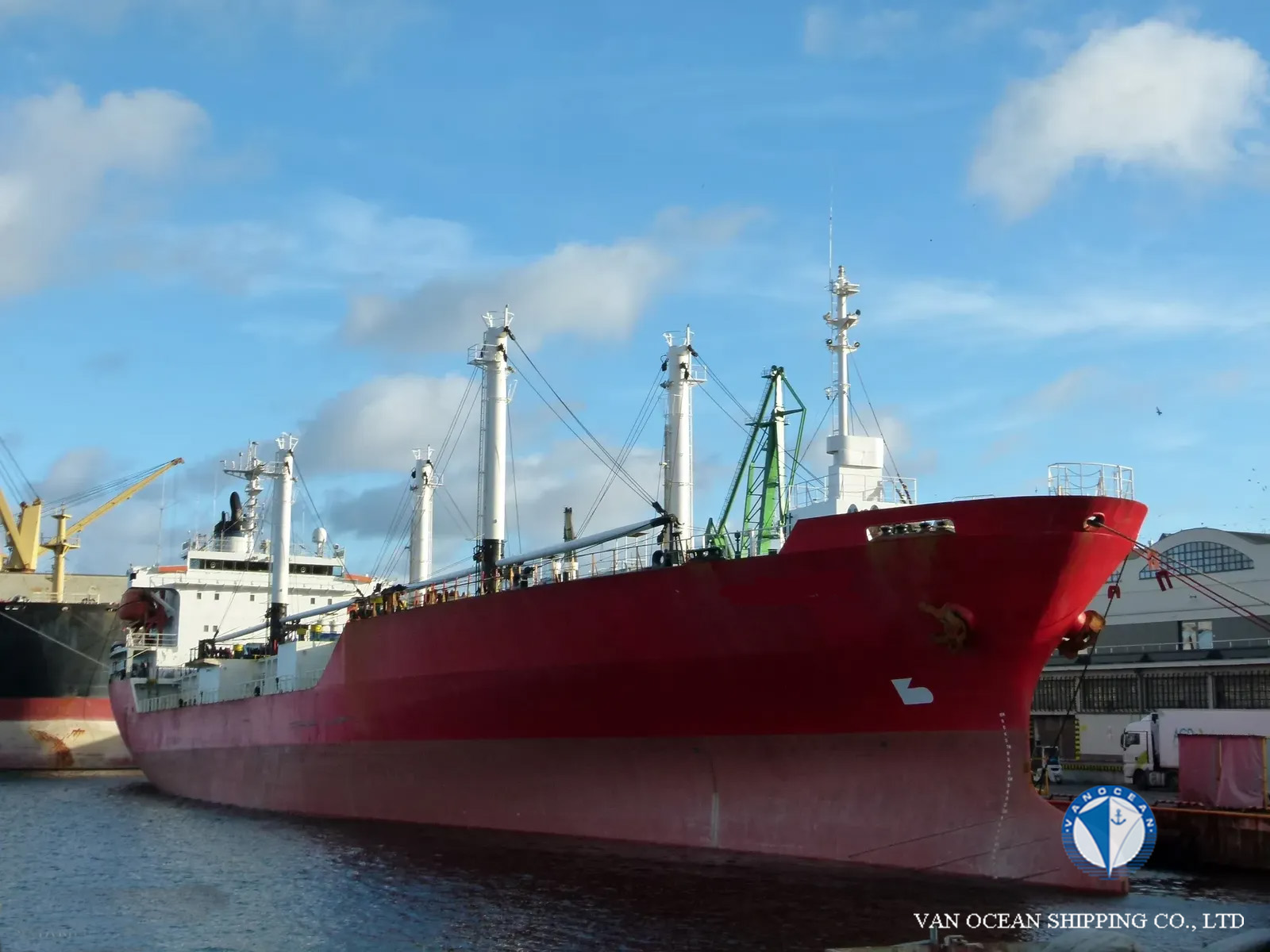

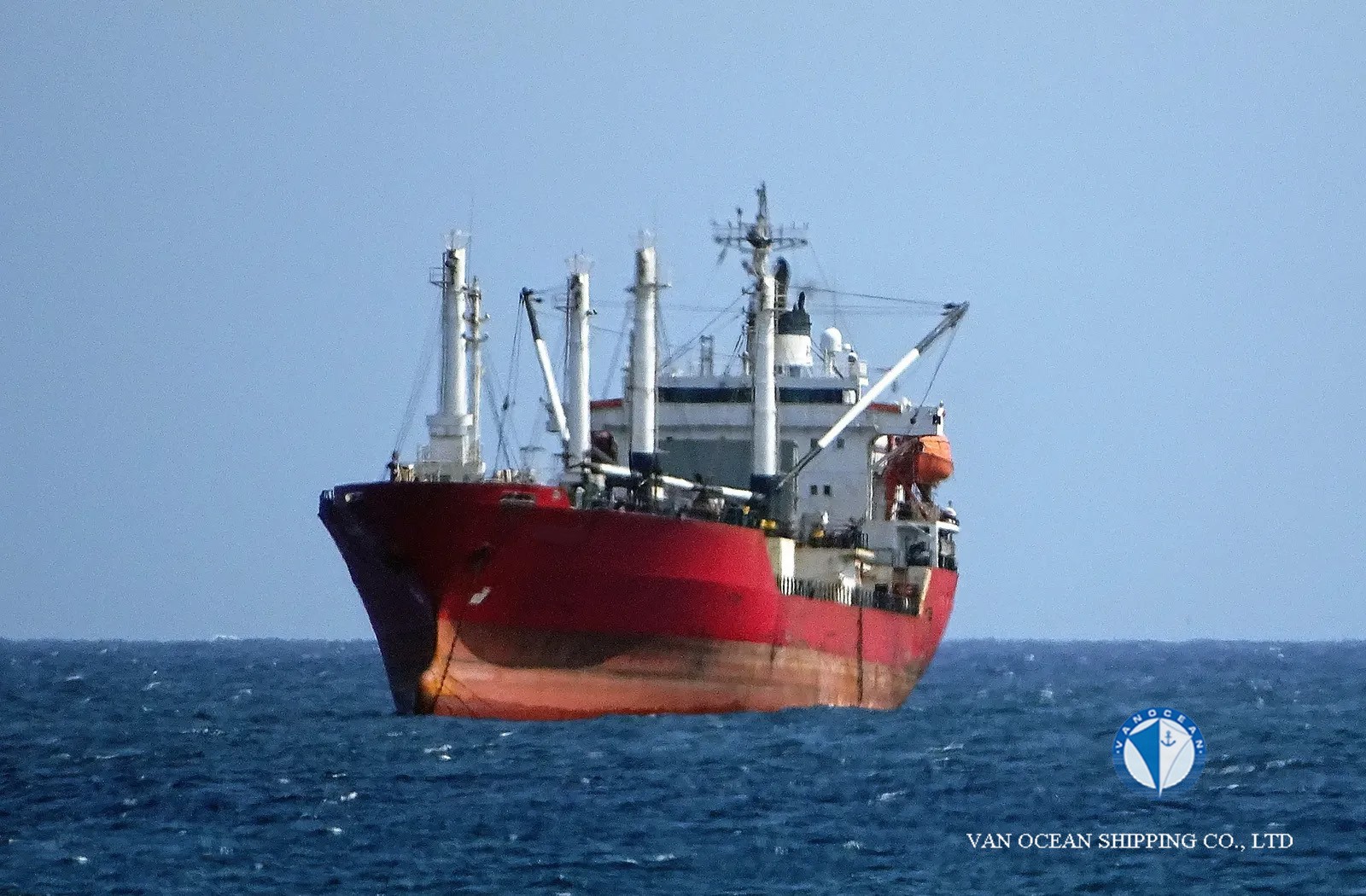

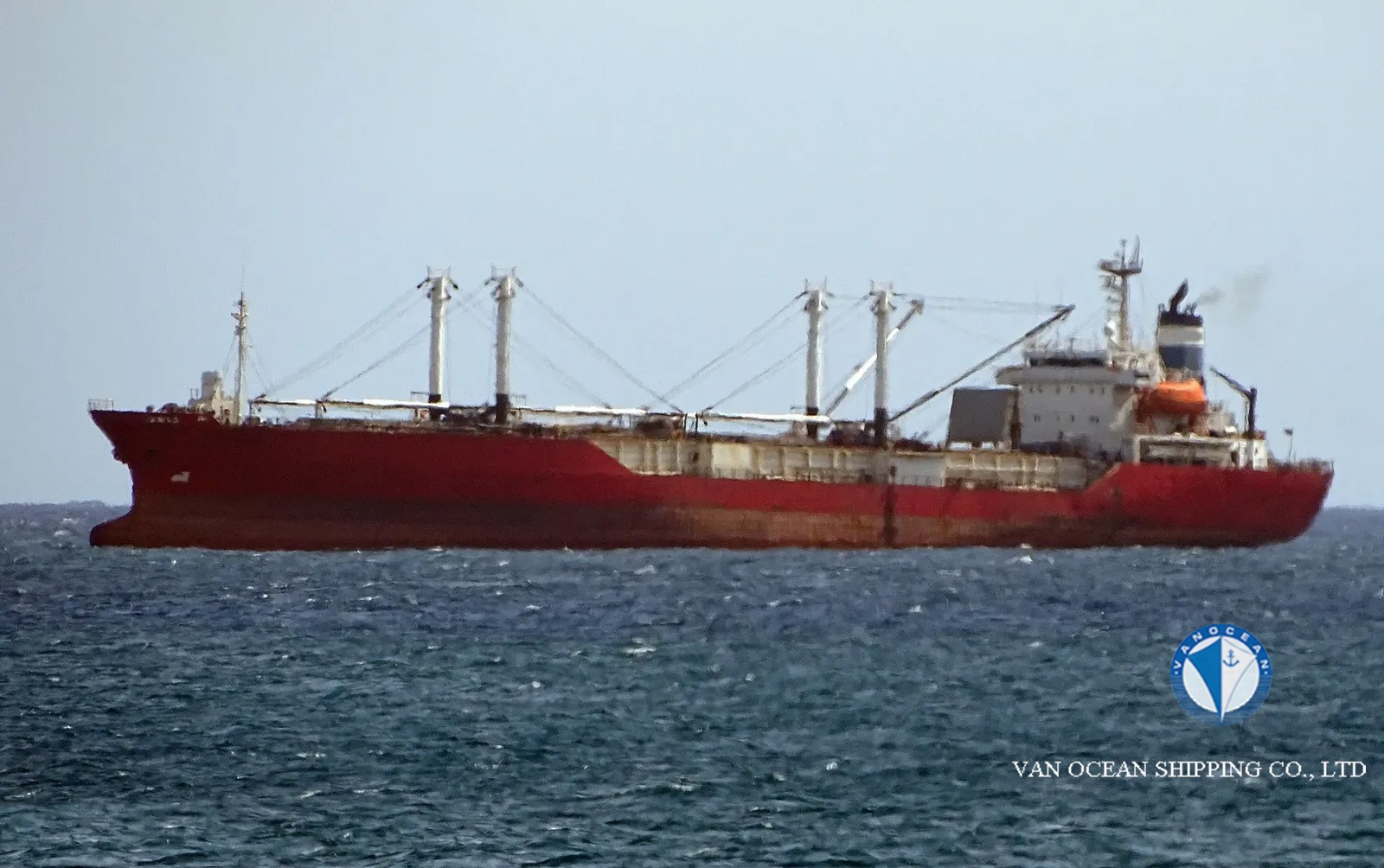

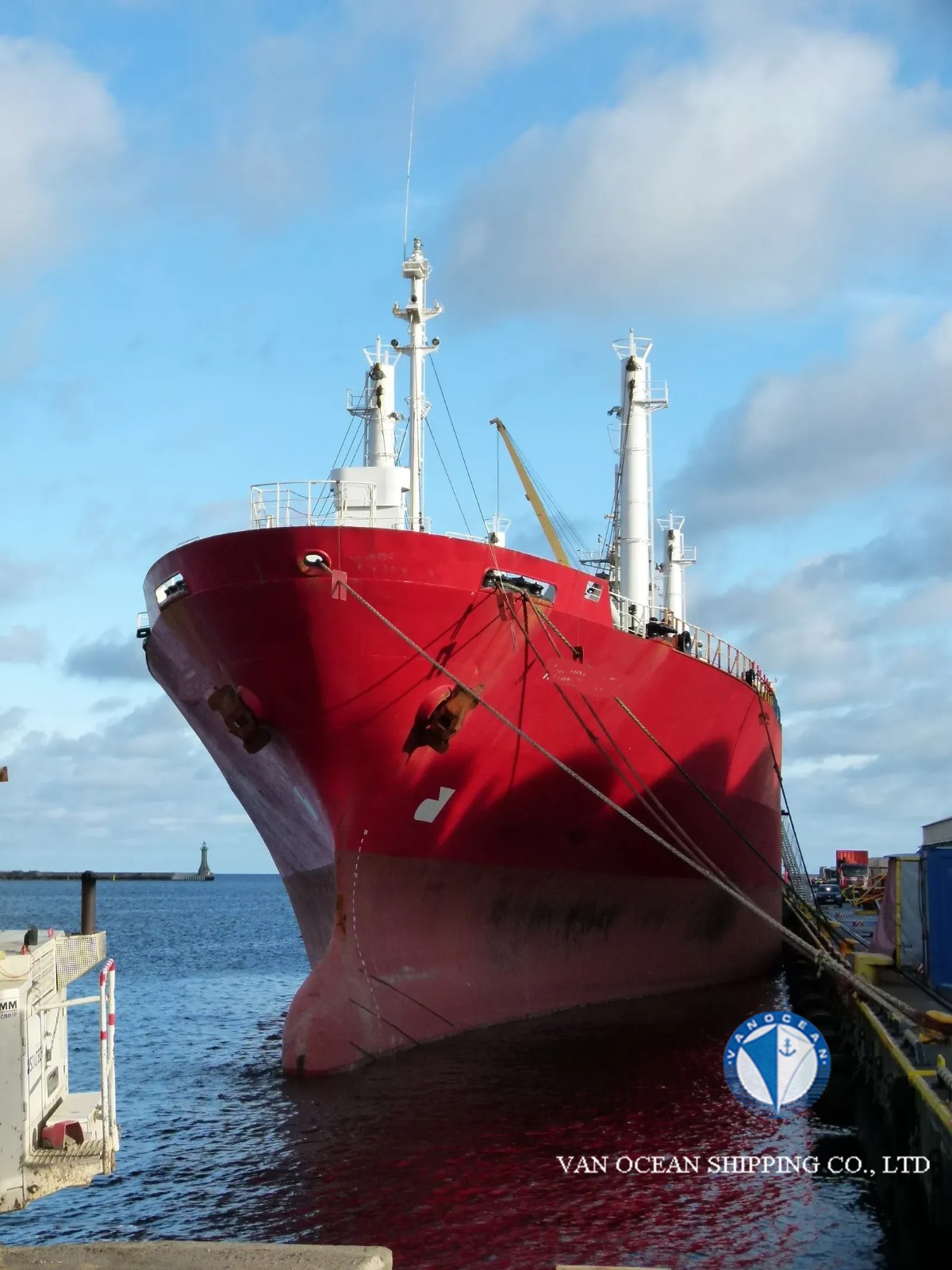

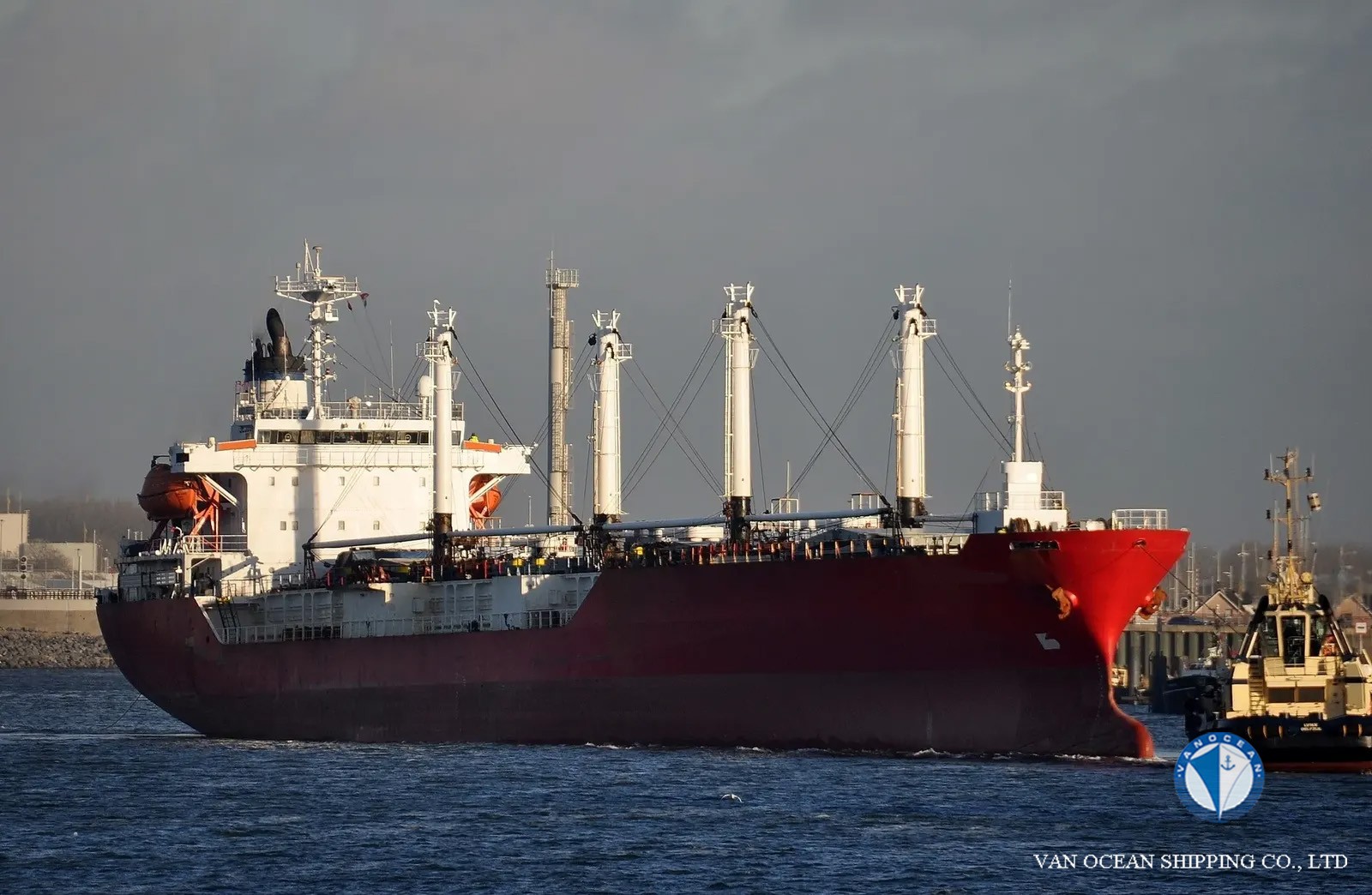

VESSEL NAME
REF558
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1994
BUILT PLACE
SHIN KOCHI JYUKO K.K., JAPAN
CLASSIFICATION
NK
CLASS NOTATION
NS*(EQ C V)(IHM) MNS* RMC*(-30/32 eqF for ACh), CHG, MPP, LSA, RCF, AFS.C
SS
2028-10
DD
2026-12
LOA (M)
134.02
LBP (M)
125.01
BEAM (M)
20.8
DEPTH (M)
10.17
SUMMER DRAFT (M)
7.57
WINTER DRAFT (M)
7.44
TROPICAL DRAFT (M)
7.7
GT (MT)
7313
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
4808
PANAMA NT (MT)
6631
SUEZ NT (MT)
6823
SUMMER DWT (MT)
7957
WINTER DWT (MT)
7620
TROPICAL DWT (MT)
8265
LDT (MT)
-
DISPLACEMENT (MT)
12042
GEAR(S)
DERRICKS, 8 x 5MT OR 4 x 3.5MT IN UP
M/E(S)
MITSUBISHI 8UEC45LA, 9600BHP 158RPM
M/E POWER (KW)
7164
A/E(S)
3 SETS DAIHATSU DIESEL MFG 552KW @720RPM
GENERATOR(S)
3 SETS TAIYO ELECTRIC 626kVA @ 720RPM
EMERGENCY 60kVA @ 1800RPM
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP 158RPM, 5 BLADES, 4400MM, KEYLESS
COOLING SYSTEM (COMPRESSOR)
3 SETS MAYEKAWA R22 DIRECT COOLING
SPEED/CONSUMPTIONS
BANANA: 18.5KTS ON 27.5MT + 4MT
BALLAST: 19 KTS ON 25MT
FUEL TYPE
HFO380
BUNKER CAPACITY (CBM)
FO 1164
TANKS CAPACITY (CBM)
FW 256
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
7.40 x 7.30
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
15
DECK(S)
4
DECK HEIGHT (M)
≥2.20
CARGO CAPACITY (CBFT)
400884
CARGO CAPACITY (CBM)
11356
FLOOR SPACE CAPACITY (SQM)
4544
GRATING/DECK STRENGTH
MAX 5 MT (FORKLIFT TO BE EQUIPED WITH MINI 4 AIRTYRES)
TEMPERATURE ZONE(S)
8
1A/BC, 2AB/CD, 3AB/CD, 4AB/CD
TEMPERATURE (℃)
-30/+15
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
4
PALLET(S)
3437
CONTAINER CAPACITY
DRY TEU 12, REF TEU 12, REF FEU 6
REEFER PLUG(S)
12
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
GRADE 3, DIAMETER 48MM, 522.5M
USDA CERTIFICATE
-
INSURANCE
-
CREW
25
ACCOMMODATION
-
INSPECTION
WEST AFRICA
DELIVERY
WEST/SOUTH AFRICA
PRICE
BUYERS OFFER
REMARK(S)
-
