REEFER S&P

HOME - REEFER S&P - REF604

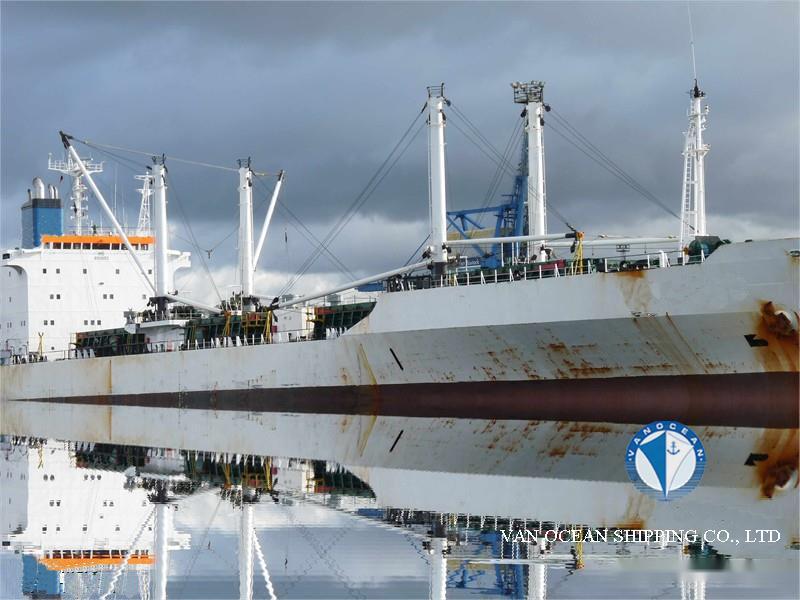

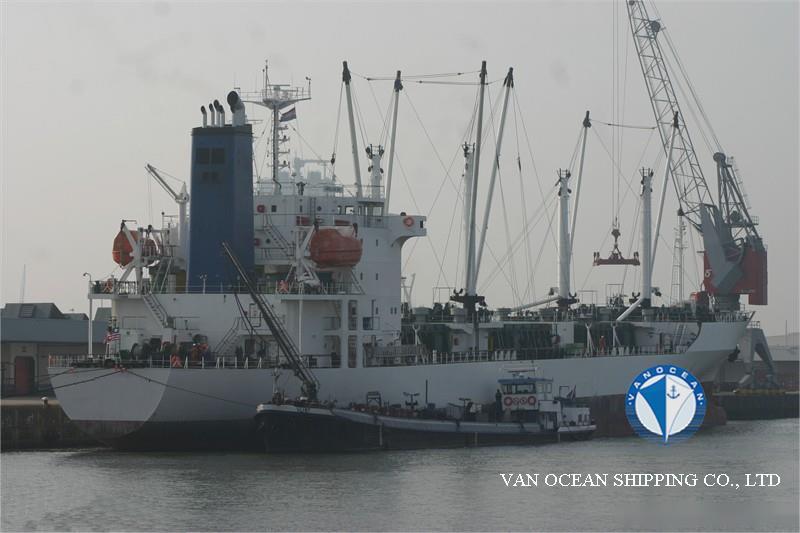

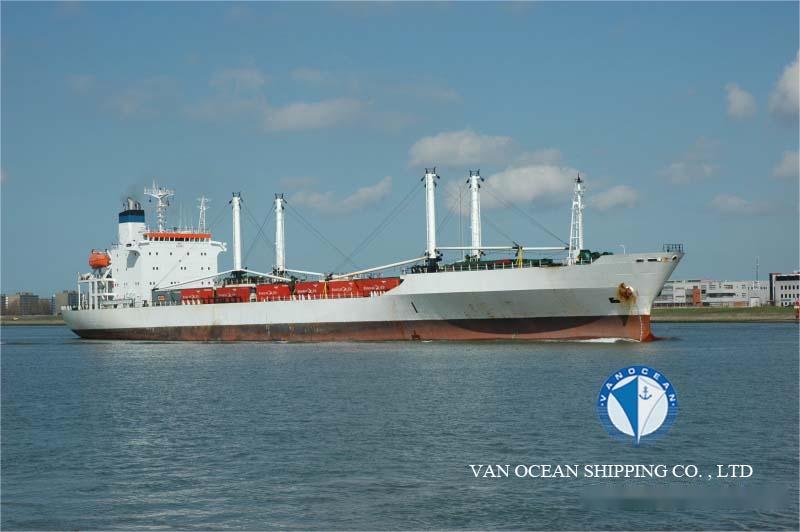

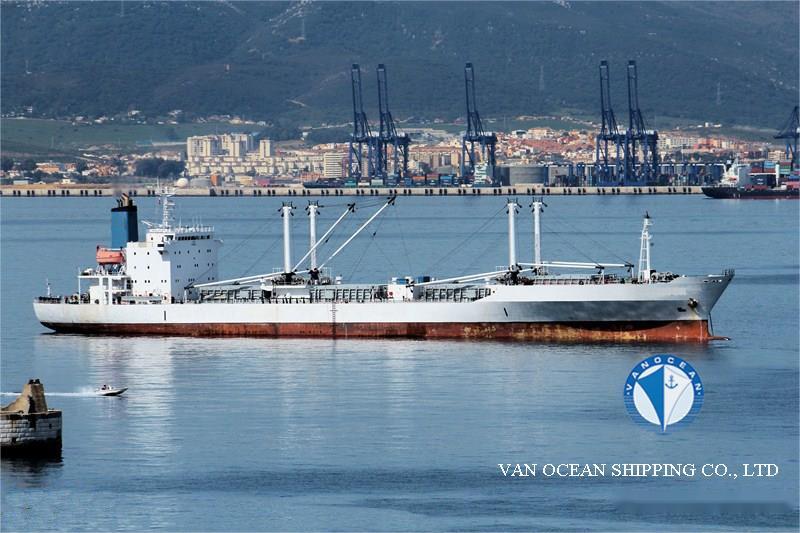

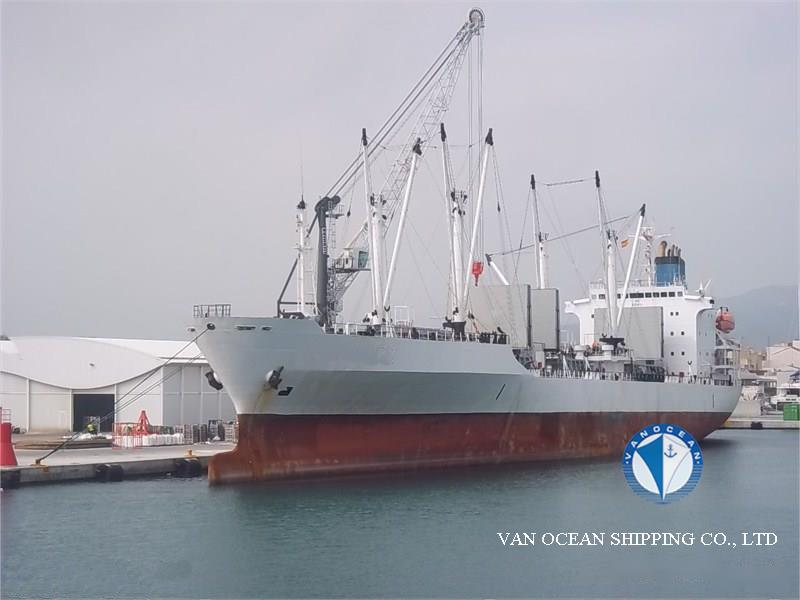

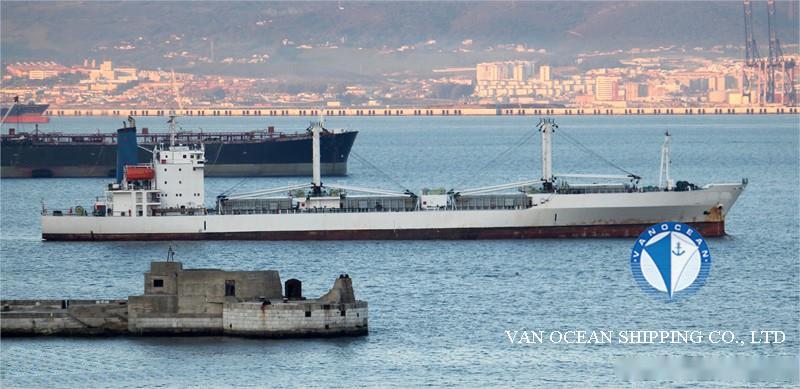

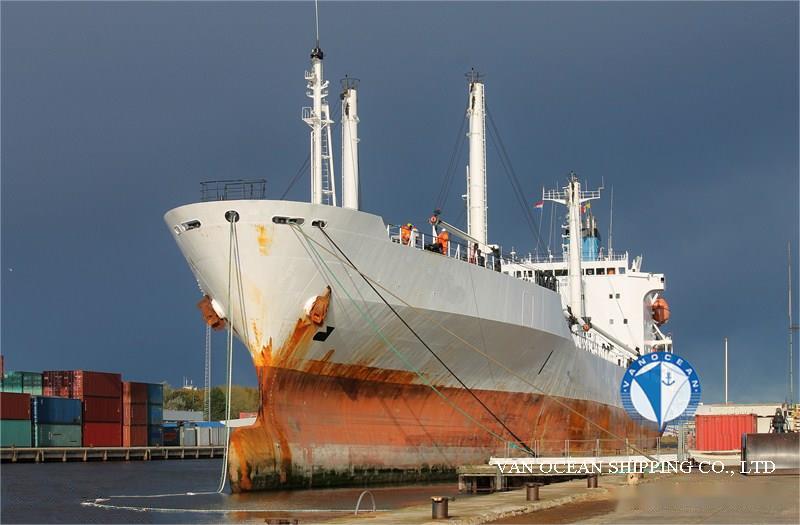

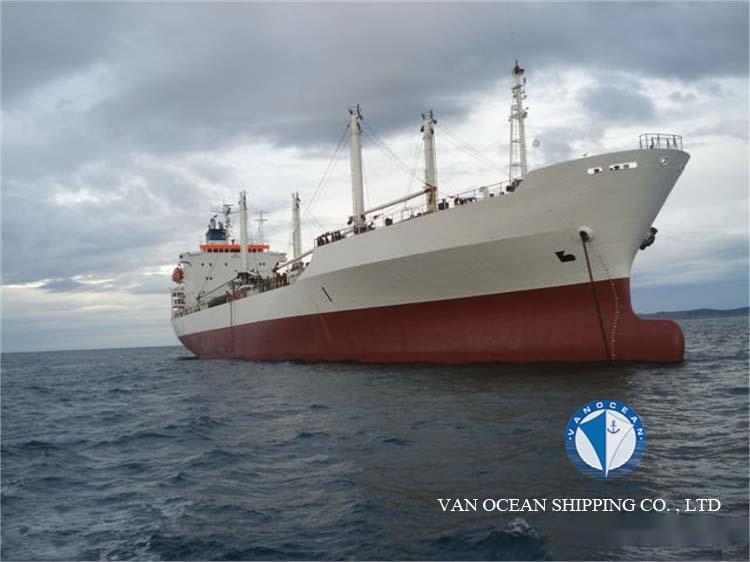

PARTICULAR

  • VESSEL NAME

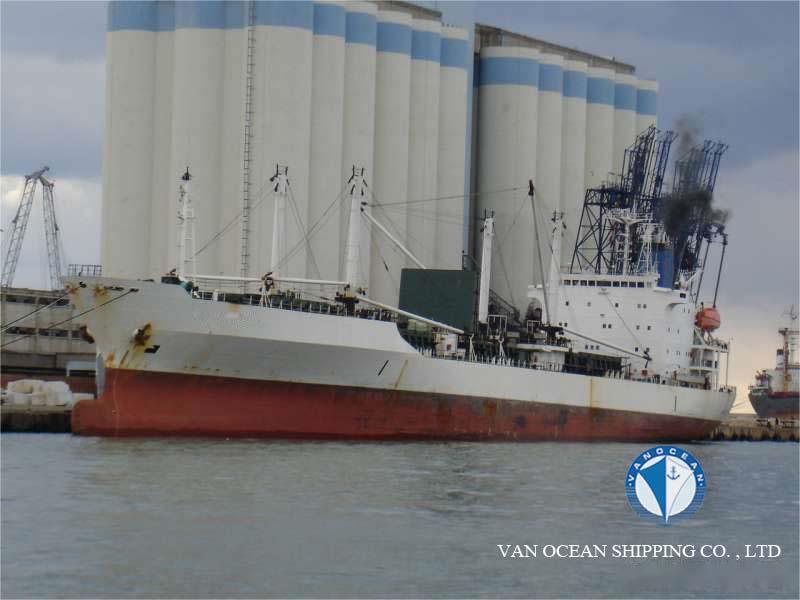

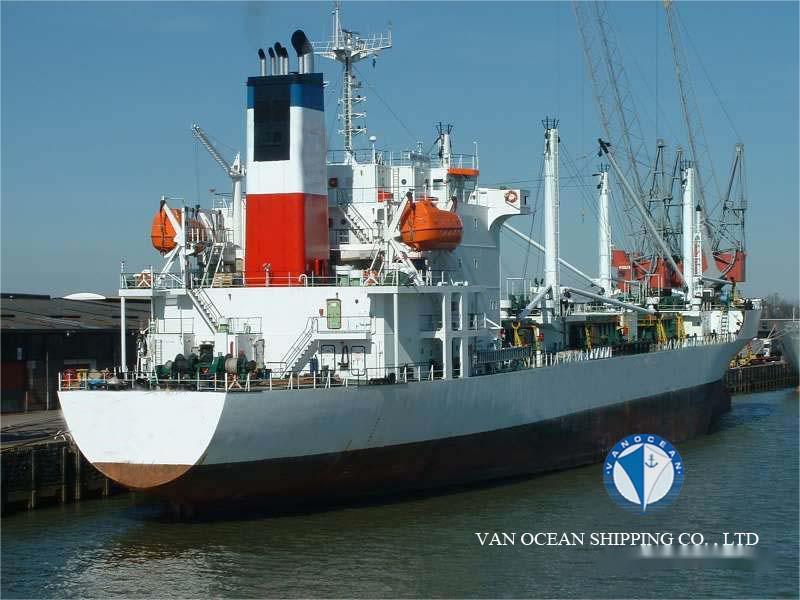

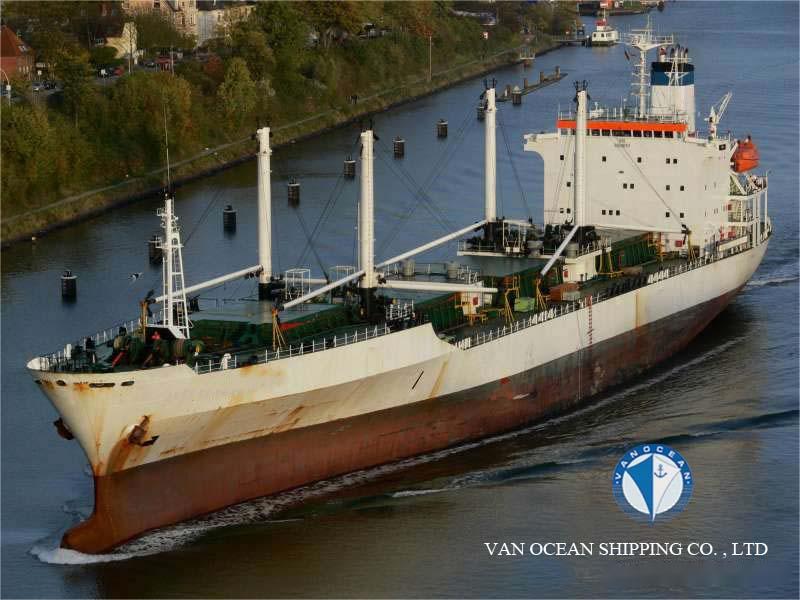

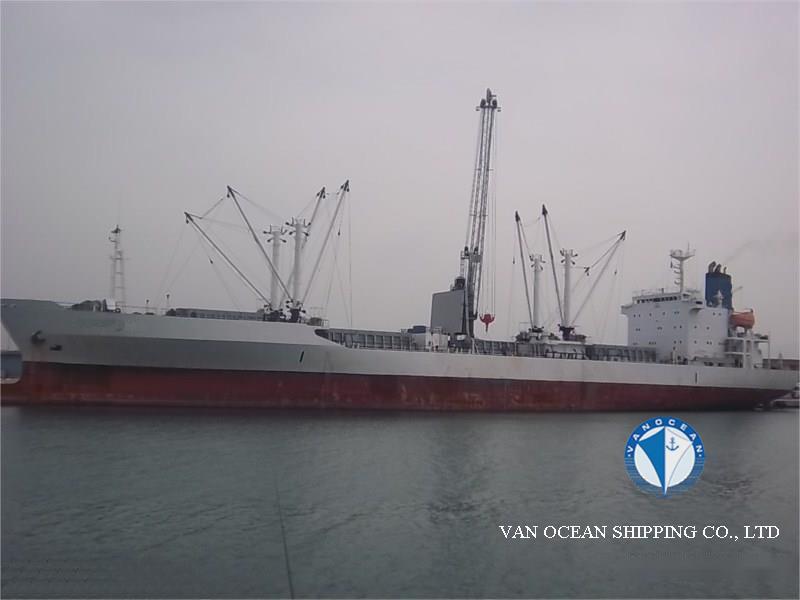

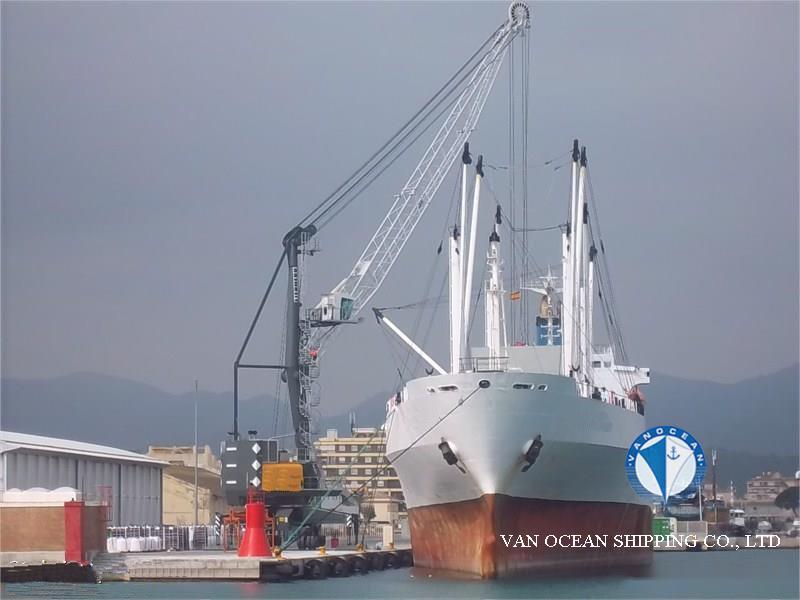

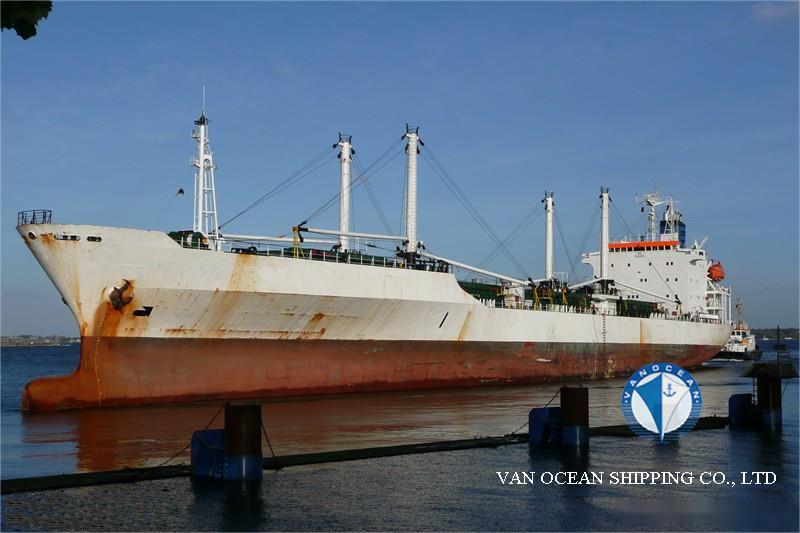

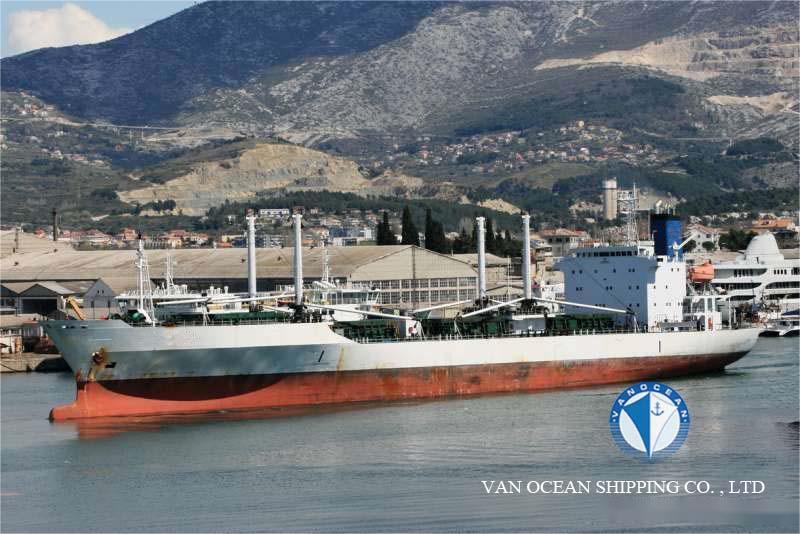

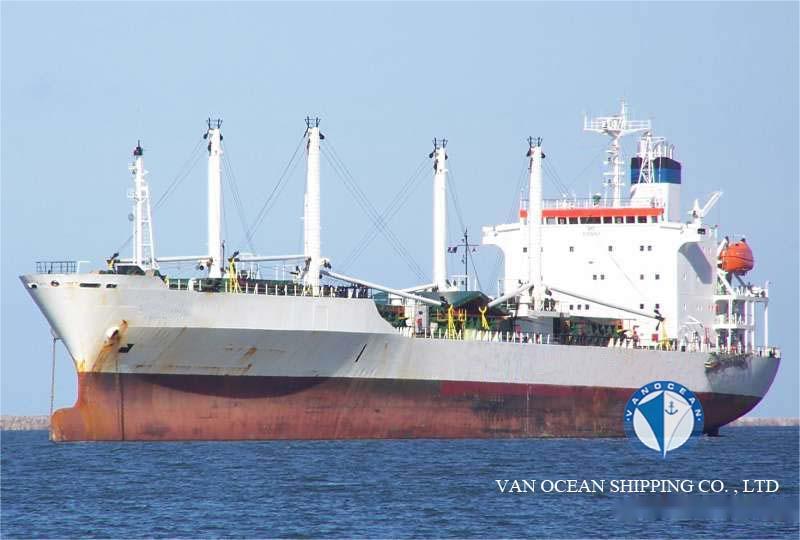

  • REF604
  • TYPE
  • REEFER CARRIER
  • DEEP FREEZING OR NOT
  • NO
  • FLAG
  • PANAMA
  • PORT OF REGISTRY
  • PANAMA
  • BUILT YEAR
  • 1990
  • BUILT PLACE
  • KANASASHI TOYOHASHI, JAPAN
  • CLASSIFICATION
  • LR
  • CLASS NOTATION
  • -
  • SS
  • 2020-04
  • DD
  • 2018-09
  • LOA (M)
  • 148.5
  • LBP (M)
  • 140
  • BEAM (M)
  • 20.6
  • DEPTH (M)
  • 12.8
  • SUMMER DRAFT (M)
  • 9.42
  • WINTER DRAFT (M)
  • -
  • TROPICAL DRAFT (M)
  • -
  • GT (MT)
  • 9070
  • PANAMA GT (MT)
  • -
  • SUEZ GT (MT)
  • 9774
  • NT (MT)
  • 5838
  • PANAMA NT (MT)
  • 8117
  • SUEZ NT (MT)
  • 7896
  • SUMMER DWT (MT)
  • 11595
  • WINTER DWT (MT)
  • -
  • TROPICAL DWT (MT)
  • -
  • LDT (MT)
  • 5111
  • DISPLACEMENT (MT)
  • -
  • GEAR(S)
  • DERRICKS, 8 x 7MT OR 4 x 5.0 MT IN UP
  • M/E(S)
  • MITSUBISHI 6UEC52LA, 7360BHP 123RPM
  • M/E POWER (KW)
  • 5492
  • A/E(S)
  • 3 x YANMAR M220L-EN-6 CYLINDER, 680KW 720RPM
  • GENERATOR(S)
  • -
  • SHAFT GENERATOR(S)
  • -
  • PROPELLER(S)
  • -
  • COOLING SYSTEM (COMPRESSOR)
  • REFRIGERANT R22
  • SPEED/CONSUMPTIONS
  • 17.3KTS ON 23MT + 2-5MT
  • FUEL TYPE
  • IFO380
  • BUNKER CAPACITY (CBM)
  • 1027
  • TANKS CAPACITY (CBM)
  • MDO: 141
  • NUMBER OF CARGO HOLDS
  • 4
  • HATCH NUMBER
  • 4
  • HATCH TYPE
  • -
  • HATCH SIZE (M)
  • -
  • HEIGHT OF HATCH COAMING (M)
  • -
  • COMPARTMENT(S)
  • 19
  • DECK(S)
  • 4
  • DECK HEIGHT (M)
  • -
  • CARGO CAPACITY (CBFT)
  • 512000
  • CARGO CAPACITY (CBM)
  • 14504
  • FLOOR SPACE CAPACITY (SQM)
  • 5857
  • GRATING/DECK STRENGTH
  • -
  • TEMPERATURE ZONE(S)
  • 8
  • TEMPERATURE (℃)
  • -25/+13
  • TYPE OF VENT SYSTEM
  • VERTICAL
  • VENT (TIMES/HOUR)
  • 90
  • AIR CHANGE (TIMES/HOUR)
  • -
  • PALLET(S)
  • 4400
  • CONTAINER CAPACITY
  • -
  • REEFER PLUG(S)
  • 14
  • SIDE DOOR(S)
  • -
  • FENDER(S)
  • -
  • ANCHOR CHAIN(S)
  • -
  • USDA CERTIFICATE
  • -
  • INSURANCE
  • -
  • CREW
  • -
  • ACCOMMODATION
  • -
  • INSPECTION
  • -
  • DELIVERY
  • -
  • PRICE
  • BUYERS OFFER
  • REMARK(S)
  • -
