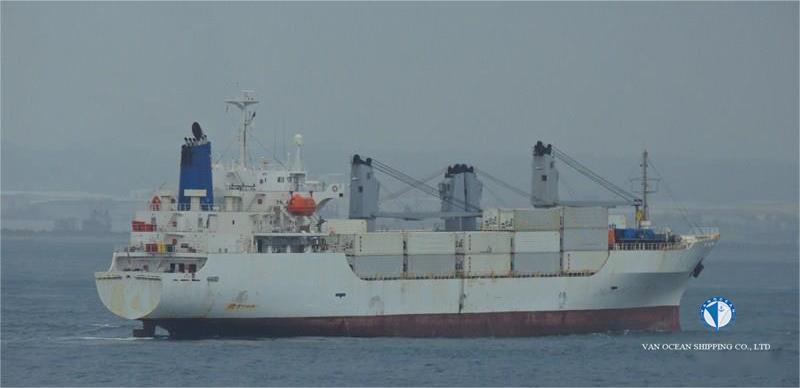

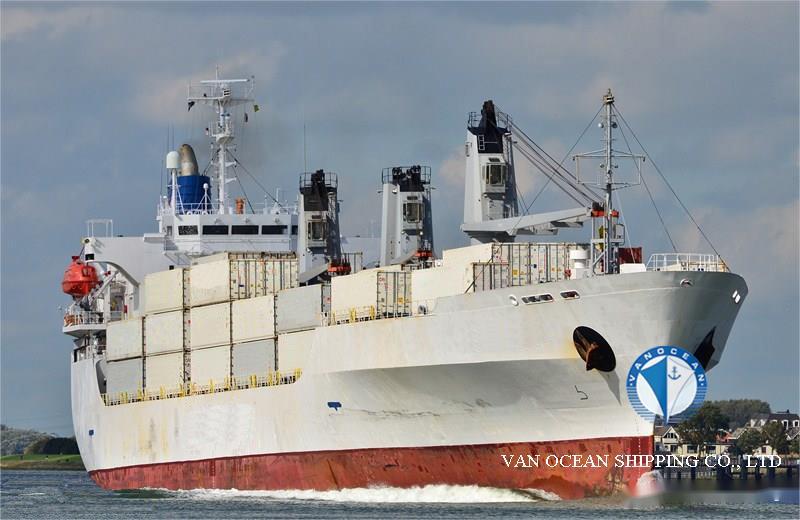

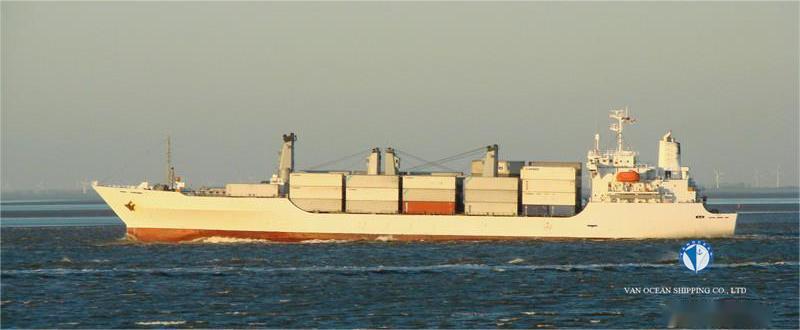

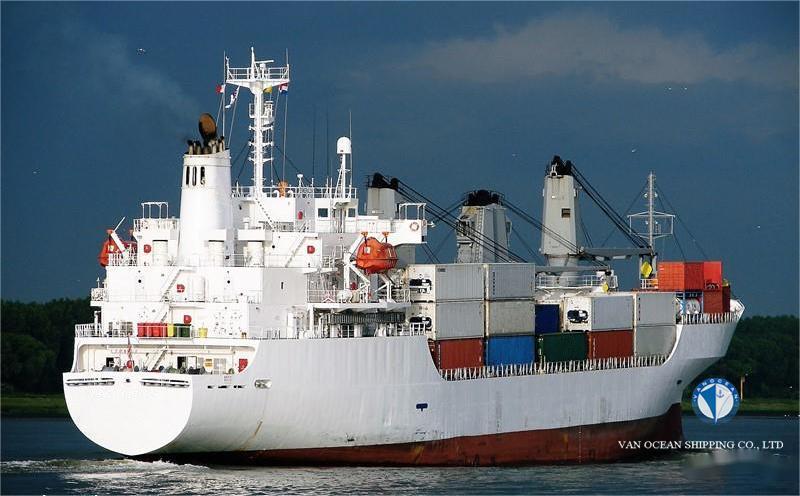

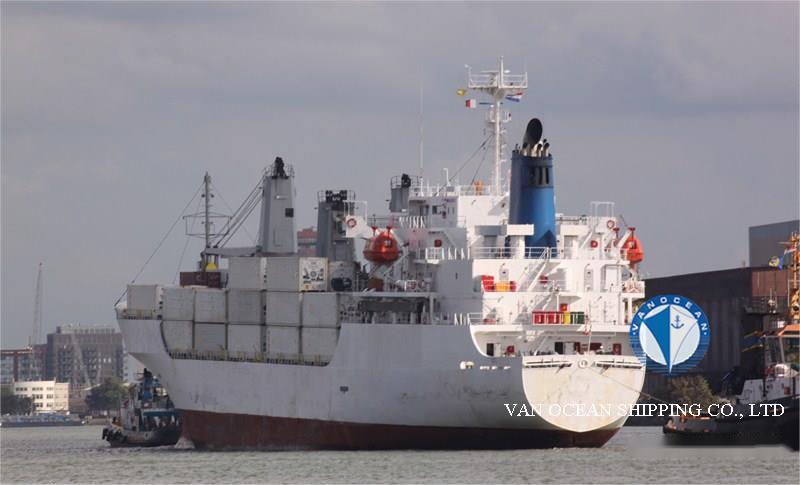

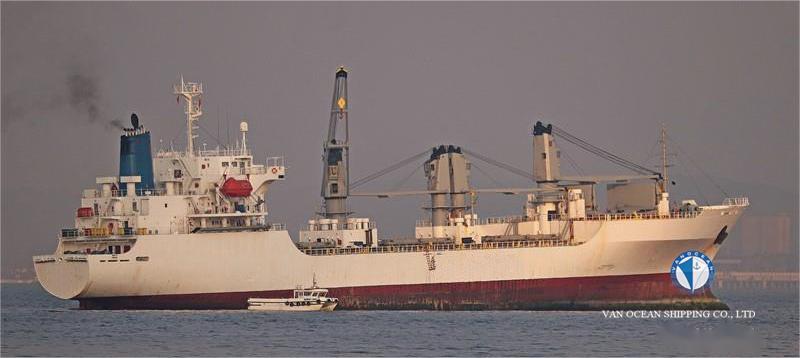

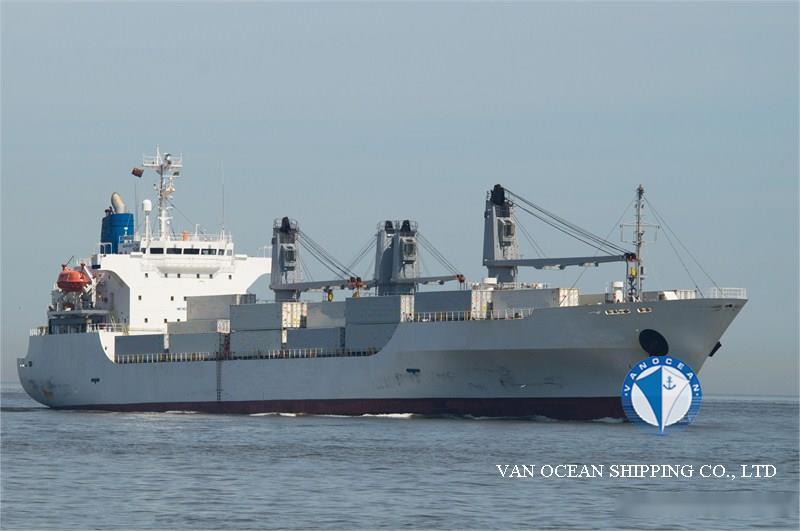

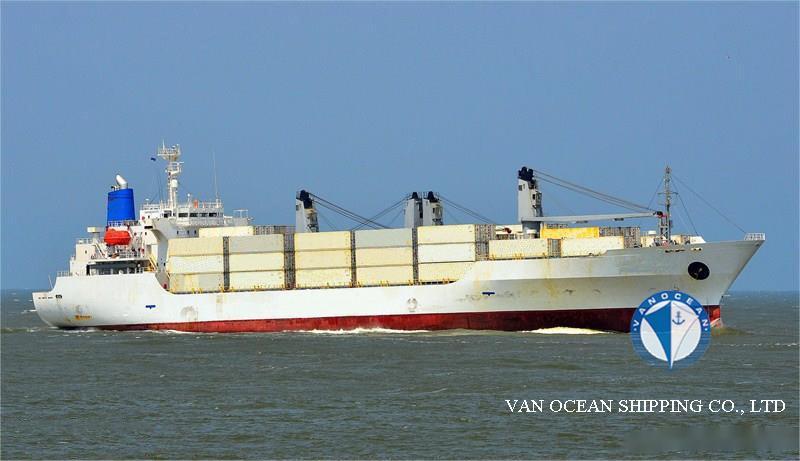

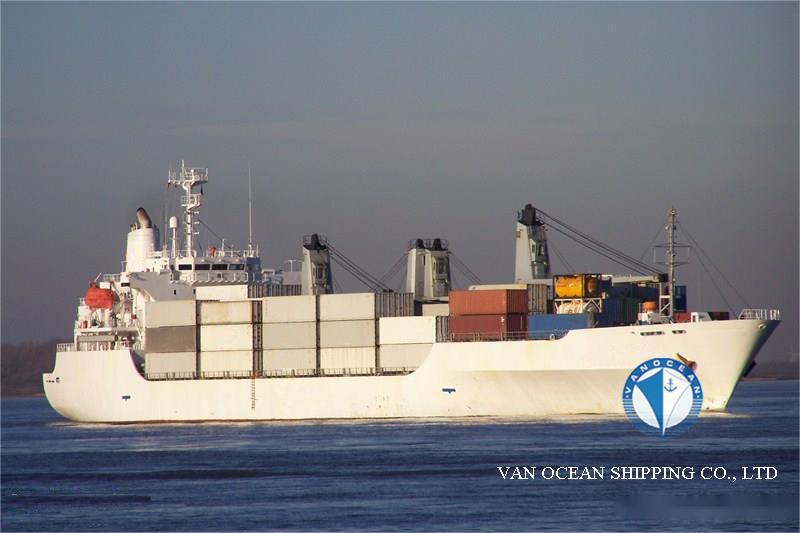

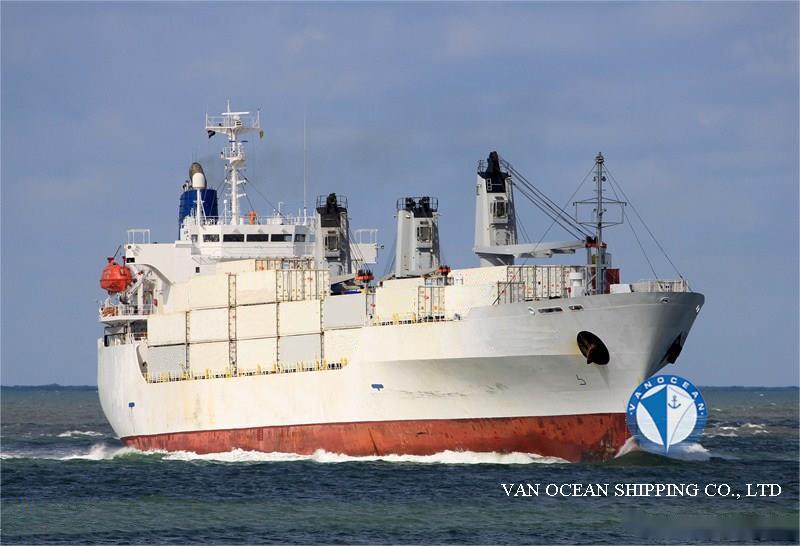

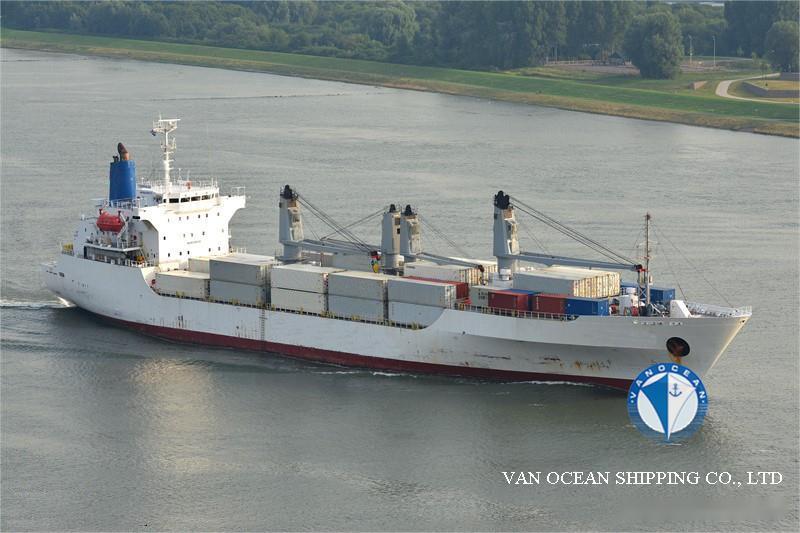

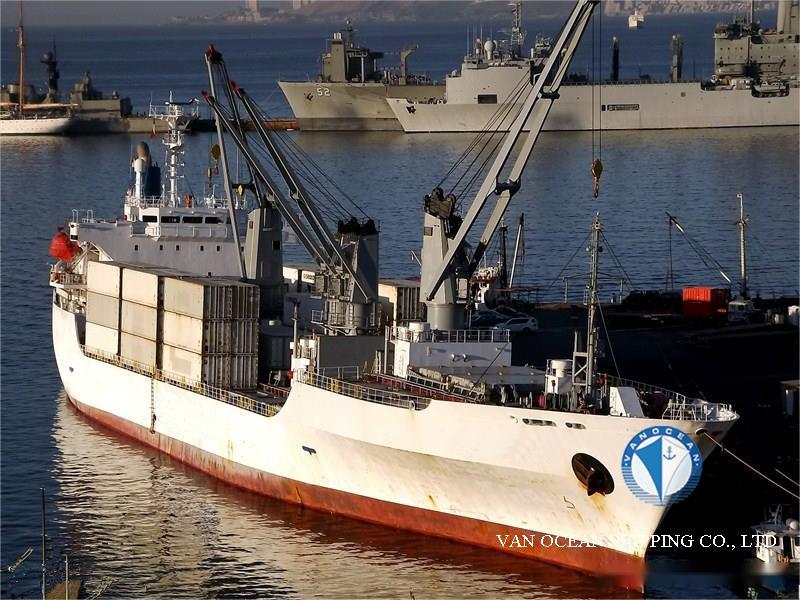

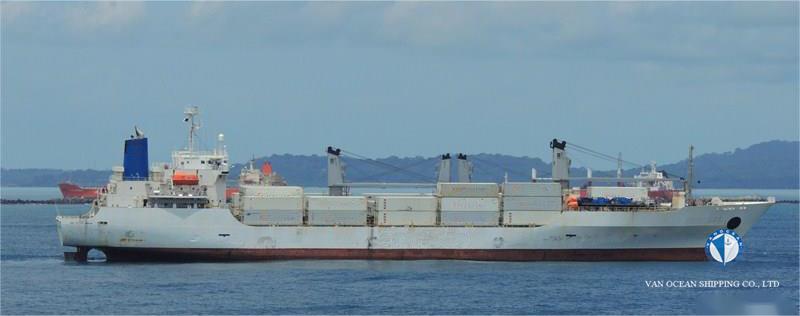

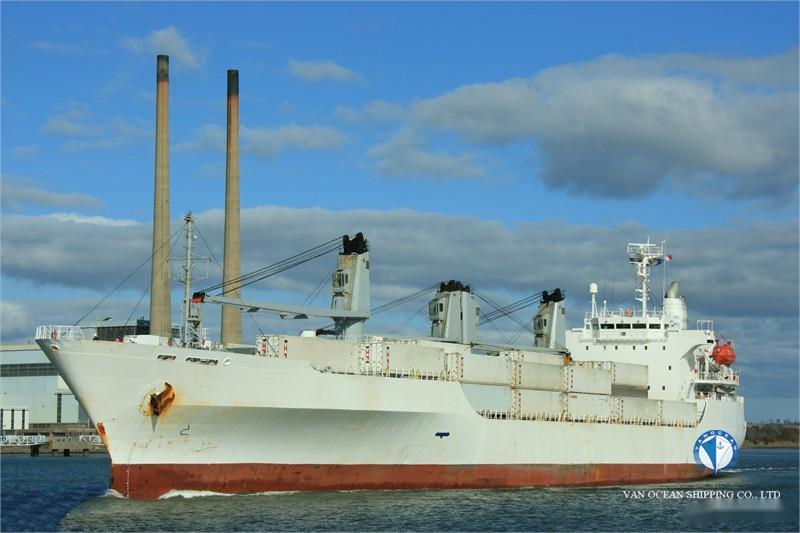

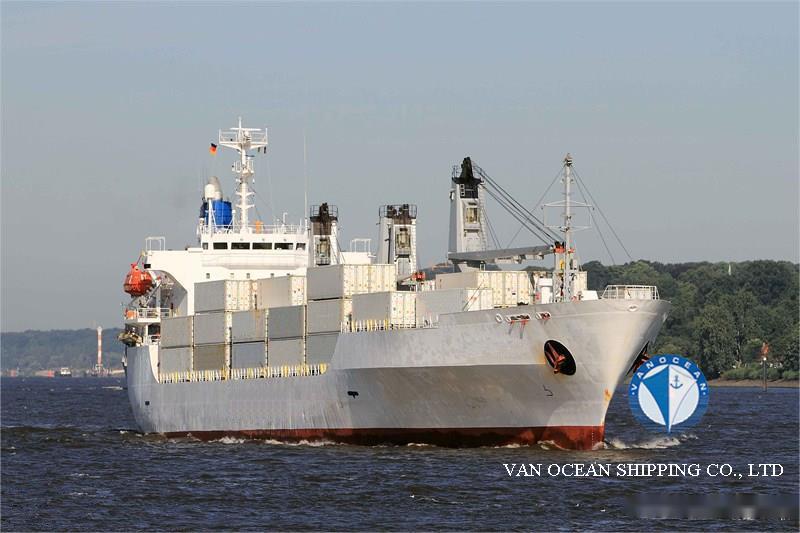

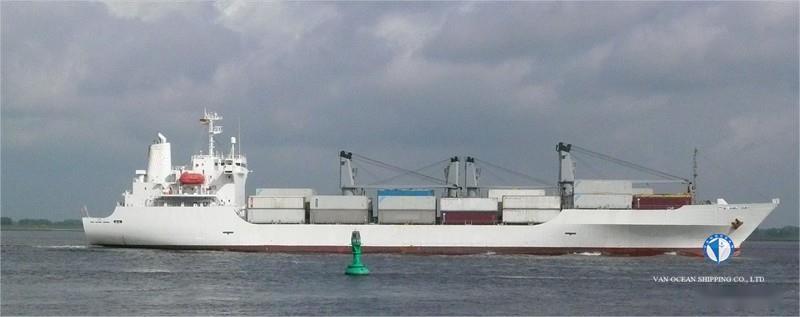

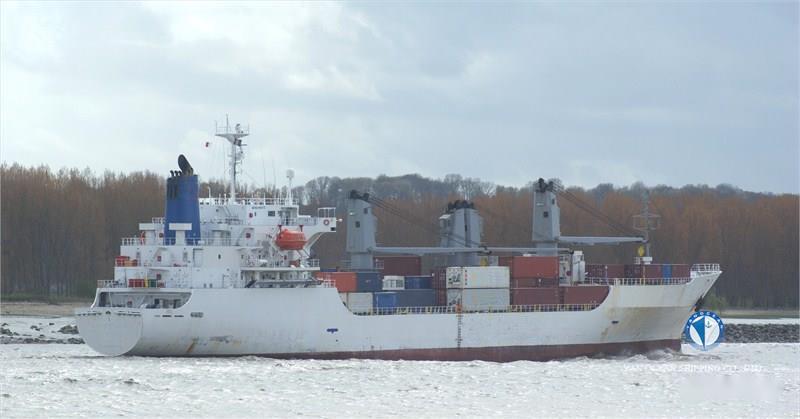

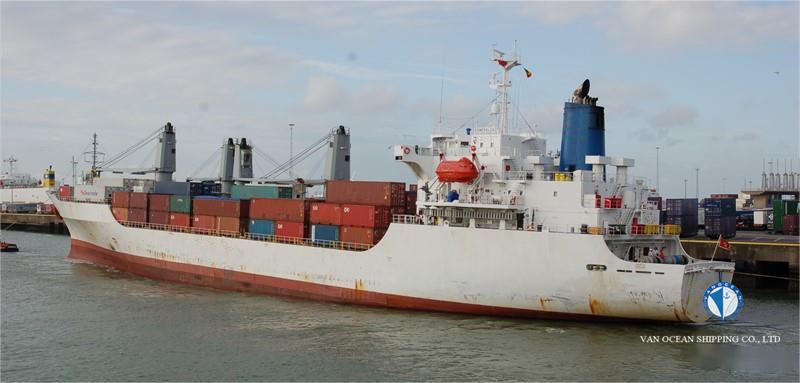

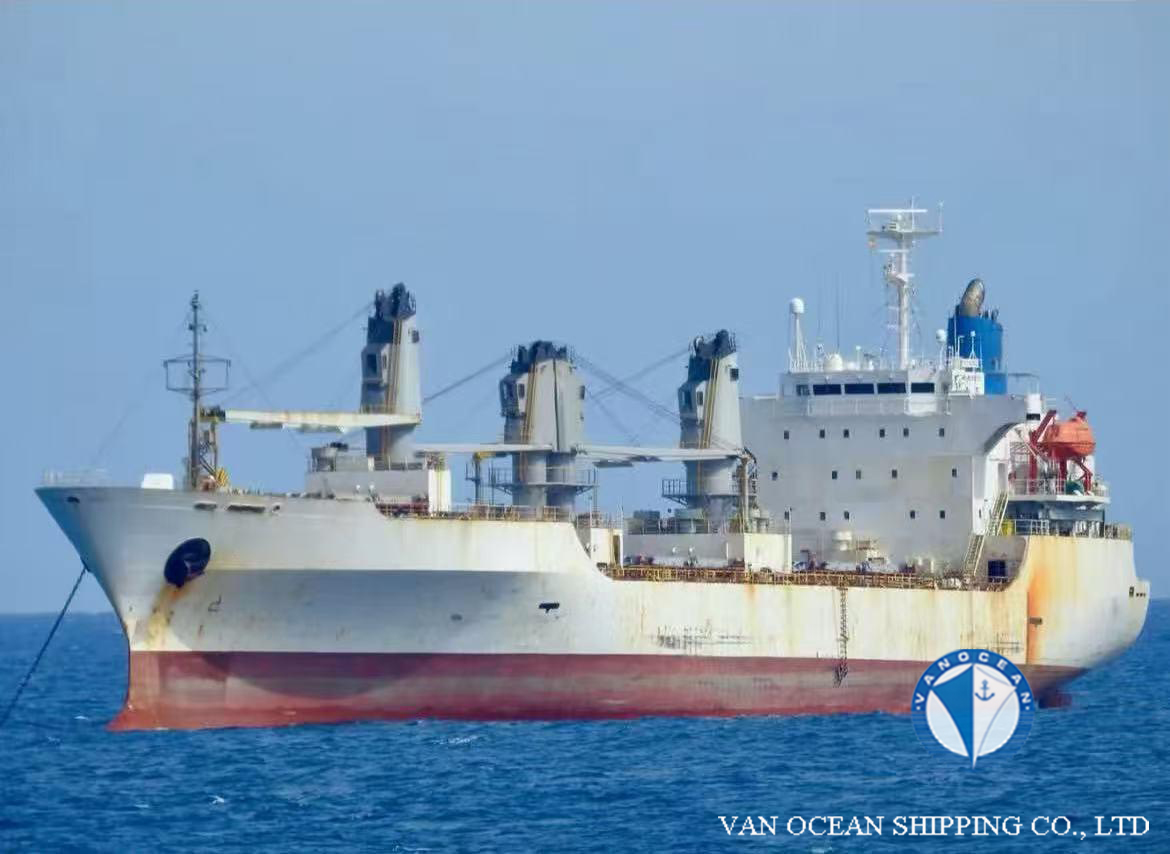

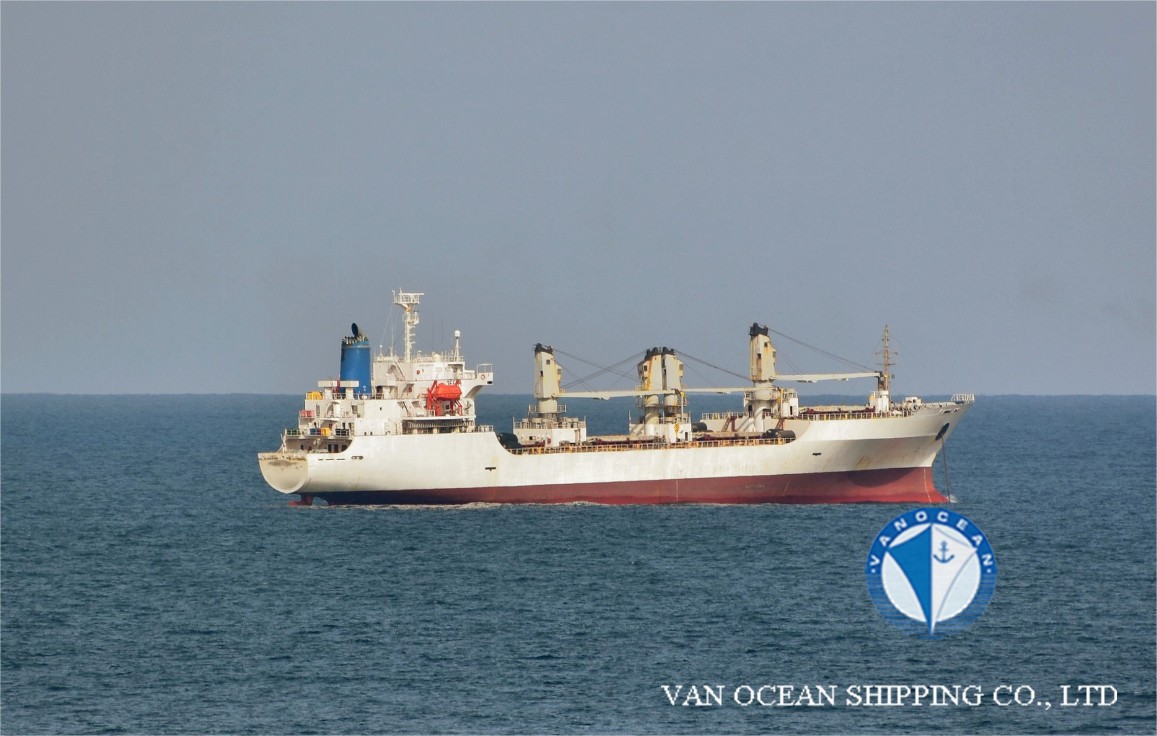

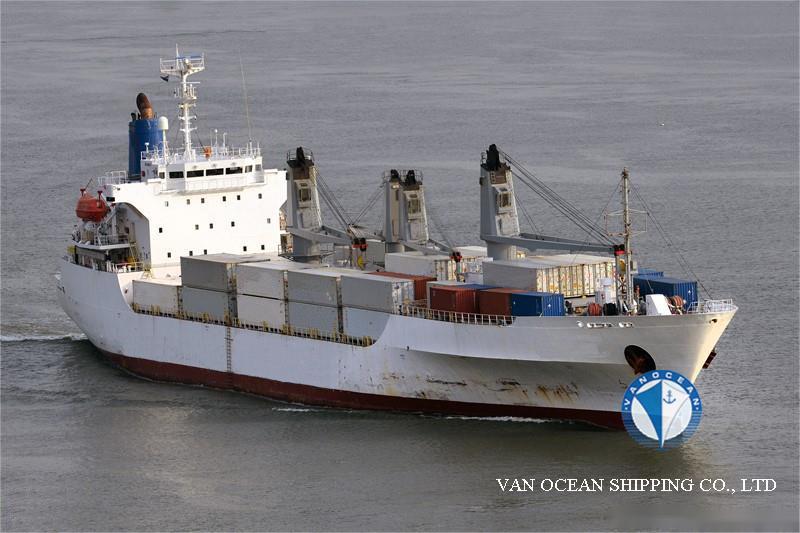

VESSEL NAME
REF840
TYPE
REEFER CARRIER
DEEP FREEZING OR NOT
NO
FLAG
PANAMA
PORT OF REGISTRY
PANAMA
BUILT YEAR
1999
BUILT PLACE
IWAGI ZOSEN CO.LTD, JAPAN
CLASSIFICATION
BV
CLASS NOTATION
I*HULL*MACH
SS
-
DD
-
LOA (M)
151.99
LBP (M)
139.4
BEAM (M)
23
DEPTH (M)
13
SUMMER DRAFT (M)
8.65
WINTER DRAFT (M)
9.67
TROPICAL DRAFT (M)
9.67
GT (MT)
10532
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
6770
PANAMA NT (MT)
9059
SUEZ NT (MT)
5406
SUMMER DWT (MT)
10358
WINTER DWT (MT)
12734
TROPICAL DWT (MT)
12734
LDT (MT)
6175
DISPLACEMENT (MT)
-
GEAR(S)
CRANE：2 x 36MT
CRANE：2 x 8MT
M/E(S)
MITSUBISHI 6 UEC 60 LS II 116189BHP -105 RPM
M/E POWER (KW)
11915
A/E(S)
2 x 500KW
2 x 1000KW
GENERATOR(S)
2 x 625KVA/500KW/450V/60HZ
2 x 1250KV/1000KW/A/450V/60HZ
SHAFT GENERATOR(S)
-
PROPELLER(S)
FPP，5 BLADES，DIA：6200MM
COOLING SYSTEM (COMPRESSOR)
3 x F200-MUD 2 -VE, 250KW
SPEED/CONSUMPTIONS
BALLAST: 18KTS / 25MT + 2.5MT
FROZEN: 17.5KTS / 28MT + 4.5MT
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
1718
TANKS CAPACITY (CBM)
MGO:104
NUMBER OF CARGO HOLDS
4
HATCH NUMBER
4
HATCH TYPE
-
HATCH SIZE (M)
13 x 7.85
HEIGHT OF HATCH COAMING (M)
-
COMPARTMENT(S)
16
DECK(S)
1
DECK HEIGHT (M)
≥2.2
CARGO CAPACITY (CBFT)
548667.9
CARGO CAPACITY (CBM)
15543
FLOOR SPACE CAPACITY (SQM)
6226
GRATING/DECK STRENGTH
6MT AIRTYRE FORKLIFT
TEMPERATURE ZONE(S)
8，1A/1BCD/2AB/2CD/3AB/3CD/4AB/4CD
TEMPERATURE (℃)
-30/+15
TYPE OF VENT SYSTEM
-
VENT (TIMES/HOUR)
90
AIR CHANGE (TIMES/HOUR)
4
PALLET(S)
6637
CONTAINER CAPACITY
TEU: 212
REEFER PLUG(S)
106
SIDE DOOR(S)
-
FENDER(S)
-
ANCHOR CHAIN(S)
-
USDA CERTIFICATE
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
BUYERS OFFER
REMARK(S)
PERMANENT BALLAST 696MT
