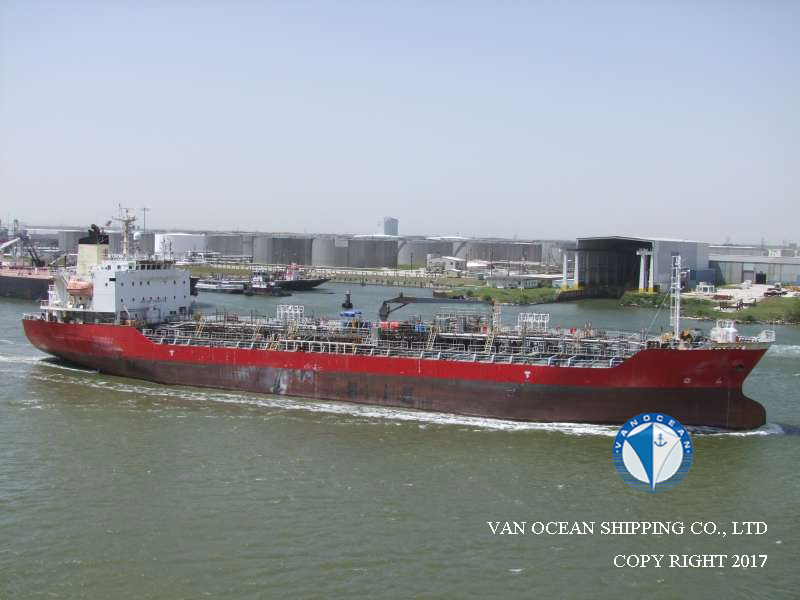

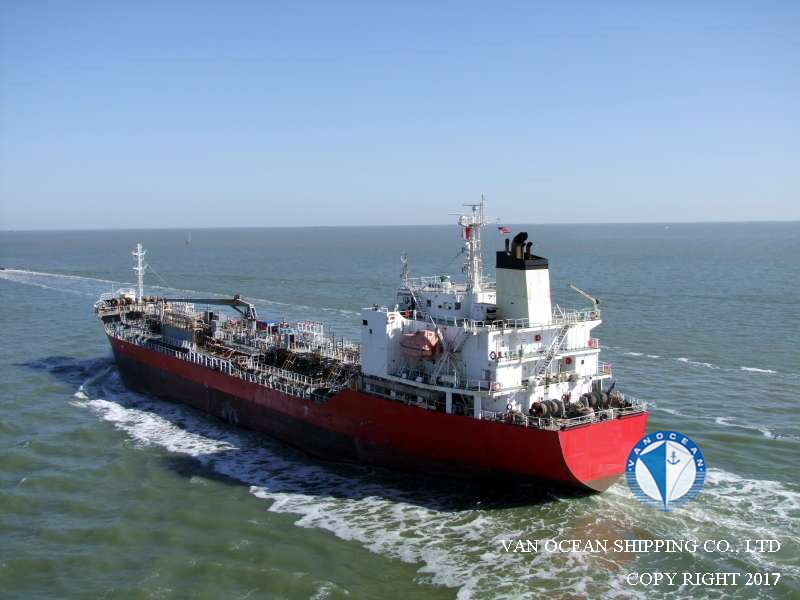

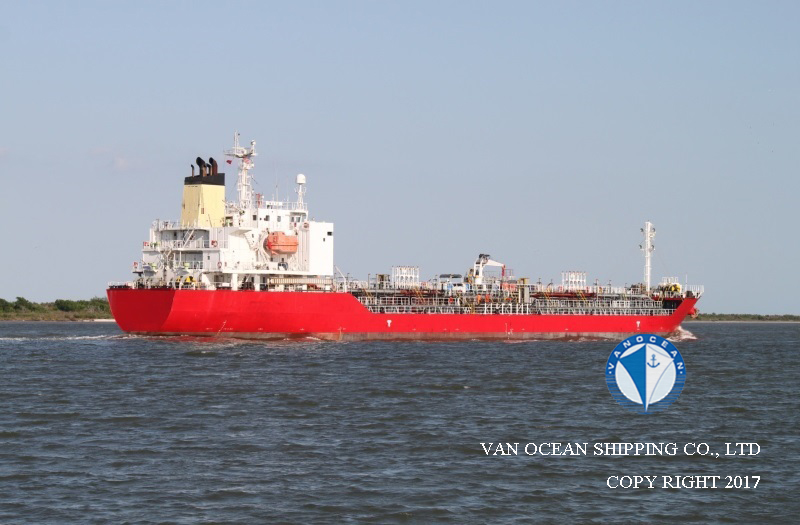

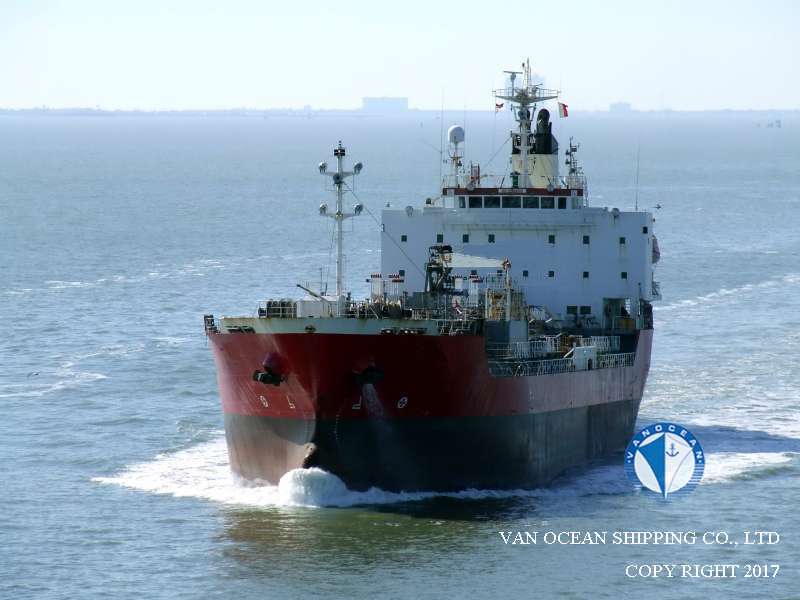

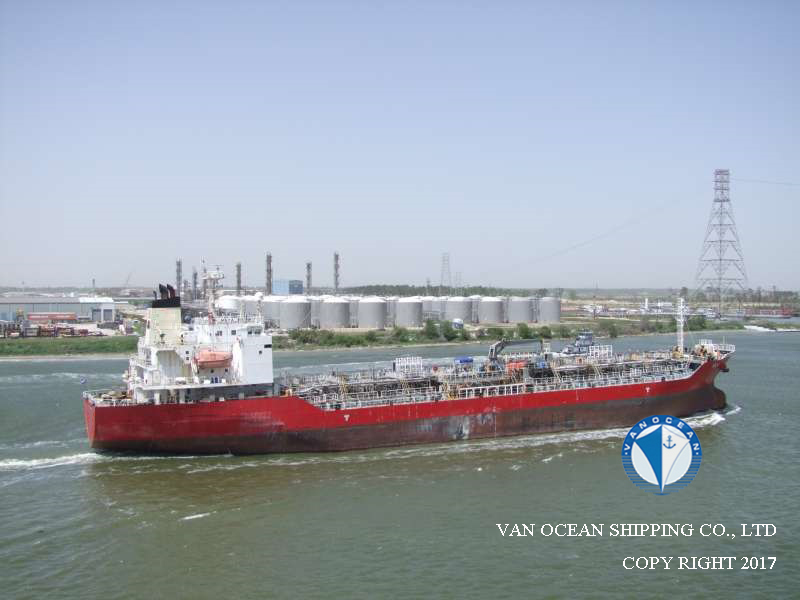

VESSEL NAME
TNK293
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
MARSHALL IS
PORT OF REGISTRY
MAJURO
BUILT YEAR
2003
BUILT PLACE
FUKUOKA SHIP BUILDING, JAPAN
CLASSIFICATION
GL
CLASS NOTATION
*100 A5 ESP T3D10 T4D21 CHEMICAL TANKER TYPE-2, OIL TANKER, DOUBLE HULL. *MC INCERT
SS
-
DD
-
LOA (M)
123.19
LBP (M)
115.95
BEAM (M)
20.02
DEPTH (M)
11.20
SUMMER DRAFT (M)
8.75
WINTER DRAFT (M)
8.57
TROPICAL DRAFT (M)
8.93
GT (MT)
7099.00
PANAMA GT (MT)
-
SUEZ GT (MT)
7589.60
NT (MT)
3851.00
PANAMA NT (MT)
6017.00
SUEZ NT (MT)
6538.96
SUMMER DWT (MT)
12451.60
WINTER DWT (MT)
12070.61
TROPICAL DWT (MT)
12834.66
DISPLACEMENT (MT)
15899.34
LDT (MT)
-

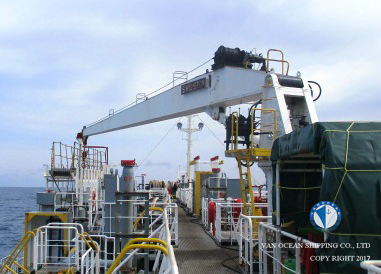

GEAR(S)
CRANE, 1 x 5MT

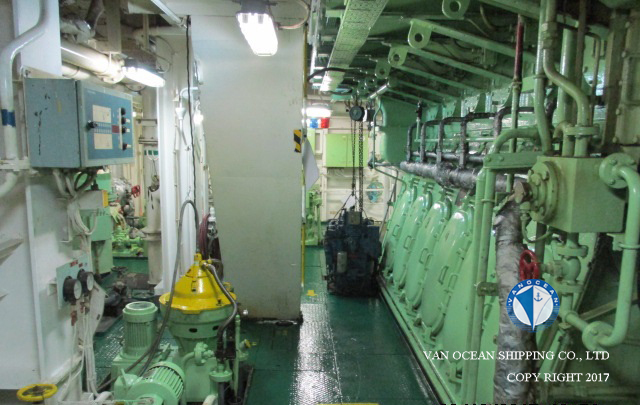

M/E(S)

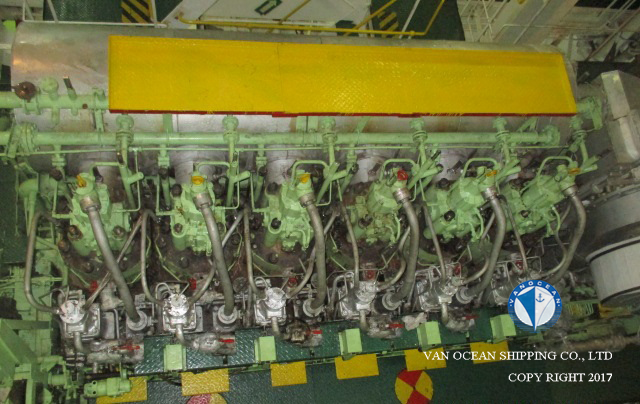

MAN B+W 6L35MC 5226HP
M/E POWER (KW)
3900

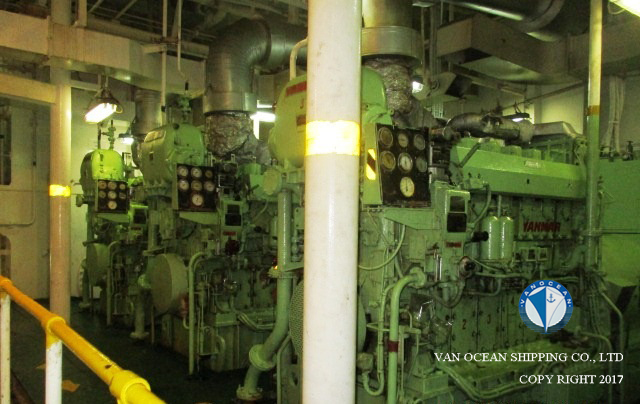

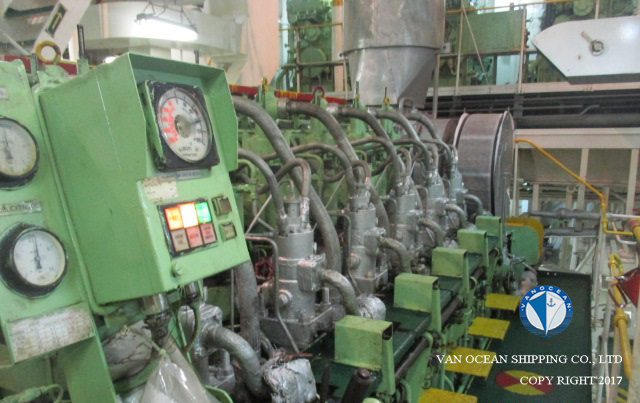

A/E(S)
3 x YANMAR 6N165L-SN, 485KW EACH
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
SPEED /CONSUMPTIONS
MAX 12 KTS
ECO 10 KTS
FUEL TYPE
IFO380
BUNKER CAPACITY (CBM)
638.60
TANKS CAPACITY (CBM)
MDO: 91.77
BALLAST: 2546.3
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
-
CARGO CAPACITY98% (CBFT)
469490
CARGO CAPACITY98% (CBM)
13300
COATING/MATERIAL OF HOLD(S)
CLADDING SUS 316L
HEATING SYSTEM
STEAM HEATING COILS
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
CARGO:
10 x 300 CBM/HR
6 x 200 CBM/HR
4 x 100 CBM/HR
1 x 70 CBM/HR
BALLAST:
1 x 300 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
BOW THRUSTER, 616BHP
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 9 MILLION
REMARK(S)
SLOP TANK 260CBM
