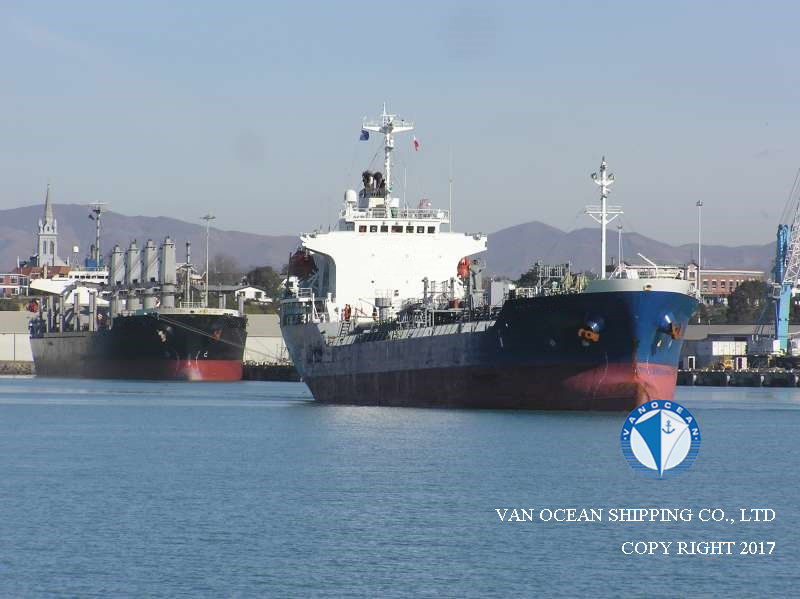

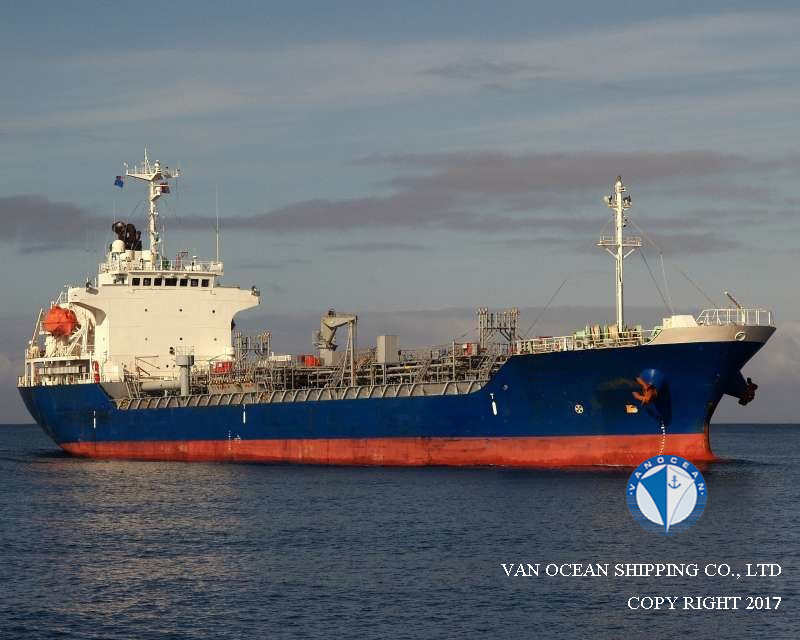

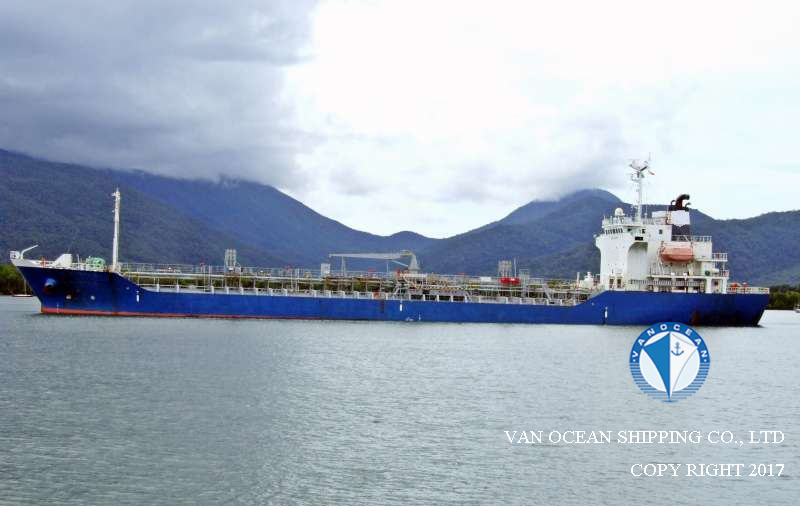

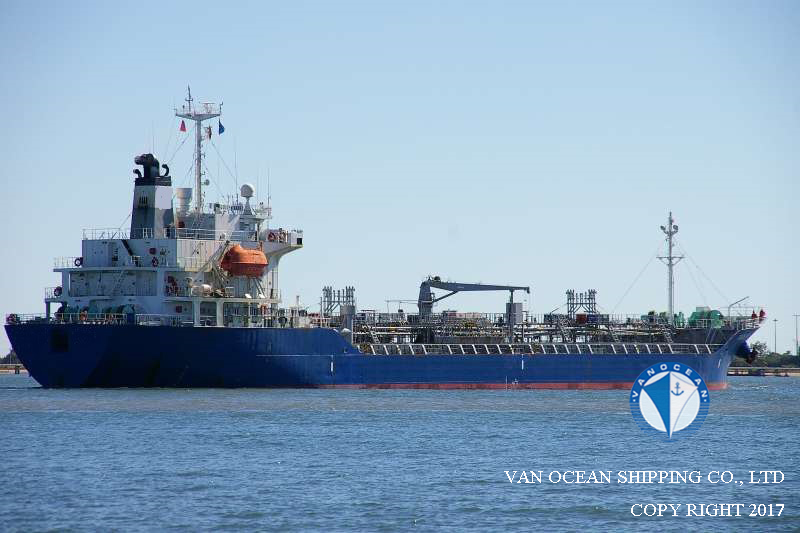

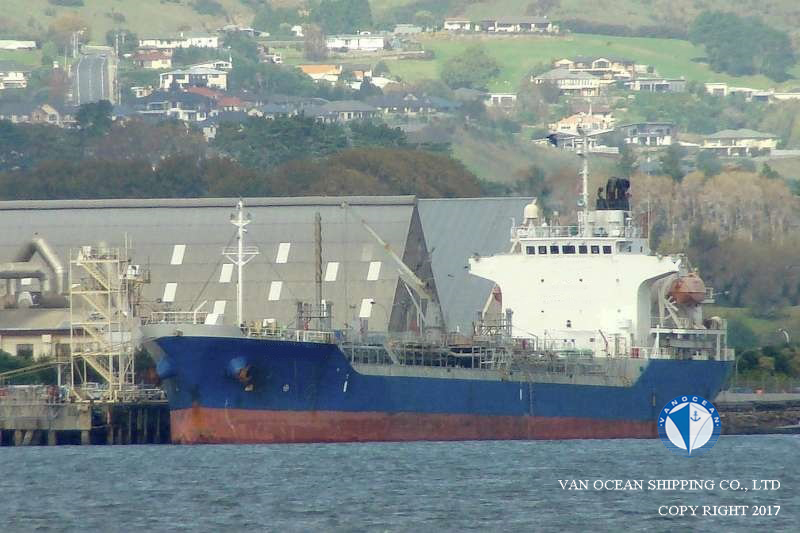

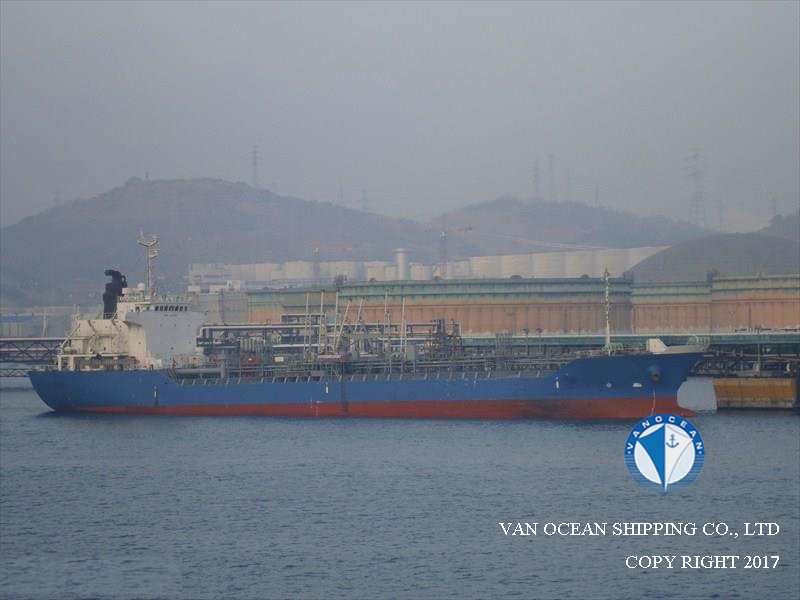

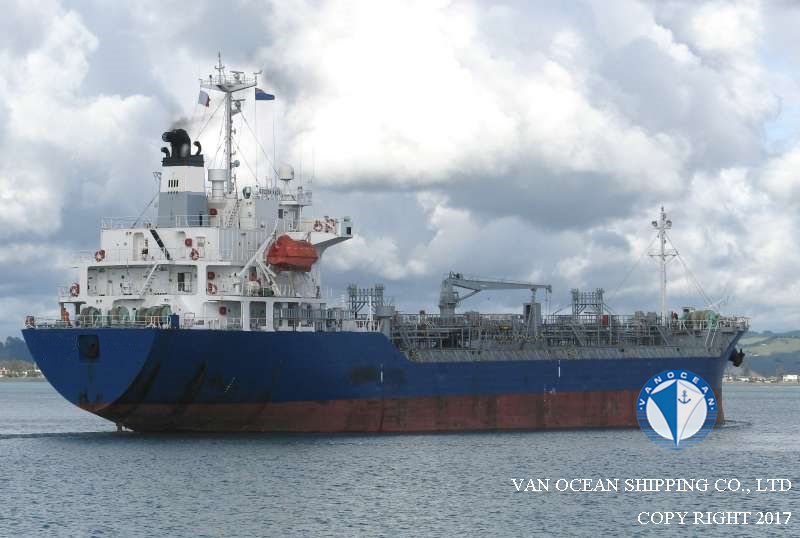

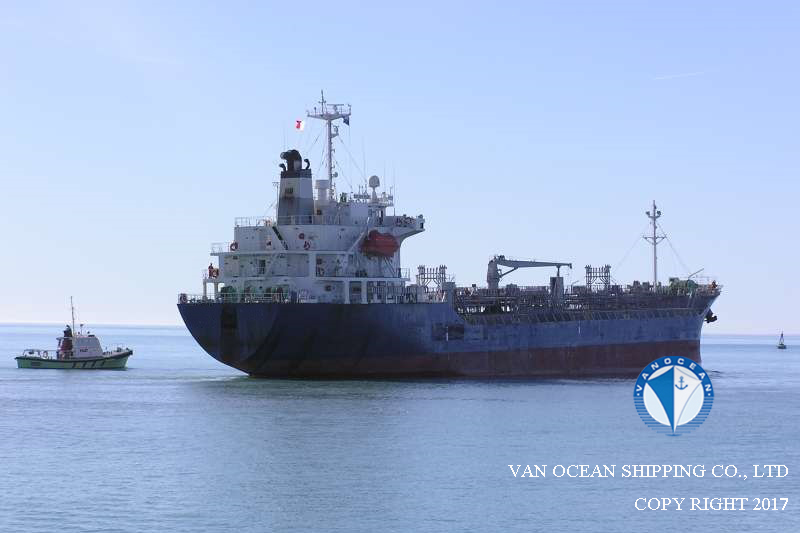

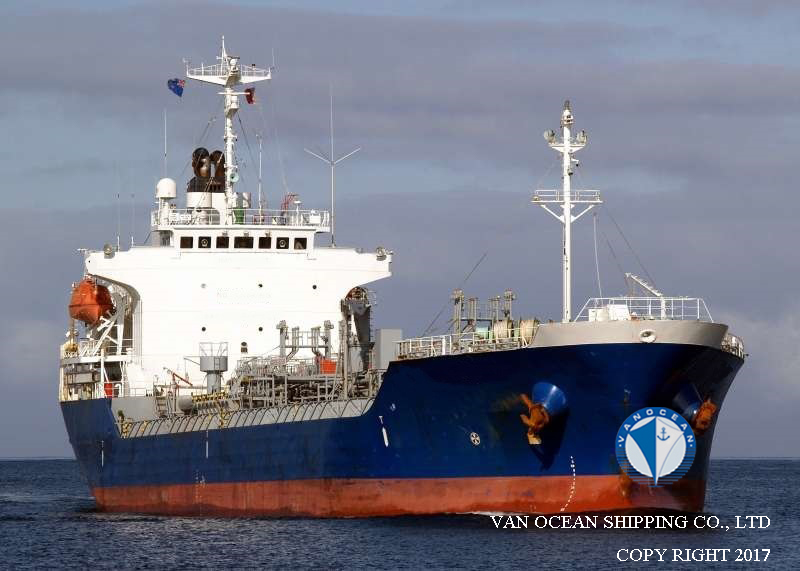

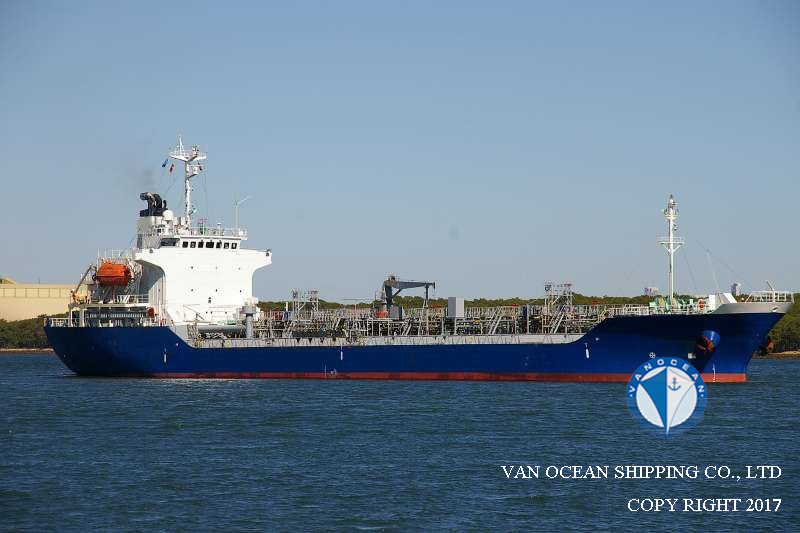

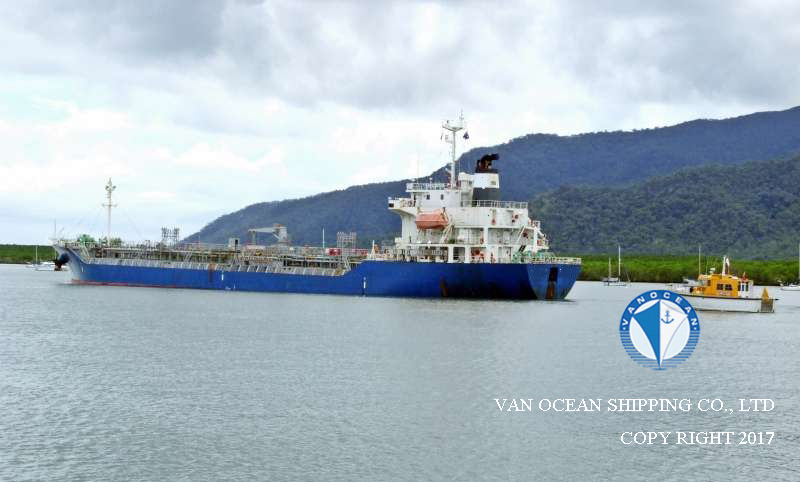

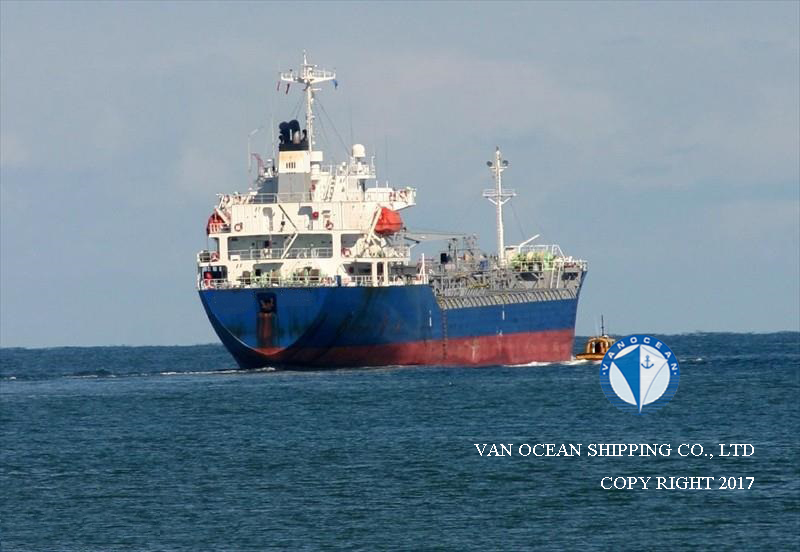

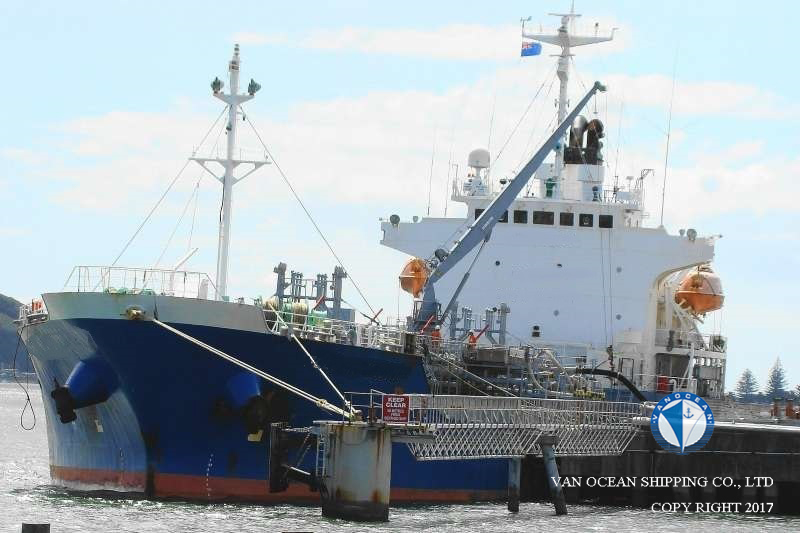

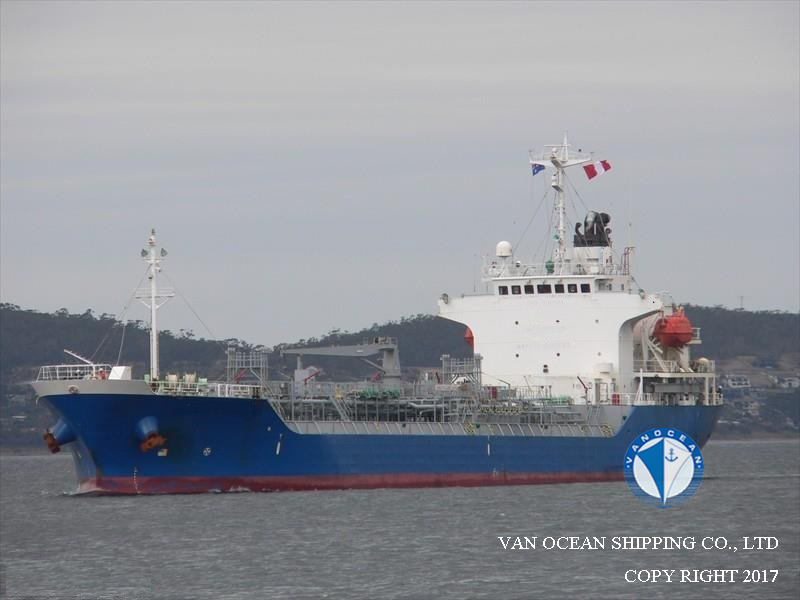

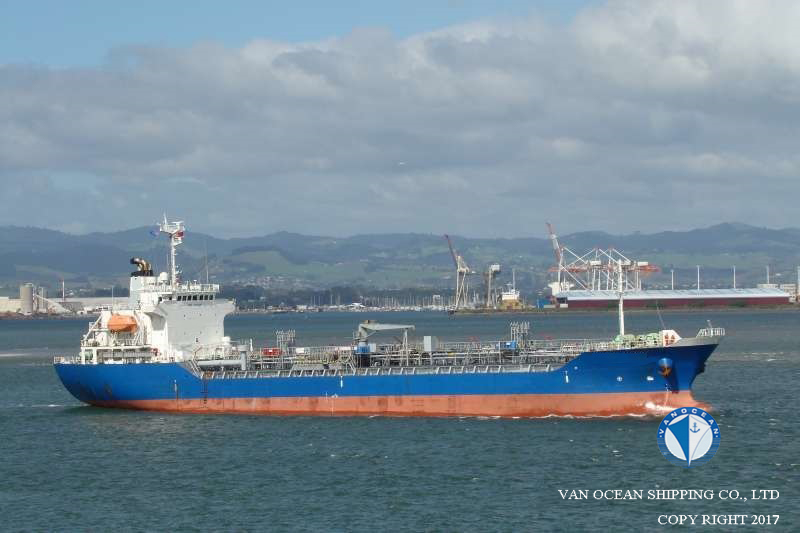

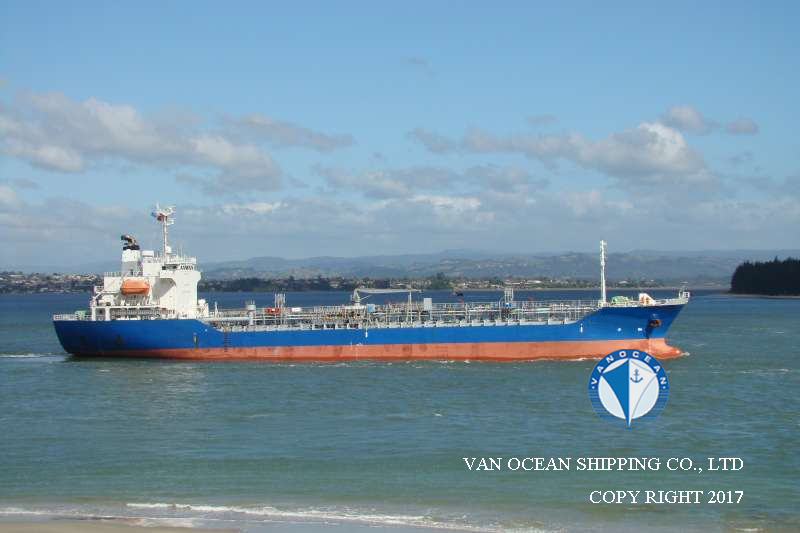

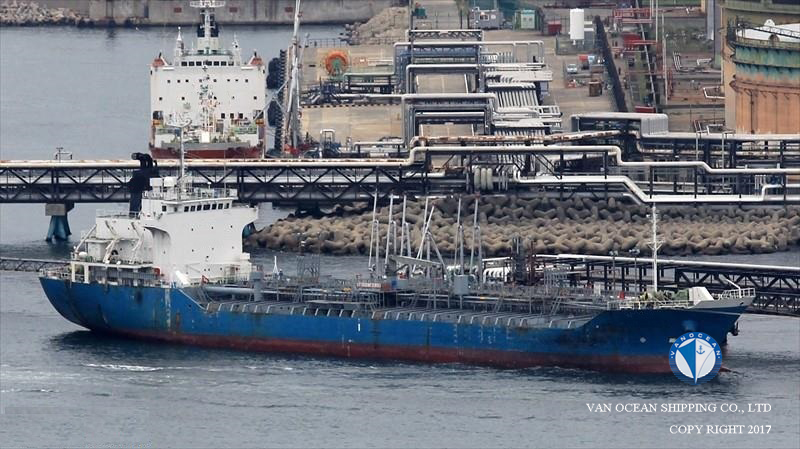

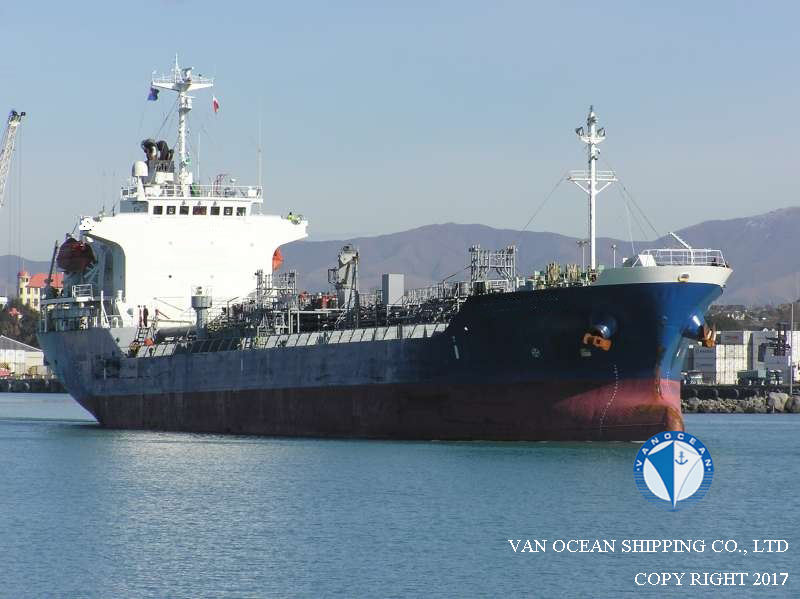

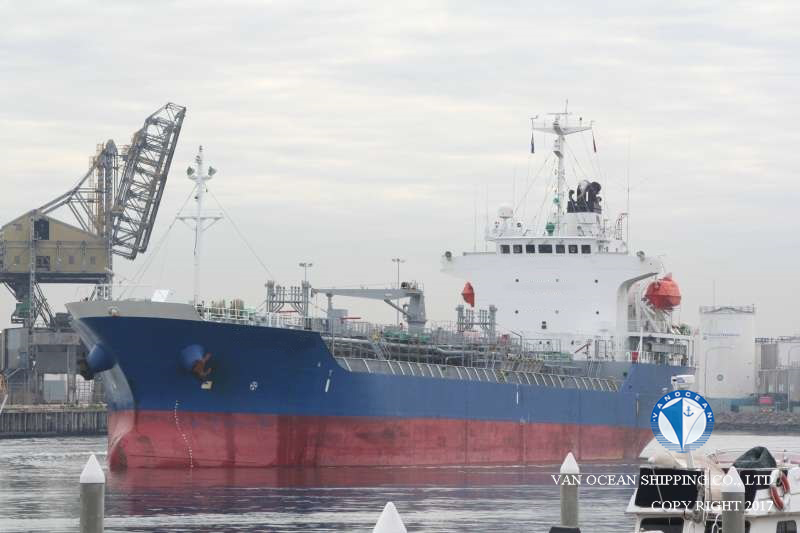

VESSEL NAME
TNK005
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
KOREA
PORT OF REGISTRY
-
BUILT YEAR
1998
BUILT PLACE
HIGSKI SHIPBUILDING CO., LTD. JAPAN
CLASSIFICATION
KR
CLASS NOTATION
IMO II
SS
-
DD
-
LOA (M)
115.44
LBP (M)
106.70
BEAM (M)
18.60
DEPTH (M)
10.50
SUMMER DRAFT (M)
7.74
WINTER DRAFT (M)
7.58
TROPICAL DRAFT (M)
7.90
GT (MT)
5819.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
2742.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
9224.03
WINTER DWT (MT)
8933.77
TROPICAL DWT (MT)
9515.82
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
-
M/E(S)
AKASAKA KOBE 7UEC37LA, 4829BHP 210RPM
M/E POWER (KW)
3604
A/E(S)
-
GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
-
SPEED /CONSUMPTIONS
-
FUEL TYPE
IFO
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
10 + 2
CARGO CAPACITY98% (CBFT)
357448
CARGO CAPACITY98% (CBM)
10126
COATING/MATERIAL OF HOLD(S)
EPOXY COATED
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
3 x 300 CBM/HR
4 x 300 CBM/HR
2 x 150 CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
NO
SIDE THRUSTER(S)
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 2.3 MILLION
REMARK(S)
BOW THRUSTER
