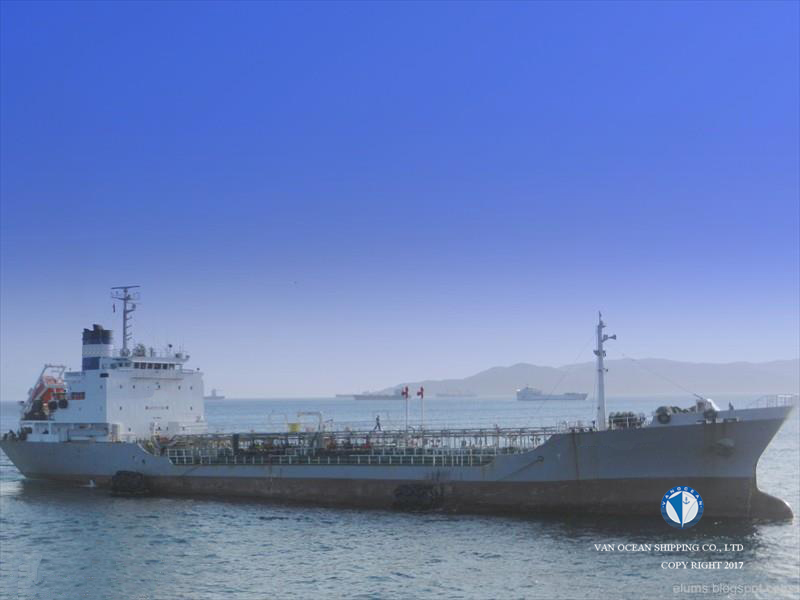

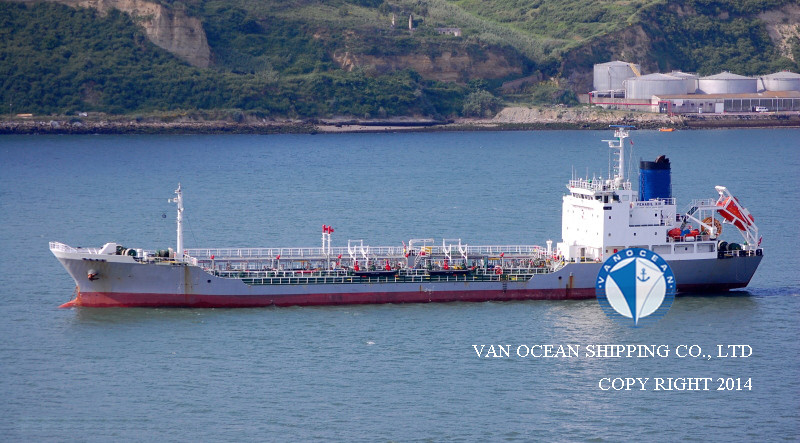

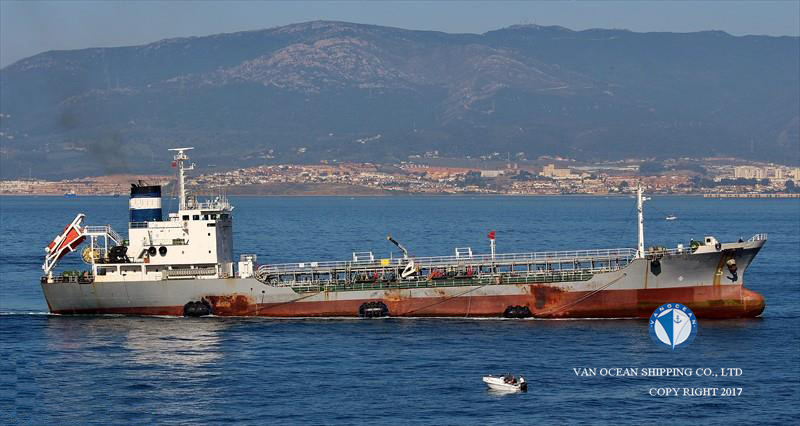

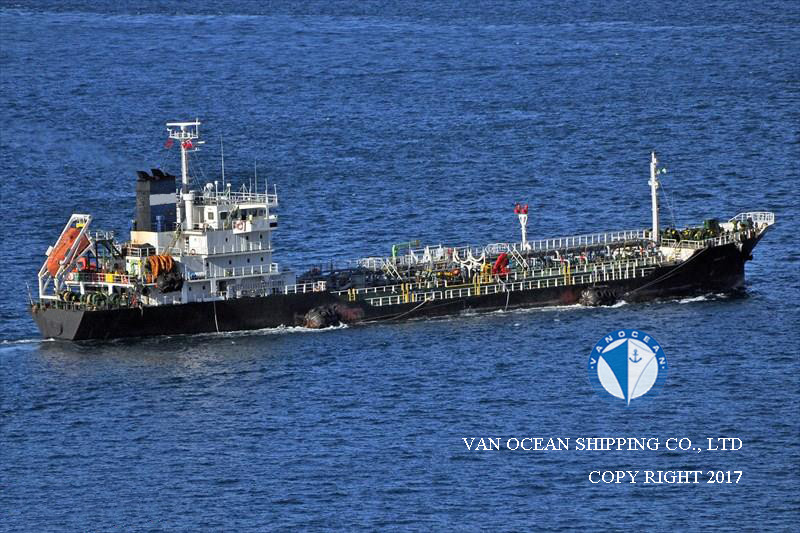

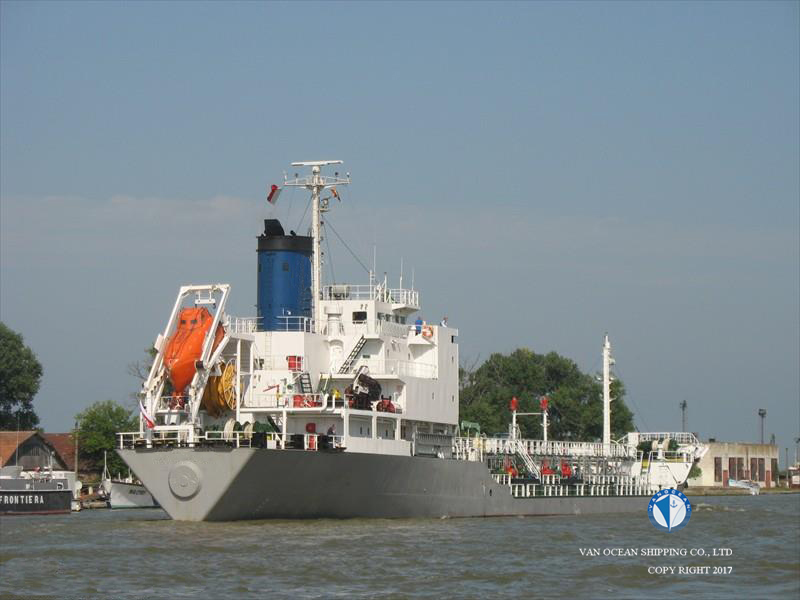

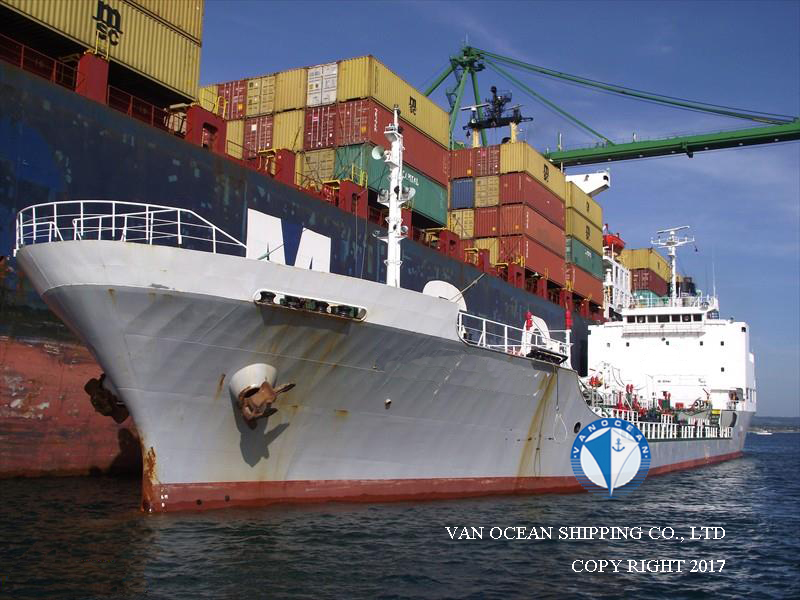

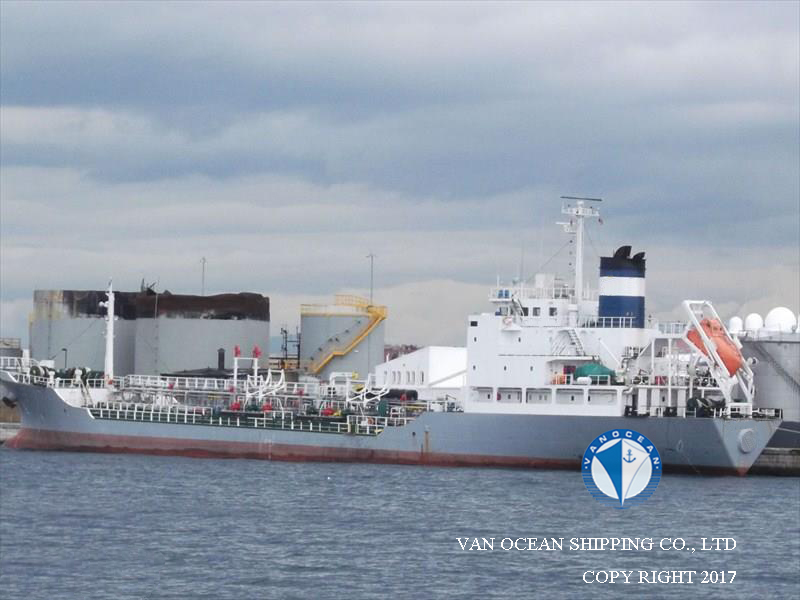

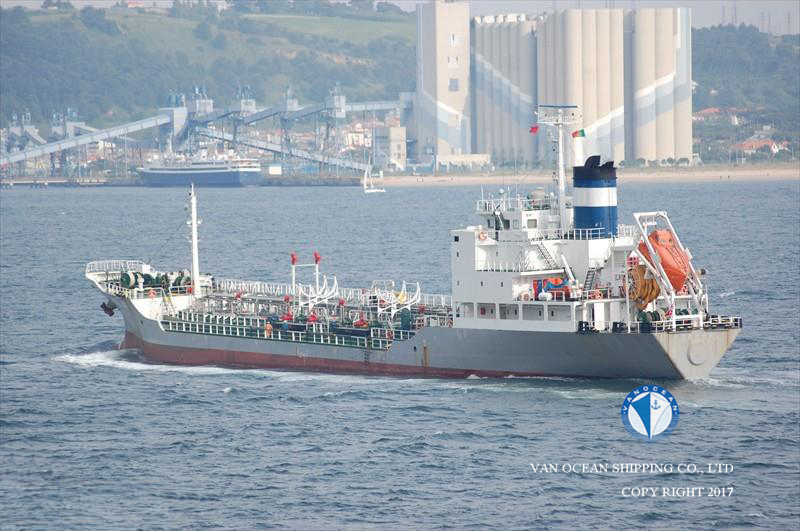

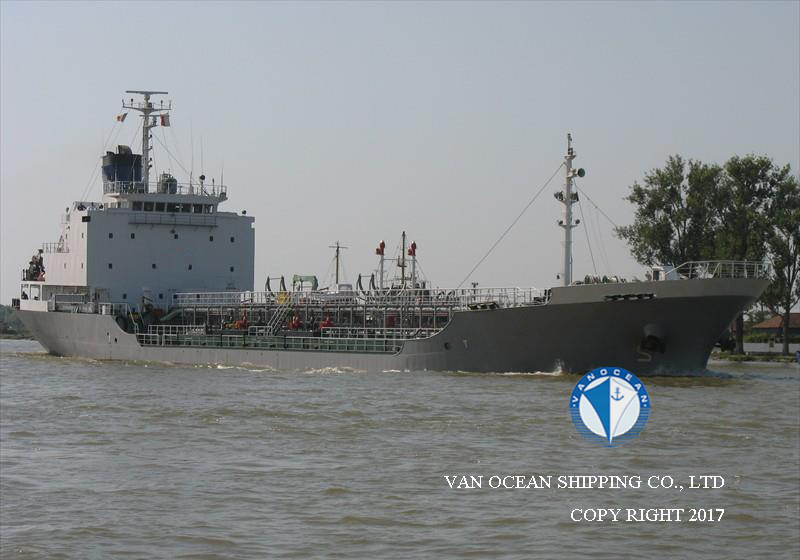

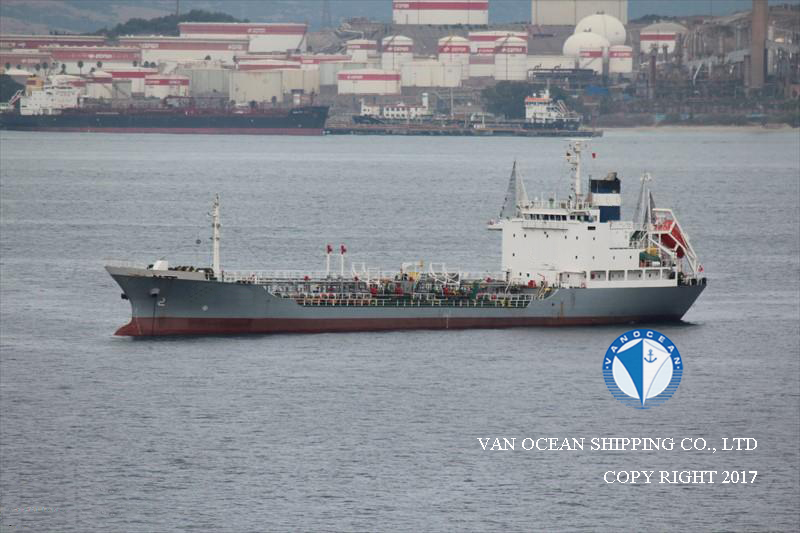

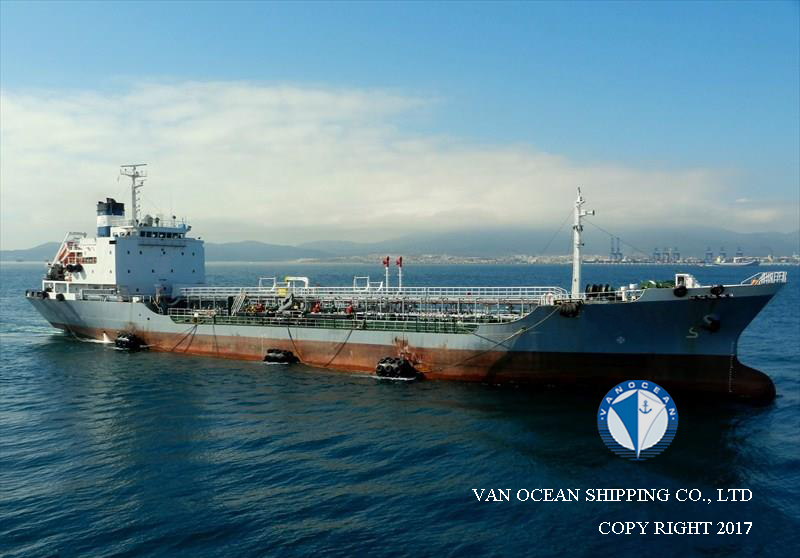

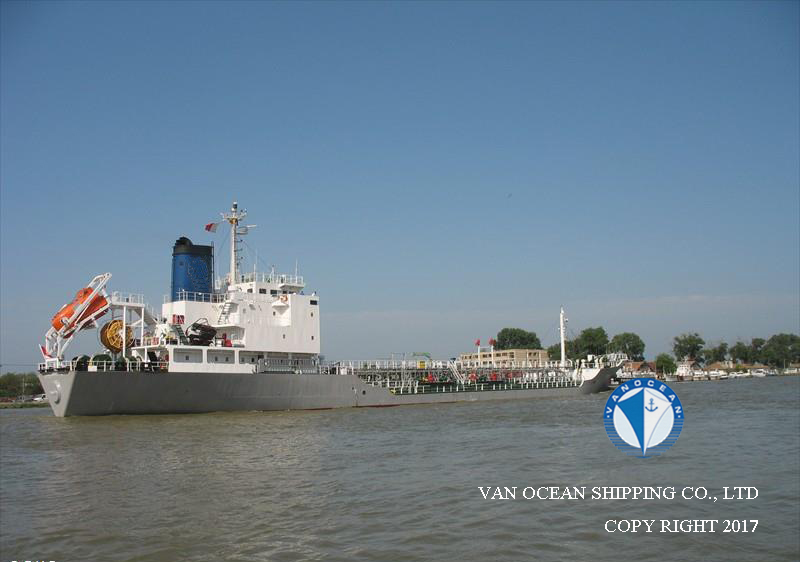

VESSEL NAME
TNK021
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
MALTA
PORT OF REGISTRY
VALLETTA
BUILT YEAR
1993
BUILT PLACE
KURINOURA DOCKYARD CO. JAPAN
CLASSIFICATION
BV
CLASS NOTATION
IMO II & III
SS
PASSED IN 2018-04
DD
PASSED IN 2018-04
LOA (M)
105.00
LBP (M)
-
BEAM (M)
15.23
DEPTH (M)
7.50
SUMMER DRAFT (M)
6.48
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
2992.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1267.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
4825.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
CRANE
M/E(S)
HANSHIN 6LF50A 3997BHP
M/E POWER (KW)
2983
A/E(S)
-
GENERATOR(S)
YANMAR 2 x 200KW
SHAFT GENERATOR(S)
1 x 360KW
PROPELLER(S)
CPP
SPEED /CONSUMPTIONS
13.9KTS
FUEL TYPE
-
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
-
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
10
CARGO CAPACITY98% (CBFT)
160368
CARGO CAPACITY98% (CBM)
4543
COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
STAINLESS STEEL HEATING COILS
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
2 x 1500CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
NO
SIDE THRUSTER(S)
BOW THRUSTER: 1 x 419BHP, 380KW
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 1.5 MILLION
REMARK(S)
CBT/SBT
2 x BOILERS
OSMOSIS: 5-6MT/DAY
AFT SPECIAL ARRANGEMENT FOR STERN BERTHING
STERN LINE, FENDERS, HOSES, SIRE/SHELL APPROVED
TRADING IN MED-BALCK SEA
