VESSEL NAME
TNK047
TYPE
OIL/CHEMICAL TANKER
HULL TYPE
DOUBLE HULL
FLAG
THAILAND
PORT OF REGISTRY
BANGKOK
BUILT YEAR
2002
BUILT PLACE
HIGAKI SHIPBUILDING, JAPAN
CLASSIFICATION
NK
CLASS NOTATION
NS*(CS)(TOB)(ESP)MNS*
SS
-
DD
-
LOA (M)
86.45
LBP (M)
79.95
BEAM (M)
13.60
DEPTH (M)
6.90
SUMMER DRAFT (M)
5.91
WINTER DRAFT (M)
-
TROPICAL DRAFT (M)
-
GT (MT)
2310.00
PANAMA GT (MT)
-
SUEZ GT (MT)
-
NT (MT)
1085.00
PANAMA NT (MT)
-
SUEZ NT (MT)
-
SUMMER DWT (MT)
3418.00
WINTER DWT (MT)
-
TROPICAL DWT (MT)
-
DISPLACEMENT (MT)
-
LDT (MT)
-
GEAR(S)
-
M/E(S)

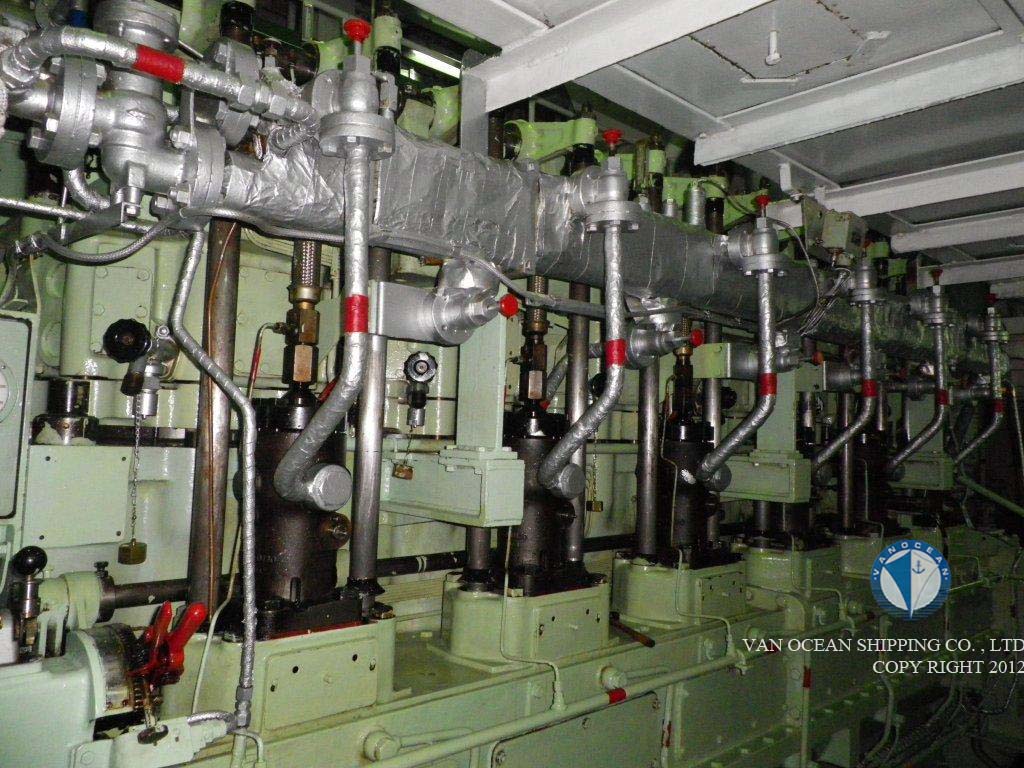

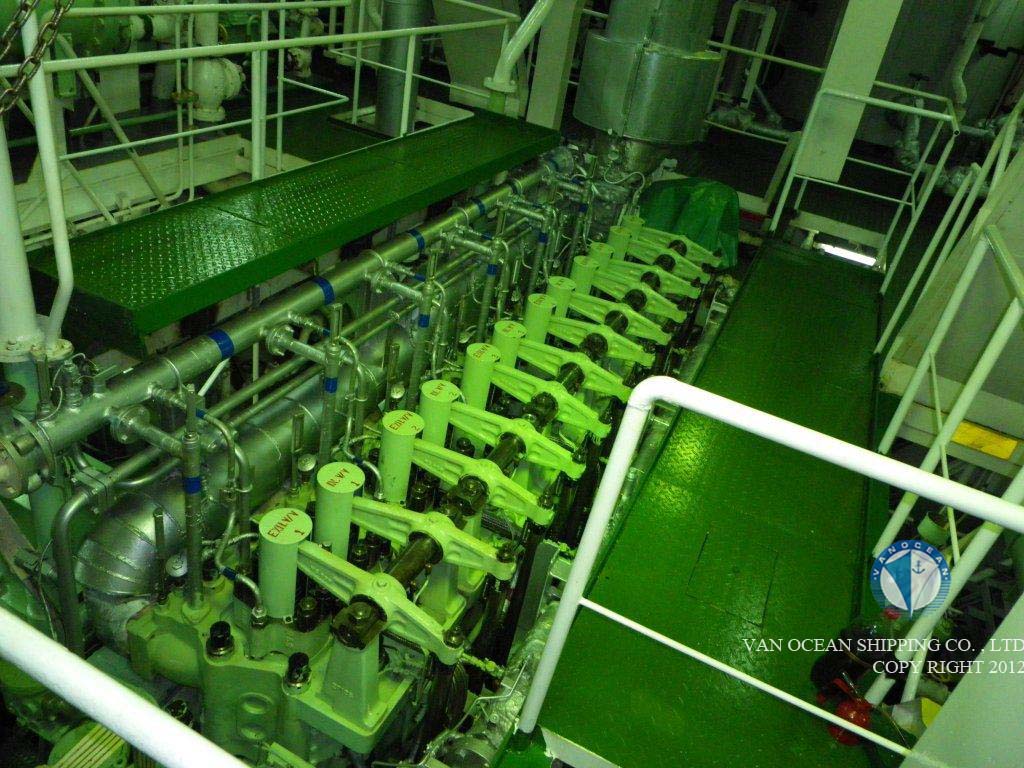

THE HANSHIN DIESEL WORKS, LH32L,4 SA 6 CY
M/E POWER (KW)
1 x 1471KW
A/E(S)
-

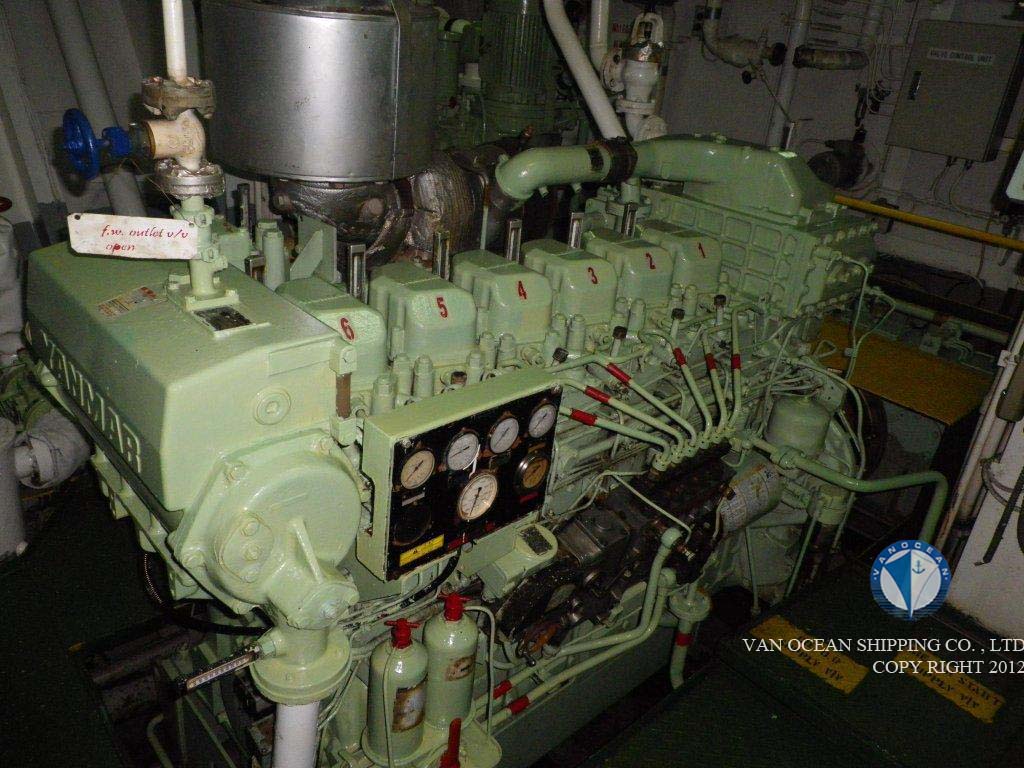

GENERATOR(S)
-
SHAFT GENERATOR(S)
-
PROPELLER(S)
4 BLADES FPP
SPEED /CONSUMPTIONS
12.1
FUEL TYPE
-
BUNKER CAPACITY (CBM)
-
TANKS CAPACITY (CBM)
IFO:173,FRESH WATER:182,BALLAST WATER:954
COMPARTMENT(S)
-
NUMBER OF CARGO HOLDS
-
CARGO CAPACITY98% (CBFT)
113560
CARGO CAPACITY98% (CBM)
3217

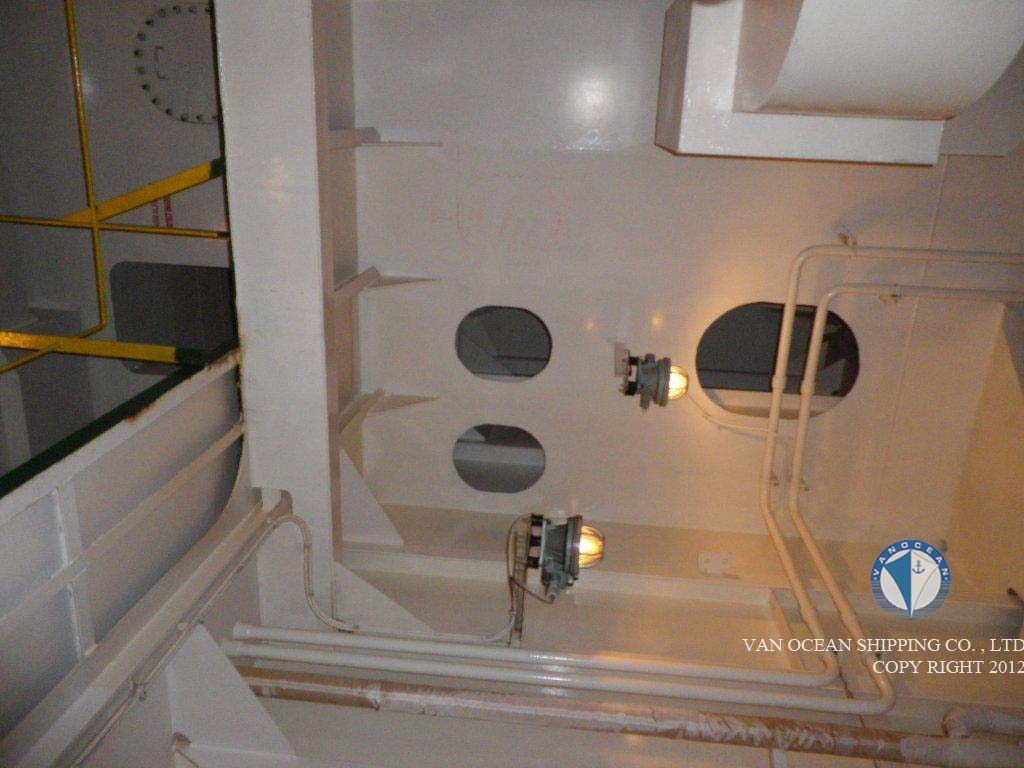

COATING/MATERIAL OF HOLD(S)
EPOXY
HEATING SYSTEM
HEATING COILS
SACRIFICIAL ANODE
-
IGS
-
PUMP(S)
3 x 300CBM/HR
ONE PUMP FOR SINGLE HOLD OR NOT
-
SIDE THRUSTER(S)
-
INSURANCE
-
CREW
-
ACCOMMODATION
-
INSPECTION
-
DELIVERY
-
PRICE
USD 5.5 MILLION
REMARK(S)
-
